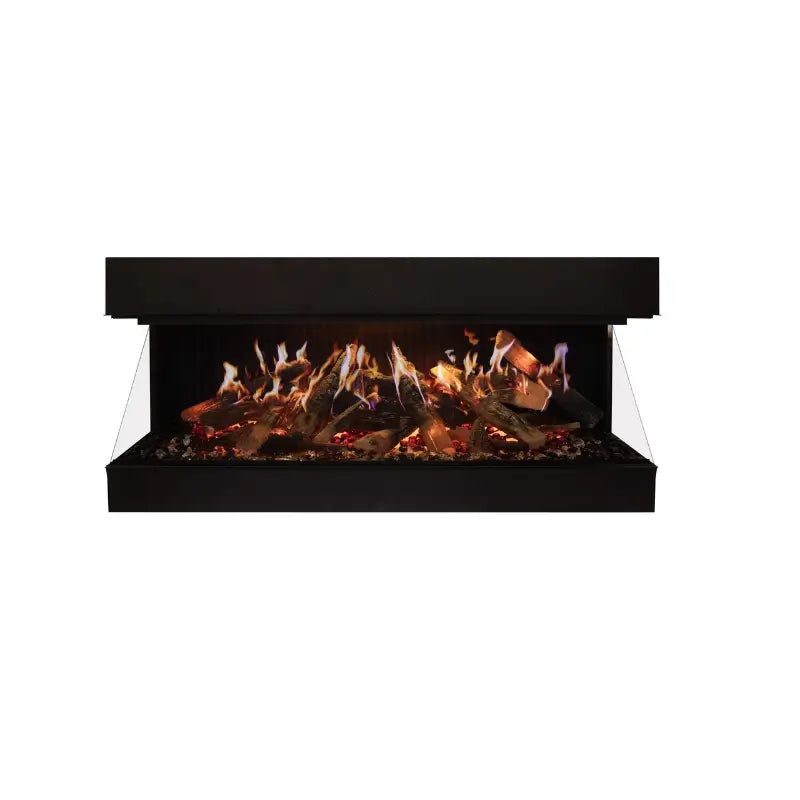

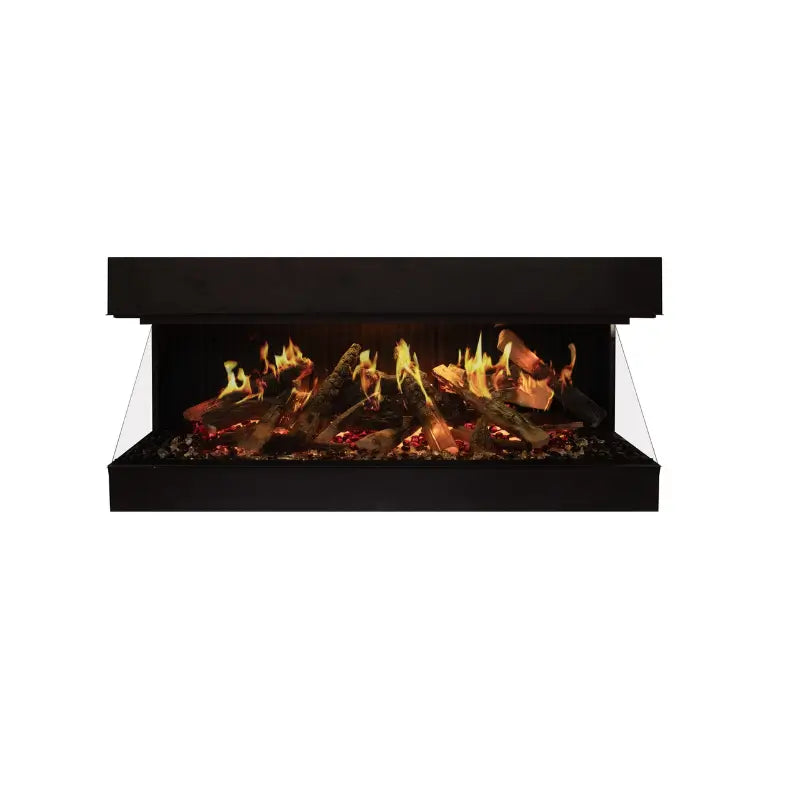

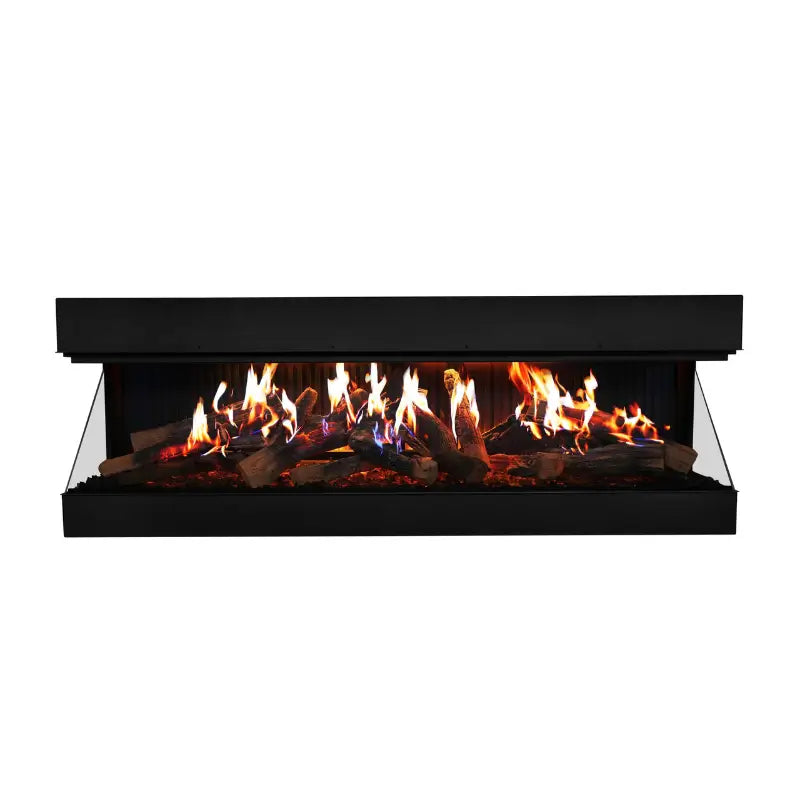

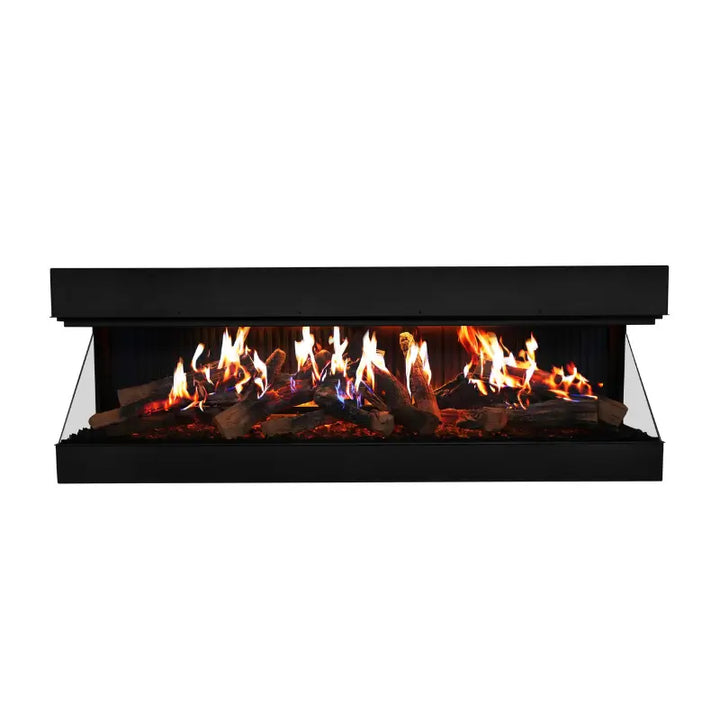

Amantii Signature MultiView Holo 55" Smart 3-Sided Built-In Electric Fireplace with WiFi & Holographic Flames

Why Choose the Amantii MultiView Holo 55?

Choose the MULTIVIEW-HOLO-55-SIG when the fireplace is intended to be an architectural focal point rather than a basic wall heater. The deep firebox, holographic visual system, illuminated media, multiple glass-viewing options, and smart controls make it especially well suited to purpose-built feature walls.

• Holographic flame presentation: Projected imagery creates layered visual depth with flame, smoke, and spark effects.
• Flexible installation: Configure the unit for front-only, left-corner, right-corner, or full three-sided viewing.
• Smart operation: Control supported functions from the Tuya Smart app, handheld remote, or fireplace control panel.
• Dual-voltage heating: Use a 120V configuration for up to 1,500W or a properly installed 240V connection for up to 3,000W.
• Year-round ambiance: Operate the flame and lighting effects without activating the heater.
• Customizable lighting: Adjust flame presentation, top lighting, tray lighting, brightness, and lighting effects.
• Integrated sound: Use the built-in speaker system and adjustable volume to add an audio layer to the fireplace experience.
• Vent-free electric installation: No chimney, flue, gas line, or combustion-air system is required.

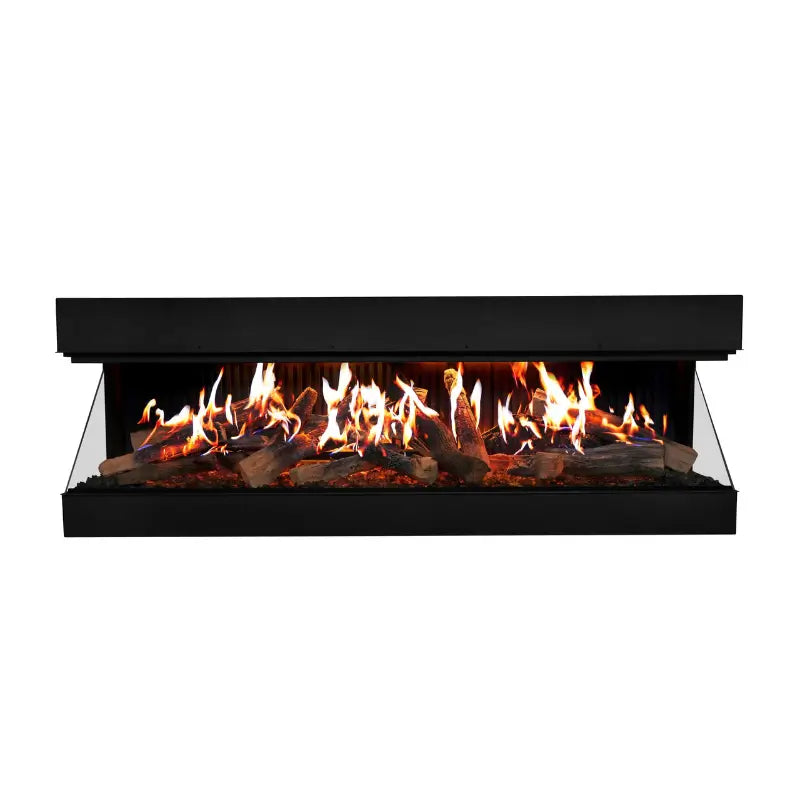

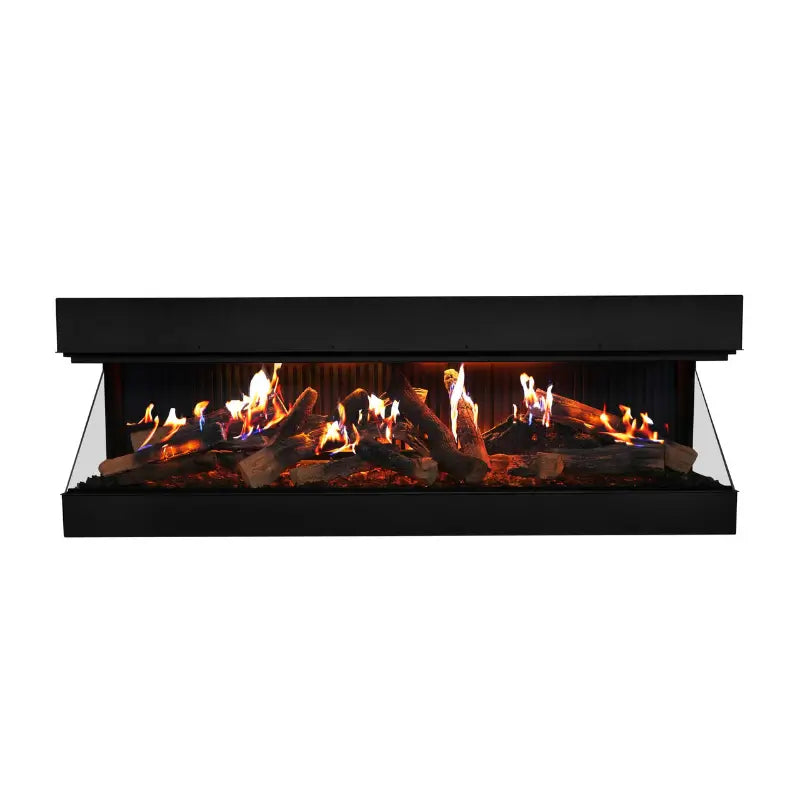

Holographic Flame Technology with Smoke and Spark Effects

The defining feature of the Signature MultiView Holo is its projection-based holographic flame display. Instead of relying only on a shallow illuminated pattern, the visual system combines projected flame imagery with the physical log and media bed to create a deeper, more dimensional fire presentation.

Four flame modes provide different visual patterns, while smoke and spark effects add movement above and around the log presentation. Flame color and brightness controls allow the fireplace to move between a warm, traditional appearance and a more expressive contemporary display.

The brochure describes the system as an ultra-high-definition holographic flame display. Actual appearance will vary with room lighting, viewing angle, media placement, flame mode, and brightness settings. For the intended flame alignment, install the numbered logs in the positions specified by the official log and media installation instructions.

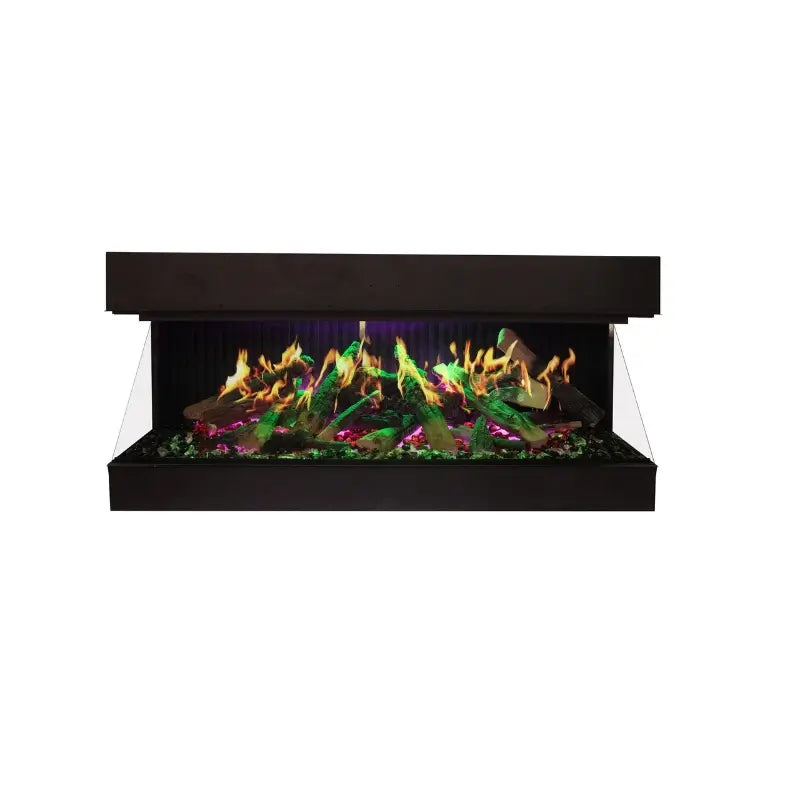

Customizable Flame, Top Lighting, and Ember-Bed Illumination

The MultiView Holo provides separate controls for the flame display, top lighting, and tray or ember-bed lighting. This separation makes it possible to coordinate the flame with the logs and media rather than applying one lighting setting to the entire fireplace.

• Multiple flame modes and colors
• Adjustable flame brightness
• Adjustable top-light colors
• Adjustable tray or ember-bed colors
• High, medium, and low lighting brightness
• Pulsating lighting mode
• Color-changing and gradual color-cycle effects
• Pulsating internally illuminated logs
• Flame and lighting operation without heat

The flame-only setting is useful during warm weather or whenever the visual effect is desired without supplemental heat. The heater operates independently from the flame and decorative lighting system.

Illuminated Logs and Decorative Media

The firebox is designed around a layered log and media presentation. The installation manual identifies numbered log positions and includes seven internally illuminated logs that connect to sockets in the fuel bed. Additional decorative logs and media complete the arrangement.

Correct placement is important. The official manual states that improperly positioned logs can produce an incorrect flame appearance. Follow the numbered installation sequence and avoid damaging the electrical connectors attached to the illuminated logs.

The angle glass must be removed to install or rearrange the media. The manual recommends using the supplied suction cup and having multiple people assist with the glass removal process. Reinstall the glass before operating the completed fireplace.

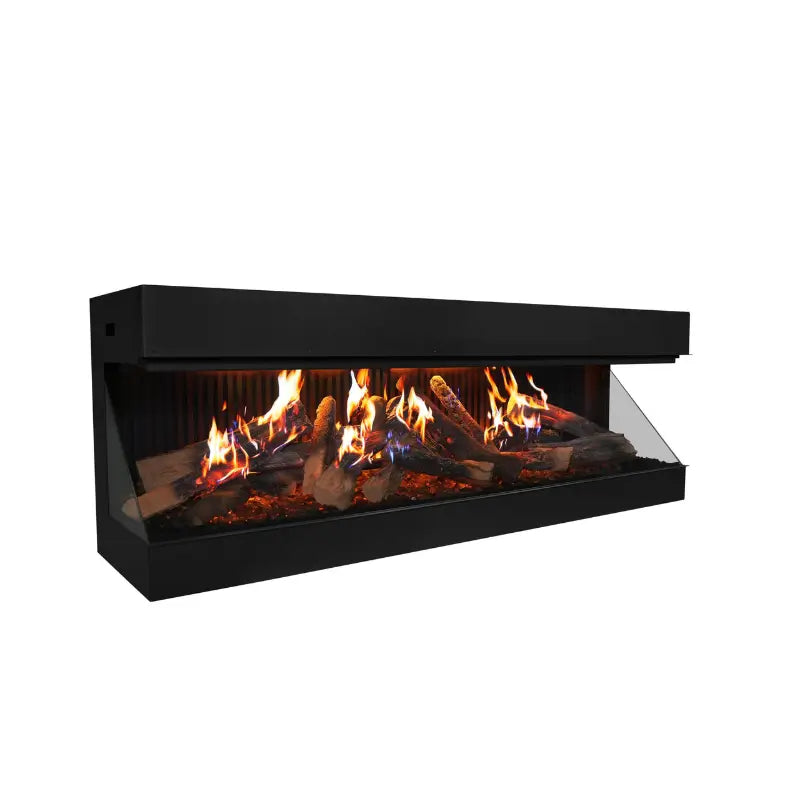

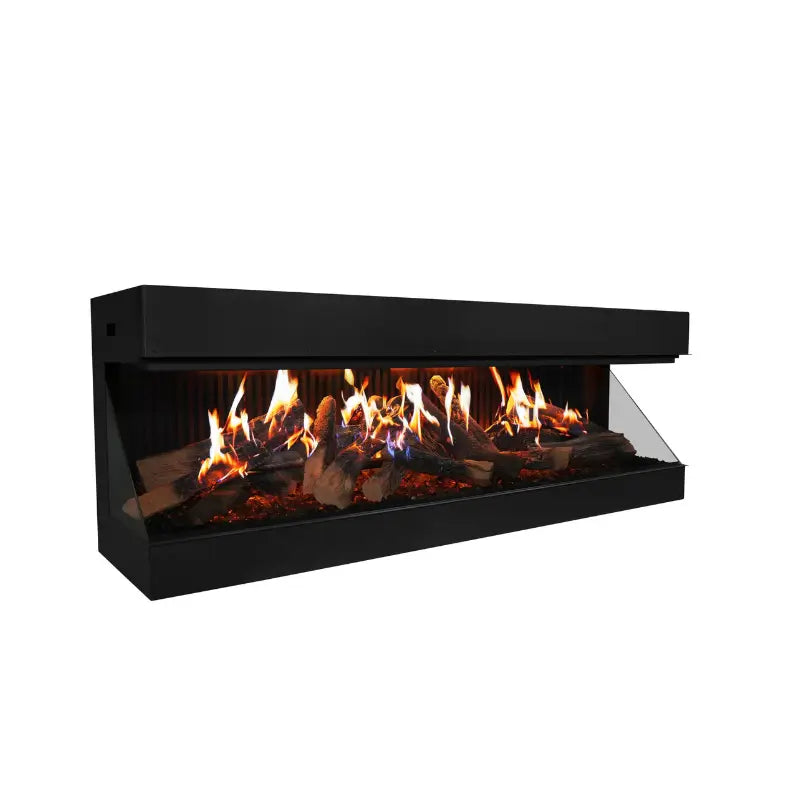

Four Built-In Viewing Configurations

The fireplace includes removable side fending panels that determine which glass surfaces remain visible. This allows one model to support several architectural layouts.

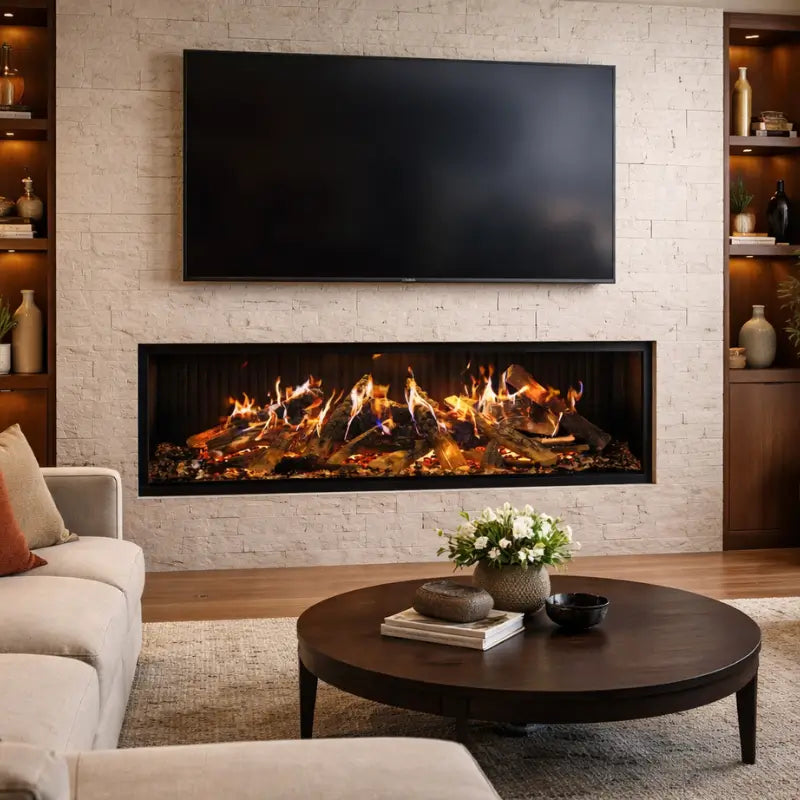

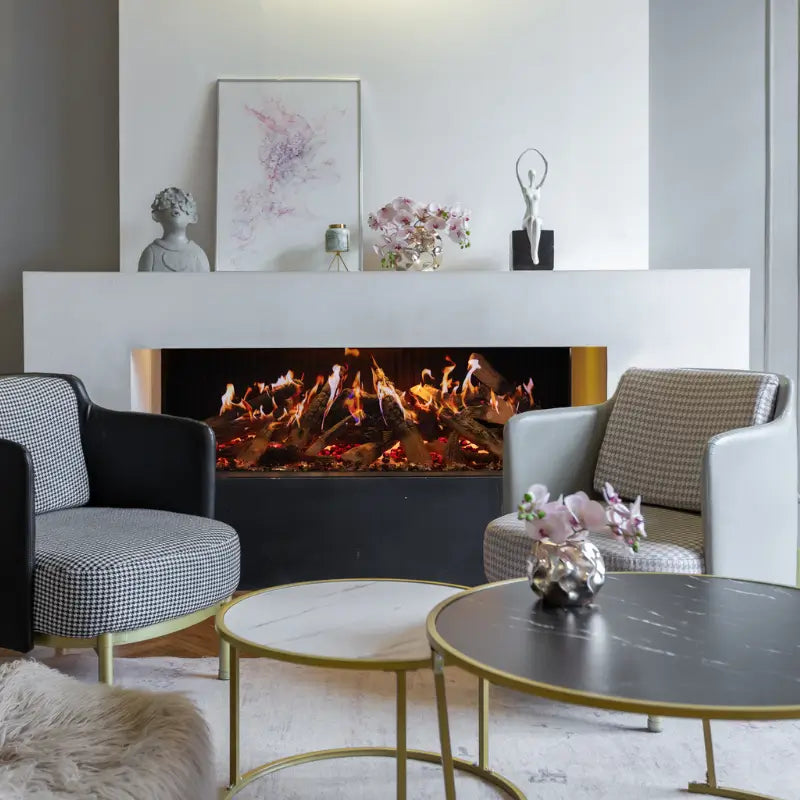

Front-Facing Installation

Keep both side panels in place for a conventional single-sided fireplace. This configuration is appropriate when the firebox is recessed into a flat wall and only the front viewing area should remain visible.

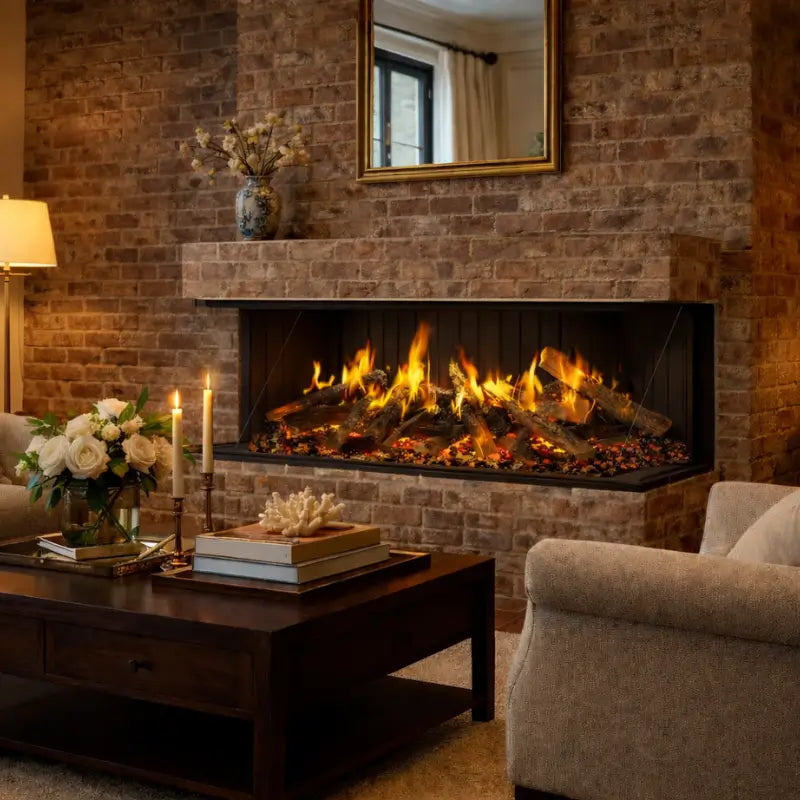

Front and Left-Side Viewing

Remove the left-side panel to expose the front and left glass. Use this configuration when the right side of the fireplace is positioned against or integrated into the adjoining wall.

Front and Right-Side Viewing

Remove the right-side panel to expose the front and right glass. Use this configuration when the left side of the fireplace is positioned against or integrated into the adjoining wall.

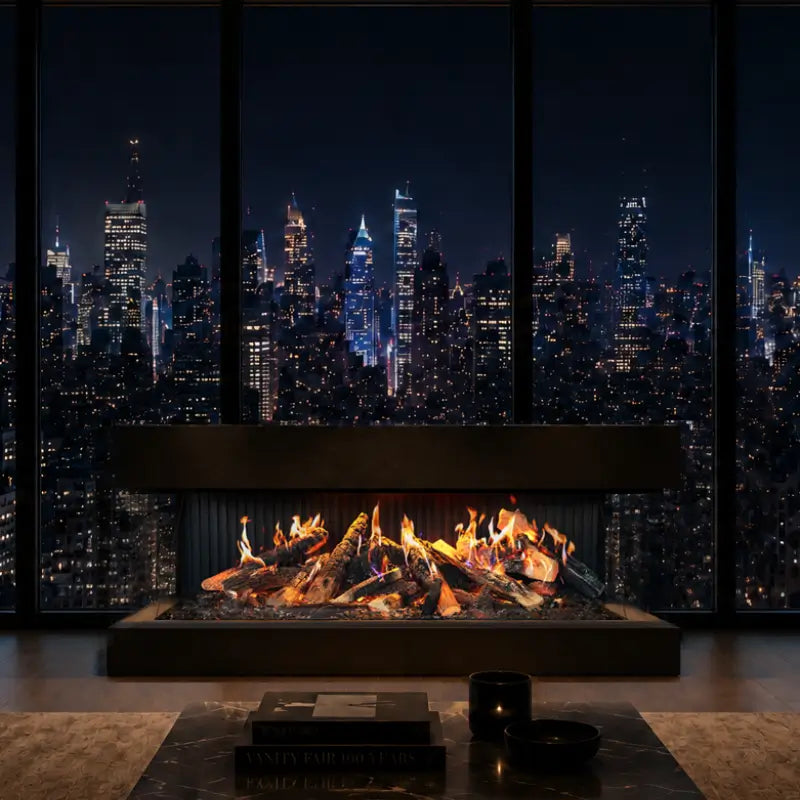

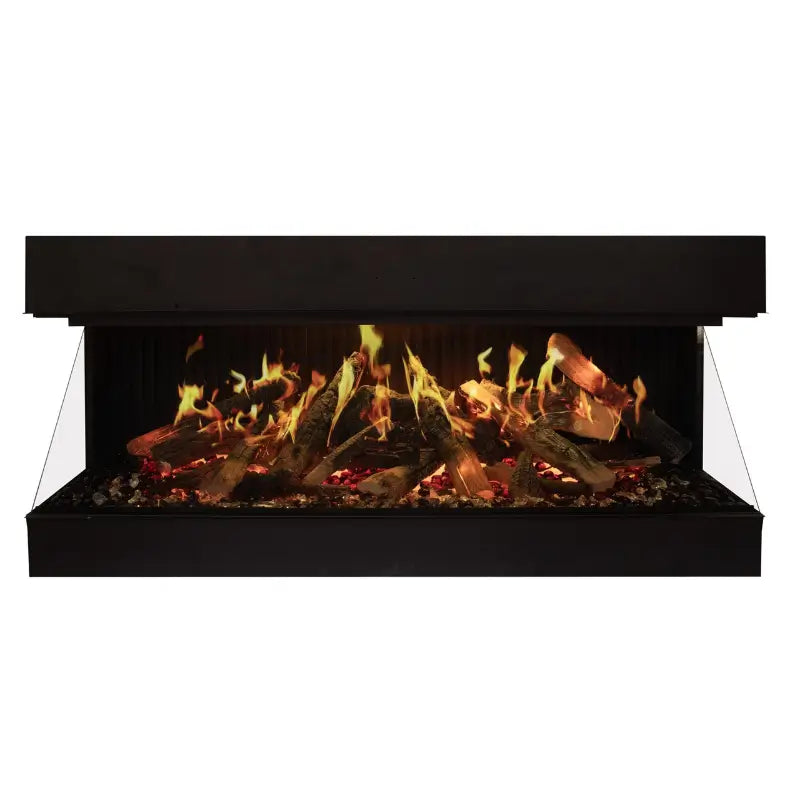

Three-Sided Panoramic Installation

Remove both side panels to expose the front, left, and right viewing surfaces. This arrangement is designed for projecting feature walls, room dividers, and other installations where the fireplace can be viewed from several directions.

The fending bars must be reinstalled after the selected side panels are removed. Follow the installation sequence in the owner’s manual rather than removing structural or protective components that are not identified for the chosen configuration.

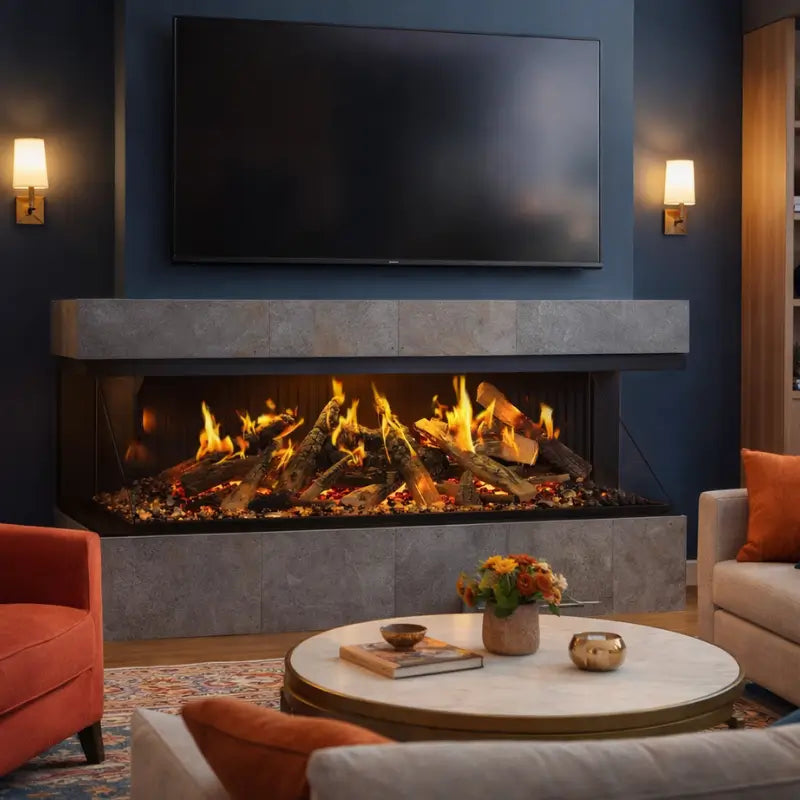

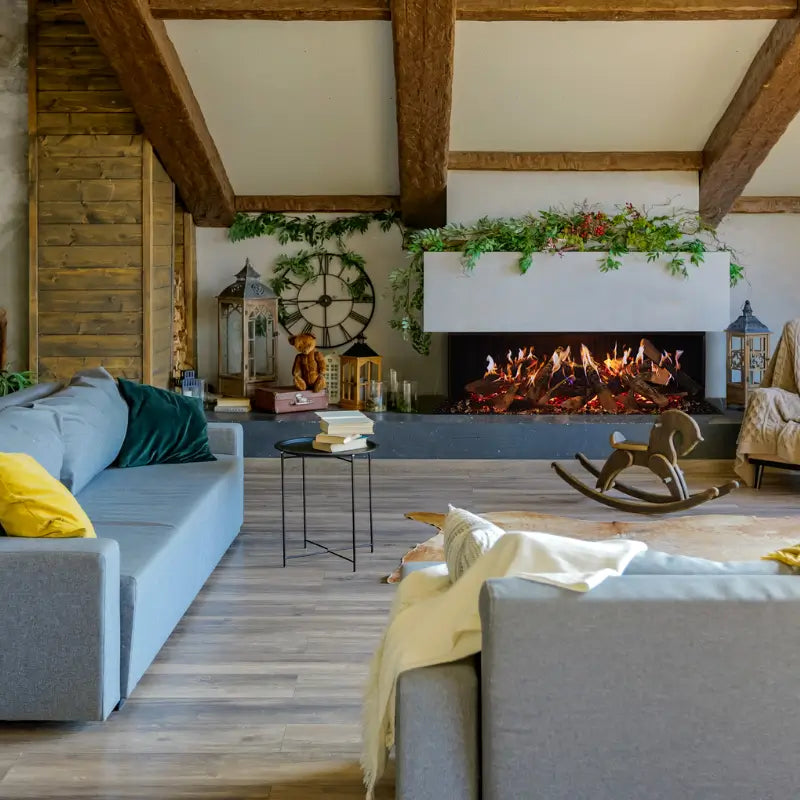

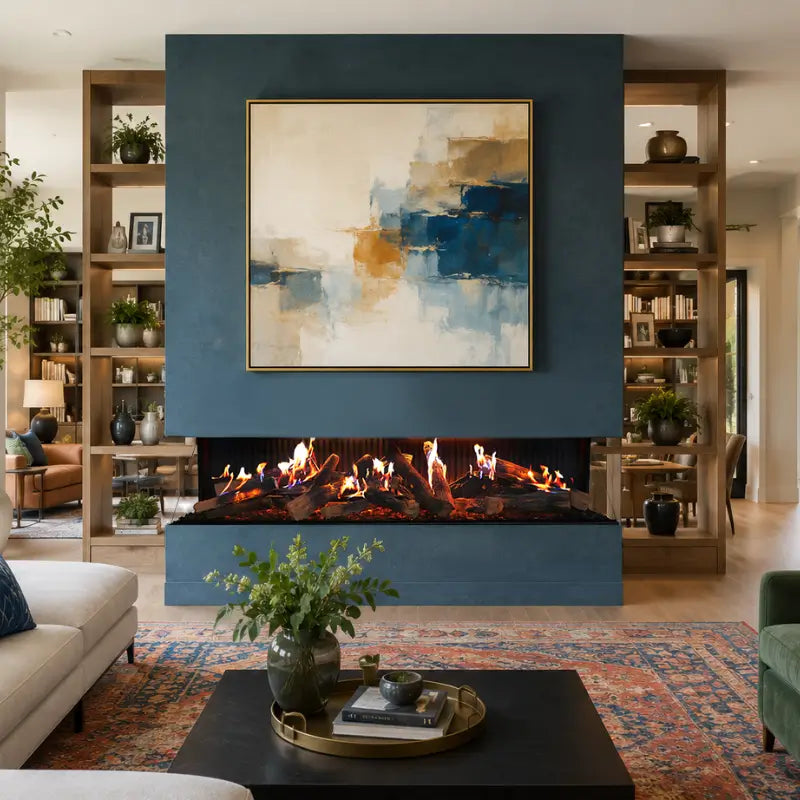

Designed for Media Walls and Architectural Features

The MultiView Holo is a strong option for a purpose-built media wall because its deep firebox, illuminated logs, and side-viewing flexibility create a more dimensional presentation than a shallow wall-mounted fireplace. It can be integrated with cabinetry, shelving, stone, tile, drywall, or other approved finishing materials.

The installation manual allows finishing material to be brought down toward the glass edge as illustrated in the manufacturer’s installation diagrams. Before adding a television, mantel, cabinetry, or heat-sensitive finish above the unit, the designer and installer must account for the required fireplace clearances and the requirements of every nearby component.

The fireplace manual specifies a minimum mantel clearance of six inches, measured from the glass front. A television manufacturer or finish-material manufacturer can require a greater separation, so the most restrictive requirement governs the final design.

WiFi App, Remote, and Manual Fireplace Controls

The fireplace can be operated from its front control panel, the included remote control, or the Tuya Smart mobile app. The app is available through supported Apple and Android app stores. Initial pairing requires an available WiFi network, the phone’s WiFi and location services, and close proximity to the fireplace during setup.

Available Control Functions

• Fireplace power
• Flame mode
• Flame color
• Flame brightness
• Top-light color and brightness
• Tray or ember-bed light color and brightness
• Heater level
• Thermostat temperature
• Timed shutoff
• Speaker sound and volume
• Device sharing through the app

The remote has an effective operating range of up to approximately 13 feet under suitable conditions. WiFi availability and app operation depend on the home network, mobile device, app availability, and correct pairing.

Integrated Speaker and Adjustable Sound

An integrated speaker system adds sound to the fireplace presentation. The volume control provides six settings from off through maximum volume. Sound can be turned off independently when a silent visual display is preferred.

The speaker is an ambiance feature and should not be treated as a replacement for a dedicated home audio system. Available functions depend on the supplied controls and current product configuration.

Dual-Voltage Supplemental Heating

The MULTIVIEW-HOLO-55-SIG supports two electrical configurations. At 120V, the heater provides low and high heat settings of approximately 750W and 1,500W. When correctly converted and hardwired for 240V, the heater provides approximately 1,500W on low and 3,000W on high.

The technical specification sheet lists an approximate heating area of up to 400 square feet. Heating performance depends on ceiling height, insulation, windows, outdoor temperature, room layout, and other heat-loss conditions. Use the fireplace as supplemental zone heat rather than as a guaranteed whole-home or sole primary heating system.

Thermostat and Timed Shutoff

The remote provides thermostat settings from approximately 60°F to 88°F or 16°C to 30°C. When the room temperature is above the selected temperature, the thermostat prevents the heater from activating until additional heat is required.

The timed-shutoff function can be set from 60 to 480 minutes in one-hour increments. When the selected period expires, the fireplace turns off automatically. This timer is part of the fireplace’s approved control system; do not connect the appliance to an external timer or third-party switching device that automatically controls power.

Electrical Requirements

A properly grounded branch circuit must be available at the installation location. The manual recommends a dedicated circuit to reduce nuisance breaker trips or blown fuses.

Hardwiring must be completed by a qualified electrician. When the appliance is hardwired, the factory power cord must be removed and the wiring completed in accordance with the diagram attached to the appliance and the current installation manual.

The 240V conversion requires changes to the internal wiring configuration, including removal of the identified neutral short-circuit connectors. Do not attempt this conversion without the official wiring diagram and a qualified electrical professional.

Dimensions and Framing Information

The MultiView Holo is sold as a nominal 55-inch fireplace. The supplied brochure, installation manual, and CSA technical drawing display different measurements for certain overall depth, body-width, and framing references. This likely reflects differences between the nominal viewing width, appliance body, projections, and framing method.

Important: Do not construct the final enclosure from a product-page summary. Confirm the physical unit and use the latest model-specific installation manual, assembly instructions, and technical drawing before framing. Resolve any dimensional discrepancy with the manufacturer or authorized dealer before construction begins.

Installation Requirements and Planning Notes

• Indoor built-in installation only.
• Test the fireplace before enclosing it inside the finished wall.
• Provide the required wall, ceiling, mantel, and combustible-material clearances.
• Keep the fireplace screen away from direct sunlight where possible for the best flame visibility.
• Use wall framing capable of supporting the appliance and finish materials.
• Secure the fireplace through the manufacturer-designated safety screw areas and framing plates.
• Use a qualified electrician for hardwired 120V or 240V installation.
• Follow local electrical and building codes.
• Protect the glass while drywall, tile, stone, or other finishing work is completed.
• Maintain access required for electrical service and future appliance maintenance.
• Install the decorative logs in the manufacturer-specified positions.
• Do not block the heater inlet, outlet, or ventilation openings.

The manual requires combustible materials such as furniture, bedding, paper, clothing, and curtains to remain at least three feet from the front of the heater. A mantel must remain at least six inches from the glass front unless another component requires greater clearance.

Consult a local builder before installing the appliance into a wall made from unfamiliar or specialized materials. Bathroom installations require consultation with a professional electrician and compliance with all applicable code requirements.

Technical Specifications

What Is Included

• Amantii MULTIVIEW-HOLO-55-SIG built-in electric fireplace
• Front and side glass components
• Remote control
• Decorative log and media components
• Seven internally illuminated logs
• Framing plates and specified installation hardware
• Suction cup for angle-glass removal
• Installation and owner’s documentation

Verify the carton contents against the current assembly and installation instructions before starting construction. Report missing or damaged components before enclosing the fireplace.

Who Is This Fireplace Best For?

The MultiView Holo 55 is a strong choice for:

• Custom media walls
• Luxury living rooms and great rooms
• Open-concept residential interiors
• Corner fireplace installations
• Three-sided room features
• Designers seeking a deep, dimensional electric fire presentation
• Homes without a chimney or gas line
• Projects requiring flames without year-round heat
• Rooms that benefit from supplemental zone heating
• Commercial reception, hospitality, or display interiors where permitted by code

Do not choose this model when the project requires an outdoor-rated fireplace, a portable heater, a shallow surface-mounted unit, or a guaranteed primary heat source for the entire home. Its deep built-in design requires advance framing, finish planning, and electrical coordination.

One-Year Limited Manufacturer Warranty

The supplied owner’s manual provides a one-year limited warranty against qualifying defects in materials and workmanship under normal use and service. Coverage applies to the original purchaser, requires proof of purchase from an authorized supplier, and is subject to the exclusions and limitations in the written warranty.

The warranty does not cover labor, installation, construction, transportation, or other incidental service costs. Improper installation, unauthorized modification, misuse, accidents, abuse, and prolonged exposure to moisture or condensation can void coverage. The manual also excludes the plastic tray, LED lights, back glass, and front glass from the limited warranty. Review the complete warranty before installation.

Product Resources and Downloads

• MultiView Holo 55/75 Assembly Instructions
• Installation and Owner’s Manual
• MultiView Holo Product Brochure
• 55-Inch CSA Technical Specification Sheet
• Tuya Smart WiFi Instructions
