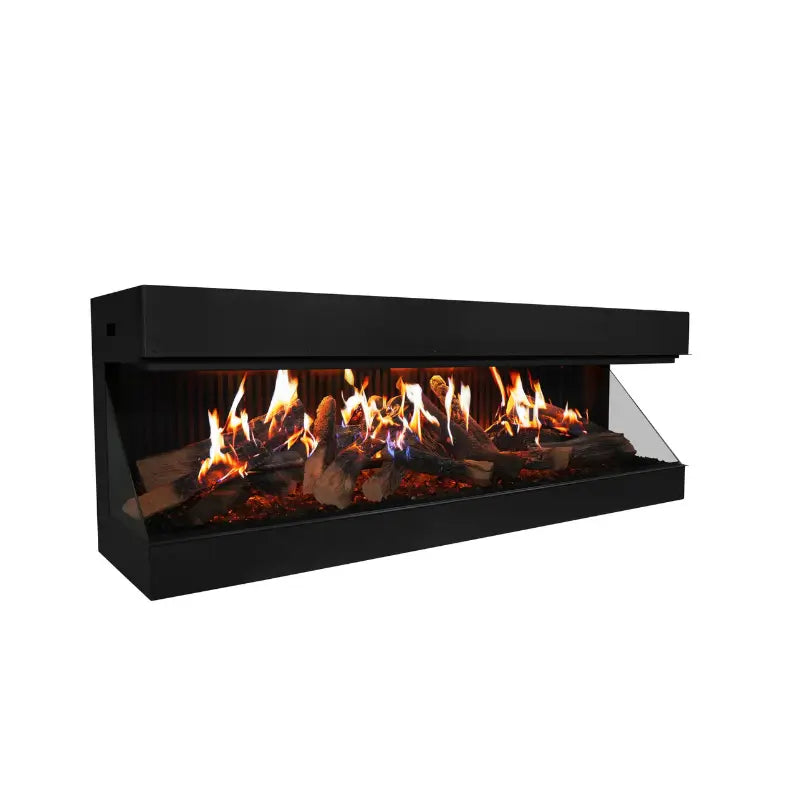

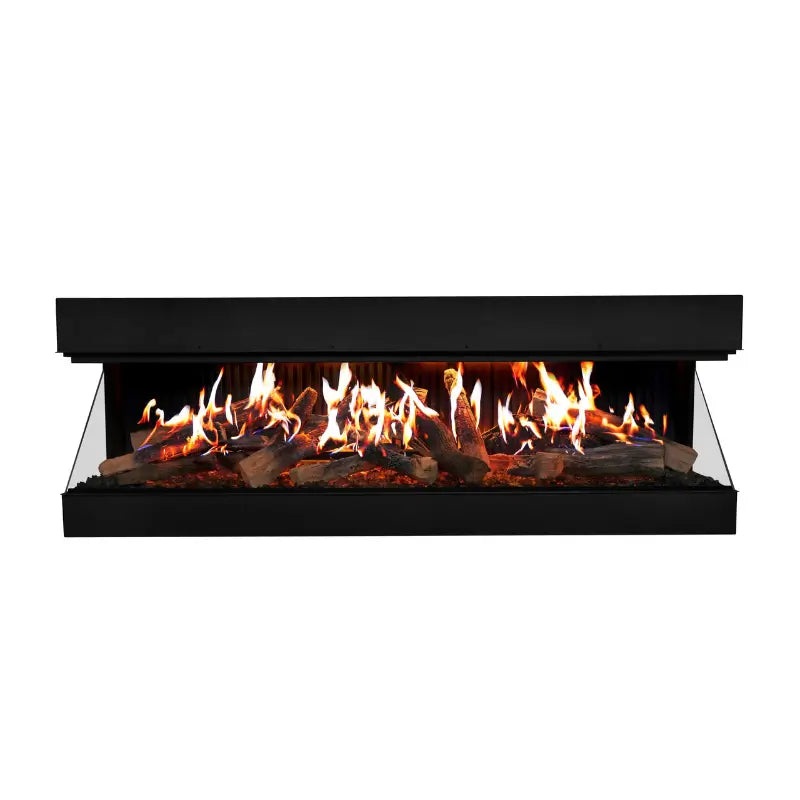

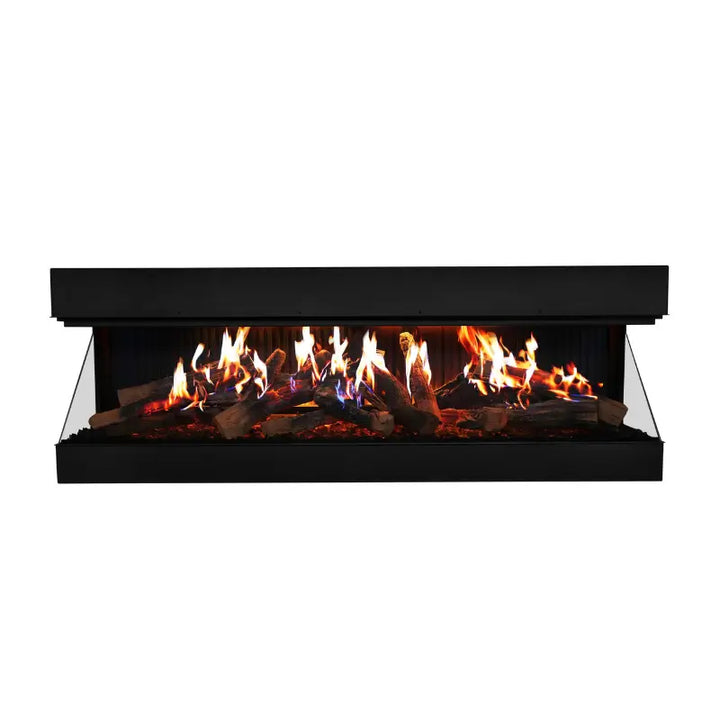

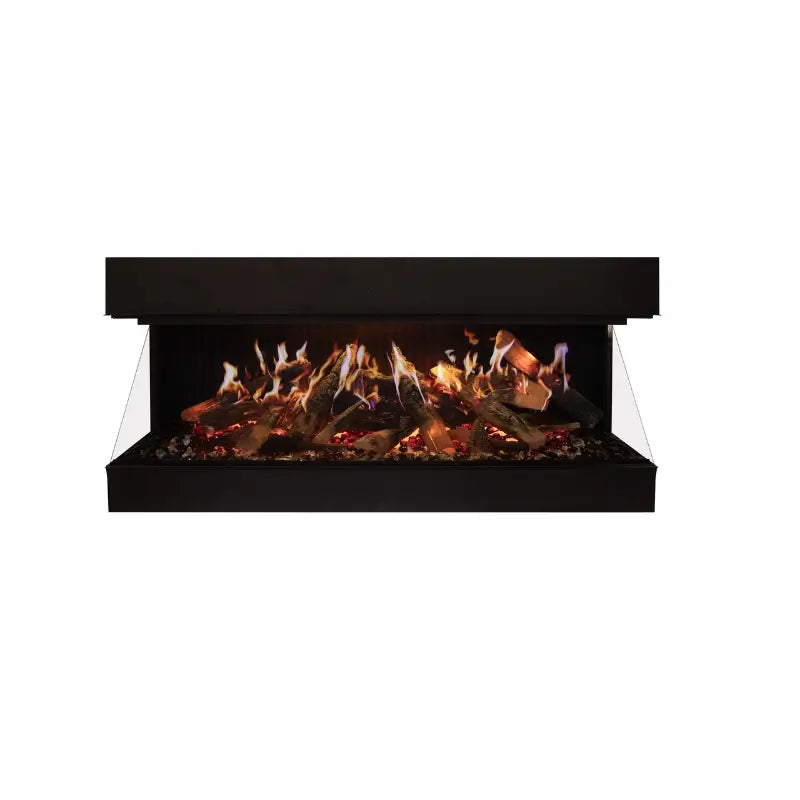

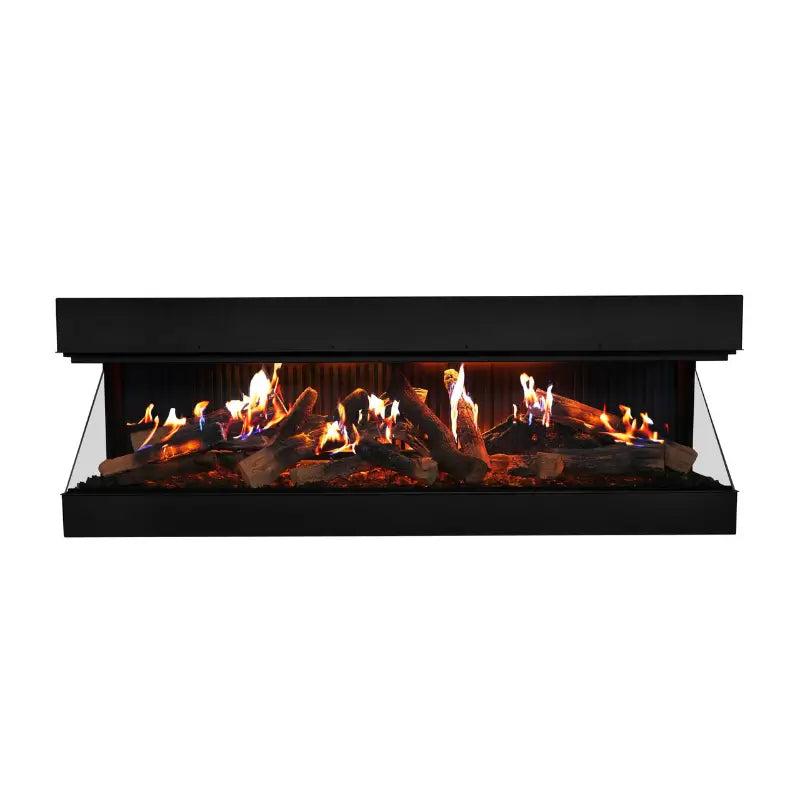

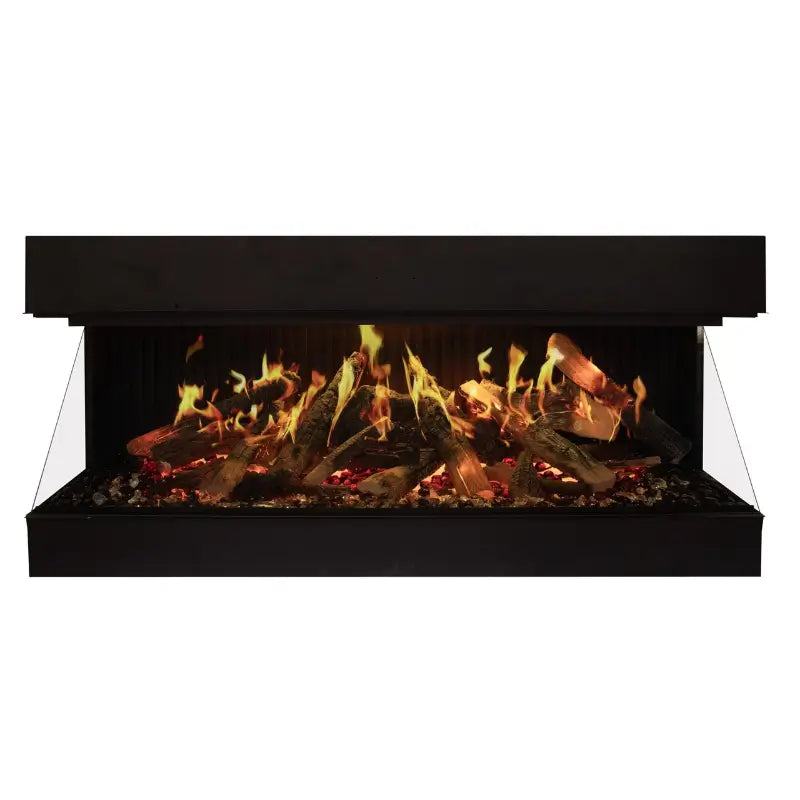

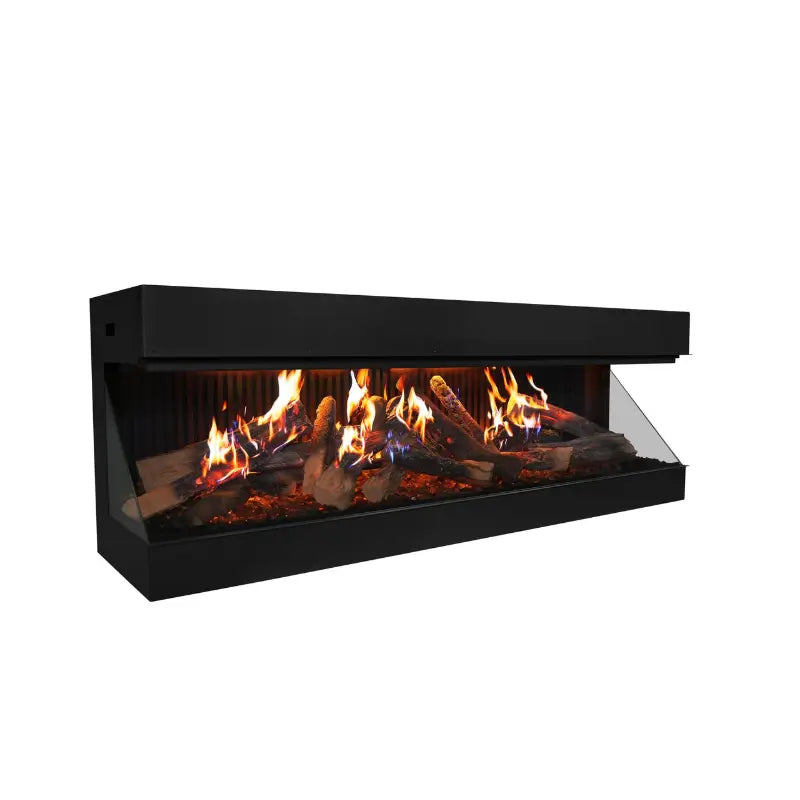

Amantii Signature MultiView Holo 75" Smart 3-Sided Built-In Electric Fireplace with WiFi & Holographic Flames

Product Overview

Why Choose the MultiView Holo 75" Fireplace?

• Wide 75-inch architectural format: Creates a substantial focal point for large walls, media installations, and open living spaces.
• Holographic flame presentation: Produces layered flame visuals with smoke, spark, and depth effects.
• Multiple viewing configurations: Install it as a single-sided, left-corner, right-corner, or three-sided fireplace.
• Smart WiFi operation: Connect through the Tuya Smart app to control supported fireplace functions from a compatible smartphone.
• Dual-voltage heating: Use a 120V installation for up to 1,500 watts or a 240V hardwired installation for up to 3,000 watts.
• Independent flame operation: Enjoy the visual effects without activating the heater.
• Adjustable lighting: Customize the top lighting, tray lighting, flame brightness, and lighting modes.
• Integrated sound: Built-in speakers add an audio element to the fireplace presentation.
• Illuminated media: Lit logs and light-transmitting media enhance the depth and glow of the fuel bed.

Advanced Holographic Flame Technology

The Signature MultiView Holo uses a projection-based visual system to create a more dimensional flame presentation than a basic LED fireplace. The wide display combines layered flame movement with smoke and spark effects to create the appearance of flames rising through and behind the log arrangement.

Four flame patterns provide different visual presentations, while adjustable flame brightness and color settings allow the appearance to be tailored to the room. Traditional yellow and orange tones can be used for a familiar fire look, while additional colors support more contemporary interior designs.

Customizable Visual Features

• Four selectable flame patterns
• Smoke and spark visual effects
• Adjustable flame brightness

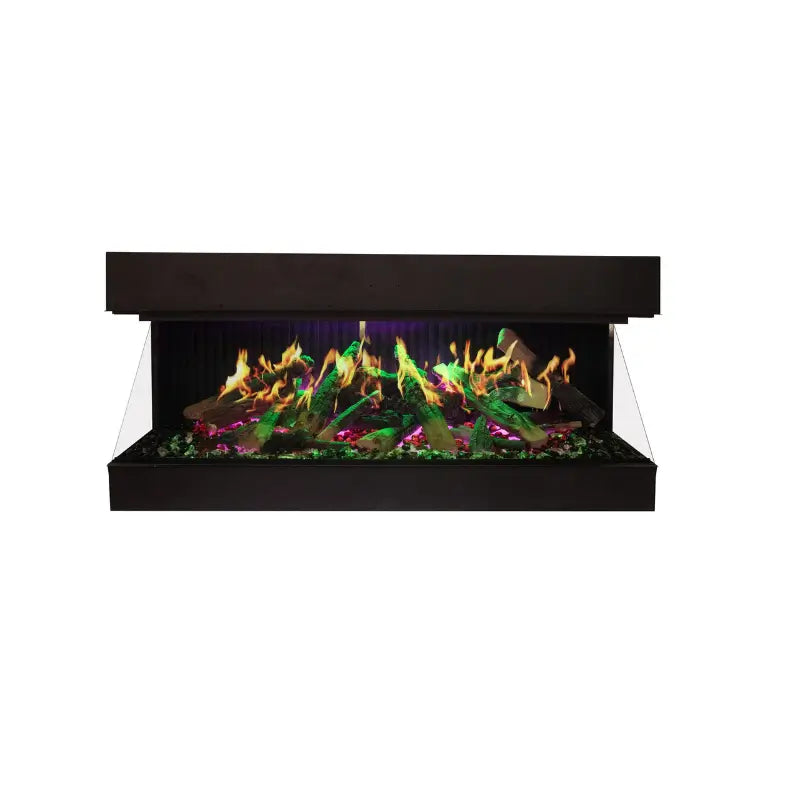

• Multiple flame color options
• Adjustable top lighting
• Adjustable tray and ember-bed lighting
• Static, flashing, cycling, and pulsating lighting modes
• Illuminated logs integrated into the fuel-bed presentation

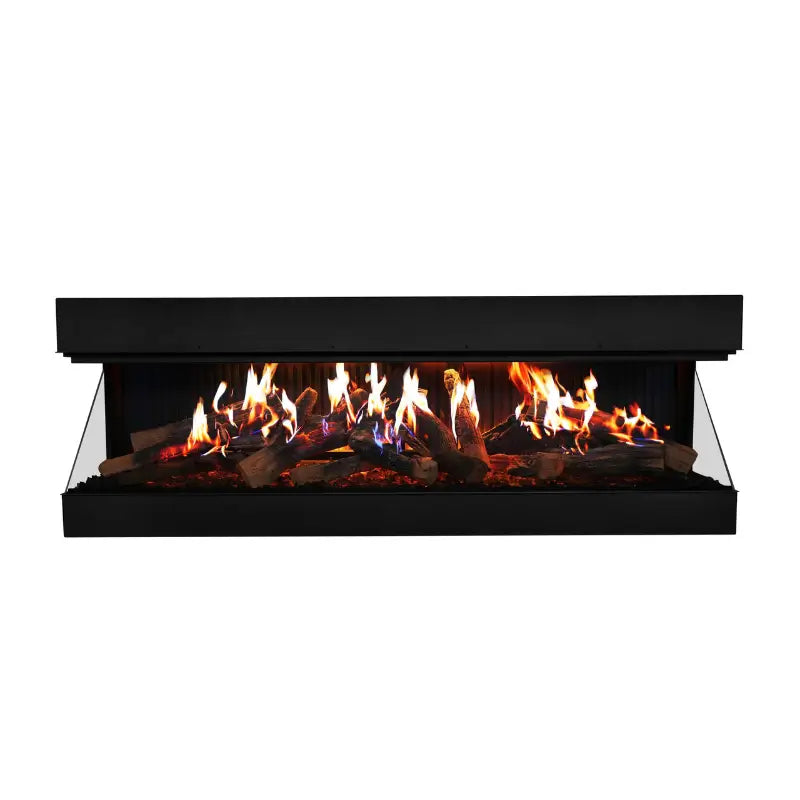

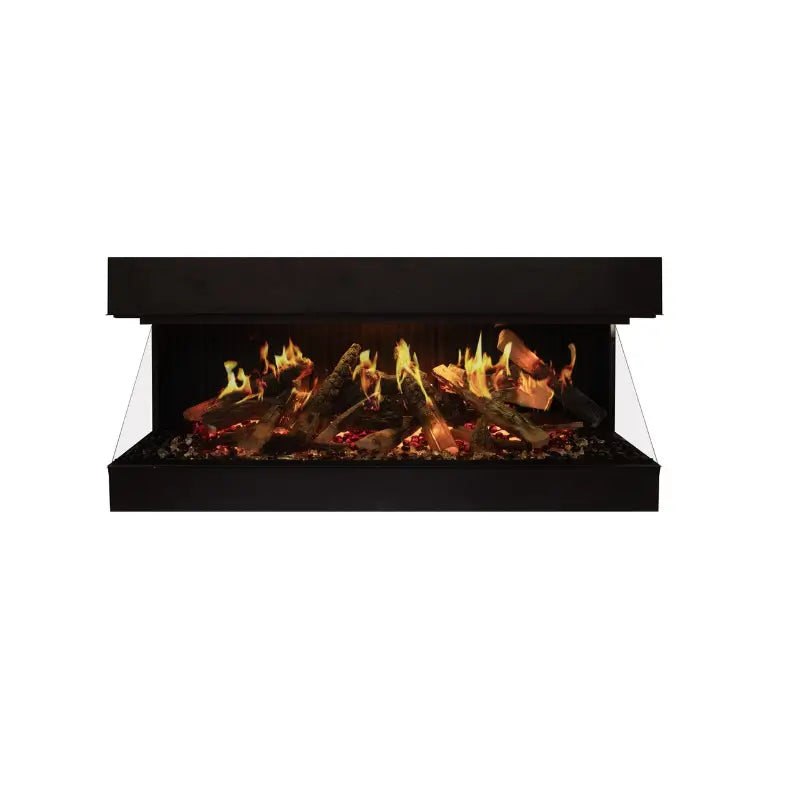

Four Built-In Viewing Configurations

Removable side panels allow the MultiView Holo to be adapted to the surrounding wall design. Select the configuration during planning so the framing, finishing materials, and exposed glass sides match the intended room layout.

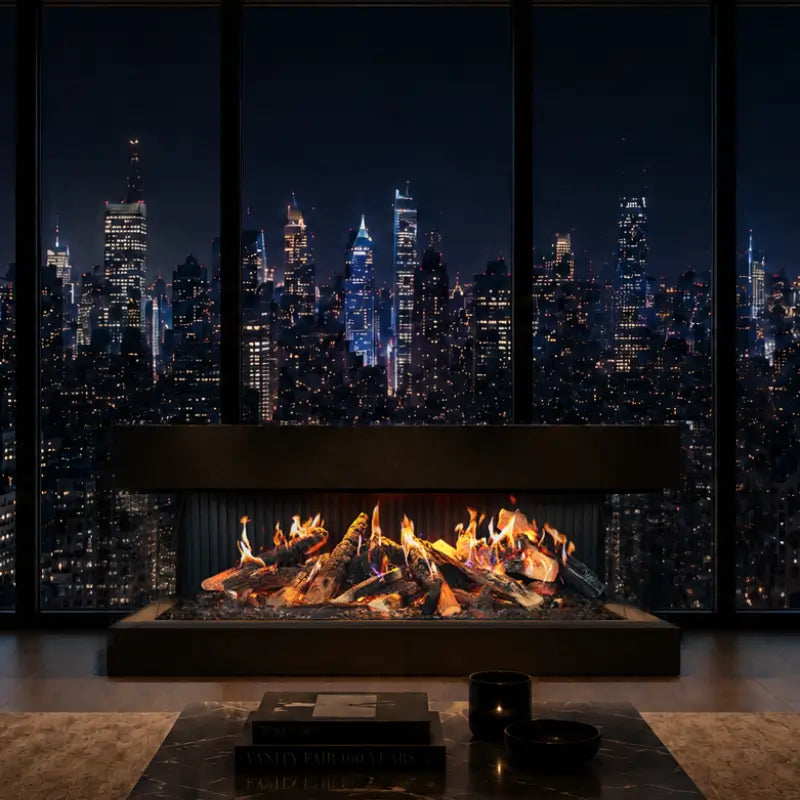

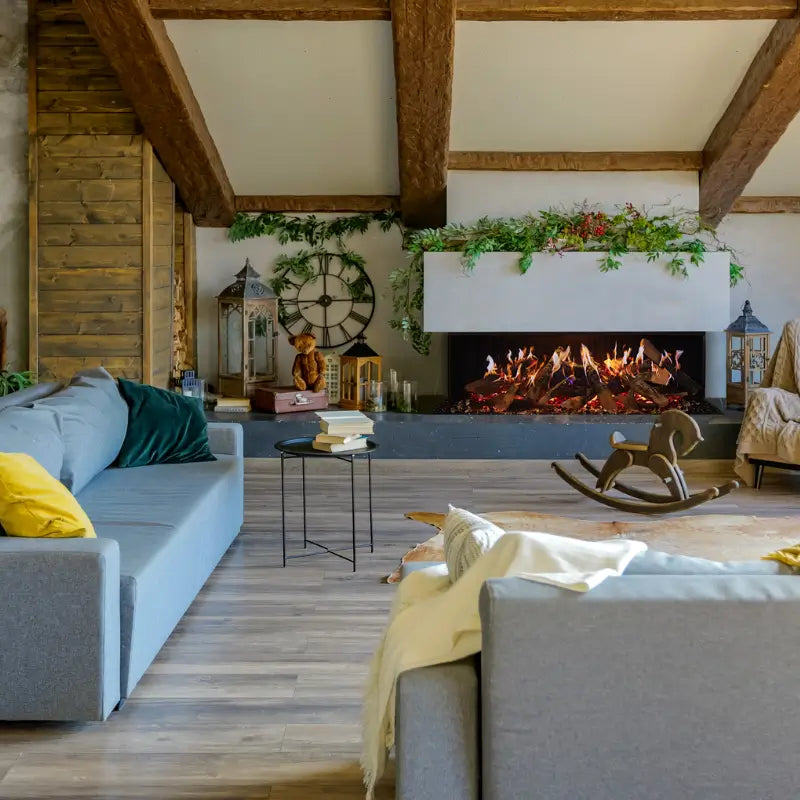

Ideal Applications

The 75-inch MultiView Holo is best suited to installations where a broad fireplace opening and strong visual presence are desired.

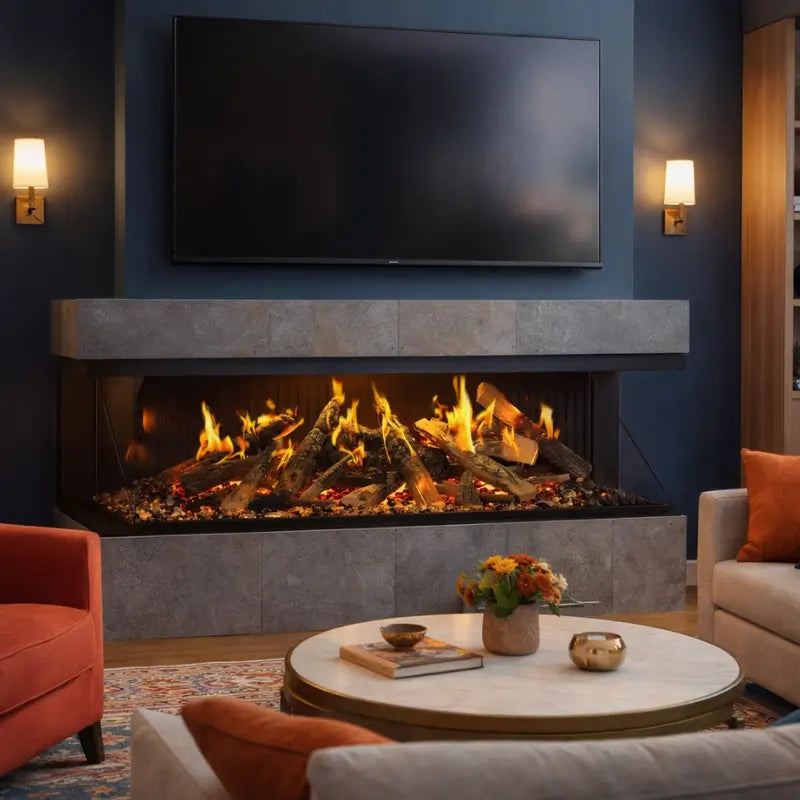

• Large living-room media walls

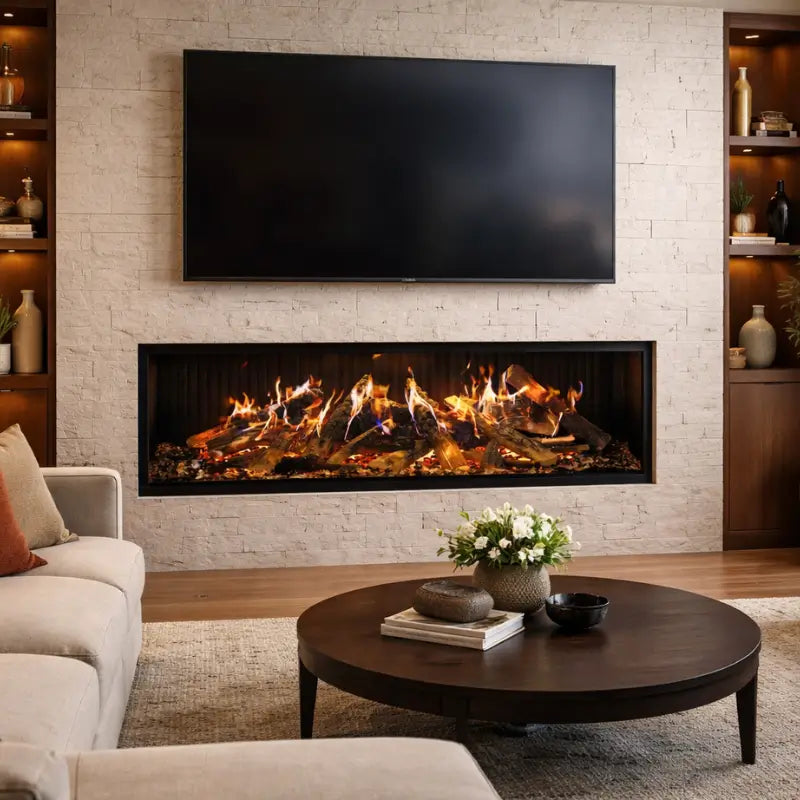

• Custom television and fireplace feature walls
• Open-concept living and dining areas
• Luxury residential interiors
• Lofts and contemporary apartments with adequate framing space
• Hotel lobbies and hospitality interiors
• Restaurants and reception areas
• Showrooms, offices, and commercial feature walls

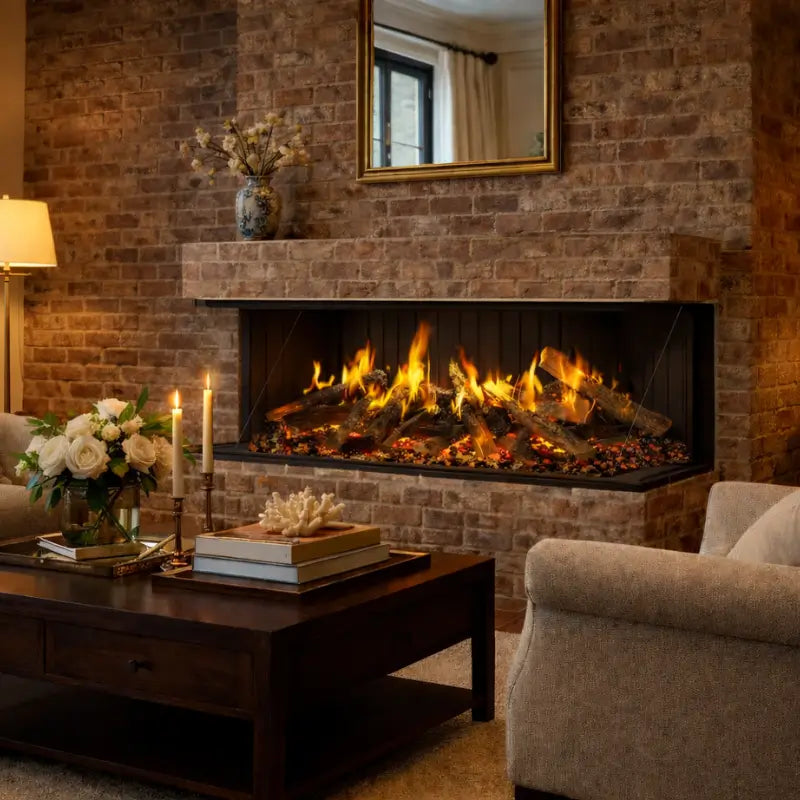

• Corner fireplace installations

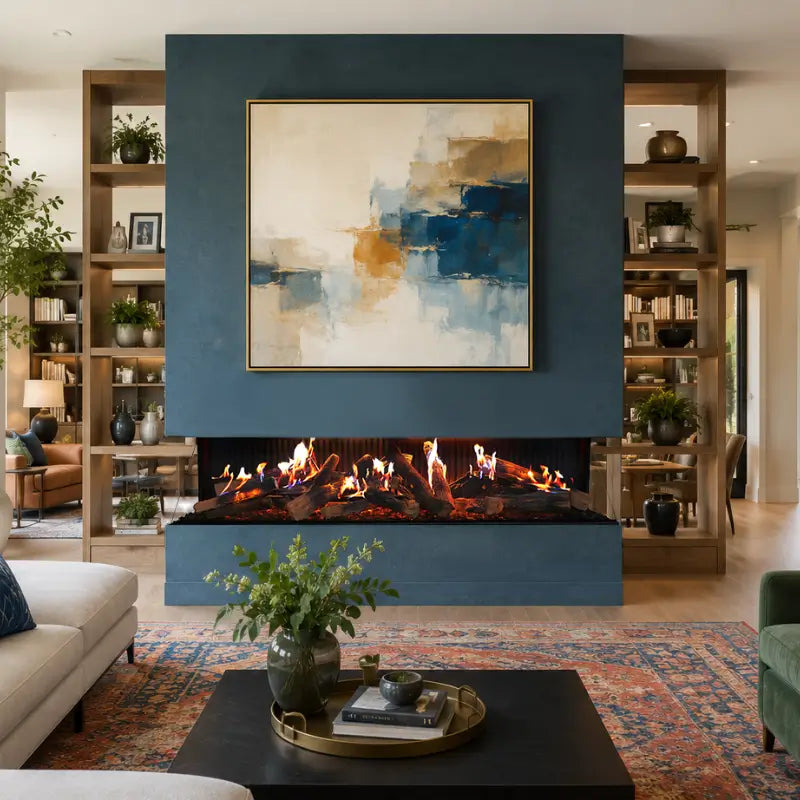

• Panoramic room-divider features

WiFi, Remote, and Manual Controls

The fireplace can be operated from its control panel, the included remote, or a compatible smartphone using the Tuya Smart app. Available functions vary by control method, but the system supports control of the flame display, lighting, heat, temperature, timer, and sound.

Tuya Smart WiFi Control

WiFi pairing is completed through the Tuya Smart app. During setup, the mobile device must have WiFi, Bluetooth, and location services enabled as required by the app, and the phone should remain near the fireplace until pairing is complete.

The WiFi guide supports app-based access to fireplace power, flame lighting, ember-bed lighting, sound, temperature, heat level, and timer functions. WiFi signal quality and correct network credentials are required for successful setup.

Remote-Control Functions

• Fireplace power
• Flame pattern
• Flame color
• Flame brightness
• Top-light color and brightness
• Tray-light color and brightness
• Lit-log and tray-light operation
• Speaker volume
• Low or high heat
• Thermostat setting
• Automatic shutoff timer

The manufacturer states that the remote has an effective range of up to approximately 13 feet under suitable operating conditions.

Dual-Voltage Supplemental Heating

The MultiView Holo 75" supports two electrical configurations. The correct choice depends on the available electrical service, required heat output, local code requirements, and installation plan.

The dedicated specification sheet lists an approximate heating area of 400 square feet. Actual comfort depends on ceiling height, insulation, room layout, outdoor temperature, drafts, and whether the fireplace is operating on 120V or 240V.

This fireplace is intended for supplemental room heating. Do not size or purchase it as the sole heating system for a property without an appropriate heating-load assessment.

Thermostat and Timer

The remote thermostat offers selectable settings from approximately 60°F to 88°F, or 16°C to 30°C. When room temperature is above the selected setting, the thermostat prevents the heater from operating until heat is required.

The automatic shutoff timer can be set from 60 to 480 minutes in one-hour increments. The timer turns the fireplace off when the selected period expires.

Flame-Only Operation for Year-Round Use

The flame, lighting, log, and sound effects can be enjoyed without turning on the heater. This allows the MultiView Holo to remain a visual feature during warmer seasons or in spaces that do not require additional heat.

Flame-only operation still consumes electricity because the screens, lighting, motor, speakers, and control system remain active. The dedicated 75-inch specification sheet lists a maximum no-heat consumption of 150 watts.

Illuminated Logs and Decorative Media

The fuel bed combines traditional log forms with internally illuminated elements and light-transmitting media. Proper placement is important because the holographic projection and glowing logs are designed to align with specific positions in the fuel bed.

Media Configuration

• 7 illuminated logs with internal LED lighting
• 6 regular decorative logs
• 8 light-transmitting logs
• Light-transmitting stones
• Additional decorative media for completing the fuel-bed arrangement

Numbered logs should be installed in their assigned locations. The illuminated logs connect to sockets in the fuel bed, and their wiring must not be pinched or damaged during assembly.

The angle glass must be removed to install the log set. Because of the size and weight of the glass, the manufacturer advises using the supplied suction cup and multiple people to support the glass during removal and replacement.

Installation Requirements

The MultiView Holo 75" is a built-in indoor electric fireplace. It does not require a chimney, gas connection, propane supply, or combustion vent. It does require proper wall framing, electrical service, secure attachment to wall studs, and compliance with the manufacturer’s instructions and local codes.

Before Framing the Fireplace

• Confirm the final viewing configuration before constructing the enclosure.
• Verify the model-specific framing dimensions using the 75-inch specification sheet.
• Plan access to the electrical connection and service components.
• Keep the display away from strong direct sunlight where practical.
• Test the fireplace, remote, heater, lights, screens, sound, and controls before permanently closing the wall.
• Protect all exposed glass while installing drywall, tile, stone, wallpaper, or other finishes.
• Consult a qualified builder regarding framing and finish materials.

Model-Specific Framing Size

The dedicated 75-inch specification sheet lists a framing size of approximately:

• Width: 76 1/4 inches
• Height: 27 inches
• Depth: 22 inches

Verify all measurements against the current specification sheet and the physical fireplace before framing. Do not construct the final opening from nominal product size alone.

Finishing Materials

The fireplace is designed so compatible finishing material can be brought down toward the glass edge as shown in the manufacturer’s installation instructions. The selected finish, substrate, framing, and attachment method must still comply with applicable building requirements.

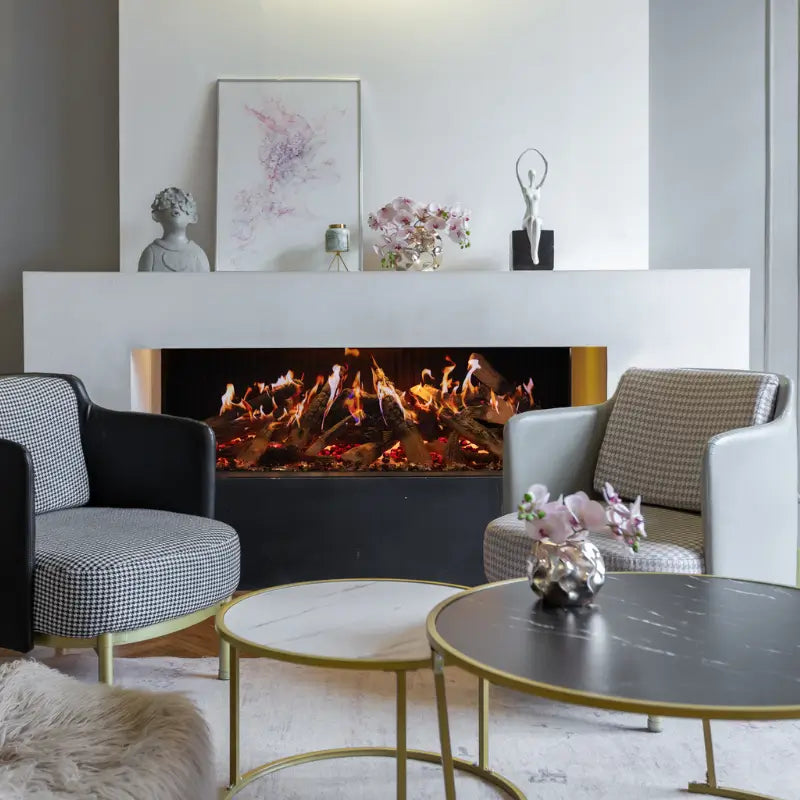

Mantel Clearance

When a mantel is installed, maintain a minimum clearance of 6 inches measured from the glass front, as specified in the owner’s manual. Confirm that the complete wall design also meets the requirements of any television, electronics, cabinetry, or finish materials installed above the fireplace.

Electrical Requirements

Electrical work must comply with local codes. Hardwired installation, voltage conversion, and household wiring connections should be completed by a qualified electrician.

120V Installation

A properly grounded 120V branch circuit must be available. The owner’s manual recommends a dedicated circuit to reduce the risk of nuisance breaker trips or blown fuses.

240V Installation

The 240V configuration requires hardwiring according to the manufacturer’s wiring diagram. When connecting the fireplace to 240V, the specified internal short-circuit connectors must be removed as directed in the manual.

Hardwiring Notice

If the fireplace is hardwired, the factory power cord must be removed. Incorrect wiring can create unsafe operation, damage the fireplace, or void warranty coverage.

Important Safety Information

• Read the installation and owner’s manual before installing or operating the fireplace.
• Keep furniture, bedding, paper, clothing, curtains, and other combustible materials at least 3 feet from the front of the heater.
• Use extra caution when the heater operates near children or when the unit is left unattended.
• Do not operate the fireplace with a damaged cord, damaged plug, malfunctioning heater, or visibly damaged component.
• Do not obstruct the heater intake, exhaust, or ventilation openings.
• Do not route the cord beneath carpeting, rugs, or traffic areas.
• Disconnect electrical power before cleaning, servicing, moving, or accessing internal components.
• Do not use an external switching device that automatically energizes the heater.
• Do not install the fireplace in a bathroom or laundry area unless the specific installation has been approved and completed according to all applicable requirements.
• Only qualified personnel should service or repair the fireplace.

Technical Specifications

What Is Included?

• Amantii Signature MultiView Holo 75" electric fireplace
• Front and side glass components
• Remote control
• Illuminated and decorative log media
• Light-transmitting stones and decorative media
• Framing and mounting plates supplied with the fireplace
• Suction cup for handling the angle glass
• Installation and owner’s manual

Verify the package contents immediately after delivery and before construction begins. Report missing or damaged components before installing the fireplace.

Manufacturer’s Limited Warranty

The owner’s manual supplied for the MultiView Holo series states a one-year limited warranty against qualifying manufacturing and material defects from the original purchase date.

Coverage applies to the original purchaser, is non-transferable, and requires proof of purchase from an authorized supplier. Installation, operation, service, and maintenance must comply with the manufacturer’s instructions.

The written warranty excludes labor, installation, construction, transportation, incidental expenses, unauthorized alterations, misuse, prolonged moisture exposure, and specified glass, lighting, and tray components. Review the complete warranty document before purchase because terms and exclusions control coverage.

Product Resources

• Amantii MultiView Holo 75" Specification Sheet
• Amantii MultiView Holo Assembly Instructions
• Amantii MultiView Holo Installation & Owner’s Manual
• Amantii MultiView Holo Product Brochure
• Amantii Tuya Smart WiFi Instructions
