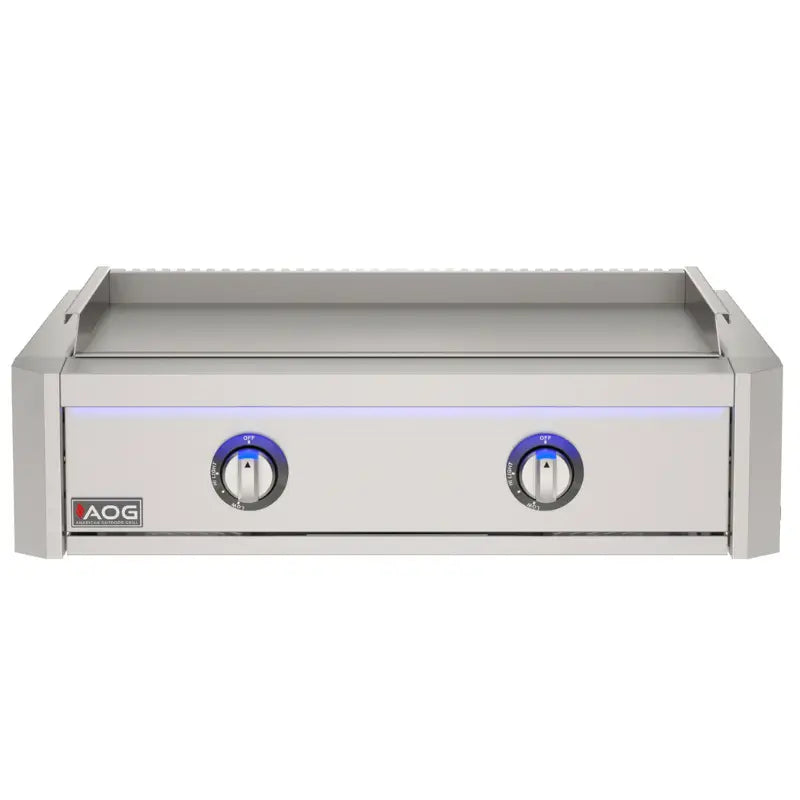

American Outdoor Grill 30-Inch L-Series Built-In Gas Griddle

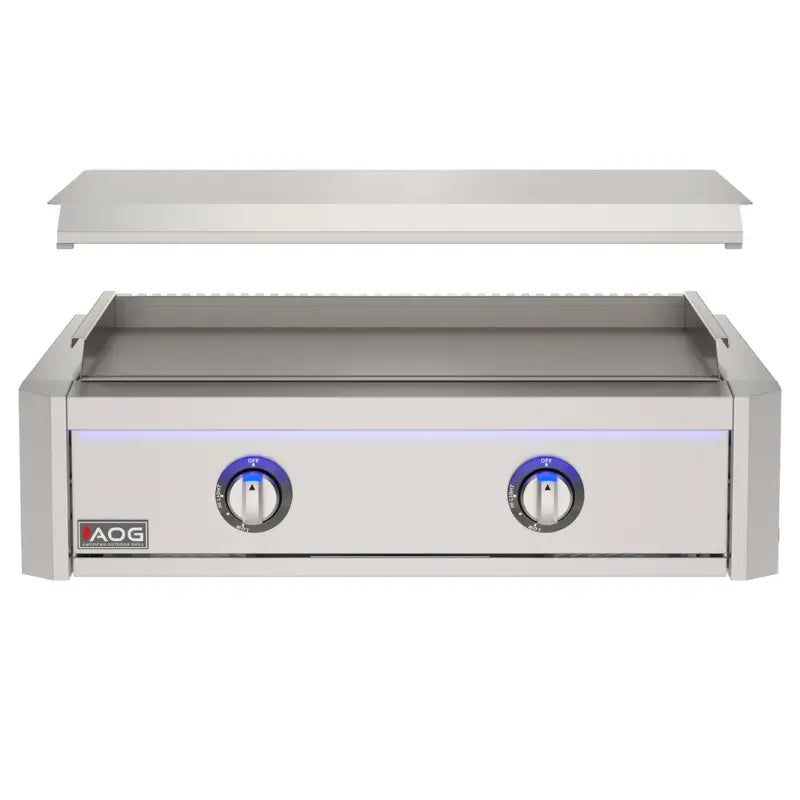

American Outdoor Grill 30-Inch L-Series Built-In Gas Griddle with cover

American Outdoor Grill 30-Inch L-Series Built-In Gas Griddle

American Outdoor Grill

SKU: AOG30GRLN

Fuel Type Natural Gas Liquid Propane

Price

~~$4,614.57~~

Save 26%

Need assistance? Talk to an Expert! Call Now (800) 923-4556 Or Chat With Us!

Special Offers

✅ Free Shipping On Orders Above $1,000

✅ Exceptional Customer Service

✅ Call (800) 923-4556 Or Chat With Us to get the lowest price!

Quantity

American Outdoor Grill L-Series Built-In Griddle

American Outdoor Grill 30-Inch L-Series Built-In Gas Griddle

The American Outdoor Grill 30-Inch L-Series Built-In Gas Griddle is designed for permanent outdoor kitchen installations and combines a flat cooking surface with two independently controlled main gas burners. The L-Series adds an electrically powered lighting system for illuminated controls and accents and is available in factory Natural Gas or Liquid Propane configurations.

Brand American Outdoor Grill

Series L-Series

Installation Built-In

Use Outdoor

Main Burners 2

Fuel Options Natural Gas / Liquid Propane

Electrical 120VAC / 15 AMP Minimum

Warranty 7 Years*

Before You Buy

Choose the L-Series If You

Want a built-in gas griddle for a permanent outdoor kitchen.
Need a two-burner flat-top cooking surface.
Can select the factory Natural Gas or Liquid Propane configuration that matches your fuel supply.
Want the L-Series electrically powered lighting system.
Can provide a properly wired 120VAC, 15-amp minimum, 60 Hz GFCI grounded three-wire receptacle.
Can meet the manufacturer's enclosure, ventilation, clearance, gas, and electrical requirements.
Will have the appliance and gas connection installed by a qualified professional.

Consider the T-Series If You

Do not need the L-Series lighting system.
Prefer a model that does not require an electrical connection.

Fuel configuration matters: Order the factory configuration that matches the intended gas supply. Do not order a Natural Gas model for a Liquid Propane installation or vice versa.

Electrical requirement: The L-Series requires electrical service for its lighting equipment. The appliance rating is 12VDC / 60 watts, with the required power supply connected to a 120VAC, 15-amp minimum, 60 Hz GFCI grounded three-wire receptacle.

AOG L-Series Built-In Griddle at a Glance

Model Family

AOG30GRL(N,P)

Cooking Format

Flat-Top Gas Griddle

Main Burners

Fuel Configurations

Natural Gas / Liquid Propane

Lighting

L-Series Equipped

Certification

ANSI Z21.58 / CSA 1.6

Key Features

Two Main Gas Burners

Two main burners provide separate controlled heat sources beneath the griddle top, supporting flexible cooking across the flat surface.

L-Series Lighting System

The L-Series includes a light switch, LED strip assembly, RGB receiver, and remote-control components.

Built-In Outdoor Design

Designed for permanent outdoor kitchen installation with required enclosure ventilation, airflow, gas, and electrical provisions.

Natural Gas or Liquid Propane

Select the factory fuel configuration that matches the intended gas supply.

Griddle Lid

The supplied parts documentation identifies a griddle lid for the L-Series and T-Series models. Remove the lid before operating the appliance.

AOG Vinyl Protective Cover

The supplied parts documentation also identifies an AOG vinyl protective cover for both L-Series and T-Series griddles.

L-Series vs. T-Series

Both versions are outdoor built-in two-burner gas griddles available for Natural Gas or Liquid Propane. The primary supplied distinction is the L-Series lighting and electrical requirement.

Feature	L-Series	T-Series
Installation	Built-In	Built-In
Use	Outdoor	Outdoor
Main Burners	2	2
Fuel Configurations	Natural Gas / Liquid Propane	Natural Gas / Liquid Propane
Lighting	Equipped	Not equipped
Electrical Connection	Required	Not required

Simple selection rule: Choose the L-Series when you want the lighting system and can provide the required electrical service. Consider the T-Series when lighting is unnecessary and you prefer a griddle without an electrical connection.

American Outdoor Grill L-Series Specifications

Product
Brand	American Outdoor Grill
Series	L-Series
Model Family	AOG30GRL(N,P)
Product Type	Griddles
Installation Type	Built-In
Use Location	Outdoor
Fuel & Burners
Fuel Configurations	Natural Gas / Liquid Propane
Main Burners	2
Natural Gas Orifice Drill Size	#49
Liquid Propane Orifice Drill Size	1.16 mm
Factory Air Shutter Opening	1/4 in.
Electrical
Electrical Requirement	120VAC / 15 AMP minimum / 60 Hz / GFCI outlet
Appliance Rating	12VDC / 60 Watts
Overall Dimensions
Height With Lid	2 1/2 in.
Height Without Lid	2 1/4 in.
Maximum Width	33 7/8 in.
Lid Width	31 7/8 in.
Maximum Depth	24 3/4 in.
Certification & Warranty
Certification	ANSI Z21.58 / CSA 1.6
Built-In Griddle Warranty	7 Years, subject to manufacturer terms

Overall dimensions are not enclosure cutout dimensions. Follow the manufacturer's enclosure and insulating-liner instructions for the required cutout.

Installation Requirements

Installation and gas connection must be completed as specified in the Installation and Owner's Manual by a qualified professional installer. The enclosure must be properly constructed and ventilated, the front air inlet must remain clear, and the appliance must be positioned to maintain proper airflow.

Verify Before Installation

The correct Natural Gas or Liquid Propane model has been selected.
The enclosure is designed for an outdoor built-in gas appliance.
Required ventilation openings are incorporated into the enclosure.
The front air inlet will remain unobstructed.
The front panel can sit flush with the enclosure face.
The required 120VAC GFCI electrical service is available for the L-Series.
Combustible-enclosure requirements have been reviewed before construction.

Do Not

Use the overall product dimensions as the enclosure cutout.
Install the L-Series without the required electrical connection.
Block the front air inlet or required ventilation openings.
Install in a combustible enclosure without the required approved insulating liner.
Use the appliance indoors.
Perform installation contrary to the manufacturer instructions.

L-Series Electrical Requirement

The L-Series power supply requires a weather-proof, in-use covered 120VAC, 15-amp minimum GFCI grounded three-wire receptacle. The power supply must be installed within the enclosure as directed by the manufacturer and protected from weather and heat.

Combustible Enclosures

When this griddle is installed in a combustible enclosure, the manufacturer requires the 30-IL-C AOG insulating liner. The liner is sold separately. Follow the liner instructions for the applicable counter cutout dimensions and installation.

Combustible enclosure requirement: Do not install the griddle in a combustible enclosure without the required 30-IL-C AOG insulating liner.

Clearance & Airflow

Maintain a minimum horizontal clearance of 18 inches in all directions from combustible materials and items. Required enclosure ventilation openings and the front air inlet must remain unobstructed.

Supporting Products Sold Separately

Supporting Product	Model
Insulating Liner	30-IL-C
Cart Base for Portable-Griddle Conversion	30CRT-25
Accent Color Panels	AO-GR-***
Vent Hood	VHD-36

30-IL-C

Insulating Liner

30CRT-25

Cart Base

AO-GR-***

Accent Color Panels

VHD-36

Vent Hood

Important Safety & Use Considerations

Required Operating Practices

Use the appliance outdoors only.
Have an adult present during operation.
Remove the griddle lid before use.
Keep the drip collector trough holes and air baffle clear.
Follow the manufacturer's fuel-specific enclosure ventilation requirements.
Shut off the gas supply when the appliance is not in use.

Avoid

Indoor use.
Leaving the appliance burning unattended.
Operating with the griddle lid in place.
Blocking airflow or enclosure ventilation.
Allowing grease pathways to become obstructed.
Leaving the gas supply open when the unit is not in use.

Gas shutoff: Shut off the in-line gas valve or gas-cylinder valve when the unit is not in use.

Warranty

American Outdoor Grill built-in griddles are warranted for seven years, subject to the manufacturer's warranty terms, exclusions, proof-of-purchase requirements, and installation requirements.

Warranty scope: The seven-year warranty is subject to manufacturer terms. Follow installation and use requirements and retain applicable proof of purchase.

Flame Authority Product Guidance

The American Outdoor Grill 30-Inch L-Series Built-In Gas Griddle is best suited to a permanent outdoor kitchen where a dedicated two-burner flat-top cooking surface and illuminated L-Series controls are desired.

The two most important ordering decisions are fuel type and electrical availability. Select the factory Natural Gas or Liquid Propane configuration that matches the project, and confirm that the required 120VAC GFCI electrical service can be provided.

Before enclosure construction begins, review the manufacturer's installation requirements carefully. The overall product dimensions listed on this page are not the enclosure cutout dimensions, and combustible installations require the separately sold 30-IL-C insulating liner.

American Outdoor Grill L-Series Built-In Griddle FAQs

Is the AOG L-Series Built-In Griddle available for Natural Gas and Liquid Propane?

Yes. Choose the Natural Gas or Liquid Propane model that matches the intended fuel supply. Do not order a fuel configuration that does not match the installation.

Does the AOG L-Series Built-In Griddle require electricity?

Yes. The L-Series requires a 120VAC, 15-amp minimum, 60 Hz GFCI outlet. The T-Series is the supplied alternative if you do not want an electrical connection.

What is the difference between the AOG L-Series and T-Series griddles?

The L-Series is equipped with lighting and requires electrical power, while the T-Series has no lighting and requires no electrical connection.

How many burners does the AOG L-Series griddle have?

The griddle has two main gas burners, providing separate controlled heat sources beneath the flat cooking surface.

Can the AOG L-Series griddle be installed in a combustible enclosure?

Yes, but the manufacturer requires the 30-IL-C AOG insulating liner. Do not install it in a combustible enclosure without the required approved liner.

What electrical service does the L-Series require?

The L-Series requires a weather-proof, in-use covered 120VAC, 15-amp minimum, 60 Hz GFCI grounded three-wire receptacle. The appliance rating is 12VDC / 60 watts.

Can this built-in griddle be converted to a portable configuration?

Yes. The manufacturer identifies the 30CRT-25 cart base for conversion to a portable griddle. The cart is sold separately.

Can the AOG L-Series Built-In Griddle be used indoors?

No. The manufacturer specifies this appliance for outdoor use only.

What clearance is required from combustible materials?

Maintain a minimum horizontal clearance of 18 inches in all directions from combustible materials and items, together with the manufacturer's required enclosure ventilation and airflow provisions.

Are the listed product dimensions the enclosure cutout dimensions?

No. The listed overall measurements are not the enclosure cutout dimensions. Follow the manufacturer's enclosure instructions and, where applicable, the 30-IL-C insulating-liner instructions for the required opening.

Does the griddle include a lid?

The supplied parts documentation identifies a griddle lid for the L-Series and T-Series models. The lid must be removed before operating the appliance.

What is the warranty on the AOG built-in griddle?

American Outdoor Grill built-in griddles are warranted for seven years, subject to the manufacturer's warranty terms, exclusions, proof-of-purchase requirements, and installation requirements.

Final Before-Order Checklist

Confirm

You specifically want the American Outdoor Grill L-Series built-in griddle.
The project requires a two-burner flat-top gas griddle.
The correct Natural Gas or Liquid Propane factory configuration is selected.
The L-Series lighting system is desired.
A 120VAC, 15-amp minimum, 60 Hz GFCI grounded receptacle can be provided.
The installation is outdoors.
The enclosure can meet manufacturer ventilation and airflow requirements.
The required 18-inch horizontal clearance from combustible materials can be maintained.
The 30-IL-C insulating liner will be used if the enclosure is combustible.
The actual enclosure cutout will be taken from the applicable manufacturer instructions rather than the overall product dimensions.

Avoid These Ordering & Installation Errors

Ordering the wrong fuel configuration.
Choosing the L-Series without providing electrical service.
Using the overall product dimensions as the enclosure cutout.
Installing in a combustible enclosure without the required 30-IL-C liner.
Blocking the front air inlet or required enclosure ventilation.
Operating the griddle with the lid installed.
Using the appliance indoors.
Leaving the appliance burning unattended.
Ignoring the manufacturer gas, electrical, clearance, or installation instructions.

Product Resources

Review the manufacturer documentation before installation, gas connection, electrical setup, or enclosure construction.

Warranty

American Outdoor Grill Limited Warranty

LIFETIME WARRANTY

Stainless steel burners are warranted as long as the original purchaser owns them (Lifetime)

TEN YEAR WARRANTY

All other American Outdoor Grill® parts (excluding ignition systems, accessories, infrared burner, and vaporizer panels) are warranted for ten (10) years

THREE YEAR WARRANTY

Infrared burners and vaporizer panels are warranted for three (3) years

ONE YEAR WARRANTY

Ignition systems (excluding batteries) and accessories (including side burners, motors, refigerators and thermometers) are warranted for one (1) year

PLEASE KEEP A COPY OF YOUR EMAIL CONFIRMATION FOR PROOF OF PURCHASE

This warranty applies to the original purchaser and to single family residential use only. It commences from date of purchase, and is valid only with proof of purchase.

This warranty does not cover parts becoming defective through misuse, accidental damage, electrical damage, improper handling, storage, and/or installation.

Product must be installed (and gas must be connected) as specified in the instructions or operator’s manual, by a qualified professional installer.

Accessories, parts, valves, remotes, etc., when used must be Peterson Co. product.

This warranty does not apply to rust, corrosion, oxidation, or discoloration, unless the affected component becomes inoperable. It does not cover labor or labor-related charges.

This warranty specifically excludes liability for indirect, incidental, or consequential damages.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you.

This warranty gives you specified legal rights, and you may have other rights that may vary from state to state.

We are an authorized dealers for every brand we sell!

Our SATISFACTION GUARANTEE and LOWEST PRICE GUARANTEE let you rest easy knowing you'll be taken care of, no matter what happens.

By buying from us you qualify for the full manufacturer warranty, save time and money! We ship directly to your door from the manufacturer's warehouse. Every product is checked for quality assurance and packaged with the utmost care to ensure it arrives in perfect working condition. We ship with only the best carriers including UPS, FedEx, USPS, and trusted freight companies to get your product to you in the fastest time possible. We even offer discounts with most orders just to make your day a little better.

We use encrypted SSL security to ensure your credit card information is 100% protected.

Let customers speak for us

from 4074 reviews

Great customer service for hard to get refractory brick back

I was able to get a Novus 33 in brick refractory back for my NG Novus fireplace insert. Novus is a high demand item and Flame authority was only supplier without a huge delay from manufacturer. I recommend them for all fireplace needs.

Scott DiBert

10/07/2023

$Heatilator Traditional Brick Pattern Ceramic Fiber Refractory for Novus Series$

Great service and great product

Tia Short

03/29/2023

Nice and easy

Product is great, free shipping was good, and unpacking and installing it was easy. Customer support was great too, both with the sales and shipping carrier. After much research…the Modern Flames Redstone is the one.

Ken Shuba

02/14/2023

Modern Flames RedStone 36" Built-In Electric Fireplace Insert RS-3626

A+ = both the sale, the shipping process, and the product

Scott Werley

12/26/2022

Amantii Traditional 33" Electric Fireplace TRD-33

Great Customer service

I purchased burner and fire box. I emailed and spoke with Jim . He helped me from start to finish. Great service

Scott G

12/19/2022

Beautiful Mantel

The mantel required a little bit of sanding and prep before painting, but was good quality. Flame Authority did an excellent job shipping and it arrived by freight in perfect condition.

The mantel assembled well. I ended up using some construction adhesive to glue the legs on to make it a little more sturdy. I cut pocket holes in the top to attach it to the wall.

Very happy with our purchase!

Ryan George

12/17/2022

Majestic Acadia C 53" Primed MDF Flush Wood Mantel AFAAMPC

Blaze Pro Portable Grill

I shopped for a grill for two people. I want it to last for ten years or more. I want it to get really hot for grilling steaks after they have been cooled sous vide. I want it to be useful also for lower temp cooking. This Blaze grill is perfect for me and my wife. Our purchase through Flame Authority was completed with no problems. I am totally satisfied with this grill and highly recommend it for anyone with similar needs.

Mary Ann

10/23/2022

Blaze Professional Portable Gas Grill BLZ-1PRO-PRT

Came as advertised and without any delays. Arrived quickly. No issues and would buy from flame authority again.

Brian McDonald

08/03/2022

HPC Fire Electronic Ignition Control Module For EI Systems 312-EIMOD

I wanted to make sure of the size and features of this oven. I called Flame Authority and Mary answered the call. She gave me all the details and I was really amazed coz she really knows what she is selling. Expert with sales and communication. Thumbs Up!

James N. Johnson

07/12/2022

Pinnacolo Premio 32" Wood Fired Freestanding Pizza Oven PPO-1-02

Great heating stove

I bought the stove couple weeks ago and ended up having a chance running it a few days I am very pleased with the outcome of the amount of heat it gets out also with the amount of hours it burns at least eight hours. I would recommend this for anyone who is looking for hours of heat output. At first when I bought it I didn’t quite know if mine hopes will be for filled but now they are happy with it. I would recommend this to anyone as a trusted tester of it I am very pleased of the outcome it rains.!

Vladimir Novik

04/25/2022

Empire Stove Gateway 3500 Wood-Burning Stove WB35FS

Nice company to work with and an even better fireplace for our home

Nice , polite and helpful, when you would call with questions.Fireplace looks nice and throws a decent amount of heat , just a bit of a delay in delivery. Ended up getting it End of January, right before guests arrived. But still only took 3 weeks to get. Thank you Flame Authority !!!

Chelyn Andrea

02/02/2022

Napoleon S Series Wood Fireplace Insert S20I

Stunning Fireplace

I didn't expect to have this fireplace earlier than the lead time they promised. It looks stunning in my living room and now we are prepared for the upcoming winter season! I am happy with all the updates! Customer service representatives keep on updating me with the process of my order until delivery they are checking it for you! 10 stars for Flame Authority!

sample

09/27/2021

Dimplex IgniteXL 74" Linear Electric Fireplace XLF74

Beautiful

Simply beautifully designed. Very efficient. Looks gorgeous in our mid century modern home in a corner space. Will save us $$$ on electric heat bills and is easy to clean with fireplace glass cleaner.

Hayley Severns

09/03/2021

Nectre Curved Freestanding Wood-Burning Fireplace N65

Great Customer Service

I believe it was David Novak that helped me. Someone ALWAYS answered the phone and located this burner when I couldn't find it anywhere else. It almost seemed too good to be true. But it wasn't. The burner is now nestled in my new outdoor kitchen and am very pleased.

Olivia Pierce

06/29/2021

Fire Magic Classic Built-In Natural Gas Power Burner 19-KB2N-0

Thank you for a very smooth transaction. the remote is very useful. It is very easy to install

Jenna

04/13/2021

American Outdoor Grill 30-Inch L-Series Built-In Gas Griddle

Before You Buy

Choose the L-Series If You

Consider the T-Series If You

AOG L-Series Built-In Griddle at a Glance

Key Features

Two Main Gas Burners

L-Series Lighting System

Built-In Outdoor Design

Natural Gas or Liquid Propane

Griddle Lid

AOG Vinyl Protective Cover

L-Series vs. T-Series

American Outdoor Grill L-Series Specifications

Installation Requirements

Verify Before Installation

Do Not

L-Series Electrical Requirement

Combustible Enclosures

Clearance & Airflow

Supporting Products Sold Separately

Important Safety & Use Considerations

Required Operating Practices

Avoid

Warranty

Flame Authority Product Guidance

American Outdoor Grill L-Series Built-In Griddle FAQs

Final Before-Order Checklist

Confirm

Avoid These Ordering & Installation Errors

Product Resources

Warranty

American Outdoor Grill Limited Warranty

LIFETIME WARRANTY

TEN YEAR WARRANTY

THREE YEAR WARRANTY

ONE YEAR WARRANTY

PLEASE KEEP A COPY OF YOUR EMAIL CONFIRMATION FOR PROOF OF PURCHASE

Let customers speak for us

Customer Reviews

POPULAR PRODUCTS

SHOP WITH CONFIDENCE

WHO WE ARE

Get in touch

We accept
