American Outdoor Grill T-Series Built-In Griddle

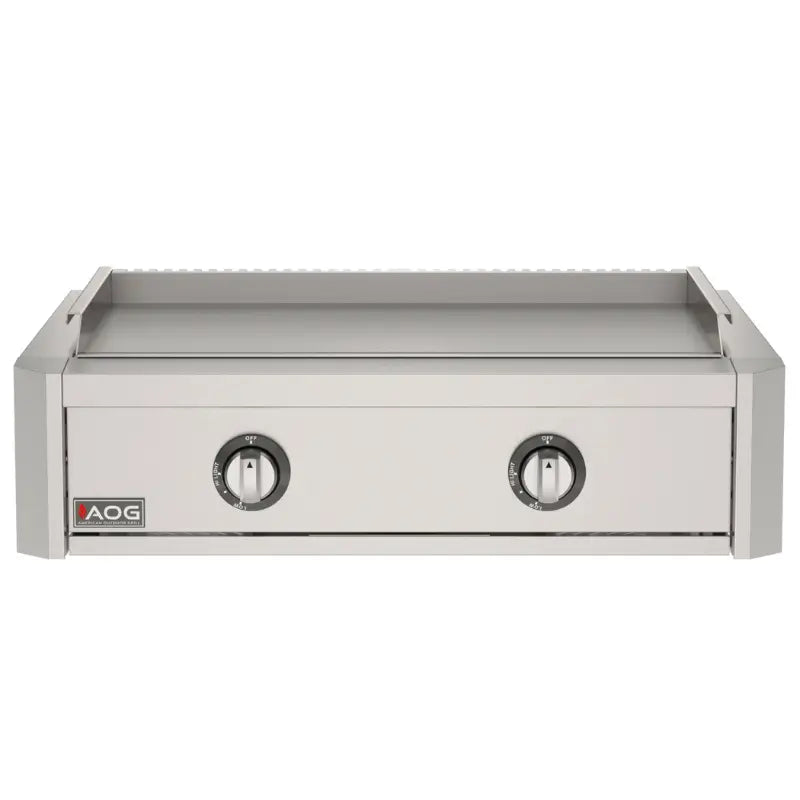

American Outdoor Grill 30-Inch T-Series Built-In Gas Griddle
The American Outdoor Grill 30-Inch T-Series Built-In Gas Griddle is designed for permanent outdoor kitchen installations where a dedicated two-burner flat-top cooking surface is desired without the electrical connection required by the L-Series. The T-Series is not equipped with lighting, requires no electrical power, and is available in factory Natural Gas or Liquid Propane configurations.
Brand American Outdoor Grill
Series T-Series
Installation Built-In
Use Outdoor
Main Burners 2
Fuel Options Natural Gas / Liquid Propane
Electrical Not Required
Warranty 7 Years*
Before You Buy
Choose the T-Series If You
Want a built-in gas griddle for a permanent outdoor kitchen.
Need a two-burner flat-top cooking surface.
Can select the factory Natural Gas or Liquid Propane configuration that matches the fuel supply.
Prefer a griddle with no lighting and no electrical connection.
Can meet the manufacturer's enclosure, ventilation, clearance, and gas requirements.
Will have the appliance and gas connection installed by a qualified professional.
Consider the L-Series If You
Want the electrically powered lighting system.
Can provide the L-Series 120VAC GFCI electrical requirement.
Fuel configuration matters: Order the factory Natural Gas or Liquid Propane configuration that matches the intended installation.
No electrical connection required: The T-Series is not equipped with lighting and does not require electrical power. Gas, enclosure, ventilation, clearance, and installation requirements still apply.
AOG T-Series Built-In Griddle at a Glance
Model Family
AOG30GRT(N,P)
Cooking Format
Flat-Top Gas Griddle
Main Burners
2
Fuel Configurations
Natural Gas / Liquid Propane
Lighting
Not Equipped
Certification
ANSI Z21.58 / CSA 1.6
Key Features
Two Main Gas Burners
Two main burners provide two separately controlled heat sources beneath the griddle top for flexible flat-top cooking.
No Electrical Connection Required
T-Series griddles are not equipped with lighting and require no electrical connection. This is the defining installation difference from the L-Series.
Built-In Outdoor Design
Designed for permanent outdoor kitchen installation with manufacturer-required enclosure ventilation, airflow, gas, and clearance provisions.
Natural Gas or Liquid Propane
Select the fuel-specific factory model that matches the intended gas supply.

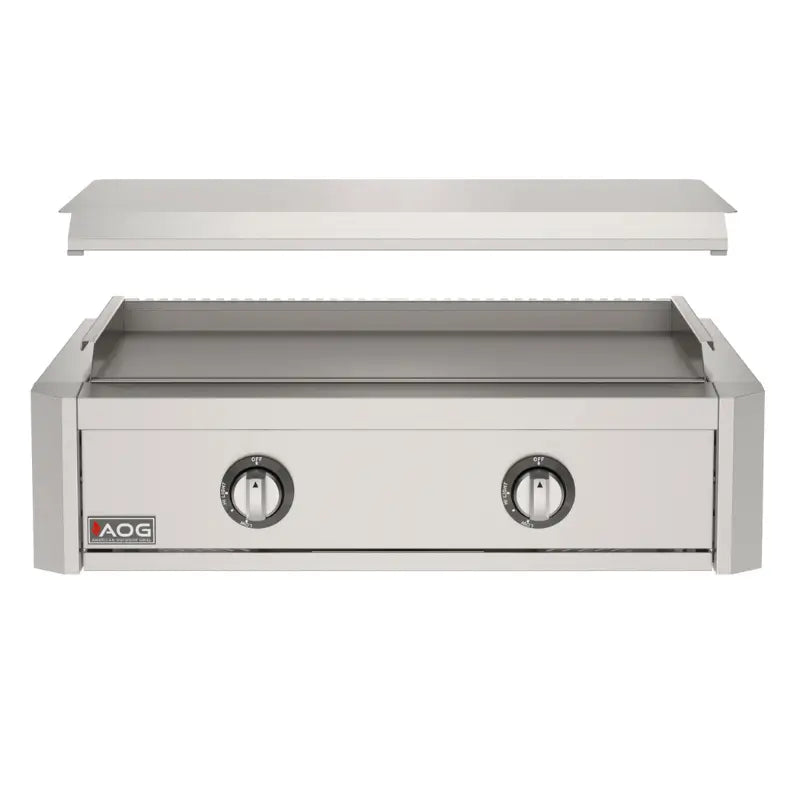

Griddle Lid
The parts documentation identifies a griddle lid for both L-Series and T-Series models. The lid must be removed before operating the appliance.
AOG Vinyl Protective Cover
The parts documentation also identifies an AOG vinyl protective cover for both L-Series and T-Series griddles.
T-Series vs. L-Series
Both versions are outdoor built-in two-burner gas griddles available in Natural Gas and Liquid Propane configurations. The main supplied distinction is whether lighting and an electrical connection are required.
Feature
T-Series
L-Series
Installation
Built-In
Built-In
Use
Outdoor
Outdoor
Main Burners
2
2
Fuel Configurations
Natural Gas / Liquid Propane
Natural Gas / Liquid Propane
Lighting
Not equipped
Equipped
Electrical Connection
Not required
Required
Simple selection rule: Choose the T-Series when you want a gas-only installation without lighting. Choose the L-Series when you want the electrically powered lighting system and can provide the required electrical service.
American Outdoor Grill T-Series Specifications
Product
Brand
American Outdoor Grill
Series
T-Series
Model Family
AOG30GRT(N,P)
Product Type
Griddles
Installation Type
Built-In
Use Location
Outdoor
Fuel & Burners
Fuel Configurations
Natural Gas / Liquid Propane
Main Burners
2
Natural Gas Orifice Drill Size
#49
Liquid Propane Orifice Drill Size
1.16 mm
Factory Air Shutter Opening
1/4 in.
Electrical & Lighting
Electrical Connection
Not required
Lighting
Not equipped
Overall Dimensions
Height With Lid
2 1/2 in.
Height Without Lid
2 1/4 in.
Maximum Width
33 7/8 in.
Lid Width
31 7/8 in.
Maximum Depth
24 3/4 in.
Certification & Warranty
Certification
ANSI Z21.58 / CSA 1.6
Built-In Griddle Warranty
7 Years, subject to manufacturer terms
Overall dimensions are not enclosure cutout dimensions. Follow the manufacturer's enclosure and insulating-liner instructions for the required opening.
Installation Requirements
Installation and gas connection must be completed as specified in the Installation and Owner's Manual by a qualified professional installer. The enclosure must be properly constructed and ventilated, the front air inlet must remain clear, and the appliance must be positioned to maintain proper airflow.
The T-Series does not require an electrical connection. Gas-supply, enclosure, ventilation, clearance, support, and other manufacturer installation requirements still apply.
Verify Before Installation
The correct Natural Gas or Liquid Propane model has been selected.
The enclosure is suitable for an outdoor built-in gas appliance.
Required enclosure ventilation openings are provided.
The front air inlet will remain unobstructed.
The front panel can sit flush with the enclosure face.
The required clearances can be maintained.
Combustible-enclosure requirements have been addressed before construction.
Do Not
Use the overall product dimensions as enclosure cutout dimensions.
Block the front air inlet or required enclosure ventilation.
Install in a combustible enclosure without the approved insulating liner.
Use the appliance indoors.
Ignore the fuel-specific manufacturer installation instructions.
Assume the lack of an electrical connection eliminates other installation requirements.
Combustible Enclosures
When this griddle is installed in a combustible enclosure, the manufacturer requires the 30-IL-C AOG insulating liner. The liner is sold separately. Follow its instructions for the applicable counter cutout dimensions and installation.
Combustible enclosure requirement: Do not install the griddle in a combustible enclosure without the required 30-IL-C AOG insulating liner.
Clearance & Airflow
Maintain a minimum horizontal clearance of 18 inches in all directions from combustible materials and items. Required enclosure ventilation openings and the front air inlet must remain unobstructed.
Supporting Products Sold Separately
Supporting Product
Model
Insulating Liner
30-IL-C
Cart Base for Portable-Griddle Conversion
30CRT-25
Accent Color Panels
AO-GR-***
Vent Hood
VHD-36
30-IL-C
Insulating Liner
30CRT-25
Cart Base
AO-GR-***
Accent Color Panels
VHD-36
Vent Hood
Important Safety & Use Considerations
Required Operating Practices
Use the appliance outdoors only.
Have an adult present during operation.
Remove the griddle lid before use.
Keep the drip collector trough holes and air baffle clear.
Follow the manufacturer's fuel-specific enclosure ventilation requirements.
Shut off the in-line gas valve or gas-cylinder valve when the unit is not in use.
Avoid
Indoor use.
Leaving the appliance burning unattended.
Operating with the griddle lid in place.
Blocking airflow or required enclosure ventilation.
Allowing grease pathways to become obstructed.
Leaving the gas supply open when the appliance is not in use.
Gas shutoff: Shut off the in-line gas valve or gas-cylinder valve when the unit is not in use.
Warranty
American Outdoor Grill built-in griddles are warranted for seven years, subject to the manufacturer's warranty terms, exclusions, proof-of-purchase requirements, and installation requirements.
Warranty scope: The seven-year warranty remains subject to manufacturer terms and applicable installation and use requirements.
Flame Authority Product Guidance
The American Outdoor Grill 30-Inch T-Series Built-In Gas Griddle is best suited to permanent outdoor kitchens where a dedicated two-burner flat-top cooking surface is wanted without adding the electrical service required by the L-Series lighting system.
The most important ordering decision is fuel type. Select the factory Natural Gas or Liquid Propane configuration that matches the installation.
The lack of an electrical connection simplifies one part of the installation, but it does not remove the manufacturer's gas, enclosure, ventilation, clearance, support, or professional-installation requirements.
Before enclosure construction begins, remember that the listed overall dimensions are not enclosure cutout dimensions. Combustible installations require the separately sold 30-IL-C insulating liner.
American Outdoor Grill T-Series Built-In Griddle FAQs
Is the AOG T-Series Built-In Griddle available for Natural Gas and Liquid Propane?
Yes. Choose the Natural Gas or Liquid Propane model that matches the intended fuel supply. Do not order a fuel configuration that does not match the installation.
Does the AOG T-Series Built-In Griddle require electricity?
No. T-Series griddles are not equipped with lighting and require no electrical connection. Choose the L-Series if you want the electrically powered lighting system.
What is the difference between the AOG T-Series and L-Series griddles?
The T-Series has no lighting and requires no electrical connection, while the L-Series is equipped with lighting and requires electrical power.
How many burners does the AOG T-Series griddle have?
The T-Series griddle has two main gas burners, providing two controlled heat sources beneath the flat cooking surface.
Can the AOG T-Series griddle be installed in a combustible enclosure?
Yes, but the manufacturer requires the 30-IL-C AOG insulating liner. Do not install it in a combustible enclosure without the required approved liner.
Can this built-in griddle be converted to a portable configuration?
Yes. The manufacturer identifies the 30CRT-25 cart base for conversion to a portable griddle. The cart is sold separately.
Can the AOG T-Series Built-In Griddle be used indoors?
No. The manufacturer specifies this appliance for outdoor use only.
What clearance is required from combustible materials?
Maintain a minimum horizontal clearance of 18 inches in all directions from combustible materials and items, together with the manufacturer's required enclosure ventilation and airflow provisions.
Are the listed dimensions the enclosure cutout dimensions?
No. The listed overall product dimensions are not the enclosure cutout dimensions. Follow the manufacturer's enclosure instructions and, where applicable, the 30-IL-C insulating-liner instructions for the required opening.
Does the T-Series include a griddle lid?
The supplied parts documentation identifies a griddle lid for both L-Series and T-Series models. The lid must be removed before operating the appliance.
What is the warranty on the AOG T-Series built-in griddle?
American Outdoor Grill built-in griddles are warranted for seven years, subject to the manufacturer's warranty terms, exclusions, proof-of-purchase requirements, and installation requirements.
Final Before-Order Checklist
Confirm
You specifically want the American Outdoor Grill T-Series built-in griddle.
The project requires a two-burner flat-top gas griddle.
The correct Natural Gas or Liquid Propane factory configuration is selected.
You do not need the L-Series lighting system.
You prefer an installation with no electrical connection.
The installation is outdoors.
The enclosure can meet manufacturer ventilation and airflow requirements.
The required 18-inch horizontal clearance from combustible materials can be maintained.
The 30-IL-C insulating liner will be used if the enclosure is combustible.
The actual enclosure cutout will be taken from the applicable manufacturer instructions rather than the overall product dimensions.
Avoid These Ordering & Installation Errors
Ordering the wrong fuel configuration.
Choosing the T-Series when you actually want the L-Series lighting system.
Using the overall product dimensions as the enclosure cutout.
Installing in a combustible enclosure without the required 30-IL-C liner.
Blocking the front air inlet or required enclosure ventilation.
Operating the griddle with the lid installed.
Using the appliance indoors.
Leaving the appliance burning unattended.
Assuming no electrical connection means installation requirements are minimal.
Product Resources
Review the manufacturer documentation before installation, gas connection, enclosure construction, or operation.
Stainless steel burners are warranted as long as the original purchaser owns them (Lifetime)
TEN YEAR WARRANTY
All other American Outdoor Grill® parts (excluding ignition systems, accessories, infrared burner, and vaporizer panels) are warranted for ten (10) years
THREE YEAR WARRANTY
Infrared burners and vaporizer panels are warranted for three (3) years
ONE YEAR WARRANTY
Ignition systems (excluding batteries) and accessories (including side burners, motors, refigerators and thermometers) are warranted for one (1) year
PLEASE KEEP A COPY OF YOUR EMAIL CONFIRMATION FOR PROOF OF PURCHASE
This warranty applies to the original purchaser and to single family residential use only. It commences from date of purchase, and is valid only with proof of purchase.
This warranty does not cover parts becoming defective through misuse, accidental damage, electrical damage, improper handling, storage, and/or installation.
Product must be installed (and gas must be connected) as specified in the instructions or operator’s manual, by a qualified professional installer.
Accessories, parts, valves, remotes, etc., when used must be Peterson Co. product.
This warranty does not apply to rust, corrosion, oxidation, or discoloration, unless the affected component becomes inoperable. It does not cover labor or labor-related charges.
This warranty specifically excludes liability for indirect, incidental, or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you.
This warranty gives you specified legal rights, and you may have other rights that may vary from state to state.
We are an authorized dealers for every brand we sell!
Our SATISFACTION GUARANTEE and LOWEST PRICE GUARANTEE let you rest easy knowing you'll be taken care of, no matter what happens.
By buying from us you qualify for the full manufacturer warranty, save time and money! We ship directly to your door from the manufacturer's warehouse. Every product is checked for quality assurance and packaged with the utmost care to ensure it arrives in perfect working condition. We ship with only the best carriers including UPS, FedEx, USPS, and trusted freight companies to get your product to you in the fastest time possible. We even offer discounts with most orders just to make your day a little better.
We use encrypted SSL security to ensure your credit card information is 100% protected.
Great customer service for hard to get refractory brick back
I was able to get a Novus 33 in brick refractory back for my NG Novus fireplace insert. Novus is a high demand item and Flame authority was only supplier without a huge delay from manufacturer. I recommend them for all fireplace needs.
Scott DiBert
10/07/2023
Great service and great product
Tia Short
03/29/2023
Nice and easy
Product is great, free shipping was good, and unpacking and installing it was easy. Customer support was great too, both with the sales and shipping carrier. After much research…the Modern Flames Redstone is the one.
Ken Shuba
02/14/2023
A+ = both the sale, the shipping process, and the product
A+ = both the sale, the shipping process, and the product
Scott Werley
12/26/2022
Great Customer service
I purchased burner and fire box. I emailed and spoke with Jim . He helped me from start to finish. Great service
Scott G
12/19/2022
Beautiful Mantel
The mantel required a little bit of sanding and prep before painting, but was good quality. Flame Authority did an excellent job shipping and it arrived by freight in perfect condition.
The mantel assembled well. I ended up using some construction adhesive to glue the legs on to make it a little more sturdy. I cut pocket holes in the top to attach it to the wall.
Very happy with our purchase!
Ryan George
12/17/2022
Blaze Pro Portable Grill
I shopped for a grill for two people. I want it to last for ten years or more. I want it to get really hot for grilling steaks after they have been cooled sous vide. I want it to be useful also for lower temp cooking. This Blaze grill is perfect for me and my wife. Our purchase through Flame Authority was completed with no problems. I am totally satisfied with this grill and highly recommend it for anyone with similar needs.
Mary Ann
10/23/2022
Came as advertised and without any delays. Arrived quickly. No issues and would buy from flame authority again.
Brian McDonald
08/03/2022
I wanted to make sure of the size and features of this oven. I called Flame Authority and Mary answered the call. She gave me all the details and I was really amazed coz she really knows what she is selling. Expert with sales and communication. Thumbs Up!
James N. Johnson
07/12/2022
Great heating stove
I bought the stove couple weeks ago and ended up having a chance running it a few days I am very pleased with the outcome of the amount of heat it gets out also with the amount of hours it burns at least eight hours. I would recommend this for anyone who is looking for hours of heat output. At first when I bought it I didn’t quite know if mine hopes will be for filled but now they are happy with it. I would recommend this to anyone as a trusted tester of it I am very pleased of the outcome it rains.!
Vladimir Novik
04/25/2022
Nice company to work with and an even better fireplace for our home
Nice , polite and helpful, when you would call with questions.Fireplace looks nice and throws a decent amount of heat , just a bit of a delay in delivery. Ended up getting it End of January, right before guests arrived. But still only took 3 weeks to get. Thank you Flame Authority !!!
Chelyn Andrea
02/02/2022
Stunning Fireplace
I didn't expect to have this fireplace earlier than the lead time they promised. It looks stunning in my living room and now we are prepared for the upcoming winter season! I am happy with all the updates! Customer service representatives keep on updating me with the process of my order until delivery they are checking it for you! 10 stars for Flame Authority!
sample
09/27/2021
Beautiful
Simply beautifully designed. Very efficient. Looks gorgeous in our mid century modern home in a corner space. Will save us $$$ on electric heat bills and is easy to clean with fireplace glass cleaner.
Hayley Severns
09/03/2021
Great Customer Service
I believe it was David Novak that helped me. Someone ALWAYS answered the phone and located this burner when I couldn't find it anywhere else. It almost seemed too good to be true. But it wasn't. The burner is now nestled in my new outdoor kitchen and am very pleased.
Olivia Pierce
06/29/2021
Thank you for a very smooth transaction. the remote is very useful. It is very easy to install
