Outdoor Decorative Gas Fireplace

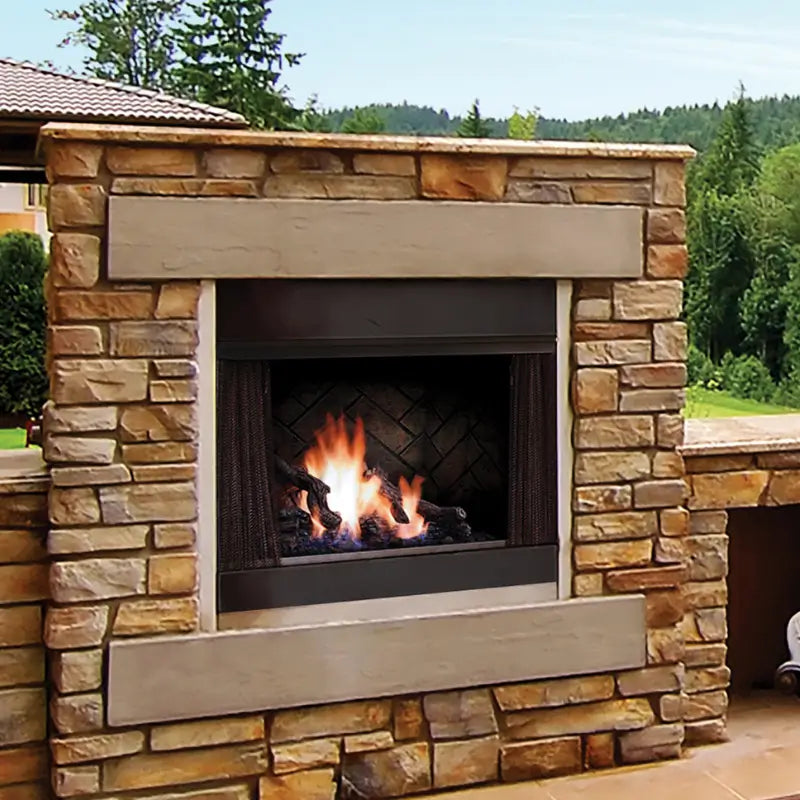

Barbara Jean Collection 42-Inch Outdoor Gas Fireplace – Natural Gas, 55,000 BTU
The Barbara Jean Collection OFP42 Outdoor Fireplace is a built-in natural gas fireplace designed to create a traditional focal point in an approved outdoor living area. It is available in Satin Coat Black or Stainless Steel, with a choice of Millivolt or IPI Proflame 1 electronic ignition.
All four natural gas configurations provide a maximum input of 55,000 BTU and a minimum input of 38,000 BTU. Standard features include Hi/Low flame adjustment, flame-sensing safety shutoff, stainless steel pull screens, and lava rock.
Quick Product Summary
The Barbara Jean OFP42 is a built-in outdoor decorative natural gas fireplace with a 38,000–55,000 BTU input range. Choose between Satin Coat Black or Stainless Steel and between Millivolt or IPI Proflame 1 ignition.
Important Ordering Information
Decorative log sets, refractory liners, the stainless steel surround, weather covers, spark-assist components, approved decorative media, gas piping, electrical work, framing materials, and other optional accessories are not included unless specifically selected or listed with the order.
Quick Product Facts
| Attribute |
Details |
| Product Type |
Built-In Outdoor Decorative Gas Fireplace |
| Series |
Barbara Jean Collection OFP42 |
| Fuel Type |
Natural Gas |
| Input Range |
38,000 BTU minimum to 55,000 BTU maximum |
| Finish Options |
Satin Coat Black or Stainless Steel |
| Ignition Options |
Millivolt or IPI Proflame 1 |
| Flame Control |
Hi/Low heat and flame adjustment |
| Certification |
Certified for the USA and Canada as an Outdoor Decorative Gas Appliance |
| Installation Type |
Built-In Outdoor Installation |
| Professional Installation |
Required |
Available Natural Gas Models
Choose the finish and ignition system that fit the project. All four models use natural gas and provide the same 38,000–55,000 BTU input range.
| Model |
Finish |
Ignition / Valve System |
Fuel |
Input Range |
| OFP42N |
Satin Coat Black |
Millivolt, SIT Nova valve with Hi/Low adjustment |
Natural Gas |
38,000–55,000 BTU |
| OFP42NE |
Satin Coat Black |
IPI Proflame 1 electronic ignition with Hi/Low adjustment |
Natural Gas |
38,000–55,000 BTU |
| OFP42NS |
Stainless Steel |
Millivolt, SIT Nova valve with Hi/Low adjustment |
Natural Gas |
38,000–55,000 BTU |
| OFP42NSE |
Stainless Steel |
IPI Proflame 1 electronic ignition with Hi/Low adjustment |
Natural Gas |
38,000–55,000 BTU |
Key Features
Built for Outdoor Living
The OFP42 is certified for outdoor decorative gas-appliance use in the United States and Canada. Install it only in an approved outdoor location with the ventilation and clearances specified by the manufacturer.
Up to 55,000 BTU
Natural gas models operate from 38,000 BTU on low to 55,000 BTU on high, allowing the heat and flame level to be adjusted to suit the outdoor setting.
Two Ignition Choices
Choose a Millivolt model for a traditional standing-pilot system or an IPI Proflame 1 model with automatic electronic pilot ignition.
Flame-Sensing Safety Shutoff
The pilot system monitors the pilot flame and shuts off gas flow when the pilot flame is not detected.
Stainless Steel Pull Screens
Stainless steel pull screens are included as standard equipment and must be positioned correctly during operation.
Customizable Appearance
Optional refractory liners, log sets, approved decorative media, a stainless steel surround, and weather covers allow the installation to coordinate with the surrounding outdoor design.
Standard Features
- Natural gas configuration
- 38,000 BTU minimum input
- 55,000 BTU maximum input
- Millivolt or IPI Proflame 1 valve system, depending on model
- Hi/Low heat and flame adjustment
- Flame sensor with gas shutoff when the pilot is not detected
- Stainless steel pull screens
- Lava rock
- Wall switch
- Certified for the USA and Canada as an Outdoor Decorative Gas Appliance
Millivolt vs. IPI Proflame 1
| Consideration |
Millivolt |
IPI Proflame 1 |
| Compatible Models |
OFP42N and OFP42NS |
OFP42NE and OFP42NSE |
| Pilot Type |
Standing pilot lit according to the manufacturer instructions |
Electronic ignition automatically lights the pilot |
| Electrical Requirement |
Do not connect 120-volt power to the Millivolt switch circuit |
Requires a grounded connection to an external GFCI-protected outlet |
| Optional Spark Assist |
OFP42SA battery-powered spark assist is available |
Not required because the model uses electronic ignition |
| Choose This System When |
You prefer a traditional Millivolt control system |
You prefer electronic pilot ignition and can provide the required electrical connection |
Product and Framing Dimensions
Verify all dimensions against the current installation manual before framing. These are manufacturer-published reference dimensions for the OFP42 series.
| Reference |
Dimension |
| A |
31 1/2 inches |
| B |
44 1/2 inches |
| C |
10 3/8 inches |
| D |
42 1/8 inches |
| E |
41 7/8 inches |
| G |
43 1/2 inches minimum |
| H |
38 1/4 inches |
| I |
18 1/2 inches |
| J |
42 1/8 inches |
| K |
38 1/4 inches |
| L |
18 1/2 inches |
The framing diagrams include additional measurements, standoff locations, finishing allowances, gas-line locations, and clearance details. Use the current installation manual as the controlling document.
Selected Installation Clearances
Firebox and Enclosure
- Bottom of fireplace to enclosure: 0 inches
- Sides of fireplace to enclosure: 0 inches
- Back of fireplace to enclosure: 0 inches
- Top of fireplace standoffs: 0 inches
- Adjacent side wall: 3 1/2 inches minimum
Overhead Clearance
- Top of fireplace front to ceiling: 47 inches minimum
- Floor to ceiling: 85 inches minimum
- Low-profile enclosure height: 43 1/2 inches minimum
- Combustible mantel clearances must follow the manual diagram
Do not use these selected measurements as a replacement for the full installation manual. Local codes, nearby doors, windows, air inlets, soffits, siding materials, service regulators, public walkways, and other site conditions can require additional clearances.
Screened Porch Installation Guidelines
The OFP42 series can be installed in a screened porch only when the porch and ventilation conditions comply with manufacturer requirements.
Minimum Space Requirements
- Minimum porch area: 96 square feet
- Minimum ceiling height: 92 inches
- Minimum screen area: 64 square feet
- Minimum side-wall or screen height: 78 inches from the bottom of the unit
Ventilation Requirement
At least two walls must be screened and open to outside ventilation. Open floor space around the fireplace does not count as required ventilation or airflow space.
Do not install this fireplace in an enclosed space. The appliance consumes air and produces combustion gases, including carbon monoxide. The installation must provide natural ventilation without stagnant areas.
Outdoor Location Requirements
- Install only in an outdoor location permitted by the manual and local code.
- Avoid tight spaces, stagnant areas, and corners with restricted airflow.
- Do not install the appliance inside or through an exterior wall.
- The fireplace may be installed against the outside of an exterior wall when all required clearances are met.
- Do not treat surrounding open floor area as a substitute for required wall or ceiling ventilation.
- Never operate the fireplace in an enclosed structure such as a home, tent, camper, or vehicle.
Depending on the structure, the installation must provide two open sides or at least 30 percent of the horizontal periphery permanently open.
Gas and Electrical Requirements
| Requirement |
Details |
| Fuel |
Natural Gas |
| Gas Control Inlet |
3/8-inch NPT |
| Natural Gas Supply Pressure |
5.5 inches minimum, 7 inches normal, and 10 inches maximum water column |
| Natural Gas Manifold Pressure |
3.5 inches water column on high and 1.6 inches water column on low |
| Recommended Gas Supply |
Minimum 1/2-inch iron pipe from the gas meter, subject to local code and proper gas-system sizing |
| IPI Electrical Requirement |
Properly grounded three-prong connection to an external GFCI-protected outlet near the fireplace |
Qualified installation is required. Gas piping, electrical grounding, pressure testing, leak testing, conversion, adjustment, and commissioning must comply with manufacturer instructions and applicable codes.
Optional Accessories
LOGF36 Log Set
The LOGF36 split-oak style log set provides a traditional outdoor fireplace appearance and must be installed according to the approved log-placement instructions.
Stainless Steel Surround
The optional stainless steel surround adds a finished metal border around compatible OFP42 installations and must be installed before surrounding decorative facing materials are completed.
OFP42RLT Traditional Brick Liner

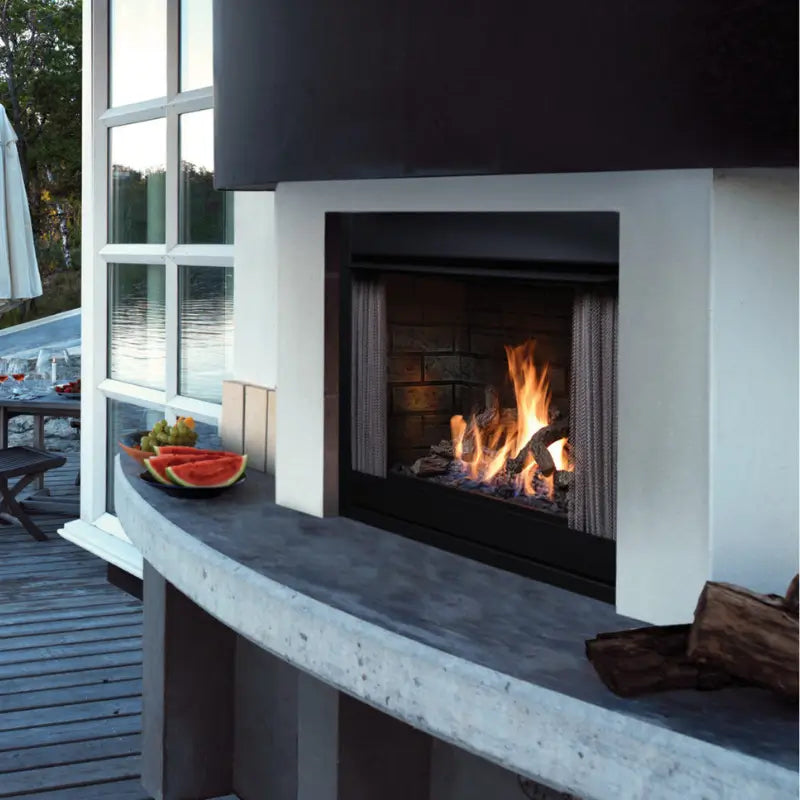

The OFP42RLT refractory liner creates a traditional horizontal brick appearance and is identified as reversible.
OFP42RLH Herringbone Brick Liner

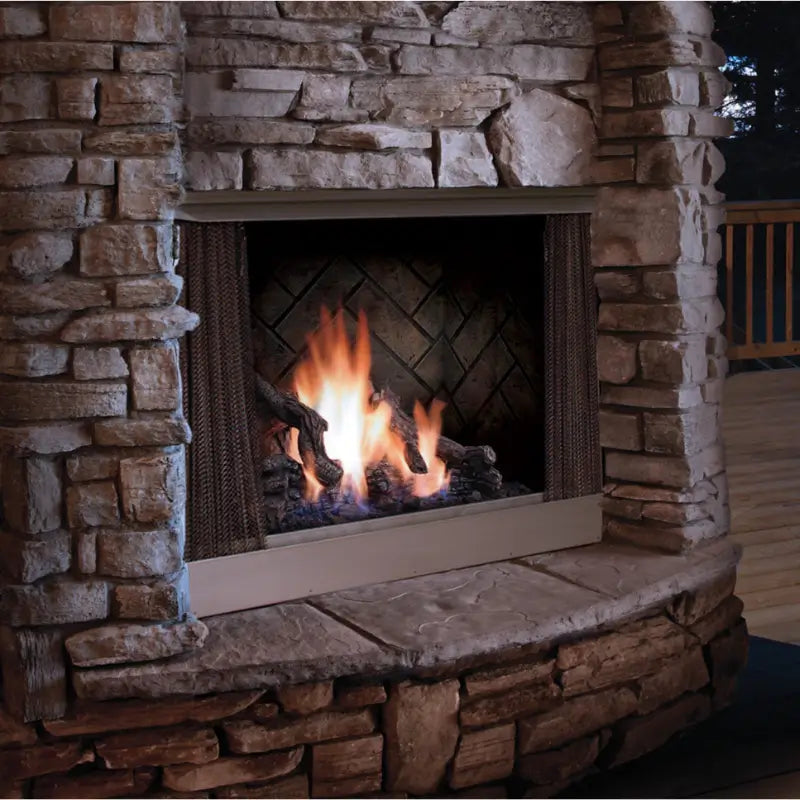

The OFP42RLH refractory liner creates a diagonal herringbone brick appearance and is identified as reversible.
OFP42SA Spark Assist
The optional OFP42SA battery-powered spark-assist module supports pilot ignition on Millivolt models and requires one AA battery.
Weather Cover
An optional weather cover helps protect the firebox interior while the fireplace is cool, switched off, and not in use.
Confirm accessory model numbers and availability at the time of order. Use only media, components, and accessories specifically approved for the OFP42.
What Is Included and Not Included
| Included |
Not Included Unless Selected |
- Barbara Jean Collection OFP42 outdoor fireplace in the selected finish
- Selected natural gas valve and ignition configuration
- Hi/Low flame adjustment
- Wall switch
- Stainless steel pull screens
- Lava rock supplied for the approved configuration
- Manufacturer documentation
|
- Decorative log set
- Traditional or herringbone refractory liner
- Optional stainless steel surround
- Weather cover
- Millivolt spark-assist kit
- Decorative glass or rock kits
- Gas piping, shutoff valve, regulator, or installation fittings
- Electrical wiring, GFCI outlet, or site electrical work
- Framing, masonry, finishing materials, labor, or permits
|
Before You Order
Confirm the Fuel Type
The four models on this page are configured for natural gas. Do not connect a natural gas model to propane without the correct manufacturer conversion kit and qualified conversion.
Select the Ignition System
Choose Millivolt or IPI before ordering. The systems use different valve, pilot, control, electrical, and replacement components.
Select the Finish
Choose Satin Coat Black for a dark traditional appearance or Stainless Steel for a brighter metal finish.
Plan the Complete Fireplace
Confirm the required log set or approved decorative media, refractory liner, surround, weather protection, framing, gas supply, and electrical provisions before construction begins.
Verify the Installation Area
Review outdoor-space diagrams, screened-porch rules, clearances, drainage, ventilation, prevailing wind, and local code requirements before approving the location.
Arrange Professional Installation
Installation and service must be performed by a qualified installer, service agency, or gas supplier as applicable.
Safety and Operating Limitations
- This appliance is for outdoor use only.
- It is not intended for operation below freezing.
- It is not approved for solid fuel or wood burning.
- Adults must be present while the fireplace is operating.
- Do not leave the fireplace burning unattended.
- Children and adults must be kept aware of high surface temperatures and burn hazards.
- Keep clothing and combustible materials away from the appliance.
- Do not install insulation around the appliance because heat buildup can cause component failure.
- Wind can affect flame performance. Pilot dropout can occur in wind conditions above approximately 10 mph.
- Turn the pilot off and protect the fireplace from weather when it is not in use.
- Use only approved media, accessories, and replacement parts.
Drainage and Weather Exposure
Outdoor fireplace planning must account for rain, moisture, and drainage. Inadequate drainage can lead to corrosion, and damage caused by improper drainage is not covered by the manufacturer warranty.
Use an approved weather cover only while the fireplace is cool and not operating. Remove every cover or obstruction before lighting the appliance.
Maintenance Requirements
Monthly Flame Inspection
Operate and inspect the fireplace at least monthly during the season of use. The burner and pilot flame should match the patterns shown in the manual, and the pilot-shield area must remain clear.
Annual Professional Service
The fireplace and burner system should be inspected and cleaned annually by a dealer or qualified technician to prevent malfunction, blockage, or sooting.
Clean Approved Media Carefully
Do not use cleaning fluids on logs. Use a soft-bristle brush or a vacuum with a brush attachment after the unit is shut off and fully cool.
Inspect for Blockages
Burner ports, pilot components, the valve area, and the mixing sleeve should be checked for dust, debris, insects, and spider webs.
Limited Warranty Summary
The manufacturer states that the burner is warranted against defects for five years. Other components, including gas valves, thermocouples, igniters, lights, and media, are warranted against defects for one year, subject to the complete warranty terms.
Warranty exclusions include scratches, dents, painted finishes, corrosion, heat discoloration, damage from abrasive or chemical cleaners, improper installation, improper application, inadequate maintenance, and other exclusions listed in the official warranty.
The complete warranty in the current installation manual controls. Retain proof of the original installation date, model number, and serial number.
Frequently Asked Questions
Is the Barbara Jean OFP42 an indoor fireplace?
No. The OFP42 is an outdoor decorative gas appliance and must not be used in an enclosed indoor space.
Can the OFP42 be installed in a screened porch?
Yes, but only when the porch provides at least 96 square feet of area, a 92-inch ceiling, 64 square feet of screen area, and the required outside ventilation.
Does the Barbara Jean Outdoor Fireplace include a log set?
No. An approved log set or approved decorative-media configuration must be ordered separately unless specifically included with the selected package.
What is the difference between OFP42N and OFP42NE?
OFP42N uses a Millivolt valve system, while OFP42NE uses IPI Proflame 1 electronic ignition. Both have a Satin Coat Black finish and use natural gas.
What is the difference between OFP42NS and OFP42NSE?
OFP42NS uses Millivolt ignition, while OFP42NSE uses IPI Proflame 1 electronic ignition. Both have a stainless steel finish and use natural gas.
Does the OFP42 require electricity?
IPI Proflame 1 models require a grounded connection to an external GFCI-protected outlet. Do not connect 120-volt power to the Millivolt switch circuit.
Can the natural gas fireplace be converted to propane?
Only use the correct manufacturer conversion kit, and have the conversion completed and tested by a qualified service agency.
Can the OFP42 burn wood?
No. The OFP42 is a gas appliance and is not approved for solid fuel.
Can the fireplace be operated below freezing?
No. The manufacturer states that the appliance is not intended for use in temperatures below freezing.
Can the outdoor fireplace be left operating unattended?
No. The manufacturer identifies it as an attended appliance, so an adult must remain present while it is operating.
Is professional installation required?
Yes. Installation and service must be performed by a qualified installer, service agency, or gas supplier as applicable.
Manufacturer Resources
Review the official product documents before ordering, framing, installing, operating, or servicing the fireplace.
Barbara Jean Outdoor Fireplace Brochure Product overview, features, finish options, dimensions, accessories, and screened-porch guidelines. Barbara Jean OFP42 Installation Manual Safety, framing, clearances, gas specifications, operation, maintenance, troubleshooting, parts, and warranty. Barbara Jean Outdoor Collection Catalog Outdoor fireplaces, fire features, accessories, design options, and outdoor-living product information.
Final Product Summary
The Barbara Jean Collection OFP42 Outdoor Fireplace is a built-in natural gas fireplace for approved patios, terraces, outdoor rooms, and qualifying screened porches. It combines a maximum input of 55,000 BTU with Hi/Low flame adjustment, stainless steel pull screens, flame-sensing safety shutoff, and a choice of Millivolt or IPI Proflame 1 ignition.
Choose OFP42N or OFP42NE for Satin Coat Black, and OFP42NS or OFP42NSE for Stainless Steel. Before ordering, confirm the ignition system, approved media or log set, refractory liner, surround, weather cover, ventilation, framing, gas supply, electrical requirements, and local code compliance.
