The Bio Flame SmartFlame Burner Collection

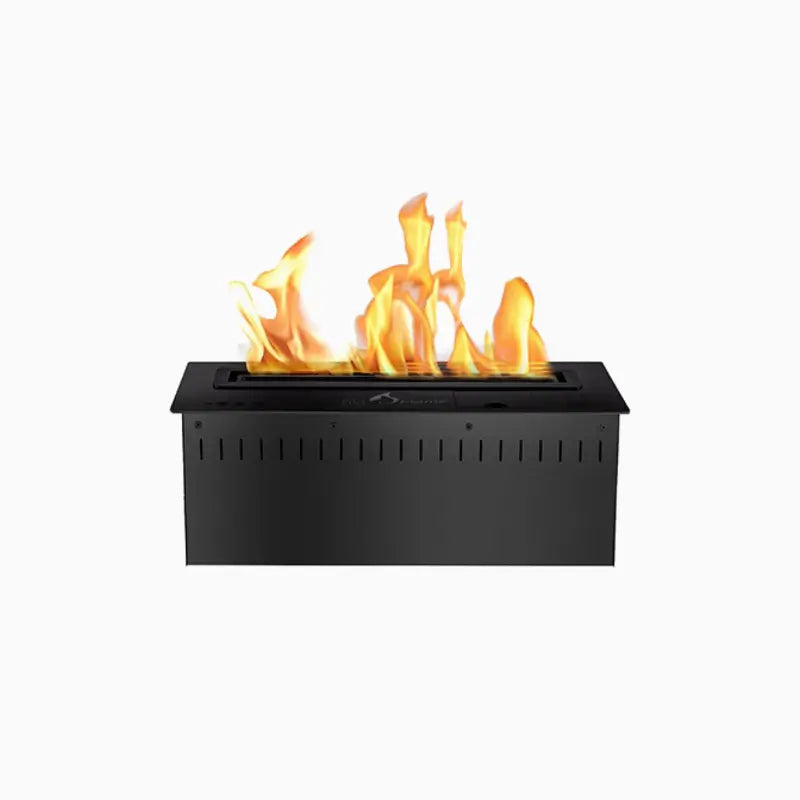

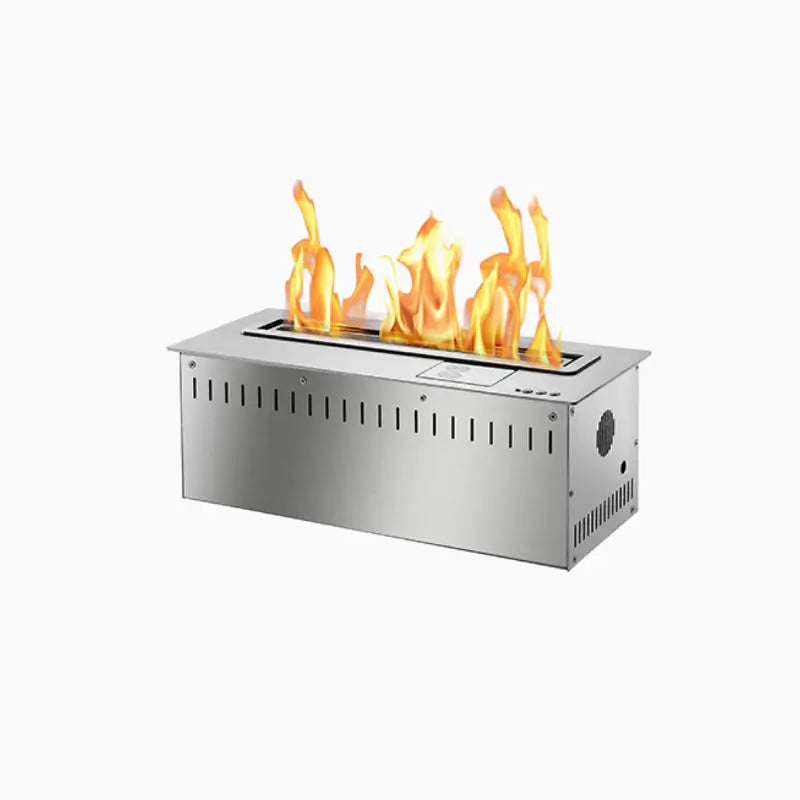

Bio Flame 18-Inch SmartFlame Remote-Controlled Bioethanol Burner
The Bio Flame 18-Inch RC Smart Burner is a premium automatic bioethanol burner designed for custom residential and commercial fireplace installations. It creates a real flame without requiring a chimney, flue, gas line, or fixed fuel connection, while adding remote control, built-in WiFi, smart-home operation, automatic fuel filling, safety sensors, and adjustable flame control.
Flame Type Real Bioethanol Flame
Control Remote, app and burner controls
Connectivity WiFi, Google Home and Amazon Alexa
Fuel System Automatic fuel refill
Installation Ventless custom firebox
Finishes Black or stainless steel
A Smart Bioethanol Burner for Custom Fireplace Projects
Designed for integration into a properly constructed non-combustible firebox, the 18-Inch SmartFlame Burner gives architects, designers, builders, business owners, and homeowners a flexible way to create a contemporary real-flame fireplace without installing a traditional chimney or gas supply.
SmartFlame technology combines electronic ignition and flame management with six selectable operating settings, automatic fuel filling, remote operation, and connected control through The Bio Flame app. The burner is also described as compatible with Google Home and Amazon Alexa for convenient hands-free operation.
Its compact 18-inch format is suited to smaller custom fire features, media-wall projects, architectural fireboxes, hospitality installations, and modern interior or outdoor settings where the required clearances, room size, electrical supply, and non-combustible construction can be provided.
Important use classification: Bioethanol fireplaces are classified as decorative fireplace appliances intended for occasional use. Use this burner for flame ambience and supplementary warmth, not as the building's primary or continuous heating system.
Bio Flame 18-Inch RC Smart Burner at a Glance
Heat Output
Approximately 6,900 BTU / 1.9 kW
Approximate Burn Time
7.3–8.8 hours
Average Indoor Coverage
Approximately 38–40 m²
Minimum Room Size
21 m² per burner
Control Options
Burner controls, remote, WiFi app and smart home
Dimensions
6.6" H × 18" W × 7.6" D
Available Finishes
Black or stainless steel
Is the 18-Inch SmartFlame Burner Right for Your Project?
Best For
- Custom non-combustible fireplace enclosures
- Modern residential renovation projects
- Architect-designed fireplace features
- Luxury living rooms and entertainment spaces
- Hotels, restaurants, lounges, and reception areas
- Projects without an available chimney or gas line
- Buyers who want a real flame with remote and app control
- Indoor or outdoor applications that satisfy the installation requirements
Do Not Choose This Burner If
- You need a primary or continuous whole-room heating appliance.
- You cannot provide the required minimum room size and ventilation.
- The proposed enclosure contains combustible construction materials.
- You cannot provide electrical power at the installation location.
- You intend to burn gasoline, wood, charcoal, paper, or an unapproved fuel.
- You want to use the fireplace for cooking, heating water, or another utility purpose.
- The burner cannot remain securely fixed and perfectly level during operation.
Key Features and Benefits
SmartFlame Technology
Electronic burner controls provide intelligent flame operation and adjustable flame intensity without relying on a manually operated burner opening.
Remote-Controlled Operation
Use the included remote control to operate the burner and adjust the flame level without reaching into the fireplace enclosure.
Built-In WiFi
The burner includes WiFi connectivity for control through The Bio Flame app from a compatible smartphone.
Smart-Home Compatibility
The supplied product information identifies compatibility with Google Home and Amazon Alexa for connected and hands-free control.
Automatic Fuel Filling
Connect the supplied filling hose and activate the fill control. The filling process stops automatically when the burner reaches its programmed level.
Six Selectable Settings
Select from the available operating states, including adjustable flame-size levels, to tailor the visual flame and heat output.
Ventless Installation
Bioethanol combustion eliminates the need for a permanent chimney or flue, provided all room-size, ventilation, clearance, and installation rules are met.
304 Stainless Steel Construction
Durable stainless steel construction supports use in properly designed custom fireplace installations.
Insulated Bottom Tray
The integrated insulated tray forms part of the burner's purpose-built construction for custom firebox installation.
Remote, WiFi, App, and Smart-Home Control
The 18-Inch RC Smart Burner includes both a handheld remote and built-in WiFi. This allows control through the burner's physical interface, the remote control, or The Bio Flame mobile app.
The supplied product information also states that the burner can work with Google Home and Amazon Alexa. This gives compatible installations the option of voice control and smart-home integration without adding a separate WiFi module.
Electrical power is required. The power adapter must be connected correctly, and the electrical wiring should be prepared before the burner is installed in the firebox.
Real Flame and Adjustable Performance
The burner uses liquid bioethanol fuel to produce a genuine open flame. Once the flame has spread across the combustion tray, its intensity can be increased or decreased using the burner controls or remote.
At maximum output, the 18-inch model is rated at approximately 6,900 BTU or 1.9 kW. The documentation lists an average indoor coverage of approximately 38–40 square meters, but actual performance depends on the installation, ventilation, room conditions, and fuel quality.
A full 2.6-liter fuel capacity provides an estimated burn time of approximately 7.3–8.8 hours. The burner also requires a minimum fuel level of 0.4 liter before its operating system will function correctly.
Not a primary heating appliance: The burner provides supplementary warmth and decorative flame ambience. Do not rely on it as the sole or continuous heating source for a home or commercial space.
Installation Requirements
The Bio Flame 18-Inch RC Smart Burner must be installed securely in a level, non-combustible firebox or enclosure. Suitable construction materials identified in the installation guide include stainless steel, concrete, brick, natural stone, cement sheet, and other approved non-combustible materials.
- Remove all packaging materials before installation.
- Prepare the electrical connection before placing the burner.
- Connect the power adapter from the right side of the burner.
- Provide an access opening for the burner connector where required.
- Secure the burner before filling, lighting, or operating it.
- Install the burner perfectly level on a sturdy, non-combustible surface.
- Keep the installation away from curtains, furniture, fabrics, wallpaper, veneer, and other heat-sensitive materials.
- Disconnect and secure any existing gas lines in the area through a qualified and licensed professional.
Custom firebox limitation: The manufacturer recommends using the burner in a firebox manufactured by The Bio Flame. It states that it is not responsible for injuries or damage associated with custom-made or privately commissioned fireboxes.
Required Clearances and Firebox Dimensions
| Front Clearance |
4 inches / 102 mm |
| Rear Clearance |
4 inches / 102 mm |
| Side Clearance |
4 inches / 102 mm |
| Overhead Clearance |
24 inches / 610 mm |
| Nearest Combustible Radius |
24 inches / 610 mm |
| 18-Inch Burner Cutout |
17.6 inches long × 7.09 inches wide × 9.84 inches deep
447 mm × 180 mm × 250 mm |
| Minimum Firebox Size Listed on Product Sheet |
26 inches wide × 20 inches high × 15 inches deep |
| Minimum Room Size |
21 m² per burner |
Final cutouts should be verified against the actual burner before fabrication. The product sheet states that dimensions can vary by approximately 2% due to material attributes.
Installation below a television: Where a firebox is installed below a recessed television, the installation guide specifies at least 14 inches / 35.5 cm between the top of the firebox and the bottom of the recessed TV.
Ventless Does Not Mean Ventilation-Free
The burner does not require a chimney, pipe, or permanent flue. However, it consumes oxygen during operation and must only be used where the specified room size and ventilation requirements are satisfied.
For the 18-inch model, the installation documentation lists a minimum room size of 21 square meters per burner. Do not operate the appliance in a room where oxygen tanks are in use or where flammable vapors are present.
Do not treat “ventless” as permission to install in an enclosed or inadequately ventilated area. Confirm that the proposed room and installation comply with the manufacturer's ventilation requirements and applicable local rules.
Smart Safety and Operating Protections
The SmartFlame system incorporates sensors and programmed operating safeguards intended to support controlled use of the burner. These systems do not replace proper installation, supervision, ventilation, fuel handling, or maintenance.
- Integrated safety sensors
- Automatic fuel filling with programmed stop
- Minimum fuel-level detection
- Temperature monitoring
- Child-lock functionality
- Ten-minute safety delay after shutdown
- Audible beep-code alerts for operating conditions
- Controlled fuel-pump shutdown when the burner is turned off
When the burner is switched off, the pump stops supplying fuel to the combustion tray. Any fuel already in the tray continues to burn for a short period until it is consumed. The flame is therefore not necessarily extinguished the instant the power button is pressed.
Never leave an open flame unattended. Do not move the burner while it is operating, and do not refuel it until it is completely off, empty where required, and cool.
Fuel Requirements
Use only bioethanol fuel intended for indoor ethanol fireplaces. The manufacturer recommends The Bio Flame Bioethanol Fuel and identifies e-NRG as an alternative fuel in the installation documentation.
- Never use gasoline.
- Do not add water to or dilute the fuel.
- Do not overfill the fuel tank.
- Do not refuel a hot or operating burner.
- Store fuel in its original container away from heat and ignition sources.
- Wipe up spills and allow the area to dry completely before ignition.
- Follow local regulations for storing, handling, and using bioethanol fuel.
What's Included
The installation documentation identifies the following items for the Smart Burner Collection:
| 18-Inch RC Smart Burner |
One burner in the selected black or stainless-steel finish |
| Remote Control |
Handheld burner control |
| AC Adapter and Plug |
Required electrical power connection |
| Automatic Filling Hose |
Connects the fuel container to the automatic refill inlet |
| Siphon Hose |
Used to remove fuel before storage or transportation |
| Lift-Up Handle |
Accessory for handling the burner as directed |
| User Manual |
Installation, operation, safety, care, and troubleshooting guidance |
| Additional Accessories Shown on Product Sheet |
Lighting rod, lighter, and funnel |
Technical Specifications
| Product Name |
Bio Flame 18-Inch RC Smart Burner |
| Collection |
SmartFlame Burner Collection |
| Available Model Codes |
18-BLACK-SF and 18-SILVER-SF |
| Available Finishes |
Black or stainless steel |
| Application |
Indoor and outdoor custom fireplace installations |
| Fuel Type |
Bioethanol fuel intended for ethanol fireplaces |
| Fuel Capacity |
2.6 L |
| Minimum Operating Fuel Level |
0.4 L |
| Approximate Burn Time |
7.3–8.8 hours |
| Maximum Net Thermal Output |
Approximately 6,900 BTU / 1.9 kW |
| Average Indoor Coverage |
Approximately 38–40 m² |
| Minimum Room Size |
21 m² per burner |
| Flame Control |
Six selectable operating settings |
| Control Methods |
Burner controls, remote control, WiFi app, and compatible smart-home control |
| Smart-Home Compatibility |
Google Home and Amazon Alexa |
| Fuel-Filling System |
Automatic refill system with automatic stop; manual filling provision also documented |
| Construction |
304 stainless steel |
| Bottom Tray |
Insulated |
| Vent or Chimney Required |
No permanent chimney or flue required |
| Gas Line Required |
No |
| Electrical Power Required |
Yes |
| Product Dimensions |
6.6 inches high × 18 inches wide × 7.6 inches deep
168 mm × 457 mm × 193 mm |
| Installation Materials |
Non-combustible materials only |
| Certification |
CE certified and tested to EN 16647 |
| Warranty |
3 years, based on the supplied product details |
Warranty documentation should be retained and the product should be registered according to the manufacturer's instructions. Improper installation, abnormal use, unauthorized modification, neglect, and failure to maintain the burner can affect warranty coverage.
Care and Maintenance
Bioethanol fireplaces produce no wood ash or soot residue, but the burner should still be inspected and cleaned regularly to preserve its appearance and proper operation.
- Make sure the burner is off, cold, and free of fuel before cleaning.
- Use a soft, damp cloth or microfiber cloth on exterior surfaces.
- Use a soft washing sponge for the combustion chamber.
- Do not use steel wool, harsh sponges, or stainless-steel cleaning agents.
- Avoid touching or damaging the fragile ignition component.
- Inspect beneath the removable burner for residual fuel.
- Clean the fireplace at least monthly when it is used regularly.
Normal heat staining: The area around the flame opening can change color from heat exposure. The manual identifies this as a normal effect of operation rather than a removable surface stain.
Flame Authority Expert Recommendation
Choose the Bio Flame 18-Inch RC Smart Burner when your project calls for a compact, real-flame fireplace with premium electronic controls, automatic fuel management, and no chimney or gas-line installation. It is best suited to a professionally planned, non-combustible firebox where the stated room size, ventilation, electrical, clearance, and fuel-handling requirements can be followed. Select a different appliance when primary heating, operation without electricity, or installation near combustible construction is required.
Official Product Resources
Review the complete installation, operating, safety, clearance, and maintenance documentation before constructing the firebox or operating the burner.
SmartFlame Remote Control Burner Installation & User Manual Installation, clearances, operation, safety, filling, maintenance, and troubleshooting. Bio Flame 18-Inch RC Smart Burner Specification Sheet Product dimensions, output, capacity, finish, included accessories, and installation summary.
Bio Flame 18-Inch Smart Burner FAQs
Does the Bio Flame 18-Inch Smart Burner require a chimney or vent?
No permanent chimney or flue is required. Only install the burner in a room that satisfies the 21 m² minimum room-size and ventilation requirements.
Does the 18-Inch SmartFlame Burner require electricity?
Yes. The ignition, pump, automatic refill system, electronic controls, WiFi, and safety functions require the supplied AC power connection.
Can I control this ethanol burner with Alexa or Google Home?
Yes, the supplied product information identifies Amazon Alexa and Google Home compatibility. A suitable WiFi connection and compatible smart-home setup are required.
Can the Bio Flame 18-Inch burner be installed below a television?
The guide specifies at least 14 inches / 35.5 cm from the top of the firebox to the bottom of a recessed TV. Do not proceed unless the full firebox, combustible, and equipment-clearance requirements are also satisfied.
Can the 18-Inch Smart Burner heat an entire room?
It produces approximately 6,900 BTU / 1.9 kW and lists average indoor coverage of 38–40 m². Do not use it as a primary or continuous heating system.
What fuel does the Bio Flame Smart Burner use?
Use only bioethanol fuel intended for indoor ethanol fireplaces. Never use gasoline, diluted fuel, wood, charcoal, paper, or another combustible material.
How long does the 18-Inch SmartFlame Burner run on a full tank?
Its 2.6-liter tank provides approximately 7.3–8.8 hours of operation. Actual burn time varies with flame setting, installation, and fuel quality.
Can the burner be installed in a wood fireplace cabinet?
No. Install it only in a properly designed enclosure made from approved non-combustible materials such as steel, concrete, brick, or natural stone.
Can I use the burner immediately after turning it off?
No. The burner has a ten-minute safety delay after shutdown and must cool before restart, refueling, cleaning, adjustment, or handling.
Does the flame go out immediately when the burner is switched off?
No. The fuel pump stops, but fuel remaining in the combustion tray continues burning for a few minutes until consumed.
Can the burner be refilled while it is operating?
No. Refuel only when the burner is completely off and cool; refueling a hot appliance creates a serious fire and flare-up hazard.
Can decorative stones be placed directly over the burner opening?
No. Decorative media must not cover the burner mouth, obstruct the flame, or interfere with the burner's controls and safety components.
Can I use this burner during a power outage?
No. The SmartFlame burner requires electrical power for ignition, pumping, controls, and safety operation.
Can the burner be moved while fuel is inside it?
Do not move the burner while it is operating or while hot. Empty the fuel with the supplied siphon hose before storage or transportation.
