Bio Flame Water Vapor Fireplace Collection

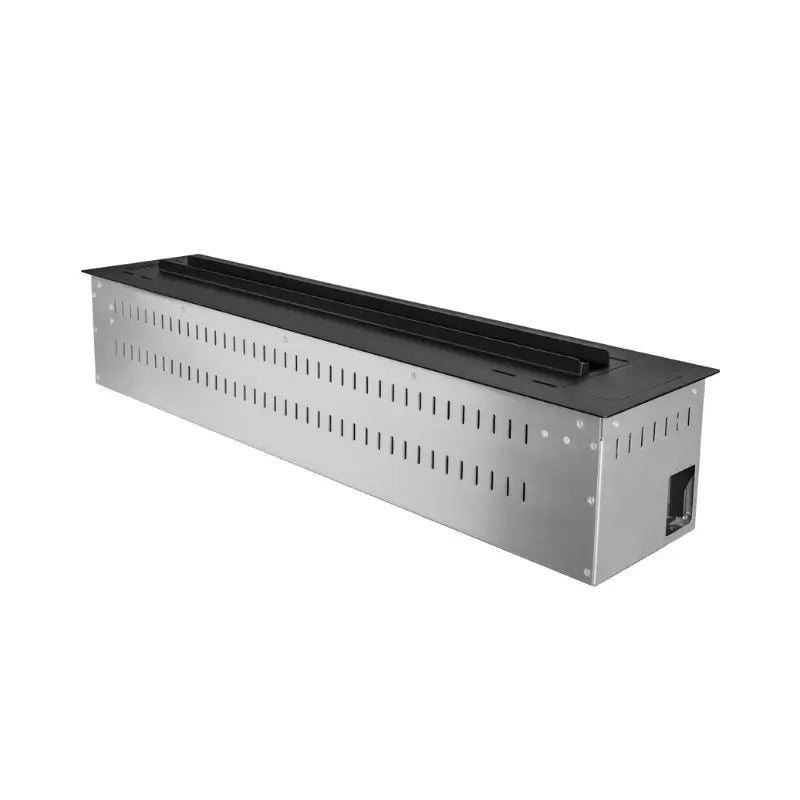

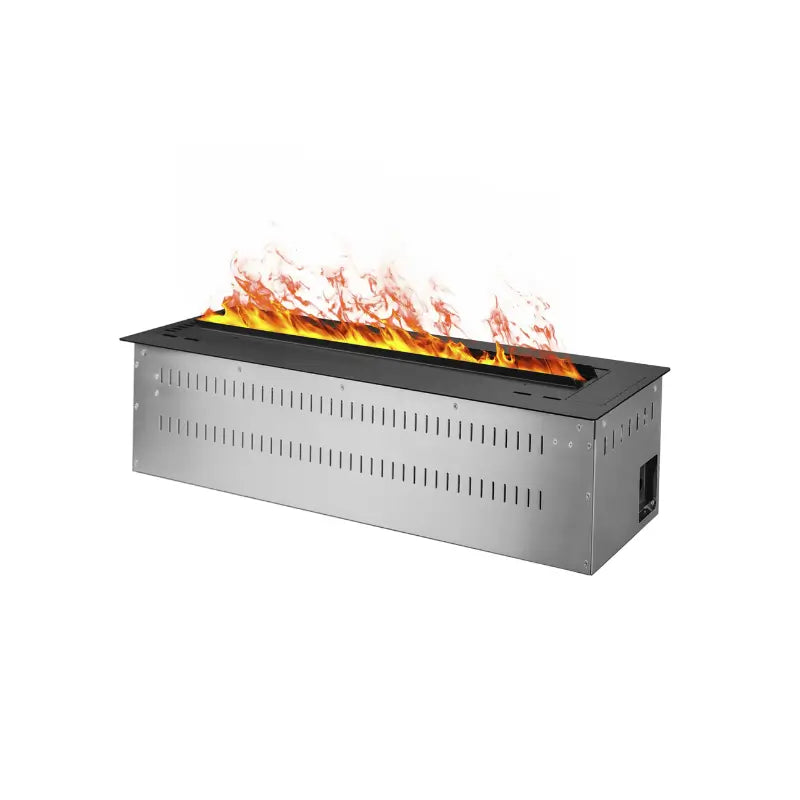

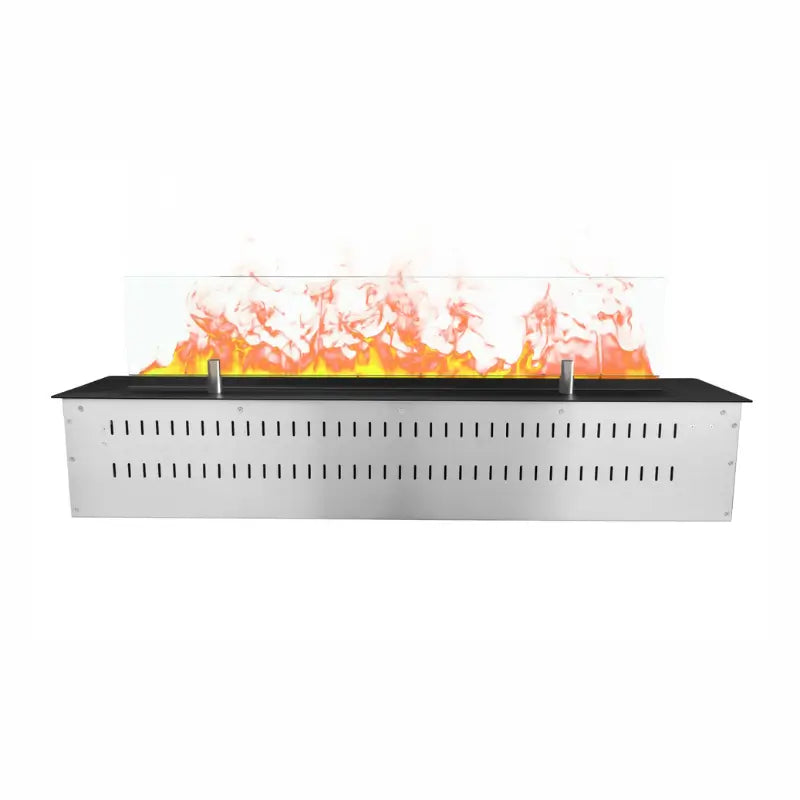

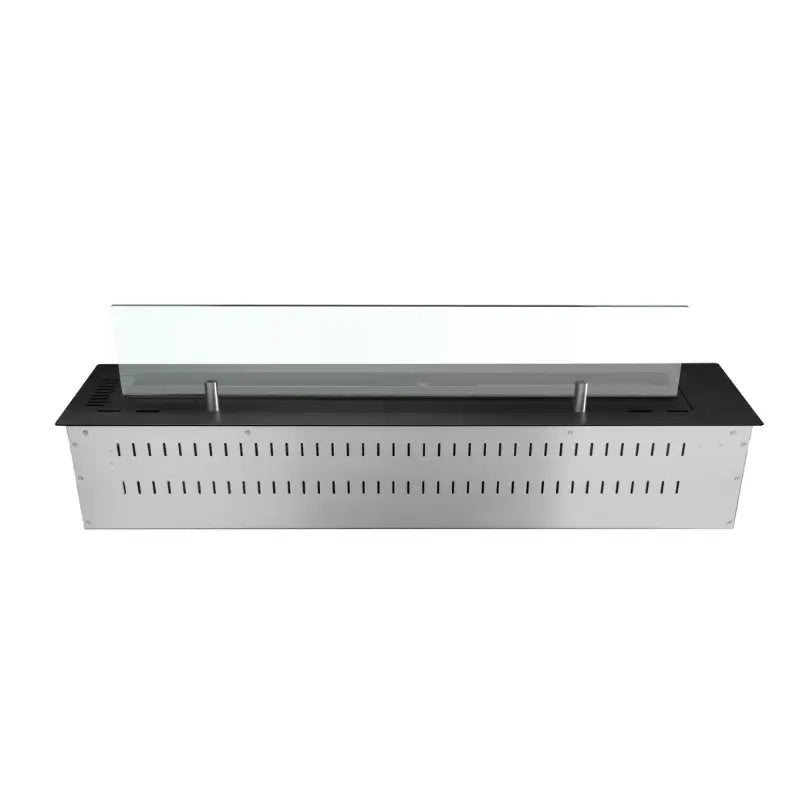

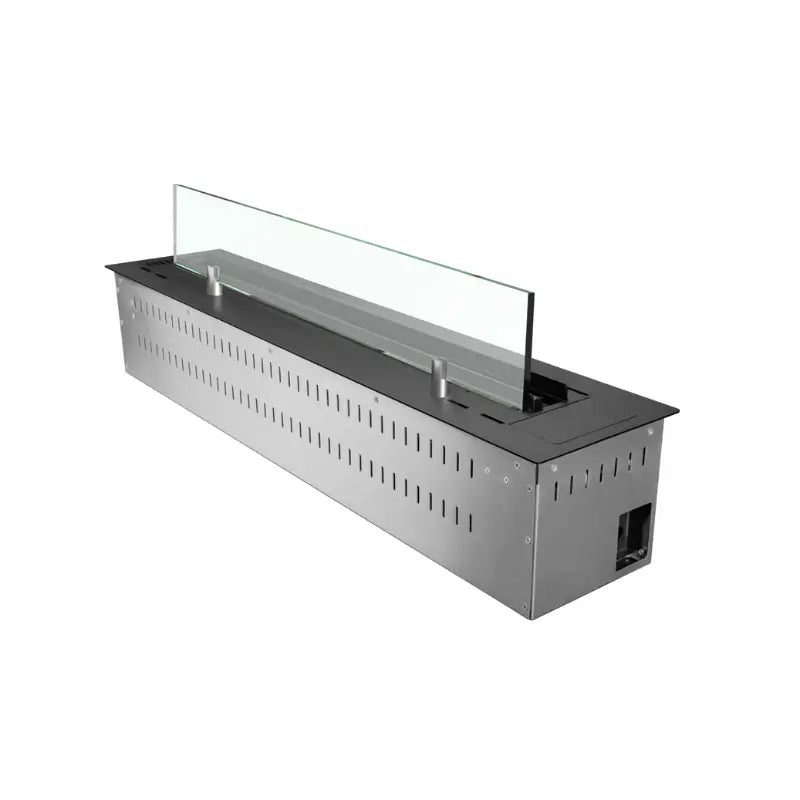

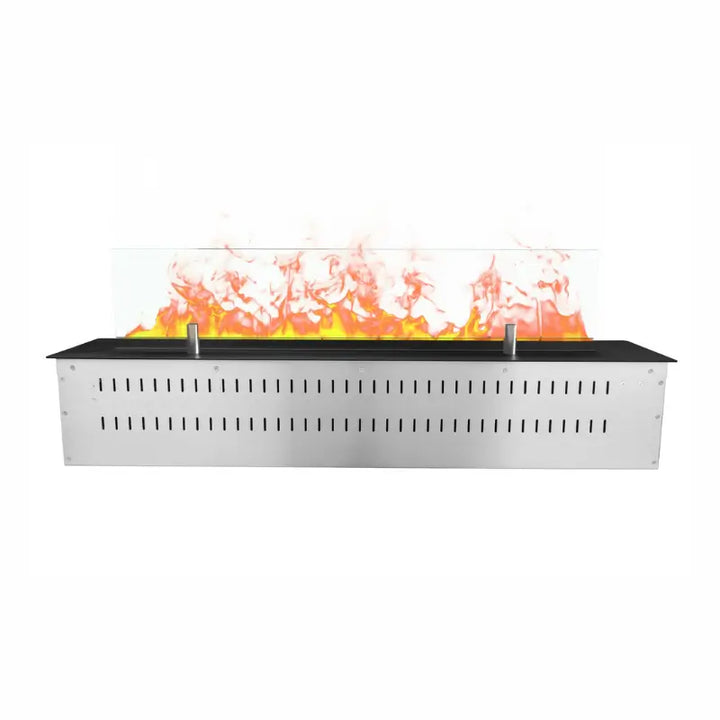

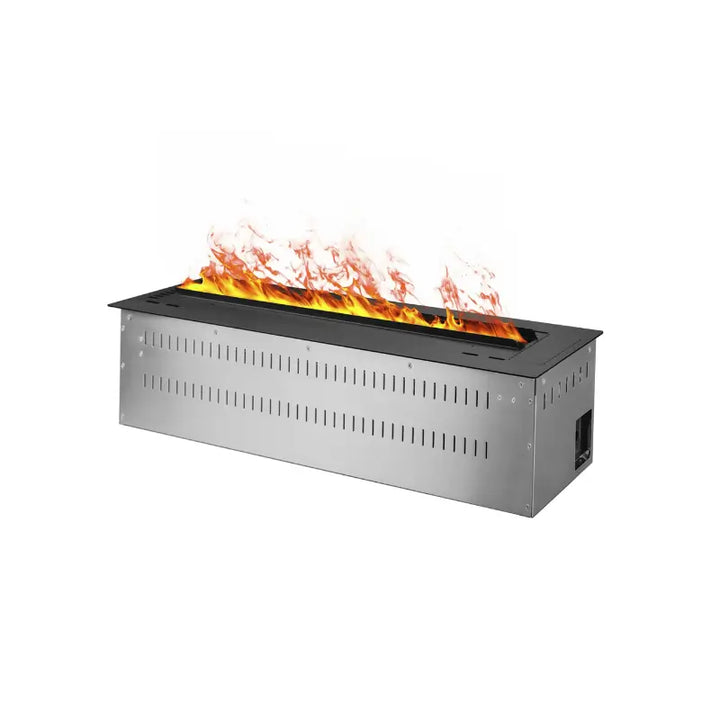

Bio Flame 24-Inch Smart Water Vapor Fireplace with Wi-Fi, Alexa & Google Home
The Bio Flame 24-Inch Smart Water Vapor Fireplace creates an ultra-realistic three-dimensional flame effect using ultrasonic water vapor and LED lighting instead of combustion. Designed for built-in residential and commercial interiors, it provides fireplace ambiance without heat, smoke, combustion emissions, a chimney, or traditional fireplace venting.
Flame Technology Ultrasonic 3D Water Vapor
Heat Output No Heat
Flame Colors 7 Adjustable Colors
Flame Height 5 Adjustable Levels
Control Remote & Smartphone App
Connectivity Wi-Fi, Alexa & Google Home
Water Supply Manual Fill or Direct Connection
Installation Built-In Ventless
A Smart 24-Inch Decorative Fireplace Without Combustion
Instead of burning wood, gas, or ethanol, the Bio Flame Smart Water Vapor Fireplace uses ultrasonic technology to produce a fine water vapor that is illuminated to create a realistic three-dimensional flame appearance.
Because the visual flame does not depend on combustion, the fireplace does not produce room heat, smoke, or combustion emissions. It is intended primarily as an architectural and decorative fireplace feature rather than a heating appliance.
Seven adjustable flame colors, five flame-height levels, remote control, smartphone operation, built-in Wi-Fi, and compatibility with Amazon Alexa and Google Home provide flexible control over the fireplace appearance.
Important use classification: This is a decorative water vapor fireplace. Choose a separate heating appliance if your primary goal is to provide supplemental or primary room heat.
Bio Flame 24-Inch Water Vapor Fireplace at a Glance
Fireplace Width
24 inches / 610 mm
Product Type
Smart Water Vapor Fireplace
Heat Output
No heat; decorative flame effect
Flame Colors
7 adjustable colors
Flame Height
5 adjustable levels
Smart Control
Remote, smartphone app, Amazon Alexa, and Google Home
Water Supply
Manual filling or direct water connection
Installation Type
Built-in ventless fireplace
Environment
Indoor installation protected from rain and water exposure
Is the 24-Inch Smart Water Vapor Fireplace Right for Your Space?
Best For
- Modern residential fireplace designs
- Apartments and condominiums where combustion fireplaces are impractical
- Bedrooms, living rooms, and entertainment spaces requiring decorative ambiance
- Hotels, restaurants, offices, and other commercial interiors
- Built-in fireplace projects without combustion or traditional venting
- Smart-home projects using Amazon Alexa or Google Home
- Designs where adjustable flame color and flame height are important
Do Not Choose This Fireplace If
- You need the fireplace to provide room heat.
- The installation will be exposed to rain, standing water, or excessive humidity.
- You cannot provide a suitable electrical connection.
- The project cannot provide the required fireplace clearances and bottom air intake.
- You specifically want a real wood, gas, or ethanol combustion flame.
Key Features and Benefits
Ultra-Realistic 3D Water Vapor Flames
Ultrasonic technology creates illuminated water vapor that produces visual depth and movement without relying on a combustible fuel source.
Seven Adjustable Flame Colors
Select from seven flame colors to coordinate the fireplace effect with different interiors, moods, and design styles.
Five Flame-Height Levels
Adjust flame height across five levels for a more restrained display or a taller and more prominent flame presentation.
No Heat Output
The fireplace is designed for visual ambiance rather than heating, making it appropriate where additional room heat is not wanted.
No Traditional Fireplace Venting
Because the unit does not rely on combustion, it does not require the chimney or combustion venting associated with many wood- and gas-burning fireplaces.
Flexible Water Supply
Water can be added manually or supplied through a direct water connection for installations where automatic filling is preferred.
Remote & App Control
Operate fireplace functions using the supplied remote control or compatible smartphone app.
Built-In Wi-Fi
Wi-Fi connectivity is integrated into the fireplace for compatible smart-home control without requiring a separate Wi-Fi upgrade.
Stainless-Steel Construction
The supplied specifications identify a #201 stainless-steel body and #304 stainless-steel water tank.
Remote, App & Smart-Home Control
The Bio Flame Smart Water Vapor Fireplace includes built-in Wi-Fi and remote-control capability. Compatible operation is available through the Bio Flame smartphone app, Amazon Alexa, and Google Home.
Control Options
- Included handheld remote control
- Bio Flame smartphone app
- Amazon Alexa
- Google Home
- Fireplace control panel
Adjustable Functions
- Power on and off
- Flame color selection
- Flame-height adjustment
- LED brightness control through the remote system
- Vapor-density adjustment
- Wi-Fi reset function
Remote-lock behavior: The manufacturer manual states that the remote and fireplace lock after approximately 30 seconds without remote activity. Use the documented remote unlock control before continuing operation.
Water Filling & Drainage System
The fireplace supports two approaches to supplying water, allowing the installation to be configured around the needs of the project.
Manual Water Filling
The included filling hose connects to the fireplace water-in system. The documented automatic filling function stops the pump when the tank reaches the required water level.
Direct Water Connection
The filling hose can also be connected to a water supply for automatic filling. The manufacturer manual states that the auto-fill function stops when filling is complete.
The fireplace also includes a water-out function for draining the tank. When the documented drainage cycle is activated, the pump stops automatically after the tank is emptied.
Installation Requirements
The Bio Flame Smart Water Vapor Fireplace is designed for built-in installation and requires electrical power, appropriate clearances, a level support surface, and sufficient airflow around the unit.
Electrical Requirements
- An electrical connection is required for operation.
- The manual specifies an electrical outlet on the right side of the burner cutout.
- The manual recommends connecting the outlet to a power source controlled by an external wall switch.
- Connect the power adapter before carefully lowering the fireplace into the cavity.
Airflow & Support
- Install the fireplace on a sturdy, level surface.
- Use a level to verify the installation surface.
- Leave an open air gap at the bottom of the fireplace niche for air intake.
- Remove cardboard, foam, and other packing material before operation.
Installation requirement: Follow the manufacturer's Installation & User Manual before building or finishing the fireplace enclosure. Improper installation can affect operation and warranty coverage.
Indoor installation only: The manufacturer identifies the fireplace as designed for indoor use. Do not install the unit where rain, water, or persistently excessive humidity can reach it.
Minimum Installation Clearances
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
Air intake is still required: Do not treat a ventless fireplace as airflow-free. The manufacturer instructs installers to leave an open air gap beneath the fireplace niche for air intake.
Safety & Electrical Compliance
The water vapor flame effect operates without the combustion process used by wood, gas, or ethanol fireplaces. The supplied product information also identifies a water-level sensor and child-lock function among the fireplace's built-in operating features.
The Bio Flame Water Vapor Fireplace Collection is documented as complying with the Electromagnetic Compatibility Directive (EMC) 2014/30/EU.
- EN IEC 55014-1:2021
- EN IEC 55014-2:2021
- EN IEC 61000-3-2:2019 + A1:2021
- EN 61000-3-3:2013 + A1:2019 + A2:2021 + AC:2022
Certification scope: The listed standards address electromagnetic compatibility and electrical-performance characteristics. They do not replace the installation, electrical, water-supply, airflow, or safety instructions in the manufacturer's manual.
What's Included
| Remote Controller |
Included |
| Water Filling Hose |
Included |
| Lift Handles |
2 included |
| Power Plug / Connection |
Included |
| Installation & User Manual |
Included |
Technical Specifications
| Brand |
Bio Flame |
| Collection |
Water Vapor Fireplace Collection |
| Fireplace Type |
Smart Water Vapor Fireplace |
| Installation |
Built-In / Ventless |
| Flame Technology |
Ultrasonic Water Vapor with Ultra-Realistic 3D Flames |
| Flame Colors |
7 Adjustable Colors |
| Flame Height |
5 Adjustable Levels |
| Heat Output |
None; decorative flame effect |
| Smoke |
No smoke produced during normal water-vapor operation |
| Control Options |
Remote Control & Smartphone App |
| Wi-Fi |
Built In |
| Amazon Alexa |
Compatible |
| Google Home |
Compatible |
| Water Supply |
Manual Fill or Direct Water Line Connection |
| Body Construction |
#201 Stainless Steel |
| Water Tank |
#304 Stainless Steel |
| Safety Features |
Water-Level Sensor & Child Lock |
| Lighting / Energy Use |
Low-power LED system |
| Stated LED Lifespan |
60,000+ hours |
| Overall Height |
6.6 in. / 168 mm |
| Overall Width |
24 in. / 610 mm |
| Overall Depth |
7.6 in. / 193 mm |
| Intended Environment |
Indoor; protect from rain and water exposure |
Where Does a 24-Inch Water Vapor Fireplace Work Best?
Homes & Apartments
A strong fit for living rooms, bedrooms, and other indoor spaces where fireplace ambiance is desired without adding heat or combustion.
Interior Design Projects
The compact 24-inch format and adjustable flame appearance make the fireplace suitable for custom walls, cabinetry, and architectural fireplace features.
Commercial Interiors
Suitable for hospitality, office, retail, and other commercial interiors that want a fireplace focal point without a combustion flame.
Water Vapor Fireplace vs. Traditional Combustion Fireplace
| Consideration |
Bio Flame Water Vapor Fireplace |
Traditional Combustion Fireplace |
| Visible Effect |
Illuminated 3D water vapor |
Combustion flame |
| Room Heat |
No |
Typically yes |
| Combustion |
No |
Yes |
| Smoke |
No smoke from water-vapor operation |
Depends on fireplace and fuel type |
| Traditional Fireplace Venting |
Not required |
Often required depending on appliance type |
| Electricity |
Required |
Depends on appliance type |
| Water Supply |
Required |
No |
Flame Authority Expert Recommendation
Choose the Bio Flame 24-Inch Smart Water Vapor Fireplace when the goal is a compact built-in fireplace feature with realistic visual depth, adjustable flame effects, and smart-home control—but without combustion or additional room heat.
It is particularly well suited to design-focused residential and commercial interiors where a traditional gas, wood, or ethanol fireplace would introduce heat, fuel, or venting requirements that the project does not need.
Do not choose this model when the fireplace is expected to provide primary or supplemental heating. Installation should also be planned around the required electrical connection, selected water-supply method, specified clearances, and required bottom air intake.
Official Product Resource
Review the manufacturer's manual before installation for complete operating instructions, required clearances, electrical setup, water filling, drainage, control functions, and safety information.
Bio Flame 24-Inch Water Vapor Fireplace FAQs
Does the Bio Flame 24-Inch Water Vapor Fireplace produce heat?
No. This model creates a decorative ultrasonic water-vapor flame effect and should not be selected when room heating is required.
Does a Bio Flame water vapor fireplace need a chimney or vent?
No traditional combustion chimney or fireplace vent is required because the unit does not burn wood, gas, or ethanol. The installation still requires the manufacturer's clearances and bottom air intake.
Can the Bio Flame Smart Water Vapor Fireplace connect to Alexa or Google Home?
Yes. Built-in Wi-Fi supports compatible control through Amazon Alexa, Google Home, and the Bio Flame app.
Does the fireplace need a permanent water connection?
No. The fireplace supports manual water filling as well as a direct water connection, so a permanent line is only necessary when that installation method is selected.
Can the Bio Flame water vapor fireplace be installed outdoors?
No. The supplied manufacturer information identifies the fireplace as designed for indoor use and protected from rain and water exposure.
What clearances are required around the water vapor fireplace?
The manufacturer specifies 4 inches / 100 mm at the front, rear, and sides and 20 inches / 500 mm overhead. Do not build the enclosure without also providing the required bottom air intake.
Does the Bio Flame 24-Inch Water Vapor Fireplace require electricity?
Yes. Electrical power is required for the ultrasonic vapor system, LED lighting, controls, Wi-Fi functionality, and water-management system.
Can I control the fireplace from my phone?
Yes. The fireplace supports compatible smartphone control through the Bio Flame app in addition to its handheld remote and control panel.
Can the flame color and height be changed?
Yes. The supplied specifications identify seven adjustable flame colors and five flame-height levels.
What comes with the Bio Flame 24-Inch Water Vapor Fireplace?
The supplied information lists a remote controller, water filling hose, two lift handles, power plug or connection, and the Installation & User Manual.
Before You Order
Confirm Before Purchase
- The fireplace is being selected for decorative ambiance rather than heating
- The installation will be indoors and protected from water exposure
- The required electrical connection can be provided
- The selected water-supply method can be accommodated
- The required front, rear, side, and overhead clearances can be maintained
- A bottom air intake can be incorporated into the fireplace niche
Do Not Assume
- That the fireplace provides room heat
- That outdoor installation is permitted
- That a ventless fireplace requires no airflow
- That a permanent water line is mandatory
- That combustion-style venting or chimney components are needed
- That additional accessories beyond the supplied items are included
Final installation check: Use the current manufacturer's installation documentation as the final authority for enclosure design, electrical setup, water-supply configuration, clearances, airflow, operation, and safety.
