Bio Flame Water Vapor Fireplace Collection

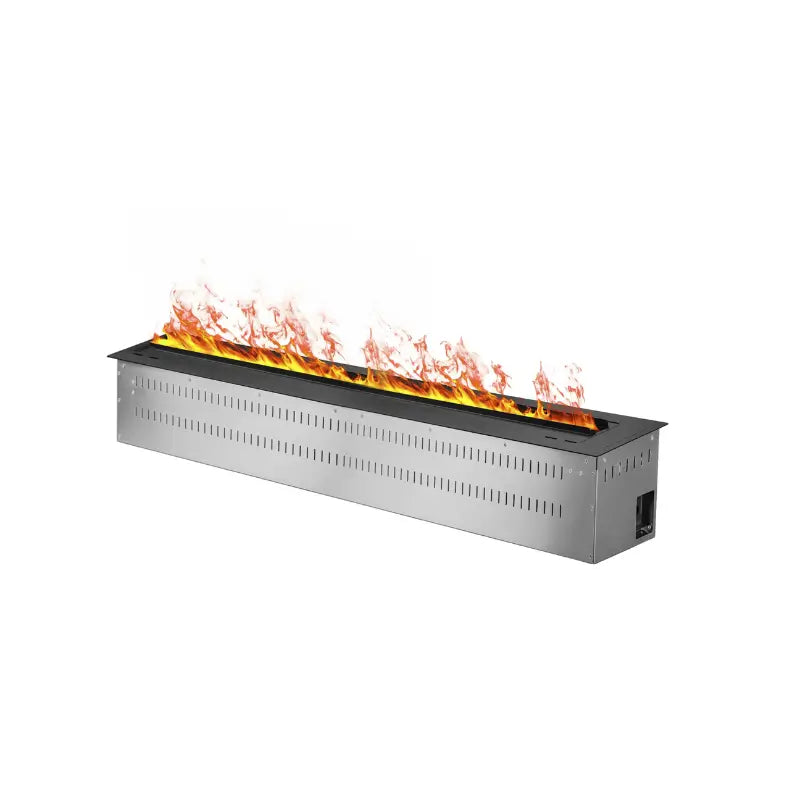

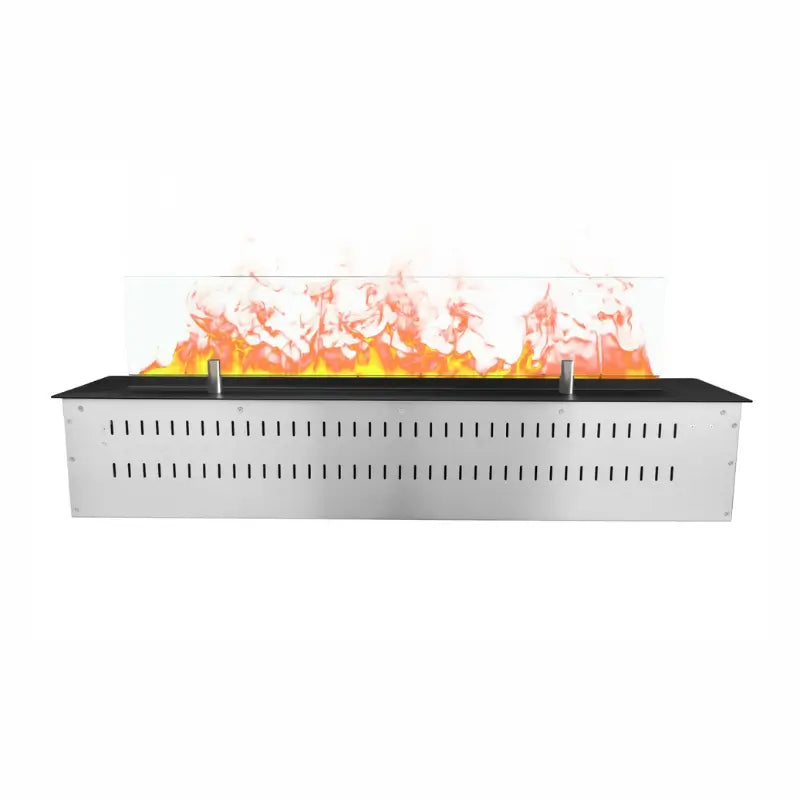

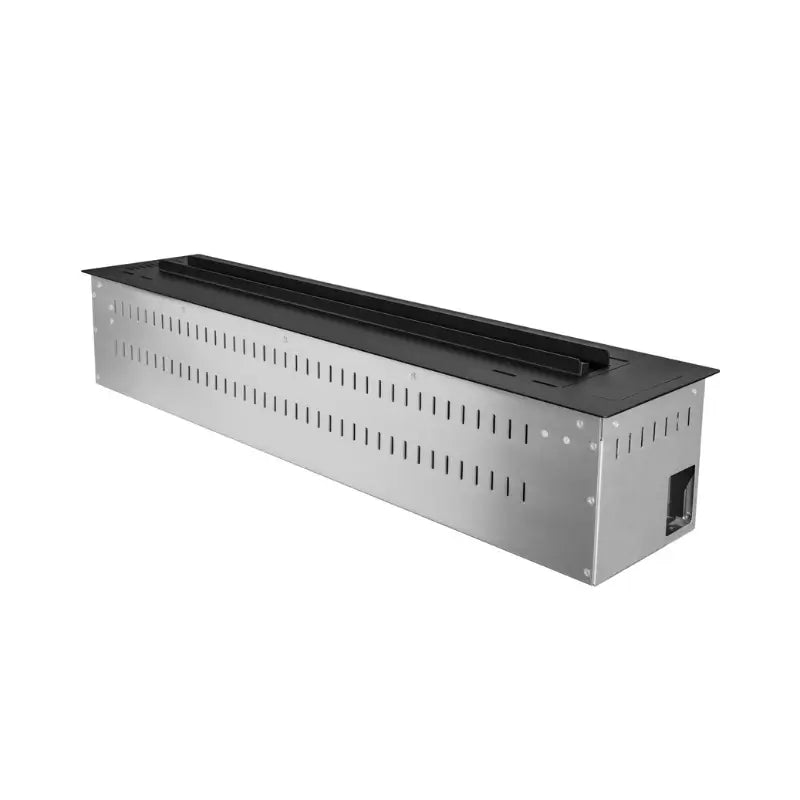

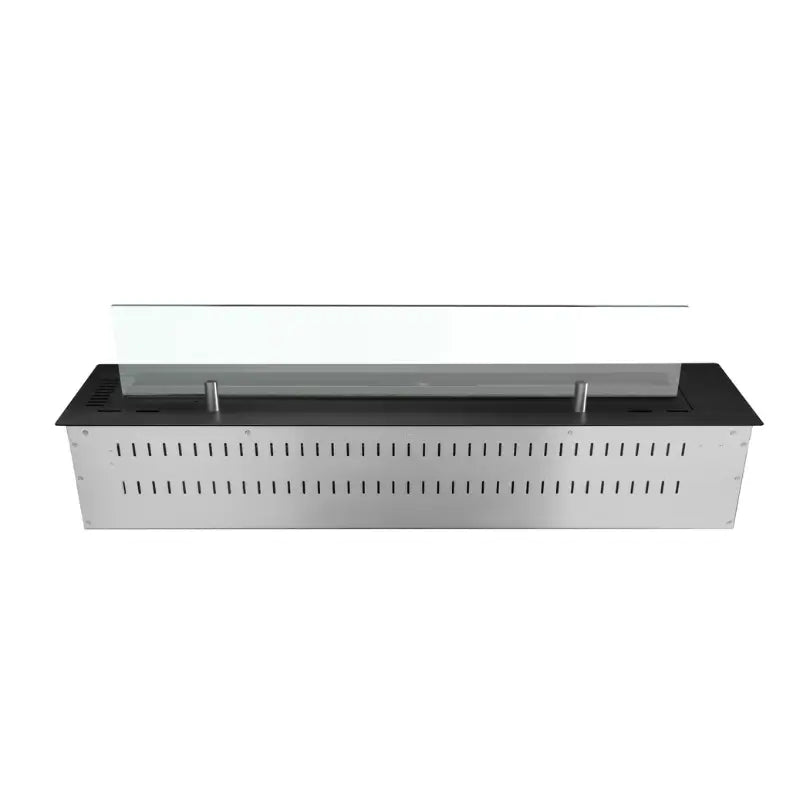

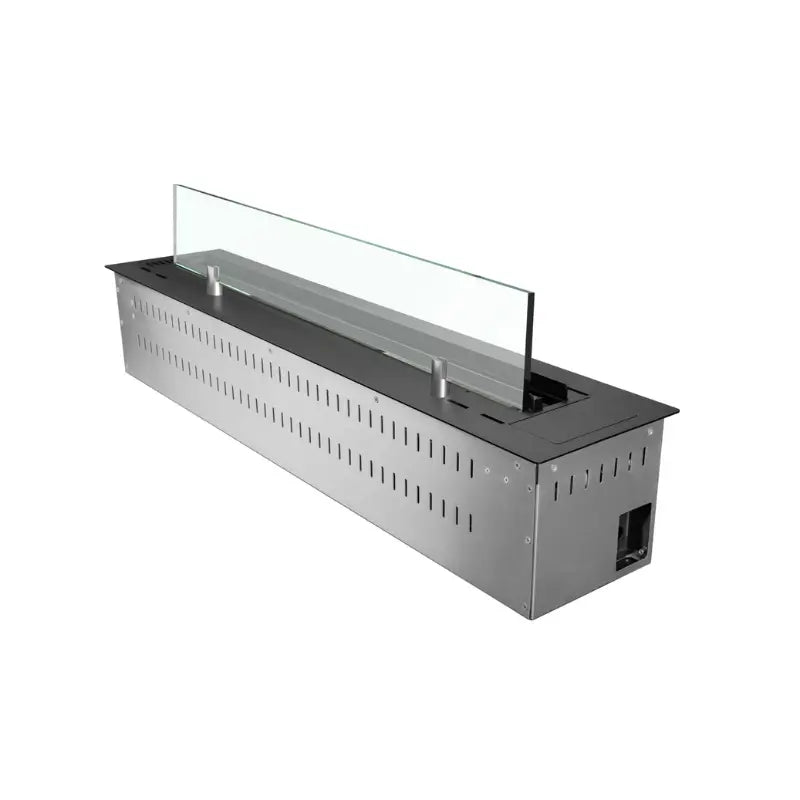

Bio Flame 36-Inch Smart Water Vapor Fireplace with Wi-Fi, Alexa & Google Home
The Bio Flame 36-Inch Smart Water Vapor Fireplace (WT-36-BLACK) creates ultra-realistic 3D flame effects using ultrasonic water vapor technology. Designed as a built-in ventless fireplace for indoor residential and commercial spaces, it provides visual flame ambiance without producing heat, smoke, or emissions.
Flame Technology Ultrasonic 3D Water Vapor
Heat Output No Heat
Flame Colors 7 Adjustable Colors
Flame Height 5 Adjustable Levels
Smart Control Wi-Fi, App, Alexa & Google Home
Water Supply Manual Fill or Direct Line
Water Tank 4 Liters
Installation Built-In Ventless
A 36-Inch Smart Water Vapor Fireplace for Decorative Flame Ambiance
Bio Flame Smart Water Vapor Fireplaces use ultrasonic water vapor technology to create an illuminated three-dimensional flame effect. Rather than burning gas, wood, or ethanol, the WT36 uses water vapor and LED lighting to create the appearance and movement of flame.
Because the fireplace does not produce heat, smoke, or combustion emissions, it is designed primarily as an architectural and decorative fireplace feature rather than a heating appliance.
The 36-inch model combines adjustable visual effects with connected controls. Users can choose from seven flame colors, adjust the flame through five height levels, fine-tune vapor density, and operate the fireplace using the included remote control, Bio Flame app, Amazon Alexa, or Google Home.
Important use classification: Choose the WT36 when realistic flame ambiance is the priority and supplemental heat is not required. This model is not designed to function as a room-heating appliance.
Bio Flame WT36 at a Glance
Heat Output
No heat output
Approximate Runtime
12–15 hours
Cutout Size
903 × 180 × 250 mm
Installation
Built-in ventless indoor fireplace
Is the Bio Flame 36-Inch Water Vapor Fireplace Right for Your Project?
Best For
- Indoor residential fireplace features
- Commercial interiors requiring decorative flame ambiance
- Built-in fireplace installations without combustion
- Projects where supplemental fireplace heat is not required
- Smart-home installations using Wi-Fi, Amazon Alexa, or Google Home
- Projects needing adjustable flame color, height, and vapor density
- Installations where manual filling or a direct water-line connection is preferred
Do Not Choose This Fireplace If
- You need the fireplace to heat the room.
- You specifically want a real wood, gas, ethanol, or other combustion flame.
- You need a fireplace that operates without electrical power.
- Your installation cannot accommodate the required clearances and air intake.
- You intend to expose the unit to rain, direct water, or a humid outdoor environment.
Key Features and Benefits
Ultrasonic 3D Flame Technology
Water vapor and lighting create an ultra-realistic three-dimensional flame effect without a combustion flame.
Seven Flame Colors
Select from seven adjustable flame colors to change the visual appearance of the fireplace.
Five Flame Heights
Five adjustable flame-height levels allow the visible flame presentation to be increased or reduced.
Adjustable Vapor Density
Vapor density can be fine-tuned for additional control over the appearance of the flame effect.
Built-In Wi-Fi
Integrated Wi-Fi supports compatible connected operation without requiring a separate Wi-Fi upgrade.
Remote & Smartphone Control
Operate the fireplace using the included remote or the Bio Flame smartphone app.
Alexa & Google Home
The supplied product information identifies compatibility with Amazon Alexa and Google Home.
Flexible Water Supply
The fireplace can be manually filled or connected to a direct water supply depending on the installation.
Water-Level Sensor
An integrated water-level sensor is included as part of the fireplace water-management system.
Child Lock
The control system includes a child-lock function to help reduce unintended operation.
Stainless-Steel Construction
The supplied specifications identify a #201 stainless-steel body and #304 stainless-steel water tank.
Long-Life LED System
The fireplace is specified for low power consumption with a stated LED lifespan of more than 60,000 hours.
How the Bio Flame Water Vapor Fireplace Works
The WT36 uses ultrasonic water vapor technology rather than combustion. Water inside the fireplace is converted into vapor, which is illuminated to form the three-dimensional flame effect.
This produces the visual appearance and movement of flame without creating heat, smoke, or combustion emissions.
Buyer decision: Choose a water vapor fireplace when realistic flame ambiance is more important than heating performance. If your project requires supplemental heating, this model does not meet that requirement.
Remote, App & Smart-Home Control
The Bio Flame WT36 includes built-in Wi-Fi and a supplied remote control, allowing the fireplace to be operated through several different control methods.
Remote Control
The included remote provides direct fireplace operation without requiring a smartphone.
Bio Flame App
The fireplace can be managed using the Bio Flame smartphone app when configured for connected operation.
Voice-Control Platforms
Compatible smart-home operation supports Amazon Alexa and Google Home.
Manual Fill or Direct Water-Line Connection
The WT36 gives owners and installers two water-supply options. The fireplace can be filled using the supplied filling hose or connected to a compatible water source for automatic filling.
Manual Water Filling
Connect the filling hose to the fireplace water-in connection and use the automatic filling function. The documented pump stops when the tank reaches the required level.
Direct Water Connection
The filling hose can also be connected to a compatible water tap. Once properly connected, the fireplace automatically fills until the auto-fill function stops.
| Water Tank Capacity |
4 liters |
| Refill Volume |
2.2 liters |
| Approximate Operating Time |
12–15 hours |
| Water Supply Options |
Manual fill or direct water-line connection |
Installation Requirements
The WT36 requires electrical power, proper clearances, a sturdy level support surface, the specified fireplace cutout, and an open air intake beneath the installation niche.
Indoor Installation
The manufacturer identifies the fireplace as designed for indoor use. Protect the unit from rain, water exposure, and unsuitable humid environments.
Electrical Connection
The supplied manual calls for an electrical outlet on the right side of the fireplace cutout and describes connection to a power source controlled by an external wall switch.
Level Support
Install the fireplace on a sturdy, level surface and verify the installation area before positioning the unit.
Bottom Air Intake
Leave an open air gap at the bottom of the fireplace niche so the unit has the required air intake.
Power Before Placement
Connect electrical power before carefully lowering the fireplace into its prepared cavity as described in the supplied installation sequence.
Lift Handles
Use the supplied lift handles when positioning the fireplace in the prepared opening.
Installation warning: Do not install the fireplace without confirming the manufacturer-required clearances, electrical placement, cutout dimensions, and air-intake requirements. Improper installation can affect operation and warranty coverage.
Required Clearances
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
Airflow requirement: Ventless does not mean airflow-free. The bottom air intake specified by the manufacturer must remain open.
WT36 Cutout Dimensions
| Cutout Length |
903 mm |
| Cutout Width |
180 mm |
| Cutout Depth |
250 mm |
Before fabrication: Verify the current manufacturer installation manual before constructing permanent cabinetry or a fireplace niche, even when using the listed WT36 cutout dimensions.
Where Does the 36-Inch Water Vapor Fireplace Work Best?
Residential Interiors
Suitable for indoor living areas and other residential spaces where decorative fireplace ambiance is the primary objective.
Commercial Interiors
Suitable for indoor commercial environments where a built-in visual fireplace feature is desired.
Design-Focused Installations
The built-in 36-inch format and adjustable flame appearance make the WT36 suitable for projects where the fireplace is integrated into the surrounding interior design.
Safety & Electrical Performance
The WT36 includes a water-level sensor and child-lock function. The manufacturer also states that the Water Vapor Fireplace Collection has been tested for electromagnetic compatibility under EMC Directive 2014/30/EU.
- EN IEC 55014-1:2021
- EN IEC 55014-2:2021
- EN IEC 61000-3-2:2019 + A1:2021
- EN 61000-3-3:2013 + A1:2019 + A2:2021 + AC:2022
Certification scope: These certifications relate to electrical performance and electromagnetic compatibility. They do not replace the manufacturer's installation, electrical, water-management, airflow, or operating instructions.
What's Included
| Remote Controller |
1 |
| Filling Hose |
1 |
| Lift Handles |
2 |
| Power Plug |
1 |
| Installation Manual |
1 |
Technical Specifications
| Model |
WT-36-BLACK / WT36 |
| Product Type |
Smart Water Vapor Fireplace |
| Nominal Size |
36 Inches |
| Installation Type |
Built-In Ventless Fireplace |
| Flame Technology |
Ultrasonic Water Vapor with Ultra-Realistic 3D Flame Effect |
| Heat Output |
No heat output |
| Flame Colors |
7 adjustable colors |
| Flame Height |
5 adjustable levels |
| Vapor Density |
Adjustable |
| Control Options |
Remote Control & Smartphone App |
| Wi-Fi |
Built In |
| Smart Home Compatibility |
Amazon Alexa & Google Home |
| Water Supply |
Manual Fill or Direct Water-Line Connection |
| Water Tank Capacity |
4 Liters |
| Refill Volume |
2.2 Liters |
| Approximate Operating Time |
12–15 Hours |
| Flame Length |
745 mm |
| Body Material |
#201 Stainless Steel |
| Water Tank Material |
#304 Stainless Steel |
| Safety Features |
Water-Level Sensor & Child Lock |
| Energy / Lighting |
Low Power Consumption; LED Lifespan 60,000+ Hours |
| Overall Dimensions |
36 in. W × 7.6 in. D × 6.6 in. H |
| Metric Dimensions |
908 mm L × 193 mm W × 168 mm H |
| WT36 Cutout Dimensions |
903 mm L × 180 mm W × 250 mm D |
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
| Primary Intended Environment |
Indoor Residential & Commercial Spaces |
Flame Authority Expert Recommendation
Choose the Bio Flame 36-Inch Smart Water Vapor Fireplace when your project calls for a built-in decorative fireplace with realistic 3D flame effects, smart-home controls, and no heat output.
It is particularly well suited to indoor residential and commercial installations where flame appearance, adjustable visual effects, and design flexibility are more important than heating performance.
The WT36 is also a strong fit where water-supply flexibility matters because it supports both manual filling and a direct water-line connection.
Do not select the WT36 as a heating appliance. Before ordering, confirm that the proposed installation can accommodate the fireplace dimensions, WT36 cutout requirements, specified clearances, electrical connection, water-supply method, and bottom air intake.
Official Product Resource
Review the manufacturer installation manual before finalizing the fireplace opening, electrical connection, water supply, clearances, or installation method.
Bio Flame WT36 Water Vapor Fireplace FAQs
Does the Bio Flame 36-Inch water vapor fireplace produce heat?
No. The WT36 creates a 3D flame effect with ultrasonic water vapor and is intended for visual fireplace ambiance rather than supplemental room heating.
Does the Bio Flame WT36 require a chimney or vent?
No combustion chimney is required because the WT36 is a built-in ventless water vapor fireplace. The installation must still maintain the required clearances and bottom air-intake opening.
Can the Bio Flame WT36 operate without a direct water line?
Yes. The WT36 supports manual filling using the supplied filling hose, so a permanent direct water-line connection is not required.
Does the Bio Flame 36-Inch fireplace work with Alexa and Google Home?
Yes. The supplied product information identifies built-in Wi-Fi plus Amazon Alexa and Google Home compatibility.
Can the WT36 water vapor fireplace be installed outdoors?
The manufacturer identifies the fireplace as designed for indoor use. Do not expose the unit to rain, direct water, or unsuitable humid outdoor conditions.
How much installation clearance does the WT36 require?
The manufacturer specifies 4 inches / 100 mm at the front, rear, and sides and 20 inches / 500 mm overhead. The installation must also preserve the required bottom air intake.
What are the WT36 cutout dimensions?
The supplied WT36 cutout dimensions are 903 mm long × 180 mm wide × 250 mm deep. Verify the current manufacturer manual before fabricating the permanent opening.
How long does the Bio Flame WT36 run on a fill?
The supplied technical data lists approximately 12–15 hours of operation. Actual runtime depends on fireplace settings and water use.
What is the WT36 water tank capacity?
The WT36 has a listed 4-liter tank with a 2.2-liter refill volume.
Can the WT36 flame color be changed?
Yes. The WT36 provides seven adjustable flame colors and five flame-height levels for customizing the visual flame effect.
Does the WT36 require electricity?
Yes. Electrical power is required for the vapor system, LED lighting, controls, Wi-Fi functionality, and water-management functions.
Can I completely seal the WT36 inside a built-in niche?
No. The manufacturer requires an open air gap beneath the fireplace niche, so do not construct an enclosure that blocks the required intake airflow.
Before You Order
Confirm Before Purchase
- The WT36 is being selected for decorative ambiance rather than heating
- The installation will be indoors
- The 36-inch fireplace dimensions fit the project
- The 903 × 180 × 250 mm cutout can be accommodated
- The required electrical connection can be provided
- The selected manual-fill or direct-water method can be accommodated
- The required clearances can be maintained
- The bottom air intake can remain open
Do Not Assume
- That the fireplace provides room heat
- That outdoor exposure is permitted
- That ventless means no airflow is required
- That a direct water line is mandatory
- That the fireplace can be sealed inside cabinetry
- That cutout and electrical planning can be skipped because the unit is compact
Final installation check: Use the current manufacturer Installation & User Manual as the final authority for cutout size, enclosure design, clearances, electrical setup, water supply, airflow, control configuration, and operation.
