Smart Flame Burner Collection
Bio Flame 48-Inch SmartFlame Remote-Controlled Bioethanol Burner
The Bio Flame 48-Inch SmartFlame Remote-Controlled Bioethanol Burner is a premium ventless burner designed for custom residential and commercial fireplace installations. It produces a real bioethanol flame and combines WiFi control, an included remote, automatic fuel refill, six adjustable flame settings, safety sensors, and 304 stainless steel construction without requiring a chimney, flue, vent, or gas line.

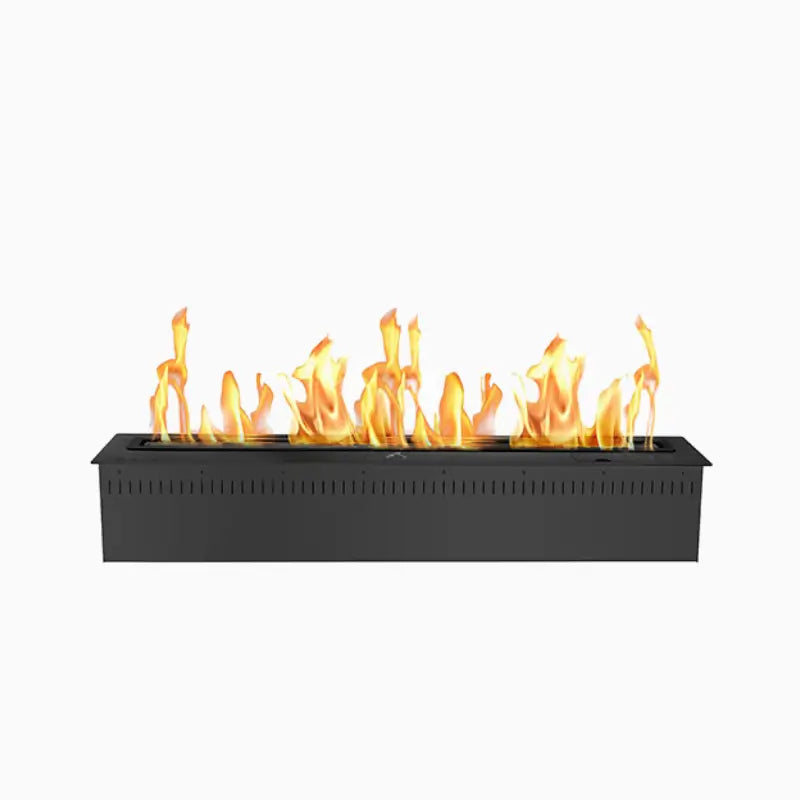

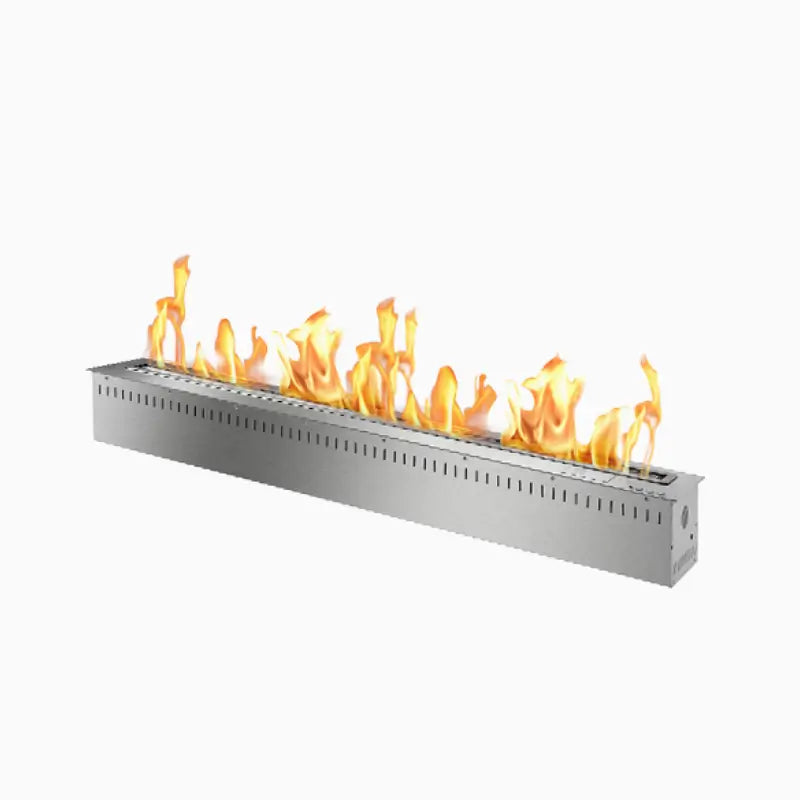

48-BLACK-SF — Black Finish 48-SILVER-SF — Stainless Steel Finish
Quick answer: Choose this 48-inch SmartFlame burner for a custom built-in fireplace where a long real-flame presentation, smart controls, automatic filling, and ventless installation are priorities. It must be installed level in a properly sized non-combustible firebox, requires electrical power, and should be used only with approved bioethanol fireplace fuel.
18,000 BTU Maximum thermal output
10.3 L Fuel capacity
11–14.7 Hours Approximate burn time
6 Settings Adjustable flame and heat levels
Is the 48-Inch SmartFlame Burner Right for Your Project?
Best For
- Custom residential fireplace installations
- Commercial and hospitality feature fireplaces
- Modern interiors requiring a long linear flame
- Indoor or outdoor applications permitted by the manufacturer
- Projects without access to a chimney, flue, or gas line
- Smart-home installations using WiFi, Google Home, or Amazon Alexa
- Non-combustible fireboxes built from approved materials
Do Not Choose This Burner For
- A combustible or undersized firebox
- Cooking, heating water, or burning wood, paper, charcoal, or gas
- Rooms smaller than the specified minimum room size
- Locations where flammable vapors or oxygen tanks are present
- Portable use or operation before the burner is securely installed
- Primary whole-home heating or continuous central-heating use
- Installations without an available electrical power connection
Premium Real-Flame Performance Without a Gas Line or Chimney
The 48-inch SmartFlame burner is designed to create a long, modern flame presentation inside a purpose-built fireplace enclosure. It burns bioethanol fuel and therefore does not require a permanent fuel connection, chimney, or conventional flue system.
Its intelligent operating system manages ignition, fuel delivery, flame adjustment, and shutdown. Users can operate the burner from the control panel, included remote control, Bio Flame smartphone app, or compatible Google Home and Amazon Alexa devices.
The burner is manufactured from 304-grade stainless steel and includes an insulated bottom tray. It is offered in black and stainless steel finishes for integration into contemporary residential, commercial, and hospitality fireplace designs.
Key Features and Buyer Benefits
Real Flame
SmartFlame Bioethanol Technology
Produces a real bioethanol flame with electronically controlled ignition and fuel delivery. The system is designed for convenient operation while preserving the visual character of an open flame.
Smart Control
WiFi, App, Remote, Alexa, and Google Home
The built-in WiFi system supports operation through the Bio Flame app and compatible Google Home or Amazon Alexa devices. An included remote provides direct control without using a phone.
Convenience
Automatic Fuel Refill System
Connect the supplied filling hose to the burner and fuel container, then activate the automatic filling function. The process stops automatically when the burner reaches its fill level.
Adjustment
Six Adjustable Flame Settings
Adjust the flame using the burner controls or remote. The documented settings include On, Flame Size 1, Flame Size 2, Flame Size 3, Flame Size 4, and Off.
Construction
304 Stainless Steel Body
The burner uses 304-grade stainless steel construction for a durable, architectural appearance. An insulated bottom tray supports integration into an approved non-combustible enclosure.
Protection
Integrated Safety Sensors
The SmartFlame system incorporates safety monitoring, controlled fuel delivery, a cooldown lockout, and documented warning codes to support correct operation.
Installation
Ventless Fireplace Design
Bioethanol operation eliminates the need for a chimney or fixed fuel pipe. Minimum room size, clearances, ventilation, and non-combustible construction requirements still apply.
Performance
Long Burn Duration
The 10.3-liter fuel capacity provides an approximate documented burn time of 11 to 14.7 hours, depending on flame setting, installation, fuel quality, and operating conditions.
Application
Indoor and Outdoor Use
The manufacturer lists this model for indoor and outdoor applications. The burner must still be installed according to the official manual and protected from unsuitable materials and installation conditions.
Smart Home and Remote-Control Operation
Control Options
- Burner-mounted controls
- Included handheld remote control
- Bio Flame smartphone app
- Compatible Google Home operation
- Compatible Amazon Alexa operation
- Built-in WiFi connectivity
What Smart Control Manages
- Power and ignition sequence
- Flame intensity adjustment
- Burner shutdown
- Convenient operation without reaching into the firebox
Electrical power is required. The power adapter connects on the right side of the burner. Prepare the electrical wiring and connection before placing the burner into its final installed position.
Technical Specifications
| Product |
Bio Flame 48-Inch SmartFlame Remote-Controlled Bioethanol Burner |
| Collection |
Smart Flame Burner Collection |
| Model Numbers |
48-BLACK-SF and 48-SILVER-SF |
| Available Finishes |
Black or stainless steel |
| Application |
Indoor and outdoor |
| Installation Type |
Built into an approved non-combustible firebox |
| Fuel Type |
Bioethanol fireplace fuel |
| Maximum Thermal Output |
Approximately 18,000 BTU / 5.3 kW |
| Average Heating Area |
102–110 m², as listed by the manufacturer |
| Minimum Room Size |
51 m² per burner |
| Fuel Capacity |
10.3 liters |
| Approximate Burn Time |
11–14.7 hours |
| Manufacturer-Listed Fuel Consumption |
0.6–0.8 H/L |
| Minimum Fuel Level for Operation |
1.5 liters |
| Flame / Heat Settings |
6 adjustable settings |
| Controls |
Burner controls, remote control, WiFi smartphone app, Google Home, and Amazon Alexa |
| Fuel Filling |
Automatic filling system with manual filling option |
| Safety |
Safety sensors, cooldown lockout, warning indicators, and child-lock function described in the manual |
| Construction |
304 stainless steel |
| Bottom Protection |
Insulated bottom tray |
| Product Dimensions |
6.6 in H × 48 in W × 7.6 in D |
| Metric Dimensions |
168 mm H × 1220 mm W × 193 mm D |
| Electrical Requirement |
Electrical power required; AC adapter included |
| Vent or Chimney |
Not required; minimum ventilation and room-size requirements still apply |
| Certifications |
CE certified and tested to EN 16647 |
| Warranty |
3 years according to the supplied product details. The uploaded specification sheet references a lifetime warranty, so confirm the applicable warranty terms for this SKU before publication. |
Performance values are manufacturer-listed estimates and can vary with installation conditions, flame setting, ventilation, and fuel quality. Product dimensions may vary by approximately 2% according to the specification sheet. Use the actual burner when preparing the final cutout.
Installation Requirements
The SmartFlame burner must be securely installed before it is filled, ignited, or operated. The manufacturer requires installation into non-combustible materials such as stainless steel, concrete, brick, natural stone, or cement sheet.
Required Firebox Construction
- Non-combustible construction only
- Firebox designed to accommodate a top tray
- Opening provided for the burner connector
- Stable, level, and structurally suitable supporting surface
- Electrical connection prepared before installation
48-Inch Burner Cutout Dimensions
-
Length: 47.64 in / 1210 mm
-
Width: 7.09 in / 180 mm
-
Depth: 9.84 in / 250 mm
The specification sheet states that dimensions may vary by approximately 2%. Use the physical burner for the final cutout rather than relying solely on a template.
| Minimum Firebox Size |
56 in W × 20 in H × 15 in D, according to the 48-inch specification sheet |
| Front Clearance |
4 in / 102 mm |
| Rear Clearance |
4 in / 102 mm |
| Side Clearance |
4 in / 102 mm |
| Overhead Clearance |
24 in / 610 mm |
| Nearest Combustible Radius |
24 in / 610 mm |
| TV Clearance |
At least 14 in / 35.5 cm from the top of the firebox to the bottom of a recessed television |
| Recommended Open-Area Distance |
At least 1500 mm / 59.1 in from combustible materials in the installation area |
Important: Do not install the burner into combustible materials or directly beside wallpaper, laminate, veneer, fabric, drapes, furniture, or surfaces that cannot tolerate heat. Consult the official installation manual before framing or building the firebox.
Manufacturer firebox guidance: Bio Flame recommends using the burner in a firebox manufactured by Bio Flame. The manufacturer states that it is not liable for injuries or damage associated with custom-made or privately commissioned fireboxes.
Ventilation and Room-Size Requirements
Although the burner does not require a chimney or permanent flue, it still consumes oxygen and must be operated in a room with sufficient ventilation. The documented minimum room size for the 48-inch model is 51 m² per burner.
- Do not operate the burner in a room smaller than the listed minimum room size.
- Do not use the burner where oxygen tanks are operating.
- Do not operate the burner where flammable vapors are present.
- Maintain the clearances and ventilation conditions stated in the installation manual.
Bioethanol fireplaces are classified in the manual as decorative fireplace appliances intended for occasional use rather than primary heating.
Fueling and Operating the SmartFlame Burner
Automatic Filling
Connect the included filling hose to the burner and the approved fuel container, then press the illuminated filling button. The filling process stops automatically when completed.
Manual Filling
The burner also supports manual filling through the documented filling opening. Stop filling when the blue indicator light turns off, secure the cap, close the fuel door, and clean any spilled fuel before ignition.
Flame Adjustment
After the flame spreads across the combustion tray, use the up or down controls on the burner or remote to adjust the flame level.
Controlled Shutdown
Press the power button once to stop the fuel pump. Remaining fuel in the combustion tray will continue burning for several minutes until it is consumed.
Cooldown Lockout
After shutdown, the burner enters a ten-minute safety period. Do not attempt to restart the appliance until the documented cooldown cycle is complete.
Child Lock
The manual describes a child-lock function that is active by default when the fireplace powers on. Follow the documented remote or burner control sequence to unlock it.
Never refuel a hot or operating burner. Turn the burner off, allow it to cool completely, and verify that the combustion chamber is safe before adding fuel. Refueling a hot appliance creates a serious fire and flash-flame hazard.
Essential Safety Requirements
Always Do
- Use approved bioethanol fuel intended for indoor ethanol fireplaces
- Store fuel in its original container away from heat and ignition sources
- Wipe up spills and allow the area to dry before ignition
- Keep the burner level and secured in its installed position
- Inspect beneath the burner for residual fuel
- Follow the official filling, ignition, shutdown, and cooldown procedures
- Keep the supplied siphon hose for future draining or transport
Never Do
- Use gasoline or another unapproved fuel
- Add water to the bioethanol fuel
- Overfill the fuel tank
- Move the burner while operating or while fuel could spill
- Leave the flame unattended
- Place decorative media directly over the burner mouth
- Burn wood, charcoal, paper, or other objects in the burner
- Modify the burner or use unauthorized accessories
- Use the appliance for cooking or heating water
What Is Included
48-Inch SmartFlame Burner
The selected black or stainless steel 48-inch remote-controlled burner.
Remote Control
Handheld remote for power and flame-level operation.
AC Adapter and Plug
Electrical power components required for burner operation.
Filling Hose
Used with the automatic fuel-filling system.
Siphon Hose
Used to remove fuel before storage, relocation, or transportation.
Lift-Up Handle
Supplied to assist with handling the burner during installation or service.
User Manual
Official installation, operating, safety, care, and troubleshooting guidance.
Suitable Applications
The 48-inch SmartFlame burner is suited to custom fireplace projects where its physical dimensions, minimum room size, firebox requirements, and clearances can be met.
Residential Applications
- Modern living rooms
- Open-plan interiors
- Custom feature walls
- Renovation projects without an available gas line
- Indoor or permitted outdoor entertainment spaces
Commercial Applications
- Hotels and hospitality interiors
- Restaurants and lounges
- Reception areas
- Commercial feature walls
- Architect-designed fireplace installations
Fuel and Installation Compatibility
Compatible With
- Bio Flame bioethanol fuel
- e-NRG fuel as an alternative listed in the manual
- Purpose-built non-combustible fireboxes
- Concrete, brick, steel, stone, and cement-sheet construction
- Bio Flame smartphone app
- Compatible Google Home devices
- Compatible Amazon Alexa devices
Not Compatible With
- Gasoline
- Natural gas or propane fuel connections
- Wood, charcoal, paper, or solid fuel
- Combustible fireboxes
- Decorative media that blocks the burner opening
- Unapproved modifications, accessories, or tools
Care and Maintenance
Bioethanol combustion does not create the ash and soot associated with wood-burning fireplaces, but the burner still requires routine inspection and cleaning.
Before Cleaning
Confirm that the burner is off, completely cold, and free of fuel before cleaning or maintenance.
Exterior Surfaces
Clean the exterior with a soft, damp cloth or microfiber cloth. Do not use harsh abrasive materials.
Burning Chamber
Use a soft washing sponge and follow the stainless steel grain. Avoid contact with the fragile ignition component.
Black Finish
Do not wipe the black burning tray in a way that damages the finish. Follow the specific black-unit cleaning instructions in the manual.
Cleaning Frequency
The manufacturer recommends cleaning at least monthly when the burner is used regularly.
Heat Staining
Heat staining around the flame opening is described as a normal effect of operation. Do not use stainless steel cleaning agents or steel wool.
Flame Authority Expert Recommendation
Choose the Bio Flame 48-Inch SmartFlame Burner when you are planning a large custom fireplace and want a real linear flame without adding a chimney, gas line, or permanent fuel connection. Its WiFi controls, included remote, automatic filling system, and adjustable flame levels make it best suited to premium residential and commercial projects where convenience and contemporary design are priorities.
Do not select this model until your installer confirms that the room, non-combustible firebox, cutout, ventilation, clearances, electrical connection, and local requirements are suitable. The burner is a decorative appliance and should not be purchased as a replacement for a primary heating system.
Product Resources
Review the official specification sheet and installation manual before ordering, framing, installing, filling, or operating the burner.
Frequently Asked Questions
Does the Bio Flame 48-inch SmartFlame Burner require a chimney?
No. It is a ventless bioethanol burner, but the specified minimum room size, ventilation, clearances, and non-combustible firebox requirements still apply.
Does the 48-inch SmartFlame Burner require a gas line?
No. It uses liquid bioethanol fuel and must not be connected to natural gas or propane.
Does the SmartFlame Burner require electricity?
Yes. Electrical power is required for the ignition, controls, WiFi, pump, and automatic filling system.
Can the 48-inch SmartFlame Burner be installed indoors?
Yes. Indoor installation requires a minimum 51 m² room, sufficient ventilation, required clearances, and an approved non-combustible firebox.
Can the 48-inch SmartFlame Burner be installed outdoors?
The specification sheet lists indoor and outdoor applications. Do not install it where the manual's firebox, clearance, material, or operating requirements cannot be maintained.
What size firebox is required for the 48-inch burner?
The specification sheet lists a minimum non-combustible firebox size of 56 inches wide by 20 inches high by 15 inches deep. Use the physical burner when preparing the final cutout because dimensions can vary.
Can the burner be installed below a television?
Yes, only when the installation meets the manual's requirements. A recessed television must be at least 14 inches above the top of the firebox.
What fuel should be used in the SmartFlame Burner?
Use Bio Flame bioethanol fuel or the e-NRG alternative identified in the manual. Do not use gasoline, gas, wood, charcoal, or another unapproved fuel.
Can I refill the burner while it is operating?
No. Turn the burner off and allow it to cool completely before refueling; adding fuel to a hot burner can cause a flash flame or fire.
How much fuel does the 48-inch SmartFlame Burner hold?
The fuel tank holds 10.3 liters. Do not exceed the maximum fill level because overfilling can cause malfunction and make shutdown difficult.
How long does the 48-inch SmartFlame Burner run?
The manufacturer lists an approximate burn time of 11 to 14.7 hours. Actual duration depends on flame level, installation, fuel quality, and operating conditions.
How much fuel is required before the burner will operate?
The 48-inch model requires a minimum fuel level of 1.5 liters. The burner will signal when the minimum trigger level has not been reached.
Can the flame height be adjusted?
Yes. The burner provides six documented operating settings, including four adjustable flame-size levels.
Can the burner be controlled with Alexa or Google Home?
Yes. The built-in WiFi system supports compatible Amazon Alexa and Google Home operation, along with the Bio Flame app and included remote.
Can this bioethanol burner be used as the home's primary heater?
No. The manual classifies bioethanol fireplaces as decorative appliances intended for occasional use, not primary heating.
Can decorative stones be placed over the burner opening?
No. Decorative media must not cover the burner mouth or interfere with the flame.
Can water be added to bioethanol fuel?
No. Diluting the fuel reduces flame performance and can cause fuel accumulation in the combustion chamber.
Can the burner be moved while fuel is inside it?
Do not move the burner while it is operating or when fuel could spill. Drain the unit with the supplied siphon hose before storage or transportation.
How often should the SmartFlame Burner be cleaned?
The manufacturer recommends cleaning at least monthly during regular use. Clean only when the burner is off, cold, and free of fuel.
What should I use to clean the burner?
Use a soft damp or microfiber cloth for exterior surfaces and a soft sponge for the burning chamber. Do not use steel wool, harsh abrasives, or stainless steel cleaning agents.
