Bio Flame Smart Flame Burner Collection
Bio Flame 60-Inch SmartFlame Remote-Controlled Bioethanol Burner with WiFi, Alexa & Google Home
The Bio Flame 60-Inch SmartFlame Burner is a premium automatic bioethanol burner designed for large custom fireplace installations in residential and commercial spaces. It combines a continuous real flame with built-in WiFi, remote control operation, six adjustable flame settings, automatic fuel filling, safety sensors, and smart-home compatibility without requiring a chimney, flue, gas line, or permanent fuel connection.
- 60-Inch Linear Burner
- 22,628 BTU Maximum Output
- WiFi, App & Remote Control
- Alexa & Google Home Compatible
- 13.5-Liter Fuel Capacity
- 11.6–15.5 Hour Burn Time
- Six Adjustable Flame Settings
- Ventless Bioethanol Design
60-Inch SmartFlame Burner Overview
Designed for statement fireplace projects, the 60-Inch SmartFlame Burner provides a wide linear flame for modern feature walls, custom fireboxes, hospitality settings, commercial lounges, and spacious residential interiors. Its automatic operation removes the need to manually light or extinguish the flame, while smart controls allow users to manage the burner from the supplied remote, The Bio Flame app, Amazon Alexa, or Google Home.
The burner uses liquid bioethanol fuel and operates without a chimney or gas connection. This makes it a practical alternative for projects where conventional venting or natural-gas infrastructure is unavailable. The unit still requires electrical power and must be installed into a properly sized, level firebox built entirely from non-combustible materials.
Important classification: The manufacturer classifies bioethanol fireplaces as decorative fireplace appliances intended for occasional use. Do not rely on this burner as the primary heating system for a home or commercial building.
Quick Product Specifications
| Product |
Bio Flame 60-Inch SmartFlame Remote-Controlled Bioethanol Burner |
| Model Options |
60-BLACK-SF and 60-SILVER-SF |
| Fuel Type |
Liquid bioethanol fuel |
| Installation Type |
Built-in installation inside a non-combustible firebox |
| Venting |
No chimney, flue, or vent pipe required |
| Maximum Thermal Output |
22,628 BTU / 6.63 kW |
| Average Heating Coverage |
128–130 m² under the manufacturer's stated test conditions |
| Minimum Room Size |
64 m² per burner |
| Fuel Capacity |
13.5 liters |
| Approximate Burn Time |
11.6–15.5 hours |
| Fuel Consumption |
Approximately 0.75–1.0 liters per hour |
| Flame Settings |
Six operating settings, including adjustable flame levels and off |
| Control Options |
Burner controls, supplied remote control, WiFi app, Amazon Alexa, and Google Home |
| Fuel Filling |
Automatic filling system with manual filling option |
| Construction |
304-grade stainless steel with insulated bottom tray |
| Product Dimensions |
6.6" H × 60" W × 7.6" D (168 × 1524 × 193 mm) |
| Available Finishes |
Black and stainless steel |
| Electrical Power |
Required |
| Certifications |
CE certified and tested in accordance with EN 16647 |
| Warranty |
Three years, according to the supplied product information |
Published dimensions can vary by approximately 2% due to material attributes. Use the actual burner when confirming final cutout dimensions.
Who Is This Smart Bioethanol Burner Best For?
Recommended For
- Large custom fireplace installations
- Modern residential feature walls
- Open-concept living rooms and entertaining spaces
- Hotels, restaurants, lounges, and reception areas
- Designers and architects specifying a wide linear flame
- Projects without access to a chimney or gas line
- Buyers who want app, remote, and voice control
- Installations that can provide electrical power and a non-combustible firebox
Not Recommended For
- Primary or continuous whole-room heating
- Installation directly into combustible cabinetry or framing
- Rooms smaller than the manufacturer's 64 m² minimum
- Projects without a nearby electrical connection
- Cooking, boiling water, or warming food
- Burning wood, paper, charcoal, gasoline, or other fuels
- Locations where required ventilation and clearances cannot be maintained
- Operation that would leave the flame unattended
Smart Home and Remote-Controlled Operation
The 60-Inch SmartFlame Burner is designed to provide automated flame control without the manual lighting process associated with traditional ethanol burners. Built-in WiFi and the included remote provide multiple ways to operate the burner from the room or through a connected smart-home system.
1
Supplied Remote Control
Ignite, turn off, and adjust the flame using the included handheld remote. The remote also supports access to the burner's child-lock controls.
2
The Bio Flame App
Connect through the burner's built-in WiFi and use a compatible smartphone to manage operation through The Bio Flame app.
3
Alexa and Google Home
The built-in smart-home capability supports Amazon Alexa and Google Home for compatible voice-controlled operation.
Electrical power is required. The automatic ignition, fuel pump, safety monitoring, WiFi connection, and remote-control functions will not operate without power.
Key Features and Benefits
Real Bioethanol Flame
The burner produces a genuine open flame using liquid bioethanol fuel. It does not use an electric flame projection or decorative LED effect.
Ventless Installation
No chimney, flue, vent pipe, or permanent gas supply is required. The room must still meet the manufacturer's minimum-size and ventilation requirements.
Automatic Fuel Filling
Connect the supplied filling hose to the burner and fuel container, then initiate the filling process. The system stops automatically when filling is complete.
Six Flame Settings
Adjust the flame after it has spread across the full combustion tray. Flame intensity is controlled with the burner buttons or supplied remote.
Safety Sensors
The SmartFlame system monitors operating conditions and communicates faults through status lights and audible beep codes.
304 Stainless Steel
The burner is manufactured from 304-grade stainless steel and includes an insulated bottom tray for integration into a suitable non-combustible enclosure.
Child Lock
The child-lock function is activated by default when the fireplace is powered on and must be unlocked before normal operation.
Large Fuel Capacity
The 13.5-liter tank supports an approximate burn time of 11.6 to 15.5 hours, depending on flame setting, installation, and fuel quality.
Wide Linear Format
The 60-inch width creates a substantial horizontal flame presentation suited to large contemporary firebox designs.
Heating Performance and Fuel Efficiency
At its maximum setting, the 60-Inch SmartFlame Burner is rated at approximately 22,628 BTU or 6.63 kW. The manufacturer lists average coverage of 128–130 m² and requires a minimum room size of 64 m² per burner to support adequate ventilation.
A full 13.5-liter tank provides an estimated 11.6 to 15.5 hours of operation. Fuel consumption is approximately 0.75 to 1.0 liters per hour. Actual performance varies with the selected flame level, quality of the bioethanol fuel, room conditions, and installation design.
Heating limitation: Although the open flame releases heat, this product is classified as a decorative appliance for occasional use. Choose a dedicated heating system when dependable primary heat is required.
Installation Requirements
The 60-Inch SmartFlame Burner must be installed securely, horizontally, and level inside an appropriately sized firebox. Prepare the firebox, electrical wiring, and burner connector access before placing the unit.
Required Firebox Construction
- Use only non-combustible construction materials.
- Suitable materials include stainless steel, concrete, brick, cement sheet, stone, and natural stone.
- Design the firebox to accommodate the burner and top tray.
- Provide an opening for the burner connector and electrical connection.
- Secure the burner before filling or ignition.
- Confirm that the burner is completely level with a spirit level.
60-Inch Burner Cutout Dimensions
-
Cutout length: 59.61" (1514 mm)
-
Cutout width: 7.09" (180 mm)
-
Cutout depth: 9.84" (250 mm)
-
Burner dimensions: 6.6" H × 60" W × 7.6" D
Do not fabricate the final opening from published dimensions alone. The manufacturer recommends using the actual burner for final cutout verification.
Custom-firebox notice: The manufacturer recommends using the burner in a firebox manufactured by The Bio Flame and states that it is not liable for injury or damage resulting from custom-made or privately commissioned fireboxes.
Required Clearances
| Front Clearance |
4" (102 mm) |
| Rear Clearance |
4" (102 mm) |
| Side Clearance |
4" (102 mm) |
| Overhead Clearance |
24" (610 mm) |
| Nearest Combustible Radius |
24" (610 mm) |
| General Combustible Separation |
Locate the burner at least 59.1" (1500 mm) from curtains, furniture, wallpaper, veneer, and other combustible or heat-sensitive materials. |
| Installation Below a Recessed TV |
Maintain at least 14" (35.5 cm) between the top of the firebox and the bottom of the recessed television. |
Do not install the fireplace directly beside wallpaper, laminate, veneer, combustible adhesives, or other surfaces that are not rated for the expected heat exposure. Review the material manufacturer's heat-tolerance specifications before installation.
Firebox Size for the 60-Inch Burner
The 60-Inch RC Smart Burner product sheet states that the burner can only be fitted into a non-combustible firebox with minimum internal dimensions of:
The minimum firebox dimensions do not replace the complete clearance instructions. The enclosure must also maintain all front, rear, side, overhead, combustible, and ventilation requirements.
Fuel Requirements and Refilling
Use bioethanol fuel formulated for indoor ethanol fireplaces. The manufacturer recommends The Bio Flame Bioethanol Fuel and also identifies e-NRG as an alternative.
Automatic Filling
- Connect the burner to electrical power.
- Open the fuel door on the front right side.
- Connect the filling hose to the fuel-tank nipple and fuel container.
- Press the illuminated filling button.
- Allow the system to stop automatically.
- Remove the hose carefully and clean any spilled fuel.
Manual Filling
- Open the fuel door.
- Remove the gold-colored fuel cap.
- Use a suitable funnel to add bioethanol fuel.
- Stop when the blue indicator light turns off.
- Replace the cap and close the fuel door.
- Clean and dry any spilled fuel before ignition.
Never refuel a hot or operating burner. The combustion tray must be empty and completely cool before refilling. Never use gasoline, dilute the fuel with water, or fill above the maximum level.
Operating the SmartFlame Burner
The SmartFlame ignition sequence requires the power button to be pressed according to the manufacturer's operating instructions. During initial use, allow approximately two minutes for the pilot to heat and fuel to reach the combustion tray.
The 60-Inch SmartFlame Burner requires a minimum fuel level of approximately 1.9 liters before it can operate. If the required level has not been reached, the burner indicates this condition through its status lights and audible alert.
Once the flame has spread across the complete combustion tray, use the up or down controls on the burner or remote to adjust flame intensity. After shutdown, remaining fuel in the combustion tray continues burning for several minutes.
Ten-minute safety delay: After the burner is switched off, wait ten minutes before attempting to restart it. The control buttons can remain unresponsive while the unit cools to a safe operating temperature.
Built-In Safety Guidance
Safe Operation Requirements
- Operate the burner only when fully assembled and correctly installed.
- Keep the burner level to maintain an even flame across the tray.
- Never leave an open flame unattended.
- Do not operate a damaged or malfunctioning burner.
- Keep oxygen tanks and flammable vapors away from the installation area.
- Use only authorized accessories and approved fuel.
Actions That Are Not Permitted
- Do not move the burner while operating or while fuel remains inside.
- Do not place decorative media directly over the burner opening.
- Do not modify the burner or its safety systems.
- Do not burn wood, charcoal, paper, or combustible objects.
- Do not use the appliance for cooking or heating water.
- Do not operate the burner in a room below the required minimum size.
The burner uses indicator lights and audible beep codes to communicate operating conditions and faults. Stop using the appliance and consult the installation and user manual when the burner reports an error or fails to operate normally.
What's Included?
According to the SmartFlame installation and user manual, the Smart Burner Collection includes the following components:
Control Components
- Remote control
- AC adapter and plug
- User manual
Fuel-Handling Components
- Automatic filling hose
- Siphon hose
Included items can be revised by the manufacturer. Confirm the current package contents before installation and retain the siphon hose for future fuel removal, transport, or storage.
Care and Maintenance
Bioethanol does not create the ash and solid residue associated with wood-burning fireplaces, but periodic cleaning is still required to maintain the burner's appearance and operation.
Recommended Cleaning Method
- Turn the burner off and allow it to cool completely.
- Remove or siphon fuel before maintenance when required.
- Clean exterior surfaces with a soft, damp microfiber cloth.
- Use a soft sponge for the combustion chamber.
- Follow the stainless-steel grain when cleaning stainless components.
- Clean at least monthly when the burner is used regularly.
Do Not Use
- Steel wool
- Abrasive pads
- Harsh sponges
- Stainless-steel cleaning chemicals
- Cleaning methods that contact or damage the ignition rod
Heat staining around the flame opening is a normal effect of operation and cannot be completely avoided. Do not use abrasive agents in an attempt to remove it.
Certifications and Compliance
Bio Flame burners are CE certified and tested in accordance with EN 16647. This standard addresses safety, material quality, and production requirements for decorative appliances that produce a flame using liquid fuel.
Certification does not remove the need to follow local building, fire-safety, electrical, fuel-storage, and installation requirements. The installer and property owner remain responsible for confirming that the proposed installation is permitted in the applicable jurisdiction.
Available Models and Finishes
| Model |
Finish |
Collection |

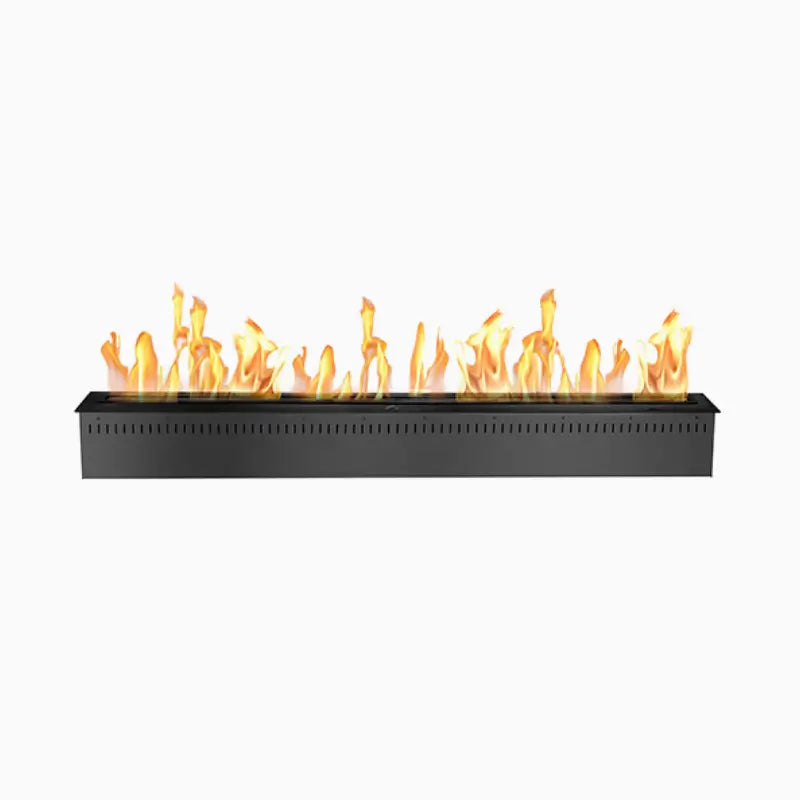

| 60-BLACK-SF |
Black |
Smart Flame Burner Collection |

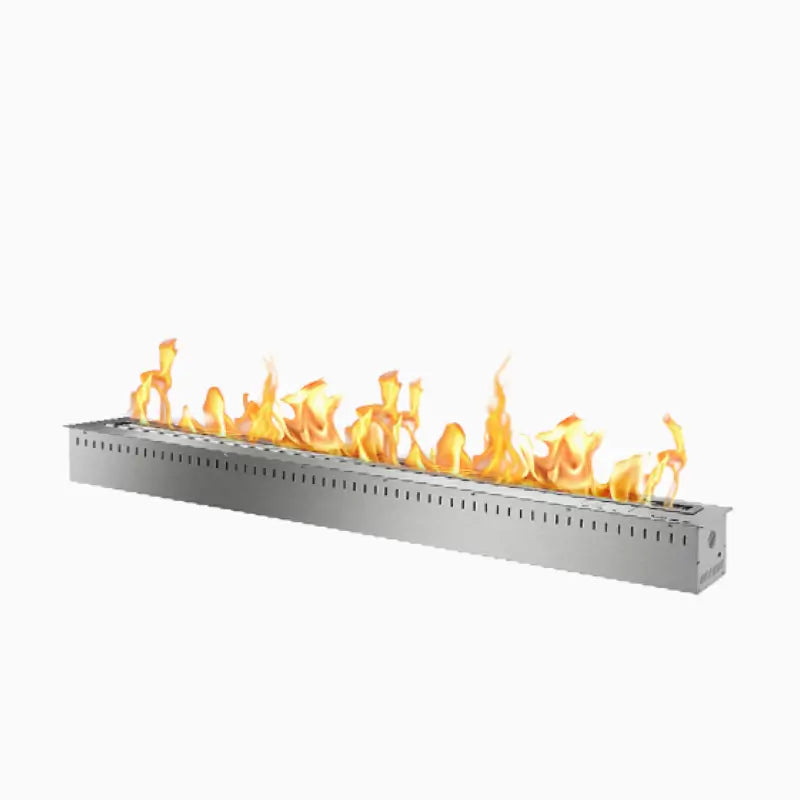

| 60-SILVER-SF |
Stainless Steel |
Smart Flame Burner Collection |
Manufacturer Resources
Review both manufacturer documents before specifying, framing, installing, filling, or operating the burner.
Bio Flame 60-Inch RC Smart Burner Specification Sheet
Dimensions, fuel capacity, output, firebox size, performance, and product details.
View Specification Sheet
SmartFlame Remote Control Burner Installation & User Manual
Clearances, cutouts, fuel instructions, operation, maintenance, and troubleshooting.
View Installation Manual
Flame Authority Expert Recommendation
Choose the Bio Flame 60-Inch SmartFlame Burner when the project calls for a wide, real-flame focal point with automatic ignition, adjustable flame control, and integrated smart-home operation. It is especially well suited to luxury residential and commercial fire features where adding a chimney, flue, or permanent gas supply is impractical.
Do not select this model solely for its maximum BTU rating. First confirm that the room meets the 64 m² minimum size, the enclosure can be built entirely from non-combustible materials, all clearances can be maintained, electrical power is available, and the installation is permitted by applicable local requirements.
Frequently Asked Questions
Does the Bio Flame 60-Inch SmartFlame Burner require a chimney?
No. It is a ventless bioethanol burner and does not require a chimney, flue, or vent pipe, but the room must meet the manufacturer's minimum-size and ventilation requirements.
Does the 60-Inch SmartFlame Burner require electrical power?
Yes. Electrical power is required for ignition, fuel pumping, safety monitoring, WiFi, app connectivity, and remote-controlled operation.
Can I control the SmartFlame Burner with Alexa or Google Home?
Yes. The burner has built-in WiFi and supports compatible control through Amazon Alexa, Google Home, The Bio Flame app, and the supplied remote.
How long will the 60-Inch SmartFlame Burner run on a full tank?
The manufacturer lists an approximate burn time of 11.6–15.5 hours from the 13.5-liter tank. Actual runtime depends on flame setting, fuel quality, installation, and room conditions.
What fuel does the Bio Flame 60-Inch Burner use?
Use liquid bioethanol fuel formulated for indoor ethanol fireplaces; The Bio Flame fuel is recommended and e-NRG is listed as an alternative. Never use gasoline or dilute the fuel with water.
Can I refill the burner while it is operating?
No. Turn the burner off and wait until the fuel chamber and combustion tray are completely cool before refilling.
What is the minimum room size for the 60-Inch SmartFlame Burner?
The manufacturer requires a minimum room size of 64 m² per burner. Do not install the burner in a smaller room because the stated ventilation requirement will not be met.
Can the 60-Inch SmartFlame Burner be used as the primary heat source?
No. The manufacturer classifies it as a decorative fireplace appliance intended for occasional use, not as a primary heating system.
Can the burner be installed in a wooden firebox?
No. Install the burner only in an enclosure constructed from non-combustible materials such as stainless steel, concrete, brick, cement sheet, stone, or natural stone.
Can the SmartFlame Burner be installed under a television?
A recessed television requires at least 14 inches of clearance between the top of the firebox and the bottom of the TV. Do not proceed unless all overhead, combustible, and material heat-tolerance requirements are also satisfied.
What firebox size is required for the 60-Inch burner?
The product sheet specifies a non-combustible firebox with minimum internal dimensions of 68 inches wide, 20 inches high, and 15 inches deep. The complete installation clearances still apply.
How many flame settings does the burner have?
The SmartFlame system provides six operating settings, including adjustable flame levels and off. Adjust the flame only after it has spread across the full combustion tray.
Does the burner include an automatic fuel-filling system?
Yes. Connect the supplied filling hose and activate the filling control; the system stops automatically when filling is complete.
Can decorative pebbles or media cover the burner opening?
No. Do not place pebbles or refractory media directly over the burner mouth or anywhere they could interfere with the flame.
How should the 60-Inch SmartFlame Burner be cleaned?
Clean the cool burner with a soft damp cloth and use a soft sponge on the combustion chamber. Do not use steel wool, abrasive pads, or stainless-steel cleaning chemicals.
Why is the flame staying at one end of the burner?
A flame that remains at one end for more than ten minutes on the highest setting indicates that the combustion tray is not level. Turn the burner off, let it cool completely, and follow the leveling instructions in the manual.
Can I restart the burner immediately after turning it off?
No. The burner has a ten-minute safety delay after shutdown and will not respond normally until it cools to a safe temperature.
Does the 60-Inch SmartFlame Burner come in black and stainless steel?
Yes. Model 60-BLACK-SF has a black finish, while model 60-SILVER-SF has a stainless-steel finish.
