Smart Flame Burner Collection

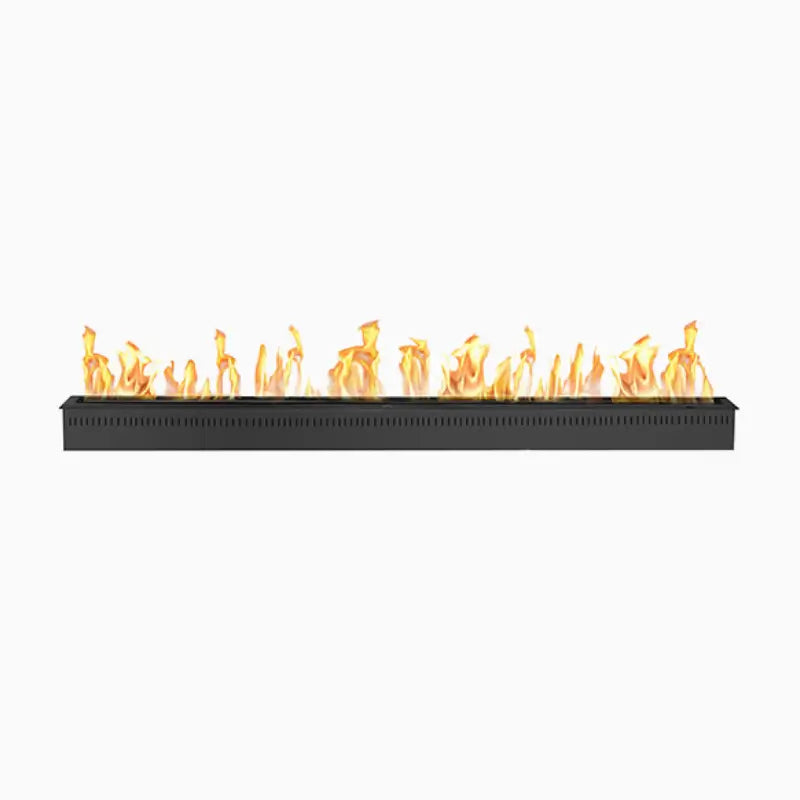

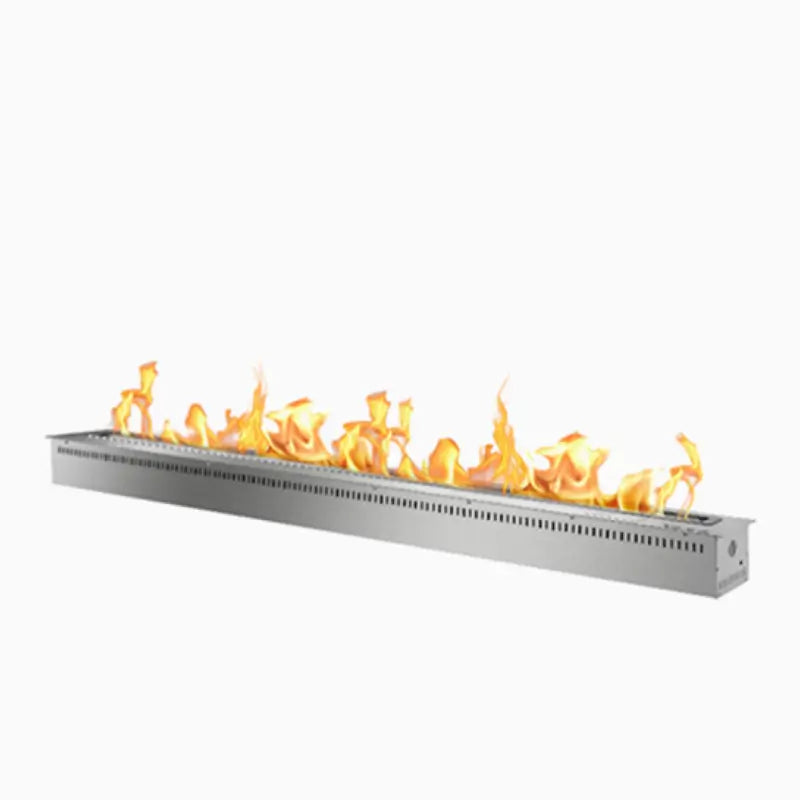

Bio Flame 84-Inch SmartFlame Remote-Controlled Bioethanol Burner with WiFi, Alexa & Google Home
The Bio Flame 84-Inch SmartFlame Remote-Controlled Bioethanol Burner is a large-format, built-in ethanol burner for custom residential and commercial fireplace projects. It combines a real open flame with built-in WiFi, remote operation, voice-assistant compatibility, six adjustable flame settings, an automatic fuel-refill system, and safety sensors—all without requiring a chimney, flue, or gas line.
Up to 31,672 BTU 19.5-Liter Fuel Capacity Approx. 11.9–15.9 Hour Burn Time Built-In WiFi & Remote Six Flame Settings Ventless Installation
84-Inch SmartFlame Burner Overview
Designed for expansive custom fireplace openings, the 84-inch SmartFlame burner creates a long, uninterrupted flame presentation suitable for modern feature walls, hospitality interiors, commercial gathering spaces, and large residential rooms.
The burner uses clean-burning bioethanol fuel and operates without a permanent gas connection, chimney, or flue. Electrical power is required for its control system, ignition, pumps, automatic refill function, WiFi connectivity, and safety monitoring.
Primary Buying Decision
Choose this model when your project requires an 84-inch smart ethanol burner with a substantial linear flame, integrated app and remote control, automatic filling, and installation flexibility without a gas line or conventional venting system.
Important classification: Manufacturer guidance states that bioethanol fireplaces are decorative appliances intended for occasional use and should not be treated as a primary or continuous heating system.
Is the 84-Inch SmartFlame Burner Right for Your Project?
Best For
- Large custom-built fireplace surrounds and feature walls
- Luxury residential living rooms and open-plan interiors
- Hotels, restaurants, lounges, reception areas, and commercial spaces
- Projects where a chimney or gas line is unavailable or undesirable
- Homeowners and designers who want phone, remote, or voice control
- Installations requiring a long, contemporary linear flame
- Indoor or appropriately protected outdoor applications
Not Recommended For
- Small rooms below the required minimum room size
- Fireboxes made from combustible construction materials
- Locations without a suitable electrical power connection
- Portable or frequently relocated fireplace applications
- Use as a cooking appliance or water-heating appliance
- Use as the building's primary or continuous heating source
- Exposed outdoor locations where the burner is not protected from unsuitable conditions
Key Features and Buyer Benefits
SmartFlame Technology
Electronic control allows the burner to manage ignition, flame output, fuel delivery, smart-home operation, and safety functions through one integrated system.
Built-In WiFi Control
Control the burner from a compatible smartphone using The Bio Flame app without adding a separate WiFi accessory.
Alexa & Google Home Compatibility
Built-in smart-home functionality supports hands-free operation through compatible Amazon Alexa and Google Home systems.
Remote Control Included
Operate ignition, shutdown, flame adjustment, and compatible control functions without approaching the burner controls.
Six Adjustable Settings
Adjust the flame through the available operating levels, including ignition, four flame sizes, and off.
Automatic Fuel Refill
Connect the supplied filling hose and activate the automatic filling process. The system stops when the appropriate fill level is reached.
Ventless Bioethanol Operation
No chimney, fixed flue, or gas line is required, but the room-size and ventilation requirements in the installation manual must still be followed.
304 Stainless Steel Construction
The burner is manufactured from 304-grade stainless steel and includes an insulated bottom tray for integration into an approved non-combustible firebox.
Safety Monitoring
Integrated sensors, operational lockouts, fill-level monitoring, temperature controls, and audible diagnostic codes support safer operation when manufacturer instructions are followed.
Smart Home and Remote Operation
The 84-inch RC Smart Burner includes built-in WiFi and a handheld remote. This provides several control options directly out of the box:
- Controls on the burner housing
- Included handheld remote control
- The Bio Flame smartphone app
- Compatible Amazon Alexa systems
- Compatible Google Home systems
Electrical Power Is Required
This is not a manually operated ethanol tray. The AC adapter must be properly connected for ignition, pumps, automatic filling, electronic controls, WiFi, and the safety system to function.
| Maximum Thermal Output |
Approximately 31,672 BTU / 9.28 kW |
| Average Indicated Room Coverage |
Approximately 178–180 m² indoors |
| Minimum Room Size |
90 m² per burner |
| Fuel Capacity |
19.5 liters |
| Approximate Burn Time |
11.9–15.9 hours, depending on setting, installation, and fuel quality |
| Fuel Consumption |
Approximately 1.05–1.4 liters per hour |
| Minimum Operating Fuel Level |
2.8 liters |
| Flame Adjustment |
Six operating settings: on, flame sizes 1–4, and off |
Published output, coverage, fuel consumption, and burn-time figures are indicative. Actual performance varies with the installation, room conditions, selected flame level, and fuel quality.
Complete Technical Specifications
| Brand |
The Bio Flame |
| Collection |
Smart Flame Burner Collection |
| Product Type |
Remote-controlled built-in bioethanol burner |
| Model / SKU |
84-BLACK-SF / 84-SILVER-SF |
| Nominal Width |
84 inches |
| Overall Dimensions |
6.6 in H × 84 in W × 7.6 in D |
| Metric Dimensions |
168 mm H × 2133.6 mm W × 193 mm D |
| Cutout Dimensions |
83.61 in L × 7.09 in W × 9.84 in D
2123.6 mm L × 180 mm W × 250 mm D |
| Fuel Type |
Bioethanol fuel intended for ethanol fireplaces |
| Fuel Capacity |
19.5 L |
| Approximate Burn Time |
11.9–15.9 hours |
| Fuel Consumption |
Approximately 1.05–1.4 L/hour |
| Minimum Fuel Level |
2.8 L |
| Maximum Heat Output |
Approximately 31,672 BTU / 9.28 kW |
| Average Indicated Coverage |
178–180 m² indoors |
| Minimum Room Size |
90 m² per burner |
| Control Options |
Burner controls, included remote control, WiFi smartphone app, and compatible voice assistants |
| Smart Home Compatibility |
Amazon Alexa and Google Home |
| Flame Settings |
Six operating settings |
| Fuel Filling |
Automatic filling system or manual filling procedure |
| Electrical Requirement |
Electrical power and supplied AC adapter required |
| Construction |
304 stainless steel |
| Bottom Tray |
Insulated |
| Finish Options |
Black or stainless steel / silver |
| Application |
Indoor and outdoor applications, subject to installation requirements |
| Venting |
No chimney or permanent flue required; minimum room-size requirements still apply |
| Certifications |
CE certified and tested to EN 16647 |
| Warranty |
3 years, according to the supplied product details |
Manufacturer dimensional tolerances may vary by approximately ±2%. Use the actual burner when completing the final cutout rather than relying only on published dimensions.
Installation Requirements and Clearances
Installation rule: Install the burner only into a level, securely fixed firebox made from non-combustible materials. Improper installation can void the warranty and render the product unapproved for operation.
Approved Construction Approach
- Use stainless steel, concrete, brick, stone, cement sheet, or another suitable non-combustible material
- Prepare the electrical wiring and power-adapter connection before final placement
- Provide an access opening for the burner connector
- Secure the burner before filling or ignition
- Use a spirit level to confirm that the burner and combustion tray are level
- Remove all packaging before installation and operation
Do Not Install
- Directly against combustible wall finishes or unsuitable heat-sensitive materials
- Beside curtains, fabrics, furniture, wallpaper, laminate, or veneer without required separation
- In a room smaller than the stated 90 m² minimum
- Where oxygen tanks or flammable vapors are present
- Before unused gas connections or pipelines in the area are disconnected and secured by a qualified professional
Manufacturer Clearance Guidance
| Front Clearance |
4 in / 102 mm |
| Rear Clearance |
4 in / 102 mm |
| Side Clearance |
4 in / 102 mm |
| Overhead Clearance |
24 in / 610 mm |
| Nearest Combustible Radius |
24 in / 610 mm |
| Preferred Separation in an Open Area |
At least 59.1 in / 1500 mm from combustible materials |
| Minimum Recessed TV Clearance |
14 in / 35.5 cm from the top of the firebox to the bottom of the recessed television |
| Specification-Sheet Firebox Minimum |
92 in W × 20 in H × 15 in D, non-combustible construction |
The manufacturer recommends using the burner in a Bio Flame firebox. The manual states that The Bio Flame is not liable for injuries or damage associated with custom-made or privately commissioned fireboxes.
Fuel Requirements and Refilling
Approved Fuel
Use The Bio Flame bioethanol fuel or the alternative fuel identified in the manufacturer manual. Fuel must be intended for use in indoor ethanol fireplaces.
- Store fuel in its original container
- Keep stored fuel away from heat and ignition sources
- Follow all local fuel storage and handling requirements
- Allow the burner to cool completely before refilling
Never use gasoline. Do not add water to the bioethanol fuel. Diluting the fuel reduces flame performance and can cause fuel accumulation in the combustion chamber.
Automatic Filling Procedure
- Confirm that the burner is connected to its electrical power supply.
- Open the fuel door on the front right side of the burner.
- Connect the supplied filling hose to the fuel-tank nipple and place the other end in the fuel container.
- Press the blue illuminated filling button to begin the automatic fill cycle.
- Allow the system to stop automatically, then remove the hose carefully and wipe up any spill.
- Close the fuel door before starting the burner.
Manual Filling Option
Manual filling is supported through the designated fill opening and a funnel. Stop filling when the blue indicator beside the opening turns off, reinstall the cap, clean any spill, and close the fuel door before ignition.
Do not overfill. Filling beyond the maximum level can cause a malfunction and make the flame difficult to extinguish. Never refuel while the appliance is operating or hot.
Safety and Operating Requirements
Ten-Minute Safety Lockout
After shutdown, the burner enters a cooling period and must not be restarted for ten minutes.
Child Lock
The optional child-lock function is activated by default when the fireplace powers on and must be unlocked using the specified control sequence.
Fuel-Level Monitoring
The burner requires at least 2.8 liters of fuel to operate and provides diagnostic signals when the trigger level has not been reached.
Temperature Monitoring
Integrated temperature sensing supports operational protection and diagnostic feedback.
Automatic Fill Stop
The automatic filling system stops the filling process when the system determines that the appropriate level has been reached.
Audible Diagnostic Codes
Beep patterns and indicator lights communicate conditions including low fuel, sensor issues, overheating, pump faults, and filling conditions.
Never leave the flame unattended. Do not move the burner during operation, place combustible objects in the flame, use it for cooking, or operate a damaged or malfunctioning unit.
- Confirm that the unit is fully assembled and securely installed before operation
- Keep the flame opening clear of decorative media and obstructions
- Use only authorized accessories and tools
- Check periodically for residual fuel beneath the burner
- Allow spilled fuel to dry completely before relighting
- Empty all fuel before storing or transporting the burner
Basic Operation
- Confirm that the installation is complete, level, connected to power, and filled above the minimum fuel level.
- Press the power button once to initiate the burner electronics without starting the flame.
- Press the power button a second time when instructed to initiate the pilot and fuel flow.
- During initial use, allow approximately two minutes for the pilot to heat and fuel to enter the combustion tray.
- Once the flame spans the combustion tray, use the up or down control to select the desired flame level.
- Press the power button once to turn the burner off. Remaining fuel in the tray will continue burning for a few minutes.
- Wait the required ten-minute cooling period before attempting another ignition cycle.
Do not press the power button a third time during the initial ignition sequence. Follow the complete operating procedure in the supplied manual before first use.
What's Included
Included with the Smart Burner
- 84-inch SmartFlame RC bioethanol burner
- Remote control
- AC adapter and plug
- Automatic filling hose
- Siphon hose
- Lift-up handle
- Installation and user manual
Plan to Supply Separately
- Bioethanol fuel
- Custom firebox or approved enclosure
- Non-combustible construction materials
- Electrical preparation required by the installation
- Professional labor, if required by the project or local regulations
Cleaning and Maintenance
Bioethanol combustion does not produce the ash and soot associated with a wood-burning fireplace, but periodic cleaning is still required to maintain the appearance and function of the burner.
Recommended Cleaning Method
- Turn the burner off and allow it to cool completely
- Confirm that no fuel remains in the area being serviced
- Use a soft damp cloth or microfiber cloth on exterior surfaces
- Use a soft washing sponge on the burning chamber
- Clean at least monthly when the burner is used regularly
- Follow the direction of the stainless-steel grain when wiping
Do Not Use
- Stainless-steel wool
- Harsh or abrasive sponges
- Stainless-steel cleaning agents that leave residue
- Excessive pressure around the fragile ignition rod
- A cleaning cloth on the burning tray of black units where prohibited by the manual
Heat staining around the flame opening is described by the manufacturer as a normal effect of operation and cannot be entirely avoided.
Expert Product Recommendation
The Bio Flame 84-Inch SmartFlame burner is a strong fit for large architectural fireplace projects where visual scale, smart control, and the absence of a gas line or conventional chimney are major priorities. Its 84-inch width, automatic filling system, six flame settings, remote control, and built-in WiFi make it especially suitable for premium homes, hospitality interiors, and commercial feature installations.
It is not the correct choice for a small room, combustible enclosure, power-free installation, portable application, or primary heating system. Before ordering, verify the firebox dimensions, minimum 90 m² room requirement, electrical access, clearances, finish selection, and local requirements for bioethanol appliances and fuel storage.
Frequently Asked Questions
Does the Bio Flame 84-inch SmartFlame burner require a chimney?
No. It is a ventless bioethanol burner and does not require a chimney or fixed flue, but the installation must meet the manufacturer's minimum room-size and clearance requirements.
Does the 84-inch SmartFlame burner require electricity?
Yes. Electrical power is required for ignition, pumps, automatic filling, remote operation, WiFi control, and the electronic safety system.
What size room is required for the Bio Flame 84-inch burner?
The manufacturer specifies a minimum room size of 90 m² per burner. Do not install it in a smaller enclosed room.
How much heat does the 84-inch SmartFlame burner produce?
Maximum published thermal output is approximately 31,672 BTU or 9.28 kW. The appliance is classified as a decorative fireplace intended for occasional use, not primary heating.
How long does a full 19.5-liter tank last?
Approximate burn time is 11.9–15.9 hours. Actual duration depends on the selected flame level, installation conditions, and fuel quality.
What fuel does the 84-inch SmartFlame burner use?
Use bioethanol fuel intended for ethanol fireplaces and approved by the manufacturer. Never use gasoline or dilute the fuel with water.
Does the burner refill automatically?
Yes. The supplied filling hose connects to the burner, and the automatic filling cycle stops when the proper level is reached; manual filling is also supported.
Can I refill the burner while it is hot?
No. The burner must be off, completely cooled, and free of active flame before refilling. Refilling a hot burner creates a serious fire hazard.
Does the Bio Flame 84-inch burner work with Alexa and Google Home?
Yes. Built-in WiFi supports compatible Amazon Alexa and Google Home operation, as well as control through The Bio Flame app.
Is a remote control included?
Yes. A handheld remote control is included with the SmartFlame burner.
How many flame settings does the burner have?
It has six operating settings: on, flame sizes 1 through 4, and off.
Can the 84-inch burner be installed in a custom firebox?
Only use a level firebox made entirely from suitable non-combustible materials and follow every published clearance and cutout requirement. The manufacturer recommends a Bio Flame firebox.
What materials can surround the burner?
Use suitable non-combustible materials such as stainless steel, concrete, brick, natural stone, or cement sheet. Do not install it directly against combustible or heat-sensitive finishes.
Can the Bio Flame 84-inch burner be installed under a television?
A recessed television requires at least 14 inches between the top of the firebox and the bottom of the TV. The complete installation must also meet all other clearance and heat-tolerance requirements.
What are the required clearances around the burner?
Published guidance lists 4 inches at the front, rear, and sides and 24 inches overhead and to the nearest combustible radius. Follow the complete manual and applicable local requirements.
Can this burner be used outdoors?
The product sheet identifies indoor and outdoor applications, but the burner still requires electrical power, non-combustible construction, proper clearances, and protection from unsuitable conditions.
Can the burner be used as a primary heater?
No. Manufacturer guidance classifies bioethanol fireplaces as decorative appliances for occasional use, not continuous or primary heating.
Can I cook food or heat water over the burner?
No. Do not use the burner for cooking, boiling water, or burning wood, charcoal, paper, or other combustible materials.
What happens after I turn the burner off?
The pump stops supplying fuel, but fuel already in the combustion tray burns off for a few minutes. Wait ten minutes before attempting to restart the burner.
What is included with the 84-inch SmartFlame burner?
It includes the burner, remote control, AC adapter and plug, filling hose, siphon hose, lift-up handle, and installation and user manual. Bioethanol fuel and the firebox are not listed as included.
How often should the burner be cleaned?
Clean it at least monthly when used regularly. Use a soft damp cloth or soft sponge and do not use stainless-steel wool or abrasive cleaning products.
Is discoloration around the flame opening normal?
Yes. The manufacturer identifies heat staining around the flame opening as a normal result of the heating process.
What certifications does the 84-inch SmartFlame burner have?
The burner is CE certified and tested and certified in accordance with EN 16647.
Plan the Installation Before Ordering
Confirm the required finish, firebox construction, room size, electrical access, clearances, fuel-storage requirements, and final cutout dimensions before purchasing the Bio Flame 84-Inch SmartFlame burner.
