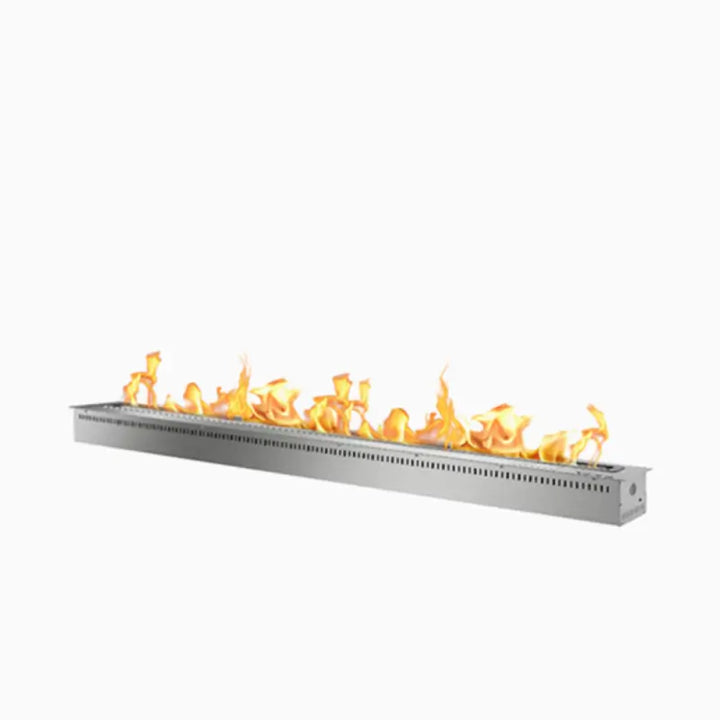

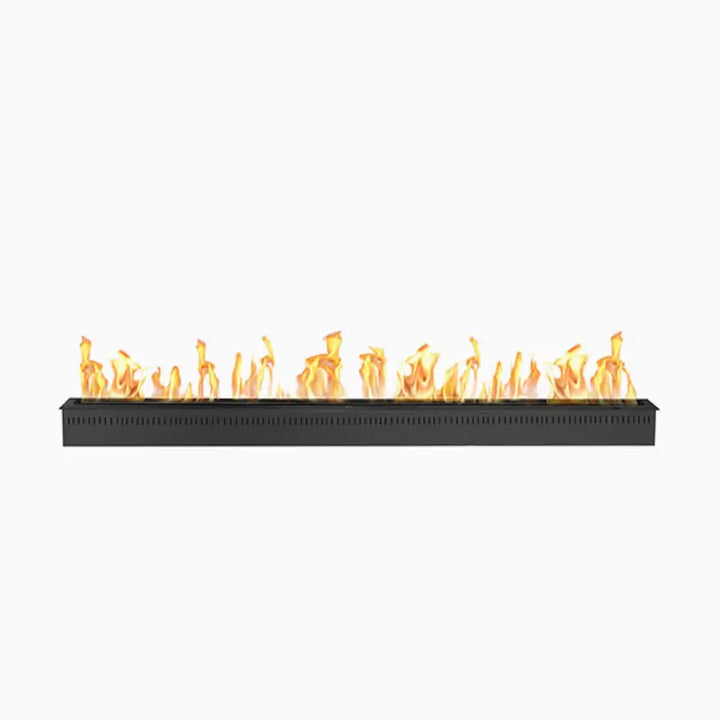

Bio Flame 96-Inch SmartFlame Remote-Controlled Bioethanol Burner with WiFi, Alexa & Google Home
The Bio Flame 96-Inch SmartFlame Remote Control Burner is a large-format, automated bioethanol burner designed for custom residential and commercial fireplace installations. It combines a 96-inch architectural flame presentation with remote operation, built-in WiFi, app control, an automatic refill system, six adjustable flame levels, and advanced safety sensors.
Because it burns bioethanol fuel, the burner does not require a chimney, permanent flue, vent pipe, or gas line. Standard electrical power is required for its electronic controls, ignition system, fuel pump, sensors, WiFi functions, and automatic refill operation.
96 Inches Burner width
36,200 BTU Maximum stated output
12–16 Hours Approximate burn time
22.5 Liters Stated fuel capacity
What Is the Bio Flame 96-Inch SmartFlame Burner?
The Bio Flame 96-Inch SmartFlame Burner is a powered, remote-controlled bioethanol burner for large custom fireplace projects. It provides six adjustable flame settings and can be controlled using the supplied remote, The Bio Flame app, Amazon Alexa, or Google Home.
It is intended for installation in a properly sized, level, non-combustible firebox. Although it produces substantial heat, the manufacturer classifies bioethanol fireplaces as decorative appliances intended for occasional use rather than as a primary heating system.
Key Features
SmartFlame Technology
Electronic burner controls manage ignition, flame adjustment, fuel delivery, and shutdown from the burner controls or the included remote.
Built-In WiFi Control
Control the burner through The Bio Flame app or connect it with compatible Amazon Alexa and Google Home systems.
Six Adjustable Flame Levels
Adjust the flame presentation to suit the room, installation, and desired visual effect.
Automatic Refill System
The powered fill system transfers fuel through the supplied filling hose and stops automatically when the filling process is complete.
Advanced Safety Sensors
Integrated sensors and operating safeguards monitor burner conditions and support controlled operation and shutdown.
304 Stainless Steel Construction
The burner uses 304 stainless steel construction and includes an insulated bottom tray for installation within a suitable firebox.
Ventless Bioethanol Operation
No chimney, permanent flue, vent pipe, or fixed gas connection is required. Minimum room-size and ventilation requirements still apply.
Large Architectural Format
The 96-inch width is designed for expansive custom fireplaces in large residential interiors, hospitality environments, and commercial spaces.
Indoor and Outdoor Applications
The product specification sheet identifies the burner for indoor and outdoor applications when installed according to the required clearances and material requirements.
Is This 96-Inch Smart Burner Right for Your Project?
Best For
- Large custom-built fireplace installations
- Luxury residential living spaces
- Hotels, restaurants, lounges, and hospitality interiors
- Commercial reception and entertainment spaces
- Architectural feature walls
- Projects requiring remote and app-based control
- Locations without a chimney, flue, or gas line
- Installations that can provide standard electrical power
- Properly ventilated rooms meeting the minimum room-size requirement
Not Recommended For
- Primary or continuous space heating
- Cooking, boiling water, or warming food
- Installation directly into combustible materials
- Rooms smaller than the documented minimum room size
- Projects without access to standard electrical power
- Portable use or relocation while fuel remains in the burner
- Locations where required clearances cannot be maintained
- Operation near oxygen tanks or flammable vapors
- Use with gasoline, wood, charcoal, paper, or unapproved fuels
Smart Home Control
The 96-Inch SmartFlame Burner includes built-in WiFi and a handheld remote. Its connected controls allow operation through The Bio Flame app and support integration with Amazon Alexa and Google Home.
Remote Control
Operate ignition, flame settings, and shutdown using the supplied handheld remote.
Bio Flame App
Access compatible burner controls from a connected smartphone through the manufacturer’s app.
Amazon Alexa
Connect the built-in WiFi system to a compatible Alexa setup for supported voice operation.
Google Home
Connect the burner to a compatible Google Home environment for supported smart-home operation.
Important: Smart controls do not replace the operating and safety procedures in the installation and user manual. Never leave an operating flame unattended.
| Fuel type |
Bioethanol fuel intended for use with ethanol fireplaces |
| Stated fuel capacity |
22.5 liters |
| Approximate burn time |
12–16 hours, depending on flame setting, installation, and fuel quality |
| Maximum stated heat output |
36,200 BTU / approximately 10.6 kW |
| Average stated indoor coverage |
Approximately 204–210 m² |
| Minimum room size |
102 m² per burner |
| Approximate fuel consumption |
1.2–1.6 liters per hour |
| Flame adjustment |
Six adjustable flame levels |
| Minimum operating fuel level |
3.2 liters |
Decorative appliance: The manufacturer states that bioethanol fireplaces are classified as decorative appliances intended for occasional use. Do not rely on this burner as the primary heating system for a building or room.
Technical Specifications
| Product name |
96-Inch SmartFlame Remote Control Burner |
| Collection |
Smart Flame Burner Collection |

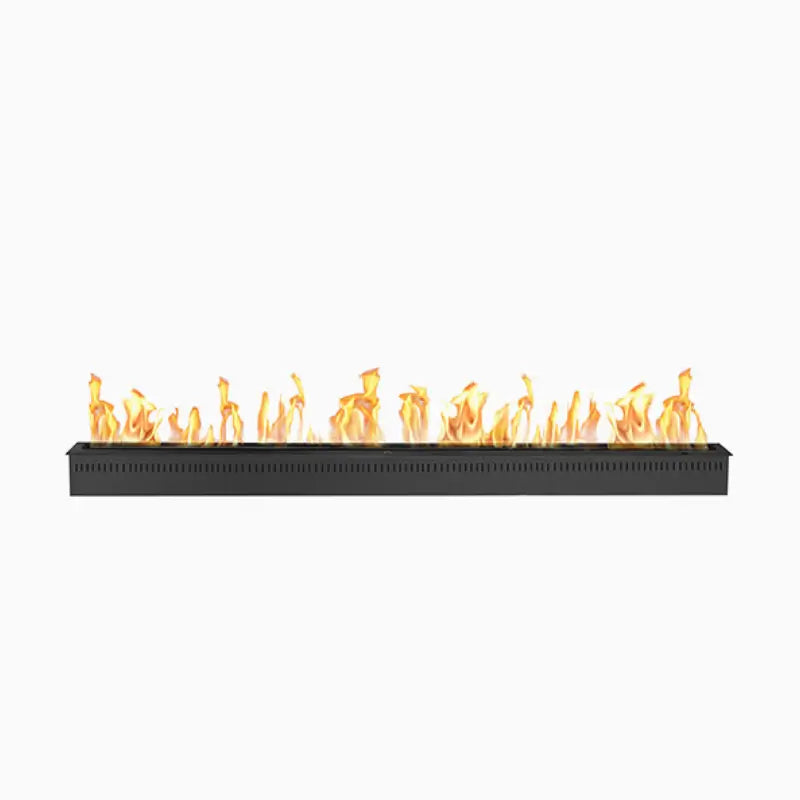

| Black model |
96-BLACK-SF |

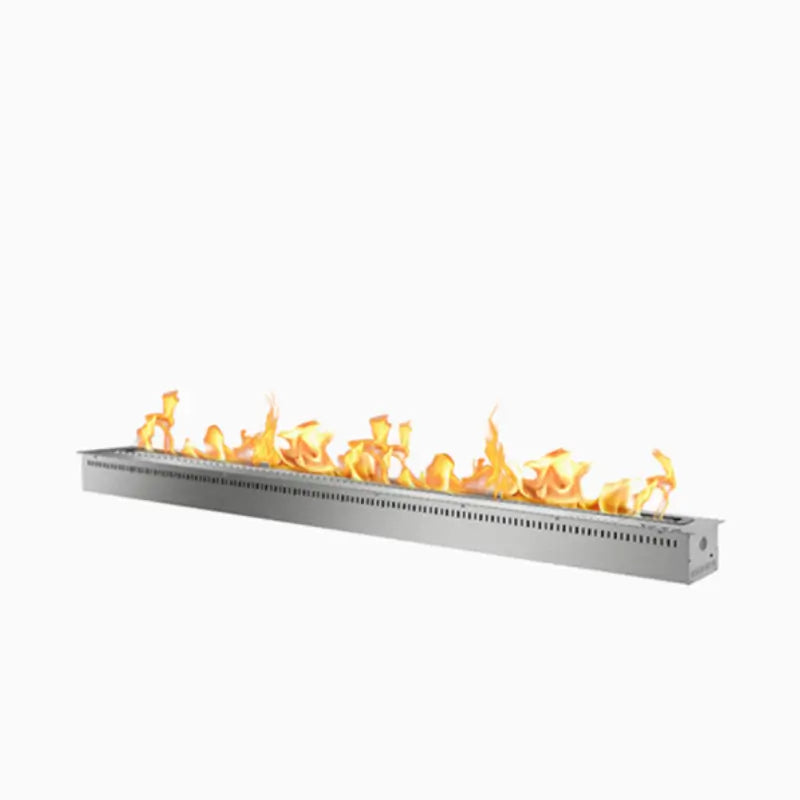

| Stainless steel model |
96-SILVER-SF |
| Fuel |
Bioethanol |
| Construction |
304 stainless steel |
| Bottom protection |
Insulated bottom tray |
| Dimensions |
6.6" H × 96" W × 7.6" D |
| Metric dimensions |
168 mm H × 2438.4 mm W × 193 mm D |
| Heat output |
36,200 BTU / approximately 10.6 kW |
| Average indoor heating area |
Approximately 204–210 m² |
| Minimum room size |
102 m² |
| Fuel capacity |
22.5 liters |
| Approximate burn time |
12–16 hours |
| Approximate consumption |
1.2–1.6 L/hour |
| Flame control |
Six adjustable flame levels |
| Operating controls |
Burner controls, remote control, and WiFi app |
| Smart-home compatibility |
Amazon Alexa and Google Home |
| Fueling system |
Automatic refill system with manual-fill option |
| Electrical requirement |
Standard electrical power required |
| Vent or chimney requirement |
No permanent flue, chimney, vent pipe, or gas line required |
| Applications |
Indoor and outdoor installations that meet the documented requirements |
| Certifications |
CE certified and tested to EN 16647 |
| Warranty |
3 years, according to the supplied product details |
Manufacturer documentation states that dimensions can vary by approximately 2% due to material attributes. Use the actual burner when confirming the final opening and installation dimensions.
Installation Requirements
The 96-Inch SmartFlame Burner must be securely installed in a level, non-combustible firebox before it is filled, ignited, or operated. Complete electrical preparation before placing the burner into the finished opening.
Required Firebox Materials
- Stainless steel
- Concrete
- Brick
- Natural stone
- Cement sheet or another suitable non-combustible material
Installation Conditions
- Install the burner perfectly level
- Secure the burner before filling or operation
- Prepare electrical wiring before installation
- Provide access for the power adapter and burner connector
- Remove all packaging before installation
- Maintain the required clearances from combustible materials
Documented Firebox and Opening Dimensions
| Minimum firebox size |
104" W × 20" H × 15" D |
| Documented cutout length |
95.61" / 2428.4 mm |
| Documented cutout width |
7.09" / 180 mm |
| Documented cutout depth |
9.84" / 250 mm |
| Front clearance |
4" / 102 mm |
| Rear clearance |
4" / 102 mm |
| Side clearance |
4" / 102 mm |
| Overhead clearance |
24" / 610 mm |
| Nearest combustible radius |
24" / 610 mm |
| Minimum recessed-TV clearance |
14" / 35.5 cm from the top of the firebox to the bottom of the recessed TV |
Installation warning: Do not install the burner directly into wallpaper, veneer, laminate, wood, or another combustible or heat-sensitive material. Improper installation can void the warranty and render the product unapproved for use.
Ventless Operation and Room Ventilation
This burner does not require a chimney, permanent flue, or vent pipe. Ventless operation does not eliminate the need for adequate room ventilation.
Minimum Room Size
The documented minimum room size for one 96-inch burner is 102 m². Do not install or operate the burner in a smaller enclosed space.
Do not operate the burner in a room where oxygen tanks are in use or where flammable vapors are present. Keep fuel containers away from the appliance and all ignition sources.
Automatic and Manual Fuel Filling
Automatic Filling
- Connect the burner to its power supply.
- Open the fuel door on the front right side.
- Connect the filling hose to the burner and fuel container.
- Press the illuminated fill button.
- Allow the system to stop automatically when filling is complete.
- Remove the hose carefully and clean any spilled fuel.
- Close the fuel door before ignition.
Manual Filling
- Open the fuel door.
- Remove the fuel-fill cap.
- Use a suitable funnel to add approved bioethanol fuel.
- Stop filling when the fill indicator switches off.
- Remove the funnel carefully and clean any spills.
- Replace the cap and close the fuel door.
Never refuel a hot or operating burner. Confirm that the flame is extinguished, the fuel chamber is empty when required, and the burner has cooled completely before refilling.
Operating the SmartFlame Burner
Read the complete installation and user manual before first use. The burner uses powered ignition, controlled fuel delivery, flame adjustment, and a timed cool-down safety feature.
Ignition
The operating instructions require a two-stage power-button sequence. Do not press the power button a third time during the initial start procedure.
Flame Adjustment
After the flame extends across the combustion tray, use the up or down controls on the burner or remote to select the desired flame setting.
Shutdown
Press the power button once to stop the fuel pump. Residual fuel in the combustion tray continues burning for several minutes before the flame extinguishes.
The burner includes a ten-minute safety delay after shutdown. Do not attempt immediate restart while the burner is completing its cool-down sequence.
Safety Features and Operating Rules
Integrated Safety Features
- Advanced safety sensors
- Controlled fuel-pump operation
- Automatic filling shutoff
- Timed cool-down protection
- Child-lock function
- Diagnostic indicator and beep codes
- Remote-controlled shutdown
Mandatory Safety Rules
- Never use gasoline
- Never refuel while the burner is hot
- Never leave the flame unattended
- Never move the burner while it is operating
- Never place decorative media over the burner opening
- Never use the burner for cooking
- Never modify the burner or use unauthorized accessories
Immediately clean any spilled fuel using a dry cloth followed by a water-dampened cloth. Allow the area to dry completely before attempting ignition.
What Is Included?
Remote Control
Handheld remote for supported burner operation and flame adjustment.
AC Adapter and Plug
Power components required for the burner’s electronic systems.
Filling Hose
Hose used with the automatic fuel-filling system.
Siphon Hose
Hose used to remove fuel before storage or transportation.
Lift-Up Handle
Handle provided for positioning or removing the burner when required.
User Manual
Installation, operation, maintenance, safety, and troubleshooting guidance.
SmartFlame Burner vs. a Manual Ethanol Burner
| Feature |
96-Inch SmartFlame Burner |
Typical Manual Ethanol Burner |
| Ignition |
Powered electronic ignition |
Manual lighting |
| Flame adjustment |
Six adjustable settings |
Depends on manual burner design |
| Remote control |
Included |
Not normally included |
| WiFi control |
Built in |
Not normally available |
| Smart-home compatibility |
Alexa and Google Home |
Not normally available |
| Fuel filling |
Automatic and manual options |
Manual filling |
| Electrical power |
Required |
Generally not required |
| Safety monitoring |
Integrated electronic sensors and controls |
Depends on the burner design |
Care and Maintenance
Bioethanol does not leave the same ash and solid residue associated with wood-burning fireplaces, but the burner still requires routine cleaning and inspection.
Recommended Cleaning
- Turn the burner off and allow it to cool completely
- Confirm that no fuel remains where cleaning is required
- Use a soft, damp cloth on exterior surfaces
- Use a soft washing sponge on the burning chamber
- Clean at least monthly when the burner is used regularly
- Inspect beneath the burner for residual fuel
Do Not Use
- Steel wool
- Harsh or abrasive sponges
- Stainless-steel cleaning chemicals
- Excess water inside burner components
- Cleaning methods that contact or damage the fragile ignition rod
Heat staining around the burner opening is described by the manufacturer as a normal result of the heating process. Stainless-steel cleaning agents can leave residue and worsen the appearance.
Warranty and Product Registration
The supplied product details state a 3-year warranty. Register the product according to the manufacturer’s instructions so that required safety, regulatory, maintenance, and warranty communications can be provided.
Improper installation, abnormal use, unauthorized modification, inadequate maintenance, or use outside the product’s intended conditions can void warranty coverage.
Product Resources
Review the official specification sheet and complete installation manual before confirming firebox dimensions, electrical preparation, clearances, fuel handling, or operating procedures.
- 96-Inch SmartFlame Product Specification Sheet Dimensions, fuel performance, clearances, materials, and product features.
- SmartFlame Installation & User Manual Installation, clearances, filling, operation, safety, maintenance, and troubleshooting.
Frequently Asked Questions
Does the 96-inch SmartFlame Burner require a chimney or vent?
No permanent chimney, flue, or vent pipe is required. The room must still meet the documented ventilation and minimum-size requirements.
Does the 96-inch SmartFlame Burner require electricity?
Yes. Standard electrical power is required for ignition, controls, sensors, fuel delivery, WiFi, and automatic filling.
Can the SmartFlame Burner connect to Amazon Alexa?
Yes. The built-in WiFi system supports compatible Amazon Alexa integration after the burner is connected and configured correctly.
Can the burner be controlled with Google Home?
Yes. The built-in WiFi system supports compatible Google Home control after proper setup.
Does the burner include a remote control?
Yes. A handheld remote control is included for supported ignition, flame adjustment, and shutdown functions.
What fuel does the 96-inch SmartFlame Burner use?
Use bioethanol fuel intended for indoor ethanol fireplaces. Do not use gasoline, diluted fuel, wood, charcoal, paper, or another combustible material.
How long does the 96-inch SmartFlame Burner operate on a full tank?
The stated approximate burn time is 12–16 hours. Actual duration depends on the selected flame level, fuel quality, and installation conditions.
How much fuel does the burner hold?
The supplied product details state a 22.5-liter capacity. Do not fill beyond the system’s maximum level or automatic shutoff point.
Can the 96-inch SmartFlame Burner be used as primary heating?
No. The manufacturer classifies bioethanol fireplaces as decorative appliances intended for occasional use rather than primary heating.
What is the minimum room size for this burner?
The documented minimum room size is 102 m² per burner. Do not install it in a smaller enclosed room.
Can the burner be installed in a custom firebox?
It can be installed only in a level firebox made from suitable non-combustible materials and built to the documented dimensions and clearances.
What is the minimum firebox size for the 96-inch burner?
The product sheet states a minimum non-combustible firebox size of 104 inches wide, 20 inches high, and 15 inches deep.
Can the SmartFlame Burner be installed below a television?
The manual specifies at least 14 inches between the top of the firebox and the bottom of a recessed television. The complete installation must also meet all other clearance and material requirements.
Can the burner be installed outdoors?
The product specification identifies indoor and outdoor applications. Only use it where the installation meets all material, clearance, electrical, ventilation, and operating requirements.
Does the burner have automatic fuel filling?
Yes. The powered filling system transfers fuel through the supplied hose and stops automatically when filling is complete.
Can the burner also be filled manually?
Yes. Manual filling is permitted through the documented fill opening using a suitable funnel while the burner is off and completely cool.
Can decorative stones be placed over the burner opening?
No. Pebbles and refractory decorative media must not cover the burner mouth or interfere with the flame.
Can the burner be refilled while it is operating?
No. Refueling a hot or operating burner creates a serious fire hazard; wait until the flame is off and the burner has cooled completely.
What happens after the burner is switched off?
The pump stops delivering fuel, but fuel already in the combustion tray burns for several minutes. The burner then completes a ten-minute safety cool-down period before restart.
How often should the burner be cleaned?
Clean it at least monthly when used regularly. Only clean the burner after it is off, empty where required, and completely cool.
Can stainless-steel wool or harsh cleaner be used?
No. Use a soft damp cloth or soft sponge; steel wool and harsh stainless-steel cleaners can damage the surface and worsen heat staining.
What certifications does the burner have?
The supplied documentation identifies CE certification and testing to the EN 16647 standard.
Plan Your 96-Inch SmartFlame Installation Carefully
Confirm the finished firebox dimensions, required clearances, electrical access, room size, ventilation, fuel-handling procedure, and burner color before ordering. Review both official documents above before construction or installation begins.
Available models: 96-BLACK-SF and 96-SILVER-SF.
