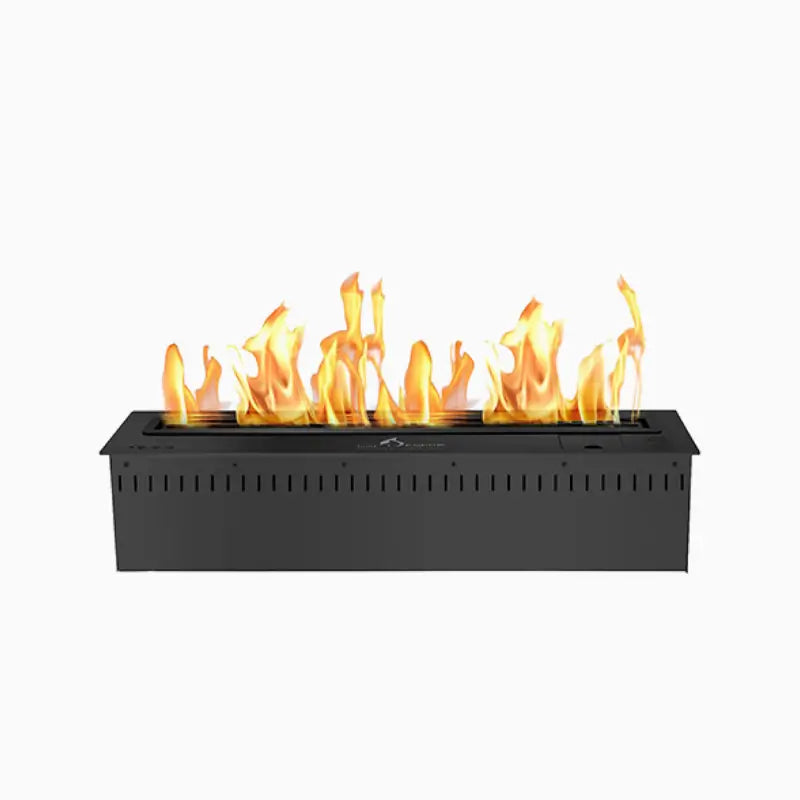

Bio Flame SmartFlame 30-Inch Remote-Controlled Bioethanol Burner with WiFi, Alexa & Google Home
The Bio Flame SmartFlame 30-Inch Remote-Controlled Bioethanol Burner is a built-in, ventless burner designed for custom residential and commercial fireplace installations. It combines a real bioethanol flame with remote operation, built-in WiFi, smartphone app control, Amazon Alexa and Google Home compatibility, six adjustable flame settings, automatic fuel filling and integrated safety sensors.
Constructed from 304-grade stainless steel with an insulated bottom tray, this smart ethanol burner is available in black and stainless-steel finishes. It does not require a chimney, flue, gas line or permanent fuel connection, but it does require electrical power, a level non-combustible installation and compliance with the manufacturer's ventilation, clearance and minimum room-size requirements.
Size 30-Inch Built-In Burner
Heat Output 10,170.6 BTU Maximum Output
Fuel Capacity 5.7-Liter Fuel Capacity
Burn Time 10.9–14 Hour Approximate Burn Time
Control Remote & WiFi Control
Smart Home Alexa & Google Home
Certification CE / EN 16647
Product Overview
The 30-inch SmartFlame burner is intended for buyers creating a custom linear fireplace without installing a chimney, flue or gas supply. The burner uses bioethanol fuel to create a real open flame and can be operated from the burner controls, included remote, The Bio Flame app or compatible smart-home assistants.
Its automatic refill system transfers fuel through the supplied filling hose and stops when the tank is full. The burner can also be filled manually with a funnel when the appliance is completely off and cold. Six operating settings allow the user to adjust the flame after it has spread across the combustion tray.
Important application note: Bioethanol fireplaces are classified as decorative appliances intended for occasional use. Do not select this burner as the primary heating system for a home or commercial building.
Quick Specifications
| Brand |
Bio Flame |
| Collection |
Smart Flame Burner Collection |
| Model Numbers |
30-BLACK-SF and 30-SILVER-SF |
| Product Type |
Remote-controlled built-in bioethanol burner |
| Applications |
Indoor and outdoor custom fireplace installations |
| Fuel Type |
Bioethanol fuel intended for ethanol fireplaces |
| Venting |
No chimney, flue or permanent vent pipe required |
| Heat Output |
10,170.6 BTU / 2.98 kW maximum |
| Average Heating Area |
57–60 m² indoors |
| Minimum Room Size |
30 m² per burner |
| Fuel Capacity |
5.7 liters |
| Approximate Burn Time |
10.9–14 hours |
| Flame / Heat Settings |
Six settings: On, Flame Size 1, Flame Size 2, Flame Size 3, Flame Size 4 and Off |
| Control Options |
Burner controls, remote control, WiFi smartphone app, Amazon Alexa and Google Home |
| Fuel Filling |
Automatic refill system with manual-fill option |
| Construction |
304-grade stainless steel |
| Bottom Protection |
Insulated bottom tray |
| Burner Dimensions |
6.6" H × 30" W × 7.6" D (168 × 762 × 193 mm) |

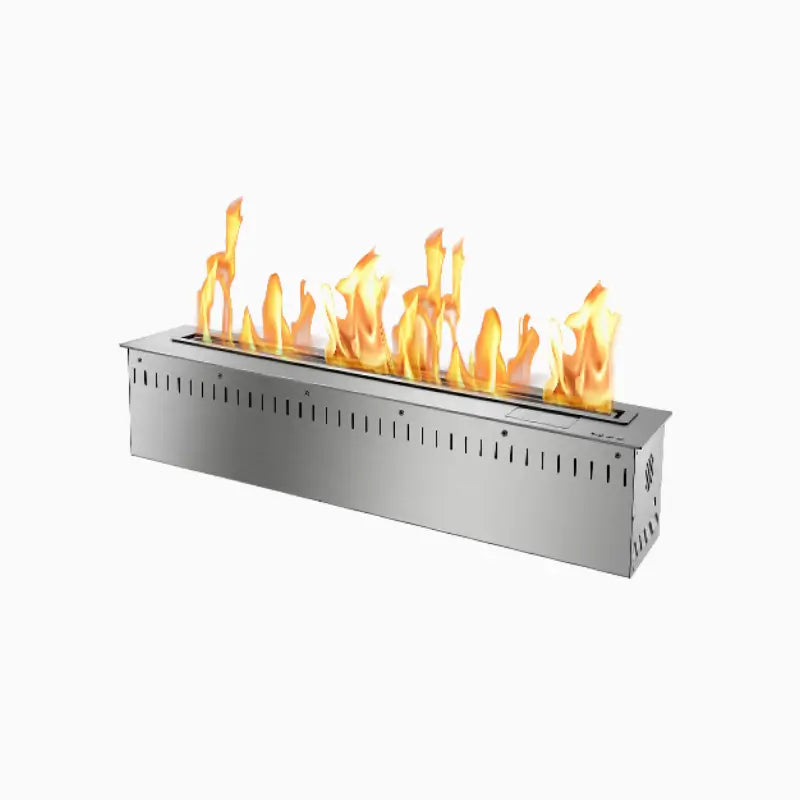

| Available Finishes |
Black and stainless steel |
| Certifications |
CE certified and tested to EN 16647 |
| Electrical Requirement |
Electrical power and supplied AC adapter required |
| Warranty |
3 years, according to the supplied product information |
Is This Burner Right for Your Project?
Best For
- Custom built-in fireplace installations
- Modern residential feature walls
- Condos and homes without a usable chimney or gas line
- Hotels, restaurants, offices and hospitality projects
- Interior designers, builders and architects specifying a linear real-flame feature
- Buyers who want remote, app and smart-home control
- Projects that can provide a non-combustible, level firebox and electrical supply
Not Recommended For
- Primary or continuous whole-home heating
- Cooking, boiling water or burning wood, paper or charcoal
- Portable use while fuel remains in the appliance
- Rooms smaller than the required 30 m² minimum
- Installations built from combustible materials
- Projects that cannot maintain the required clearances
- Locations where the flame would be left unattended
Key Features and Buyer Benefits
SmartFlame Technology
SmartFlame operation combines electronic ignition, adjustable flame output, automatic fuel movement and integrated controls in one built-in ethanol burner.
Remote Control Included
Operate the burner and adjust flame intensity without reaching into the fireplace enclosure.
Built-In WiFi
Connect the burner to The Bio Flame smartphone app for compatible mobile control. Electrical power and a working WiFi connection are required.
Alexa and Google Home
Compatible smart-home assistants provide an additional hands-free control option after the burner has been connected and configured.
Six Adjustable Settings
Increase or decrease the flame after it has spread across the combustion tray. Available settings include On, four flame-size levels and Off.
Automatic Fuel Refill
The supplied filling hose connects to the burner and fuel container. The filling process stops automatically when the tank reaches its fill level.
Ventless Installation
The appliance does not require a chimney, flue or permanent fuel connection. Required room size, ventilation and clearances still apply.
304 Stainless-Steel Construction
The burner body is made from 304-grade stainless steel and includes an insulated bottom tray for integration into an approved non-combustible firebox.
Integrated Safety Systems
The SmartFlame system incorporates safety sensors, a child-lock function and a ten-minute restart safety period after shutdown.
The 30-inch SmartFlame burner has a maximum net thermal output of approximately 10,170.6 BTU, equal to 2.98 kW. The manufacturer identifies an average indoor heating area of 57–60 m², but also classifies bioethanol fireplaces as decorative appliances for occasional use rather than primary heating equipment.
5.7-Liter Tank
The integrated fuel tank holds up to 5.7 liters of approved bioethanol fuel. Do not overfill the tank.
10.9–14 Hour Burn Time
Approximate burn time depends on flame setting, installation conditions and fuel quality.
0.8-Liter Minimum Fuel Level
The 30-inch SmartFlame burner requires approximately 0.8 liter of fuel to reach its minimum operating trigger level.
Smart Home and Control Options
The burner includes built-in WiFi and an included remote control. Depending on the configured connection, the burner can be operated through The Bio Flame app, Amazon Alexa or Google Home.
Control Methods
- Controls located on the burner
- Included handheld remote control
- The Bio Flame smartphone app
- Amazon Alexa
- Google Home
Connection Requirements
- Electrical power is required.
- The supplied AC adapter must be connected correctly.
- WiFi features require successful network setup.
- Smart-home operation requires a compatible Alexa or Google Home system.
Dimensions and Firebox Planning
| Overall Burner Dimensions |
6.6" H × 30" W × 7.6" D |
| Metric Dimensions |
168 × 762 × 193 mm |
| Recommended Cutout Length |
29.61" (752 mm) |
| Recommended Cutout Width |
7.09" (180 mm) |
| Recommended Cutout Depth |
9.84" (250 mm) |
| Minimum Firebox Size |
38" W × 20" H × 15" D |
| Measurement Tolerance |
Dimensions may vary by approximately 2% due to material attributes. Use the actual burner when making final cutout measurements. |
Do Not Build the Final Opening From Nominal Dimensions Alone
The manufacturer does not provide a final construction template and recommends using the actual burner model when creating the final cutout.
Installation Requirements
The burner must be securely installed in a level, non-combustible firebox before it is filled, ignited or operated. Prepare the electrical connection before lowering the burner into the finished opening.
Approved Surrounding Materials
- Stainless steel
- Concrete
- Brick
- Natural stone
- Cement sheet
- Other suitable non-combustible construction
Installation Conditions
- The appliance must sit completely level.
- The burner must be securely fixed before filling.
- Electrical wiring must be prepared before installation.
- The AC adapter connects at the right side of the burner.
- A side opening is required for the burner connector.
- All packaging must be removed before installation.
Custom Firebox Limitation
Bio Flame recommends using the burner in a firebox manufactured by Bio Flame. The manufacturer states that it is not liable for injury or damage arising from custom-made or privately commissioned fireboxes.
Required Clearances
| Clearance Area |
Minimum Clearance |
| Front |
4" (102 mm) |
| Rear |
4" (102 mm) |
| Sides |
4" (102 mm) |
| Overhead |
24" (610 mm) |
| Nearest Combustible Radius |
24" (610 mm) |
| Recessed TV Clearance |
At least 14" (35.5 cm) from the top of the firebox to the bottom of the recessed television |
The manufacturer's ideal-location guidance also recommends positioning the burner in a spacious area approximately 59.1 inches (1500 mm) away from combustible materials such as curtains, wallpaper or veneer. Installation near heat-sensitive finishes must account for the published temperature tolerance of the material and adhesive.
Room Size and Ventilation
Although the burner does not require a chimney or permanent vent pipe, the room must provide adequate air volume and ventilation. The minimum room size for one 30-inch SmartFlame burner is 30 m².
Do not install this burner in a room smaller than 30 m². The stated minimum applies per burner, so projects using multiple burners require separate calculation and review.
Fuel Requirements and Refilling
Use only bioethanol fuel intended for indoor ethanol fireplaces. The manufacturer recommends The Bio Flame bioethanol fuel and identifies e-NRG as an alternative. Never use gasoline, and do not dilute the fuel with water.
Automatic Filling
- Confirm that the burner is connected to power and completely cold.
- Open the fuel door on the front right side.
- Connect the supplied fuel hose to the burner and fuel container.
- Press the illuminated filling button.
- Allow the system to stop automatically when filling is complete.
- Remove the hose carefully and clean any spilled fuel.
Manual Filling
- Confirm that the burner is off and completely cold.
- Open the fuel door.
- Remove the gold-colored manual-fill cap.
- Pour approved fuel through a funnel.
- Stop when the blue indicator beside the filling opening turns off.
- Replace the cap and close the fuel door.
Never Refill a Hot or Operating Burner
Refueling while the fireplace is hot or burning can cause a sudden burst of flame. Wait until the burner is completely extinguished, empty and cooled before adding fuel.
Basic Operating Guidance
1. Inspect the Installation
Confirm that the burner is fully assembled, level, securely fixed and free from spilled or accumulated fuel.
2. Confirm the Fuel Level
The 30-inch burner requires approximately 0.8 liter of fuel to reach its minimum operating trigger.
3. Start the Burner
Follow the manufacturer's two-stage power-button procedure. During first use, allow the pilot and fuel flow to develop as described in the manual.
4. Adjust the Flame
Wait until the flame reaches the full combustion tray before increasing or decreasing flame intensity.
5. Turn the Burner Off
Press the power button once. The pump will stop, but fuel already in the combustion tray will continue burning for several minutes.
6. Observe the Restart Delay
After shutdown, wait at least ten minutes before restarting the burner. The controls remain non-responsive during the safety cool-down period.
Critical Safety Information
Always Do
- Use approved bioethanol fireplace fuel.
- Keep fuel in its original container.
- Store fuel away from heat and ignition sources.
- Clean spills before ignition.
- Keep the burner level and securely installed.
- Allow the appliance to cool before refilling or servicing.
- Keep the appliance attended whenever a flame is present.
Never Do
- Never use gasoline.
- Never refill a hot or operating burner.
- Never move the burner while operating.
- Never use the appliance for cooking or boiling water.
- Never place wood, charcoal, paper or combustible objects in the flame.
- Never operate where oxygen tanks or flammable vapors are present.
- Never modify the burner or use unauthorized accessories.
Decorative Media Placement
Do not place pebbles or other refractory decorative materials directly over the burner opening or anywhere they can obstruct the flame.
What's Included
Control and Power
- Remote control
- AC adapter and plug
- User manual
Fuel Handling
- Filling hose
- Siphon hose
- Funnel
Handling and Ignition Accessories
- Lift-up handles
- Lighting rod
- Lighter
Care and Maintenance
Bioethanol does not produce the same ash and residue as a wood fire, but the burner still requires periodic cleaning and inspection. Clean only when the appliance is off, cold and empty.
Recommended Cleaning
- Use a soft damp cloth or microfiber cloth on exterior surfaces.
- Use a soft washing sponge on the combustion area.
- Follow the direction of the stainless-steel grain.
- Clean at least monthly when the burner is used regularly.
- Inspect beneath the burner for residual fuel.
Cleaning Restrictions
- Do not use steel wool.
- Do not use harsh sponges.
- Do not use stainless-steel cleaning agents on the flame opening.
- Do not touch the fragile ignition rod during cleaning.
- Do not wipe the burning tray of black units in a way that damages the finish.
Normal heat staining: Discoloration around the burner opening is identified by the manufacturer as a normal result of heating and is not completely avoidable.
Storage and Transportation
Remove all fuel before storing or transporting the burner. Use the supplied siphon hose only after the burner has been switched off and allowed to cool completely.
Keep the siphon hose for the life of the burner. Do not move or relocate the appliance while it contains active flame or while fuel could spill into the enclosure.
Flame Authority Expert Recommendation
Choose the Bio Flame 30-Inch SmartFlame burner when the project requires a built-in linear real-flame feature, smart-home control and no chimney or gas line. It is best suited to a professionally planned firebox made from non-combustible materials with access to electrical power and a room measuring at least 30 m².
Do not choose this model as the building's primary heating system or for a small, enclosed room. It is also unsuitable where required clearances, leveling, ventilation or safe fuel-storage practices cannot be maintained.
Final firebox dimensions should be confirmed against the physical burner before construction because the manufacturer states that measurements can vary by approximately 2%.
Product Resources
Review the specification sheet and installation manual before designing the firebox, preparing electrical work or operating the burner.
Frequently Asked Questions
Does the Bio Flame 30-Inch SmartFlame burner require a chimney?
No. It is a ventless bioethanol burner and does not require a chimney or flue, but the 30 m² minimum room-size and ventilation requirements still apply.
Does the 30-Inch SmartFlame burner require electricity?
Yes. Electrical power and the supplied AC adapter are required for ignition, controls, fuel filling and smart features.
Can the Bio Flame SmartFlame burner connect to Alexa and Google Home?
Yes. The burner supports Amazon Alexa, Google Home and The Bio Flame app after WiFi setup; smart control will not operate without a compatible connection.
What fuel does the 30-Inch SmartFlame burner use?
Use only bioethanol fuel intended for ethanol fireplaces. Never use gasoline or dilute the fuel with water.
How long does the Bio Flame 30-Inch burner operate on one tank?
Approximate burn time is 10.9–14 hours from its 5.7-liter tank. Actual duration depends on flame setting, fuel quality and installation conditions.
How much heat does the 30-Inch SmartFlame burner produce?
Maximum output is approximately 10,170.6 BTU or 2.98 kW. Do not use this decorative appliance as the primary heating system.
What is the minimum room size for the 30-Inch SmartFlame burner?
The minimum room size is 30 m² per burner. Do not install it in a smaller enclosed space.
Can the 30-Inch SmartFlame burner be installed outdoors?
The product sheet identifies it for indoor and outdoor applications. The installation must still protect the appliance and meet all non-combustible, clearance and electrical requirements.
Can the SmartFlame burner be installed below a television?
A recessed television requires at least 14 inches between the top of the firebox and the bottom of the TV. Do not proceed if the television or surrounding materials cannot tolerate the resulting heat.
What materials can surround the Bio Flame SmartFlame burner?
Use non-combustible materials such as stainless steel, concrete, brick, natural stone or cement sheet. Do not install the burner directly in combustible construction.
What firebox size is required for the 30-Inch burner?
The product sheet states a minimum firebox size of 38 inches wide by 20 inches high by 15 inches deep. Use the actual burner for final construction measurements.
Can I refill the burner while it is operating?
No. Turn the burner off and wait until it is completely cold before refilling; adding fuel to a hot burner can cause a burst of flame.
Does the SmartFlame burner stop filling automatically?
Yes, the automatic filling system stops when the tank reaches its fill level. Stop and clean the area immediately if fuel spills.
Can I fill the SmartFlame burner manually?
Yes. Use the manual filling opening and a funnel only when the burner is off and cold, and stop when the fill indicator turns off.
How many flame settings does the 30-Inch SmartFlame burner have?
It provides six operating settings: On, four adjustable flame levels and Off. Wait until the flame spans the combustion tray before adjusting it.
Can decorative stones be placed over the burner opening?
No. Decorative media must not cover the burner mouth or interfere with the flame.
Can the burner be moved while fuel is inside?
Do not move the appliance while it is operating or while fuel could spill. Empty the burner with the supplied siphon hose before storage or transportation.
How soon can the burner be restarted after shutdown?
Wait at least ten minutes after switching the burner off. The controls remain unavailable during the safety cool-down period.
Is heat staining around the flame opening normal?
Yes. The manufacturer identifies heat staining around the burner opening as a normal result of operation; abrasive or stainless-steel cleaners can make it worse.
Is professional installation recommended?
Yes. The project requires non-combustible construction, exact clearances, electrical preparation and a level finished opening; improper installation can void warranty coverage.
Important Before Installation
Read the complete Bio Flame installation and user manual before building the enclosure, connecting electrical power, adding fuel or operating the burner.
Final installation must comply with the manufacturer's instructions and all applicable local requirements. Never operate the burner unattended or use it as a cooking appliance or primary heating system.
