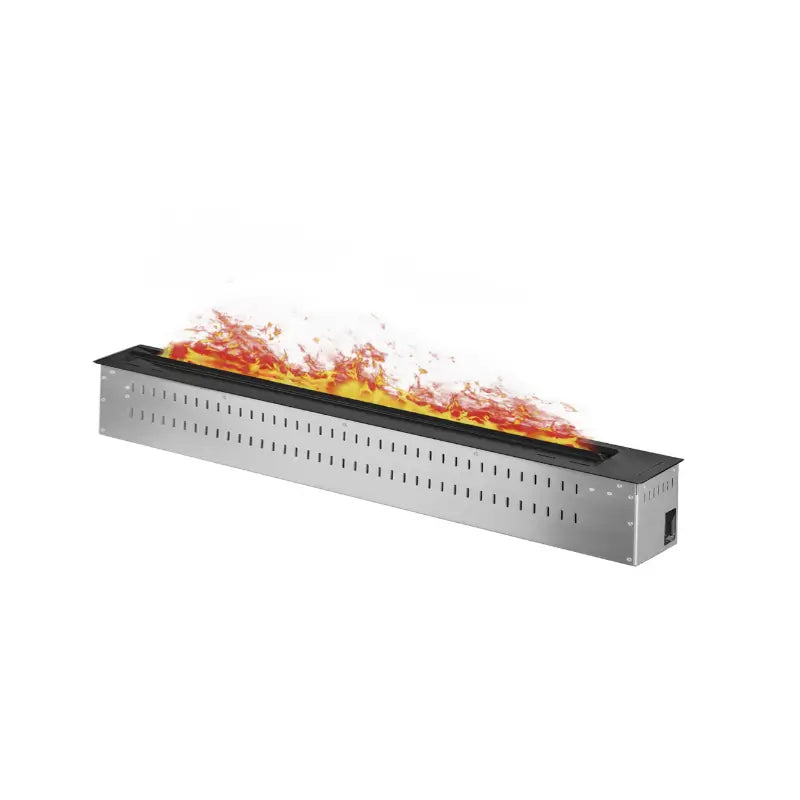

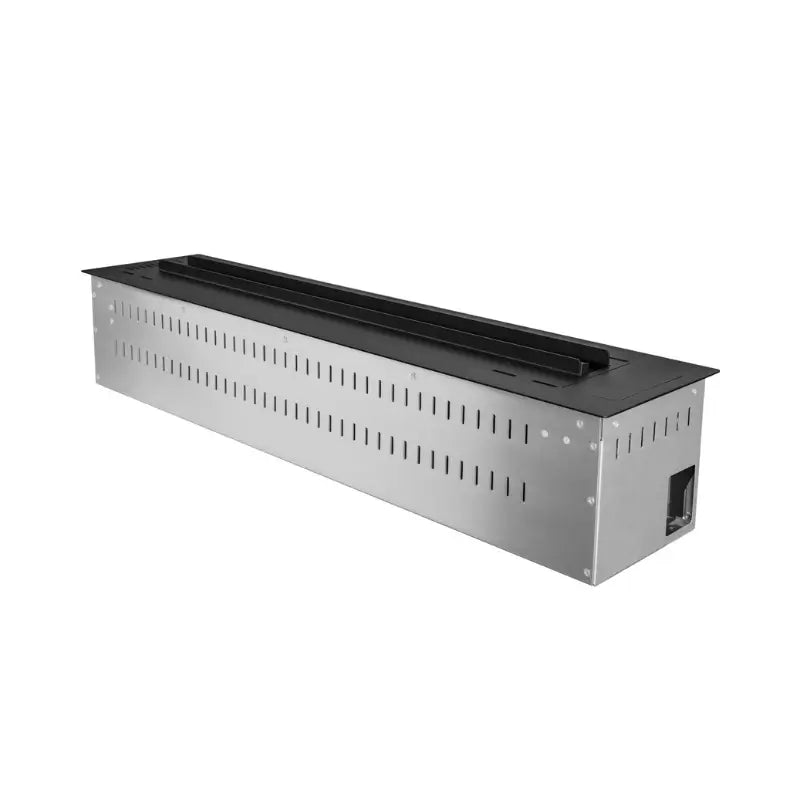

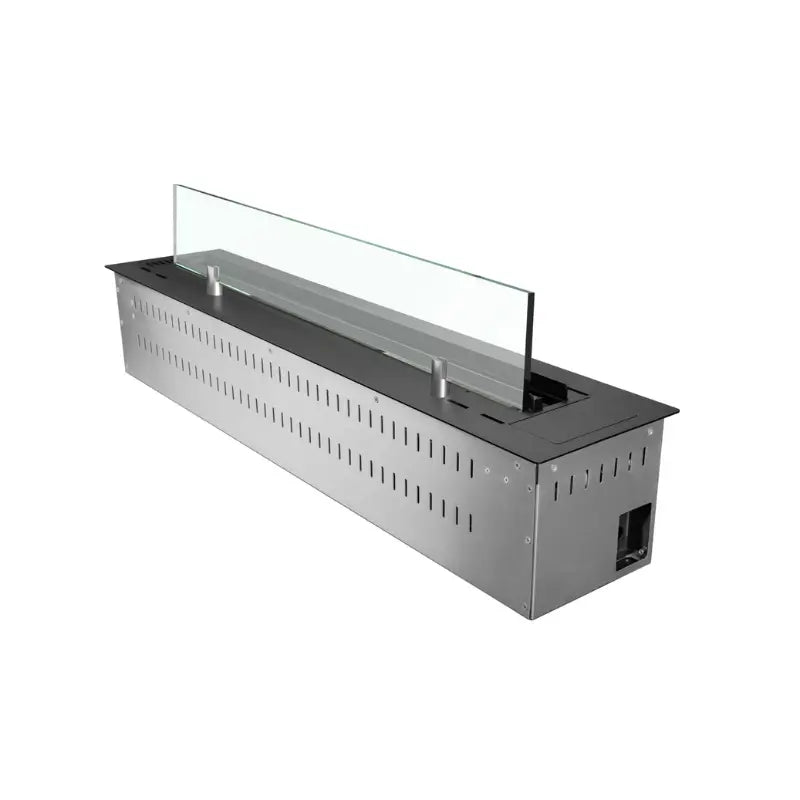

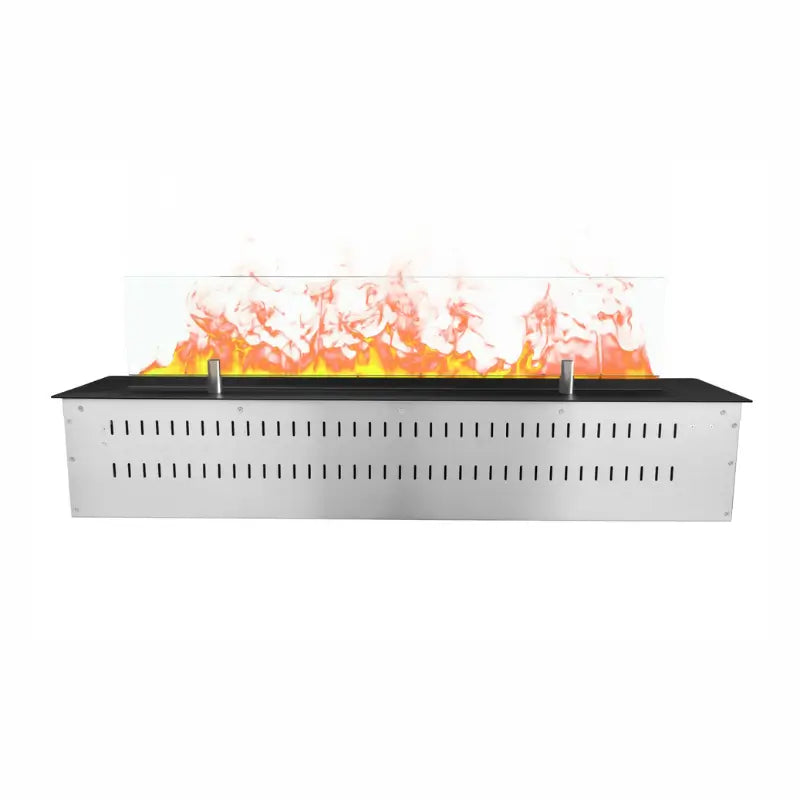

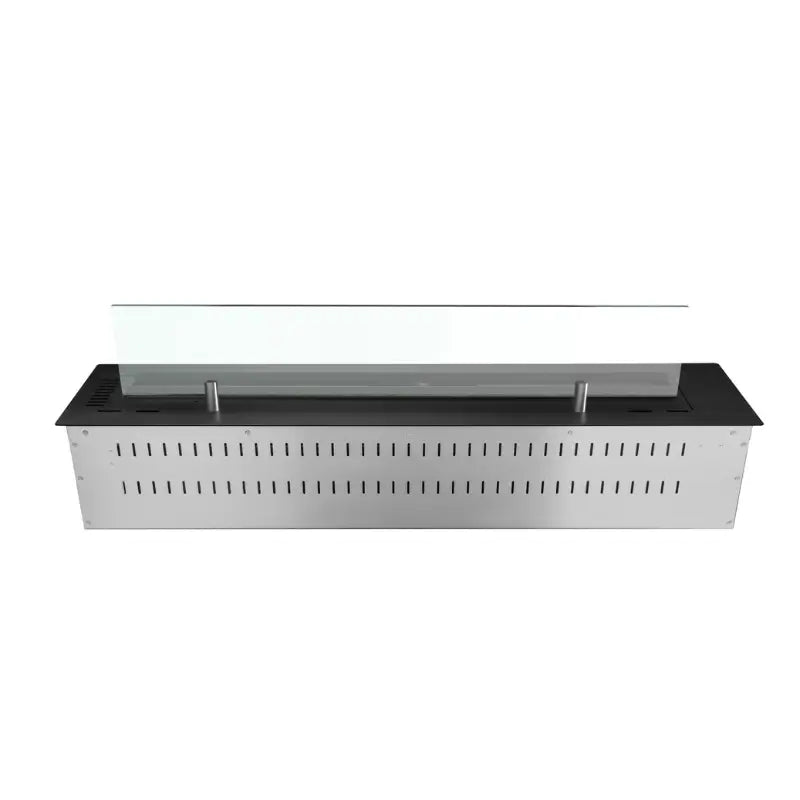

Bio Flame WT-48-BLACK 48-Inch Smart Water Vapor Fireplace
The Bio Flame WT-48-BLACK 48-Inch Smart Water Vapor Fireplace is a built-in ventless fireplace designed to create an ultra-realistic 3D flame effect without producing heat, smoke, or combustion emissions. Instead of burning gas, wood, or ethanol, the WT48 uses advanced ultrasonic water vapor technology with LED illumination to create the appearance of moving flames.
Flame Technology
Ultrasonic 3D Water Vapor
Heat Output
No Heat
Flame Colors
7 Adjustable Colors
Flame Height
5 Adjustable Levels
Smart Control
Wi-Fi, App, Alexa & Google Home
Water Supply
Manual Fill or Connected Supply
Water Tank
6 Liters
Installation
Built-In Ventless
A 48-Inch Smart Water Vapor Fireplace for Wide Decorative Flame Ambiance
Designed for residential and commercial interiors, the WT48 combines a wide approximately 40.8-inch / 1037 mm flame presentation with seven adjustable flame colors and five flame-height settings.
Built-in Wi-Fi, remote control, smartphone app operation, Google Home, and Amazon Alexa compatibility provide multiple ways to operate the fireplace.
The WT48 also offers flexible water management with manual filling or a connected water supply. Its 6-liter water tank, 3.4-liter listed refill volume, and 13–17-hour listed operating time support extended decorative operation.
Important use classification: The WT48 is a decorative water vapor fireplace and does not produce heat. Choose this model for flame ambiance and architectural design rather than supplemental room heating.
Bio Flame WT48 at a Glance
Flame Length
1037 mm / Approx. 40.8 in.
Listed Refill Volume
3.4 liters
Listed Operating Time
13–17 hours
Specified Cutout
1215 × 180 × 250 mm
Installation
Built-in ventless fireplace
Is the Bio Flame WT48 Right for Your Project?
The 48-inch Bio Flame Smart Water Vapor Fireplace is designed for buyers who want the visual impact of a fireplace without adding heat or using a traditional combustion flame.
Best For
- Modern living rooms and entertainment walls
- Residential fireplace features where additional heat is not needed
- Commercial interiors and architectural installations
- Long built-in fireplace designs requiring a wide flame presentation
- Spaces where smoke and combustion are undesirable
- Buyers who want adjustable flame colors and flame height
- Smart-home projects using Google Home or Amazon Alexa
- Built-in designs where a traditional combustion vent is not desired
Do Not Choose the WT48 If
- Your primary goal is heating a room.
- You specifically require a combustion flame.
- Your installation cannot provide electrical power.
- Your installation cannot maintain the specified clearances and air intake.
- Your project cannot accommodate the manufacturer-specified cutout.
How Does the Bio Flame Water Vapor Fireplace Work?
The WT48 creates its flame effect using ultrasonic water vapor technology rather than combustion.
Water is transformed into fine vapor and illuminated to create the appearance of dimensional moving flames. Because there is no burning fuel involved in creating the effect, the WT48 produces fireplace ambiance without a conventional fire.
Key distinction: The WT48 looks like a fireplace, but it is not a space heater and does not create a combustion flame.
The system also allows vapor density to be fine-tuned. The manufacturer's operating instructions document controls for increasing or decreasing vapor density and restoring the vapor-density setting to its default.
Adjustable 3D Flame Appearance
7 Adjustable Flame Colors
Choose from seven adjustable colors to coordinate the flame effect with the room, interior design, or desired atmosphere.
5 Flame Height Levels
The flame height can be adjusted through five levels, allowing the presentation to range from a lower flame effect to a more prominent visual display.
Adjustable Vapor Density
The manufacturer's operating controls provide fine adjustment of vapor density for additional control over the water vapor effect.
Wi-Fi, Remote, App & Smart-Home Control
The Bio Flame WT48 comes equipped with built-in Wi-Fi and remote-control functionality, providing several ways to operate the fireplace.
Remote Control
The included remote controller provides direct fireplace operation.
Bio Flame Smartphone App
The fireplace supports operation using The Bio Flame smartphone app.
Voice-Control Platforms
Compatible connected operation includes Google Home and Amazon Alexa.
The fireplace can also be operated using its on-unit controls.
Water Tank Capacity & Operating Time
The WT48 incorporates a 6-liter water tank and has a manufacturer-listed 3.4-liter refill volume.
Bio Flame lists the WT48 operating time at approximately 13–17 hours.
| Water Tank Capacity |
6 L |
| Listed Refill Volume |
3.4 L |
| Listed Operating Time |
13–17 Hours |
| Water Filling |
Manual or Connected Supply |
First-use requirement: Bio Flame states that the water tank must be fully filled when the fireplace is used for the first time.
Manual Fill or Connected Water Supply
The WT48 allows the water system to be planned according to the installation rather than requiring only one filling method.
Manual Filling
The included filling hose can be connected to the fireplace's filling system and a water container. The manufacturer's operating instructions describe an automatic pumping process that stops once the tank is full.
Connected Water Supply
The fireplace can also be connected using the filling hose to a water tap. According to Bio Flame's instructions, once properly connected, the fireplace begins filling automatically and is ready for use when the auto-fill function switches off.
WT48 Overall Dimensions
| Overall Width |
48 in. / 1220 mm |
| Overall Depth |
7.6 in. / 193 mm |
| Overall Height |
6.6 in. / 168 mm |
| Flame Length |
1037 mm / Approx. 40.8 in. |
WT48 Manufacturer-Specified Cutout Dimensions
| Measurement |
Metric |
Approx. Imperial |
| Cutout Length |
1215 mm |
47.83 in. |
| Cutout Width |
180 mm |
7.09 in. |
| Cutout Depth |
250 mm |
9.84 in. |
Installation note: Overall product dimensions and manufacturer-specified cutout dimensions are different. Use the installation manual when preparing the cavity rather than assuming the nominal 48-inch product width is the required cutout measurement.
Installation Clearances
For installation in a firebox, Bio Flame specifies the following clearances.
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
The fireplace should also sit on a sturdy, level surface. The manufacturer instructs installers to verify the installation surface with a spirit level.
Air intake requirement: Do not completely seal the bottom of the fireplace niche. The manufacturer specifically instructs installers to leave an open air gap at the bottom for air intake.
Electrical Requirements
The WT48 requires electrical power for operation.
Outlet Location
For firebox installations, Bio Flame instructs that an electrical outlet be installed on the right side of the burner cutout.
External Wall Switch
The manual specifies that the outlet should connect to a power source that can be switched on and off from an external wall switch.
Power Before Placement
The power adapter should be connected before the burner is carefully lowered into the prepared cavity.
Lift Handles
Use the supplied lift handles when positioning the fireplace in the prepared opening.
Level Installation
Install the fireplace on a sturdy, properly leveled surface.
Open Bottom Air Gap
Maintain the manufacturer-required open air gap beneath the fireplace niche.
Installation planning: Follow the manufacturer's installation instructions rather than relying solely on product-page dimensions when preparing electrical connections and the fireplace cavity.
Flexible Architectural Installation
The manufacturer's manual illustrates several possible inset orientations for incorporating the water vapor fireplace into an architectural feature.
This allows the WT48's long linear flame presentation to be incorporated into different built-in designs, provided the required cavity, airflow, support, electrical, and clearance requirements are maintained.
Stainless-Steel Construction
Fireplace Body
#201 Stainless Steel
Water Tank
#304 Stainless Steel
Safety Features
Water-Level Sensor
The water-level system helps manage operation around the fireplace's water supply.
Child Lock
The control system includes child-lock functionality for additional control protection.
No Combustion Flame
The decorative flame effect is created with water vapor rather than burning fireplace fuel.
No Heat Output
The WT48 is intended for decorative flame ambiance rather than room heating.
No Smoke-Producing Fire
The flame effect does not rely on a smoke-producing combustion fire.
Safety reminder: These features do not replace following the manufacturer's installation, operating, clearance, electrical, and maintenance instructions.
Safety & Performance Compliance
Bio Flame states that its Water Vapor Fireplaces are tested and certified to meet the Electromagnetic Compatibility Directive (EMC) 2014/30/EU.
-
EN IEC 55014-1:2021 — Emission requirements for household electrical equipment
-
EN IEC 55014-2:2021 — Immunity requirements
-
EN IEC 61000-3-2:2019 + A1:2021 — Harmonics and current emission limits
-
EN 61000-3-3:2013 + A1:2019 + A2:2021 + AC:2022 — Voltage fluctuation and flicker compliance
Compliance scope: Bio Flame states that these compliance standards apply across its Water Vapor Fireplace Collection. They do not replace installation, electrical, airflow, water-management, or operating instructions.
Indoor Installation Considerations
Bio Flame's installation manual states that the burner is designed for indoor use.
The manual additionally says that if it is used outdoors, it must be kept away from humid conditions, including rain and water.
Buyer guidance: Treat the WT48 primarily as an indoor built-in water vapor fireplace and follow the manufacturer's environmental and installation instructions.
What's Included
| Remote Controller |
1 |
| Filling Hose |
1 |
| Handles |
2 |
| Plug |
1 |
| Installation Manual |
1 |
The supplied handles are used during installation to help carefully lower the fireplace into its prepared cavity.
Complete Bio Flame WT48 Technical Specifications
| Brand |
The Bio Flame |
| Model |
WT-48-BLACK / WT48 |
| Collection |
Water Vapor Fireplace Collection |
| Product |
48 in. Smart Water Vapor Fireplace |
| Fireplace Type |
Built-In Ventless |
| Flame Technology |
Ultrasonic Water Vapor |
| Flame Appearance |
Ultra-Realistic 3D Flame Effect |
| Heat Output |
None |
| Smoke |
None from combustion |
| Flame Colors |
7 Adjustable Colors |
| Flame Height |
5 Adjustable Levels |
| Vapor Density |
Fine Adjustment Supported |
| Flame Length |
1037 mm / Approx. 40.8 in. |
| Remote Control |
Yes |
| Smartphone App Control |
Yes |
| Built-In Wi-Fi |
Yes |
| Google Home |
Yes |
| Amazon Alexa |
Yes |
| Water Supply |
Manual Fill or Connected Water Supply |
| Water Tank Capacity |
6 L |
| Listed Refill Volume |
3.4 L |
| Listed Operating Time |
13–17 Hours |
| Body Material |
#201 Stainless Steel |
| Water Tank Material |
#304 Stainless Steel |
| Water Level Sensor |
Yes |
| Child Lock |
Yes |
| LED Lifespan |
60,000+ Hours |
| Power Consumption |
Low Power Consumption |
| Overall Dimensions |
48 in. W × 7.6 in. D × 6.6 in. H |
| Metric Dimensions |
1220 × 193 × 168 mm |
| Specified Cutout |
1215 × 180 × 250 mm |
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
| Air Intake |
Open air gap required at bottom of niche |
| Primary Intended Environment |
Indoor |
| Included Accessories |
Remote, Filling Hose, 2 Handles, Plug, Installation Manual |
Flame Authority Expert Recommendation
Choose the Bio Flame WT48 48-Inch Smart Water Vapor Fireplace when your project calls for a long built-in decorative fireplace with a wide flame presentation, adjustable visual effects, smart-home controls, and no heat output.
Its approximately 40.8-inch / 1037 mm flame area, seven flame colors, five flame-height levels, adjustable vapor density, Wi-Fi connectivity, remote and smartphone controls, and Alexa and Google Home compatibility make it particularly suitable for design-focused residential and commercial interiors.
The WT48 is also a strong fit when water-supply flexibility matters because the supplied information supports both manual filling and a connected water supply.
Do not select the WT48 when supplemental room heating is required. Before ordering, confirm the overall dimensions, 1215 × 180 × 250 mm specified cutout, required clearances, electrical connection, water-supply method, level support surface, and bottom air-intake requirement.
Official Product Resource
Review the manufacturer's complete instructions, clearances, operating procedures, and installation requirements before preparing the fireplace opening or installing the WT48.
Bio Flame WT48 Water Vapor Fireplace FAQs
Does the Bio Flame WT48 produce heat?
No. The Bio Flame WT48 produces a water vapor flame effect without heat, so do not choose this model when supplemental room heating is required.
Does the Bio Flame WT48 need a chimney or vent?
No traditional combustion chimney or vent is required because the WT48 creates its flame effect using water vapor rather than burning fuel. The built-in niche still requires the manufacturer-specified open air gap at the bottom for air intake.
What are the cutout dimensions for the Bio Flame WT48?
The manufacturer-specified WT48 cutout is 1215 mm long × 180 mm wide × 250 mm deep, approximately 47.83 in. × 7.09 in. × 9.84 in. Do not use the fireplace's nominal 48-inch width as the cutout measurement.
How long does the Bio Flame WT48 run before it needs more water?
Bio Flame lists the WT48 with a 13–17-hour operating time, a 6-liter water tank, and a 3.4-liter listed refill volume. The water tank must be fully filled for first use.
Can the Bio Flame WT48 connect directly to a water supply?
Yes. The WT48 supports manual filling and a connected water supply; the manufacturer documents connecting the filling hose to a water tap for automatic filling.
Does the Bio Flame WT48 work with Alexa and Google Home?
Yes. The WT48 has built-in Wi-Fi and supports Amazon Alexa, Google Home, remote control, and smartphone app operation.
Can the Bio Flame WT48 be used as a room heater?
No. The WT48 is intended to provide fireplace ambiance rather than space heating; choose a heat-producing fireplace if room heating is a primary requirement.
Does the WT48 need electricity?
Yes. The WT48 requires an electrical connection, and Bio Flame provides specific outlet and power-connection instructions for built-in installation. Do not finalize the fireplace cavity without accounting for the electrical connection and required air intake.
Can the WT48 fireplace niche be completely sealed?
No. The manufacturer requires an open air gap at the bottom of the fireplace niche for air intake.
What comes with the Bio Flame WT48?
The supplied accessories include one remote controller, one filling hose, two handles, one plug, and one installation manual.
Before You Order
Confirm Before Purchase
- The WT48 is being selected for decorative flame ambiance rather than room heating.
- The 48-inch overall fireplace size suits the project.
- The 1220 × 193 × 168 mm overall dimensions fit the installation.
- The 1215 × 180 × 250 mm manufacturer-specified cutout can be accommodated.
- The required front, rear, side, and overhead clearances can be maintained.
- An electrical outlet and suitable power connection can be provided.
- The bottom air-intake opening can remain unobstructed.
- The installation surface can be kept sturdy and level.
- The chosen manual-fill or connected-water method can be accommodated.
Do Not Assume
- That the WT48 provides supplemental room heat.
- That water vapor means no electrical connection is required.
- That ventless means the fireplace can be installed without airflow.
- That the nominal 48-inch width is the required cutout width.
- That a permanent connected water supply is mandatory.
- That the fireplace can be installed on an uneven or unsupported surface.
- That the fireplace is intended for exposed rain or humid outdoor conditions.
Final installation check: Use the current manufacturer Installation & User Manual as the final authority for cavity dimensions, installation clearances, electrical setup, airflow, water supply, positioning, controls, and operating requirements.
