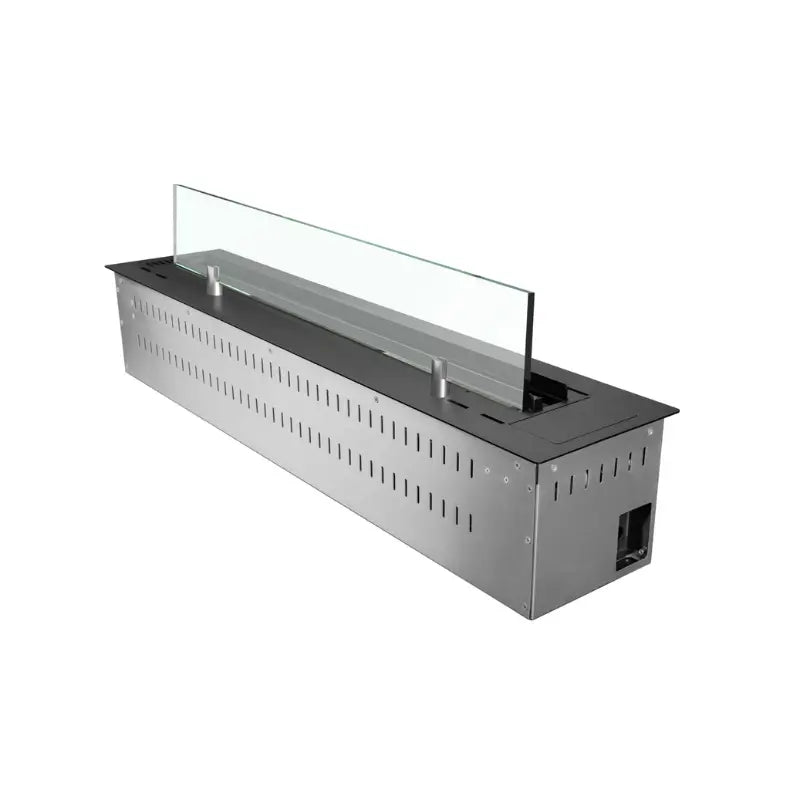

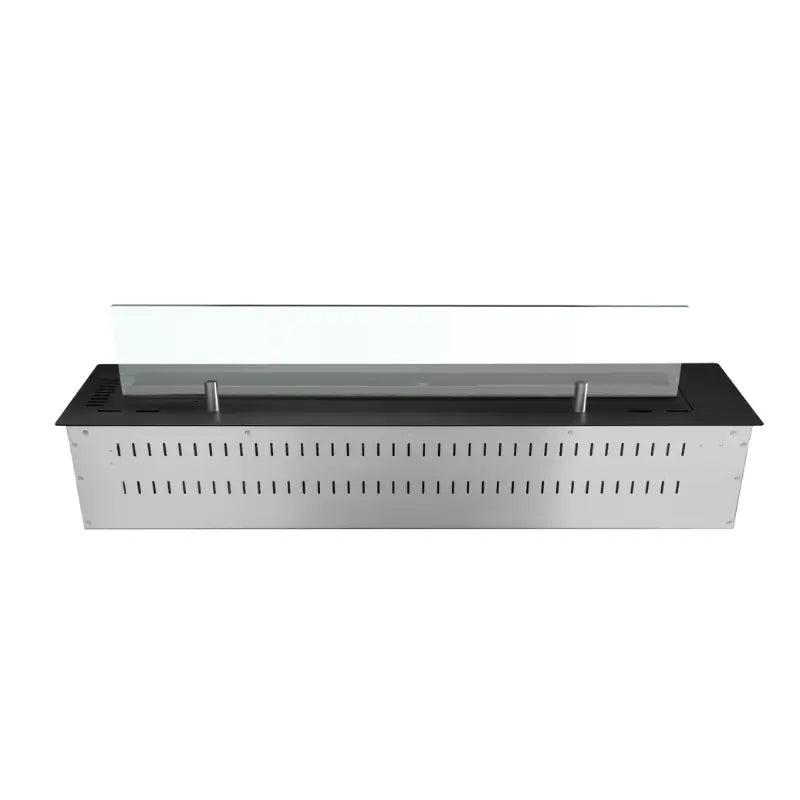

Bio Flame WT-60-BLACK 60-Inch Smart Water Vapor Fireplace
The Bio Flame WT-60-BLACK 60-Inch Smart Water Vapor Fireplace is a built-in, ventless decorative fireplace that uses ultrasonic water vapor technology to create ultra-realistic 3D flame effects without producing heat, smoke, or emissions. Designed for residential and commercial interiors, this 60-inch model combines a wide flame presentation with seven adjustable flame colors, five flame-height levels, Wi-Fi connectivity, smartphone control, remote operation, and compatibility with Amazon Alexa and Google Home.
Flame Technology
Ultrasonic 3D Water Vapor
Heat Output
No Heat
Flame Colors
7 Adjustable Colors
Flame Height
5 Adjustable Levels
Smart Control
Wi-Fi, App, Alexa & Google Home
Water Supply
Manual Fill or Direct Connection
Operating Time
14–18 Hours
Installation
Built-In Ventless
A 60-Inch Smart Water Vapor Fireplace for Wide Decorative Flame Ambiance
Because the WT-60-BLACK does not produce heat, it is best suited to spaces where fireplace ambiance and visual design are the priority rather than supplemental room heating.
The 60-inch format provides a broad linear presentation with a manufacturer-listed 1337 mm / approximately 52.6-inch flame length.
Water can be supplied manually or through a direct water connection, providing installation flexibility for custom fireplace walls, feature walls, hospitality spaces, offices, and other interior applications.
Important use classification: The WT-60-BLACK is a decorative, non-heating water vapor fireplace. Choose it for visual flame ambiance and architectural design rather than supplemental room heating.
Bio Flame WT60 at a Glance
Flame Length
1337 mm / Approx. 52.6 in.
Operating Time
14–18 hours
Specified Cutout
1519 × 180 × 250 mm
Overall Size
60 × 7.6 × 6.6 in.
Installation
Built-in ventless fireplace
Is the Bio Flame WT-60-BLACK Right for Your Project?
Best For
- Modern living rooms and entertainment spaces
- Custom fireplace and media walls
- Residential feature-wall installations
- Condos and interiors where a decorative non-heating fireplace is preferred
- Hotels, restaurants, reception areas, offices, and commercial interiors
- Smart-home projects using Amazon Alexa or Google Home
- Projects where a wide linear fireplace effect is desired
- Spaces where a combustion-free decorative flame effect is preferred
- Installations that benefit from manual-fill or direct-water flexibility
Do Not Choose the WT60 If
- Your primary objective is room heating.
- You specifically require a wood, gas, or other combustion flame.
- Your installation cannot provide electrical power.
- The required clearances cannot be maintained.
- The bottom air-intake opening cannot remain unobstructed.
- The installation cannot accommodate the manufacturer-listed cutout.
- You need a fireplace intended for exposed outdoor weather.
How Does the Bio Flame WT-60 Water Vapor Fireplace Work?
The WT-60 uses ultrasonic water vapor technology combined with LED lighting to create an ultra-realistic three-dimensional flame effect.
Unlike a conventional wood, gas, or ethanol fireplace, it does not rely on combustion to create the appearance of flames.
This allows the WT-60-BLACK to create decorative fireplace ambiance without producing heat, smoke, or emissions.
Buyer decision: Select the WT60 when visual flame ambiance is the primary goal. If supplemental room heat is required, this fireplace does not meet that requirement.

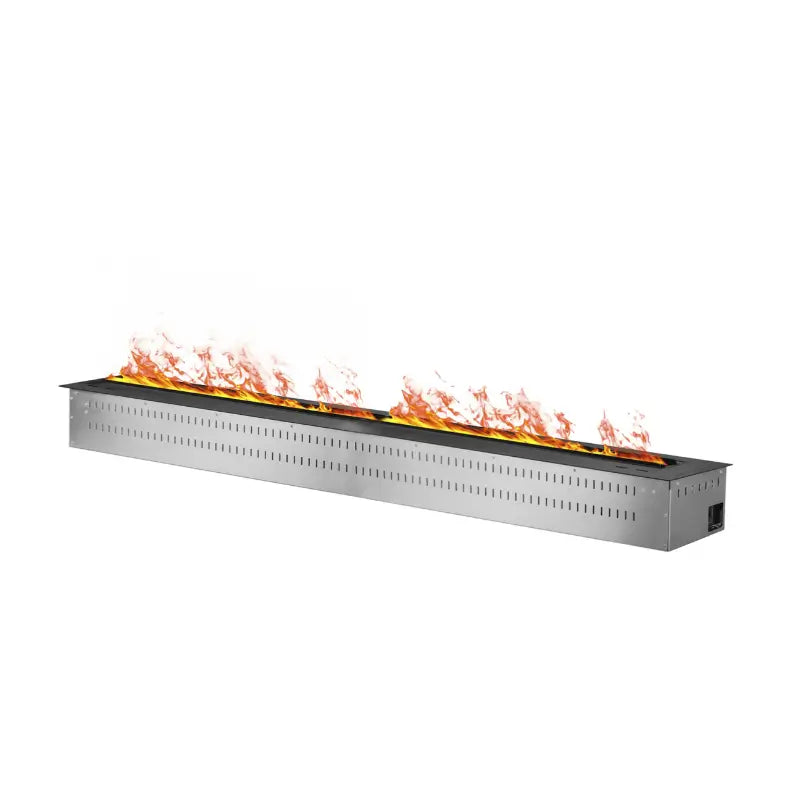

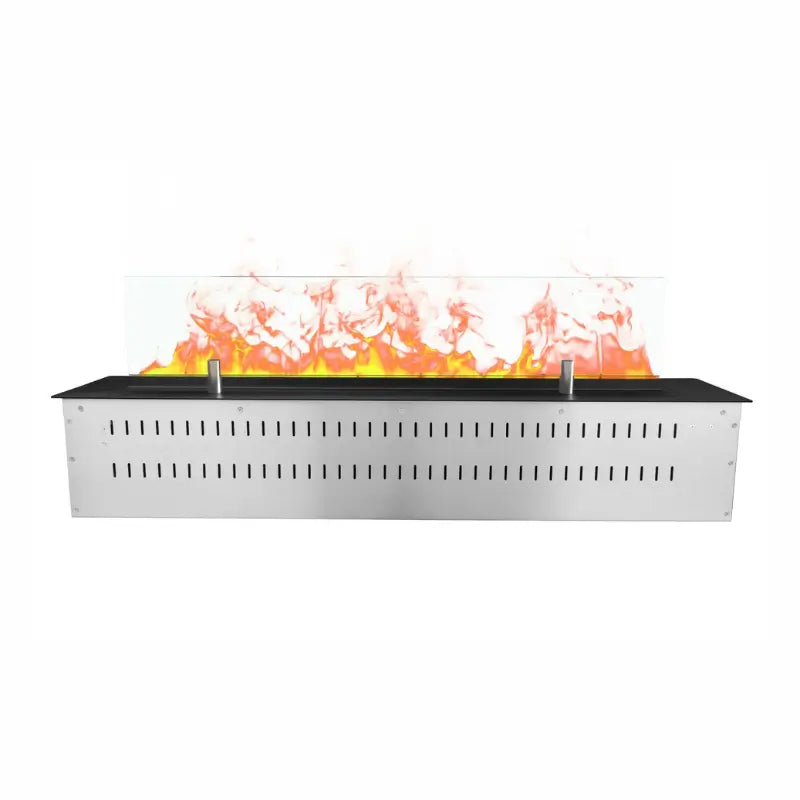

Ultra-Realistic 3D Water Vapor Flames
The WT60 manufacturer data lists a 1337 mm flame length, equal to approximately 52.6 inches, creating a broad flame presentation across the 60-inch fireplace body.
7 Adjustable Flame Colors
Choose from seven adjustable colors to customize the visual presentation for different rooms and design concepts.
5 Flame-Height Levels
Five adjustable flame-height levels allow the visible vapor-flame presentation to be increased or reduced.
Adjustable Vapor Density
The manufacturer manual documents fine adjustment of vapor density and a procedure for returning the setting to its default.
Wi-Fi, Amazon Alexa, Google Home & App Control
The WT-60-BLACK comes equipped with built-in Wi-Fi and a remote control and supports operation through Amazon Alexa, Google Home, and the Bio Flame app.
Remote Control
The included remote provides direct fireplace operation.
Smartphone App
The fireplace supports operation through the Bio Flame smartphone app.
Smart-Home Platforms
Connected control supports Amazon Alexa and Google Home.
On-unit controls are also available, allowing the fireplace to be operated directly at the unit.
Manual Fill or Direct Water Connection
The Bio Flame WT-60 supports two approaches to water supply, giving installers flexibility based on available plumbing and the installation design.
Manual Water Filling
For manual filling, the included filling hose connects to the fireplace and a water container. The manufacturer's instructions document an automatic filling process that stops when the tank is full.
Direct Water Connection
The manufacturer manual also documents connecting the filling hose to a water tap. Once connected, the fireplace begins filling automatically and is ready for use when the auto-fill function turns off.
| Manufacturer-Listed Refill Volume |
4.6 L |
| Manufacturer-Listed Operating Time |
14–18 Hours |
| Water Supply |
Manual Fill or Direct Water Connection |
First-use requirement: The manufacturer manual instructs users to fully fill the water tank before first use.
Bio Flame WT-60 Dimensions
| Measurement |
Imperial |
Metric |
| Width / Length |
60 in. |
1524 mm |
| Depth |
7.6 in. |
193 mm |
| Height |
6.6 in. |
168 mm |
| Flame Length |
Approx. 52.6 in. |
1337 mm |
WT-60 Manufacturer-Listed Cutout Dimensions
The manufacturer's installation table lists the following cutout dimensions for the WT60.
| Cutout Length |
1519 mm |
| Cutout Width |
180 mm |
| Cutout Depth |
250 mm |
Before fabrication: Review the current manufacturer installation instructions before constructing or finalizing the fireplace opening.
Required Installation Clearances
For installation in a firebox, the manufacturer specifies the following clearances.
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
The fireplace is intended to be positioned on a floor or sturdy supporting surface. The manufacturer recommends using a spirit level to verify that the installation surface is level.
Air-intake requirement: Leave an open air gap at the bottom of the fireplace niche for air intake. Do not completely seal the bottom of the installation.
Electrical Installation Requirements
The WT-60 requires an electrical connection.
Outlet Location
For firebox installations, the manufacturer specifies an electrical outlet on the right side of the burner cutout.
External Wall Switch
The outlet should connect to a power source that can be turned on and off from an external wall switch.
Power Before Placement
The manufacturer instructs the installer to connect the power adapter before carefully placing the burner into the cavity.
Lift Handles
Use the included lift handles when lowering the fireplace into the prepared opening.
Level Surface
Install the fireplace on a sturdy and properly leveled supporting surface.
Bottom Air Intake
Keep the open air gap beneath the niche unobstructed as required by the manufacturer.
Ventless Built-In Installation
The WT-60-BLACK is a ventless water vapor fireplace. Because its decorative flame effect is produced without conventional combustion, it does not require the chimney or flue associated with a traditional wood-burning fireplace.
Important: Ventless installation does not eliminate electrical, clearance, supporting-surface, or air-intake requirements.

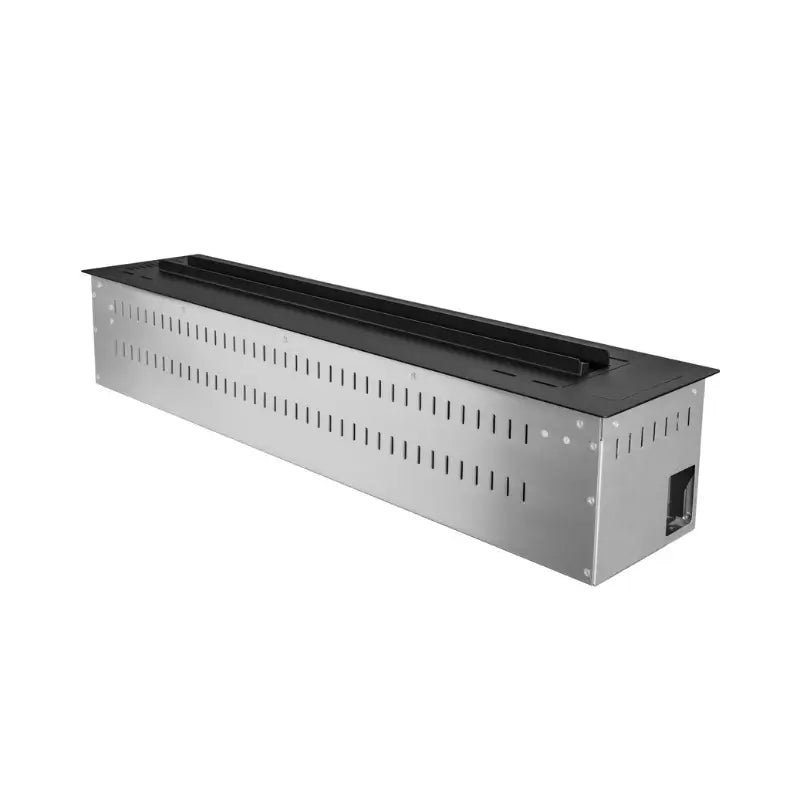

Stainless-Steel Construction & Safety Features
#201 Stainless-Steel Body
The supplied specifications identify the fireplace body as #201 stainless steel.
#304 Stainless-Steel Water Tank
The supplied specifications identify the water tank material as #304 stainless steel.
Water-Level Sensor
A water-level sensor is included as part of the fireplace water-management system.
Child Lock
The control system includes a child-lock function.
60,000+ Hour LED Lifespan
The LED system is specified with a lifespan of more than 60,000 hours.
Low Power Consumption
The supplied product information identifies the fireplace as designed for low power consumption.
Indoor Installation Considerations
The manufacturer installation manual states that the burner is designed for indoor use.
If used outdoors, the manufacturer states that it must be kept away from humid, rainy, or wet environments.
Buyer guidance: Treat the WT-60 primarily as an indoor built-in water vapor fireplace. Do not treat it as an exposed-weather outdoor fireplace.
What's Included With the Bio Flame WT-60?
| Smart 3D Water Fireplace |
1 |
| Remote Controller |
1 |
| Filling Hose |
1 |
| Handles |
2 |
| Plug |
1 |
| Installation Manual |
1 |
Verify all supplied components against the current product packaging and installation manual before beginning installation.
Complete Bio Flame WT-60-BLACK Technical Specifications
| Brand |
The Bio Flame |
| Model |
WT-60-BLACK / WT60 |
| Collection |
Water Vapor Fireplace Collection |
| Product Type |
Smart Water Vapor Fireplace |
| Installation Type |
Built-In |
| Venting |
Ventless |
| Flame Technology |
Ultrasonic Water Vapor |
| Flame Appearance |
Ultra-Realistic 3D Flame Effect |
| Flame Colors |
7 Adjustable Colors |
| Flame Height |
5 Adjustable Levels |
| Vapor Density |
Adjustable |
| Flame Length |
1337 mm / Approx. 52.6 in. |
| Heat Output |
No Heat |
| Control Options |
Remote Control & Smartphone App |
| Built-In Wi-Fi |
Yes |
| Amazon Alexa |
Compatible |
| Google Home |
Compatible |
| Water Supply |
Manual Fill or Direct Water Connection |
| Refill Volume |
4.6 L |
| Operating Time |
14–18 Hours |
| Body Material |
#201 Stainless Steel |
| Water Tank Material |
#304 Stainless Steel |
| Water Level Sensor |
Yes |
| Child Lock |
Yes |
| LED Lifespan |
60,000+ Hours |
| Power Consumption |
Low Power Consumption |
| Overall Dimensions |
60 in. W × 7.6 in. D × 6.6 in. H |
| Metric Dimensions |
1524 × 193 × 168 mm |
| Manufacturer-Listed Cutout |
1519 L × 180 W × 250 D mm |
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
| Air Intake |
Open air gap required at bottom of niche |
| Intended Environment |
Indoor Use per Manufacturer Installation Guidance |
Water tank capacity note: The manufacturer's technical table displays the WT60 water-tank volume as “92L.” Because that value is not reconciled by the supplied product information, no total tank-capacity figure is stated here. The manufacturer-listed 4.6 L refill volume and 14–18 hour operating time are retained without modification.
Safety & Performance Compliance
The Bio Flame installation manual states that the Water Vapor Fireplace Collection is tested and certified to meet the Electromagnetic Compatibility Directive (EMC) 2014/30/EU.
- EN IEC 55014-1:2021
- EN IEC 55014-2:2021
- EN IEC 61000-3-2:2019 + A1:2021
- EN 61000-3-3:2013 + A1:2019 + A2:2021 + AC:2022
Compliance scope: These standards should be interpreted according to the manufacturer's documentation and do not imply certification for applications beyond those specified by the manufacturer.
Important Installation & Warranty Considerations
Correct installation is important for proper operation and warranty coverage.
The manufacturer's manual states that failure to properly install the burner will void the warranty and render the product unapproved for use with the included burner.
The manufacturer's warranty information also identifies exclusions related to abnormal use, operation under conditions other than those intended, negligence, insufficient maintenance, and material alteration.
Installation warning: Review the installation manual before preparing the opening, electrical connection, water supply, supporting surface, or final fireplace installation.
Flame Authority Expert Recommendation
Choose the Bio Flame WT-60-BLACK 60-Inch Smart Water Vapor Fireplace when your project calls for a wide built-in decorative fireplace with smart-home control, adjustable 3D flame effects, and no heat output.
Its approximately 52.6-inch / 1337 mm flame presentation makes it particularly suitable for larger media walls, architectural feature walls, commercial interiors, and other design-focused installations where a long linear flame appearance is desired.
The WT60 is also a strong fit where flexible water supply matters because the supplied instructions support both manual filling and a direct water connection.
Do not select the WT60 when supplemental room heating is required. Before ordering, confirm the 1524 × 193 × 168 mm overall dimensions, 1519 × 180 × 250 mm manufacturer-listed cutout, clearances, electrical requirements, bottom air intake, level support surface, and selected water-supply method.
Official Product Resource
For complete installation procedures, WT60 cutout requirements, water-filling and draining instructions, remote-control operation, smart-home information, and vapor-density adjustment, refer to the manufacturer resource below.
Bio Flame WT60 Water Vapor Fireplace FAQs
Does the Bio Flame WT-60 water vapor fireplace produce heat?
No. The WT-60-BLACK is a decorative, non-heating water vapor fireplace; choose a heating fireplace instead if supplemental room heat is required.
Does the Bio Flame WT-60 require a chimney or vent?
No. The WT-60 is a ventless water vapor fireplace, but the manufacturer-specified clearances, electrical requirements, supporting surface, and bottom air-intake opening must still be maintained.
Can the Bio Flame WT-60 connect directly to a water supply?
Yes. The WT-60 supports manual filling or connection to a water tap for automatic filling; follow the manufacturer's water-connection instructions during installation.
Does the Bio Flame WT-60 work with Alexa and Google Home?
Yes. The WT-60 includes built-in Wi-Fi and supports Amazon Alexa, Google Home, and Bio Flame app control in addition to the included remote control.
What cutout size is required for the Bio Flame WT-60?
The manufacturer's WT60 installation table lists a cutout of 1519 mm long × 180 mm wide × 250 mm deep. Do not prepare the final opening without checking the current installation manual and required clearances.
Can the Bio Flame WT-60 be installed outdoors?
The manufacturer describes the burner as designed for indoor use and states that outdoor use must be protected from humidity, rain, and water. Do not install the WT-60 as an exposed outdoor fireplace.
Does the Bio Flame WT-60 require electricity?
Yes. The WT-60 requires electrical power, and the manufacturer specifies outlet placement and external wall-switch requirements for firebox installations.
Can the WT-60 fireplace niche be completely sealed?
No. The manufacturer requires an open air gap at the bottom of the fireplace niche for air intake.
How long does the Bio Flame WT-60 operate between refills?
The manufacturer lists an operating time of 14–18 hours and a refill volume of 4.6 L for the WT60.
What is the WT60 total water tank capacity?
The supplied manufacturer table shows “92L,” but that value is not reconciled by the supplied product information. Do not rely on a total tank-capacity figure until it is confirmed by current manufacturer documentation.
Before You Order
Confirm Before Purchase
- The WT60 is being selected for decorative ambiance rather than room heating.
- The 60-inch fireplace body fits the intended wall or feature.
- The 1524 × 193 × 168 mm overall dimensions fit the installation.
- The 1519 × 180 × 250 mm manufacturer-listed cutout can be accommodated.
- The required front, rear, side, and overhead clearances can be maintained.
- An appropriate electrical connection and external wall-switch arrangement can be provided.
- The required bottom air-intake gap can remain unobstructed.
- The installation surface can be sturdy and level.
- The chosen manual-fill or direct-water method can be accommodated.
Do Not Assume
- That the WT60 provides supplemental room heat.
- That ventless means no airflow is required.
- That the fireplace can operate without electrical power.
- That the nominal 60-inch width equals the required cutout size.
- That a direct water connection is mandatory.
- That the total tank capacity can be reliably stated from the supplied “92L” figure.
- That the fireplace is designed for exposed outdoor weather.
Final installation check: Use the current manufacturer Installation & User Manual as the final authority for opening dimensions, clearances, electrical setup, water supply, airflow, placement, controls, operation, and warranty-related installation requirements.
