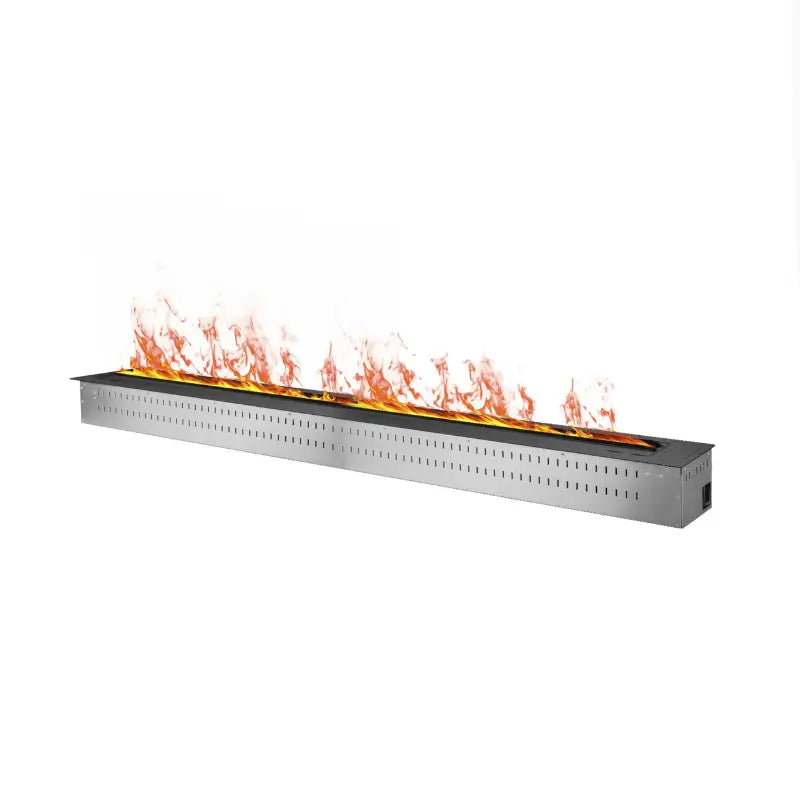

Bio Flame WT-72-BLACK 72-Inch Smart Water Vapor Fireplace
The Bio Flame WT-72-BLACK is a 72-inch built-in smart water vapor fireplace that creates an ultra-realistic 3D flame effect without producing heat, smoke, or combustion emissions. Using ultrasonic water vapor technology and LED illumination, it creates a wide decorative flame presentation for large residential and commercial interiors while eliminating the need for combustible fuel.
Flame Technology
Ultrasonic 3D Water Vapor
Heat Output
No Heat
Flame Colors
7 Adjustable Colors
Flame Height
5 Adjustable Levels
Smart Control
Wi-Fi, App, Alexa & Google Home
Water Supply
Manual Fill or Water Line
Water Tank
10.8 Liters
Installation
Built-In
A 72-Inch Smart Water Vapor Fireplace for Large Feature Walls
The WT-72-BLACK combines a large-format built-in design with a manufacturer-listed 1673 mm / approximately 65.9-inch flame length, making it suitable for long fireplace features and large interior installations.
The fireplace includes seven adjustable flame colors, five flame-height levels, adjustable vapor density, built-in Wi-Fi, remote control, smartphone operation, Amazon Alexa, and Google Home compatibility.
Because the flame effect is produced using water vapor and LED illumination rather than combustion, the WT72 is intended primarily as an architectural and decorative fireplace feature.
Important buyer note: The WT-72-BLACK is a non-heating decorative fireplace. Choose this model when realistic flame ambiance is the priority rather than supplemental room heating.
Bio Flame WT72 at a Glance
Flame Length
1673 mm / Approx. 65.9 in.
Operating Time
14–18 hours
Specified Cutout
1824 × 180 × 250 mm
Installation
Built-in water vapor fireplace
Is the Bio Flame WT-72-BLACK Right for Your Project?
Best For
- Large living rooms and open-concept interiors
- Long fireplace feature walls
- Modern residential installations
- Commercial and hospitality interiors
- Offices, reception areas, lounges, and similar spaces
- Projects where supplemental heat is not required
- Installations where a combustion chimney or vent is undesirable
- Smart-home projects using Amazon Alexa or Google Home
- Buyers who want adjustable flame color and flame height
- Projects suitable for manual or connected water filling
Do Not Choose the WT72 If
- You require supplemental room heating.
- The installation cannot accommodate the WT72 cutout.
- The location cannot provide the required electrical connection.
- The enclosure cannot provide the required bottom air intake.
- The project cannot maintain the specified installation clearances.
- The fireplace would be exposed directly to rain, water, or excessive humidity.
Indoor installation: The manufacturer's installation manual identifies the burner as designed for indoor use. If use outside an indoor environment is considered, the unit must be kept away from humid, rain, and water conditions.
How Does the Bio Flame WT72 Water Vapor Fireplace Work?
The Bio Flame WT-72-BLACK uses ultrasonic water vapor technology instead of combustion to produce its flame effect.
Water vapor and LED illumination work together to create the appearance of dimensional flames rising from the fireplace.
Because the visual effect does not require burning wood, gas, or ethanol, the WT72 does not produce heat, smoke, or combustion emissions.
Buyer decision: Choose the WT-72-BLACK when you want a large, customizable flame feature without supplemental heat. If heating performance is required, select a fireplace specifically designed to provide heat.
Wide 65.9-Inch 3D Water Vapor Flame
The WT-72-BLACK measures 72 inches wide overall, while the manufacturer's technical data lists the actual flame length at 1673 mm, or approximately 65.9 inches.
This extended flame area makes the WT72 suitable for wide built-ins, feature walls, entertainment spaces, reception areas, and other installations where a smaller fireplace could appear undersized.
7 Flame Colors
Adjust the color of the flame effect to complement the room or desired atmosphere.
5 Flame-Height Levels
Increase or decrease the visible flame height using the fireplace controls.
Adjustable Vapor Density
Fine-tune vapor density for additional control over the appearance of the flame effect.
Wi-Fi, Smartphone, Alexa & Google Home Control
The Bio Flame WT-72-BLACK includes built-in Wi-Fi and remote-control capability, giving users multiple ways to operate and customize the fireplace.
Control Options
- Included remote controller
- The Bio Flame smartphone app
- Fireplace control panel
- Amazon Alexa
- Google Home
Adjustable Functions
- Fireplace power
- Flame height
- Flame color
- Vapor density
- Smart-home operation
Water Tank, Filling Options & Operating Time
The WT72 incorporates a 10.8-liter water tank with a manufacturer-listed 5.8-liter refill volume.
The technical data lists approximately 14–18 hours of operating time.
| Water Tank Volume |
10.8 L |
| Refill Volume |
5.8 L |
| Listed Operating Time |
14–18 Hours |
| Water Supply Options |
Manual Fill or Water Tap/Line Connection |
| Water Tank Material |
#304 Stainless Steel |
Manual or Connected Water Filling
Manual Water Filling
The fireplace includes a filling hose and supports filling from a water container. The manufacturer's operating instructions describe connecting the filling hose to the water-in connection and activating the automatic filling function.
The pump stops automatically when the tank is full.
Connected Water Filling
The filling hose can also be connected to a water tap. Once connected according to the manufacturer's instructions, the fireplace begins filling automatically and is ready for operation when the automatic filling process stops.
First-use requirement: The manufacturer states that the water tank must be fully filled before the fireplace is used for the first time.
WT72 Overall Fireplace Dimensions
| Overall Width |
72 in. / 1829 mm |
| Overall Depth |
7.6 in. / 193 mm |
| Overall Height |
6.6 in. / 168 mm |
| Flame Length |
1673 mm / Approx. 65.9 in. |
WT72 Cutout Dimensions
The Bio Flame WT-72-BLACK is designed for built-in installation. The fireplace's overall dimensions and manufacturer-listed cutout dimensions are different and should not be used interchangeably.
| Cutout Length |
1824 mm |
| Cutout Width |
180 mm |
| Cutout Depth |
250 mm |
Before fabrication: Do not use the 72-inch overall product dimensions as the installation cutout dimensions. Verify the WT72-specific cutout and installation instructions before completing the surrounding structure.
Required Installation Clearances
When the Bio Flame water vapor burner is installed in a firebox, the manufacturer specifies the following clearances.
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
Air-intake requirement: Leave an open air gap at the bottom of the fireplace niche for air intake. Do not completely seal the bottom of the enclosure.
Additional Installation Requirements
Remove Packaging
Remove all packing materials, cardboard, and foam before installation.
Sturdy Support
Place the fireplace on a sturdy supporting surface.
Level Installation
Use a level to verify that the installation surface is properly leveled.
Electrical Outlet
Provide an electrical outlet on the right side of the burner cutout.
External Wall Switch
The manufacturer specifies that the outlet should connect to a power source controlled by an external wall switch.
Power Before Placement
Connect the power adapter before carefully placing the burner into the prepared cavity.
Lift Handles
Use the included lift handles when positioning the fireplace into the cavity.
Bottom Air Intake
Maintain the required open air gap at the bottom of the fireplace niche.

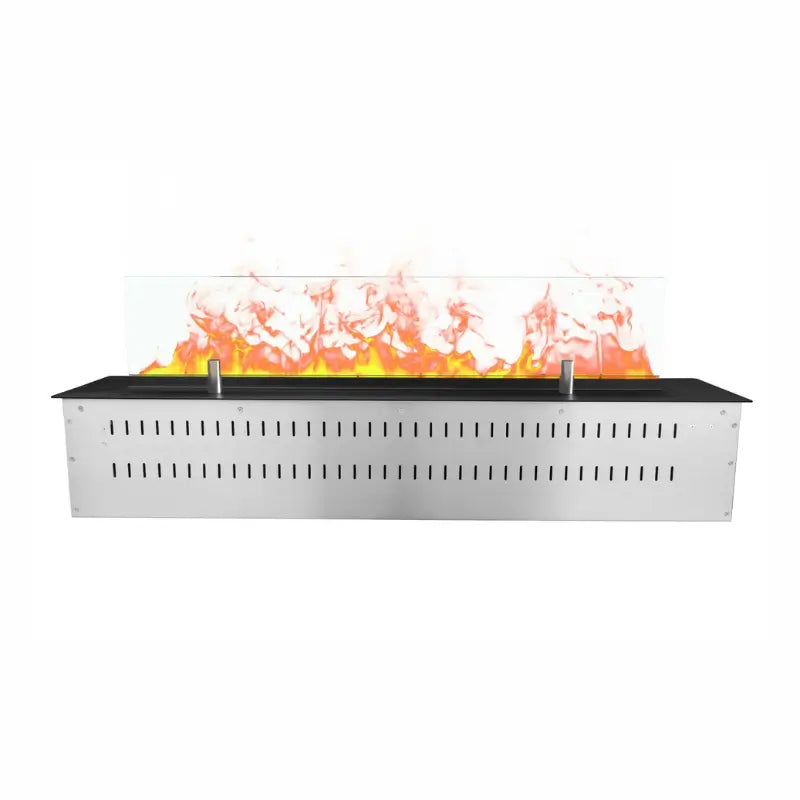

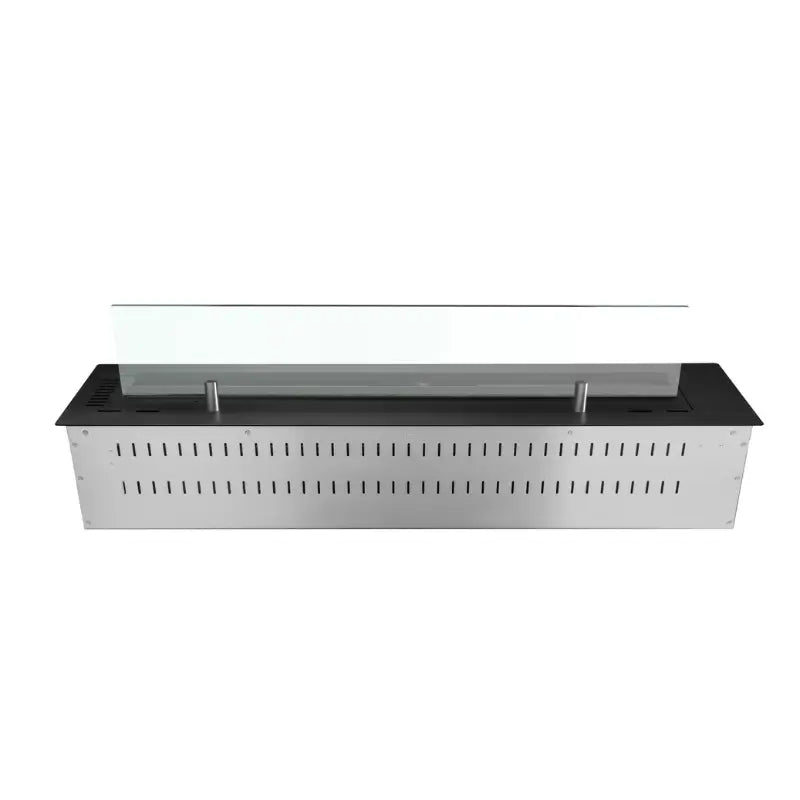

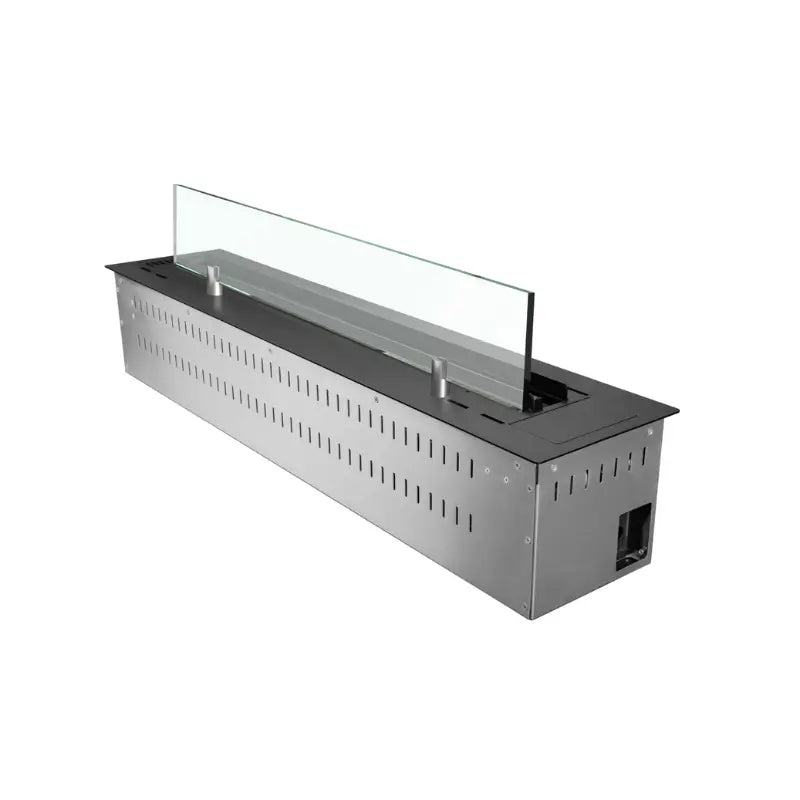

Glass Installation
Install the glass panel using the applicable glass holders and screws according to the manufacturer's instructions.
Installation planning: Verify the finished cavity, required clearances, electrical arrangement, air intake, water-supply method, and installation procedure against the manufacturer's Installation & User Manual before completing surrounding construction.
Safety & Operating Features
Water-Level Sensor
The supplied specifications identify a water-level sensor as part of the fireplace's safety system.
Child Lock
A child-lock feature is included to help prevent unintended operation.
Automatic Filling Shutoff
During automatic filling, the manufacturer's instructions state that the pump stops when the water tank is full.
The manufacturer's manual also states that the remote and fireplace lock after 30 seconds without remote activity. The remote's S3 control is used to unlock the system.
Low-Power LED Flame Technology
The WT-72-BLACK uses a water vapor and LED flame system instead of a heating element.
Low Power Consumption
The supplied product specifications identify the WT72 as using low power consumption.
60,000+ Hour LED Lifespan
The supplied product specifications list an LED lifespan of more than 60,000 hours.
Heating reminder: Because this model does not provide heat, buyers who need supplemental heating should choose a fireplace designed specifically for room heating rather than selecting the WT72 solely based on its large 72-inch dimensions.

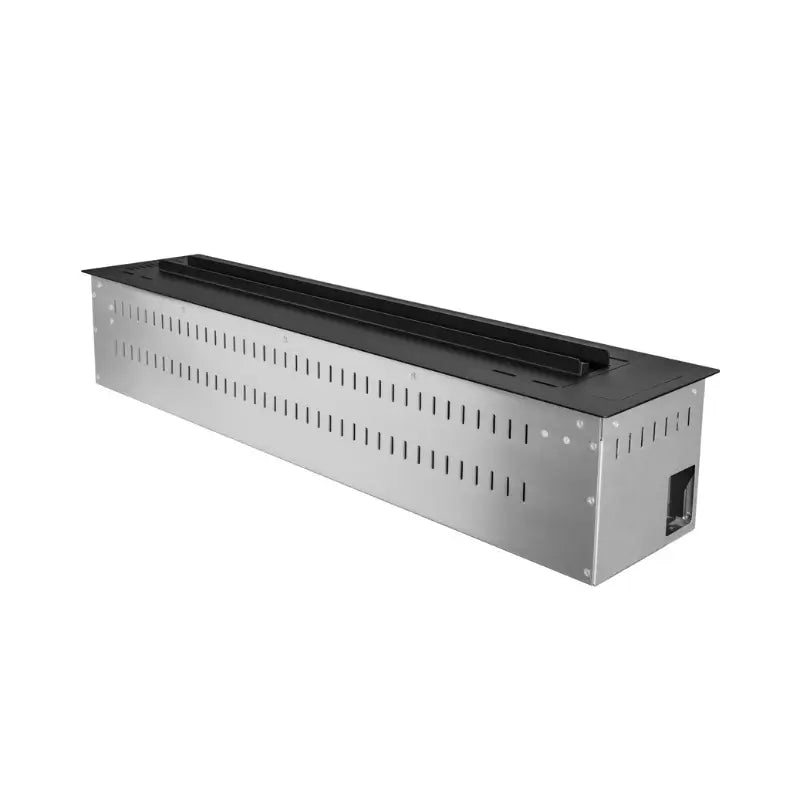

Stainless-Steel Construction
Fireplace Body
The main fireplace body is constructed from #201 stainless steel.
Water Tank
The water reservoir is constructed from #304 stainless steel.
What's Included with the Bio Flame WT72?
| Smart 3D Water Vapor Fireplace |
1 |
| Remote Controller |
1 |
| Filling Hose |
1 |
| Handles |
2 |
| Plug |
1 |
| Installation Manual |
1 |
The included handles are used when carefully positioning the fireplace into the prepared installation cavity.
Safety & Performance Compliance
The Bio Flame installation manual states that its Water Vapor Fireplace Collection is tested and certified to meet the Electromagnetic Compatibility Directive (EMC) 2014/30/EU.
-
EN IEC 55014-1:2021 – Emission requirements for household electrical equipment
-
EN IEC 55014-2:2021 – Immunity requirements for safe and stable operation
-
EN IEC 61000-3-2:2019 + A1:2021 – Harmonics and current emission limits
-
EN 61000-3-3:2013 + A1:2019 + A2:2021 + AC:2022 – Voltage fluctuation and flicker compliance
Compliance scope: These compliance statements are provided by The Bio Flame for models across its Water Vapor Fireplace Collection and do not replace the manufacturer's installation and operating instructions.
Complete Bio Flame WT-72-BLACK Technical Specifications
| Brand |
The Bio Flame |
| Model |
WT-72-BLACK |
| Collection |
Water Vapor Fireplace Collection |
| Product Type |
Smart Water Vapor Fireplace |
| Installation Type |
Built-In |
| Flame Technology |
Ultrasonic Water Vapor with Ultra-Realistic 3D Flame Effect |
| Heat Output |
None |
| Overall Width |
72 in. / 1829 mm |
| Overall Height |
6.6 in. / 168 mm |
| Overall Depth |
7.6 in. / 193 mm |
| Metric Dimensions |
1829 W × 193 D × 168 H mm |
| Flame Length |
1673 mm / Approx. 65.9 in. |
| Flame Colors |
7 Adjustable Colors |
| Flame Height |
5 Adjustable Levels |
| Vapor Density |
Adjustable |
| Control Options |
Remote Control, Smartphone App & Fireplace Controls |
| Wi-Fi |
Built-In |
| Amazon Alexa |
Compatible |
| Google Home |
Compatible |
| Water Supply |
Manual Fill or Water Tap/Line Connection |
| Water Tank Capacity |
10.8 L |
| Refill Volume |
5.8 L |
| Listed Operating Time |
14–18 Hours |
| Body Material |
#201 Stainless Steel |
| Water Tank Material |
#304 Stainless Steel |
| Safety Features |
Water Level Sensor & Child Lock |
| Energy Efficiency |
Low Power Consumption |
| LED Lifespan |
60,000+ Hours |
| Cutout Length |
1824 mm |
| Cutout Width |
180 mm |
| Cutout Depth |
250 mm |
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
| Primary Intended Environment |
Indoor |
Flame Authority Expert Recommendation
Choose the Bio Flame WT-72-BLACK 72-Inch Smart Water Vapor Fireplace when your project calls for a large-format built-in decorative fireplace with a broad 65.9-inch flame presentation, smart-home controls, adjustable visual effects, and no heat output.
Its 72-inch format is especially well suited to long feature walls, large living rooms, hospitality environments, reception areas, and other interiors where a smaller fireplace could appear visually undersized.
The WT72 is also a strong fit when water-supply flexibility matters because the fireplace supports both manual filling and connection to a compatible water tap or line.
Do not select the WT72 when supplemental room heating is required. Before ordering, confirm the 1829 × 193 × 168 mm overall dimensions, 1824 × 180 × 250 mm cutout, required clearances, electrical setup, bottom air intake, level support surface, and selected water-supply method.
Official Product Resource
Review the manufacturer's manual for installation dimensions, clearances, water-filling instructions, included accessories, remote operation, vapor-density adjustments, and operating guidance.
Bio Flame WT-72-BLACK Water Vapor Fireplace FAQs
Does the Bio Flame WT-72-BLACK produce heat?
No. The WT-72-BLACK creates a water vapor flame effect without producing heat; choose a heating fireplace instead if supplemental room heating is required.
Does the Bio Flame WT72 need a chimney or combustion vent?
No. The WT72 uses water vapor rather than burning fuel, so it does not require a chimney or combustion vent. The installation niche must still retain the manufacturer's required open air gap at the bottom for air intake.
How long does the Bio Flame WT72 run before it needs more water?
The manufacturer lists approximately 14–18 hours of operating time for the WT72, with a 10.8 L tank and 5.8 L refill volume. The water tank must be fully filled before first use.
What cutout size does the Bio Flame WT72 require?
The manufacturer specifies a WT72 cutout of 1824 mm long × 180 mm wide × 250 mm deep. Do not construct the finished cavity using the fireplace's overall dimensions as the cutout dimensions.
Can the Bio Flame WT72 connect directly to a water supply?
Yes. The WT72 supports manual filling and connection to a water tap or line; follow the manufacturer's filling and automatic-fill instructions for the selected configuration.
Does the Bio Flame WT72 work with Amazon Alexa and Google Home?
Yes. The WT72 includes built-in Wi-Fi and supports Amazon Alexa and Google Home, along with remote and smartphone control.
Can the Bio Flame WT72 be installed outdoors?
The manufacturer identifies the burner as designed for indoor use. Do not expose the WT72 directly to rain, water, or excessive humidity.
Does the Bio Flame WT72 require electricity?
Yes. The WT72 requires an electrical connection, and the manufacturer specifies an outlet on the right side of the burner cutout for firebox installations.
Can the WT72 fireplace niche be completely sealed?
No. The manufacturer requires an open air gap at the bottom of the fireplace niche for air intake.
What comes with the Bio Flame WT72?
The supplied accessories include one Smart 3D Water Vapor Fireplace, one remote controller, one filling hose, two handles, one plug, and one installation manual.
Before You Order
Confirm Before Purchase
- The WT72 is being selected for decorative ambiance rather than room heating.
- The 72-inch overall fireplace width suits the intended feature wall.
- The 1829 × 193 × 168 mm overall dimensions fit the project.
- The 1824 × 180 × 250 mm WT72 cutout can be accommodated.
- The required front, rear, side, and overhead clearances can be maintained.
- An appropriate electrical connection and external wall-switch arrangement can be provided.
- The bottom air-intake opening can remain unobstructed.
- The installation surface can be sturdy and level.
- The selected manual-fill or connected-water method can be accommodated.
Do Not Assume
- That the WT72 provides supplemental room heat.
- That its large 72-inch size means it functions as a heater.
- That ventless means no airflow is required.
- That the 72-inch overall width equals the required cutout size.
- That the fireplace can operate without electrical power.
- That a permanent water line is required.
- That the fireplace is intended for exposed outdoor conditions.
Final installation check: Use the current manufacturer Installation & User Manual as the final authority for cavity dimensions, installation clearances, electrical setup, water supply, air intake, glass installation, controls, and operating requirements.
