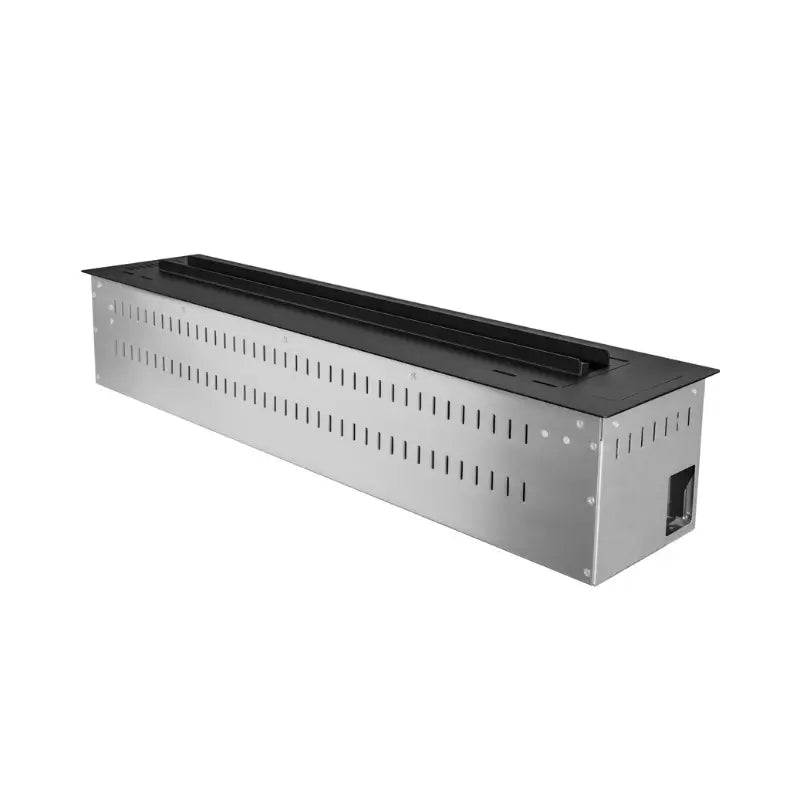

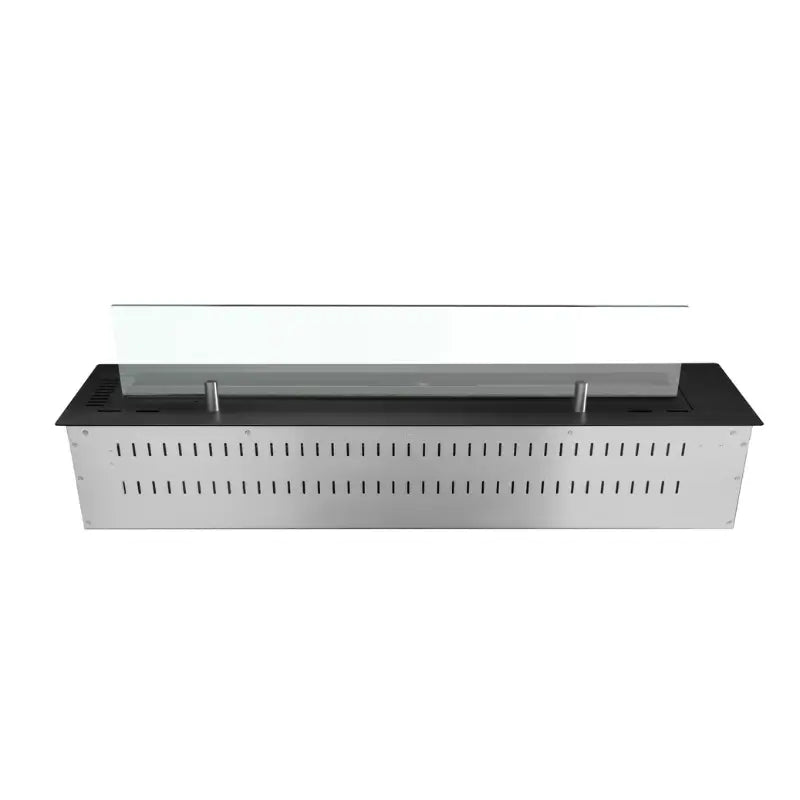

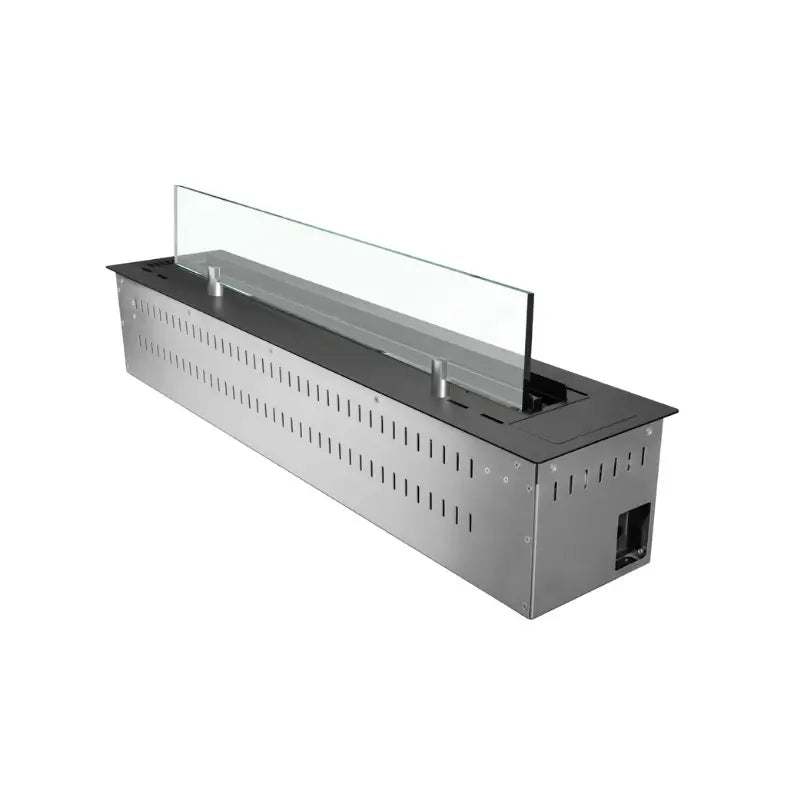

Bio Flame WT-98-BLACK 98-Inch Smart Water Vapor Fireplace
The Bio Flame WT-98-BLACK 98-Inch Smart Water Vapor Fireplace is a built-in decorative fireplace designed to create an expansive, ultra-realistic 3D flame presentation without producing heat, smoke, or emissions. Using advanced ultrasonic water vapor technology, the WT-98 creates fireplace ambiance without combustion, making it well suited for large residential and commercial feature installations.
Flame Technology
Ultrasonic 3D Water Vapor
Heat Output
No Heat
Flame Colors
7 Adjustable Colors
Flame Height
5 Adjustable Levels
Smart Control
Wi-Fi, App, Alexa & Google Home
Water Supply
Manual Fill or Direct Connection
Overall Width
98 Inches
Installation
Built-In Ventless
An Expansive 98-Inch Water Vapor Fireplace for Large Feature Walls
The WT-98 is designed for projects where a long, dramatic fireplace presentation is desired without the heat and combustion associated with traditional fireplaces.
Seven adjustable flame colors and five flame-height levels allow the visual effect to be customized, while built-in Wi-Fi, remote control, smartphone app operation, Amazon Alexa, and Google Home compatibility provide flexible control options.
The fireplace supports both manual water filling and a direct water connection, giving installers flexibility when planning the water-supply method.
Important use classification: The Bio Flame WT-98 is a decorative water vapor fireplace and does not produce heat. Choose this model for fireplace ambiance rather than supplemental room heating.
Bio Flame WT98 at a Glance
Product Type
Smart water vapor fireplace
Overall Dimensions
2490 × 193 × 168 mm
Specified Cutout
2395 × 180 × 250 mm
Smart Home
Amazon Alexa & Google Home
Installation
Built-in ventless fireplace
Is the Bio Flame WT-98 Right for Your Project?
Its 98-inch format makes the WT-98 especially suitable for substantial feature walls and large-scale architectural applications.
Best For
- Large residential feature walls
- Living rooms and entertainment spaces
- Modern architectural fireplace installations
- Commercial interiors
- Hospitality and reception environments
- Large linear fireplace features
- Projects where combustion is not desired
- Spaces where supplemental heat is unnecessary
- Smart-home projects using app or voice control
Do Not Choose the WT98 If
- You need supplemental room heating.
- You specifically want a real combustion flame.
- The project cannot accommodate the required cutout dimensions.
- The installation cannot maintain the required airflow and clearances.
- The unit will be exposed directly to rain, water, or persistent humidity.

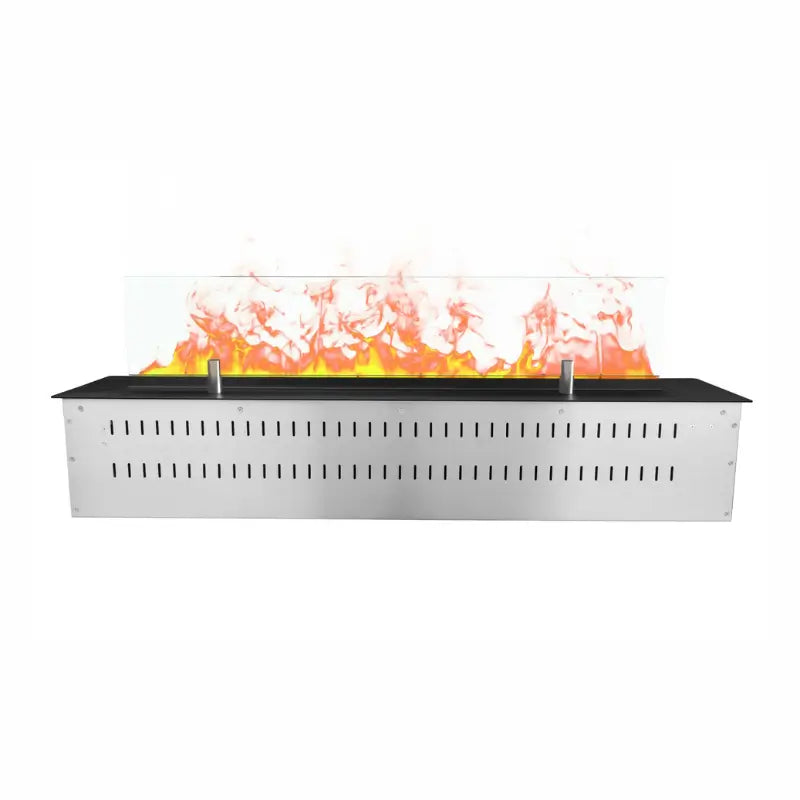

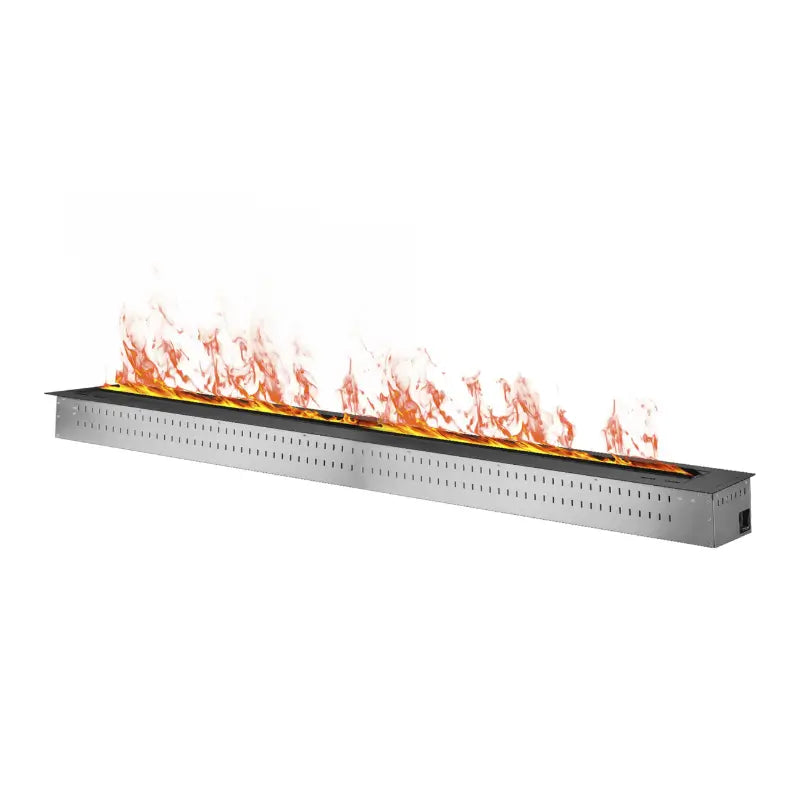

Ultra-Realistic 3D Water Vapor Flame Technology
The Bio Flame WT-98 creates its flame presentation with ultrasonic water vapor technology rather than burning wood, gas, or ethanol.
Water vapor works together with LED illumination to produce an ultra-realistic 3D flame effect without actual combustion.
Because the WT-98 is designed around a decorative water vapor flame system, it produces no heat, smoke, or emissions.
Buyer decision: Choose the WT-98 when your project requires a large 98-inch flame presentation without added heat. If heating the room is a primary requirement, select a heat-producing fireplace instead.
Adjustable Flame Appearance
7 Adjustable Flame Colors
Choose from seven flame colors to suit the surrounding interior, atmosphere, or design preference.
5 Flame-Height Levels
Five adjustable flame-height levels allow the visual intensity and prominence of the flame effect to be changed.
Adjustable Vapor Density
The manufacturer's operating instructions provide controls for increasing and decreasing flame regulation and fine adjustment of vapor density.
Built-In Ventless Fireplace Design
The WT-98 is designed as a built-in ventless water vapor fireplace. Its flame effect is created without the combustion process associated with traditional wood-, gas-, or ethanol-burning fireplaces.
Airflow requirement: Ventless does not mean installation airflow requirements can be ignored. The manufacturer instructs installers to leave an open air gap at the bottom of the fireplace niche for air intake.
Smart Home & Fireplace Controls
The WT-98 includes built-in Wi-Fi and remote control and provides several options for operating the fireplace.
Remote Control
Operate fireplace functions using the supplied handheld remote control.
Smartphone App
Control compatible fireplace functions through The Bio Flame smartphone app.
Amazon Alexa
Integrate the WT-98 with Amazon Alexa for compatible smart-home operation.
Google Home
The fireplace also supports compatible Google Home integration.
The WT-98 arrives with its Wi-Fi functionality built in, allowing smart-home and smartphone operation without adding a separate Wi-Fi accessory.
Flexible Water Supply Options
The Bio Flame WT-98 supports both manual water filling and a direct water supply connection, giving installers flexibility when planning the fireplace installation.
Manual Water Filling
A permanent water-line connection is not required when the manual filling system is used. The manufacturer provides a filling hose and instructions for filling the fireplace through its integrated filling system.
Direct Water Connection
The fireplace can also be connected to a water supply. The manufacturer instructs that once the filling hose is connected to a water tap, the fireplace begins filling automatically and is ready for use after the auto-fill function switches off.
WT98 water-data limitation: The supplied WT-98 information does not provide a WT98-specific water-tank capacity, refill volume, or operating time. Do not infer these values from smaller Bio Flame models.
Bio Flame WT-98 Overall Dimensions
Overall fireplace dimensions and installation cutout dimensions are different measurements and should not be used interchangeably.
| Overall Dimension |
Imperial |
Metric |
| Width |
98 in. |
2490 mm |
| Depth |
7.6 in. |
193 mm |
| Height |
6.6 in. |
168 mm |
WT98 Manufacturer-Listed Cutout Dimensions
The Bio Flame Installation & User Manual specifically identifies the following cutout measurements for the WT98.
| Cutout Length |
2395 mm |
| Cutout Width |
180 mm |
| Cutout Depth |
250 mm |
Installation note: Do not use the overall 2490 × 193 × 168 mm product dimensions as the fireplace cutout dimensions. Review the manufacturer's complete installation instructions before constructing the fireplace cavity.
Bio Flame WT-98 Installation Requirements
Proper planning of the fireplace cavity, electrical connection, support surface, airflow, and installation clearances is required before installing the WT-98.
Remove Packaging
Remove all packing materials, cardboard, and foam before installation.
Electrical Outlet
Provide an electrical outlet on the right side of the burner cutout.
External Wall Switch
The outlet should connect to a power source that can be turned on and off from an external wall switch.
Sturdy Support
Place the fireplace on a floor or sturdy supporting surface.
Level Installation
Use a level to ensure the installation surface is properly leveled.
Bottom Air Intake
Leave an open air gap at the bottom of the fireplace niche for air intake.
Power Before Placement
Connect the power adapter to the electrical socket and then to the burner before placing the burner into the cavity.
Lift Handles
Use the supplied lift handles when carefully lowering the burner into the installation cavity.
Installation planning: Always review the complete manufacturer Installation & User Manual before installing or operating the fireplace.
Installation Clearances
When installing the Bio Flame burner in a firebox, the manufacturer lists the following clearances.
| Front Clearance |
4 in. / 100 mm |
| Rear Clearance |
4 in. / 100 mm |
| Side Clearance |
4 in. / 100 mm |
| Overhead Clearance |
20 in. / 500 mm |
Important: Follow the current manufacturer installation instructions for the actual project rather than relying solely on summarized product-page information.
Indoor & Outdoor Installation Considerations
The manufacturer describes the Bio Flame water vapor burner as designed for indoor use.
The manufacturer's installation instructions state that if the unit is used outdoors, it must be kept away from humid environments, including rain and water exposure.
Buyer guidance: Do not treat the WT-98 as an unrestricted weather-exposed outdoor fireplace.
Stainless-Steel Construction
Fireplace Body
#201 Stainless Steel
Water Tank
#304 Stainless Steel
Integrated Safety Features
Water-Level Sensor
The WT-98 includes a water-level sensor as part of its integrated water vapor fireplace system.
Child Lock
A child-lock function helps prevent unintended control operation.
Automatic Locking
The manufacturer's remote instructions state that the remote and fireplace lock after 30 seconds without remote activity, with the S3 control used to unlock the system.
Low-Power LED Flame System
The WT-98 combines ultrasonic water vapor technology with an LED-based visual system designed for low power consumption.
Low Power Consumption
The supplied product information identifies the system as designed for low-power operation.
60,000+ Hour LED Lifespan
The supplied product specifications state an LED lifespan of more than 60,000 hours.
Because the fireplace does not provide heat, its electrical operation is focused on creating its decorative water vapor flame effect rather than supplemental room heating.
Safety & Performance Compliance
Bio Flame states that the Water Vapor Fireplace Collection is tested and certified to meet the Electromagnetic Compatibility Directive (EMC) 2014/30/EU.
-
EN IEC 55014-1:2021 — Emission requirements for household electrical equipment
-
EN IEC 55014-2:2021 — Immunity requirements for safe and stable operation
-
EN IEC 61000-3-2:2019 + A1:2021 — Harmonics and current emission limits
-
EN 61000-3-3:2013 + A1:2019 + A2:2021 + AC:2022 — Voltage fluctuation and flicker compliance
Compliance scope: Bio Flame states that all models across its Water Vapor Fireplace Collection meet these compliance standards. These statements do not replace the manufacturer's installation and operating instructions.
What's Included?
| Remote Controller |
1 |
| Filling Hose |
1 |
| Handles |
2 |
| Plug |
1 |
| Installation Manual |
1 |
Complete Bio Flame WT-98 Technical Specifications
| Brand |
The Bio Flame |
| Model |
WT-98-BLACK |
| Collection |
Water Vapor Fireplace Collection |
| Product |
98 in. Smart Water Vapor Fireplace |
| Fireplace Type |
Built-In Ventless Water Vapor Fireplace |
| Flame Technology |
Ultrasonic Water Vapor |
| Flame Appearance |
Ultra-Realistic 3D Flames |
| Heat Output |
No Heat |
| Smoke |
None |
| Emissions |
None |
| Flame Colors |
7 Adjustable Colors |
| Flame Height |
5 Adjustable Levels |
| Control Options |
Remote Control and Smartphone App |
| Wi-Fi |
Built In |
| Smart Home Compatibility |
Amazon Alexa and Google Home |
| Water Supply |
Manual Fill or Direct Water Connection |
| Body Material |
#201 Stainless Steel |
| Water Tank Material |
#304 Stainless Steel |
| Safety Features |
Water-Level Sensor and Child Lock |
| Energy Use |
Low Power Consumption |
| LED Lifespan |
60,000+ Hours |
| Installation Type |
Built-In |
| Overall Width |
98 in. / 2490 mm |
| Overall Depth |
7.6 in. / 193 mm |
| Overall Height |
6.6 in. / 168 mm |
| WT98 Cutout Length |
2395 mm |
| WT98 Cutout Width |
180 mm |
| WT98 Cutout Depth |
250 mm |
| Front Clearance |
4 in. / 100 mm* |
| Rear Clearance |
4 in. / 100 mm* |
| Side Clearance |
4 in. / 100 mm* |
| Overhead Clearance |
20 in. / 500 mm* |
*Manufacturer-listed clearances for installation of the Bio Flame burner in a firebox. Refer to the current installation manual before installation.
Specifications not provided: The supplied WT-98 product information and manufacturer documentation available for this page do not provide a WT98-specific water-tank capacity, refill volume, operating time, or electrical power rating. These values should not be inferred from smaller models.
Flame Authority Expert Recommendation
Choose the Bio Flame WT-98-BLACK when your project requires an expansive 98-inch built-in fireplace effect without combustion or supplemental heat.
Its ultrasonic 3D water vapor flame technology, seven flame colors, five flame-height settings, built-in Wi-Fi, smartphone control, remote control, Alexa and Google Home compatibility, and flexible water-supply options make it suitable for large residential and commercial installations where visual impact and smart control are priorities.
Do not select the WT-98 when supplemental room heating is required.
Before ordering or beginning construction, verify the 2490 × 193 × 168 mm overall dimensions, 2395 × 180 × 250 mm WT98 cutout, required clearances, electrical arrangement, bottom air intake, support surface, and planned water-supply method.
Official Product Resource
Review the manufacturer's complete Installation & User Manual before installing, connecting, filling, or operating the Bio Flame WT-98.
Bio Flame WT-98 Water Vapor Fireplace FAQs
Does the Bio Flame WT-98 produce heat?
No. The Bio Flame WT-98 is a decorative water vapor fireplace that does not produce heat; choose a heat-producing fireplace instead if supplemental room heating is required.
Does the Bio Flame WT-98 require venting?
No traditional fireplace venting is required because the WT-98 creates its flame effect with ultrasonic water vapor rather than combustion. Do not block the required air intake at the bottom of the fireplace niche.
What are the Bio Flame WT-98 cutout dimensions?
The manufacturer lists the WT98 cutout at 2395 mm long × 180 mm wide × 250 mm deep. Do not use the fireplace's 2490 × 193 × 168 mm overall dimensions as the cutout dimensions.
Does the Bio Flame WT-98 require a water line?
No permanent water-line connection is required when using the manual filling system; the WT-98 also supports a direct water connection. Follow the manufacturer filling instructions for the selected water-supply method.
Does the Bio Flame WT-98 work with Alexa and Google Home?
Yes. The WT-98 has built-in Wi-Fi and supports Amazon Alexa and Google Home in addition to remote-control and smartphone-app operation.
Can the Bio Flame WT-98 be installed outdoors?
The manufacturer describes the burner as designed for indoor use and states that outdoor use must be protected from humid environments, rain, and water. Do not install the WT-98 where it will be directly exposed to weather or moisture.
What is the Bio Flame WT-98 water tank capacity?
The supplied WT98 information does not provide a model-specific water-tank capacity. Do not infer the tank size from smaller Bio Flame water vapor fireplace models.
How long does the Bio Flame WT-98 run before needing water?
A WT98-specific operating time was not provided in the supplied product information. Do not use runtime figures from smaller models as WT98 specifications.
What electrical power does the Bio Flame WT-98 require?
The supplied WT98 information does not provide a model-specific electrical power rating. Confirm the required electrical specifications before completing electrical work.
Can the WT-98 fireplace niche be completely sealed?
No. The manufacturer requires an open air gap at the bottom of the fireplace niche for air intake.
Before You Order
Confirm Before Purchase
- The WT98 is being selected for decorative ambiance rather than room heating.
- The project can accommodate the 2490 × 193 × 168 mm overall fireplace dimensions.
- The installation can accommodate the 2395 × 180 × 250 mm WT98 cutout.
- The required front, rear, side, and overhead clearances can be maintained.
- The niche can retain the required open air gap at the bottom for air intake.
- A suitable electrical outlet can be positioned on the right side of the burner cutout.
- The installation surface can be sturdy and properly level.
- The project has an appropriate manual-fill or direct-water plan.
Do Not Assume
- That the WT98 provides supplemental room heat.
- That the overall fireplace dimensions equal the installation cutout.
- That ventless means no airflow is required.
- That the fireplace niche can be completely sealed.
- That a permanent water line is required.
- That water-tank capacity or runtime can be inferred from smaller Bio Flame models.
- That electrical power requirements can be inferred without WT98-specific documentation.
- That the fireplace is intended for exposed outdoor weather.
Final installation check: Use the current manufacturer Installation & User Manual as the final authority for cavity dimensions, clearances, electrical setup, airflow, water supply, placement, controls, and operation.
