Bromic Eclipse Smart-Heat® Electric

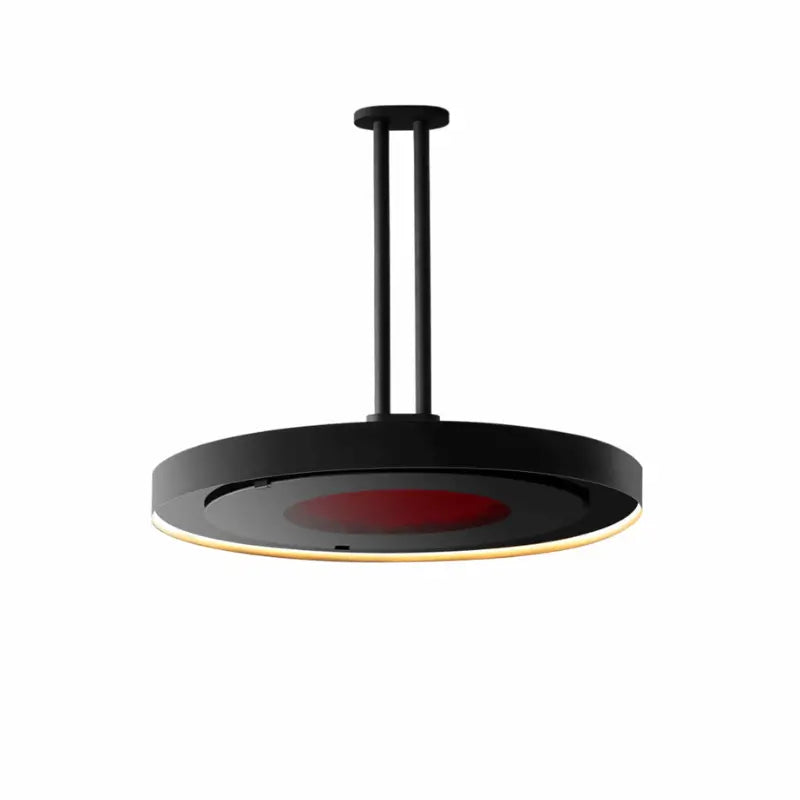

Bromic Eclipse Smart-Heat® Electric 2900W Pendant Heater
The Bromic Eclipse Smart-Heat® Electric 2900W Pendant Heater is a premium outdoor electric heater designed for patios, pergolas, outdoor dining areas, luxury backyard spaces, and commercial hospitality settings.
With its matte black finish, sleek ceramic faceplate, contemporary pendant profile, dimmable LED lighting, and electric radiant heat output, this heater is built for outdoor spaces where comfort, ambiance, and design matter.
Quick Product Summary
The Bromic Eclipse Smart-Heat® Electric 2900W Pendant Heater combines radiant outdoor heating with integrated dimmable LED lighting. This model heats up to 121 sq. ft., delivers approximately 9,900 BTU/hr, includes a 24" Twin Pole, and is best for covered patios, pergolas, outdoor dining areas, luxury residential spaces, restaurants, hotels, and hospitality seating areas.
Why Choose the Bromic Eclipse Smart-Heat® Electric?
The Bromic Eclipse Smart-Heat® Electric is designed for outdoor spaces that need more than a standard patio heater. It combines radiant heating, ambient LED lighting, and a refined architectural appearance in one fixture.
Unlike basic electric patio heaters, the Eclipse series uses a ceramic screen to spread heat evenly while reducing harsh light from the heating element. The result is a more comfortable heating experience for outdoor dining, lounging, and entertaining.
Key Features and Benefits
Dual Heating and Lighting Function
Combines outdoor radiant heating with integrated dimmable LED lighting, allowing one fixture to provide both warmth and ambiance above the seating area.
Contemporary Pendant Design
The matte black pendant profile gives patios, pergolas, restaurants, and hospitality spaces a premium architectural look.
Dimmable LED Light Rail
The integrated warm white LED light rail provides 3000K illumination with 497 lumens for dining, drinks, and evening entertaining.
Three Adjustable Heat Settings
Adjust output at 33%, 66%, or 100% to reduce heat on mild evenings or increase warmth when temperatures drop.

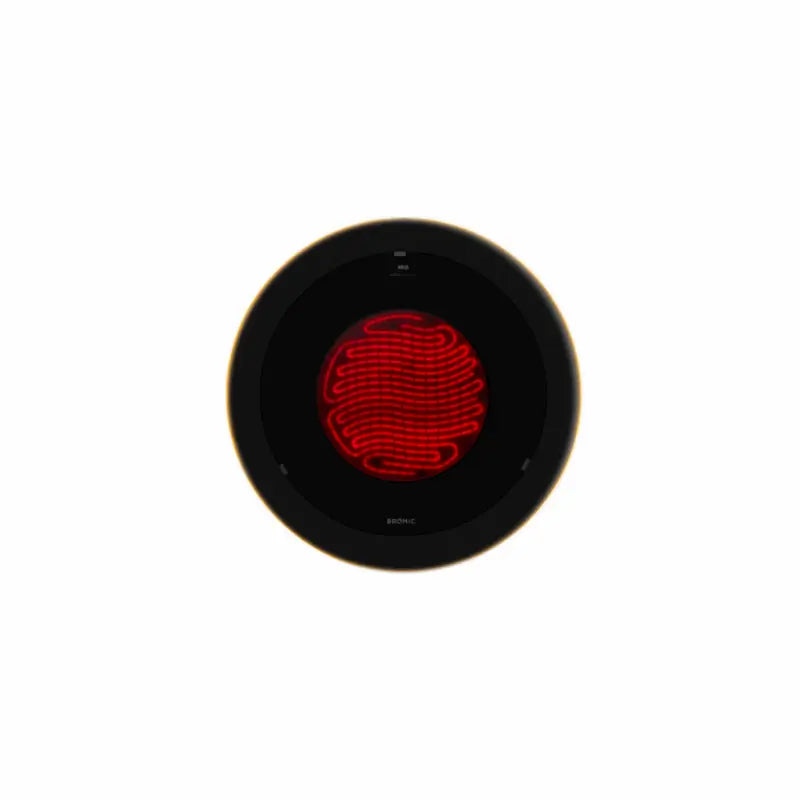

Ceramic Radiant Screen
The ceramic screen spreads heat evenly while minimizing visible light from the heating element for design-focused outdoor spaces.
Optional Smart App Control
Pair with the Bromic Affinity Smart-Heat® Eclipse Controller, sold separately, for app-based control of heat and lighting.
Heating Performance
This Bromic Eclipse Electric model produces 2900W of electric radiant heat and covers up to 121 sq. ft. Electric radiant heating warms people and surfaces directly instead of relying only on heating the surrounding air.
| Heating Type |
Electric Radiant Heat |
| Wattage |
2900W |
| BTU Equivalent |
Approximately 9,900 BTU/hr |
| Heat Coverage |
Up to 121 sq. ft. |
| Heat Settings |
33%, 66%, 100% |
Lighting Performance
The integrated dimmable LED light rail supports outdoor ambiance while the heater provides radiant warmth. Its warm white 3000K color temperature is suitable for dining, lounging, and evening entertainment spaces where soft lighting is preferred.
| LED Color |
Warm White |
| Dimmable |
Yes |
| LED Temperature |
3000K |
| LED Lumens |
497 lumens |
Smart Control Compatibility
The Eclipse Smart-Heat® Electric can be controlled through a manual wall switch or paired with the Bromic Affinity Smart-Heat® Eclipse Controller, sold separately. When paired with the Affinity Eclipse Controller, users can control heat and lighting through the Bromic Heating app.
| Control Option |
Compatible |
| Bromic Affinity Smart-Heat® Eclipse Controller |
Yes |
| Manual Wall Switch |
Yes |
Technical Specifications
| Specification |
Details |
| Brand |
Bromic Heating |
| Series |
Eclipse Smart-Heat® Electric |
| Product Type |
Outdoor Electric Pendant Heater with LED Lighting |
| Model Series |
2900W Pendant Series |
| Model Number |
BH0920001-2 / 240V |
| Fuel Type |
Electric |
| Color |
Black |
| Weight |
30 lbs. |
| Wattage |
2900W |
| Approximate BTU Output |
Approximately 9,900 BTU/hr |
| Heat Area |
121 sq. ft. |
| Rated Current and Voltage |
13.9A at 208V | 11.4A at 220V | 11.8A at 230V | 12.1A at 240V |
| Minimum Floor Clearance |
Wall: 96" | Ceiling: 96" |
| LED Color |
Warm White, Dimmable |
| LED Temperature |
3000K |
| LED Lumens |
497 lumens |
| IP Rating |
IP54 |
| Approval Certification |
SGS / NA SGSNA/21/GZ/00074 |
| Control Options |
Bromic Affinity Smart-Heat® Eclipse Controller or Manual Wall Switch |
| Included Mount |
24" Twin Pole |
| Included Box |
Box 2 - BH8230003 |
Compatible Mounting Accessories
The Eclipse Electric can be paired with alternate mounting accessories to suit different outdoor layouts and design requirements.
8" Straight Pole
Use for shorter straight-pole pendant installations where compatible.
24" Straight Pole
Use for standard straight-pole mounting layouts.
48" Straight Pole
Use when a longer pendant drop is required.
24" Curved Pole
Use when the project calls for a curved pendant mounting style.

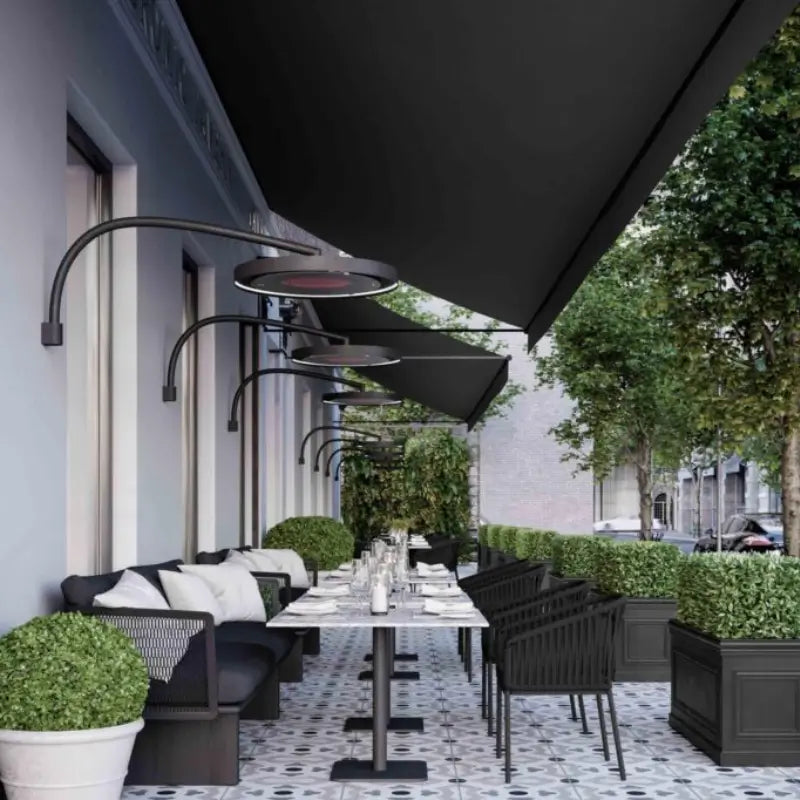

Wall Mount
Use for wall-mounted installations where overhead pendant mounting is not preferred.
Curved Wall Mount
Use for curved wall-mounted applications where compatible.
Installation Notes
The Eclipse Smart-Heat® Electric should be installed according to Bromic mounting and clearance requirements. Because this is a fixed electric heater with specific voltage and current requirements, professional installation is recommended for electrical service, wiring, mounting, and controller setup.
Before installation, confirm that the mounting location can support the heater, meet the required minimum floor clearance, and provide the correct electrical supply. Do not install the heater in a location where clearances, electrical compatibility, or mounting requirements cannot be met.
| Mounting Type |
Minimum Floor Clearance |
| Wall Mount |
96" |
| Ceiling Mount |
96" |
Do Not Choose This Heater If
Do not choose this heater if you need a portable patio heater, a gas-powered outdoor heater, incompatible 208V to 240V electrical service, clearance below 96", or heat coverage for a large open yard instead of a defined seating or dining area.
Best Applications
The Bromic Eclipse Smart-Heat® Electric is best used in outdoor spaces where heat, lighting, and style must work together. It is especially suitable for covered and design-focused environments.

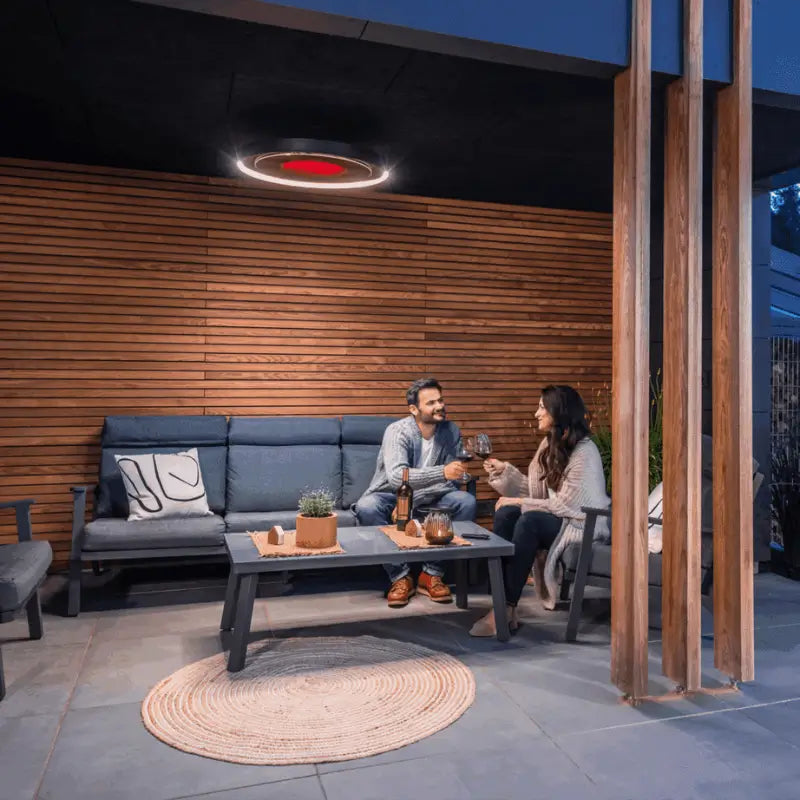

Residential Spaces
Covered patios, pergolas, outdoor kitchens, backyard lounges, deck seating areas, and outdoor dining areas.
Commercial Spaces
Restaurant patios, hotel terraces, rooftop lounges, and hospitality seating areas.
Choose This Heater If
- You want outdoor heating and dimmable lighting in one premium fixture.
- You prefer a modern pendant heater instead of a basic wall-mounted patio heater.
- You need electric radiant heat for a defined outdoor comfort zone.
- You are designing a covered patio, pergola, outdoor kitchen, or hospitality space.
- You want compatibility with optional app-based heat and lighting control.
- You need a heater with flexible wall, ceiling, and pole mounting options.
Maintenance Notes
Keep the heater clean and free from dust, debris, and outdoor buildup. Inspect the heater body, ceramic screen, mount, and surrounding clearance area regularly.
Do not use harsh cleaners on the ceramic faceplate or matte black finish. Electrical service, wiring, and controller-related issues should be handled by a qualified professional.
Frequently Asked Questions
How much heat does the Bromic Eclipse Electric 2900W produce?
The 2900W electric output equals approximately 9,900 BTU/hr. This is a watt-to-BTU conversion for electric radiant heating.
How much area does the Bromic Eclipse Smart-Heat® Electric cover?
This model heats up to 121 sq. ft. Coverage will be reduced in open, windy, or poorly protected outdoor spaces.
Does the Bromic Eclipse Electric include LED lighting?
Yes, it includes integrated warm white dimmable LED lighting. The LED system is rated at 3000K and 497 lumens.
Is the Bromic Affinity Eclipse Controller included?
No, the Bromic Affinity Smart-Heat® Eclipse Controller is sold separately. It is required for app-based control through the Bromic Heating app.
What mount is included with this heater?
This heater includes the 24" Twin Pole mount. Alternate mounting accessories must be selected separately.
Can this heater be wall mounted or ceiling mounted?
Yes, the Eclipse Electric supports wall and ceiling mounting options with compatible mounting accessories. Do not install it unless the required clearances and mounting conditions can be met.
What electrical service does this heater require?
This 2900W model is rated for 208V to 240V operation with current requirements ranging from 13.9A at 208V to 12.1A at 240V. Do not use it without compatible electrical service.
Is this heater suitable for outdoor use?
Yes, it is designed for outdoor heating applications and has an IP54 rating. Do not install it where electrical safety, clearance, or mounting requirements cannot be met.
Does this heater require professional installation?
Professional installation is recommended because the heater requires fixed mounting and compatible electrical service. Do not install it without following Bromic clearance and wiring requirements.
