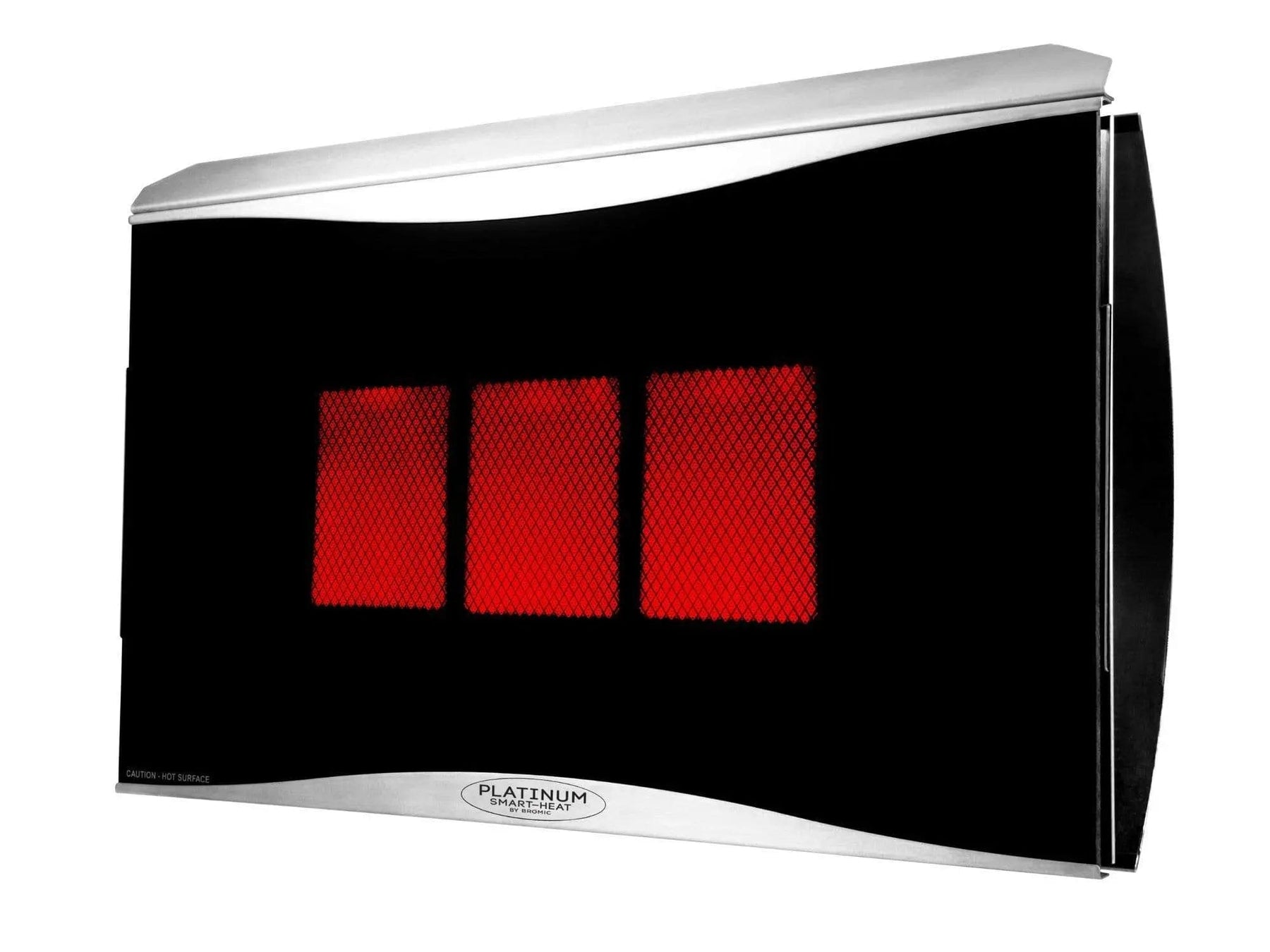

Bromic Platinum 300 Smart-Heat™ Natural Gas Outdoor Heater BH0110001-1

Features:

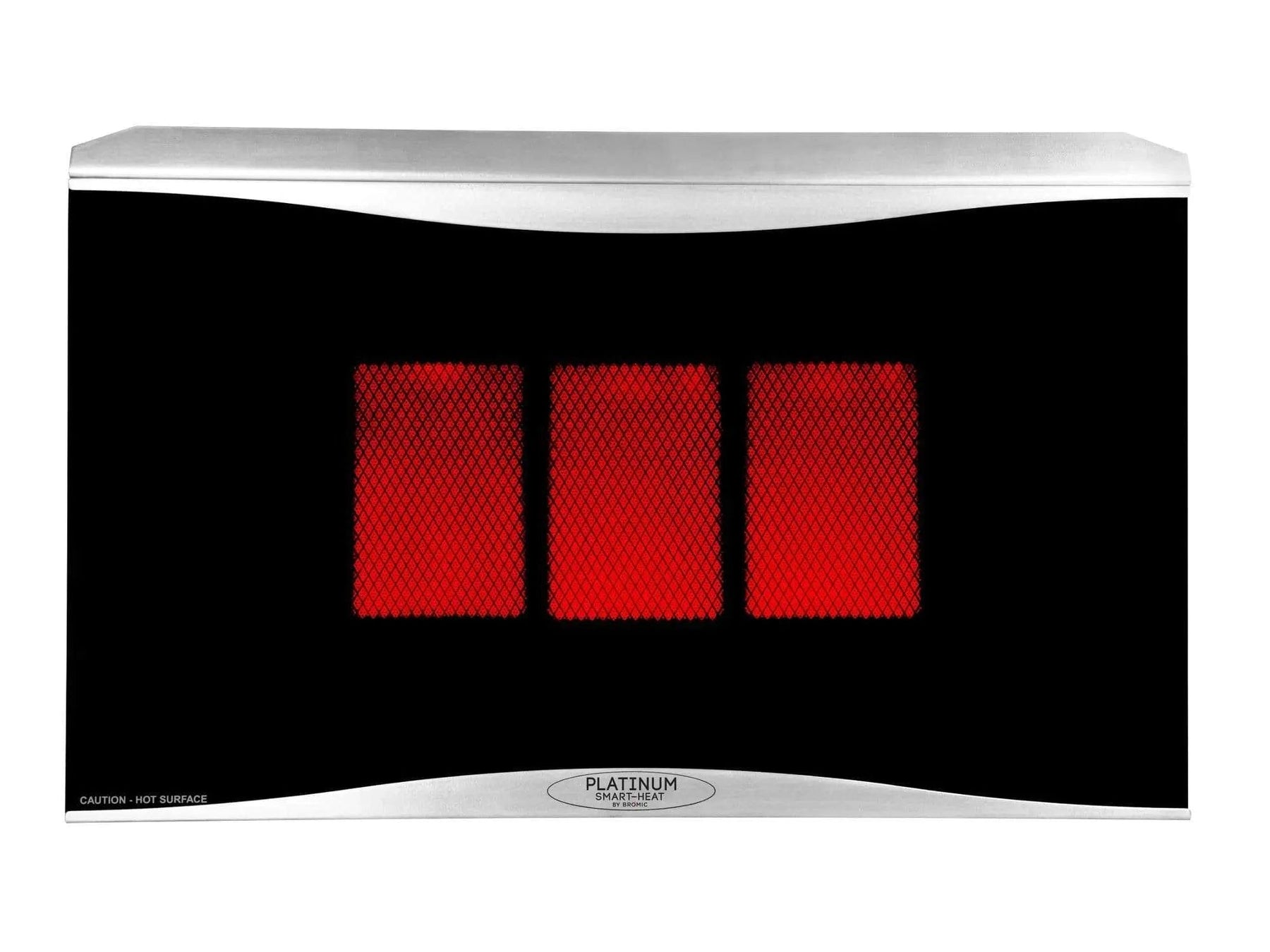

• Tinted Glass-Ceramic Screen -  The Platinum’s signature screen spreads comfort evenly across an area while emitting a soft red glow.

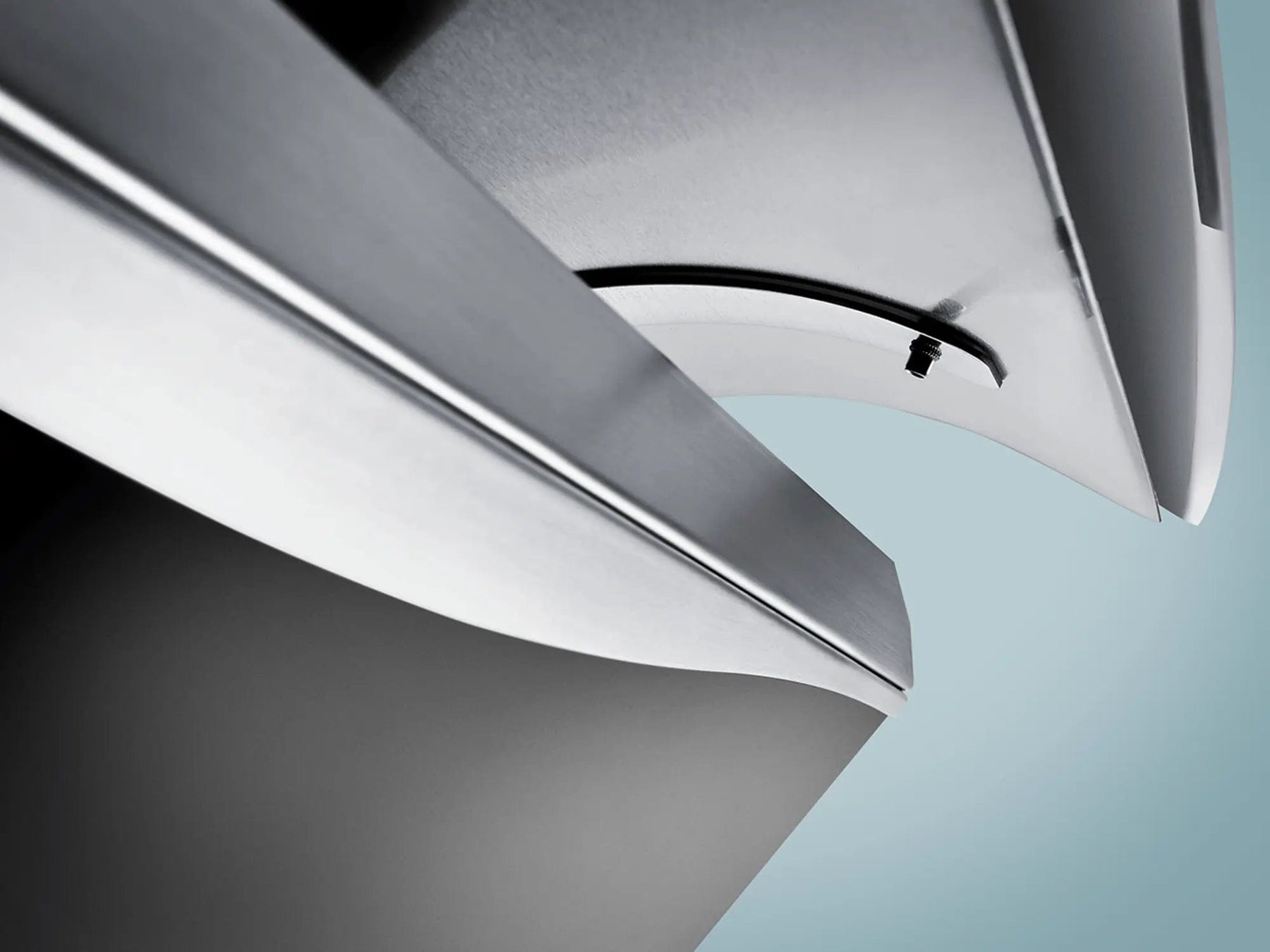

• Sturdy Construction -  Durable stainless steel structures house components of the highest quality, fueling reliable performance.
• Ceramic Efficiency - Slow-release ceramic burners efficiently combust gas to fuel the most environmentally friendly gas-fired heating method available.
• Ultimate Wind Resistance - Patented screen and ionization probe technology enable remarkable wind resistance, functioning reliably in winds of up to 18km/h or 11mph.
• Elegantly Subtle Design - Equally at home as the stunning centerpiece or supporting from the sidelines.
• Ease Of Use - Smart system compatibility and automated re-ignition allow users to simply set and forget.

• Unrivaled Coverage - Projects comfort evenly across a wide range while reaching deeply into open areas.

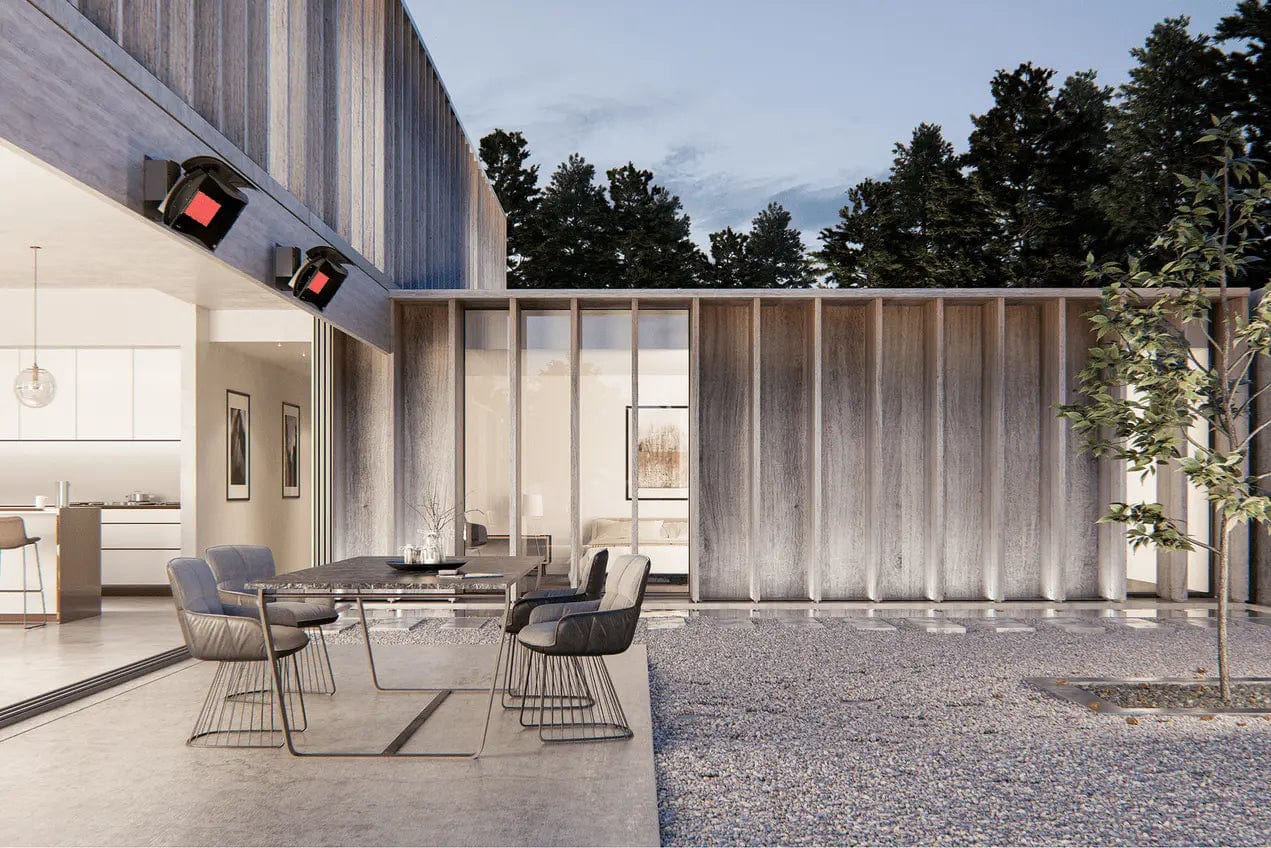

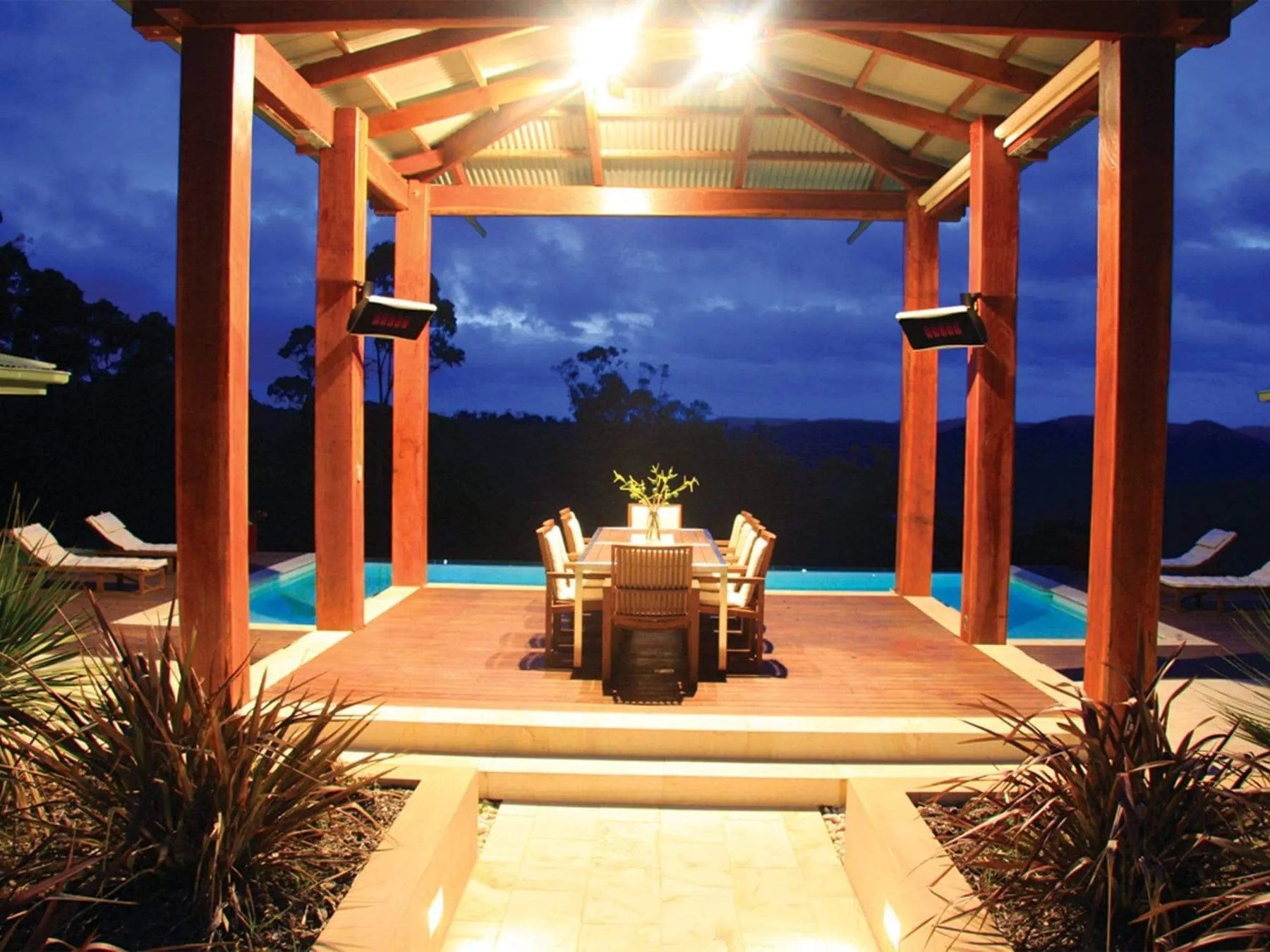

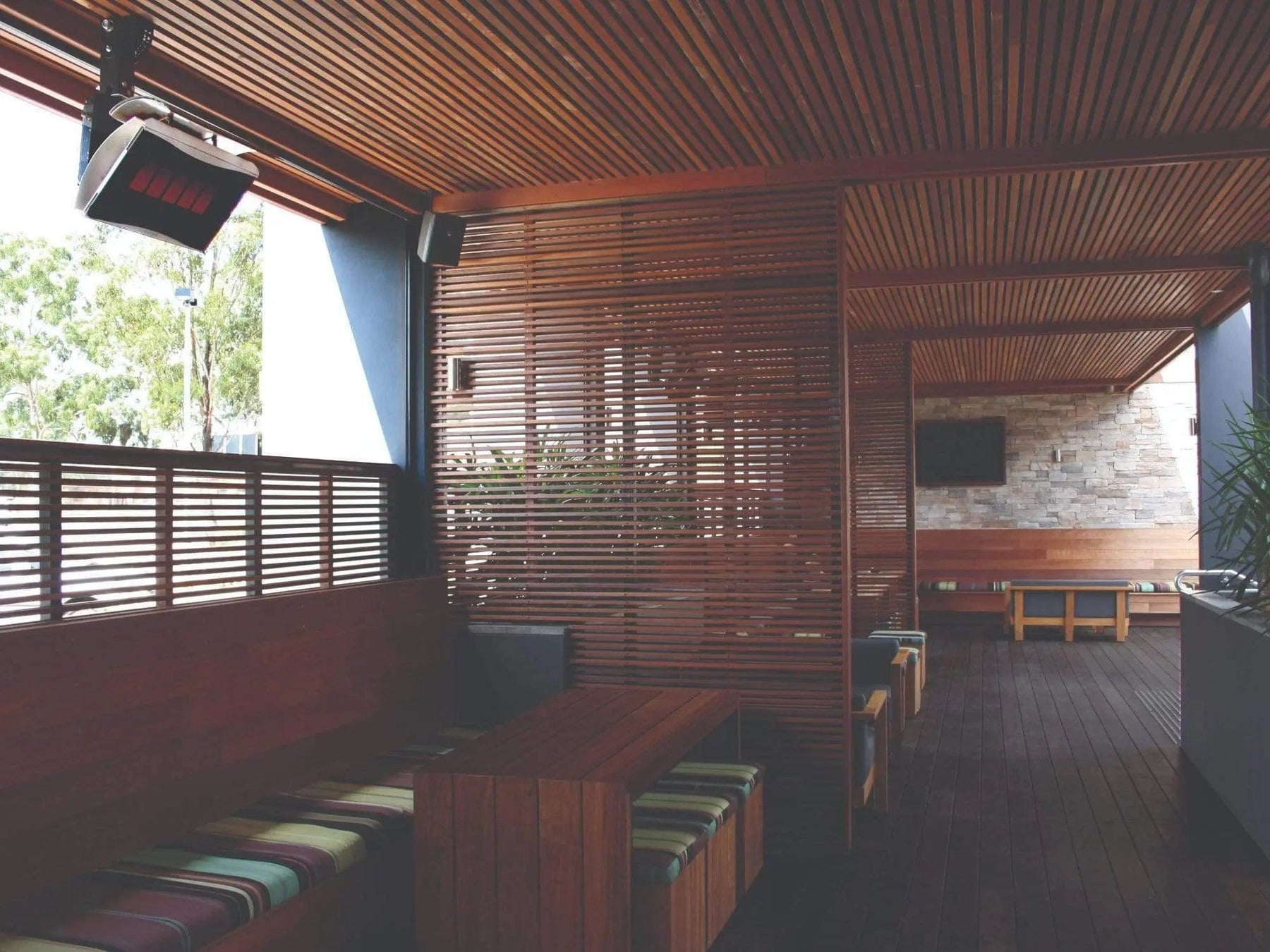

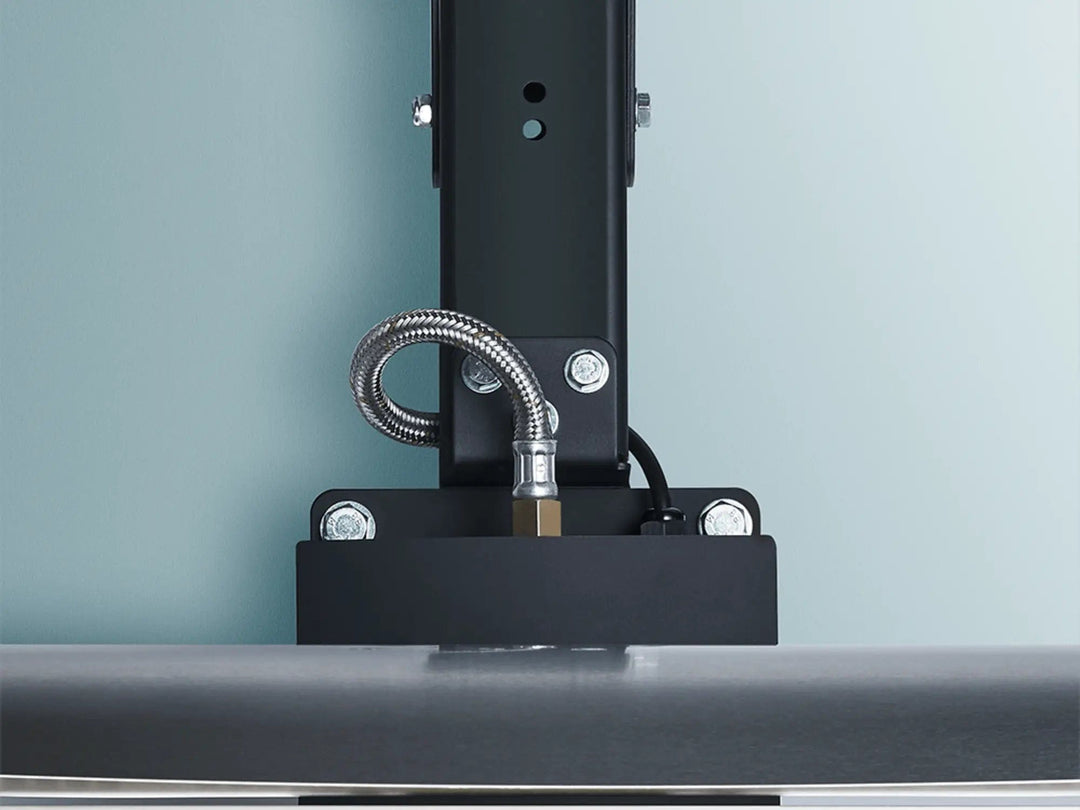

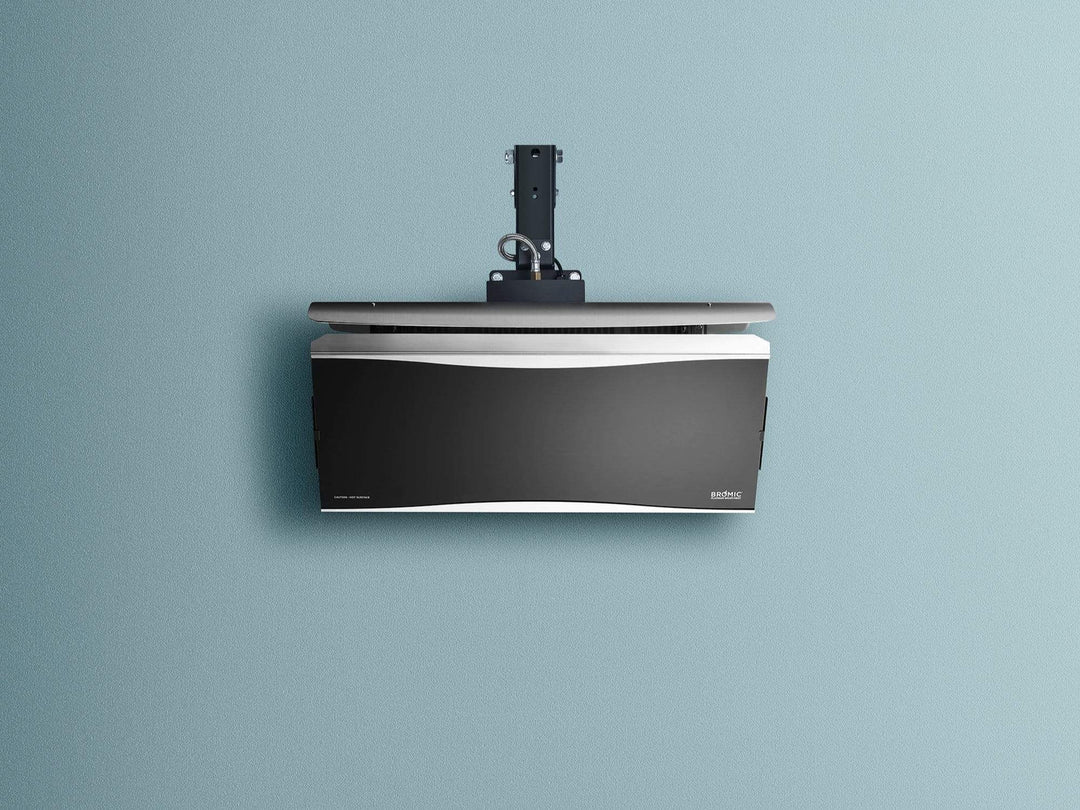

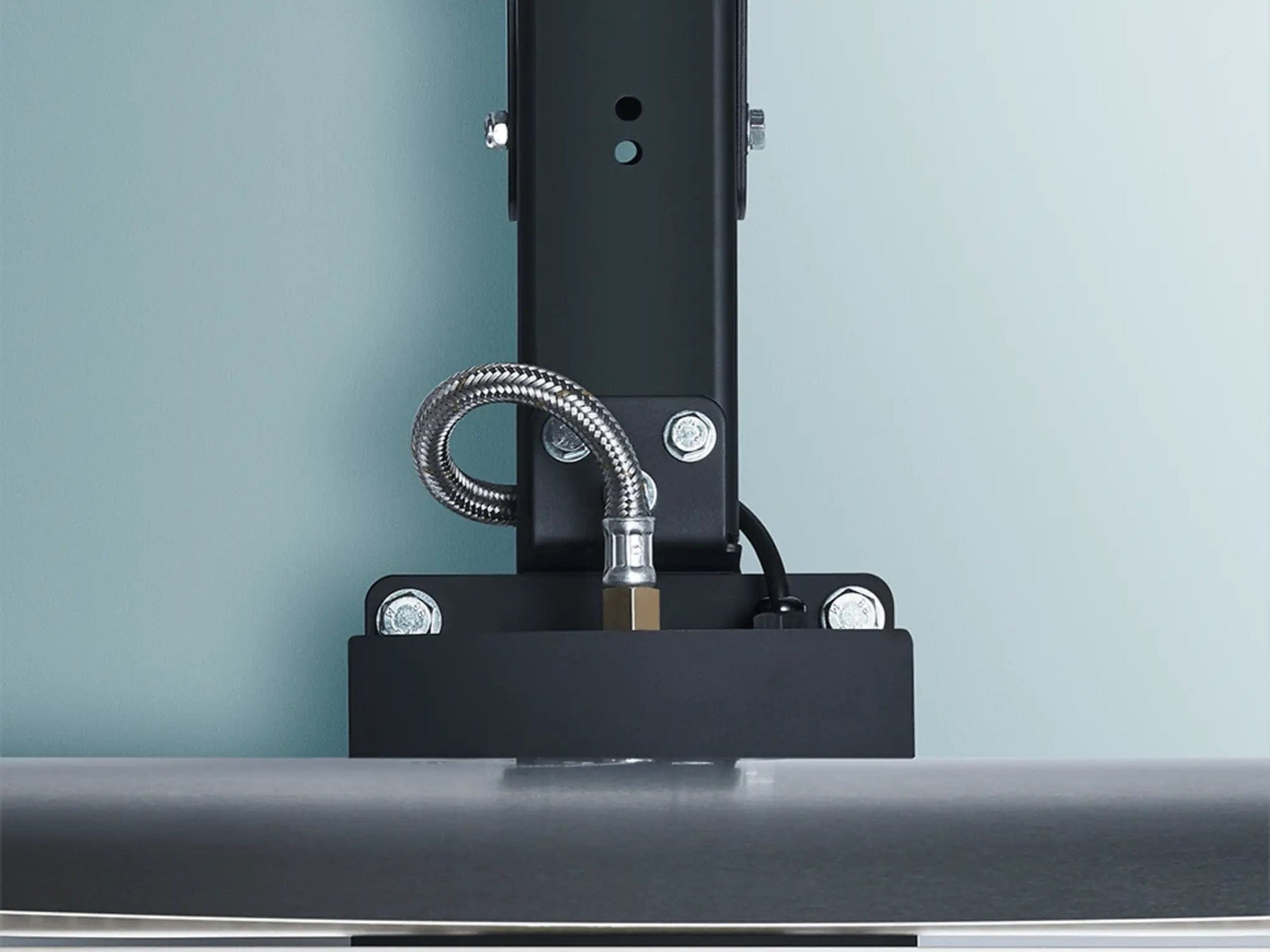

• Versatile Mounting - Reclaim valuable floor space through fixed heating with a range of ceiling and wall mounting options.

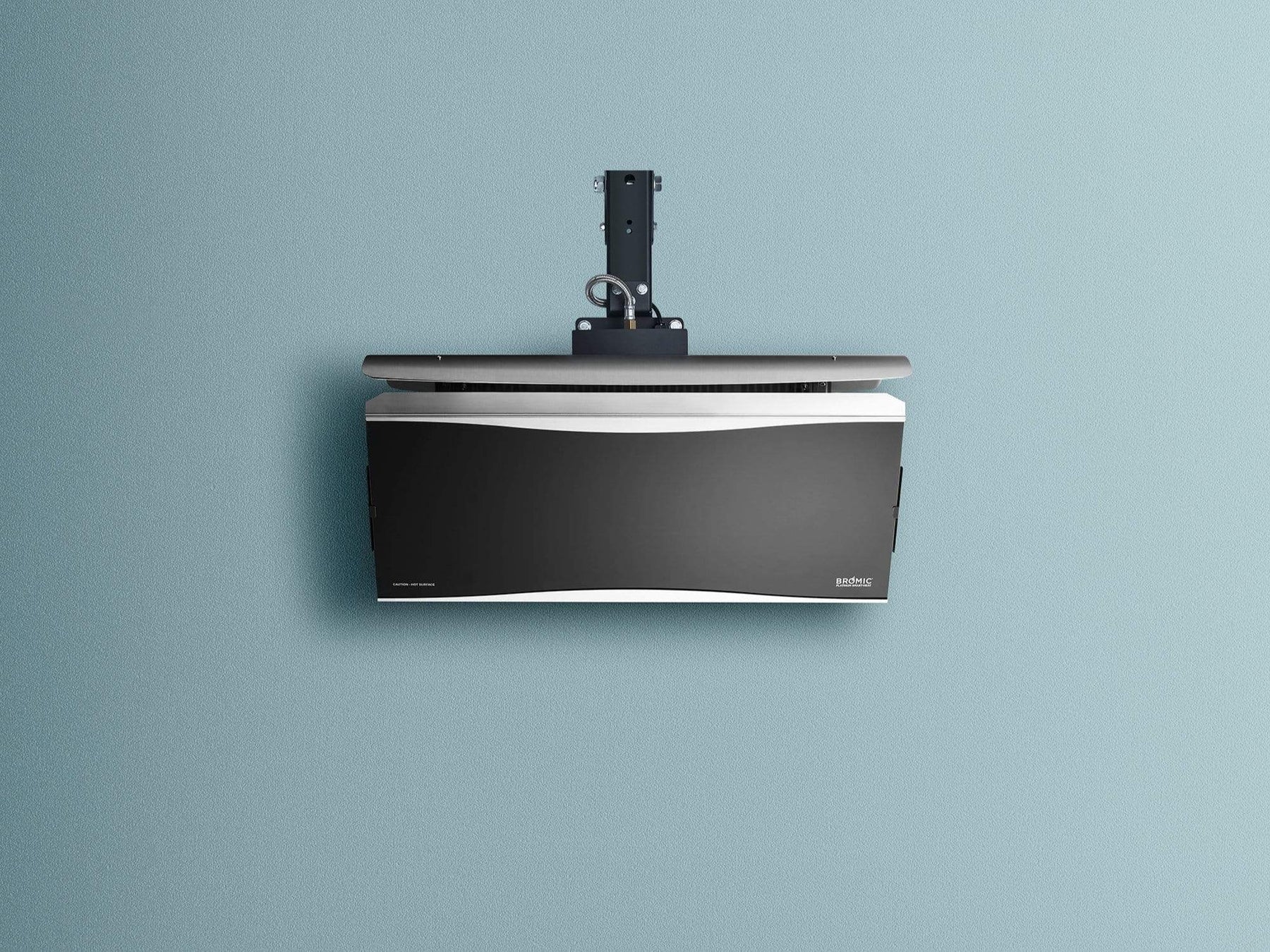

• Directional Control -  Easy pivot bracket offers adjustable heat direction and coverage.
• Patented Direct Ignition -  Automated direct ignition eliminates the need for a pilot, resulting in instantaneous ignition.

• Wireless Control Capabilities -  Genuine wireless control accessories allow seamless integration of remote heater control.

Manuals:

• Product Brochure for Bromic Platinum 300 Smart-Heat™ Natural Gas Outdoor Heater BH0110001-1
• Installation and Service Manual for Bromic Platinum 300 Smart-Heat™ Natural Gas Outdoor Heater BH0110001-1
• Pre-Installation Checklist for Bromic Platinum 300 Smart-Heat™ Natural Gas Outdoor Heater BH0110001-1
• Wall Mount for Bromic Platinum 300 Smart-Heat™ Natural Gas Outdoor Heater BH0110001-1
• Product Wiring Diagram for Bromic Platinum 300 Smart-Heat™ Natural Gas Outdoor Heater BH0110001-1

Need assistance? Talk to an Expert at +1-800-923-4556 or email: support@flameauthority.com to get the best-suited Outdoor Heater for your needs.

Specifications:

• Dimensions (WxDxH): 22.1” x 16.6” x 15.9”
• Electrical Connection: 110V/2A, 3-pin insulated plug
• Gas Connection: 1/2" NPT Female
• Heat Output: 23,600 BTU
• Heating Area: 160 sq. ft
• Rated Current: 110V/2A. 3-pin insulated plug
• Minimum Floor Clearance: 96”
• Weight: 33 lbs w/o mount, 45 lbs w/mount Heat Deflector: Available and sold Separately
• Min. Distance to combustible materials: Side: 36”(3’) (without heat deflector): Above (to ceiling): 36”(3’) (with heat deflector): Above (to ceiling): 14”

Mounting Options:

Heating Area

Optional Accessories:

On/Off Wireless Switch For Use With All Heaters

There is a Bromic On/Off System that has a control box/receiver and a wireless control panel. The heater is connected to this receiver for wireless control.

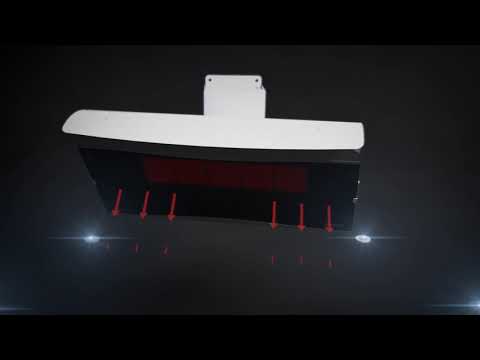

300 Series Platinum Heat Deflectors, BH3030001-1

The Bromic Heat Deflector 300 Series Platinum is used to protect your ceilings! It is specifically designed to fit Platinum 300 series heaters from Bromic Heating, It directs heat away from ceilings and towards customers to maximize your heater's potential to heat outdoor areas.

Gas Mounting Poles

BROMIC HEATING WARRANTY

THIS WARRANTY IS APPLICABLE TO THE ORIGINAL OWNER ONLY. In accordance with the warranty terms and conditions specified below.

Bromic Heating or its agent (the warrantor) will furnish the ORIGINAL OWNER;

1. a replacement Bromic Heating heater or
2. a replacement part for any component part which fails.

For both commercial and residential applications the warranty is one year from date of purchase

SERVICE AND LABOR RESPONSIBILITY

UNDER THIS LIMITED WARRANTY, THE WARRANTOR WILL PROVIDE ONLY A REPLACEMENT HEATER OR PART THEREOF. THE OWNER IS RESPONSIBLE FOR ALL OTHER COSTS.

Such costs may include, but are not limited to:

1. Labor charges for service, removal, or reinstallation of the heater or part thereof.
2. Shipping and delivery charges for forwarding the new heater or replacement part from the nearest distributor and returning the claimed defective heater or part to such distributor.
3. All cost necessary or incidental for handling and administrative charges and for any materials and/or permits required for installation of the replacement heater or part.

LIMITATION ON IMPLIED WARRANTIES

Implied warranties, including any warranty of merchantability imposed on the sale of this heater under state law are limited to one year duration for the heater or any of its parts. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

CLAIMS PROCEDURE

Any claim under this warranty should be initiated with the dealer/retailer  who sold the heater, or with any other dealer handling the warrantor’s products.
