Cal Flame Escape Series BBQ Island

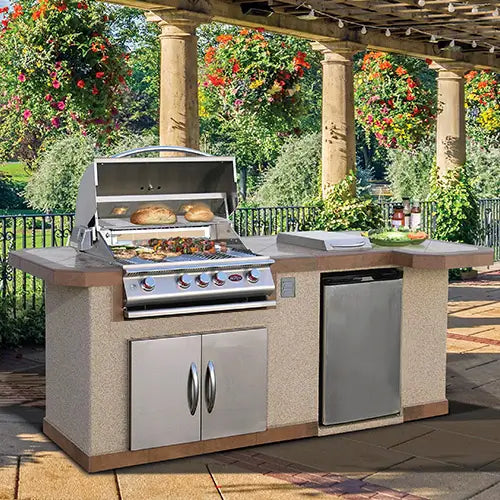

Cal Flame Avalon Q 820 R/L Outdoor BBQ Island with 4-Burner G4 LP Grill
The Cal Flame Avalon Q 820 R/L, also identified as BBK-820 R/L, is a preconfigured outdoor barbecue island that combines grilling, side cooking, refrigeration, food preparation, serving space, and outdoor entertaining in one integrated setup. Available in left-hand 820-L and right-hand 820-R configurations, it can be matched to the orientation of your planned outdoor living space.
Series
Escape Series
Model / SKU
Avalon Q 820 / BBK-820 R/L
Standard Grill
4-Burner G4 LP
Fuel
Liquid Propane
Orientation
820-L or 820-R
Overall Width
95 1/2 Inches
Refrigeration
Temperature-Controlled Refrigerator
Application
Outdoor Use Only
A Complete Outdoor Cooking & Entertaining Island
The Avalon Q 820 R/L combines a substantial outdoor cooking station with countertop space designed for food preparation, serving dishes, drinks, and grilling accessories.
The supplied configuration includes a 4-burner Cal Flame G4 LP grill, stainless steel temperature-controlled refrigerator, side burner, and outdoor electrical outlet.
The island is finished with 12" × 24" porcelain tile, Ameristone stucco, and a 27-inch access door.
With an overall width of 95 1/2 inches, the Avalon Q is intended for outdoor spaces where cooking, preparation, cold storage, and entertaining functions can be consolidated into one island.
Important before ordering: Select the correct 820-L or 820-R orientation and verify the island footprint, foundation, ventilation, electrical service, and required utility connections before delivery.
Cal Flame Avalon Q 820 at a Glance
Product Type
Outdoor Barbecue Island
Configurations
820-L or 820-R
Standard Grill
Cal Flame G4, 4 Burners
Standard Fuel
Liquid Propane / LP
Refrigerator
Stainless Steel Temperature-Controlled Refrigerator
Countertop
12" × 24" Porcelain Tile
Exterior
Ameristone Stucco
Is the Avalon Q 820 a Good Fit for Your Outdoor Space?
Best For
- Homeowners wanting a complete outdoor barbecue island rather than a standalone grill.
- Outdoor spaces that can accommodate a 95 1/2-inch-wide island.
- Buyers who want an integrated 4-burner LP grill.
- Outdoor entertaining areas that benefit from built-in refrigeration.
- Cooking setups that need a dedicated side burner.
- Spaces requiring either a left- or right-hand island orientation.
- Buyers wanting countertop preparation and serving space around the cooking area.
Consider Another Configuration If
- You need an indoor or enclosed-space cooking appliance.
- Your location cannot provide adequate outdoor ventilation.
- Your installation area cannot accommodate the island footprint.
- You cannot provide a stable, flat, level supporting surface.
- Your installation cannot provide the required electrical service.
- You require confirmed natural-gas compatibility that has not been separately verified.
- Neither the 820-L nor 820-R orientation works with the intended layout.
Key Features & Benefits
4-Burner G4 LP Grill
The manufacturer drawing identifies a 4-burner G4 liquid-propane grill as standard equipment.
Integrated Refrigerator
A stainless steel temperature-controlled refrigerator provides cold storage directly within the outdoor cooking area.
Dedicated Side Burner
The included side burner creates a separate cooking position for food prepared alongside items on the main grill.
Spacious Countertop
The extended counter area provides room for food preparation, serving dishes, beverages, and grilling accessories.
Porcelain Tile & Stucco Finish
The standard island finish combines 12" × 24" porcelain tile with Ameristone stucco.
Left or Right Orientation
Choose between mirrored 820-L and 820-R configurations to better coordinate with the intended outdoor layout.
Avalon Q 820-L vs. 820-R
| Avalon Q 820-L |
Left-hand configuration |
| Avalon Q 820-R |
Right-hand configuration |
Planning tip: The 820-L and 820-R are mirrored configurations. Review surrounding walls, walkways, seating areas, access paths, and utility locations before selecting the orientation.
Standard Equipment
4-Burner Cal Flame G4 LP Grill
Standard main cooking appliance.
Temperature-Controlled Refrigerator
Stainless steel refrigerator included in the supplied Avalon Q product description.
Side Burner
Included for additional outdoor cooking capability.
Outdoor Electrical Outlet
Included in the supplied Avalon Q product description.
Porcelain Tile
12" × 24" porcelain tile surface.
Ameristone Stucco
Finished exterior surface.
27-Inch Access Door
Provides interior access to the island.
Left or Right Configuration
Select 820-L or 820-R based on the planned layout.
Source distinction: The product drawing specifically lists the 4-burner G4 LP grill, 12" × 24" porcelain tile, stucco finish, and 27" access door as standard features. The refrigerator, side burner, and outdoor electrical outlet are included in the supplied product description.
Manufacturer-Listed Options
| Undercounter Lights |
OPTQ820L |
| Freedom Sound System |
OPTQ23-FS23 — Bluetooth, Powered Subwoofer and 2 Speakers |
| Umbrella Hole Only |
OPTQ23-837 |
Do not assume these options are included: They are identified as optional equipment in the Avalon Q manufacturer drawing rather than standard features.
Avalon Q 820 Dimensions & Space Planning
The Avalon Q has a shaped footprint, so a single width or depth does not fully describe the installation area.
| Overall Width |
95 1/2 in. |
| Overall Height |
38 in. |
| Main Countertop Dimension Shown |
36 3/4 in. |
| Extended End Dimension Shown |
21 1/2 in. |
| Lower / Front Dimension Shown |
84 3/4 in. |
| Grill-Side Section Dimension Shown |
48 1/2 in. |
| Base Depth Shown at Grill-Side Section |
25 in. |
Before site preparation: Review the manufacturer dimensional drawing before preparing the foundation or locating utility stub-ups.
Installation & Site Planning
Outdoor Use Only
Cal Flame specifies its barbecue islands for outdoor use only. Do not install the island in enclosed garages, sheds, breezeways, or beneath a sealed overhead structure.
Adequate Ventilation
The installation location must provide adequate ventilation. Leave sufficient room when positioning the island near a wall or fence.
Stable, Level Foundation
The island requires a solid, stable, flat, and level foundation. Cal Flame recommends a permanent concrete slab where practical.
Prepared Paver Surface
A properly prepared brick or paver surface can also be used.
Avoid Unstable Surfaces
Do not install directly on gravel, sand, timbers, dirt, or grass.
Plan Utilities Before Delivery
Gas and electrical services should be planned while preparing the foundation and final island footprint.
Deck Installation
A Cal Flame barbecue island may be placed on a deck only when the deck is capable of supporting the full weight of the barbecue island, grill, and accessories.
Structural planning: The manufacturer recommends having a contractor or structural engineer determine whether the deck can safely support the installation.
Electrical Requirements
For a 120V barbecue-island installation, the supplied Cal Flame Barbecue Islands Owner's Manual specifies a dedicated 120V, 20-amp grounded electrical service.
The dedicated circuit should not be shared with other appliances or lights.
Electrical service must meet applicable electrical and local requirements, and Cal Flame specifies copper wiring for the barbecue-island electrical installation.
Electrical planning: Confirm the exact electrical requirements of the final installed configuration before permanent electrical work is completed.
Fuel Planning
The Avalon Q 820 product-specific drawing identifies the standard grill as a 4-burner G4 LP grill. The verified standard fuel designation is therefore Liquid Propane / LP.
Natural Gas: The general barbecue-island manual discusses natural-gas installations, but the supplied Avalon Q product drawing does not establish a natural-gas configuration or conversion for this specific model. Do not plan a natural-gas installation unless compatibility is separately verified.
Care & Maintenance
Porcelain Tile
Clean spills promptly. Protect the tile against hard impacts, scratches, and chipping, and remove standing water or other liquids.
Tile Cleaning
For normal cleaning, use a detergent solution followed by rinsing. Avoid abrasive powders that can scratch the finish.
Stainless Steel
Use warm water and mild dish soap for normal cleaning, rinse thoroughly, and dry completely instead of allowing stainless steel to air dry.
Keep Combustibles Away
Keep the area surrounding the grill clear of combustible materials, gasoline, and other flammable vapors and liquids.
Maintain Airflow
Do not obstruct combustion or ventilation airflow.
Drip Pan
Clean the full-width drip pan after each use once it has cooled to reduce accumulated grease and grease-fire risk.
Warranty Information
The supplied Cal Flame Barbecue Islands Owner's Manual states that LMS warrants barbecue islands against deterioration, corrosion, and defects in material and workmanship for one year from the original date of delivery.
The manual specifically lists the structural frame, fireproof panels, base, electrical wiring, electrical components, switches, and outlets within this coverage.
Certain hardware and components are warranted for 90 days, while decorative finishes are warranted to be free of defects at the time of delivery.
Appliances such as refrigerators are covered through the respective appliance manufacturer.
Warranty guidance: Warranty limitations, exclusions, labor responsibilities, shipping charges, installation requirements, and other conditions apply. Review the complete manufacturer warranty in the Barbecue Islands Owner's Manual.
Complete Cal Flame Avalon Q 820 Technical Specifications
| Brand |
Cal Flame |
| Product Name |
Avalon Q 820 R/L |
| Model / Reference |
820(L)(R) |
| SKU / Product Code |
BBK-820 R/L |
| Series |
Escape Series |
| Product Type |
Outdoor Barbecue Island |
| Indoor / Outdoor |
Outdoor |
| Available Configurations |
Left 820-L or Right 820-R |
| Overall Width |
95 1/2 in. |
| Overall Height |
38 in. |
| Standard Grill |
Cal Flame G4 |
| Number of Main Grill Burners |
4 |
| Standard Grill Fuel |
Liquid Propane / LP |
| Refrigerator |
Stainless Steel Temperature-Controlled Refrigerator |
| Side Burner |
Included |
| Outdoor Electrical Outlet |
Included |
| Countertop |
12" × 24" Porcelain Tile |
| Exterior Finish |
Ameristone Stucco |
| Access Door |
27 in. |
| Foundation Requirement |
Stable, Flat, and Level Surface |
| Recommended Foundation |
Permanent Concrete Slab |
| 120V Electrical Service |
Dedicated 120V, 20-Amp Grounded Electrical Service |
Flame Authority Expert Recommendation
Choose the Cal Flame Avalon Q 820 R/L when you want a centralized outdoor cooking and entertaining station rather than a standalone grill.
Its combination of a 4-burner G4 LP grill, temperature-controlled refrigerator, side burner, outdoor electrical outlet, porcelain-tile countertop, and finished barbecue-island construction makes it especially useful for outdoor spaces designed around both cooking and entertaining.
The most important configuration decision is choosing between the 820-L and 820-R.
Before ordering, verify the chosen orientation against the manufacturer dimensional drawing and confirm the island footprint, outdoor ventilation, stable foundation, electrical service, utility connections, and access requirements.
Official Manufacturer Resources
Cal Flame Avalon Q 820 FAQs
Is the Cal Flame Avalon Q 820 available in left- and right-hand configurations?
Yes. The Avalon Q 820 is available as the 820-L left-hand configuration or 820-R right-hand configuration. Choose the orientation that best matches the planned outdoor layout.
What grill comes standard with the Cal Flame Avalon Q 820?
The Avalon Q manufacturer drawing specifies a 4-burner G4 LP grill as standard. Do not assume another grill or fuel configuration is included unless specifically confirmed for the product being ordered.
Does the Avalon Q 820 include a refrigerator and side burner?
Yes. The supplied Avalon Q 820 product information lists a stainless steel temperature-controlled refrigerator and side burner as included equipment.
Can the Cal Flame Avalon Q 820 be installed indoors?
No. Cal Flame specifies its barbecue islands for outdoor use only. Do not install the island in an enclosed garage, shed, breezeway, or beneath a sealed overhead structure.
What type of foundation does the Avalon Q 820 require?
The island requires a stable, flat, and level foundation, with a permanent concrete slab recommended. Do not place the island directly on gravel, sand, timbers, dirt, or grass.
What electrical service is required for the Avalon Q 820?
For a 120V barbecue-island installation, Cal Flame specifies a dedicated 120V, 20-amp grounded electrical service. The installation must also comply with applicable electrical and local requirements.
Is natural gas standard on the Avalon Q 820?
No. The supplied Avalon Q product drawing identifies the standard G4 grill configuration as Liquid Propane / LP. Do not plan a natural-gas installation unless compatibility is separately verified.
Are the undercounter lights and sound system included?
No. Undercounter lights, the Freedom Sound System, and the umbrella hole are manufacturer-listed options rather than standard equipment.
Before You Order
Confirm Before Purchase
- The installation is outdoors and adequately ventilated.
- You have selected the correct 820-L or 820-R orientation.
- The site can accommodate the 95 1/2-inch overall width and shaped island footprint.
- The foundation is stable, flat, and level.
- The standard Liquid Propane / LP grill configuration meets your fuel requirements.
- The required electrical service can be provided.
- Utility stub-ups have been planned around the actual dimensional drawing.
- Any desired optional lighting, sound system, or umbrella hole has been separately selected.
Do Not Assume
- That 820-L and 820-R are interchangeable after site preparation.
- That natural gas is a verified standard configuration.
- That optional lighting, sound system, or umbrella-hole features are included.
- That the island can be installed indoors or in an enclosed structure.
- That gravel, dirt, grass, sand, or another unstable surface is suitable.
- That a generic width/depth measurement fully describes the shaped island footprint.
- That electrical or gas services should be installed before reviewing the manufacturer drawing.
Final planning check: Use the Avalon Q product drawing as the primary reference for orientation, dimensions, standard features, and listed options, and use the Cal Flame Barbecue Islands Owner's Manual for applicable foundation, electrical, maintenance, safety, and warranty guidance.
