Cal Flame Patio Series Outdoor Fireplace
Cal Flame Cabo 901-1 Modern Outdoor Gas Fireplace – FRP901-1
The Cal Flame Cabo 901-1 Outdoor Gas Fireplace is a stationary outdoor fireplace designed to create a substantial architectural focal point for patios, courtyards, and outdoor entertainment areas. It features a 22-inch double burner rated up to 90,000 BTU, electronic ignition, a 24-inch Weathered Oak log set, lava rock media, and a traditional herringbone ceramic-brick firebox treatment.
Series
Patio Series
Model / SKU
Cabo 901-1 / FRP901-1
Maximum Input
90,000 BTU/hr
Factory Fuel
Natural Gas
LP Compatible
Yes, With Conversion
Burner
22" Double Burner
Overall Size
46"W × 28"D × 59"H
Installation
Stationary Outdoor

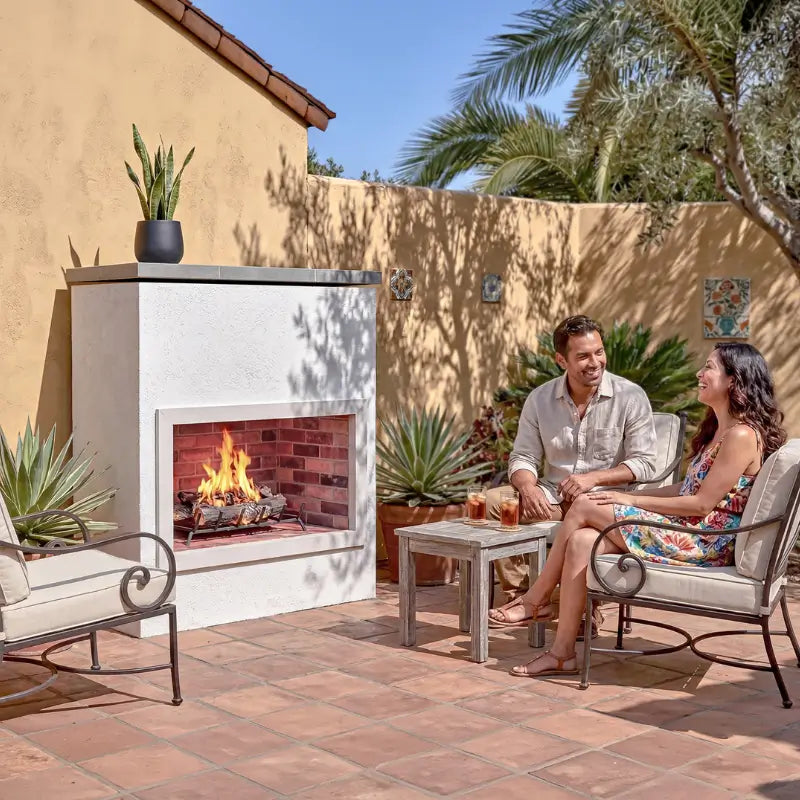

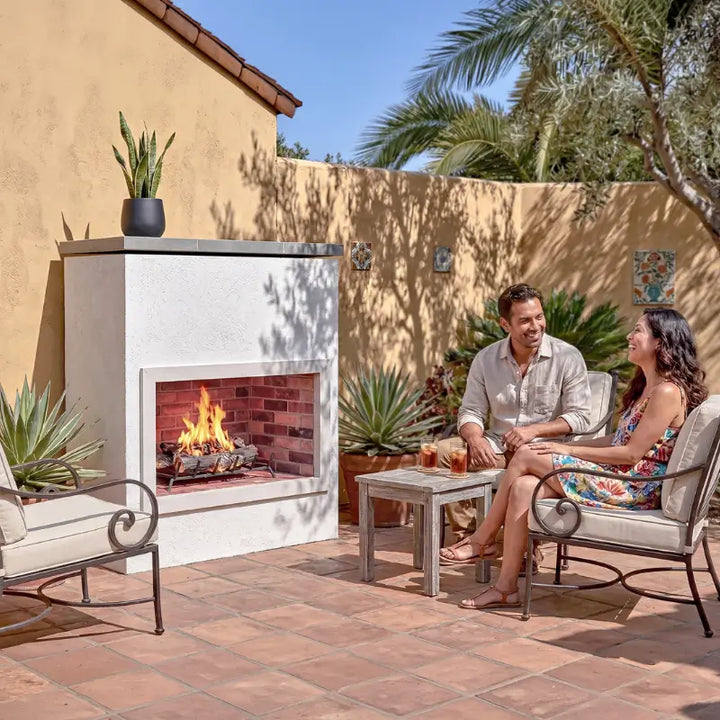

A Full-Size Outdoor Gas Fireplace for Permanent Patio Installations
The Cabo 901-1 combines the visual presence of a traditional fireplace with the convenience of gas operation.
Its 59-inch-tall enclosure, 46-inch width, 90,000 BTU burner, Weathered Oak log set, lava rock media, and finished firebox create a more substantial outdoor focal point than a portable fire pit.
The fireplace is configured for Natural Gas and can be converted to Liquid Propane with the appropriate separately ordered conversion equipment.
Important buyer note: The Cabo is a heavy, stationary outdoor gas fireplace weighing approximately 600 lb. Plan the foundation, fuel supply, delivery route, clearances, and installation location before ordering.
Cal Flame Cabo 901-1 at a Glance
Product Type
Outdoor Gas Fireplace
Fireplace Configuration
Vented
Maximum Input
90,000 BTU/hr
Log Set
24" Weathered Oak
Is the Cal Flame Cabo 901-1 Right for Your Outdoor Space?
Best For
- Patios and courtyards needing a permanent fireplace focal point.
- Outdoor entertainment spaces.
- Buyers wanting a traditional log-fire appearance without burning wood.
- Natural-gas installations.
- Projects where LP conversion can be separately planned if required.
- Sites capable of supporting a roughly 600-lb. stationary fireplace.
- Outdoor designs where stucco, Cultured Stone, or Cal Faux Stone styling is appropriate.
Consider Another Fireplace If
- You need an indoor fireplace.
- You need a portable or frequently movable fire feature.
- You specifically want to burn wood or charcoal.
- Your site cannot meet the manufacturer's outdoor placement and clearance requirements.
- You cannot provide an appropriate gas supply.
- Your installation surface cannot support the weight or specified foundation requirements.
Why Choose the Cal Flame Cabo 901-1?
90,000 BTU Double Burner
The Cabo uses a 22-inch double burner with a maximum rated input of 90,000 BTU/hr.
24-Inch Weathered Oak Log Set
The traditional fire presentation includes a 24-inch Weathered Oak log set and built-in 24-inch log grate.

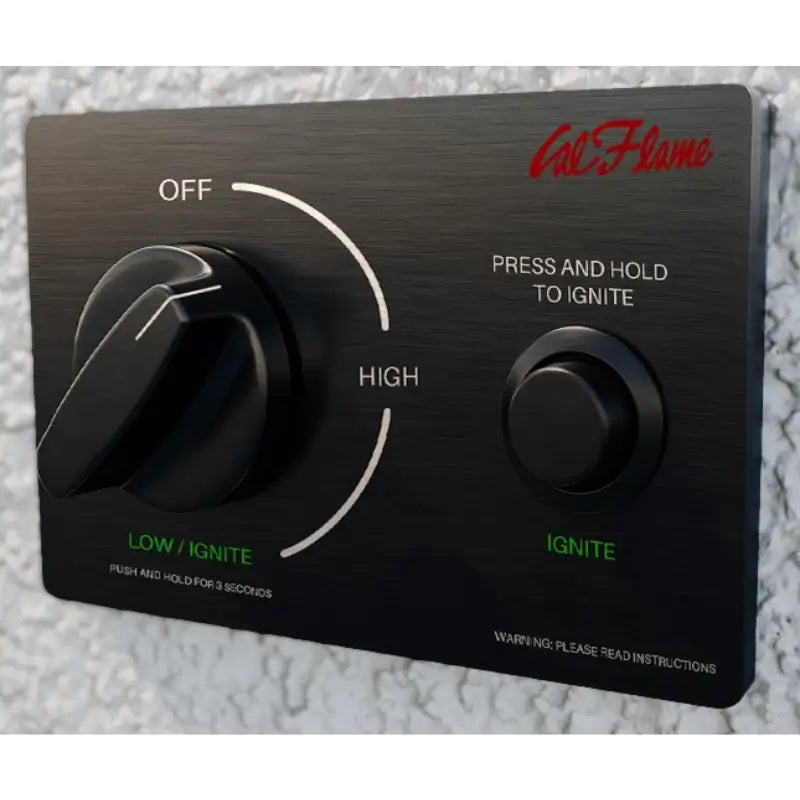

Electronic Ignition
The fireplace uses an electronic ignition system. The manufacturer documentation identifies an AA battery as part of the ignition system.
Natural Gas with LP Capability
The factory configuration is Natural Gas, with Liquid Propane operation available through appropriate separately ordered conversion equipment.

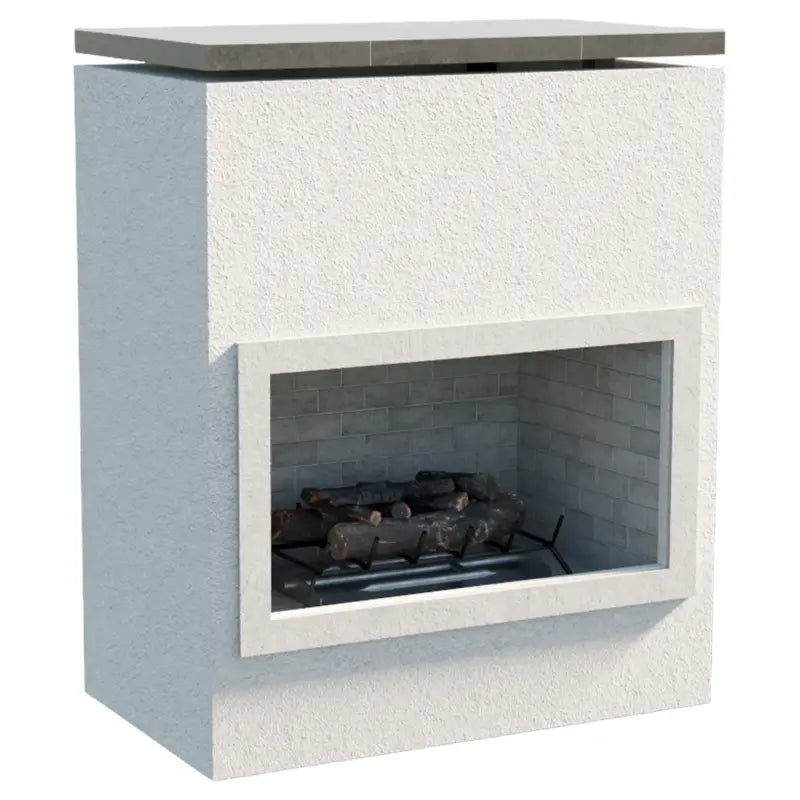

Outdoor Structural Construction
The Cabo uses a 16-gauge galvanized steel frame, Hardiebacker reinforcement, and one-piece construction.

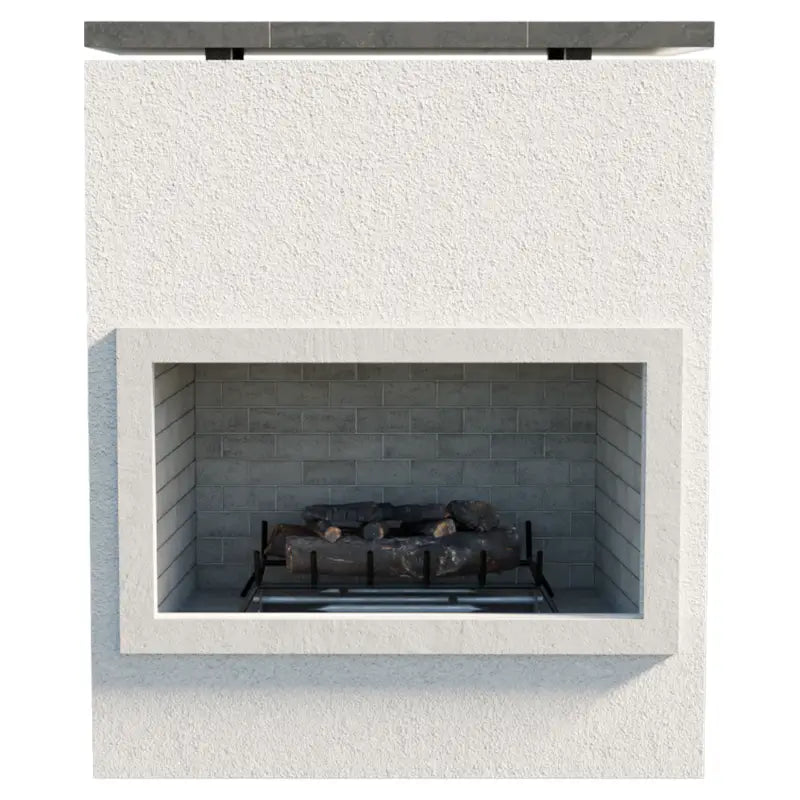

Traditional Firebox Presentation
Herringbone ceramic brick, lava rock media, logs, and grate create a classic outdoor-fireplace appearance.
Standard Features
22" Double Burner
Maximum input of 90,000 BTU/hr.
24" Log Grate
Built-in grate supporting the decorative log presentation.
Weathered Oak Logs
24-inch decorative gas-fireplace log set.
Lava Rock Media
Included decorative fireplace media.
Electronic Ignition
Convenient gas-burner ignition system.
Herringbone Ceramic Brick
Traditional-style decorative treatment inside the firebox.
Stucco Exterior
Standard exterior finish.
Galvanized Steel Frame
16-gauge galvanized steel structural frame.
Hardiebacker Reinforcement
Tile backer board reinforcement incorporated into the fireplace construction.
Available Finish & Configuration Options
The supplied Cabo information identifies several optional finish and decorative configurations.
Cultured Stone
Alternative exterior finish option.
Cal Faux Stone
Alternative decorative exterior treatment.
Upper Mantle Options
Optional architectural mantle treatments.
Porcelain Tile Upper Mantle
Optional tile mantle configuration.
Natural Stone Tile
Natural stone field and border tile options.
Alternative Log Configuration
Optional decorative log-set configuration.
Optional equipment: Decorative finishes and upgraded configurations should not be treated as standard unless specifically included with the ordered fireplace.
Cabo 901-1 Dimensions & Installation Planning
| Overall Width |
46 in. |
| Overall Depth |
28 in. |
| Overall Height |
59 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |

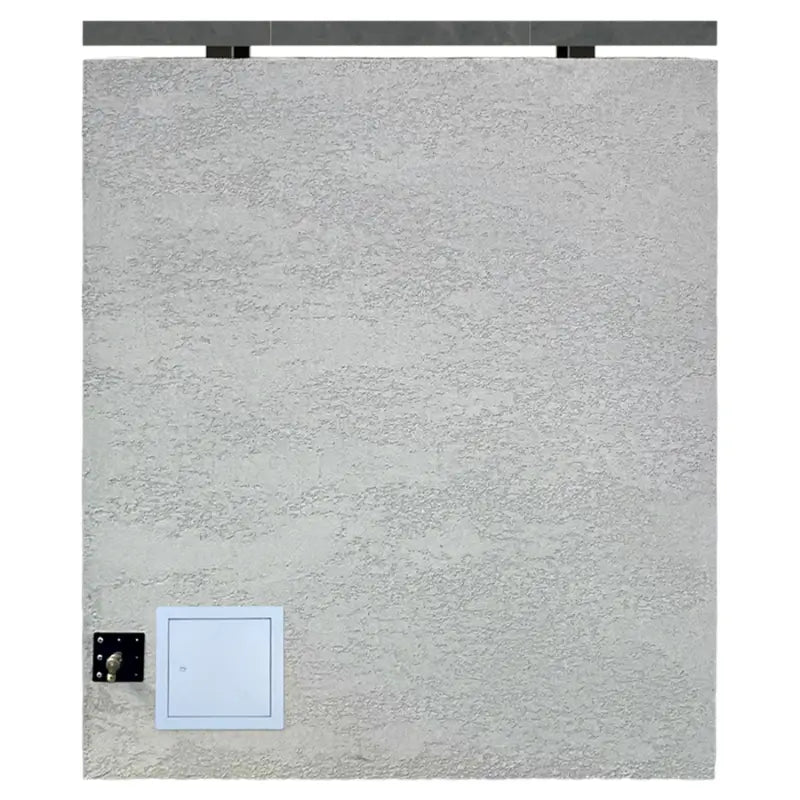

| Access Door |
12 in. |
| Gas Inlet Detail |
1/2" to 3/8" Elbow |
| Approximate Weight |
600 lb. |
Site-planning note: The Cabo's weight and 46" × 28" footprint should be considered when preparing the foundation, delivery path, gas connection, and final installation area.
Natural Gas & Propane Information
The Cabo 901-1 is supplied in a Natural Gas configuration.
Factory Configuration
Natural Gas
Optional Fuel Conversion
Liquid Propane / LP with appropriate separately ordered conversion equipment.
LP conversion: The LP conversion equipment is not included with the standard fireplace. The manufacturer's instructions specify that fuel conversion should be performed by an authorized technician.
Do not burn wood, charcoal, compressed logs, or other solid fuels in the Cabo gas fireplace.
Natural Gas Performance Specifications
| Maximum Input |
90,000 BTU/hr |
| Manifold Pressure |
10" WC |
| Maximum Gas Supply Pressure |
11" WC |
| Maximum Inlet Supply Pressure |
13" WC |
Gas Connection & Installation Requirements
Cal Flame recommends installation by a licensed or qualified contractor.
Natural Gas Supply
The manufacturer's manual identifies a 3/4-inch natural-gas supply pipe running from the house to the fireplace location.
Shutoff Valve
The supply should terminate with an accessible shutoff valve and 1/2-inch male fitting.
Flexible Connection
The burner-preparation instructions identify a 3/8-inch NPT flexible line rated for outdoor use for connection to the dedicated gas line.
Verify Appliance Rating
Confirm the appliance gas rating before connecting the fireplace.
No Unregulated Supply
The fireplace should not be connected to an unregulated gas supply.
Leak Testing
Gas connections should be leak tested following installation.
Professional installation: Local gas requirements can vary. Have the final gas supply and connection reviewed and completed by an appropriately qualified professional.
Outdoor Installation & Site Planning
The Cabo is intended for stationary outdoor use.
Outdoor Only
Do not install or operate the fireplace in an enclosed room, garage, shed, or breezeway.
Not for Mobile Applications
Do not install in an RV, trailer, boat, yacht, or other unsuitable mobile or enclosed location.
Avoid Water Collection
Select the installation location so that water does not collect or pool around the fireplace.
Foundation Requirements
Cal Flame specifies a level foundation constructed from quality cement material approximately 2–4 inches thick (5–10 cm).
Required Foundation Characteristics
- Level.
- Quality cement material.
- Approximately 2–4 inches thick.
- Capable of supporting the approximately 600-lb. fireplace.
- Located where water will not pool around the unit.
Do Not Substitute
- Loose gravel.
- Loose materials.
- Tile used as the supporting foundation.
- Combustible supporting surfaces.
- Other unsuitable foundation materials.
Clearance & Placement Considerations
The manufacturer's instructions contain several clearance requirements addressing different areas around the fireplace.
| Flammable Materials |
At least 24 in. in all directions, including applicable overhead materials |
| Space Above Chimney |
Approximately 4–6 ft. unobstructed |
| Front of Operating Fireplace to Flammable Materials |
At least 6 ft. |
Clearance warning: These measurements address different areas around the fireplace and are not interchangeable. Review the complete owner's manual and applicable local requirements before selecting the final location.
What's Included
Cabo 901-1 Fireplace Structure
One-piece stationary outdoor fireplace enclosure.
22" Double Burner
Gas burner rated up to 90,000 BTU/hr.
24" Log Grate
Built-in grate for decorative fireplace logs.
24" Weathered Oak Logs
Decorative log set.
Lava Rock
Decorative fireplace media.
Electronic Ignition
Electronic burner ignition system.
Herringbone Ceramic Brick
Decorative firebox treatment.
Stucco Exterior
Standard exterior configuration.
Not included / separately planned: LP conversion equipment, professional gas installation, site foundation preparation, and optional upgraded finishes or decorative configurations.
Log Set & Fireplace Media
The Cabo's fire presentation combines a 24-inch Weathered Oak log set, built-in 24-inch log grate, and lava rock media.
Media placement: Do not place lava rocks directly over the gas burner because doing so can interfere with gas flow. Logs, stones, and decorative media should be suitable for fireplace use and installed according to manufacturer instructions.
Certification
| Certification Organization |
PFS |
| Standards |
CSA 2.26 and ANSI Z21.60 |
| Report Number |
F23-191 |
Complete Cal Flame Cabo 901-1 Technical Specifications
| Brand |
Cal Flame |
| Series |
Patio Series |
| Model |
Cabo 901-1 |
| SKU / Reference |
FRP901-1 |
| Product Type |
Outdoor Gas Fireplace |
| Location |
Outdoor |
| Installation Type |
Stationary Outdoor Installation |
| Fireplace Configuration |
Vented |
| Factory Fuel |
Natural Gas |
| LP Compatible |
Yes, with appropriate conversion |
| LP Conversion Equipment |
Separately Ordered |
| Burner |
22" Double Burner |
| Maximum Input |
90,000 BTU/hr |
| Ignition |
Electronic |
| Ignition Battery |
AA Battery |
| Overall Width |
46 in. |
| Overall Depth |
28 in. |
| Overall Height |
59 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Log Grate |
Built-In 24" Log Grate |
| Log Set |
24" Weathered Oak |
| Fire Media |
Lava Rock |
| Standard Finish |
Stucco |
| Firebox Treatment |
Herringbone Ceramic Brick |
| Frame |
16-Gauge Galvanized Steel |
| Reinforcement |
Hardiebacker Tile Backer Board |
| Access Door |
12 in. |
| Gas Inlet Detail |
1/2" to 3/8" Elbow |
| Approximate Weight |
600 lb. |
| Certification |
PFS Certified to CSA 2.26 and ANSI Z21.60 – Report #F23-191 |
Care & Maintenance
Annual Cleaning
The manufacturer's manual recommends cleaning the fireplace at least annually.
Qualified Inspection
Have the appliance inspected by a qualified service person.
Inspect Burner & Gas Connections
Periodically inspect burner components and gas connections.
Keep Burner Area Clean
Keep the burner and air-shutter area free from dirt and debris.
Clean Logs Carefully
Allow logs to cool completely before cleaning and use a dry nylon-bristle brush or suitable cloth.
Do Not Pressure Wash
High-pressure water can damage stucco, grout, stone, styled-rock surfaces, and their adhesion to the cement board.
Cal Flame Cabo Warranty Summary
| Specified Structural Components |
5 Years |
| Specified Hardware |
2 Years |
| Fireplace Finish |
1 Year |
| Plastic Components |
90 Days |
The manufacturer's documentation identifies specified hardware such as the burner and fire grate within applicable hardware coverage.
Warranty limitation: Fire logs and lava rocks are identified as not covered under the limited warranty. Additional exclusions, installation requirements, service conditions, and limitations apply.
Flame Authority Expert Recommendation
Choose the Cal Flame Cabo 901-1 when you want a permanent outdoor fireplace with more architectural presence than a portable fire pit.
Its 59-inch height, 46-inch width, 90,000 BTU double burner, Weathered Oak log presentation, ceramic-brick firebox, and full fireplace enclosure make it especially suitable for dedicated patios, courtyards, and outdoor entertainment areas.
Before ordering, confirm three critical project requirements: installation space, a suitable level cement foundation, and the planned fuel supply.
If Propane operation is required, also plan for separately ordered LP conversion equipment and authorized conversion. Because this is a heavy stationary gas appliance, provide the owner's manual and product drawing to the installer during project planning.
Official Manufacturer Resources
Cal Flame Fireplace – Owner's Manual
Installation, fuel connections, LP conversion guidance, placement, clearances, operation, maintenance, safety, and warranty information.
Cal Flame Cabo 901-1 – Dimensions & Technical Drawing
Model-specific dimensions, firebox measurements, access-door location, and gas-inlet detail.
Cal Flame Cabo 901-1 FAQs
Is the Cal Flame Cabo 901-1 a Natural Gas or Propane fireplace?
The Cabo 901-1 is configured for Natural Gas. It can be converted for Liquid Propane operation with appropriate separately ordered LP conversion equipment, and the manufacturer specifies authorized conversion.
How many BTUs does the Cal Flame Cabo 901-1 produce?
The Cabo uses a 22-inch double burner with a maximum rated input of 90,000 BTU/hr.
What are the dimensions of the Cal Flame Cabo 901-1?
The fireplace measures 46"W × 28"D × 59"H. Its firebox measures approximately 34"W × 19"D × 18"H, and the fireplace weighs approximately 600 lb.
Can the Cal Flame Cabo 901-1 be installed indoors?
No. The manufacturer specifies stationary outdoor use. Do not install the fireplace in an enclosed room, garage, shed, breezeway, RV, trailer, boat, yacht, or other unsuitable enclosed or mobile location.
Does the Cabo 901-1 include fireplace logs?
Yes. It includes a 24-inch Weathered Oak log set, built-in 24-inch log grate, and lava rock media.
Does the Propane conversion kit come with the Cabo 901-1?
No. LP conversion equipment is not included with the standard fireplace and must be ordered separately.
What type of foundation does the Cabo 901-1 require?
Cal Flame specifies a level foundation made from quality cement material approximately 2–4 inches thick, or 5–10 cm. Loose materials, gravel, tile, and combustible surfaces should not be substituted.
What clearance does the Cabo outdoor fireplace require?
The manufacturer's instructions include multiple requirements for different areas: at least 24 inches from flammable materials in all directions, approximately 4–6 feet of unobstructed space above the chimney, and at least 6 feet between the front of an operating fireplace and flammable materials. Review the complete owner's manual before installation.
Can you burn wood in the Cal Flame Cabo 901-1?
No. The Cabo 901-1 is a gas fireplace. Do not burn wood, charcoal, compressed logs, or other solid fuels in the fireplace.
Does the Cal Flame Cabo 901-1 require professional installation?
Cal Flame recommends installation by a licensed or qualified contractor. Gas installation should comply with applicable requirements, and LP conversion should be performed by an authorized technician.
How should the Cal Flame Cabo 901-1 be maintained?
The manufacturer recommends inspection before initial use, cleaning at least annually, and inspection by a qualified service person. Burner areas and gas connections should be periodically checked, and the exterior should not be pressure washed.
What warranty does the Cal Flame Cabo outdoor fireplace have?
The manufacturer's owner's manual describes limited warranty periods of 5 years for specified structural components, 2 years for specified hardware, 1 year for the fireplace finish, and 90 days for plastic components. Additional terms and exclusions apply.
Before You Order
Confirm Before Purchase
- The fireplace will be installed outdoors in a suitable stationary location.
- The site can accommodate the 46"W × 28"D × 59"H dimensions.
- The foundation can support the approximately 600-lb. fireplace.
- A level 2–4-inch cement foundation can be provided.
- The required combustible clearances can be maintained.
- The factory Natural Gas configuration matches your project, or LP conversion is separately planned.
- The gas supply and installation will be completed according to manufacturer and local requirements.
- The delivery route can accommodate the fireplace.
Do Not Assume
- That LP conversion equipment is included.
- That the fireplace is approved for indoor installation.
- That wood or charcoal can be burned in the firebox.
- That a loose or combustible surface is an acceptable foundation.
- That all clearance values refer to the same area around the fireplace.
- That Natural Gas and LP pressure requirements are interchangeable.
- That optional stone, tile, mantle, or log configurations are standard.
Final planning check: Use the Cabo FRP-901-1 technical drawing for model-specific dimensions and gas-inlet details, and use the Cal Flame Fireplace Owner's Manual for fuel connections, foundation, clearances, conversion, operation, maintenance, safety, and warranty guidance.
