Cal Flame Escape Series Outdoor Fireplace
Cal Flame Cancun FRP-903-2 Contemporary Outdoor Gas Fireplace with Bottom Mantel – 90,000 BTU
The Cal Flame Cancun 903-2 / FRP-903-2 is a tall architectural outdoor gas fireplace designed for permanent patios, outdoor kitchens, courtyards, pool areas, and entertainment spaces. Its 81-inch overall height, extended bottom mantel, vented firebox, electronic ignition, and 22-inch double burner rated up to 90,000 BTU/hr create a substantial fireplace focal point for an outdoor living area.
Series
Escape Series
Model / SKU
Cancun 903-2 / FRP-903-2
Maximum Input
90,000 BTU/hr
Factory Fuel
Natural Gas
LP Compatible
Yes, With Conversion
Burner
22" Double Burner
Overall Size
48"W × 41"D × 81"H
Design Feature
Extended Bottom Mantel

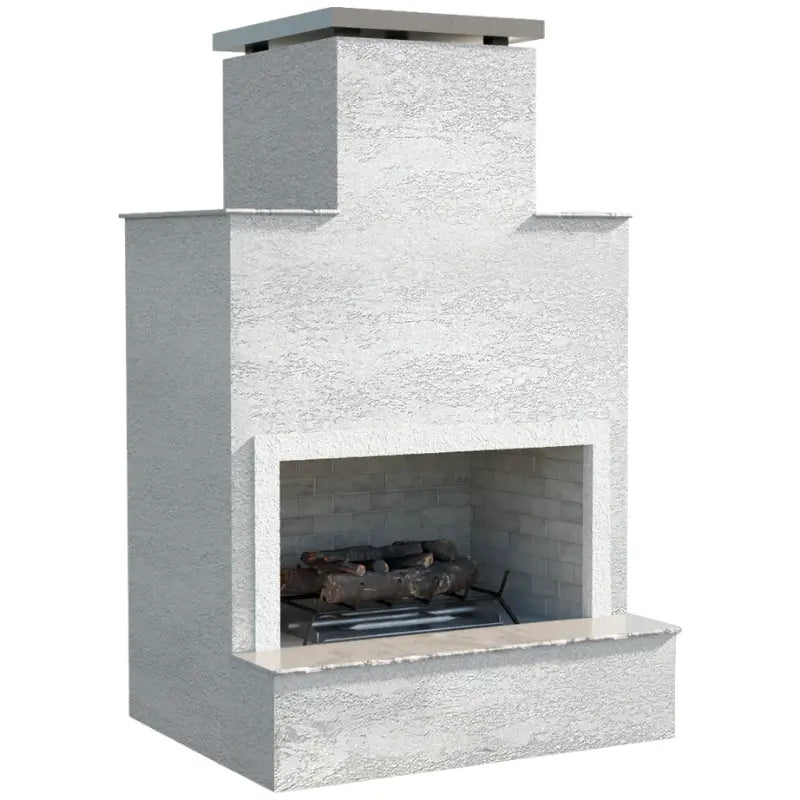

A Tall Contemporary Outdoor Fireplace With an Extended Bottom Mantel
The Cancun 903-2 is designed for buyers who want a permanent architectural fireplace rather than a compact fire table or portable fire feature.
Its 48-inch width, 41-inch depth, and 81-inch height give the fireplace significant visual presence, while the extended lower mantel helps frame the firebox and broaden the overall architectural footprint.
Inside, the Cancun combines an 8-piece, 24-inch Weathered Oak log set, built-in 24-inch log grate, herringbone ceramic brick, electronic ignition, and a 22-inch double burner rated at up to 90,000 BTU/hr.
Important before ordering: The Cancun is supplied for Natural Gas operation and has a listed product weight of approximately 650 lb. Plan the foundation, delivery route, gas service, outdoor clearances, and final installation area before purchase.
Cal Flame Cancun 903-2 at a Glance
Product Type
Outdoor Gas Fireplace
Configuration
Vented Fireplace
Maximum Input
90,000 BTU/hr
Ignition
Electronic Ignition
Standard Log Set
8-Piece, 24" Weathered Oak
Is the Cal Flame Cancun FRP-903-2 Right for Your Project?
Best For
- Permanent outdoor living and entertainment spaces.
- Patios, courtyards, pool areas, and outdoor kitchens.
- Buyers wanting a tall contemporary fireplace centerpiece.
- Projects that benefit from an extended bottom mantel.
- Natural Gas installations.
- Outdoor fireplaces requiring up to 90,000 BTU/hr maximum input.
- Buyers who prefer a decorative gas-log presentation.
- Projects where optional stone, tile, or alternate mantel treatments are desired.
Consider Another Fireplace If
- You need an indoor fireplace.
- You need a portable or frequently movable fire feature.
- You want to burn wood, charcoal, or compressed logs.
- Your site cannot accommodate the 48"W × 41"D × 81"H fireplace.
- You cannot provide an appropriate permanent foundation.
- You need a factory Propane fireplace with no fuel conversion required.
Why Choose the Cal Flame Cancun 903-2?
90,000 BTU Double Burner
A 22-inch double burner provides up to 90,000 BTU/hr of maximum gas input for a substantial outdoor flame presentation.

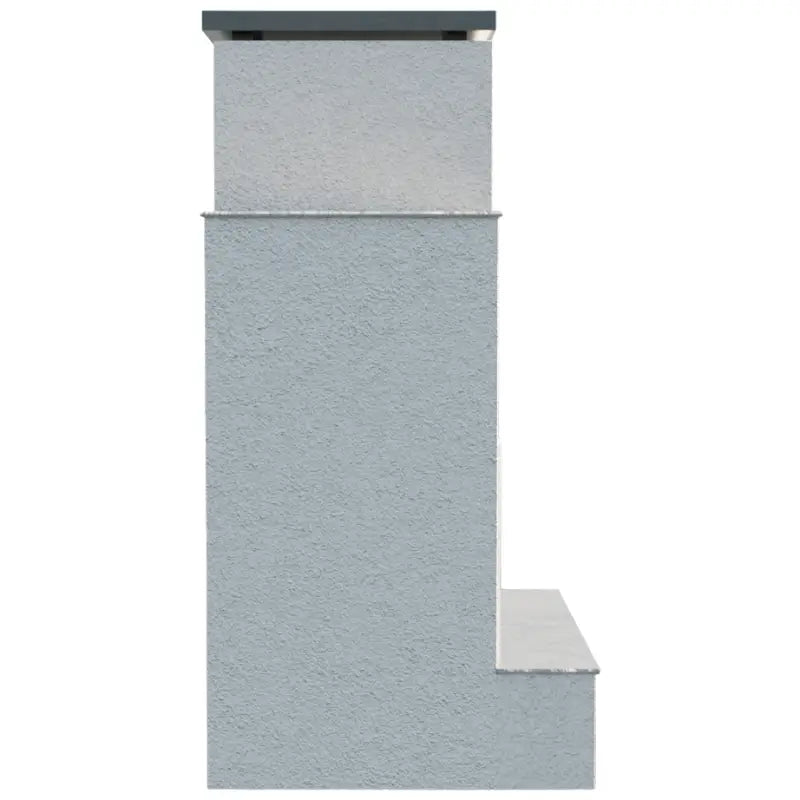

Extended Bottom Mantel
The bottom mantel visually frames the firebox and gives the Cancun a broader, more architectural appearance.
81-Inch Overall Height
The tall chimney-style structure provides significantly more vertical presence than a compact outdoor fire feature.
Herringbone Ceramic Brick
Herringbone-pattern ceramic brick lines the bottom, sides, and rear of the firebox.
Weathered Oak Log Set
The standard configuration includes an 8-piece, 24-inch Weathered Oak log set positioned over a built-in 24-inch log grate.

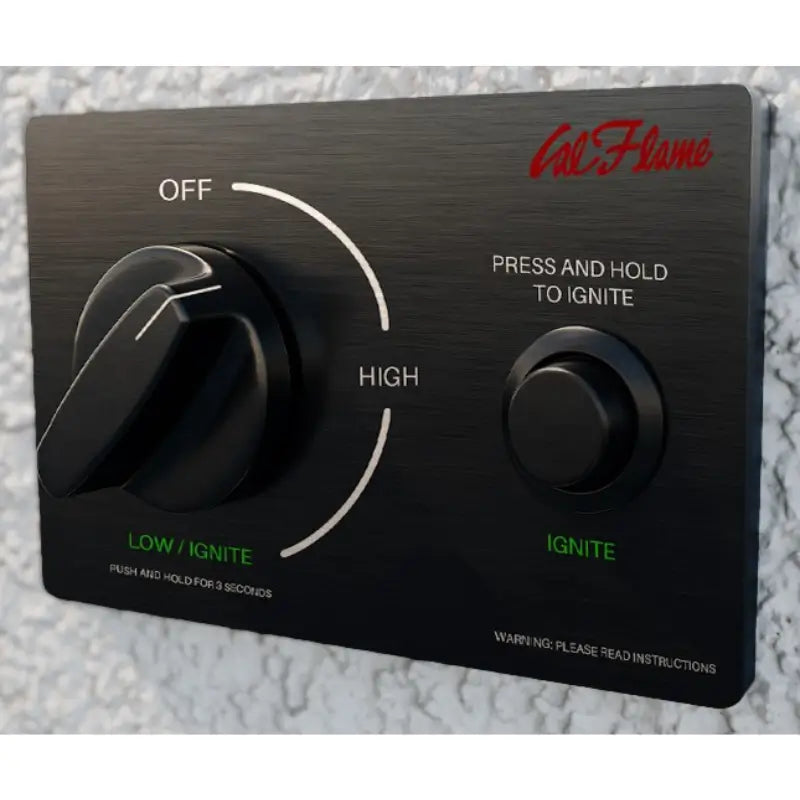

Electronic Ignition
An electronic ignition system provides burner lighting using the fireplace's designated controls.
Standard Cancun 903-2 Features
Stucco Exterior
Standard exterior finish identified for the FRP-903-2 configuration.
22" Double Burner
Rated for maximum input up to 90,000 BTU/hr.
Built-In 24" Log Grate
Supports the standard decorative gas-log presentation.
8-Piece Weathered Oak Logs
Standard 24-inch decorative log set.
Natural Gas Configuration
Factory fuel configuration.
LP Convertible
Convertible with the appropriate LP conversion equipment.
Vented Fireplace
The product information identifies the Cancun as a vented fireplace.
Electronic Ignition
Electronic burner ignition system.

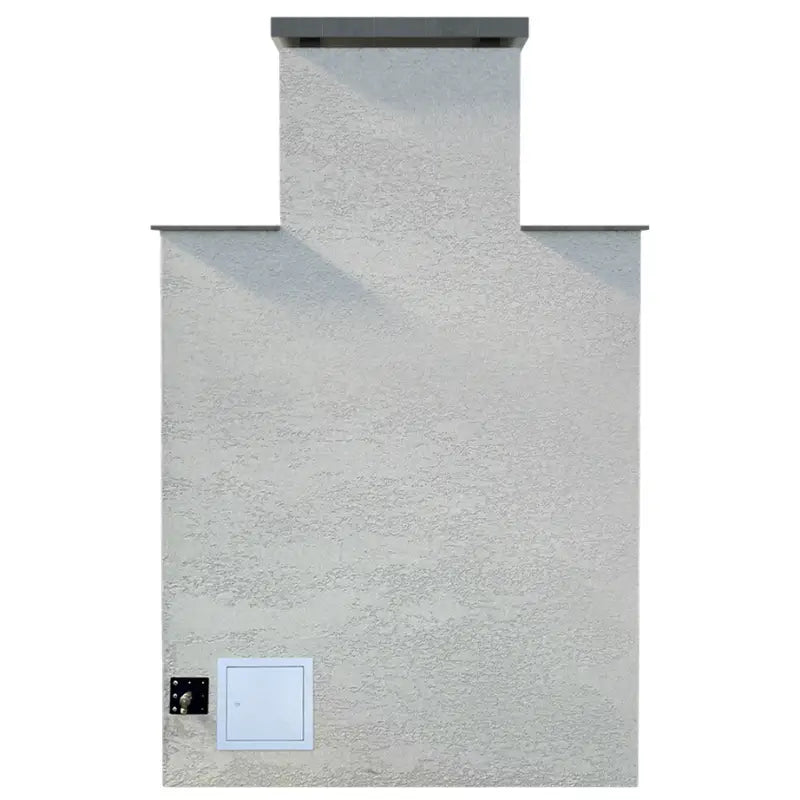

12" Access Door
Shown on the manufacturer technical drawing.
Available Cancun 903-2 Options
| Front Upper Mantel |
Optional |
| Cultured Stone |
Optional Exterior Finish |
| Cal Faux Stone |
Optional — Front and Sides with Rear Stucco |
| 24" Log Set |
Optional 10-Piece Configuration |
| Porcelain Tile |
Optional Upper Mantel Treatment |
| Natural Stone Tile |
Optional Field and Border Treatment |
Option note: Stucco and the 8-piece Weathered Oak log set are identified as part of the standard configuration. Optional stone, tile, mantel, and alternate log-set treatments should not be assumed to be included.
Natural Gas Standard With LP Conversion Capability
The Cal Flame Cancun 903-2 is factory configured for Natural Gas operation.
Factory Fuel
Natural Gas / NG
Optional Converted Fuel
Liquid Propane / LP using the appropriate conversion equipment.
LP conversion: Do not treat the Cancun as a factory Propane fireplace. Appropriate LP conversion equipment is required, and Cal Flame advises that conversion and testing be completed by qualified personnel.
Natural Gas Installation Planning
Natural Gas Service
The owner's manual specifies a 3/4-inch Natural Gas pipe running from the home to the fireplace location.
Shutoff Valve
The gas service should terminate with a shutoff valve and 1/2-inch male fitting.
Flexible Connection
The burner-preparation guidance references an outdoor-rated flexible gas connection using a 3/8-inch NPT fitting.
Regulated Supply
The fireplace must not be connected to an unregulated gas supply.
Leak Testing
A gas leak test is required after connection and following relevant gas-system service.
Qualified Installation
Cal Flame recommends installation by a licensed contractor and compliance with applicable local requirements.
Natural Gas Performance Specifications
| Maximum Input |
90,000 BTU/hr |
| Manifold Pressure |
10" Water Column |
| Maximum Gas Supply Pressure |
11" Water Column |
| Maximum Inlet Supply Pressure |
13" Water Column |
Pressure verification: Final gas pressure and connection requirements should be verified against the fireplace rating plate and current manufacturer instructions before installation.
Liquid Propane Conversion Planning
The Cancun can be converted from Natural Gas to Liquid Propane using the appropriate Cal Flame conversion equipment.
The fireplace itself does not contain an LP-cylinder enclosure. A converted installation using a Propane cylinder requires a separate appropriately ventilated enclosure.
LP cylinder placement: Do not place a Propane cylinder inside the fireplace, underneath the hearth, or near the burner.
Cancun FRP-903-2 Dimensions & Space Planning
| Overall Width |
48 in. |
| Overall Depth |
41 in. |
| Overall Height |
81 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Access Door |
12 in. |
| Gas Inlet Detail |
1/2" to 3/8" Elbow |
| Approximate Weight |
650 lb. |
Planning note: The physical fireplace dimensions are only part of the required site area. Review the manufacturer technical drawing and clearance requirements before preparing the foundation or gas connection.
Installation & Placement Requirements
Outdoor Stationary Use Only
Do not install the Cancun in an enclosed room, garage, shed, breezeway, recreational vehicle, trailer, boat, yacht, or other unsuitable enclosed or mobile location.
Outdoor Ventilation
Select a location with sufficient outdoor airflow and consider windows, surrounding structures, and occupied spaces.
Wind Exposure
Wind conditions should be considered when determining the final installation location.
Avoid Pooling Water
Do not position the fireplace where water is likely to collect around the structure for extended periods.
Service Access
Maintain access to shutoff valves, gas controls, and service components after installation.
Professional Installation
Cal Flame recommends installation by a licensed contractor.
Foundation Requirements
Cal Flame specifies a level cement foundation approximately 2–4 inches thick (5–10 cm).
Required Foundation Characteristics
- Level.
- Quality cement construction.
- Approximately 2–4 inches thick.
- Capable of supporting the approximately 650-lb. fireplace.
- Located where water will not collect around the unit.
Do Not Use as a Substitute
- Loose materials.
- Gravel.
- Uneven surfaces.
- Combustible supporting materials.
- Tile as the structural foundation.
Clearance & Location Considerations
Cal Flame provides different requirements for different areas surrounding the fireplace.
| Flammable Materials |
Minimum 24 in. in all directions, including applicable overhead materials |
| Front of Operating Fireplace |
At least 6 ft. from combustible material |
| Above Chimney |
Approximately 4–6 ft. free of flammable materials |
Clearance warning: These values apply to different areas and conditions around the fireplace and should not be treated as interchangeable. Use the complete owner's manual and applicable local requirements when determining final placement.
Safe Fireplace Operation
Gas Fuel Only
Do not burn wood, charcoal, compressed logs, or other solid fuels in the Cancun.
Keep Burner Clear
Decorative media must not obstruct the burner. Lava rock should not be placed directly on the gas burner.
Inspect Before Use
Do not operate the fireplace with damaged, loose, leaking, or obstructed gas components.
Do Not Leave Unattended
Keep children, clothing, combustible materials, and other vulnerable items away from the flame and hot surfaces.
Gas Leak Testing
Cal Flame instructs owners to perform a gas leak test at least once per year and whenever any part of the gas system has been disconnected, replaced, or serviced.
Leak testing must be performed outdoors in a well-ventilated area without smoking, open flames, or another ignition source nearby.
If a leak cannot be stopped: Discontinue use and have the gas system inspected and repaired by qualified service personnel before operating the fireplace again.
Care & Maintenance
Inspect Before Initial Use
Inspect the fireplace, burner, ignition system, logs, and gas connections before first operation.
Annual Cleaning
Cal Flame recommends cleaning the fireplace at least annually.
Qualified Inspection
The fireplace should be inspected by a qualified service person according to manufacturer guidance.
Burner Maintenance
Periodically remove decorative logs and inspect the burner and air-shutter area for dirt or debris.
Decorative Log Care
Clean soot from logs using a dry nylon-bristle brush or cloth. Handle ceramic logs carefully to avoid damage.
Avoid Pressure Washing
Do not use a powered pressure washer on stucco, grout, rock, stone, or related fireplace finishes.
Cleaning reminder: Always allow the fireplace and decorative media to cool completely before cleaning or servicing.
Cal Flame Cancun Limited Warranty Overview
| Structure |
5 Years |
| Hardware |
2 Years |
| Finish |
1 Year |
| Plastic Components |
90 Days |
Structural coverage applies to specified welding points and cement-board components related to structural integrity. Hardware coverage includes specified components such as the burner and fire grate, while finish coverage applies to qualifying defects involving stucco, stone, and tile.
Warranty limitations: Decorative fire logs and lava rock are not covered by the limited warranty. Improper installation, misuse, unauthorized repairs, commercial use, relocation, improper cleaning, and other listed conditions can affect coverage.
Complete Cal Flame Cancun FRP-903-2 Technical Specifications
| Brand |
Cal Flame |
| Series |
Escape Series |
| Model |
Cancun 903-2 |
| Item / Drawing Number |
FRP-903-2 / 903-2 |
| Product Type |
Outdoor Gas Fireplace |
| Location |
Outdoor |
| Use Type |
Stationary |
| Vent Configuration |
Vented Fireplace |
| Standard Fuel |
Natural Gas |
| LP Capability |
Convertible With Appropriate LP Conversion Equipment |
| Maximum Input |
90,000 BTU/hr |
| Burner |
22" Double Burner |
| Log Grate |
Built-In 24" Log Grate |
| Standard Log Set |
8-Piece, 24" Weathered Oak Log Set |
| Ignition |
Electronic Ignition |
| Standard Exterior Finish |
Stucco |
| Firebox Interior |
Herringbone Ceramic Brick — Bottom, Sides & Rear |
| Overall Width |
48 in. |
| Overall Depth |
41 in. |
| Overall Height |
81 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Access Door |
12 in. |
| Gas Inlet Detail |
1/2" to 3/8" Elbow |
| Approximate Weight |
650 lb. |
Flame Authority Expert Recommendation
Choose the Cal Flame Cancun FRP-903-2 when you want a tall contemporary outdoor fireplace that functions as a major architectural feature rather than merely a source of flame.
Its 81-inch height, extended bottom mantel, 34-inch firebox, 90,000 BTU double burner, Weathered Oak log presentation, herringbone ceramic-brick interior, and vented fireplace design make it particularly suited to permanent patios, courtyards, poolside spaces, outdoor kitchens, and entertainment areas.
Before ordering, confirm the complete 48"W × 41"D × 81"H footprint, approximately 650-lb. weight, delivery access, level cement foundation, Natural Gas service, outdoor ventilation, clearances, and selected exterior finish.
If Propane operation is planned, account for the required LP conversion and separately ventilated cylinder enclosure instead of assuming the fireplace is ready for direct Propane connection.
Official Manufacturer Resources
Cal Flame Fireplace – Owner's Manual
Installation guidance, Natural Gas requirements, LP conversion information, foundation, placement, operation, maintenance, safety, leak testing, and warranty information.
Cal Flame Cancun FRP-903-2 – Technical Drawing & Dimensions
Model-specific dimensions, firebox measurements, gas-inlet location, burner configuration, standard features, and manufacturer-listed options.
Cal Flame Cancun FRP-903-2 FAQs
Is the Cal Flame Cancun 903-2 Natural Gas or Propane?
The Cancun 903-2 is factory configured for Natural Gas. Liquid Propane requires the appropriate LP conversion equipment and proper conversion before operation.
Can the Cal Flame Cancun 903-2 be converted to Propane?
Yes. The Cancun can be converted to Liquid Propane using appropriate conversion equipment, but Cal Flame advises that conversion and testing be completed by qualified personnel.
How many BTUs does the Cal Flame Cancun 903-2 produce?
The Cancun uses a 22-inch double burner rated at up to 90,000 BTU/hr.
What are the dimensions of the Cal Flame Cancun 903-2?
The fireplace measures approximately 48"W × 41"D × 81"H. Its firebox measures approximately 34"W × 19"D × 18"H.
Can the Cancun 903-2 be installed indoors?
No. Cal Flame specifies outdoor stationary use only and prohibits installation in enclosed rooms, garages, sheds, breezeways, and similar enclosed spaces.
What foundation does the Cancun 903-2 require?
Cal Flame specifies a level cement foundation approximately 2–4 inches thick. Loose, unstable, gravel, tile, and combustible supporting materials should not be used as substitutes.
Does the Cancun 903-2 include a Propane tank enclosure?
No. An LP-converted installation requires the Propane cylinder to be placed in a separate appropriately ventilated enclosure. Do not place an LP cylinder inside or beneath the fireplace.
What log set comes standard with the Cancun 903-2?
The manufacturer information identifies an 8-piece, 24-inch Weathered Oak log set as standard. A 10-piece 24-inch log-set configuration is separately listed as an option.
Does the Cal Flame Cancun have electronic ignition?
Yes. The Cancun 903-2 uses electronic ignition.
Is the Cancun 903-2 vented or vent-free?
The supplied product information identifies the Cancun 903-2 as a vented fireplace.
Can I burn wood or charcoal in the Cancun 903-2?
No. The Cancun is designed for Natural Gas operation or properly converted Liquid Propane operation. Do not burn wood, charcoal, compressed logs, or other solid fuels.
What finish comes standard on the Cancun?
Stucco is the standard finish. Cultured Stone, Cal Faux Stone, porcelain tile, natural stone tile, and selected mantel treatments are listed as optional configurations.
Does the Cancun require professional installation?
Cal Flame recommends installation by a licensed contractor. Gas connections and LP conversion should comply with applicable requirements and be completed by appropriately qualified personnel.
Can I pressure wash the Cal Flame Cancun?
No. Cal Flame warns against powered pressure washing because high-pressure water can damage stucco, grout, stone, and related masonry-style finishes.
How often should the Cancun gas system be leak tested?
Cal Flame instructs owners to perform a leak test at least once per year and whenever part of the gas system has been disconnected, replaced, or serviced.
What warranty applies to the Cal Flame Cancun 903-2?
The supplied owner's manual lists limited coverage of 5 years for specified structural components, 2 years for specified hardware, 1 year for qualifying finish components, and 90 days for plastic components. Full warranty conditions and exclusions apply.
Before You Order
Confirm Before Purchase
- The fireplace will be installed outdoors in a stationary location.
- The site can accommodate the 48"W × 41"D × 81"H dimensions.
- The supporting foundation can handle the approximately 650-lb. fireplace.
- A level 2–4-inch cement foundation can be provided.
- The Natural Gas service has been correctly planned.
- LP conversion is separately planned if Propane operation is required.
- The required outdoor ventilation and combustible clearances can be maintained.
- The delivery route can accommodate the fireplace.
- The selected finish and optional features have been confirmed.
Do Not Assume
- That the Cancun arrives configured for Propane.
- That LP conversion equipment is included.
- That a Propane cylinder can be stored inside the fireplace.
- That the Cancun is suitable for indoor or enclosed-patio installation.
- That wood or charcoal can be burned in the firebox.
- That gravel, tile, or another loose material is a suitable structural foundation.
- That optional stone, tile, mantel, or alternate log configurations are standard.
- That all clearance figures refer to the same area around the fireplace.
Final planning check: Use the Cancun FRP-903-2 technical drawing for model-specific dimensions, burner details, gas-inlet location, standard features, and options, and use the Cal Flame Fireplace Owner's Manual for fuel, LP conversion, foundation, placement, clearances, leak testing, maintenance, safety, and warranty guidance.
