Cal Flame Platinum Series Outdoor Kitchen
Cal Flame Carmel Q 870 R/L Outdoor BBQ Kitchen – BBK-870 R/L

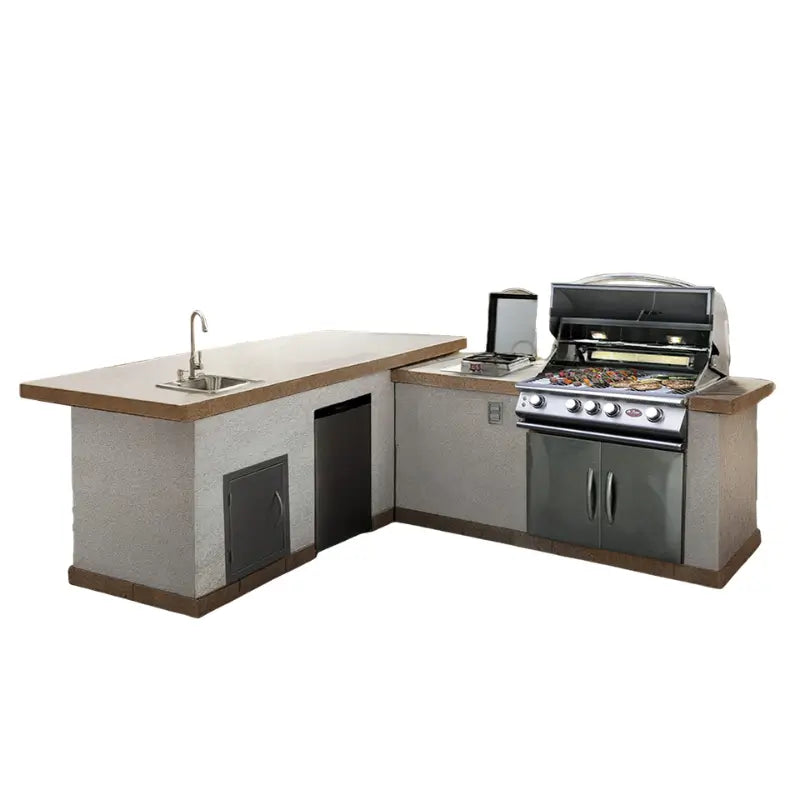

The Cal Flame Carmel Q 870 R/L (BBK-870 R/L) is a premium L-shaped outdoor BBQ kitchen designed for cooking, preparation, serving, and entertaining in a dedicated outdoor living space. Available in both 870-L left-hand and 870-R right-hand configurations, the Carmel Q can be matched to the orientation of the planned patio, seating area, traffic flow, and utility locations.
Series
Platinum Series
Model / SKU
Carmel Q 870 / BBK-870 R/L
Layout
L-Shaped
Standard Grill
P4 4-Burner LP
Orientation
870-L or 870-R
Max Plan Dimension
111 1/2 Inches
Included Sink
Faucet & Soap Dispenser
Application
Outdoor Use Only

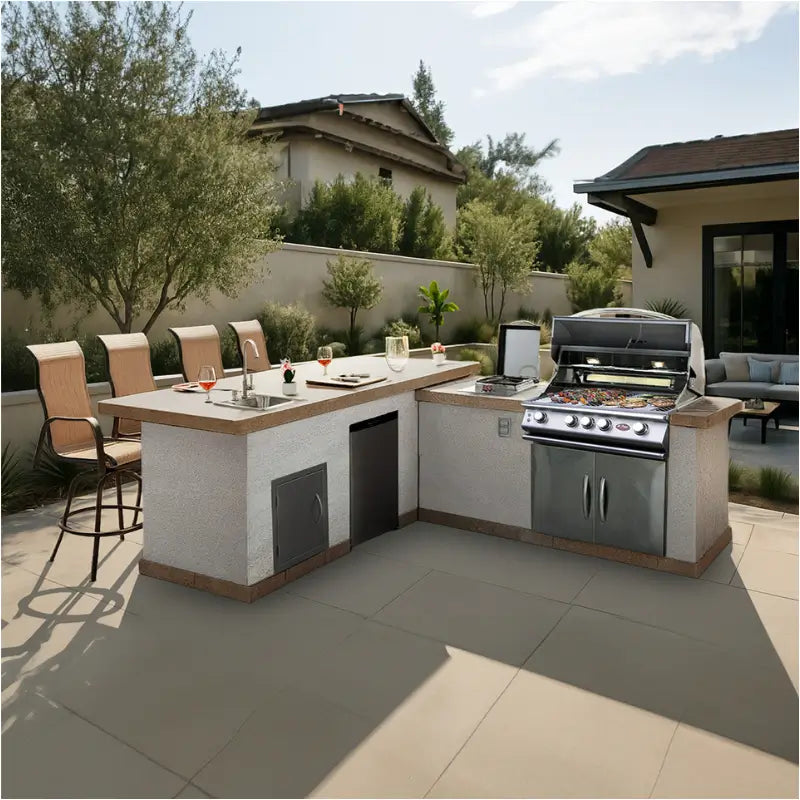

A Premium L-Shaped Outdoor Kitchen for Cooking & Entertaining
The Carmel Q combines a substantial outdoor cooking station with extended countertop space designed for food preparation, serving, and outdoor entertaining.
The supplied product description identifies a Cal Flame P4 four-burner LP grill, stainless steel refrigerator, side burner, sink with faucet and soap dispenser, and outdoor electrical as included equipment.
The 2026 manufacturer dimensional drawing identifies the Carmel Q as part of the Platinum Series and lists 12" × 24" porcelain tile, stucco, interior electrical, a P4 four-burner LP grill, and a 30-inch double access door among its standard features.
Important before ordering: Select the correct 870-L or 870-R orientation and verify the complete L-shaped footprint, foundation, outdoor ventilation, site access, and required utility locations before delivery.
Cal Flame Carmel Q 870 at a Glance
Standard Grill
Cal Flame P4, 4 Burners
Standard Fuel
Liquid Propane / LP
Countertop
12" × 24" Porcelain Tile
Exterior
Ameristone Stucco
Access Door
30" Double Access Door
Is the Carmel Q 870 Right for Your Outdoor Space?
Best For
- Dedicated outdoor cooking and entertaining areas.
- Homeowners wanting a substantial L-shaped barbecue island.
- Outdoor spaces that can accommodate the Carmel Q's large footprint.
- Projects where left- or right-hand orientation matters.
- Buyers wanting integrated grilling, refrigeration, side cooking, sink functionality, and counter space.
- Permanent or carefully planned outdoor-kitchen installations.
Not the Best Fit If
- You need an indoor barbecue installation.
- Your site cannot provide adequate outdoor ventilation.
- The full L-shaped footprint cannot fit the intended space.
- You cannot provide a stable, flat, and level supporting surface.
- Required gas, electrical, water, and drainage utilities have not been planned.
- Neither the 870-L nor 870-R orientation works with your site.
Key Carmel Q 870 Features
L-Shaped Outdoor Kitchen
The Carmel Q uses an L-shaped configuration that creates an extended workspace for cooking, preparation, serving, and outdoor entertaining.
Left or Right Configuration
Choose 870-L or 870-R according to the direction the extended island section needs to project in the planned installation.
P4 Four-Burner LP Grill
A Cal Flame P4 four-burner LP grill is identified as standard equipment on the manufacturer drawing.
Integrated Refrigerator
The supplied product description identifies a stainless steel refrigerator as included.
Side Burner
A side burner adds a secondary outdoor cooking position beside the main grill.
Sink, Faucet & Soap Dispenser
The supplied product description includes an integrated sink with faucet and soap dispenser.
Porcelain Tile Countertop
The standard configuration specifies 12-inch × 24-inch porcelain tile for the field and border treatment.
Interior Electrical
Interior electrical is listed as standard and supports applicable installed electrical components.
30-Inch Double Access Door
The manufacturer drawing lists one 30-inch double access door as standard equipment.
Included Outdoor Kitchen Equipment
According to the supplied product description, the Carmel Q 870 R/L includes:
Cal Flame P4 Grill
Four-burner Liquid Propane grilling configuration.
Stainless Steel Refrigerator
Integrated cold-storage appliance identified in the supplied product description.
Side Burner
Additional outdoor cooking surface.
Sink
Sink with faucet and soap dispenser.
Outdoor Electrical
Electrical capability included in the supplied product description.
Source distinction: The manufacturer drawing separately identifies the P4 four-burner LP grill, porcelain tile, stucco, interior electrical, and 30-inch double access door as standard features. Confirm the final appliance and accessory configuration on the actual order.
Carmel Q 870-L vs. 870-R
The Carmel Q is available in mirrored left-hand and right-hand configurations. Orientation is an important site-planning decision because it affects seating, walkways, utilities, and the direction of the extended island section.
870-L
Choose the manufacturer-drawn left-hand configuration when that orientation best matches the installation area.
870-R
Choose the manufacturer-drawn right-hand configuration when that orientation best fits the planned patio and utility layout.
Planning tip: Review the Carmel Q dimensional drawing before selecting 870-L or 870-R. Do not determine the correct orientation from the model name alone.
Carmel Q 870 Dimensions & Space Planning
Because the Carmel Q is an L-shaped island, one width × depth measurement does not accurately describe the complete footprint.
| Maximum Dimension Shown Across Top |
111 1/2 in. |
| Long Island Section |
102 1/2 in. |
| Long Section Width |
40 in. |
| Grill-Side Overall Dimension |
93 in. |
| Inner Long Section Dimension |
72 1/4 in. |
| Grill-Side Section Dimension |
72 in. |
| Grill-Side Cabinet Span |
67 1/2 in. |
| Grill-Side Depth |
30 1/2 in. |
| End Section Dimension |
25 1/2 in. |
| Elevation Height Shown |
37 in. |
Dimension clarification: The supplied short-form product data lists 111.50"W × 40"H. The manufacturer drawing shows 111 1/2 inches as an overall plan dimension, 40 inches as the width of the long island section, and 37 inches in the elevation views. Use the manufacturer drawing for final site planning.
Installation & Site Planning
Outdoor Use Only
Cal Flame specifies barbecue islands for outdoor use only. Do not install in an enclosed garage, shed, breezeway, or beneath a sealed overhead structure.
Adequate Ventilation
Maintain sufficient ventilation and access when positioning the island near walls or fences.
Avoid Windows
Cal Flame advises against placing the barbecue island under or near windows that can open into the home.
Stable Foundation
The island requires a solid, flat, and level supporting surface.
Plan Utilities Early
Gas, electrical, water, and drainage should be planned during foundation preparation.
Local Requirements
Installation and utilities must comply with applicable state and local requirements.
Foundation Requirements
Cal Flame recommends a permanent concrete slab where an appropriate existing installation surface is not available.
Suitable Surfaces
- Permanent concrete slab.
- Properly prepared brick surface.
- Properly prepared paver surface.
- Structurally adequate deck.
Do Not Install Directly On
- Gravel.
- Sand.
- Timbers.
- Dirt.
- Grass.
Deck Installation
Deck installation is possible only when the deck can support the full weight of the barbecue island, grill, and installed accessories.
Structural planning: The manufacturer recommends having a contractor or structural engineer determine whether the deck can safely support the installation.
Electrical Planning
Cal Flame requires applicable electrical installation to comply with state and local codes and states that the electrical circuit should be installed by an electrical contractor and approved by the applicable local inspector.
For an applicable 120V configuration, the owner's manual specifies a dedicated 120V, 20-amp grounded electrical service.
The circuit should not be shared with other appliances or lights.
Important: Supplying electrical power contrary to the manufacturer requirements can affect independent testing-agency listing and manufacturer warranty. Verify requirements for the exact installed configuration.
Gas & Fuel Planning
The Carmel Q manufacturer drawing identifies the standard P4 grill configuration as Liquid Propane / LP.
The general Barbecue Islands Owner's Manual also contains natural-gas installation guidance for applicable configurations.
Fuel configuration note: General natural-gas instructions do not change the documented standard LP configuration of this Carmel Q package. Confirm the actual ordered fuel configuration before preparing permanent gas service.
Sink, Water & Drainage Planning
Because the supplied Carmel Q description includes a sink with faucet, water and drainage should be considered during site preparation.
The manufacturer manual describes water-supply arrangements that can include a garden-hose connection or a 1/2-inch cold-water line.
Drainage approaches described in the manual include collection in a five-gallon bucket, drainage to an appropriate garden location, or connection to a gray-water drain where permitted and correctly installed.
Plumbing guidance: Plumbing and drainage must comply with applicable state and local codes. Do not assume every Carmel Q installation uses the same water or drainage arrangement.
Manufacturer-Listed Options
| Option |
Manufacturer Reference |
| Undercounter Lights |
OPTQ820L |
| Freedom Sound System — Bluetooth, Powered Subwoofer and 2 Speakers |
OPTQ23-FS23 |
| Umbrella Hole Only |
OPTQ23-837 |
Optional equipment: These items should not be treated as standard equipment unless specifically included with the ordered Carmel Q configuration.
Complete Cal Flame Carmel Q 870 Technical Specifications
| Brand |
Cal Flame |
| Product Name |
Carmel Q 870 R/L |
| Model / SKU |
BBK-870 R/L |
| Manufacturer Drawing Reference |
870-L / 870-R |
| Series |
Platinum Series |
| Product Type |
Outdoor BBQ Kitchen / Barbecue Island |
| Layout |
L-Shaped |
| Orientation |
Left 870-L or Right 870-R |
| Main Grill |
Cal Flame P4 |
| Main Grill Burners |
4 |
| Standard Grill Fuel |
Liquid Propane / LP |
| Refrigerator |
Stainless Steel Refrigerator per Supplied Product Description |
| Side Burner |
Included per Supplied Product Description |
| Sink |
Included with Faucet and Soap Dispenser per Supplied Product Description |
| Countertop |
12" × 24" Porcelain Tile |
| Exterior Finish |
Ameristone Stucco per Supplied Product Specifications |
| Electrical |
Interior Electrical Listed as Standard |
| Access Door |
30" Double Access Door |
| Maximum Plan Dimension Shown |
111 1/2 in. |
| Long Island Dimension Shown |
102 1/2 in. |
| Long Island Width Shown |
40 in. |
| Grill-Side Overall Dimension |
93 in. |
| Elevation Height Shown |
37 in. |
| Installation Environment |
Outdoor Use Only |
| Foundation Requirement |
Stable, Flat, Level Supporting Surface |
Outdoor Kitchen Care & Maintenance
Tile & Grout
Clean spills promptly and avoid hard impacts that can chip tile. Remove standing water and avoid harsh abrasive cleaners.
Stainless Steel
Clean and protect exposed stainless-steel components periodically. Salt, humidity, and coastal air require additional maintenance.
Grill Interior
Clean internal grill components regularly based on use and keep the area surrounding the grill free from combustible materials.
Maintain Ventilation
Do not obstruct combustion or ventilation airflow around the grilling equipment.
Flame Authority Expert Recommendation
Choose the Cal Flame Carmel Q 870 R/L when you want a large L-shaped outdoor kitchen that combines grilling, refrigeration, side cooking, sink functionality, countertop preparation space, and outdoor entertaining in one integrated installation.
The most important buying decision is not simply the grill itself, but whether the 870-L or 870-R orientation and complete L-shaped footprint work with your actual site.
Before ordering, compare the manufacturer drawing with the installation area and confirm orientation, foundation, ventilation, delivery access, LP fuel planning, electrical service, sink water supply, drainage, and any optional equipment.
Official Manufacturer Resources
Cal Flame Carmel Q 870 R/L – Dimensions & Specification Drawing
870-L and 870-R layouts, product dimensions, standard features, and manufacturer-listed options.
Cal Flame Barbecue Islands – Owner's Manual
Site planning, foundations, electrical requirements, gas service, water and drainage, installation, cleaning, maintenance, and warranty guidance.
Cal Flame Carmel Q 870 FAQs
What is the difference between the Cal Flame Carmel Q 870-L and 870-R?
The 870-L and 870-R are mirrored left- and right-hand Carmel Q layouts. Choose the orientation that matches the actual installation area, traffic flow, seating plan, and utility locations.
Is the Cal Flame Carmel Q 870 for outdoor use only?
Yes. Cal Flame specifies barbecue islands for outdoor use only. Do not install the Carmel Q in an enclosed garage, shed, breezeway, or beneath a sealed overhead structure.
Does the Carmel Q 870 come with a four-burner grill?
Yes. The manufacturer drawing lists a Cal Flame P4 four-burner LP grill as standard equipment for the Carmel Q 870-L/R.
Does the Carmel Q 870 include a refrigerator, side burner, and sink?
The supplied product description identifies a stainless steel refrigerator, side burner, and sink with faucet and soap dispenser as included. Confirm the final equipment package on the actual order before purchase.
What type of foundation does the Cal Flame Carmel Q 870 require?
The island requires a stable, flat, and level foundation, with a permanent concrete slab recommended. A properly prepared brick or paver surface can also be suitable.
Can the Carmel Q 870 be installed on a deck?
Only when the deck can support the complete weight of the barbecue island, grill, and accessories. Cal Flame recommends professional structural evaluation when necessary.
What utilities should I plan before installing the Carmel Q 870?
Plan the applicable gas, electrical, water, and drainage connections before installation based on the ordered equipment and applicable local requirements.
How much space do I need for the Cal Flame Carmel Q 870?
The manufacturer drawing shows an L-shaped footprint with major dimensions including 111 1/2 inches and 102 1/2 inches. A single width measurement is not sufficient; use the complete 870-L or 870-R dimensional drawing to confirm fit.
Is natural gas standard on the Carmel Q 870?
No. The supplied manufacturer drawing identifies the standard P4 grill configuration as Liquid Propane / LP. General natural-gas guidance in the owner's manual does not establish natural gas as the standard Carmel Q configuration.
Before You Order
Confirm Before Purchase
- You have selected the correct 870-L or 870-R orientation.
- The complete L-shaped footprint fits the installation area.
- The installation is outdoors and adequately ventilated.
- The supporting surface is stable, flat, and level.
- The standard P4 Liquid Propane configuration meets your fuel plan.
- Electrical requirements have been confirmed.
- Water supply and drainage have been planned for the included sink.
- The final order confirms the refrigerator, side burner, sink, and other included equipment.
- Any optional lighting, sound, or umbrella-hole features have been separately selected.
Do Not Assume
- That the short-form 111.50"W × 40"H data fully describes the island.
- That 870-L and 870-R can be selected interchangeably after site preparation.
- That natural gas is the standard fuel configuration.
- That every Carmel Q installation uses the same plumbing arrangement.
- That optional lighting, sound, or umbrella-hole features are included.
- That gravel, sand, dirt, grass, or timbers are suitable supporting surfaces.
- That utilities should be permanently installed before reviewing the dimensional drawing.
Final planning check: Use the Carmel Q dimensional drawing as the primary reference for the 870-L/870-R layouts, dimensions, standard features, and options, and use the Cal Flame Barbecue Islands Owner's Manual for applicable foundation, ventilation, utilities, care, installation, and warranty guidance.
