Cal Flame Platinum Series Outdoor Fireplace

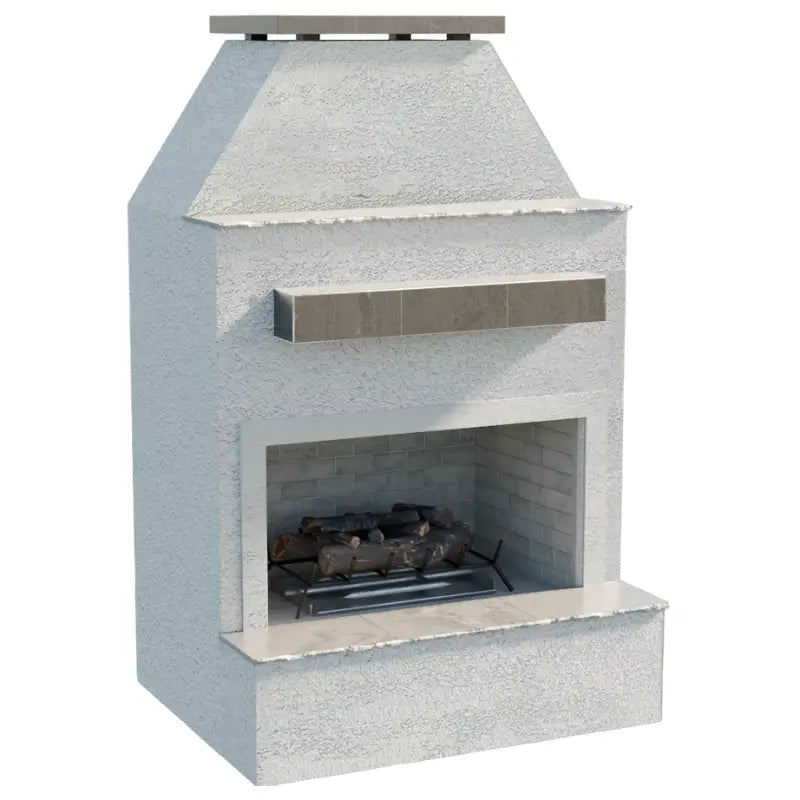

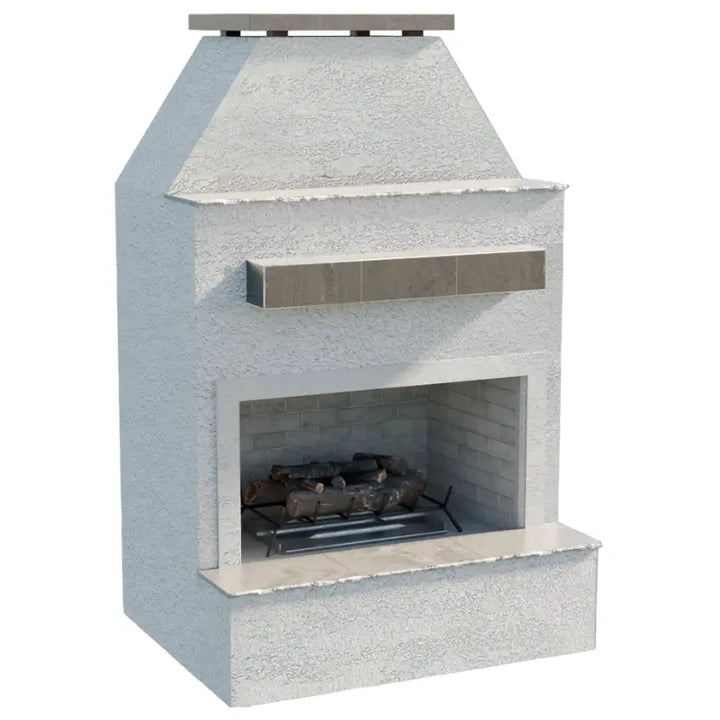

Cal Flame Laredo FRP-905-1 Outdoor Gas Fireplace with Mantel – 90,000 BTU
The Cal Flame Laredo 905-1 / FRP-905-1 is a substantial stationary outdoor gas fireplace designed for permanent patios, backyard living rooms, courtyards, poolside spaces, and entertainment areas. Measuring approximately 46"W × 28"D × 79"H, the Laredo combines an architectural fireplace profile with a 22-inch double burner rated up to 90,000 BTU/hr, electronic spark ignition, an 8-piece Weathered Oak log set, and herringbone ceramic-brick firebox detailing.
Series
Platinum Series
Model / SKU
Laredo 905-1 / FRP-905-1
Maximum Input
90,000 BTU/hr
Factory Fuel
Natural Gas
LP Compatible
Yes, With Conversion
Overall Size
46"W × 28"D × 79"H
Approx. Weight
600 lb.
Installation
Outdoor Stationary
A Permanent Outdoor Fireplace With Traditional Gas-Log Styling
The Laredo is designed for homeowners who want the visual presence of a traditional masonry-style fireplace with the convenience of gas operation.
Its approximately 79-inch height and 46-inch-wide structure create a substantial architectural focal point, while the 34"W × 19"D × 18"H firebox provides room for the standard 24-inch log grate and Weathered Oak log presentation.
The factory fireplace is configured for Natural Gas and can be converted to Liquid Propane using the appropriate conversion equipment and procedures.
Important before ordering: The Laredo is not a portable fire feature. The supplied product information lists a weight of approximately 600 lb., so plan the foundation, delivery route, fuel supply, clearances, ventilation, and final placement before purchase.
Cal Flame Laredo 905-1 at a Glance
Product Type
Outdoor Gas Fireplace
Configuration
Vented Fireplace
Maximum Input
90,000 BTU/hr
Ignition
Electronic Spark Ignition
Standard Log Set
8-Piece, 24" Weathered Oak
Is the Cal Flame Laredo FRP-905-1 Right for Your Project?
Best For
- Permanent outdoor living and entertainment spaces.
- Patios, courtyards, and backyard living rooms.
- Buyers wanting a traditional log-fire appearance with gas operation.
- Natural Gas installations.
- Projects requiring up to 90,000 BTU/hr maximum input.
- Outdoor spaces that can accommodate a 46"W × 28"D × 79"H fireplace.
- Projects where a stationary architectural fireplace is preferred over a portable fire pit.
- Buyers wanting optional stone, tile, log-set, or mantel treatments.
Consider Another Fireplace If
- You need an indoor fireplace.
- You need a portable or frequently movable fire feature.
- You want to burn wood, charcoal, or compressed logs.
- You need factory Propane operation without conversion.
- You cannot provide an appropriate permanent foundation.
- Your installation cannot maintain required combustible clearances.
- The intended location is enclosed or inadequately ventilated.
Why Choose the Cal Flame Laredo 905-1?
90,000 BTU Double Burner
A 22-inch double burner provides a maximum input of 90,000 BTU/hr for a substantial gas-flame presentation.
24-Inch Weathered Oak Log Set
The standard configuration includes an 8-piece, 24-inch Weathered Oak log set positioned on a built-in 24-inch log grate.
Herringbone Ceramic Brick
Herringbone ceramic brick lines the bottom, sides, and rear of the firebox to create a traditional masonry-style backdrop.

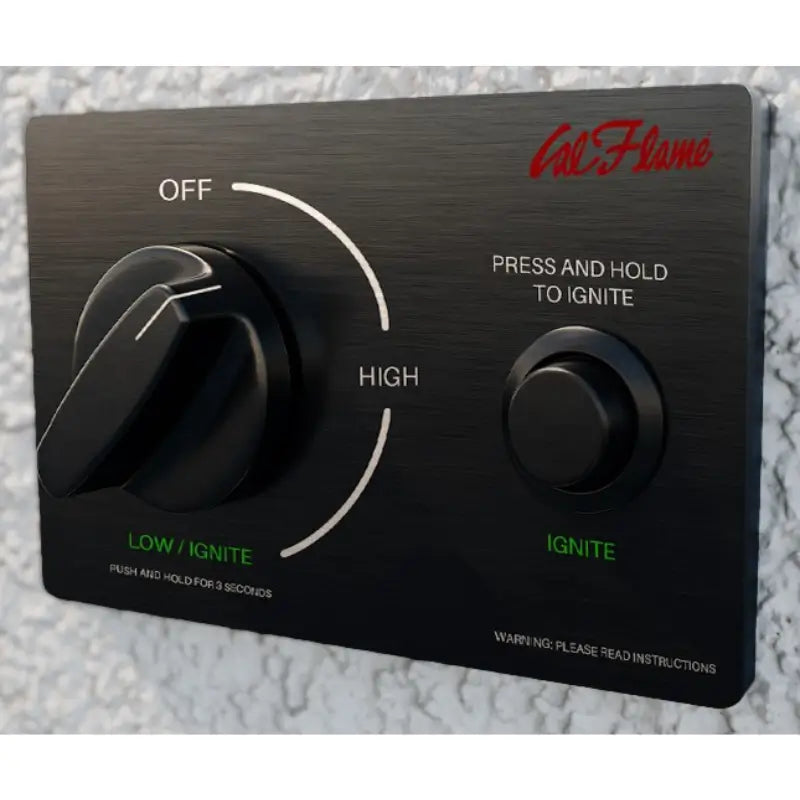

Electronic Spark Ignition
The fireplace uses electronic spark ignition, and the supplied owner's-manual information describes an internal AA battery for the igniter system.
Large Architectural Profile
At approximately 79 inches tall, the Laredo is designed to become part of the architecture of the outdoor living area.
NG / LP Convertible
The fireplace is factory configured for Natural Gas and can be converted for Liquid Propane using the appropriate conversion equipment.
Standard Laredo 905-1 Features
Stucco Exterior
Stucco is identified as the standard exterior finish.
22" Double Burner
Maximum input rating of 90,000 BTU/hr.
Built-In 24" Log Grate
Supports the standard decorative log presentation.
8-Piece Weathered Oak Logs
Standard 24-inch gas-log configuration.
Vented Fireplace
The model-specific drawing identifies the Laredo as a vented fireplace.
Natural Gas Configuration
Factory fuel configuration with LP conversion capability.
Lava-rock clarification: The general Cal Flame fireplace manual discusses crushed lava rock for applicable fireplace and fire-pit models, but the Laredo-specific standard-features information does not independently identify lava rock as standard equipment. It should therefore not be represented as a confirmed standard Laredo inclusion.
Available Laredo 905-1 Options
| Front Upper Mantel |
Optional |
| Cultured Stone |
Optional Exterior Finish |
| Cal Faux Stone |
Optional — Front and Sides with Rear Stucco |
| 24" Log Set |
Optional 10-Piece Configuration |
| Porcelain Tile |
Optional Upper-Mantel Treatment |
| Natural Stone Tile |
Optional Field and Border Treatment |
Option note: Stucco and the 8-piece Weathered Oak log set are standard. Optional stone, tile, mantel, and alternate log-set treatments should not be assumed to be included.
Cal Flame Laredo 905-1 Dimensions & Planning Measurements
| Overall Width |
46 in. |
| Overall Depth |
28 in. |
| Overall Height |
79 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Firebox Base Elevation |
Approximately 17 in. |

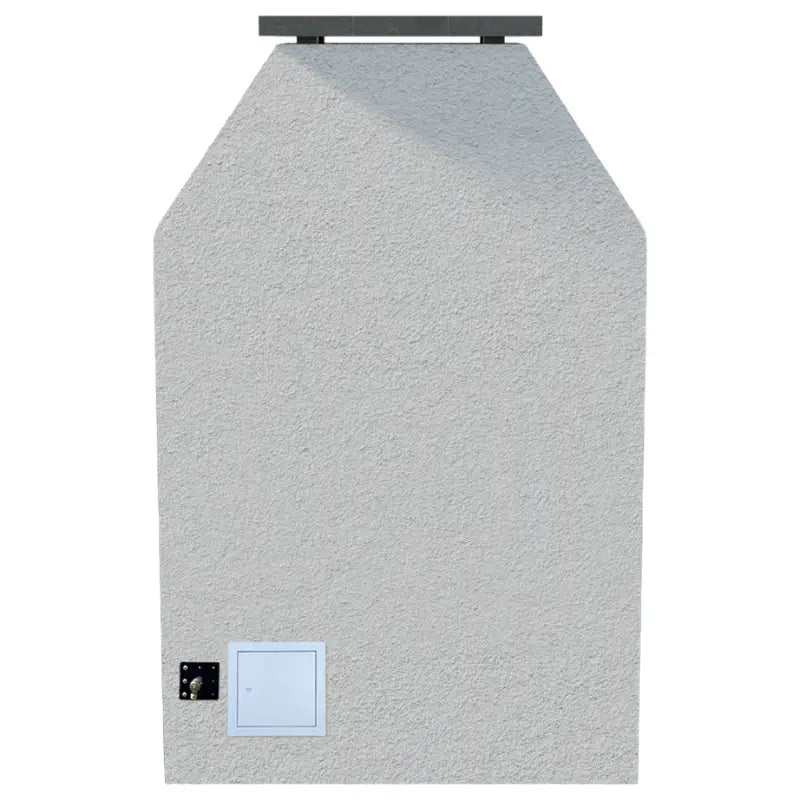

| Access Door |
12 in. |
| Approximate Product Weight |
600 lb. |
Planning note: Use the model-specific FRP-905-1 technical drawing before foundation construction and final gas-line placement because it contains component locations and dimensional details beyond the primary measurements shown here.
Natural Gas Standard With LP Conversion Capability
The Cal Flame Laredo FRP-905-1 is factory configured for Natural Gas.
Factory Fuel
Natural Gas / NG
Optional Converted Fuel
Liquid Propane / LP using the appropriate separately purchased conversion equipment.
LP conversion: The fireplace does not include the regulator required for LP conversion. Cal Flame recommends that the conversion and testing be performed by an appropriately qualified plumber or technician.
Natural Gas Installation Planning
Natural Gas Service
The owner's manual specifies a 3/4-inch Natural Gas service pipe from the house to the fireplace location.
Shutoff Valve
The gas service should terminate with an accessible shutoff valve and a 1/2-inch male fitting.
Flexible Connection
The manufacturer's instructions describe an outdoor-rated 3/8-inch NPT flexible line for the fireplace connection.
Regulated Supply
Do not connect the fireplace to an unregulated gas supply.
Correct Fuel Type
The fuel supplied to the fireplace must match the appliance rating information.
Professional Installation
Cal Flame recommends installation by a licensed contractor and appropriately qualified gas personnel.
Natural Gas Performance Specifications
| Maximum Input |
90,000 BTU/hr |
| Natural Gas Manifold Pressure |
10" W.C. |
| Maximum Natural Gas Supply Pressure |
11" W.C. |
| Maximum Natural Gas Inlet Supply Pressure |
13" W.C. |
Liquid Propane Conversion Planning
Propane operation requires conversion from the factory Natural Gas configuration.
| Minimum LP Line Pressure |
11" W.C. |
| Maximum LP Line Pressure |
14" W.C. |
| LP Regulator |
Required for Proper LP Operation |
| LP Conversion Equipment |
Not Included with Factory Natural Gas Configuration |
LP cylinder placement: Do not place a Propane cylinder inside the fireplace, beneath the hearth, or near the burner. Converted cylinder installations require an appropriately ventilated external enclosure.
Installation & Site Planning
The Laredo is a large stationary outdoor gas fireplace that requires advance site preparation.
Outdoor Installation Only
Do not install the Laredo in an enclosed room, garage, shed, breezeway, camper, tent, vehicle, boat, or similar enclosed location.
Level Cement Foundation
Cal Flame specifies a level cement foundation approximately 2–4 inches thick.
Plan Gas Service Early
Confirm the gas-supply route, shutoff-valve location, appliance fuel configuration, and applicable installation requirements before permanent placement.
Professional Installation Recommended
Gas installation and service should be completed by appropriately qualified personnel and comply with applicable local requirements.
Foundation Requirements
Cal Flame specifies a level cement foundation approximately 2–4 inches thick.
Required Foundation Characteristics
- Level supporting surface.
- Cement construction.
- Approximately 2–4 inches thick.
- Capable of supporting the approximately 600-lb. fireplace.
- Prepared before permanent gas connection and fireplace placement.
Do Not Use as a Substitute
- Loose materials.
- Loose gravel.
- Uneven supporting surfaces.
- Combustible foundation materials.
- Other materials that cannot adequately support the fireplace.
Placement & Clearance Requirements
Cal Flame provides different clearance requirements for different areas around the fireplace, so site planning should not rely on one general clearance number.
| General Combustible Materials |
Maintain at least 24 in. in all directions from flammable materials |
| Above Chimney |
Approximately 4–6 ft. free of flammable materials |
| Front of Operating Fireplace |
At least 6 ft. from flammable materials |
| Service Access |
Manufacturer warranty guidance specifies 3 ft. of service clearance on each side |
Clearance warning: These measurements apply to different areas and conditions around the fireplace and should not be treated as interchangeable. Review the complete owner's manual and applicable local requirements before finalizing placement.
Important Operation & Safety Information
Gas Fuel Only
Do not burn wood, charcoal, compressed logs, or other solid fuels in the Laredo.
Outdoor Use Only
Operate only outdoors in a properly ventilated location.
Inspect Gas Components
Do not operate with damaged gas lines, hoses, loose fittings, or leaking connections.
Protect Hot Surfaces
Keep children, clothing, combustible materials, and other vulnerable items away from the hearth, chimney, burner area, and hot surrounding surfaces.
Wind Conditions
Do not operate the fireplace in unsafe windy conditions.
Do Not Leave Unattended
The operating fireplace should not be left unattended.
Care & Maintenance
Inspect Before Initial Use
Inspect the fireplace and gas system before first operation.
Annual Cleaning
Cal Flame recommends cleaning the fireplace at least annually.
Burner Inspection
Periodically remove the logs and inspect the burner and air-shutter area for dirt or debris.
Inspect Gas Lines
Check gas lines, hoses, and fittings before operation and discontinue use if damage is found.
Ceramic Log Care
Use a dry nylon-bristle brush or cloth to remove soot and handle ceramic logs carefully to avoid cracking.
Avoid Pressure Washing
Do not use a gas- or electric-powered pressure washer on stucco, grout, stone, or related fireplace finishes.
Cal Flame Laredo Limited Warranty Overview
| Structure |
5 Years |
| Hardware / Burner / Fire Grate |
2 Years |
| Finish |
1 Year |
| Plastic Components |
90 Days |
Warranty coverage is subject to the manufacturer's complete terms, installation requirements, maintenance requirements, ownership conditions, approved-use requirements, and exclusions.
Warranty limitation: The owner's manual states that fire logs and lava rocks are not covered by the limited warranty.
Complete Cal Flame Laredo FRP-905-1 Technical Specifications
| Brand |
Cal Flame |
| Product |
Laredo |
| Series |
Platinum Series |
| Model / Item Number |
FRP-905-1 / 905-1 |
| Product Type |
Outdoor Gas Fireplace |
| Installation Location |
Outdoor |
| Use Type |
Stationary |
| Fireplace Configuration |
Vented |
| Factory Fuel |
Natural Gas |
| LP Convertible |
Yes, With Appropriate Conversion Equipment |
| Burner |
22" Double Burner |
| Maximum Input |
90,000 BTU/hr |
| Log Grate |
Built-In 24" Log Grate |
| Standard Log Set |
8-Piece, 24" Weathered Oak |
| Ignition |
Electronic Spark Ignition |
| Igniter Power |
AA Battery |
| Standard Exterior Finish |
Stucco |
| Firebox Interior |
Herringbone Ceramic Brick — Bottom, Sides & Rear |
| Overall Width |
46 in. |
| Overall Depth |
28 in. |
| Overall Height |
79 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Firebox Base Elevation |
Approximately 17 in. |
| Access Door |
12 in. |
| Approximate Product Weight |
600 lb. |
| Natural Gas Manifold Pressure |
10" W.C. |
| Maximum NG Supply Pressure |
11" W.C. |
| Maximum NG Inlet Supply Pressure |
13" W.C. |
| Certification |
Supplied product data states PFS Certified to CSA 2.26 and ANSI Z21.60 — Report #F23-191 |
Source note: The supplied weight and certification statement are retained from the provided product information.
Flame Authority Expert Recommendation
Choose the Cal Flame Laredo FRP-905-1 when you want a permanent outdoor fireplace that combines traditional log-fire styling with a large architectural structure and gas convenience.
Its 79-inch height, 34-inch firebox, 90,000 BTU double burner, Weathered Oak log presentation, herringbone ceramic-brick interior, vented design, and optional exterior treatments make it especially suitable for dedicated patios, courtyards, backyard living rooms, and outdoor entertainment spaces.
Before ordering, confirm the complete 46"W × 28"D × 79"H footprint, approximately 600-lb. weight, foundation capacity, delivery route, Natural Gas service, ventilation, clearances, and selected exterior finish.
If Propane operation is required, plan the conversion separately and do not assume the standard fireplace is ready for direct LP connection.
Official Manufacturer Resources
Cal Flame Fireplace – Owner's Manual
Placement, foundation requirements, gas supply, LP conversion, operation, maintenance, safety, and limited warranty information.
Cal Flame Laredo FRP-905-1 – Technical Drawing & Dimensions
Model dimensions, firebox measurements, burner configuration, gas-inlet location, standard features, and listed options.
Cal Flame Laredo FRP-905-1 FAQs
Is the Cal Flame Laredo FRP-905-1 Natural Gas or Propane?
The Laredo ships configured for Natural Gas. Propane operation requires the appropriate LP conversion equipment and proper conversion by qualified personnel.
How many BTUs does the Cal Flame Laredo 905-1 produce?
The Laredo uses a 22-inch double burner with a maximum input of 90,000 BTU/hr.
What are the dimensions of the Cal Flame Laredo FRP-905-1?
The fireplace measures approximately 46"W × 28"D × 79"H. Its firebox measures approximately 34"W × 19"D × 18"H.
Can the Cal Flame Laredo be installed indoors?
No. Cal Flame specifies outdoor stationary use only. Do not install the Laredo in an enclosed indoor or similarly enclosed location.
Can you burn wood in the Cal Flame Laredo?
No. The Laredo is a gas fireplace. Do not burn wood, charcoal, compressed logs, or other solid fuels in the fireplace.
Does the Cal Flame Laredo require a foundation?
Yes. Cal Flame specifies a level cement foundation approximately 2–4 inches thick. Loose, combustible, and uneven supporting materials are not suitable substitutes.
What comes standard with the Cal Flame Laredo 905-1?
The model-specific information identifies stucco, a 22-inch 90,000 BTU double burner, built-in 24-inch log grate, 8-piece 24-inch Weathered Oak log set, NG/LP convertibility, and a vented fireplace configuration as standard.
Does the Laredo include Cultured Stone or Cal Faux Stone as standard?
No. Cultured Stone and Cal Faux Stone are listed as optional finishes. Stucco is the standard exterior finish.
What clearance does the Cal Flame Laredo require?
The supplied manufacturer guidance includes at least 24 inches from flammable materials in all directions, approximately 4–6 feet above the chimney, and at least 6 feet in front of an operating fireplace. Different measurements apply to different areas around the fireplace.
Does the Cal Flame Laredo require professional installation?
Cal Flame recommends installation by a licensed contractor. Gas installation and service should be completed by appropriately qualified personnel and comply with applicable local requirements.
Does the Cal Flame Laredo need household electricity for ignition?
The fireplace uses electronic spark ignition, and the supplied fireplace instructions describe the igniter as using an internal AA battery.
Can a Propane cylinder be stored inside the Cal Flame Laredo?
No. Do not place an LP cylinder inside the fireplace, underneath the hearth, or near the burner. Converted cylinder installations require an appropriately ventilated external enclosure.
What maintenance does the Cal Flame Laredo require?
Clean the fireplace at least annually and periodically inspect the burner and gas system. Do not use a powered pressure washer on stucco, grout, stone, or related exterior finishes.
Is the Cal Flame Laredo FRP-905-1 portable?
No. The Laredo is designed for outdoor stationary use and is intended for a planned permanent installation rather than frequent relocation.
What warranty applies to the Cal Flame Laredo?
The supplied Cal Flame owner's manual lists limited coverage of 5 years for specified structural components, 2 years for qualifying hardware including the burner and fire grate, 1 year for the finish, and 90 days for plastic components, subject to complete warranty terms and exclusions.
Before You Order
Confirm Before Purchase
- The fireplace will be installed outdoors in a stationary location.
- The site can accommodate the 46"W × 28"D × 79"H dimensions.
- The supporting foundation can handle the approximately 600-lb. fireplace.
- A level 2–4-inch cement foundation can be provided.
- The Natural Gas service has been correctly planned.
- LP conversion is separately planned if Propane operation is required.
- Required outdoor ventilation and combustible clearances can be maintained.
- The delivery route can accommodate the fireplace.
- The selected standard or optional exterior finish has been confirmed.
Do Not Assume
- That the Laredo arrives configured for Propane.
- That LP conversion equipment or a regulator is included.
- That an LP cylinder can be stored inside the fireplace.
- That the fireplace is suitable for indoor or enclosed-space installation.
- That wood or charcoal can be burned in the firebox.
- That lava rock is independently confirmed as standard Laredo equipment.
- That optional Cultured Stone, Cal Faux Stone, tile, mantel, or alternate logs are standard.
- That all clearance figures refer to the same area around the fireplace.
Final planning check: Use the Laredo FRP-905-1 technical drawing for model-specific dimensions, firebox measurements, burner configuration, gas-inlet details, standard features, and options, and use the Cal Flame Fireplace Owner's Manual for fuel, LP conversion, foundation, placement, clearances, operation, maintenance, safety, and warranty guidance.
