Cal Flame Escape Series Outdoor Fireplace
Cal Flame Indio FRP-903-1 Contemporary Outdoor Gas Fireplace – 90,000 BTU

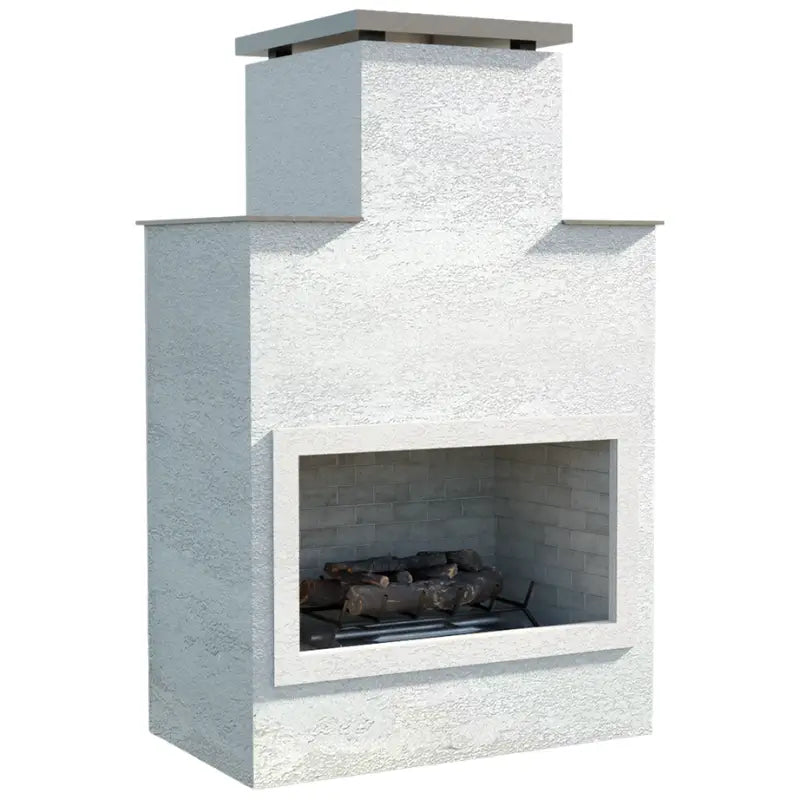

The Cal Flame Indio 903-1 / FRP-903-1 is a tall architectural outdoor gas fireplace designed for permanent patios, courtyards, poolside spaces, and outdoor entertainment areas. Measuring approximately 46"W × 28"D × 81"H, it combines a dramatic chimney-style profile with a 22-inch double burner rated up to 90,000 BTU/hr, electronic ignition, a spacious 34-inch firebox, and a traditional Weathered Oak gas-log presentation.
Series
Escape Series
Model / SKU
Indio 903-1 / FRP-903-1
Maximum Input
90,000 BTU/hr
Factory Fuel
Natural Gas
LP Compatible
Yes, With Conversion
Burner
22" Double Burner
Overall Size
46"W × 28"D × 81"H
Installation
Outdoor Stationary

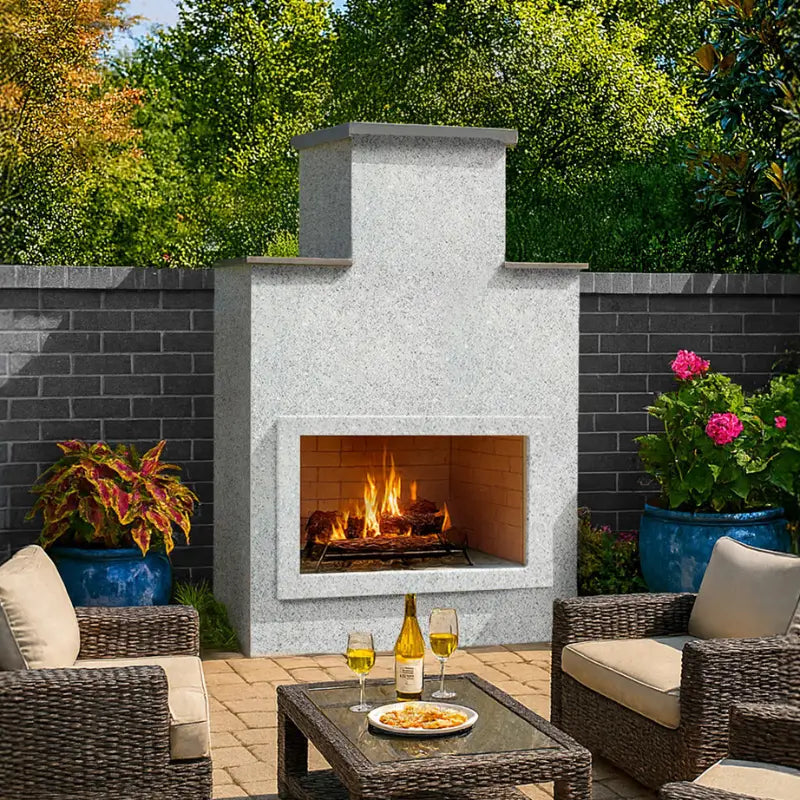

A Tall Architectural Fireplace for Permanent Outdoor Living Spaces
The Indio is designed for buyers who want a substantial architectural fireplace rather than a portable fire pit or compact fire table.
Its approximately 81-inch height, defined chimney profile, broad mantle lines, and rectangular firebox give the fireplace enough visual presence to anchor an outdoor room.
Inside the contemporary exterior is a traditional fireplace-inspired presentation. Herringbone-pattern ceramic brick lines the bottom, sides, and rear of the firebox, while an 8-piece, 24-inch Weathered Oak log set and double gas burner provide a classic flame appearance without the handling and storage requirements of wood.
Important before ordering: The Indio is a stationary outdoor fireplace with a supplied product weight of approximately 600 lb. Plan the foundation, delivery access, fuel supply, clearances, ventilation, and final location before purchase.
Cal Flame Indio 903-1 at a Glance
Product Type
Outdoor Gas Fireplace
Fireplace Configuration
Vented
Maximum Input
90,000 BTU/hr
Ignition
Electronic Ignition
Standard Log Set
8-Piece, 24" Weathered Oak
Is the Cal Flame Indio FRP-903-1 Right for Your Project?
Best For
- Permanent outdoor living spaces.
- Large patios and courtyards.
- Poolside entertainment areas.
- Buyers wanting a tall architectural fireplace focal point.
- Natural Gas installations.
- Projects requiring up to 90,000 BTU/hr input.
- Traditional log-fire appearance with gas convenience.
- Outdoor projects where customizable exterior finish options are desired.
Consider Another Fireplace If
- You need an indoor fireplace.
- You need a portable or movable fire feature.
- You specifically want to burn wood or charcoal.
- Your site cannot support the approximately 600-lb. fireplace.
- Your installation cannot meet outdoor ventilation and placement requirements.
- You require factory LP operation without conversion.
Why Choose the Cal Flame Indio 903-1?
90,000 BTU Double Burner
A 22-inch double burner provides up to 90,000 BTU/hr of maximum input for a broad gas-flame presentation.
81-Inch Architectural Height
The tall chimney-style profile gives the Indio more vertical presence than typical outdoor fire features.
34-Inch-Wide Firebox
The firebox measures approximately 34"W × 19"D × 18"H, providing substantial display space for the burner, grate, and logs.

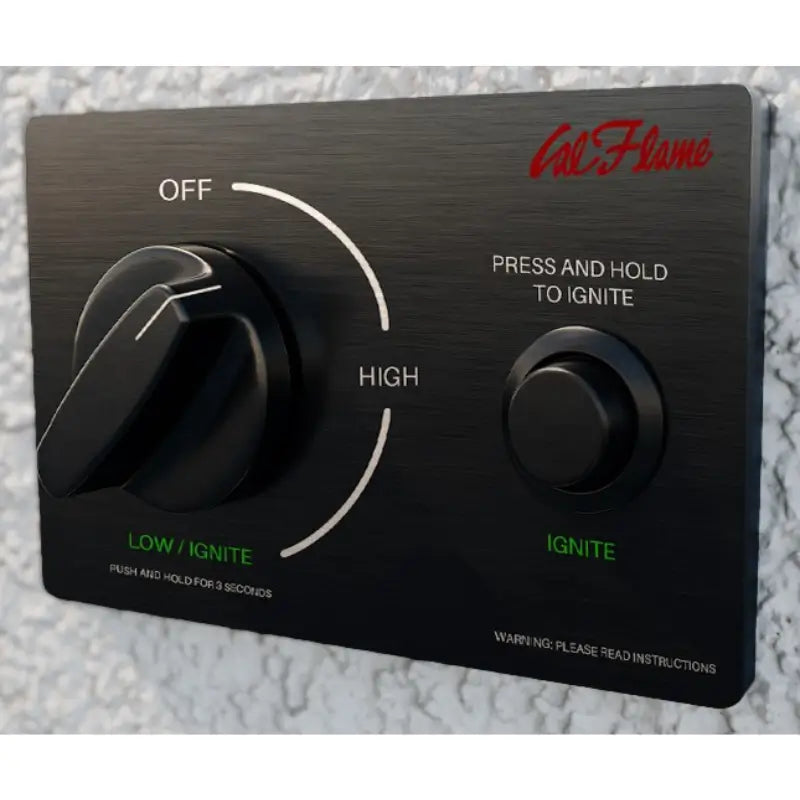

Electronic Ignition
The FRP-903-1 technical drawing identifies an electronic ignition system for burner lighting.
Weathered Oak Log Set
The standard configuration includes an 8-piece, 24-inch Weathered Oak log set positioned over the built-in log grate.
Herringbone Ceramic Brick
Herringbone ceramic brick lines the firebox bottom, sides, and rear for a traditional masonry-fireplace appearance.
Outdoor Fireplace Construction
16-Gauge Galvanized Steel Frame
The supplied product information identifies a 16-gauge galvanized steel frame as part of the fireplace structure.
HardieBacker Reinforcement
HardieBacker reinforcement supports the masonry-style exterior construction.
One-Piece Construction
The Indio is intended as a permanent stationary fireplace rather than a portable burner enclosure.
Stucco Standard Finish
Stucco is identified as the standard exterior finish on the model-specific technical drawing.
Standard Features & What's Included
Indio 903-1 Fireplace
Stationary outdoor fireplace structure.
22" Double Burner
Maximum input of 90,000 BTU/hr.
24" Log Grate
Built-in support for the decorative log presentation.
8-Piece Weathered Oak Logs
Standard 24-inch decorative gas-log set.
Electronic Ignition
Electronic ignition system identified on the technical drawing.
Herringbone Ceramic Brick
Located across the bottom, sides, and rear of the firebox.
Vented Configuration
The product-specific drawing identifies the fireplace as vented.
Stucco Exterior
Standard finish configuration.
Manufacturer-Listed Options
| Front Upper Mantle |
Optional |
| Cultured Stone |
Optional |
| Cal Faux Stone |
Optional — front and sides with stucco rear |
| 10-Piece 24" Log Set |
Optional |
| Porcelain Tile Upper Mantle |
Optional |
| Natural Stone Tile — Field & Border |
Optional |
Option note: Stucco is the standard finish. Cultured Stone, Cal Faux Stone, alternate log sets, and other mantle or tile treatments should not be assumed to be included unless selected on the order.
Natural Gas Standard With LP Conversion Capability
The Cal Flame Indio 903-1 is supplied for Natural Gas operation.
Factory Fuel
Natural Gas / NG
Optional Converted Fuel
Liquid Propane / LP using appropriate separately obtained conversion equipment.
LP conversion: Do not connect the factory Natural Gas fireplace directly to a Propane supply. The manufacturer identifies separate conversion equipment as necessary and advises having the conversion performed and tested by an appropriately qualified gas technician.
Indio FRP-903-1 Dimensions & Planning Measurements
| Overall Width |
46 in. |
| Overall Depth |
28 in. |
| Overall Height |
81 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Burner Size |
22 in. |
| Log Set Size |
24 in. |

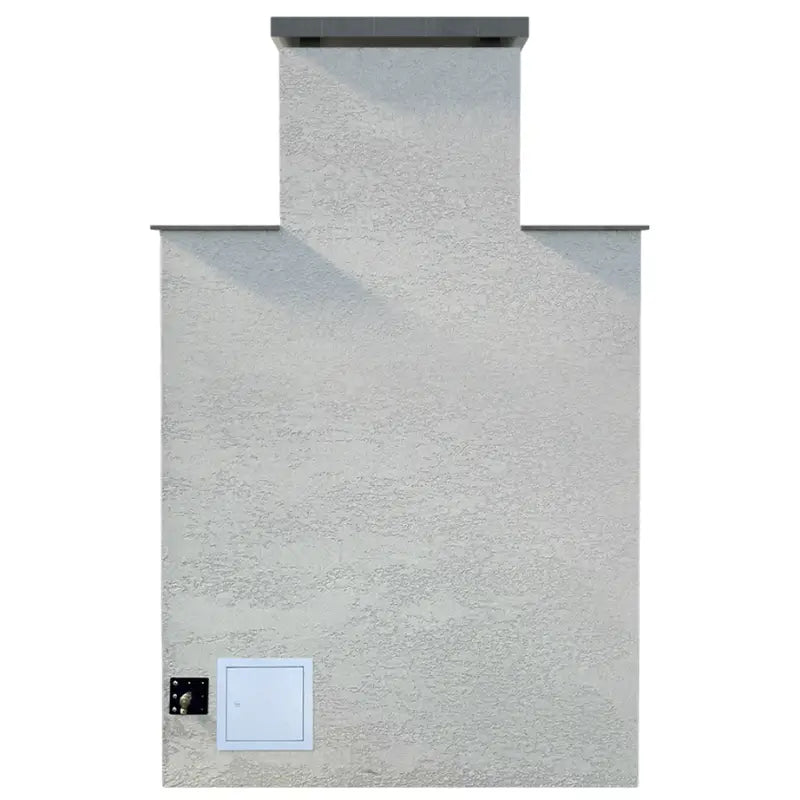

| Access Door |
12 in. |
| Approximate Product Weight |
600 lb. |
Site-planning note: Review the manufacturer technical drawing before installation because it provides additional component locations, including the firebox, gas valve, access door, gas inlet, burner, and ignition components.
Natural Gas Installation Planning
Natural Gas Supply
The owner's manual identifies a 3/4-inch Natural Gas service pipe running from the home to the fireplace location.
Shutoff Valve
The supply should terminate with an accessible shutoff valve and 1/2-inch male fitting.
Gas Inlet
The FRP-903-1 technical drawing identifies a 1/2-inch to 3/8-inch elbow at the gas inlet.
Regulated Supply
Do not connect the fireplace to an unregulated gas supply.
Professional gas planning: Final gas sizing, pressure, connections, and applicable code requirements should be verified by the installer against the appliance rating information and manufacturer documentation.
Natural Gas Performance Specifications
| Fireplace Configuration |
Dual Burner Fireplace — Natural Gas |
| Maximum Input |
90,000 BTU/hr |
| Manifold Pressure |
10" Water Column |
| Maximum Gas Supply Pressure |
11" Water Column |
| Maximum Inlet Supply Pressure |
13" Water Column |
Pressure verification: Gas-pressure and connection information should be verified against the fireplace rating plate and current manufacturer instructions before installation.
Installation & Site Planning
The Indio 903-1 is designed for a planned outdoor stationary installation.
Outdoor Use Only
Do not install or operate the fireplace in an enclosed room, garage, shed, breezeway, recreational vehicle, trailer, boat, yacht, or similar enclosed or mobile location.
Adequate Ventilation
Select a location with sufficient outdoor airflow and consider nearby windows, living areas, and structures.
Wind Exposure
Wind conditions should be evaluated when selecting the final fireplace location.
Drainage
Avoid locations where water can collect or pool around the fireplace structure.
Service Access
Maintain appropriate access to gas controls, shutoff valves, and service components.
Qualified Installation
Cal Flame recommends installation by a licensed contractor.
Foundation Requirements
The manufacturer specifies a level foundation made from quality cement material approximately 2–4 inches thick (5–10 cm).
Required Foundation Characteristics
- Level supporting surface.
- Quality cement construction.
- Approximately 2–4 inches thick.
- Capable of supporting the approximately 600-lb. fireplace.
- Located where water will not collect around the structure.
Do Not Use as the Structural Foundation
- Loose materials.
- Gravel.
- Uneven supporting surfaces.
- Combustible materials.
- Tile as a substitute for the required foundation.
Clearance & Location Considerations
Cal Flame provides different clearance requirements depending on the area around the fireplace and the surrounding installation conditions.
Because overhead clearances, front clearances, side clearances, combustible materials, wind exposure, and nearby windows can involve different requirements, the site should not be planned around one generalized clearance number.
Carbon monoxide hazard: Do not use the fireplace in an enclosed space. Maintain appropriate outdoor ventilation and avoid placement where combustion products could enter nearby windows or occupied living areas.
LP Cylinder Planning for Converted Installations
The Indio does not include an internal enclosure intended for a Propane cylinder.
If the fireplace is properly converted to LP and operated from a cylinder, the cylinder must be housed in an appropriately designed external enclosure that meets the manufacturer's ventilation, access, storage, and placement requirements.
Do not place an LP cylinder inside the fireplace, beneath the hearth, or near the burner.
Safe Fireplace Operation
Use Approved Gas Fuel Only
Do not burn wood, charcoal, compressed logs, or other solid fuels in the Indio.
Keep Burner Unobstructed
Decorative media must not block gas flow. Lava rock should not be placed directly on the burner.
Inspect Before Use
Do not operate with damaged, leaking, loose, or obstructed gas components.
Do Not Leave Unattended
Keep children, clothing, combustible materials, and other vulnerable items away from the operating fireplace and hot surfaces.
Cleaning & Maintenance
Inspect Before Initial Use
Inspect the fireplace, burner, ignition system, and gas components before first operation.
Periodic Cleaning
Clean the appliance periodically and remove decorative logs as needed to inspect burner areas for dirt and debris.
Qualified Inspection
The fireplace should be inspected by an appropriately qualified service person according to manufacturer guidance.
Ceramic Log Care
Use an appropriate dry nylon brush or cloth to remove soot and handle ceramic logs carefully to avoid cracking or breakage.
Inspect Gas Components
Do not operate with damaged Natural Gas lines, LP hoses, loose connections, or damaged burner components.
Avoid Pressure Washing
Do not use gas- or electric-powered pressure washers on stucco, grout, stone, or masonry-style fireplace finishes.
Certification
| Certification Organization |
PFS |
| Standards |
CSA 2.26 and ANSI Z21.60 |
| Report Number |
F23-191 |
Cal Flame Indio Limited Warranty Overview
| Structure |
5 Years |
| Hardware |
2 Years |
| Exterior Finish |
1 Year |
| Decorative Fire Logs & Lava Rock |
Excluded from Limited Warranty |
Qualifying structural coverage applies to specified components relating to structural integrity, while qualifying hardware coverage includes specified components such as the fire grate and burner.
Warranty conditions: Coverage is subject to the manufacturer's complete terms, exclusions, installation requirements, use requirements, maintenance requirements, and ownership conditions.
Complete Cal Flame Indio FRP-903-1 Technical Specifications
| Brand |
Cal Flame |
| Series |
Escape Series |
| Model |
Indio 903-1 |
| Item / Drawing Number |
FRP-903-1 / 903-1 |
| Product Type |
Outdoor Gas Fireplace |
| Style |
Contemporary |
| Location |
Outdoor |
| Use Type |
Stationary |
| Vent Configuration |
Vented Fireplace |
| Standard Fuel |
Natural Gas |
| LP Compatible |
Yes, After Proper Conversion |
| Maximum Input |
90,000 BTU/hr |
| Burner |
22" Double Burner |
| Log Grate |
Built-In 24" Log Grate |
| Standard Log Set |
8-Piece, 24" Weathered Oak Log Set |
| Ignition |
Electronic Ignition |
| Firebox Interior |
Herringbone Ceramic Brick on Bottom, Sides & Rear |
| Standard Exterior Finish |
Stucco |
| Overall Width |
46 in. |
| Overall Depth |
28 in. |
| Overall Height |
81 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Gas Inlet Detail |
1/2" to 3/8" Elbow |
| Access Door |
12 in. |
| Construction |
16-Gauge Galvanized Steel Frame with HardieBacker Reinforcement |
| Approximate Weight |
600 lb. |
| Certification |
PFS Certified to CSA 2.26 and ANSI Z21.60 – Report #F23-191 |
Flame Authority Expert Recommendation
Choose the Cal Flame Indio FRP-903-1 when you want a tall, full-scale outdoor fireplace that becomes an architectural centerpiece rather than simply an outdoor heat source.
Its 81-inch height, 34-inch firebox, 90,000 BTU double burner, Weathered Oak log set, herringbone ceramic-brick interior, and vented fireplace design make it particularly well suited to permanent patios, courtyards, pool areas, and dedicated outdoor entertainment spaces.
Before ordering, confirm the complete 46"W × 28"D × 81"H footprint, approximately 600-lb. weight, delivery access, level cement foundation, Natural Gas service, outdoor ventilation, clearances, and selected exterior finish.
If Propane operation is planned, account for the required LP conversion and external cylinder installation rather than assuming the standard fireplace is ready for direct Propane connection.
Official Manufacturer Resources
Cal Flame Fireplace – Owner's Manual
Installation guidance, Natural Gas requirements, LP conversion information, operation, placement, maintenance, safety, and manufacturer warranty information.
Cal Flame Indio FRP-903-1 – Technical Drawing & Dimensions
Model-specific dimensions, firebox measurements, burner information, component locations, standard features, and manufacturer-listed options.
Cal Flame Indio FRP-903-1 FAQs
Is the Cal Flame Indio 903-1 a Natural Gas or Propane fireplace?
The Cal Flame Indio 903-1 is supplied for Natural Gas operation. It can be converted to Liquid Propane using appropriate separately obtained conversion equipment. Do not connect the factory NG configuration directly to Propane.
How many BTUs does the Cal Flame Indio 903-1 produce?
The Indio uses a 22-inch double burner with a maximum input rating of 90,000 BTU/hr.
What are the dimensions of the Cal Flame Indio 903-1?
The Indio measures approximately 46"W × 28"D × 81"H. Its firebox measures approximately 34"W × 19"D × 18"H.
Can the Cal Flame Indio 903-1 be installed indoors?
No. Cal Flame specifies outdoor stationary use only. Do not install or operate the fireplace in an enclosed room, garage, shed, breezeway, recreational vehicle, trailer, boat, yacht, or similar enclosed location.
What type of foundation does the Indio 903-1 require?
Cal Flame specifies a level cement foundation approximately 2–4 inches thick. Loose, combustible, gravel, tile, and uneven supporting materials are not identified as suitable foundation substitutes.
What log set comes standard with the Indio 903-1?
The model-specific drawing lists an 8-piece, 24-inch Weathered Oak log set as standard. A 10-piece 24-inch log-set configuration is listed separately as an option.
Does the Cal Flame Indio 903-1 have electronic ignition?
Yes. The FRP-903-1 technical drawing identifies electronic ignition.
Is the Cal Flame Indio a vented fireplace?
Yes. The manufacturer technical drawing identifies the Indio FRP-903-1 as a vented fireplace.
What finish comes standard on the Cal Flame Indio?
Stucco is identified as the standard finish. Cultured Stone, Cal Faux Stone, and selected mantle and tile treatments are manufacturer-listed options.
Does the Indio 903-1 include Propane conversion equipment?
No. The fireplace is configured for Natural Gas, and equipment required for LP conversion must be obtained separately.
Can a Propane cylinder be stored inside the Indio fireplace?
No. Do not place an LP cylinder inside the fireplace, underneath the hearth, or near the burner. Converted LP installations require an appropriately designed and ventilated external cylinder enclosure.
Does the Cal Flame Indio require professional installation?
Cal Flame recommends installation by a licensed contractor. Gas-line work and LP conversion must comply with manufacturer requirements and applicable local codes.
Can I burn wood or charcoal in the Cal Flame Indio?
No. Do not burn wood, charcoal, compressed logs, or other solid fuels in the Indio. It is designed for Natural Gas or properly converted Liquid Propane operation.
Is the Cal Flame Indio portable?
No. The Indio is designed for stationary outdoor installation and has a supplied product weight of approximately 600 lb.
Can lava rock be placed directly on the burner?
No. Decorative media should not obstruct the gas burner, and Cal Flame warns against placing lava rock directly on the burner because it can interfere with gas flow.
Can I pressure wash the Cal Flame Indio?
No. Cal Flame warns against powered pressure washing because high-pressure water can damage stucco, grout, stone, and related masonry-style finishes.
What warranty applies to the Cal Flame Indio 903-1?
The manufacturer lists qualifying coverage of 5 years for specified structural components, 2 years for specified hardware, and 1 year for qualifying finish components. Decorative fire logs and lava rock are excluded, and complete warranty conditions apply.
Before You Order
Confirm Before Purchase
- The fireplace will be installed outdoors in a stationary location.
- The site can accommodate the 46"W × 28"D × 81"H dimensions.
- The foundation can support the approximately 600-lb. fireplace.
- A level 2–4-inch cement foundation can be provided.
- The Natural Gas supply has been properly planned.
- LP conversion is separately planned if Propane operation is required.
- The delivery path can accommodate the fireplace.
- The required outdoor ventilation and clearances can be maintained.
- The selected exterior finish and optional features have been confirmed.
Do Not Assume
- That the fireplace arrives configured for Propane.
- That LP conversion equipment is included.
- That the Indio is suitable for indoor installation.
- That wood or charcoal can be burned in the firebox.
- That gravel, tile, or another loose material is a suitable foundation.
- That an LP cylinder can be stored inside the fireplace.
- That optional stone, tile, mantle, or alternate log configurations are standard.
- That pressure washing is appropriate for the exterior finish.
Final planning check: Use the Indio FRP-903-1 technical drawing for model-specific dimensions, burner information, gas-inlet details, standard features, and options, and use the Cal Flame Fireplace Owner's Manual for fuel, LP conversion, foundation, placement, operation, maintenance, safety, and warranty guidance.
