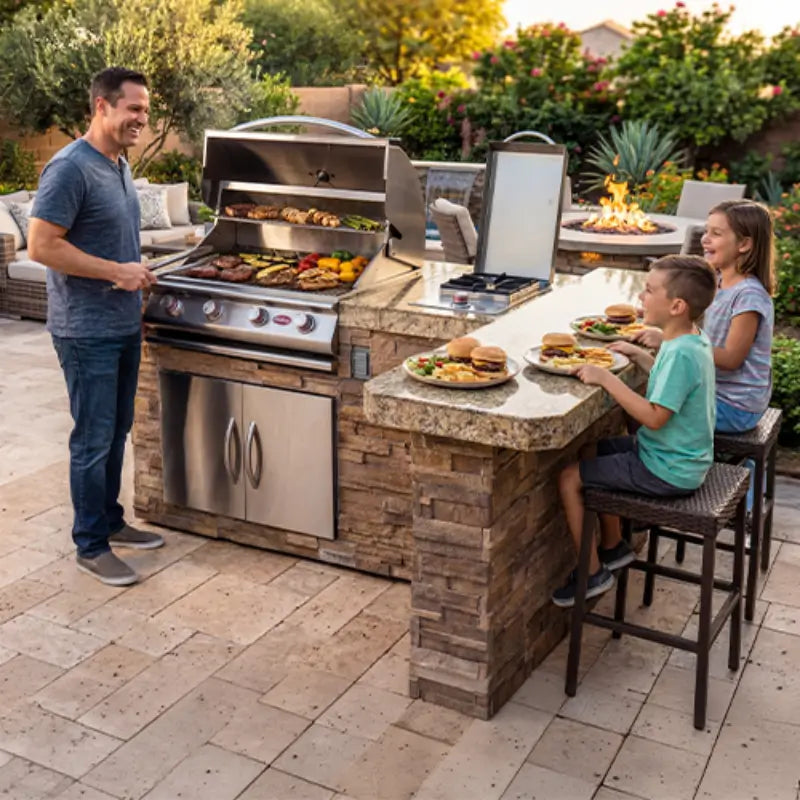

Cal Flame Malibu Q 830 R/L Outdoor Kitchen Island with G4 Grill – BBK-830 R/L
The Cal Flame Malibu Q 830 R/L (BBK-830 R/L) is an L-shaped outdoor kitchen and barbecue island designed for outdoor cooking, food preparation, refrigeration, and entertaining. Its extended side bar allows guests to sit alongside the cooking area, helping the person at the grill remain connected with the gathering. Available in 830-R right-hand and 830-L left-hand configurations, the island can be matched to patio orientation, seating placement, traffic flow, and utility planning.
Product Type
Outdoor Kitchen Island
Model / SKU
Malibu Q 830 / BBK-830 R/L
Orientation
830-R or 830-L
Standard Grill
4 Burner G4 LP
Main Run
96 Inches
Overall Return
72 1/2 Inches
Bar Height
40 Inches
Application
Outdoor Use Only
An L-Shaped Outdoor Kitchen Built for Cooking & Entertaining
The Malibu Q 830 combines the primary grill station with an extended return and bar, creating an outdoor-kitchen layout that supports both cooking and guest interaction.
The supplied product information identifies a G4 grill, stainless steel temperature-controlled refrigerator, side burner with removable lid, and outdoor electrical as standard features.
The manufacturer dimensional drawing additionally identifies a 4 Burner G4 LP grill, 12" × 24" porcelain tile, Ameristone stucco, and 27-inch access door as standard equipment.
Outdoor use only: Cal Flame specifies that its barbecue islands are for outdoor use only. Do not install the Malibu Q 830 inside a garage, shed, breezeway, enclosed room, or beneath a sealed overhead structure.
Cal Flame Malibu Q 830 at a Glance
Layout
L-Shaped with Extended Side Bar
Standard Grill
4 Burner G4 LP
Countertop
12" × 24" Porcelain Tile
Exterior
Ameristone Stucco
Is the Malibu Q 830 Right for Your Outdoor Space?
Best For
- Dedicated backyard and patio entertainment spaces.
- Buyers wanting an integrated outdoor kitchen rather than a standalone grill.
- Entertainers who want guest seating near the cooking area.
- Spaces suited to an L-shaped island footprint.
- Layouts that benefit from right- or left-hand orientation options.
- Permanent installations with a stable, level foundation.
- Outdoor cooking areas where grilling, refrigeration, auxiliary cooking, and countertop space are desired together.
Not Recommended For
- Indoor installations.
- Garages, sheds, breezeways, or enclosed rooms.
- Locations beneath sealed overhead structures.
- Areas without adequate ventilation.
- Unstable or uneven supporting surfaces.
- Small patios that cannot accommodate the complete L-shaped footprint.
- Projects where required utilities cannot be safely provided.
Why Choose the Cal Flame Malibu Q 830?
Extended Entertainment Bar
The L-shaped layout extends beyond the main grilling station to create additional counter and guest space near the cooking area.
Right- or Left-Hand Layout
Choose between 830-R and 830-L configurations to coordinate with patio dimensions, seating, traffic flow, and utilities.
4 Burner G4 LP Grill
The supplied manufacturer drawing identifies the standard grill as a 4 Burner G4 configured for Liquid Propane.
Integrated Refrigerator
The supplied product description identifies a stainless steel temperature-controlled refrigerator as included.
Side Burner
A side burner with removable lid is identified in the supplied product description.
Finished Outdoor-Kitchen Design
Porcelain tile, Ameristone stucco, an access door, and the permanent island format create a completed outdoor-kitchen appearance.
Malibu Q 830-R vs. 830-L
The difference between the 830-R and 830-L is the orientation of the extended return and bar relative to the main cooking section.
830-R Configuration
Select the right-hand configuration when the right-oriented return provides the better fit for patio layout, seating, walking paths, and utility locations.
830-L Configuration
Select the left-hand configuration when the left-oriented return better matches the outdoor living area, seating arrangement, traffic flow, and planned services.
Before ordering: Do not choose the R or L configuration based only on a product photo. Compare the manufacturer dimensional drawing with the actual installation area.
Standard Features & Configuration
4 Burner G4 LP Grill
Listed as standard on the manufacturer dimensional drawing.
12" × 24" Porcelain Tile
Listed as standard on the manufacturer dimensional drawing.
Ameristone Stucco
Listed as standard on the manufacturer dimensional drawing.
27-Inch Access Door
Listed as standard on the manufacturer dimensional drawing.
Temperature-Controlled Refrigerator
Identified as included in the supplied product description.
Side Burner with Removable Lid
Identified as included in the supplied product description.
Outdoor Electrical
Identified as included in the supplied product description.
Extended Side Bar
Creates additional serving and guest space adjacent to the cooking station.
Specification distinction: The refrigerator, side burner, and outdoor electrical are identified in the supplied product description but are not separately listed in the Standard Features table on the supplied dimensional drawing. Do not infer additional technical specifications for those components without applicable documentation.
Malibu Q 830 Dimensions & Space Planning
The Malibu Q has a shaped L-shaped footprint, so the complete installation area cannot be represented accurately with a single simplified width × depth measurement.
| Main Counter Run |
96 in. |
| Overall Return |
72 1/2 in. |
| Main Counter Depth |
29 in. |
| Return / Bar Width |
24 in. |
| Bar Height |
40 in. |
| Island / Body Height Shown |
38 in. |
| Front Section Dimension Shown |
66 3/4 in. |
| Additional Front Projection Shown |
6 1/2 in. |
| Side / Profile Dimension Shown |
26 in. |
| Side / Profile Overall Dimension Shown |
28 1/2 in. |
Planning note: These measurements describe different parts of the island. Use the complete Malibu Q dimensional drawing when planning the footprint, orientation, foundation, walkways, seating, and utility locations.
Installation & Site Planning
A barbecue island requires more site planning than a freestanding grill. Determine the island orientation, complete footprint, foundation, ventilation, utility locations, access, and surrounding activity space before delivery.
Outdoor Placement
Cal Flame specifies barbecue islands for outdoor use only.
Adequate Ventilation
Provide sufficient ventilation and access when installing near a wall or fence.
Avoid Windows
The manufacturer advises against positioning the island under or near windows that can open into the home.
No Enclosed Rooms
Do not install in a garage, shed, breezeway, or other enclosed room.
No Sealed Overhead Structure
Do not install the island beneath a sealed overhead structure.
Local Requirements
The installation should comply with applicable city and local safety requirements.
Awning guidance: The manufacturer states that an awning may be positioned above the barbecue island only when it is high enough and sufficiently separated to prevent overheating, fire, or damage to combustible overhead materials.
Foundation Requirements
Cal Flame requires the barbecue island to be supported by a solid, stable, flat, and level foundation.
A permanent concrete slab is recommended because it provides stability and levelness and helps eliminate sagging. A properly prepared brick or paver surface may also be used.
Suitable Foundation Planning
- Permanent concrete slab.
- Properly prepared brick surface.
- Properly prepared paver surface.
- Stable, flat, and level structural support.
Do Not Install Directly On
- Gravel.
- Sand.
- Timbers.
- Dirt.
- Grass.
Deck Installation
The Malibu Q 830 may be installed on a deck only when the deck is rated to support the full weight of the island, grill, and all installed accessories.
Structural planning: Cal Flame recommends having a contractor or structural engineer determine whether the deck can safely support the complete installation.
Electrical Planning
The supplied Malibu Q 830 product description identifies outdoor electrical as a standard feature.
For applicable Cal Flame barbecue-island configurations using a 120V installation, the general Barbecue Islands Owner's Manual specifies a dedicated 120V, 20-amp grounded electrical service.
The manual also states that the dedicated circuit should not be shared with other appliances or lights and specifies copper wiring.
Important: These electrical requirements apply to applicable 120V barbecue-island installations. Verify the final electrical requirements against the exact Malibu Q configuration and installed appliances before permanent electrical work.
Fuel & Gas Planning
The supplied Malibu Q dimensional drawing identifies the standard grill as a 4 Burner G4 LP, so the verified standard grill fuel is Liquid Propane / LP.
Utility planning should be completed before final island placement whenever permanent service connections are required.
The general Barbecue Islands Owner's Manual states that side burners do not require a separate regulator and can be connected with a tee after the regulator.
Natural Gas: The general manufacturer manual discusses natural-gas installations, including a 3/4-inch natural-gas pipe from the house terminating with a shut-off valve and 1/2-inch male fitting. This does not establish a natural-gas configuration for the Malibu Q 830. The supplied product drawing specifically identifies the standard G4 grill as LP.
Manufacturer-Listed Options
| Option |
Manufacturer Description |
| OPT1 |
Undercounter Lights |
| OPT2 |
Freedom Sound System — Bluetooth, Powered Subwoofer and 2X Speakers |
| OPT3 |
Umbrella Hole Only |
Optional equipment: These items are manufacturer-listed options and should not be treated as standard equipment.
Care & Maintenance
Porcelain Tile
Clean spills promptly. Protect tile from chipping, scratching, and hard impacts, and remove standing liquids rather than allowing them to remain on tile or grout.
Stainless Steel
Clean exposed stainless steel regularly. Salt can accelerate corrosion, so seaside installations require particularly diligent maintenance.
Grill Interior
Clean internal grill components regularly according to use and foods being cooked. The manufacturer recommends a complete grill cleaning at least once each year.
Burner Inspection
Inspect burner tubes regularly because spiders and insects can obstruct gas flow and create a flashback hazard.
Damaged Burners
Discontinue grill use if burner damage such as cracks or holes is found.
Drip & Grease Care
Follow manufacturer cleaning guidance to reduce accumulated grease and related fire risk.
Warranty Overview
According to the supplied Cal Flame Barbecue Islands Owner's Manual, LMS warrants barbecue islands against deterioration, corrosion, and defects in material and workmanship for one year from the original date of delivery.
The manual specifically identifies the structural frame, fireproof panels, base, electrical wiring, switches, and outlets within this coverage.
Separate warranty terms apply to certain hardware, decorative finishes, and manufacturer-supplied appliances. Applicable refrigerators, accessories, and other third-party appliances are covered through their respective manufacturer warranties.
Warranty guidance: Warranty coverage is subject to the complete conditions, exclusions, ownership requirements, installation requirements, labor responsibilities, and other terms in the manufacturer documentation.
Complete Cal Flame Malibu Q 830 Specifications
| Brand |
Cal Flame |
| Product Name |
Malibu Q 830 R/L |
| Model / SKU |
BBK-830 R/L |
| Product Type |
Outdoor Kitchen / Barbecue Island |
| Installation Environment |
Outdoor Only |
| Layout |
L-Shaped with Extended Side Bar |
| Orientation Options |
Right 830-R or Left 830-L |
| Standard Grill |
4 Burner G4 LP |
| Fuel Shown for Standard Grill |
Liquid Propane / LP |
| Temperature-Controlled Refrigerator |
Included per supplied product description |
| Side Burner |
Included with Removable Lid per supplied product description |
| Outdoor Electrical |
Included per supplied product description |
| Standard Access Door |
27 in. |
| Standard Tile |
12" × 24" Porcelain Tile |
| Standard Exterior |
Ameristone Stucco |
| Main Counter Run |
96 in. |
| Overall Return |
72 1/2 in. |
| Main Counter Depth Shown |
29 in. |
| Return / Bar Width Shown |
24 in. |
| Bar Height |
40 in. |
| Island / Body Height Shown |
38 in. |
| Front Section Dimension Shown |
66 3/4 in. |
| Additional Front Projection Shown |
6 1/2 in. |
| Side / Profile Dimensions Shown |
26 in. / 28 1/2 in. |
| Foundation Requirement |
Stable, Flat, Level Supporting Surface |
| Primary Application |
Outdoor Cooking and Entertaining |
Flame Authority Expert Recommendation
Choose the Cal Flame Malibu Q 830 R/L when you want an outdoor kitchen that combines the cooking station and guest bar in one substantial L-shaped layout.
Its 4 Burner G4 LP grill, extended side bar, refrigerator, side burner, porcelain-tile work surfaces, and right- or left-hand orientation options make it particularly suitable for dedicated backyard entertainment areas.
The most important planning consideration is the complete footprint rather than the 96-inch main run alone. The 72 1/2-inch return and R/L orientation materially affect seating placement, walkways, patio space, and utility locations.
Select the 830-R or 830-L only after comparing the manufacturer dimensional drawing with the actual installation area and completing foundation, ventilation, fuel, electrical, and utility planning.
Official Manufacturer Resources
Cal Flame Malibu Q 830 FAQs
Is the Cal Flame Malibu Q 830 designed for indoor or outdoor use?
The Malibu Q 830 is for outdoor use only. Do not install it inside a garage, shed, breezeway, enclosed room, or beneath a sealed overhead structure.
What is the difference between the Malibu Q 830-R and 830-L?
The 830-R and 830-L place the extended return and bar on opposite sides of the primary cooking section. Choose the orientation according to the manufacturer drawing, patio layout, seating position, traffic flow, and utility locations.
How much space do I need for the Cal Flame Malibu Q 830?
The manufacturer drawing shows a 96-inch main run and 72 1/2-inch overall return. Do not plan from the 96-inch measurement alone; use the complete dimensional drawing to verify the L-shaped footprint.
What grill comes standard with the Malibu Q 830?
The supplied manufacturer dimensional drawing specifies a 4 Burner G4 LP grill as standard. Do not assume another fuel configuration unless specifically confirmed for the unit being ordered.
Does the Malibu Q 830 include a refrigerator and side burner?
The supplied product description identifies a stainless steel temperature-controlled refrigerator and side burner with removable lid as included. These components are not separately listed in the Standard Features table on the supplied dimensional drawing.
What type of foundation does the Malibu Q 830 require?
The island requires a solid, stable, flat, and level supporting surface. Cal Flame recommends a permanent concrete slab. Do not install it directly on gravel, sand, timbers, dirt, or grass.
Can the Malibu Q 830 be installed under a patio cover or awning?
An awning can be used only when it is high enough and sufficiently separated to prevent overheating, fire, or damage to combustible overhead materials. Do not install the island beneath a sealed overhead structure.
Is natural gas standard on the Malibu Q 830?
No. The supplied manufacturer drawing identifies the standard G4 grill as Liquid Propane / LP. General natural-gas installation guidance in the owner's manual does not establish a natural-gas Malibu Q 830 configuration.
Before You Order
Confirm Before Purchase
- You have selected the correct 830-R or 830-L orientation.
- The complete 96-inch main run and 72 1/2-inch return fit the installation area.
- The foundation is stable, flat, and level.
- The installation is outdoors and adequately ventilated.
- The standard Liquid Propane / LP grill configuration meets your fuel plan.
- Electrical requirements for the exact installed appliances have been verified.
- Gas, electrical, and other utility locations have been planned before installation.
- The final order configuration distinguishes standard equipment from optional equipment.
Do Not Assume
- That the 96-inch main run describes the entire footprint.
- That 830-R and 830-L can be selected interchangeably after site preparation.
- That natural gas is the standard grill fuel.
- That general natural-gas instructions establish compatibility for this model.
- That optional undercounter lights, sound system, or umbrella hole are included.
- That unstable surfaces such as gravel, dirt, grass, or sand are acceptable.
- That the island can be installed indoors or beneath a sealed overhead structure.
Final planning check: Use the Malibu Q dimensional drawing as the primary reference for the 830-R/830-L layouts, dimensions, standard equipment, and options, and use the Cal Flame Barbecue Islands Owner's Manual for applicable foundation, ventilation, utility, maintenance, safety, and warranty guidance.
