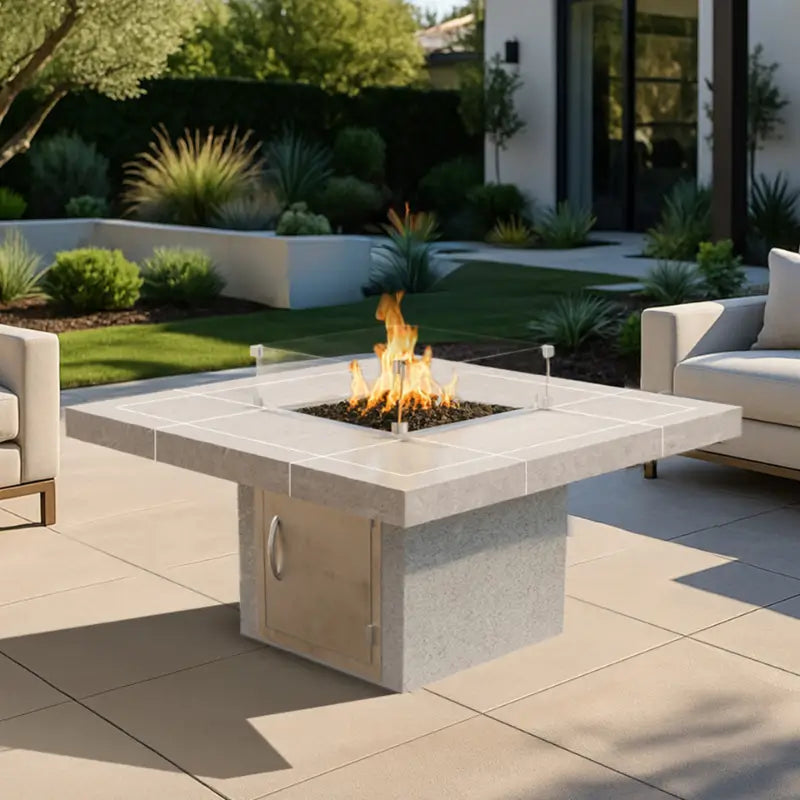

Cal Flame Sedona FPT-S301M 48" Outdoor Gas Fire Pit – 90,000 BTU
The Cal Flame Sedona FPT-S301M is a 48-inch square outdoor gas fire pit designed for stationary patio, courtyard, poolside, and outdoor entertainment installations. Its broad tile-top surface surrounds a 20-inch square fire box with a round burner rated at 90,000 BTU, creating a substantial central flame feature with practical surrounding surface area.
Model
FPT-S301M
Maximum Output
90,000 BTU
Factory Fuel
Liquid Propane
NG Convertible
Yes
Overall Size
48"W × 48"D × 25"H
Fire Box
20" Square
Ignition
Electronic Ignition
Standard Media
10 lb. Black Lava Rock

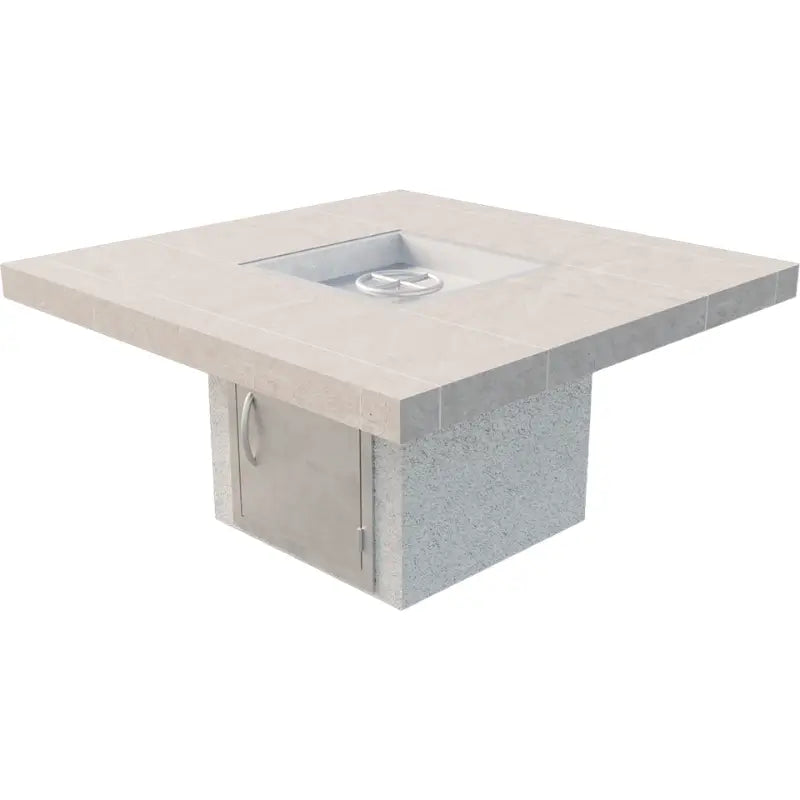

A 48-Inch Square Gas Fire Pit for Permanent Outdoor Living Spaces
The Sedona FPT-S301M is designed as a stationary outdoor gathering feature rather than a portable fire bowl.
Its 48" × 48" square footprint creates a broad tile-top surface around the central fire box, while the 90,000 BTU burner provides the visual scale expected from a larger outdoor fire feature.
The standard configuration uses Liquid Propane and is identified as convertible to Natural Gas. A gas valve with electronic ignition provides burner control and lighting.
Important before ordering: The Sedona requires a planned stationary outdoor installation. Confirm the foundation, fuel configuration, ventilation, clearances, service access, and delivery path before installation.
Cal Flame Sedona FPT-S301M at a Glance
Product Type
Outdoor Gas Fire Pit
Application
Outdoor Stationary Use Only
Maximum Output
90,000 BTU
Is the Cal Flame Sedona FPT-S301M Right for Your Outdoor Space?
Best For
- Patios and permanent outdoor seating areas.
- Courtyards and poolside gathering spaces.
- Buyers wanting a large square fire-pit centerpiece.
- Liquid Propane installations.
- Projects where Natural Gas conversion may be required.
- Outdoor spaces where a broad tile-top surface is desired.
- Stationary installations with a properly prepared foundation.
Consider Another Fire Feature If
- You need an indoor fire feature.
- You need a portable or frequently movable fire pit.
- You want to burn wood, charcoal, or compressed logs.
- Your installation cannot provide the required ventilation.
- You cannot provide a suitable level cement foundation.
- You expect the Propane cylinder to be stored inside the fire pit structure.
Why Choose the Cal Flame Sedona FPT-S301M?
90,000 BTU Burner
The round gas burner is rated at 90,000 BTU and is positioned inside a 20-inch square fire box.
48-Inch Square Design
The 48" × 48" overall footprint provides generous surface area around the central flame area.
LP Standard Configuration
The Sedona is configured for Liquid Propane operation from the factory.
Natural Gas Convertible
The model is identified as convertible to Natural Gas when the proper conversion procedure and components are used.

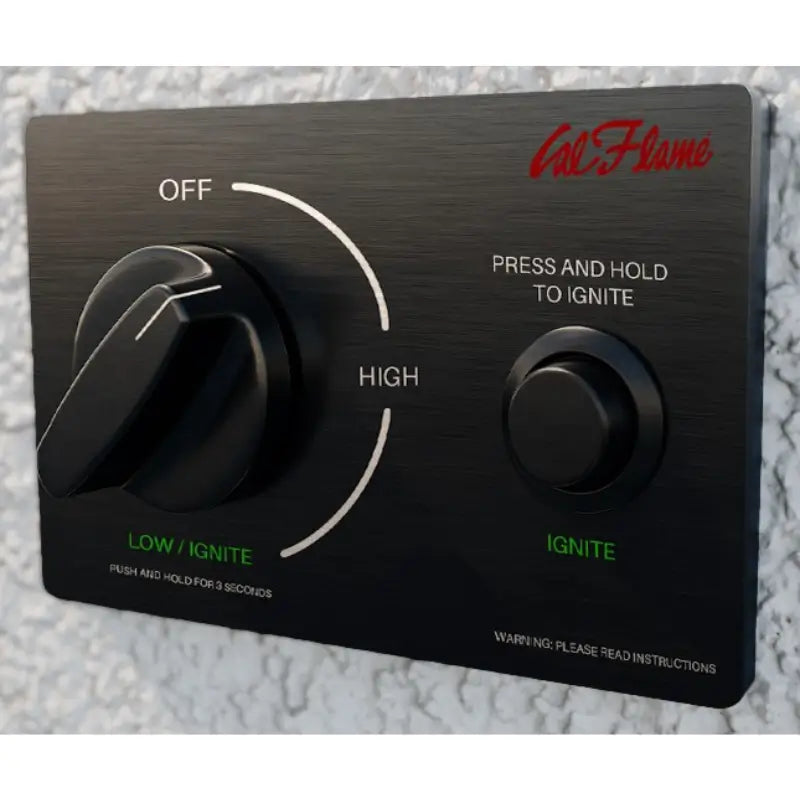

Electronic Ignition
A gas valve with electronic ignition provides burner operation and lighting.
Tile Top & Border
The tile top and border provide a finished outdoor-living surface surrounding the fire box.
Standard Sedona FPT-S301M Features
Stucco / Trowel Finish
Standard exterior finish configuration.
12" × 24" Porcelain Tile
Used for the tile-top and border configuration.
20" Square Fire Box
Central fire-box configuration surrounding the round burner.
90,000 BTU Round Burner
High-output gas burner positioned within the square fire box.
10 lb. Black Lava Rock
Included as the standard decorative fire media.
18" Access Door
Provides access to internal components.
Gas Valve
Standard gas-control component.
Electronic Ignition
Standard burner-lighting system.
Available Sedona FPT-S301M Options

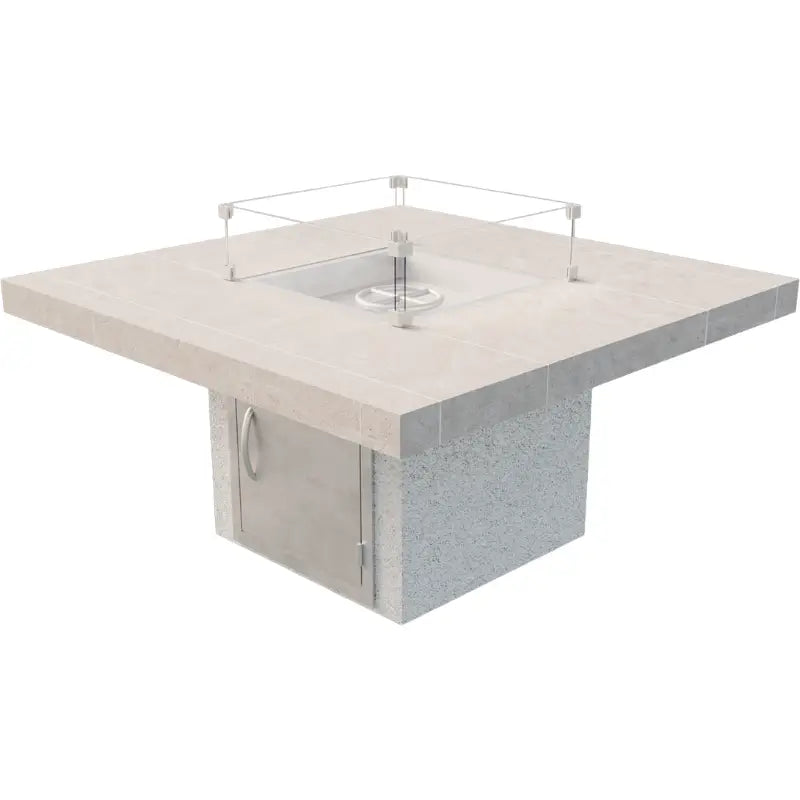

Tempered Glass Wind Guard
A 24" × 24" × 6" tempered glass wind guard is identified as an optional accessory for the FPT-S301M.
It is not listed as standard equipment.
Tempered Reflective Fire Pit Glass
The manufacturer drawing identifies 10 lb. of 1/2" tempered reflective fire pit glass as an optional media configuration.
The standard fire media remains 10 lb. of black lava rock.
Optional equipment: Do not represent the wind guard or reflective fire glass as standard unless specifically included with the ordered configuration.
Sedona FPT-S301M Dimensions & Planning Measurements
| Overall Width |
48 in. |
| Overall Depth |
48 in. |
| Overall Height |
25 in. |
| Fire Box |
20 in. Square |
| Porcelain Tile |
12" × 24" |
| Access Door |
18 in. |
| Optional Wind Guard |
24" × 24" × 6" |
Planning note: The physical 48" × 48" footprint is only part of the space requirement. Installation planning must also account for ventilation, combustible clearances, walking areas, service access, gas connections, and drainage.
Liquid Propane Standard With Natural Gas Conversion Capability
The Cal Flame Sedona FPT-S301M is configured for Liquid Propane operation.
Factory Fuel
Liquid Propane / LP
Optional Converted Fuel
Natural Gas / NG after proper conversion.
Natural Gas conversion: Do not connect the factory LP-configured fire pit directly to a Natural Gas supply. Conversion must follow Cal Flame's requirements and should be handled by an authorized or qualified technician.
Propane Cylinder Planning
For portable LP operation, the Cal Flame Fire Pit Owner's Manual describes a propane cylinder approximately 12 inches in diameter and 18 inches high with a maximum fuel capacity of 20 lb. / 5 gallons.
Important: Cal Flame states that its fire pits are not designed with an enclosure for the propane cylinder. Any cylinder enclosure must meet the manufacturer's ventilation and installation requirements.
Do not assume the cylinder can simply be stored inside the FPT-S301M structure.
Installation & Site Planning
The Sedona FPT-S301M is designed for stationary outdoor use only.
Outdoor Only
Do not operate the fire pit indoors or in enclosed areas such as garages, sheds, breezeways, campers, tents, vehicles, or homes.
Ventilation Required
The installation location must maintain proper airflow and the ventilation requirements specified by Cal Flame.
Professional Installation
Cal Flame recommends installation by a licensed contractor and compliance with applicable local requirements.
Gas Service Planning
Finalize the LP or converted NG configuration before permanent gas connections are prepared.
Wind Exposure
Consider wind conditions when selecting the final fire-pit location.
Service Access
Maintain adequate access to the 18-inch access door and internal components.
Foundation Requirements
Cal Flame specifies a level foundation made from suitable cement material approximately 2–4 inches thick (5–10 cm).
Required Foundation Characteristics
- Level.
- Suitable cement construction.
- Approximately 2–4 inches thick.
- Stable enough to support the fire pit.
- Located where standing water will not create installation problems.
Do Not Use as a Substitute
- Loose gravel.
- Loose or unstable materials.
- Flammable foundation materials.
- Tile as the structural foundation.
- Uneven supporting surfaces.
Fire Media Requirements
The Sedona FPT-S301M includes 10 lb. of black lava rock as standard fire media.
Decorative media must be approved for fire-pit use and positioned so that it does not restrict the burner, burner openings, or ignition components.
Fuel restriction: Do not burn wood, charcoal, compressed logs, or other solid fuels in the FPT-S301M. The fire pit is designed for approved LP or properly converted NG gas operation only.
Operation & Safety
Inspect Before Use
Inspect the burner area, gas lines, hoses, valves, and related components before operating the fire pit.
Never Use Indoors
The Sedona is intended exclusively for outdoor use.
Do Not Leave Unattended
The fire pit should not be left unattended while operating.
Avoid Windy Conditions
Do not operate the fire pit in unsafe windy conditions.
Keep Combustibles Away
Keep combustible materials and flammable liquids away from the fire pit.
Protect Children
Children should not be left unattended near the operating fire pit or hot surfaces.
If you smell gas: Do not operate the appliance. Gas-related inspection, service, conversion, and repairs should be handled according to manufacturer requirements by appropriately qualified personnel.
Cleaning & Maintenance
Inspect Before Initial Use
Inspect the fire pit and gas components before the first operation.
Annual Cleaning
Cal Flame recommends cleaning the fire pit at least annually.
Qualified Inspection
The appliance should be inspected by a qualified service person according to manufacturer guidance.
Burner Inspection
Periodically inspect the burner and air-shutter area for dirt, debris, or obstruction.
LP Hose Inspection
Inspect applicable LP hoses for cracks, damage, or deterioration before operation.
Cool Before Cleaning
Do not clean or service the fire pit while the burner is operating or components remain hot.
Cal Flame Sedona Limited Warranty Overview
| Structure |
5 Years |
| Hardware |
2 Years |
| Finish |
1 Year |
Structural coverage applies to specified structural components and workmanship. Hardware coverage includes specified components such as the fire box and burner, while finish coverage applies to qualifying stucco, stone, tile, and related finish components.
Warranty guidance: Complete eligibility requirements, exclusions, installation conditions, maintenance responsibilities, and other limitations apply. Review the full Cal Flame Fire Pit Owner's Manual for warranty terms.
Complete Cal Flame Sedona FPT-S301M Technical Specifications
| Brand |
Cal Flame |
| Product Line |
Sedona |
| Model / Item Number |
FPT-S301M |
| Product Type |
Outdoor Gas Fire Pit |
| Application |
Outdoor Stationary Use Only |
| Overall Dimensions |
48"W × 48"D × 25"H |
| Fire Box |
20" Square Fire Box |
| Burner |
Round Burner |
| Burner Output |
90,000 BTU |
| Factory Fuel |
Liquid Propane / LP |
| Natural Gas Capability |
Convertible |
| Ignition |
Electronic Ignition |
| Gas Valve |
Yes |
| Access Door |
18 in. |
| Standard Fire Media |
10 lb. Black Lava Rock |
| Top |
Tile Top and Border |
| Porcelain Tile |
12" × 24" |
| Finish |
Stucco / Trowel Finish |
| Ventilation |
Yes |
| Stainless Steel Cover with Storage Hooks |
No |
| Glass Wind Guard |
Optional — 24" × 24" × 6" |
| Reflective Fire Pit Glass |
Optional — 10 lb. of 1/2" Tempered Reflective Glass |
Flame Authority Expert Recommendation
Choose the Cal Flame Sedona FPT-S301M when you want a substantial square gas fire pit that functions as both a flame centerpiece and a finished outdoor gathering feature.
Its 48-inch square footprint, 90,000 BTU burner, tile-top surface, standard black lava rock, electronic ignition, and LP-to-NG conversion capability make it well suited to permanent patios, pool areas, courtyards, and outdoor entertainment spaces.
The key planning considerations are the stationary installation, correct fuel configuration, foundation, ventilation, and Propane-cylinder arrangement. Do not assume that the LP cylinder is stored inside the fire pit or that the factory LP appliance can be connected directly to Natural Gas.
Official Manufacturer Resources
Cal Flame Fire Pit – Owner's Manual
Installation, fuel requirements, LP cylinder guidance, Natural Gas conversion, foundation requirements, operation, maintenance, safety, and warranty information.
Cal Flame Sedona FPT-S301M – Technical Drawing
Model-specific dimensions, standard equipment, burner configuration, fire media, access-door details, and optional wind guard and reflective glass information.
Cal Flame Sedona FPT-S301M FAQs
Is the Cal Flame Sedona FPT-S301M Propane or Natural Gas?
The Sedona FPT-S301M is configured for Liquid Propane and is convertible to Natural Gas. Natural Gas conversion must follow Cal Flame's requirements and should be completed by an authorized or qualified technician.
How many BTUs does the Cal Flame Sedona FPT-S301M produce?
The FPT-S301M has a round burner rated at 90,000 BTU. The burner is positioned within a 20-inch square fire box.
What are the dimensions of the Cal Flame Sedona FPT-S301M?
The Sedona measures 48"W × 48"D × 25"H. Additional surrounding space is required for ventilation, safe clearance, service access, and normal use.
Is the glass wind guard included with the Sedona FPT-S301M?
No. The 24" × 24" × 6" tempered glass wind guard is listed as an optional feature rather than standard equipment.
Does the Sedona FPT-S301M include lava rock?
Yes. The FPT-S301M includes 10 lb. of black lava rock as standard fire media. Tempered reflective fire pit glass is listed separately as an option.
Does the FPT-S301M have electronic ignition?
Yes. The model-specific technical information lists a gas valve with electronic ignition as standard equipment.
Can the Cal Flame Sedona FPT-S301M be used indoors?
No. Cal Flame fire pits are designed for outdoor use only and must not be operated indoors or in enclosed spaces.
Can I burn wood in the Cal Flame Sedona?
No. Do not burn wood, charcoal, compressed logs, or other solid fuels in the Sedona. It is designed for approved LP or properly converted NG gas operation only.
Can the Sedona FPT-S301M be installed directly on gravel?
No. Cal Flame's owner's manual states that loose materials such as gravel are not adequate foundation materials. The fire pit requires the level foundation specified by the manufacturer.
Is the Propane tank stored inside the Sedona FPT-S301M?
No. Cal Flame states that its fire pits are not designed with an enclosure for the Propane cylinder. Any cylinder enclosure must satisfy the manufacturer's ventilation and installation requirements.
Can I convert the Sedona FPT-S301M from Propane to Natural Gas?
Yes, but the factory LP-configured fire pit should not be connected directly to Natural Gas. The conversion must follow Cal Flame's requirements and should be handled by an authorized or qualified technician.
What type of foundation does the Sedona FPT-S301M require?
Cal Flame specifies a level foundation made from suitable cement material approximately 2–4 inches thick. Loose, flammable, unstable, or otherwise unsuitable materials should not be used.
Is reflective fire glass standard with the Sedona FPT-S301M?
No. The model-specific information lists 10 lb. of 1/2-inch tempered reflective fire pit glass as an option. Black lava rock is the standard fire media.
Before You Order
Confirm Before Purchase
- The fire pit will be installed outdoors in a stationary location.
- The site can accommodate the 48"W × 48"D × 25"H footprint plus required surrounding space.
- A suitable level cement foundation can be provided.
- The factory Liquid Propane configuration matches your fuel plan.
- Natural Gas conversion is separately planned if required.
- The Propane-cylinder arrangement satisfies manufacturer requirements.
- Adequate outdoor ventilation can be maintained.
- The 18-inch access door remains accessible after installation.
- Optional wind guard or reflective fire glass has been separately selected if desired.
Do Not Assume
- That Natural Gas is the standard factory configuration.
- That the LP fire pit can be connected directly to Natural Gas.
- That the Propane cylinder is stored inside the fire pit.
- That the tempered glass wind guard is standard.
- That reflective fire glass is standard.
- That wood or charcoal can be burned in the fire pit.
- That gravel or another loose material is a suitable foundation.
- That the 48" × 48" physical footprint represents the complete required installation area.
Final planning check: Use the Sedona FPT-S301M technical drawing for model-specific dimensions, standard equipment, fire media, and available options, and use the Cal Flame Fire Pit Owner's Manual for fuel configuration, LP cylinder requirements, Natural Gas conversion, foundation, placement, operation, maintenance, safety, and warranty guidance.
