Cal Flame Escape Series Outdoor Fireplace

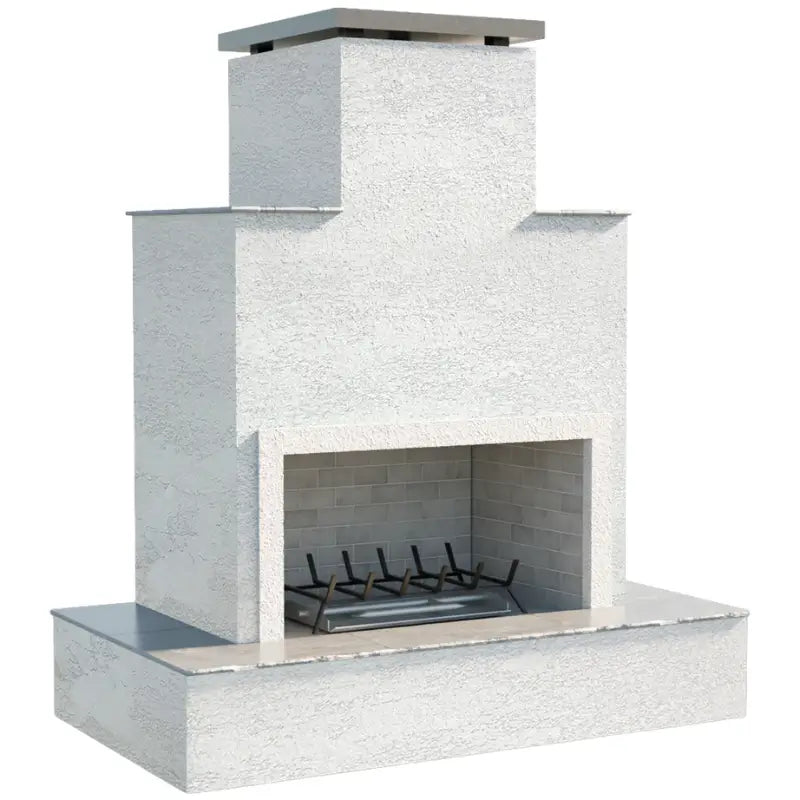

Cal Flame Tahiti FRP-903-3 72-Inch Outdoor Gas Fireplace with Wrap-Around Mantel – 90,000 BTU
The Cal Flame Tahiti 903-3 / FRP-903-3 is a large architectural outdoor gas fireplace designed for permanent patios, poolside retreats, outdoor kitchens, courtyards, and entertainment spaces. Its broad 72-inch width, tall 81-inch profile, wrap-around bottom mantel, herringbone ceramic-brick firebox, electronic ignition, and 22-inch double burner rated up to 90,000 BTU/hr create a substantial focal point for a finished outdoor living area.
Series
Escape Series
Model / SKU
Tahiti 903-3 / FRP-903-3
Maximum Input
90,000 BTU/hr
Factory Fuel
Natural Gas
LP Compatible
Yes, With Conversion
Overall Size
72"W × 41"D × 81"H
Approx. Weight
690 lb.
Design Feature
Wrap-Around Bottom Mantel

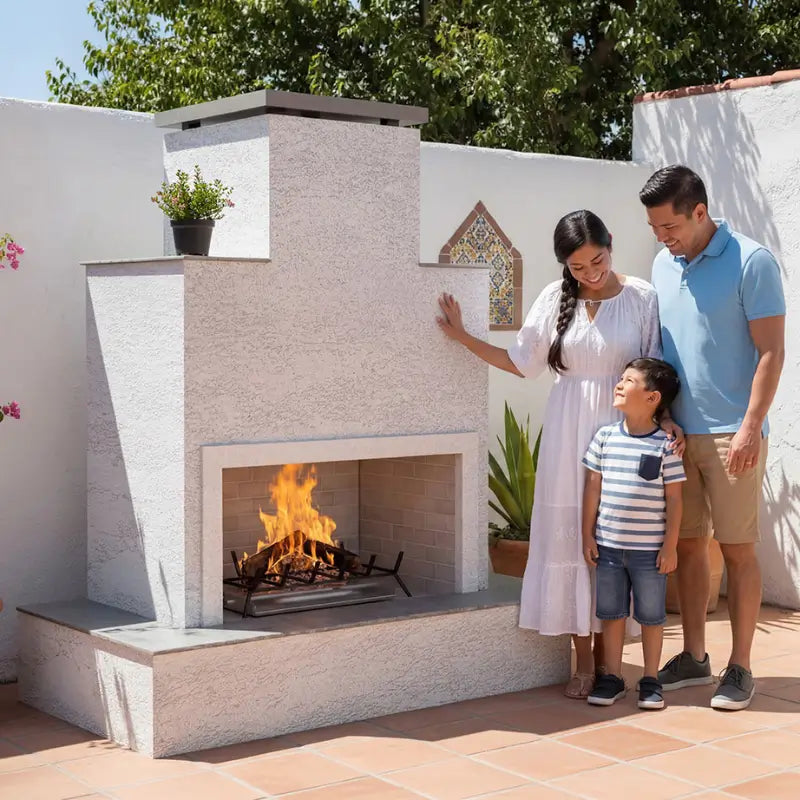

A Large Outdoor Fireplace Designed as Part of the Architecture
The Tahiti 903-3 is best viewed as part of a permanent outdoor-space design rather than as a portable fire feature that can simply be placed after construction.
Its 72-inch width and 81-inch overall height create substantial visual presence, while the wrap-around lower mantel gives the fireplace a broad, grounded appearance suited to larger patios and entertainment areas.
Inside the firebox, the Tahiti combines an 8-piece, 24-inch Weathered Oak log set, built-in 24-inch log grate, herringbone ceramic brick, electronic ignition, and a 22-inch double burner rated for a maximum input of 90,000 BTU/hr.
Important before ordering: The Tahiti is a stationary outdoor fireplace with a supplied product weight of approximately 690 lb. Verify the foundation, delivery route, Natural Gas service, outdoor ventilation, clearances, and final installation area before purchase.
Cal Flame Tahiti 903-3 at a Glance
Product Type
Outdoor Gas Fireplace
Installation
Stationary Outdoor Installation
Vent Configuration
Vented Fireplace
Maximum Input
90,000 BTU/hr
Ignition
Electronic Ignition
Is the Cal Flame Tahiti FRP-903-3 Right for Your Project?
Best For
- Large patios and outdoor entertainment areas.
- Poolside gathering spaces.
- Permanent backyard fireplace installations.
- Outdoor living projects needing a strong architectural focal point.
- Natural Gas installations.
- Properly planned Liquid Propane converted installations.
- Homeowners, designers, builders, and contractors planning a finished outdoor environment.
- Projects where optional stone, tile, or mantel treatments are desired.
Consider Another Fireplace If
- You need a portable or easily movable fire feature.
- You need a fireplace for indoor use.
- Your installation area is enclosed.
- Your site cannot accommodate the 72"W × 41"D × 81"H structure.
- Your foundation cannot support the approximately 690-lb. fireplace.
- You require a factory Propane fireplace without conversion planning.
Why Choose the Cal Flame Tahiti 903-3?
90,000 BTU Double Burner
The Tahiti uses a 22-inch double burner rated for a maximum input of 90,000 BTU/hr, creating a flame presentation proportioned to the fireplace's large architectural form.

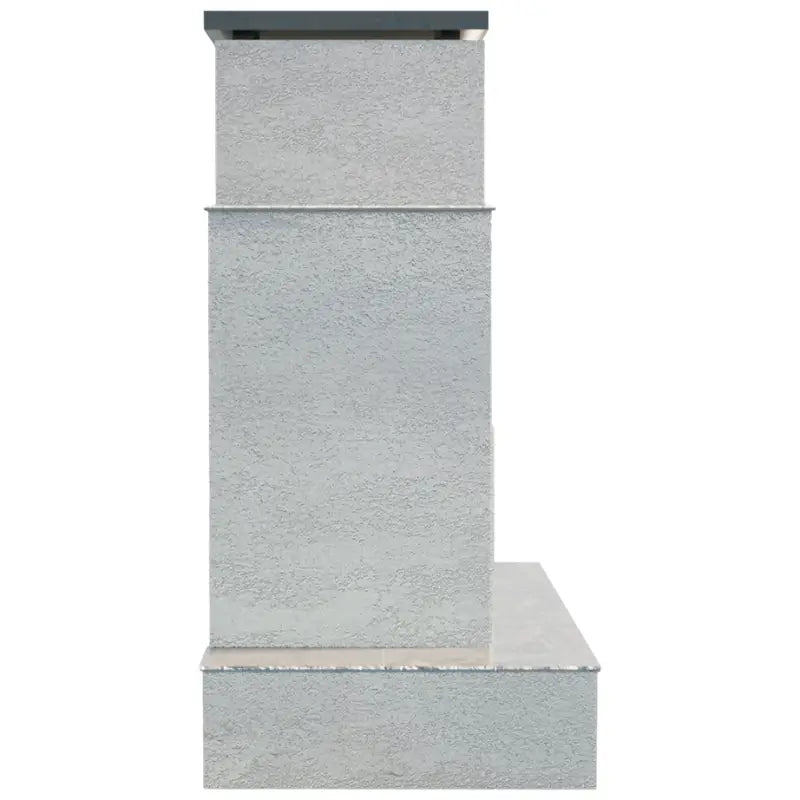

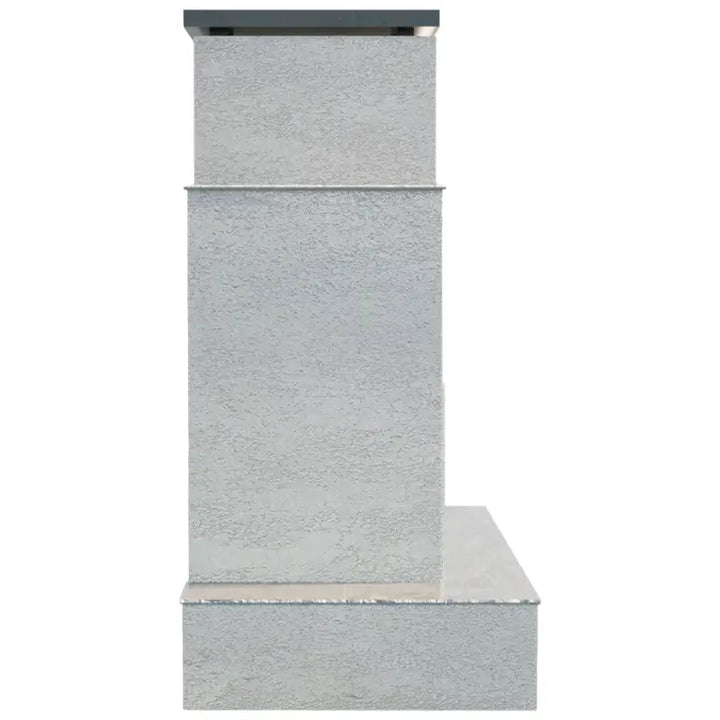

Wrap-Around Bottom Mantel
The extended lower mantel broadens the fireplace visually and helps create a substantial built-in appearance from multiple viewing angles.
81-Inch Overall Height
The tall fireplace profile gives the Tahiti more architectural presence than a compact fire pit or fire table.
Herringbone Ceramic Brick
Herringbone ceramic brick lines the firebox bottom, sides, and rear for a finished masonry-inspired appearance.
Weathered Oak Log Set
The model-specific technical drawing identifies an 8-piece, 24-inch Weathered Oak log set and built-in 24-inch log grate.
Heavy-Duty Construction
The supplied product information identifies a 16-gauge galvanized steel frame, HardieBacker reinforcement, and one-piece construction.
Standard Features & What's Included
22" Double Burner
Maximum input rating of 90,000 BTU/hr.
24" Built-In Log Grate
Supports the standard decorative log presentation.
8-Piece Weathered Oak Log Set
Standard 24-inch gas-fireplace log set.

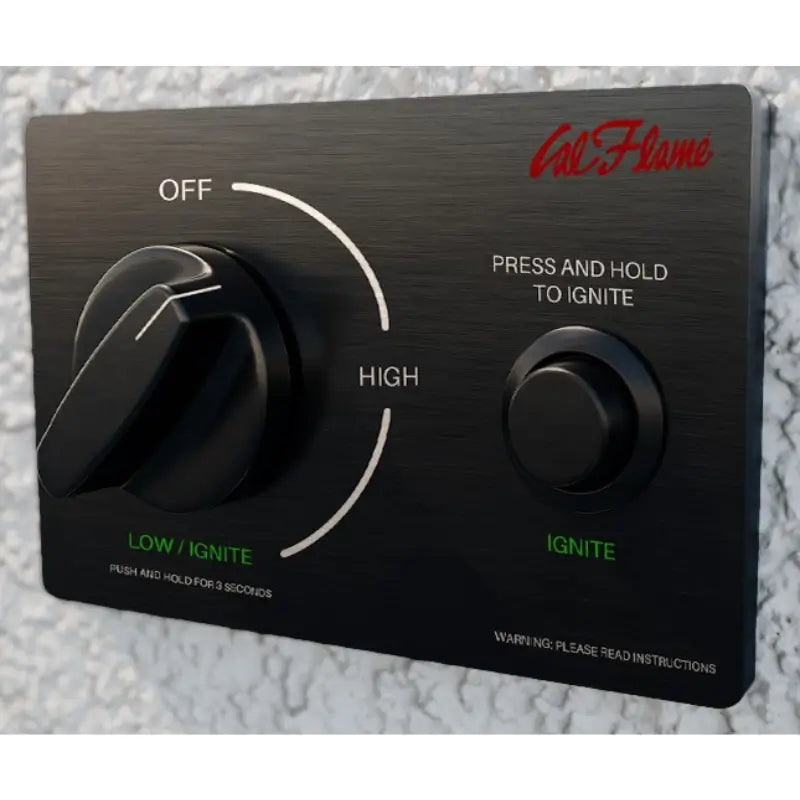

Electronic Ignition
Electronic burner ignition system.
Herringbone Ceramic Brick
Located on the bottom, sides, and rear of the firebox.

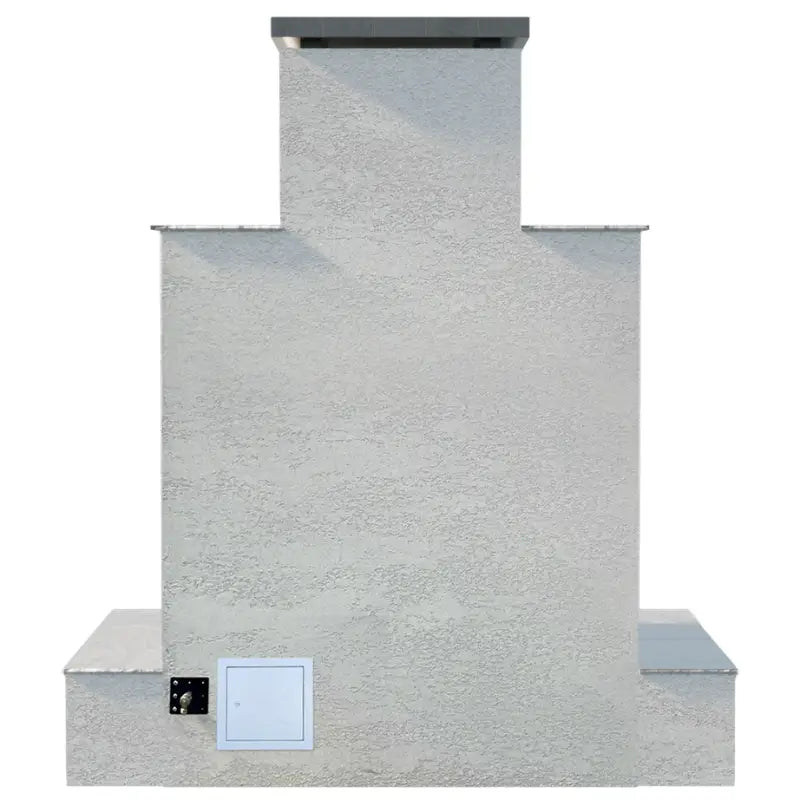

12" Access Door
Shown on the model-specific manufacturer technical drawing.
Galvanized Steel Frame
16-gauge galvanized structural frame.
HardieBacker Reinforcement
Reinforcement supporting the masonry-style fireplace exterior.
Stucco Exterior
Standard exterior finish.
Inclusion clarification: The supplied marketing information references black lava rock, but the Tahiti-specific FRP-903-3 technical drawing reviewed for this page does not independently confirm black lava rock as a standard Tahiti component. It is therefore not represented here as a confirmed standard inclusion.
Available Finish & Design Options
Cal Flame identifies stucco as the standard Tahiti finish. The model-specific technical drawing also identifies additional finish and mantel options.
| Standard Exterior |
Stucco |
| Cultured Stone |
Optional |
| Cal Faux Stone |
Optional — Front and Sides with Rear Stucco |
| Natural Stone Tile |
Optional Field and Border Treatment |
| Porcelain Tile |
Optional Upper Mantel Treatment |
| Front Upper Mantel |
Optional |
Option note: Exact finish availability, combinations, and pricing should be confirmed with the final ordered configuration.
Natural Gas Standard With LP Conversion Capability
The Cal Flame Tahiti 903-3 is configured for Natural Gas operation.
Factory Fuel
Natural Gas / NG
Optional Converted Fuel
Liquid Propane / LP using the appropriate conversion components and procedures.
LP conversion: “LP convertible” does not mean the fireplace arrives ready to connect directly to Propane. Proper conversion is required, and Cal Flame advises using an authorized or appropriately qualified technician.
Liquid Propane Installation Planning
The fireplace itself is not designed to serve as an enclosure for an LP cylinder.
A properly converted LP installation requires appropriate cylinder placement, fuel regulation, ventilation, and enclosure provisions according to the manufacturer's instructions and applicable requirements.
LP cylinder placement: Do not place a Propane cylinder inside the fireplace, beneath the hearth, or near the burner.
Tahiti FRP-903-3 Dimensions & Planning Measurements
| Overall Width |
72 in. |
| Overall Depth |
41 in. |
| Overall Height |
81 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Burner Size |
22 in. |
| Log Set Size |
24 in. |
| Access Door |
12 in. |
| Supplied Product Weight |
690 lb. |
Planning note: Use the FRP-903-3 technical drawing during site planning because the complete drawing contains additional dimensions and component locations beyond the primary measurements listed here.
Installation & Site Planning
The Tahiti should be treated as a permanent part of the outdoor environment rather than as a portable fire feature.
Outdoor Use Only
Do not install the Tahiti in an enclosed room, garage, shed, breezeway, or similar enclosed space.
Stationary Installation
The fireplace is intended for stationary outdoor use and is not designed for installation in recreational vehicles, trailers, boats, yachts, or other moving fixtures.
Foundation Planning
Cal Flame describes a stable, level foundation using quality cement material approximately 2–4 inches thick.
Gas Supply Planning
The gas system must be correctly sized, regulated, connected, and equipped with an accessible shutoff valve according to manufacturer and applicable local requirements.
Wind & Ventilation
Evaluate prevailing winds, outdoor airflow, nearby windows, vegetation, overhead structures, and occupied spaces before final placement.
Service Access
Maintain appropriate access to the gas valve, control components, and service areas after installation.
Installation warning: Improper installation, adjustment, alteration, service, or maintenance can result in injury or property damage. Review the complete Cal Flame installation and operation instructions before installation or service.
Foundation Requirements
Cal Flame specifies a stable, level foundation using quality cement material approximately 2–4 inches thick.
Required Foundation Characteristics
- Stable and level.
- Quality cement construction.
- Approximately 2–4 inches thick.
- Capable of supporting the approximately 690-lb. fireplace.
- Located where water will not collect around the structure.
Do Not Use as a Substitute
- Loose gravel.
- Loose or unstable material.
- Uneven supporting surfaces.
- Combustible supporting materials.
- Other surfaces that cannot safely support the fireplace.
Before Final Placement, Confirm
Fireplace Footprint
Confirm the 72-inch overall width, 41-inch overall depth, and 81-inch overall height.
Foundation Capacity
Verify that the foundation can support the approximately 690-lb. fireplace.
Gas-Line Location
Plan the gas supply and shutoff location before permanent placement.
Nearby Structures
Review combustible materials, overhead structures, vegetation, and nearby openings into the home.
Wind Conditions
Consider prevailing winds and how they may affect flame operation and combustion products.
Local Requirements
Confirm applicable building, fuel-gas, installation, and permitting requirements.
Safe Fireplace Operation
Gas Fuel Only
Do not burn wood, charcoal, compressed logs, or other solid fuels in the Tahiti.
Approved Media Only
Use decorative logs, stones, and media intended for fireplace use and installed according to manufacturer guidance.
Inspect Gas Components
Do not operate the fireplace with damaged gas lines, hoses, loose fittings, or components that are not functioning correctly.
Allow Cooling Before Service
Allow the fireplace and decorative components to cool completely before cleaning or maintenance.
Cleaning & Maintenance
Inspect Before Initial Use
Inspect the fireplace, burner, gas connections, ignition system, and surrounding components before first operation.
Periodic Burner Inspection
Periodically remove the logs as appropriate and inspect the burner and surrounding area for dirt or debris.
Annual Service Inspection
The appliance should be inspected annually by a qualified service technician according to manufacturer guidance.
Protect Gas Components
Never operate the fireplace with a damaged Natural Gas line, damaged LP hose, loose connection, or improperly functioning burner.
Avoid Pressure Washing
Do not pressure wash stucco, grout, rock, styled-rock, or related fireplace finishes.
Cool Before Cleaning
Allow all fireplace components to cool fully before cleaning or servicing.
Pressure-washing warning: Cal Flame states that high-pressure water can damage exterior materials and affect the structural adhesion of finishes.
Cal Flame Tahiti Limited Warranty Overview
| Structure |
5 Years |
| Hardware, Burner & Fire Grate |
2 Years |
| Finish |
1 Year |
| Plastic Components |
90 Days |
Warranty eligibility, exclusions, installation requirements, geographic limitations, commercial-use restrictions, maintenance requirements, shipping costs, service access, and other conditions apply.
Warranty guidance: Review the complete Cal Flame warranty in the owner's manual before installation and operation.
Complete Cal Flame Tahiti FRP-903-3 Technical Specifications
| Brand |
Cal Flame |
| Series |
Escape Series |
| Model |
Tahiti 903-3 |
| Item / Drawing Number |
FRP-903-3 / 903-3 |
| Product Type |
Outdoor Gas Fireplace |
| Location |
Outdoor |
| Installation |
Stationary Outdoor Installation |
| Vent Configuration |
Vented Fireplace |
| Standard Fuel |
Natural Gas |
| Fuel Conversion |
Convertible to Liquid Propane |
| Burner Type |
Double Burner |
| Burner Size |
22 in. |
| Maximum Input |
90,000 BTU/hr |
| Ignition |
Electronic Ignition |
| Overall Width |
72 in. |
| Overall Depth |
41 in. |
| Overall Height |
81 in. |
| Firebox Width |
34 in. |
| Firebox Depth |
19 in. |
| Firebox Height |
18 in. |
| Log Set |
8-Piece, 24" Weathered Oak Log Set |
| Log Grate |
24" Built-In Log Grate |
| Firebox Interior |
Herringbone Ceramic Brick on Bottom, Sides & Rear |
| Frame |
16-Gauge Galvanized Steel |
| Reinforcement |
HardieBacker |
| Construction |
One-Piece Construction |
| Standard Exterior Finish |
Stucco |
| Access Door |
12 in. |
| Supplied Product Weight |
690 lb. |
| Certification |
Supplied product information lists PFS certification to CSA 2.26 and ANSI Z21.60, Report #F23-191 |
Certification note: The certification statement above is retained from the supplied product information. The FRP-903-3 technical drawing and fireplace owner's manual referenced in the source do not independently show that specific certification report number.
Flame Authority Expert Recommendation
Choose the Cal Flame Tahiti FRP-903-3 when you want a large permanent outdoor fireplace that becomes part of the architecture of the patio or entertainment area rather than simply functioning as a compact flame feature.
Its 72-inch width, 81-inch height, wrap-around bottom mantel, 34-inch firebox, 90,000 BTU double burner, Weathered Oak log presentation, and customizable exterior make it particularly appropriate for larger outdoor living projects.
The key buying consideration is site planning. Before ordering, confirm the complete footprint, approximately 690-lb. weight, foundation capacity, delivery access, Natural Gas supply, ventilation conditions, local requirements, and desired finish.
If Propane operation is planned, include proper LP conversion and cylinder-enclosure planning rather than assuming the standard Natural Gas fireplace is ready for direct Propane connection.
Official Manufacturer Resources
Cal Flame Fireplace – Owner's Manual
Installation, Natural Gas requirements, LP conversion, operation, maintenance, safety, foundation guidance, and warranty information.
Cal Flame Tahiti FRP-903-3 – Technical Drawing & Dimensions
Model-specific dimensions, firebox measurements, burner configuration, component locations, and finish information.
Cal Flame Tahiti FRP-903-3 FAQs
What are the dimensions of the Cal Flame Tahiti 903-3?
The Tahiti 903-3 measures approximately 72"W × 41"D × 81"H. Its firebox measures approximately 34"W × 19"D × 18"H.
How many BTUs does the Cal Flame Tahiti 903-3 produce?
The Tahiti uses a 22-inch double burner rated for a maximum input of 90,000 BTU/hr.
Is the Cal Flame Tahiti 903-3 Natural Gas or Propane?
The Tahiti is configured for Natural Gas and can be converted for Liquid Propane operation. Do not connect it directly to Propane without completing the appropriate conversion.
Can the Tahiti 903-3 be converted to Propane?
Yes. LP conversion requires the appropriate conversion components and should be performed according to Cal Flame's instructions by authorized or appropriately qualified personnel.
Can the Cal Flame Tahiti fireplace be installed indoors?
No. The Tahiti is intended for stationary outdoor use and should not be installed in an enclosed room, garage, shed, breezeway, or similar enclosed location.
What foundation does the Tahiti 903-3 require?
Cal Flame specifies a stable, level foundation and describes quality cement material approximately 2–4 inches thick. The foundation must also be capable of supporting the approximately 690-lb. fireplace.
What log set comes with the Cal Flame Tahiti 903-3?
The model-specific technical drawing identifies an 8-piece, 24-inch Weathered Oak log set with a built-in 24-inch log grate.
What finish comes standard on the Cal Flame Tahiti 903-3?
Stucco is the standard finish. The technical drawing also identifies Cultured Stone, Cal Faux Stone, Natural Stone Tile, porcelain tile, and certain mantel treatments as options.
Does the Cal Flame Tahiti require professional installation?
Professional gas installation is strongly appropriate because the fireplace has specific fuel-supply, shutoff, conversion, placement, and safety requirements. Use a qualified installer where required by applicable codes.
Can an LP cylinder be stored inside the Tahiti fireplace?
No. Cal Flame states that an LP cylinder must not be placed inside the fireplace, beneath the hearth, or near the burner. Converted LP installations require an appropriate ventilated cylinder enclosure.
Can I burn wood or charcoal in the Cal Flame Tahiti?
No. The Tahiti is a gas fireplace. Do not burn wood, charcoal, compressed logs, or other solid fuels in the firebox.
Can I pressure wash the Cal Flame Tahiti 903-3?
No. Cal Flame warns against powered pressure washing of stucco, grout, rock, styled-rock, and related finishes because high-pressure water can damage the exterior materials.
What warranty does the Cal Flame Tahiti 903-3 have?
The supplied Cal Flame manual lists 5 years for specified structural components, 2 years for qualifying hardware including the burner and fire grate, 1 year for the finish, and 90 days for plastic components, subject to the complete warranty terms and exclusions.
Before You Order
Confirm Before Purchase
- The fireplace will be installed outdoors in a stationary location.
- The site can accommodate the 72"W × 41"D × 81"H structure.
- The supporting foundation can handle the approximately 690-lb. fireplace.
- A suitable stable and level cement foundation can be provided.
- The Natural Gas service has been properly planned.
- LP conversion is separately planned if Propane operation is required.
- The delivery route can accommodate the fireplace.
- Outdoor ventilation and required clearances can be maintained.
- The desired exterior finish and optional treatments have been confirmed.
Do Not Assume
- That the Tahiti arrives configured for Propane.
- That LP conversion components are included.
- That a Propane cylinder can be stored inside the fireplace.
- That the fireplace is suitable for indoor or enclosed-area installation.
- That black lava rock is independently confirmed as a standard Tahiti inclusion.
- That wood or charcoal can be burned in the firebox.
- That optional stone, tile, or mantel configurations are standard.
- That pressure washing is appropriate for the exterior finish.
Final planning check: Use the Tahiti FRP-903-3 technical drawing for model-specific dimensions, burner configuration, firebox measurements, component locations, and finish information, and use the Cal Flame Fireplace Owner's Manual for fuel, LP conversion, installation, foundation, operation, maintenance, safety, and warranty guidance.
