Empire White Mountain Hearth Super Sassafras Gas Logs

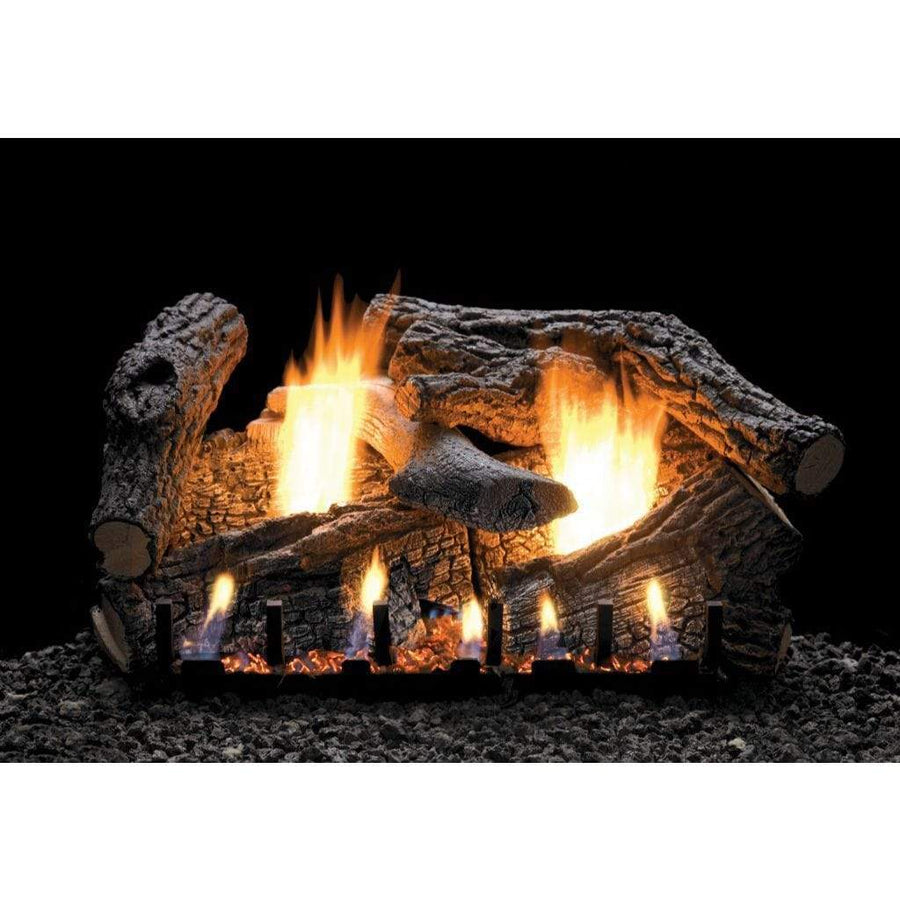

Empire White Mountain Hearth LS24RSS 24" Super Sassafras Refractory Gas Log Set
The Empire White Mountain Hearth LS24RSS is a 24-inch, seven-piece Super Sassafras refractory gas log set designed for compatible 24" Empire Slope Glaze burner systems. Its hand-painted refractory logs create a substantial traditional wood-fire appearance, while the separately selected burner determines the fuel type, ignition, controls, BTU input, and vented or approved vent-free operating configuration.
Model
LS24RSS / LS-24RSS-1
Nominal Size
24"
Log Count
7 Pieces
Material
Refractory
Style
Super Sassafras
Required Burner
24" Slope Glaze
Fuel
NG / LP via Burner
Burner Included
No
Important: Log Set Only — Burner Not Included
The LS24RSS includes the seven-piece decorative refractory log set only. A compatible 24" Empire Slope Glaze burner is required separately to create an operating gas-log system.
Do not select by fuel type alone.
The logs themselves are not Natural Gas- or Propane-specific. The exact burner determines fuel type, ignition, controls, BTU input, and the approved installation configuration.
Layered 24" Super Sassafras Fireplace Presentation
The LS24RSS is designed for homeowners completing or upgrading a compatible Empire gas-log system who want a fuller, traditionally styled refractory log arrangement.
Its seven separately positioned logs create visual depth across the rear, front, center, and upper areas of the fireplace rather than relying on a single molded assembly.
Correct log placement is especially important. Empire prescribes the location of every log because incorrect positioning can alter flame movement, interfere with burner operation, and contribute to soot.
Empire LS24RSS at a Glance
Brand
Empire White Mountain Hearth
Model
LS24RSS / LS-24RSS-1
Product Type
Refractory Gas Log Set
Collection
Super Sassafras
Country of Manufacture
USA
Is the Empire LS24RSS Right for Your Fireplace?
Best For
- Buyers wanting the 24" Super Sassafras appearance.
- Projects using a compatible 24" Empire Slope Glaze burner.
- Natural Gas systems using the proper NG burner model.
- Propane systems using the proper LP burner model.
- Manual-control burner configurations.
- Millivolt remote-ready burner configurations.
- Variable-flame burner configurations.
- Intermittent-pilot burner configurations.
- Approved vented or vent-free applications where permitted.
Do Not Choose This Log Set If
- You need a complete gas-log burner package.
- You expect the gas valve, ignition, or controls to be included.
- Your burner is not approved for the LS24RSS.
- Your firebox cannot meet the selected burner's minimum dimensions.
- You need another nominal log-set size.
- You intend to rearrange the seven logs.
- You need an unvented installation in Canada.
- Your local jurisdiction prohibits the intended vent-free application.
What's Included?
Included
- 1 × Empire LS24RSS / LS-24RSS-1 24" Super Sassafras refractory log set
- 7 individual refractory logs
Required Separately
- Compatible 24" Empire Slope Glaze burner
- Correct Natural Gas or Propane burner configuration
- Ignition system associated with the selected burner
- Remote or control system associated with the selected burner
- Gas supply components
- Approved fireplace or firebox meeting the burner's requirements
Compatible 24" Empire Slope Glaze Burner Options
| Burner Type |
Natural Gas |
Propane |
Control / Ignition |
| Vent-Free Intermittent Pilot |
VFSE24N |
VFSE24P |
Intermittent pilot with thermostat variable remote control |
| Vent-Free Manual |
VFSM24NAT |
VFSM24LP |
Standing pilot / piezo with Hi-Med-Low control |
| Vent-Free Millivolt |
VFSR24NAT |
VFSR24LP |
Remote-ready with standing pilot / piezo |
| Vent-Free Variable Flame |
VFSV24NAT |
VFSV24LP |
Variable flame-height control |
| Vented Millivolt |
VSR24NAT |
VSR24LP |
Millivolt with On/Off switch |
Not a universal 24" log set: Confirm the exact burner model before ordering. Burner family, fuel type, control system, and installation requirements all matter.
Natural Gas or Propane?
The LS24RSS logs are not fuel-specific. Natural Gas or Propane operation is determined entirely by the selected compatible burner.
Natural Gas
Use the corresponding Natural Gas version of the approved 24" Slope Glaze burner.
Propane / LP
Use the corresponding Propane version of the approved 24" Slope Glaze burner.
Do not assume field conversion is allowed. Select the burner specifically designed and rated for the fuel supplied to the installation.
Compatible Burner Output
The LS24RSS does not have an independent BTU rating because it is the decorative log set rather than the gas-burning appliance.
| Burner |
Fuel |
Maximum Input |
Minimum Input |
| VFSE-24 |
Natural Gas |
36,000 BTU/h |
28,800 BTU/h |
| VFSE-24 |
Propane |
36,000 BTU/h |
28,800 BTU/h |
| VFSV-24 |
Natural Gas |
36,000 BTU/h |
24,000 BTU/h |
| VFSV-24 |
Propane |
36,000 BTU/h |
24,000 BTU/h |
| VFSR-24 |
Natural Gas |
36,000 BTU/h |
25,000 BTU/h |
| VFSR-24 |
Propane |
36,000 BTU/h |
25,000 BTU/h |
| VFSM-24 |
Natural Gas |
36,000 BTU/h |
22,000 BTU/h |
| VFSM-24 |
Propane |
36,000 BTU/h |
22,000 BTU/h |
Specification distinction: BTU input, turndown, gas pressure, ignition, and controls belong to the selected burner—not to the LS24RSS logs.
Fireplace Fit & Minimum Dimensions
Do not determine fireplace compatibility from the 24-inch nominal log size alone. Required firebox dimensions depend on the burner configuration.
For applicable VFSE-24 and VFSV-24 installations, Empire lists the following minimum dimensions:
| Minimum Rear Width |
23" |
| Minimum Depth |
14" |
| Minimum Front Width |
30" |
| Minimum Height |
18" |
Burner-specific dimensions: These measurements apply to the documented VFSE-24 and VFSV-24 configurations and should not be treated as universal LS24RSS firebox dimensions.
Vented vs. Vent-Free Installation
Vent-Free Configuration
- Use an approved vent-free 24" Slope Glaze burner.
- Provide adequate combustion and ventilation air.
- Verify firebox and combustible clearances.
- Maintain the exact seven-log arrangement.
- Follow the selected burner's instructions.
- Verify that local regulations permit vent-free operation.
Vented Configuration
- Use an approved compatible vented burner.
- Maintain the required fireplace flue configuration.
- Follow applicable damper requirements.
- Follow the exact burner and fireplace instructions.
- Verify all venting and clearance provisions.
The logs do not determine venting. The completed system's operating configuration depends on the selected burner, fireplace, installation, and applicable codes.
Canadian Installation Restriction
The LS24RSS cannot be installed as an unvented application in Canada.
The supplied manufacturer instructions limit Canadian installations to an approved vented configuration.
Correct LS24RSS Seven-Log Placement
Empire specifies an exact seven-position installation sequence for the Super Sassafras logs.
| Position |
Log |
| 1 |
Left Rear Log |
| 2 |
Right Rear Log |
| 3 |
Left Front Log |
| 4 |
Right Front Log |
| 5 |
Left Top Log |
| 6 |
Center Top Log |
| 7 |
Right Top Log |
Do not rearrange the logs for appearance. Incorrect placement can interfere with flame patterns, burner operation, and soot prevention.
Glowing Ember & Lava Rock Placement
Decorative media must be installed only where permitted by Empire.
- Do not place decorative lava rock directly on the burner.
- Do not cover large burner ports with glowing ember material.
- Use only the amount of ember material specified by the manufacturer.
- Remove previously applied loose ember material before reapplication when instructed.
- Follow the LS24RSS installation photographs and diagrams.
Why placement matters: Excessive or incorrectly positioned media can interfere with flame characteristics and burner performance.
Glass Fireplace Door Requirements
Glass doors must remain open during operation.
The manufacturer's instructions require fireplace glass doors to remain open while the gas-log system is operating.
The glass-door frame opening must also be considered when measuring the available front opening of the firebox.
Combustion Air & Airflow
Approved vent-free operation requires adequate combustion and ventilation air.
Vent-free burners use air from the room in which they are installed, so the room must satisfy the applicable manufacturer's combustion-air requirements.
Avoid Direct Drafts
Do not allow ceiling fans, portable fans, or other airflow sources to blow directly into the fireplace.
Keep Air Openings Clear
Keep burner ports, venturi areas, and required combustion-air openings free from dirt, debris, and obstruction.
Important Installation & Operating Requirements
- Installation and service should be performed by qualified personnel.
- Use only approved burner and control components.
- Verify the exact Natural Gas or Propane burner model.
- Follow the seven-log placement sequence exactly.
- Do not place additional logs or debris on the burner.
- Keep burner ports and primary-air openings clear.
- Do not allow fans or drafts to disturb the flame pattern.
- Provide adequate combustion and ventilation air for vent-free operation.
- Follow all applicable state and local vent-free regulations.
- Keep fireplace glass doors open while operating.
- Have the appliance inspected and serviced according to the applicable burner manual.
Warranty Information
Vent-Free Products
The supplied product information states a five-year limited warranty with a five-year limited labor warranty for vent-free products.
Remote Controls & Lighting Systems
The supplied product information states a one-year limited warranty for remote controls and lighting systems.
Warranty coverage varies by component. Review the applicable manufacturer documentation for complete eligibility, limitations, exclusions, and service terms.
Complete Empire LS24RSS Specifications
| Brand |
Empire White Mountain Hearth |
| Model |
LS24RSS / LS-24RSS-1 |
| Collection / Log Style |
Super Sassafras |
| Product Type |
Refractory Gas Log Set |
| Nominal Size |
24" |
| Number of Logs |
7 |
| Color |
Brown |
| Log Construction |
Refractory |
| Burner Included |
No |
| Required Component |
Compatible 24" Empire Slope Glaze Burner |
| Fuel Type |
Determined by Selected Compatible Burner |
| Compatible Fuels |
Natural Gas or Propane with Corresponding Compatible Burner |
| Vent Configuration |
Depends on Selected Burner, Installation, and Applicable Codes |
| Documented Burner Maximum Input |
36,000 BTU/h |
| Example VFSE/VFSV Minimum Rear Width |
23" |
| Example VFSE/VFSV Minimum Depth |
14" |
| Example VFSE/VFSV Minimum Front Width |
30" |
| Example VFSE/VFSV Minimum Height |
18" |
| Canadian Vent-Free Installation |
Not Permitted |
| Glass Door Position During Operation |
Open |
| Log Placement |
Manufacturer-Prescribed Seven-Piece Arrangement |
| Country of Manufacture |
USA |
| Pallet Quantity |
42 |
Flame Authority Expert Recommendation
Choose the Empire White Mountain Hearth LS24RSS when you specifically want a 24" seven-piece Super Sassafras refractory log presentation and already have or plan to purchase a compatible 24" Empire Slope Glaze burner.
The biggest advantage of the LS24RSS is its layered seven-log arrangement, which creates a fuller traditional fireplace appearance while allowing you to choose the burner controls and fuel configuration separately.
Before ordering, verify the exact burner model, Natural Gas or Propane fuel, control system, minimum firebox dimensions, vented or vent-free application, combustion-air requirements, log placement, ember placement, and local installation rules.
Official Manufacturer Resources
Traditional Vent-Free Log Sets Brochure
Manufacturer information covering White Mountain Hearth gas-log families, burner configurations, controls, fuel options, firebox compatibility, and warranty details.
Sassafras Refractory Log Sets Installation Manual
Manufacturer LS24RSS log-placement, ember-placement, installation, vented/vent-free, operating, and safety instructions.
Vent-Free Slope Glaze Burners Manual
Manufacturer vent-free burner installation, combustion-air, gas-supply, clearance, operation, and safety requirements.
Vent-Free Slope Glaze Burner Variable Flame Manual
Manufacturer instructions for compatible variable-flame VFSV burner configurations.
Vent-Free Slope Glaze Burner Intermittent Pilot Manual
Manufacturer instructions for compatible VFSE intermittent-pilot burner configurations.
Vented Slope Glaze Burner Millivolt with On/Off Switch Manual
Manufacturer installation and operation requirements for compatible VSR vented burner configurations.
Empire LS24RSS FAQs
Is the Empire LS24RSS a complete gas log system?
No. The LS24RSS is the 24" seven-piece Super Sassafras refractory log set only. A compatible 24" Empire Slope Glaze burner is required separately.
Does the Empire LS24RSS include the burner?
No. The burner, gas valve, ignition system, and controls are separate.
How many logs are included with the LS24RSS?
The LS24RSS contains seven refractory logs.
Which burners are compatible with the LS24RSS?
The supplied product information identifies VFSE24N/VFSE24P, VFSM24NAT/VFSM24LP, VFSR24NAT/VFSR24LP, VFSV24NAT/VFSV24LP, and VSR24NAT/VSR24LP.
Can the LS24RSS be used with Natural Gas?
Yes, when paired with the corresponding compatible Natural Gas burner.
Can the LS24RSS be used with Propane?
Yes, when paired with the corresponding compatible Propane burner.
Can I convert a Natural Gas burner to Propane?
Do not assume field conversion is permitted. Select the exact burner specifically designed and rated for the intended fuel.
How many BTUs does the LS24RSS produce?
The LS24RSS does not have a standalone BTU rating. The compatible 24" burners documented in the supplied information can provide up to 36,000 BTU/h.
Can the LS24RSS be installed vent-free?
Yes, where permitted, when paired with an approved vent-free burner and installed with the required combustion air, clearances, and manufacturer requirements.
Can the LS24RSS be used as a vented gas log set?
Yes, when paired with an approved vented Slope Glaze burner and installed according to the applicable venting and fireplace requirements.
Can the LS24RSS be installed vent-free in Canada?
No. The supplied manufacturer documentation limits Canadian installations to an approved vented configuration.
What fireplace dimensions are required?
Dimensions depend on the exact burner. For documented VFSE-24 and VFSV-24 installations, Empire specifies at least 30" front width × 23" rear width × 14" depth × 18" height.
Can I arrange the seven logs however I want?
No. Install all seven logs in the manufacturer-prescribed positions.
Can decorative lava rock be placed directly on the burner?
No. Decorative lava rock should not be placed directly on the burner.
Can glowing embers cover the burner ports?
No. Do not cover burner ports that the manufacturer requires to remain unobstructed.
Can fireplace glass doors stay closed during operation?
No. The supplied manufacturer instructions require fireplace glass doors to remain open during operation.
Can fans affect the flame pattern?
Yes. Ceiling fans, portable fans, or other direct drafts can alter flame movement and should not blow directly into the fireplace.
Should the LS24RSS system be professionally installed?
Yes. Gas piping, burner installation, testing, repair, and servicing should be completed by qualified personnel according to the manufacturer instructions and applicable codes.
What warranty applies?
The supplied information states that vent-free products carry a five-year limited warranty with a five-year limited labor warranty, while remote controls and lighting systems carry a one-year limited warranty.
Before You Order
Confirm Before Purchase
- You specifically need the Empire LS24RSS.
- You want the 24" seven-piece Super Sassafras configuration.
- You have identified a compatible 24" Empire Slope Glaze burner.
- You have confirmed Natural Gas or Propane fuel.
- You have selected the correct control and ignition configuration.
- Your fireplace meets the dimensional requirements of the exact burner.
- You have confirmed vented or vent-free installation requirements.
- You can provide adequate combustion and ventilation air for vent-free operation.
- You can meet all required clearances.
- You will follow the exact seven-log placement sequence.
- You will keep lava rock and glowing embers out of prohibited burner areas.
- You understand that burner and controls are sold separately.
Do Not Assume
- That the burner is included.
- That every 24" burner is compatible.
- That the logs determine the fuel type.
- That the LS24RSS itself produces 36,000 BTU/h.
- That Natural Gas and Propane burner versions are interchangeable.
- That nominal 24" log size alone guarantees fireplace fit.
- That vented and vent-free requirements are identical.
- That vent-free installation is allowed everywhere.
- That vent-free installation is permitted in Canada.
- That the seven logs can be rearranged.
- That lava rock can be placed directly on the burner.
- That glass doors can stay closed during operation.
Final planning check: Use the LS24RSS log-set manual and the installation manual for the exact selected Empire Slope Glaze burner to verify burner compatibility, fuel, controls, BTU input, fireplace dimensions, combustion air, venting configuration, clearances, log placement, ember placement, and applicable local requirements before installation.
