Empire White Mountain Hearth Super Stacked Wildwood Gas Logs

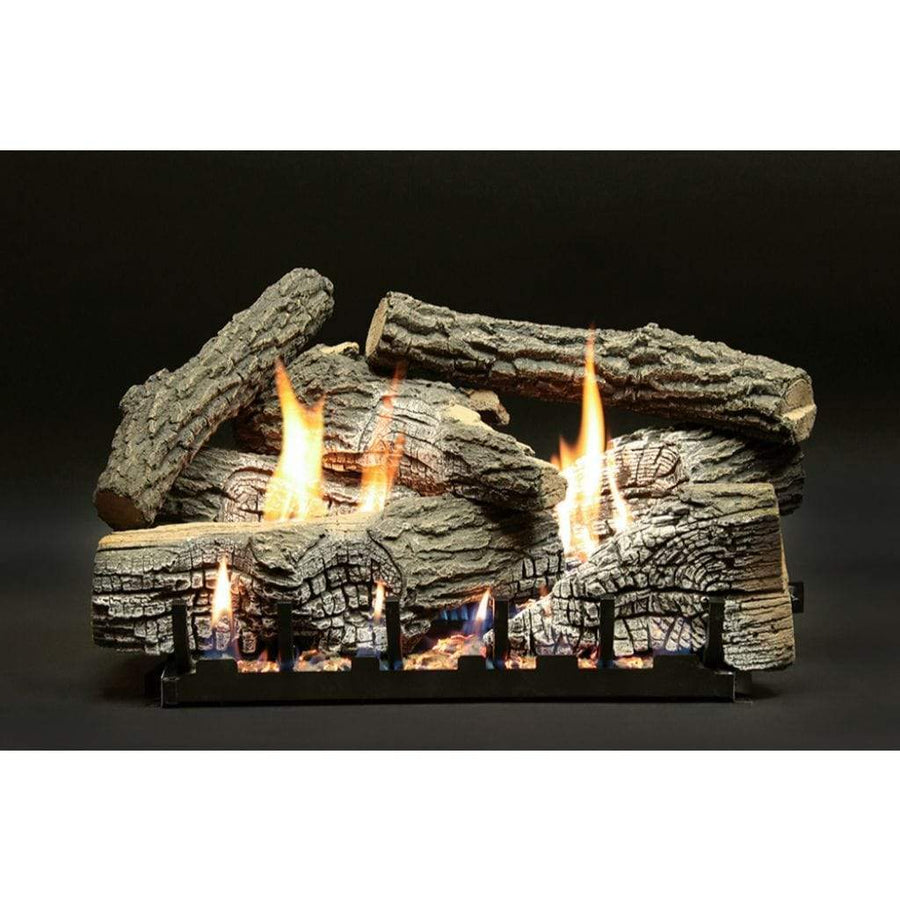

Empire White Mountain Hearth LS24WRS 24" Super Stacked Wildwood Refractory Gas Log Set
The Empire White Mountain Hearth LS24WRS is a 24-inch, seven-piece Super Stacked Wildwood refractory gas log set designed for compatible 24" Empire Slope Glaze burner systems. Its individually positioned rear, front, center, and top logs create a fuller naturally stacked wood-fire appearance while allowing the burner, Natural Gas or Propane fuel configuration, ignition, controls, and operating setup to be selected separately.
Model
LS24WRS
Nominal Size
24"
Log Count
7 Pieces
Material
Refractory
Style
Super Stacked Wildwood
Required Burner
24" Slope Glaze
Fuel
NG / LP via Burner
Burner Included
No
Important: Log Set Only — Burner Not Included
The LS24WRS includes the seven-piece Super Stacked Wildwood refractory log set only. A compatible 24" Empire Slope Glaze burner must be selected separately to create an operating gas-log system.
System specifications come from the burner:
BTU input, fuel type, ignition, control system, remote capability, gas pressure, and flame adjustment are determined by the separately selected burner—not by the LS24WRS logs.
Layered 24" Super Stacked Wildwood Fireplace Presentation
The LS24WRS is designed for homeowners who want a substantial stacked-log appearance instead of a minimal gas-log layout.
Its seven individually positioned logs build depth across the rear, front, center, and upper areas of the fireplace. The arrangement works with the prescribed flame path of compatible Empire Slope Glaze burners.
Empire specifies the placement of each log because correct positioning directly affects flame appearance, burner performance, and cleaner operation.
Empire LS24WRS at a Glance
Brand
Empire / White Mountain Hearth
Product Type
Refractory Gas Log Set
Log Style
Super Stacked Wildwood
Country of Manufacture
USA
Is the Empire LS24WRS Right for Your Fireplace?
Best For
- Buyers wanting a 24" stacked wood-fire presentation.
- Projects using a compatible 24" Empire Slope Glaze burner.
- Homeowners wanting a seven-piece refractory arrangement.
- Natural Gas installations using the correct burner.
- Propane installations using the correct burner.
- Manual-control burner configurations.
- Millivolt remote-ready burner configurations.
- Variable-flame burner configurations.
- Intermittent-pilot burner configurations.
- Approved vented or vent-free applications where permitted.
Do Not Choose This Log Set If
- You need a complete burner-and-log package.
- You expect the burner or controls to be included.
- Your burner is not approved for the LS24WRS.
- Your fireplace cannot meet the selected burner's dimensional requirements.
- You want to freely rearrange the logs.
- You need a vent-free installation in Canada.
- Your jurisdiction prohibits the intended vent-free application.
What's Included?
Included
- 1 × Empire White Mountain Hearth LS24WRS 24" Super Stacked Wildwood refractory log set
- 7 individual refractory logs
Not Included
- 24" Empire Slope Glaze burner
- Gas valve
- Ignition system
- Burner controls
- Remote control unless supplied with the separately selected burner
- Gas-supply components
LS24WRS Log Components & Part Numbers
| Log Position |
Part Number |
| Rear Left — Log A |
R12480 |
| Rear Right — Log B |
R12479 |
| Front Right — Log C |
R12477 |
| Front Left — Log D |
R12478 |
| Center — Log E |
R12481 |
| Top Left — Log F |
R12482 |
| Top Right — Log G |
R12483 |
Replacement-log planning: Match both the log position and manufacturer part number when identifying a replacement component.
Compatible 24" Empire Slope Glaze Burners
| Compatible Burner |
Fuel |
Control / Ignition Configuration |
| VFSE24N / VFSE24P |
Natural Gas / Propane |
Intermittent Pilot with Thermostat Variable Remote Control |
| VFSM24NAT / VFSM24LP |
Natural Gas / Propane |
Manual Hi-Med-Low Control with Standing Pilot / Piezo |
| VFSR24NAT / VFSR24LP |
Natural Gas / Propane |
Millivolt / Remote Ready with Standing Pilot / Piezo |
| VFSV24NAT / VFSV24LP |
Natural Gas / Propane |
Variable Flame-Height Control |
Not a universal 24" log set: Confirm the exact burner model, fuel configuration, controls, fireplace dimensions, and intended installation before ordering.
Natural Gas or Propane?
The LS24WRS logs themselves are not fuel-specific. Fuel type is determined by the compatible burner installed beneath them.
Natural Gas
Use the exact Natural Gas version of the compatible Empire Slope Glaze burner.
Propane / LP
Use the exact Propane version of the compatible Empire Slope Glaze burner.
Do not assume fuel conversion is permitted.
The supplied Empire burner instructions state that the gas appliance must be used with the gas type shown on its rating plate and that field conversion to another gas type is not permitted on the applicable models.
Compatible 24" Burner Performance
The LS24WRS does not have an independent BTU rating. Heating performance comes from the selected burner.
| Burner |
Fuel |
Maximum Input |
Minimum Input |
| VFSE-24 |
Natural Gas |
36,000 BTU/hr |
28,800 BTU/hr |
| VFSE-24 |
Propane |
36,000 BTU/hr |
28,800 BTU/hr |
| VFSV-24 |
Natural Gas |
36,000 BTU/hr |
24,000 BTU/hr |
| VFSV-24 |
Propane |
36,000 BTU/hr |
24,000 BTU/hr |
Specification distinction: BTU input, gas pressure, flame adjustment, ignition, and remote capability are burner specifications—not LS24WRS log specifications.
Fireplace Fit & Minimum Firebox Requirements
Do not determine compatibility from the 24-inch nominal log size alone. The complete burner-and-log system must fit the fireplace.
For documented VFSE-24 and VFSV-24 installations, Empire provides the following A/B/C/D minimums:
| Manufacturer Diagram Reference |
Minimum |
| A |
23" |
| B |
14" |
| C |
30" |
| D |
18" |
Use the manufacturer diagram to interpret A–D. These are burner-installation dimensions and are not physical LS24WRS log dimensions.
Compatible Fireplace Types
The supplied Empire burner documentation identifies applicable installation in:
- Solid-fuel-burning masonry fireplaces
- Applicable UL 127 factory-built fireplaces
- Listed ventless firebox enclosures
Factory-built fireplace restriction: Do not install an unvented burner in a factory-built fireplace whose manufacturer instructions state that unvented gas logs have not been tested or are not permitted.
Correct LS24WRS Log Placement
The seven logs are not intended to be arranged arbitrarily. Empire requires the manufacturer-prescribed placement sequence.
| Step |
Log |
Placement |
| 1 |
Rear Left — Log A |
Place on the left rear pin of the rear log support. |
| 2 |
Rear Right — Log B |
Place on the right rear pin of the rear log support. |
| 3 |
Front Right — Log C |
Place on the two right-front pins on the burner pan. |
| 4 |
Front Left — Log D |
Place on the two left-front pins on the burner pan. |
| 5 |
Center — Log E |
Position using the corresponding recesses in the left rear and left front logs. |
| 6 |
Top Left — Log F |
Position using the manufacturer-specified bosses and recesses. |
| 7 |
Top Right — Log G |
Position using the corresponding recesses in the center and right-rear logs. |
Do not rearrange the logs for appearance. Empire states that proper log positioning is critical to burner performance. Improper or unstable placement can contribute to sooting and other operating problems.
Vented vs. Vent-Free Installation
Vent-Free Configuration
- Use an approved compatible vent-free Slope Glaze burner.
- Provide required combustion and ventilation air.
- Meet fireplace and combustible clearances.
- Maintain the prescribed log arrangement.
- Verify local vent-free requirements before installation.
Vented Decorative Configuration
- Use an approved compatible vented appliance configuration.
- Maintain the required working flue.
- Follow the applicable damper requirements.
- Follow the burner and fireplace manufacturer instructions.
Manufacturer standards noted: The supplied Super Stacked Wildwood documentation references ANSI Z21.11.2 for unvented heaters and ANSI Z21.60 for decorative vented appliances for solid-fuel-burning fireplaces.
Canadian Installation Restriction
The LS24WRS cannot be installed as an unvented application in Canada.
Empire limits Canadian installations to the applicable approved vented configuration.
Combustion Air & Ventilation
Vent-free gas heaters use room air for combustion and require adequate combustion and ventilation air.
Vent-free does not mean air-free.
Verify the complete room-volume and ventilation requirements in the applicable burner manual before installation.
Glass Fireplace Door Requirements
Keep fireplace glass doors open during operation.
Empire also instructs installers to consider the opening of the glass-door frame when determining the minimum usable front opening of the firebox.
Fans, Drafts & Flame Behavior
Do not allow ceiling fans, portable fans, air registers, or other direct drafts to blow into the fireplace.
Air movement can alter the intended flame path, cause flame impingement, and contribute to soot or improper combustion.
Accessory caution: Do not use a blower insert, heat-exchanger insert, or other accessory unless it is approved for use with the heater.
Existing Wood-Burning Fireplace Preparation
Before installation in an existing solid-fuel-burning fireplace, Empire requires the fireplace and chimney to be properly prepared.
- Clean soot from the chimney flue and firebox.
- Remove creosote.
- Remove ashes.
- Remove loose paint.
- Use a qualified chimney cleaner where required.
- Verify the selected burner's minimum fireplace dimensions.
- Follow all burner gas-supply and installation requirements.
Initial Operation After Installation
After the logs and applicable ember material are correctly positioned, Empire instructs users to operate the burner on high for a minimum of three continuous hours during initial operation.
Open windows or doors as needed during this initial period to allow odors and excess heat associated with the first operation to escape.
Do not move the logs after correct installation. If soot appears on a log, stop operation and arrange for service rather than continuing to use the system.
Installation & Service Requirements
- Gas piping, installation, service, and related work should be completed by a qualified agency.
- Use only the gas type specified for the selected burner.
- Verify the fireplace or firebox dimensions before installation.
- Confirm the exact 24" Slope Glaze burner model.
- Follow the manufacturer-prescribed log arrangement.
- Provide adequate combustion and ventilation air for vent-free operation.
- Maintain all required sidewall, mantel, ceiling, and combustible clearances.
- Keep burner ports, controls, venturi areas, and air openings clean and unobstructed.
- Do not allow fans or drafts to disturb the flame pattern.
- Keep fireplace glass doors open during operation.
- Follow the applicable Empire manuals and local codes.
Complete Empire LS24WRS Specifications
| Manufacturer |
Empire / White Mountain Hearth |
| Product Name |
Super Stacked Wildwood Refractory Log Set |
| Model |
LS24WRS |
| Product Type |
Refractory Gas Log Set |
| Nominal Size |
24" |
| Number of Logs |
7 Pieces |
| Log Style |
Super Stacked Wildwood |
| Log Material |
Refractory |
| Finish |
Hand-Painted |
| Required Burner |
Compatible 24" Empire Slope Glaze Burner |
| Compatible Fuel Configurations |
Natural Gas or Propane Depending on Selected Burner |
| Burner Included |
No |
| Log Placement |
Manufacturer-Specified Positioning Required |
| Documented Compatible Burner Maximum |
Up to 36,000 BTU/hr for Supplied VFSE/VFSV Examples |
| Vented Application |
Supported with Appropriate Approved Burner and Installation |
| Vent-Free Application |
Supported with Appropriate Approved Burner Where Permitted |
| Canadian Vent-Free Installation |
Not Permitted |
| Initial High-Burn Period |
Minimum 3 Continuous Hours After Proper Installation |
| Available Series Sizes |
18", 24", 30" |
| Country of Manufacture |
USA |
Compare Super Stacked Wildwood Sizes
Flame Authority Expert Recommendation
Choose the Empire White Mountain Hearth LS24WRS when you want a 24" seven-piece Super Stacked Wildwood refractory presentation and have identified a compatible 24" Empire Slope Glaze burner.
Its main advantage is the layered seven-log design, which creates more depth than a simple few-piece arrangement while still allowing you to choose the burner fuel and control system separately.
Before ordering, verify the exact burner model, Natural Gas or Propane supply, control type, fireplace dimensions, vented or vent-free operating configuration, combustion-air requirements, log placement, and applicable local requirements.
Official Manufacturer Resources
Traditional Vent-Free Log Sets Brochure
Manufacturer information covering White Mountain Hearth log sets, Slope Glaze burner families, controls, fuel configurations, sizing, and product options.
Super Stacked Wildwood Log Set Installation & Owner's Manual
Manufacturer LS24WRS log part numbers, exact log-placement sequence, installation, initial-operation, maintenance, vented/vent-free, and safety instructions.
Vent-Free Slope Glaze Burner Variable Flame Manual
Manufacturer installation and operating information for compatible VFSV variable-flame burner configurations.
Vent-Free Slope Glaze Burner Intermittent Pilot Manual
Manufacturer installation and operating information for compatible VFSE intermittent-pilot configurations.
Empire LS24WRS FAQs
What is the Empire LS24WRS?
The Empire LS24WRS is a 24-inch, seven-piece Super Stacked Wildwood refractory gas log set designed for compatible Empire Slope Glaze burner systems.
Does the Empire LS24WRS include a burner?
No. The LS24WRS includes the seven-piece log set only. A compatible 24" Empire Slope Glaze burner must be selected separately.
How many logs are included?
The LS24WRS contains seven refractory logs: rear left, rear right, front right, front left, center, top left, and top right.
What are the LS24WRS log part numbers?
The supplied manual identifies R12480, R12479, R12477, R12478, R12481, R12482, and R12483 for the seven prescribed log positions.
Can I rearrange the LS24WRS logs?
No. Install the logs only in Empire's prescribed positions. Improper placement can affect burner performance and contribute to sooting.
Which burners are compatible with the LS24WRS?
The supplied product information identifies 24" configurations including VFSE24N/VFSE24P, VFSM24NAT/VFSM24LP, VFSR24NAT/VFSR24LP, and VFSV24NAT/VFSV24LP.
Can the LS24WRS use Natural Gas?
Yes, when paired with the correct Natural Gas version of an approved compatible burner.
Can the LS24WRS use Propane?
Yes, when paired with the correct Propane version of an approved compatible burner.
Can I convert the burner from Natural Gas to Propane?
Do not assume conversion is permitted. The supplied Empire documentation states that applicable burners must be used with the fuel shown on their rating plate and are not field-convertible to another gas type.
How many BTUs does the LS24WRS produce?
The LS24WRS itself does not have a standalone BTU rating. Documented compatible 24" VFSE and VFSV burners have a maximum input of 36,000 BTU/hr.
What are the documented minimum firebox dimensions?
For the supplied VFSE-24 and VFSV-24 examples, Empire gives A/B/C/D minimums of 23", 14", 30", and 18". Use the manufacturer diagram to identify which physical firebox dimension each letter represents.
Can the LS24WRS be installed vent-free?
Yes, when paired with an approved compatible vent-free burner and installed in a qualifying fireplace or firebox where local requirements permit vent-free operation.
Can the LS24WRS be used in a vented installation?
Yes. Empire's documentation also covers appropriate vented decorative appliance configurations when all applicable fireplace and burner requirements are met.
Can the LS24WRS be installed vent-free in Canada?
No. Empire states that Canadian installations are limited to the approved vented configuration.
Can fireplace glass doors remain closed during operation?
No. Empire instructs users to keep fireplace glass doors open during operation.
Can a ceiling fan affect the flame pattern?
Yes. Do not allow fans or strong drafts to blow directly into the fireplace because altered flame movement can contribute to improper combustion or sooting.
Can I use a blower or heat-exchanger insert?
Do not use a blower insert, heat-exchanger insert, or other accessory unless it is specifically approved for use with the heater.
Does an existing wood-burning fireplace need to be cleaned?
Yes. Empire requires the chimney flue and firebox to be cleaned of soot, creosote, ashes, and loose paint before installation in an existing solid-fuel-burning fireplace.
What should I do during the first operation?
After proper installation and log placement, Empire instructs users to operate the burner on high for at least three continuous hours during initial operation and ventilate the room as needed.
What should I do if soot appears on the logs?
Stop operating the log set and arrange for service. Empire states that properly installed and maintained logs should not develop soot deposits.
Should the LS24WRS be professionally installed?
Yes. Gas piping, installation, service, and related work should be handled by a qualified agency according to Empire's instructions and applicable codes.
What sizes are available in the Super Stacked Wildwood series?
The supplied product information lists 18", 24", and 30" Super Stacked Wildwood refractory log-set sizes.
Before You Order
Confirm Before Purchase
- You specifically need the Empire LS24WRS.
- You want the 24" seven-piece Super Stacked Wildwood configuration.
- You have identified a compatible 24" Empire Slope Glaze burner.
- You have confirmed Natural Gas or Propane fuel.
- You have selected the correct ignition and control configuration.
- Your fireplace meets the exact burner's dimensional requirements.
- You have confirmed vented or vent-free installation requirements.
- You can provide adequate combustion and ventilation air for vent-free use.
- You can meet all required combustible clearances.
- You will follow the exact seven-log placement sequence.
- You understand that the burner and controls are sold separately.
Do Not Assume
- That a burner is included.
- That every 24" burner is compatible.
- That the logs themselves determine fuel type.
- That the LS24WRS itself produces 36,000 BTU/hr.
- That Natural Gas and Propane burners are interchangeable.
- That nominal 24" log size guarantees fireplace fit.
- That the seven logs can be rearranged freely.
- That vented and vent-free installation requirements are identical.
- That vent-free operation is permitted everywhere.
- That vent-free installation is permitted in Canada.
- That fireplace glass doors may remain closed.
- That fans or drafts cannot affect flame performance.
Final planning check: Use the Super Stacked Wildwood LS182430WRS log-set manual and the instructions for the exact selected Empire Slope Glaze burner to verify fuel type, control system, BTU input, firebox dimensions, combustion air, vented or vent-free configuration, clearances, seven-log placement, initial operation, and applicable local requirements before installation.
