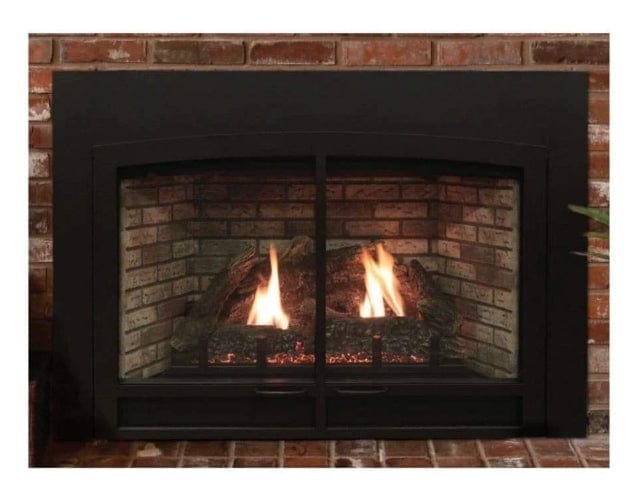

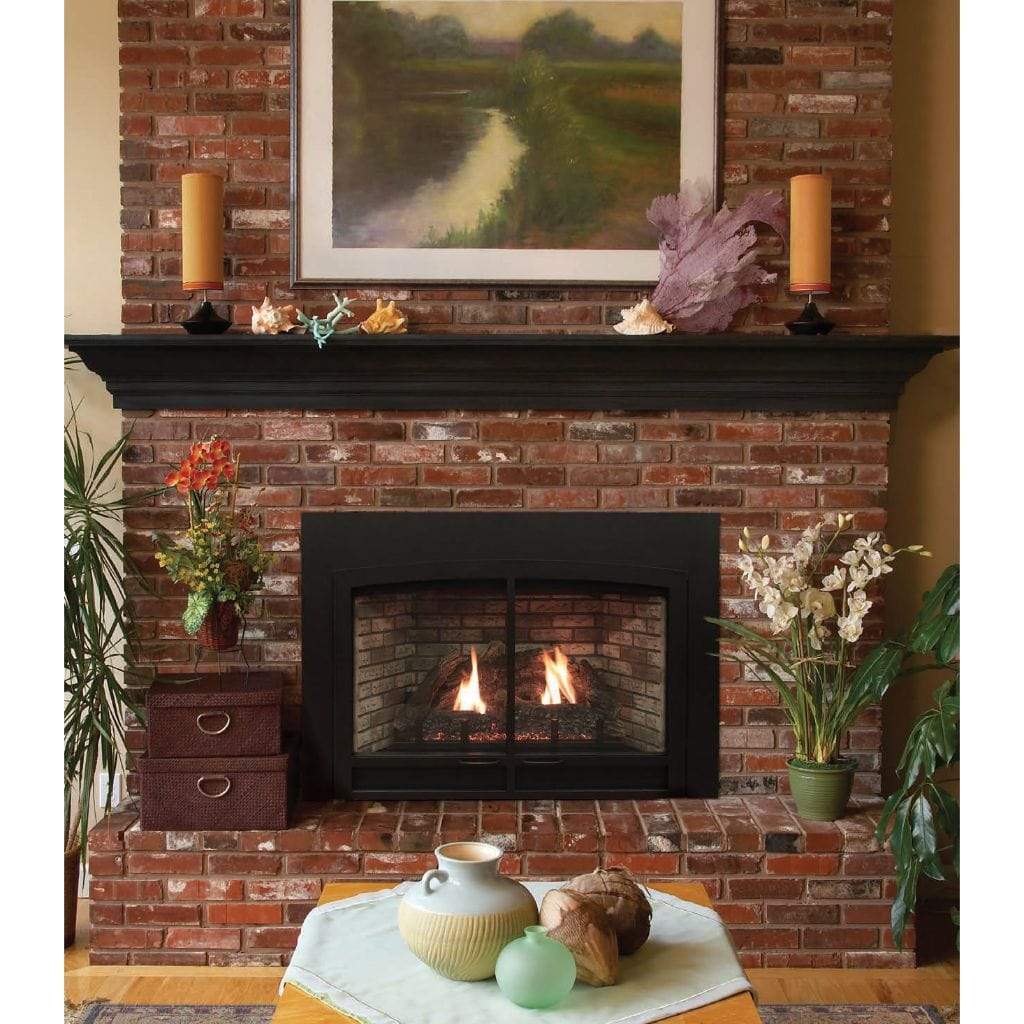

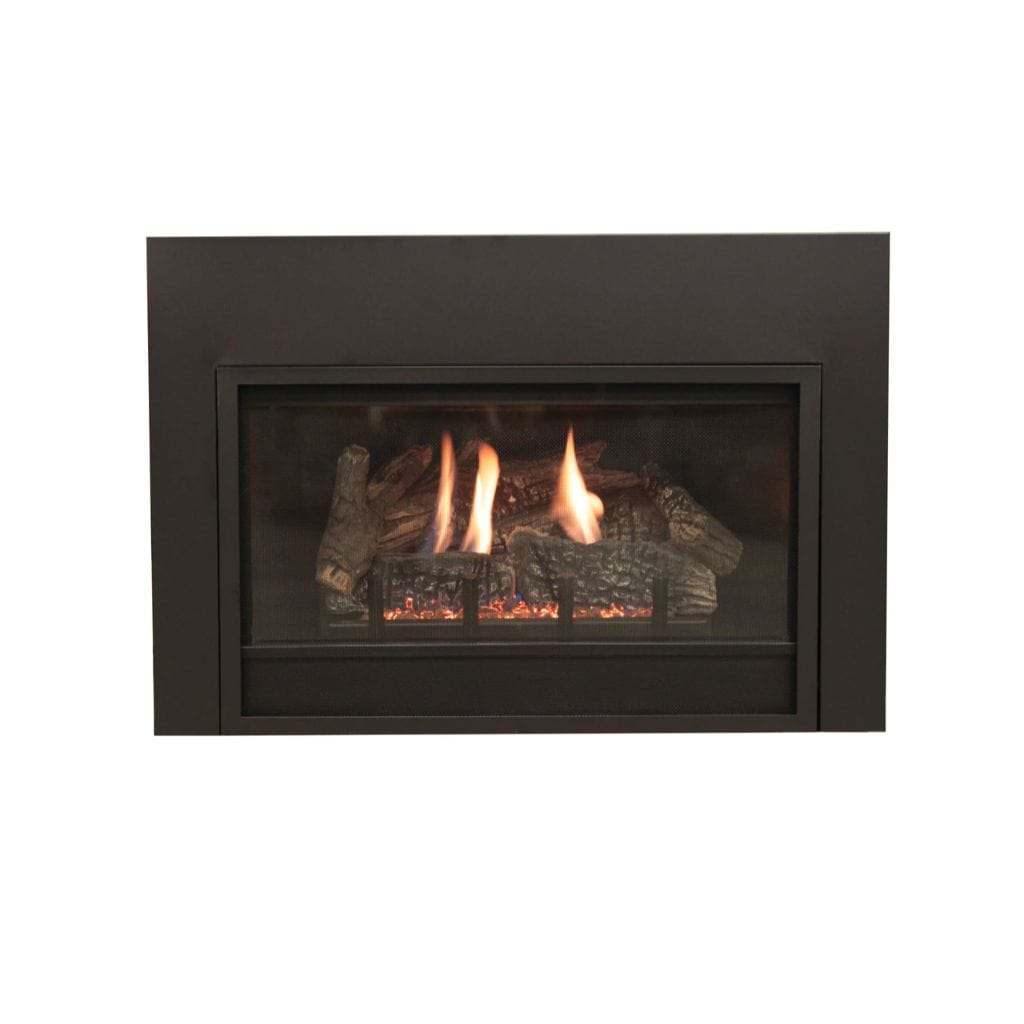

Empire White Mountain Hearth 43" Innsbrook Clean Face Fireplace Insert Intermittent Pilot DVC26IN71

Includes:

• Log Set
• Blower
• Barrier Screen

Requires:

• Surround

Features

• Up to 26,000 BTUs
• Venting: 3-inch Flex
• Ceramic Glass: 14 1/8 x 28 1/4
• Opening - 21 1/2 H x 31 1/4 W x 16 5/8 D
• This unit installs as an insert inside an existing fireplace

Manual:

• Product Brochure
• Installation Instructions and Owner’s Manual
• Specification Sheet DVC26

Specifications:

• Model: DVC20
• Actual Dimensions: 23 1/4 H x 40 W x 15 7/8 D
• Fuel Type: Natural Gas / Propane
• Vent Type: Direct Vent
• Valve Type: Intermittent Pilot
• Input BTU/HR (KW/H) Max/Min (Propane): 19,500/15,000
• Input BTU/HR (KW/H) Max/Min (Natural Gas): 20,500/14.500
• Installation Type: Insert
• Weight: 89
• Ceramic Glass: 11 1/8 x 25 1/4
• Venting: 3-inch Flex Installs as an insert in an existing fireplace Min
• Opening: 18 1/2 H x 28 1/4 W x 14 7/8 D

Cast Iron Surround (7x6)

• Finish: Cast Iron (Black)
• Size: 7x6
• Detailed, classic cast iron appearance
• Cast Iron Surround does not accept a decorative front or bottom cover.
• Please Note : Cast Iron Surround Required SAK Adaptor

Traditional Brick Liner

• Type: Liner
• Traditional Brick Liner
• For use with DVC20IN31/71 Fireplace Insert

Banded Brick Liner

• Type: Liner
• Banded Brick Liner
• For use with DVC20IN31/71 Fireplace Insert

Washed Brick Liner

• Type: Liner
• Washed Brick Liner
• For use with DVC20IN31/71 Fireplace Insert

Black Porcelain Liner

• Type: Liner
• Finish: Black
• Black Porcelain Liner
• For use with DVC20IN31/71 Fireplace Insert

Control Options

FRBC Battery Operated On or Off Remote Control

• Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve)
• Does not require running wire to the fireplace
• Requires batteries for the receiver and for the handheld remote
• Operates during power outages

FRBTC2 Battery Operated Thermostat Remote Control

• Type: Remote Control
• Millivolt Control Options Only
• Turns heater adjusts Thermostat
• Battery-operated remote control

FREC Electric On-Off Remote Control with Battery Transmitter

• Millivolt Control Options Only
• Remote control with Battery transmitter for Empire remote-ready appliances
• Easy and convenient to use
• The receiver must be plugged in.

FRBTPS Battery Operated Programmable Touch Screen Remote Control

• Type: Remote Control
• Millivolt Control Options Only
• Programmable and easy to use
• Battery-operated remote control

FWS1 Wall Switch On/Off

• On-Off wall switch for Empire remote-ready appliances

• Mounts conveniently on wall

TMV Wall Thermostat Reed Switch

• Wall thermostat with reed switch for Empire remote-ready appliances
• Mounts conveniently on wall

TRW Wall Thermostat Wireless Remote

• Wall thermostat with wireless remote for Empire remote-ready appliances
• Thermostat mounts conveniently on wall

Remote Kit for Natural Gas / Propane

• Model: RVKN - Natural Gas
• Model: RVKP - Propane
• Type: Remote Kit
• Variable Flame Height Kit
• Includes: Stepper Motor, Thermostat Remote, and Wiring.

Front - Lancaster

• Type: Front
• Style: Lancaster
• Finish:

  • Black
  • Bronze
• Please Note: Fronts required surround for installation.

Front - Horizon

• Type: Front
• Style: Horizon (non-operable doors)
• Finish: Black
• Please Note: Fronts required surround for installation.

Doors - Transom

• Type: Doors
• Style: Transom (non-operable)
• Finish: Black
• Please Note: Fronts required surround for installation.

Surrounds and Shroud:

3 Sided

• Size:

  • 6x3x1 / Deep Surround - 6x3x2.2 (34-in W x 23-in H)
  • 6x6x1 / Deep Surround - 6x6x2.2 (40-in W x 23-in H)
  • 9x6x1 / Deep Surround - 9x6x2.2 (40-in W x 26-in H)
  • Deep Surround moves insert forward 1 1/2 inches.
• Finish:

  • Black
  • Bronze
• Please Note: Surround required to complete this unit

Bottom Cover for Surround

• Type: Bottom Cover
• Finish: Black / Bronze
• Use Bottom Cover when the steel surround does not reach floor.

3-Sided Custom Surround

• Finish: Matte Black
• Custom Built Surround for Various Empire Fireplaces and Inserts

4-Sided Custom Surround

• Finish: Matte Black
• Custom Built Surround for Various Empire Fireplaces and Inserts

SH1BL Shroud

• Helps cover large gaps between your fireplace and surround when installing fireplace inserts
• Finish: Black

• Dimension: (48-in W x 35 3/4-in H, plus 2-in Bottom panel.
• Opening 36-in x 23 3/4-in)
