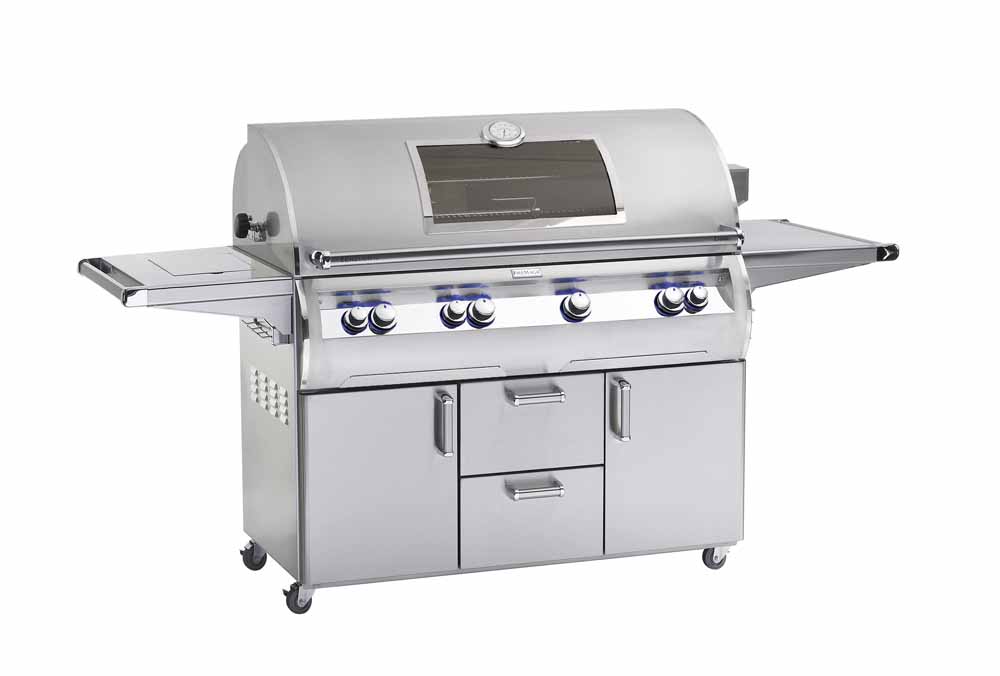

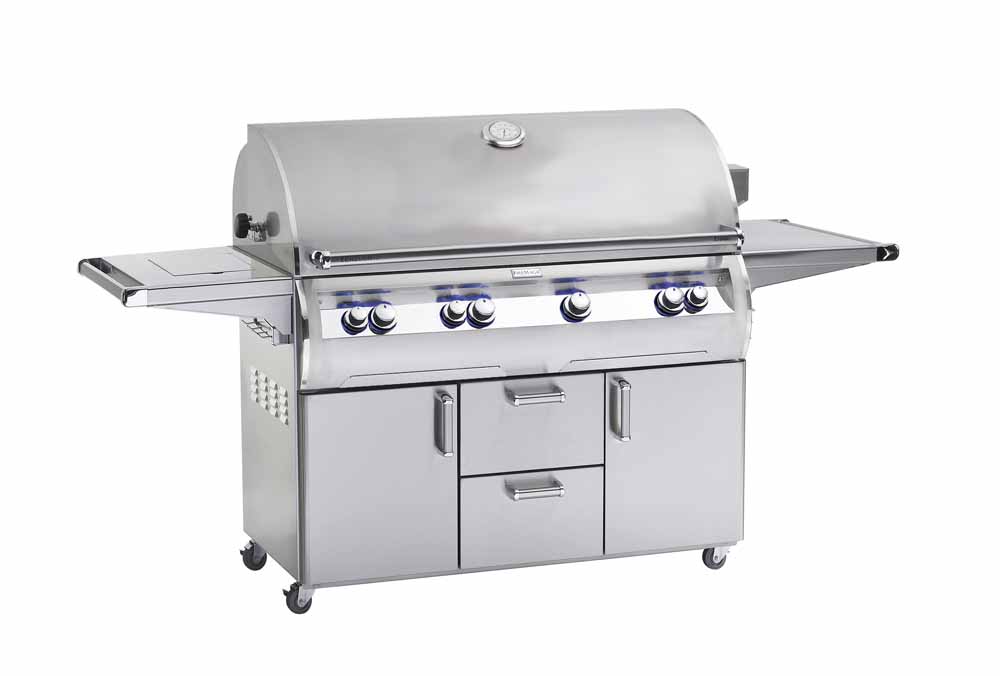

Fire Magic Echelon Diamond 48" Portable Grill with Analog Thermometer and Single Sideburner E1060s

Features:

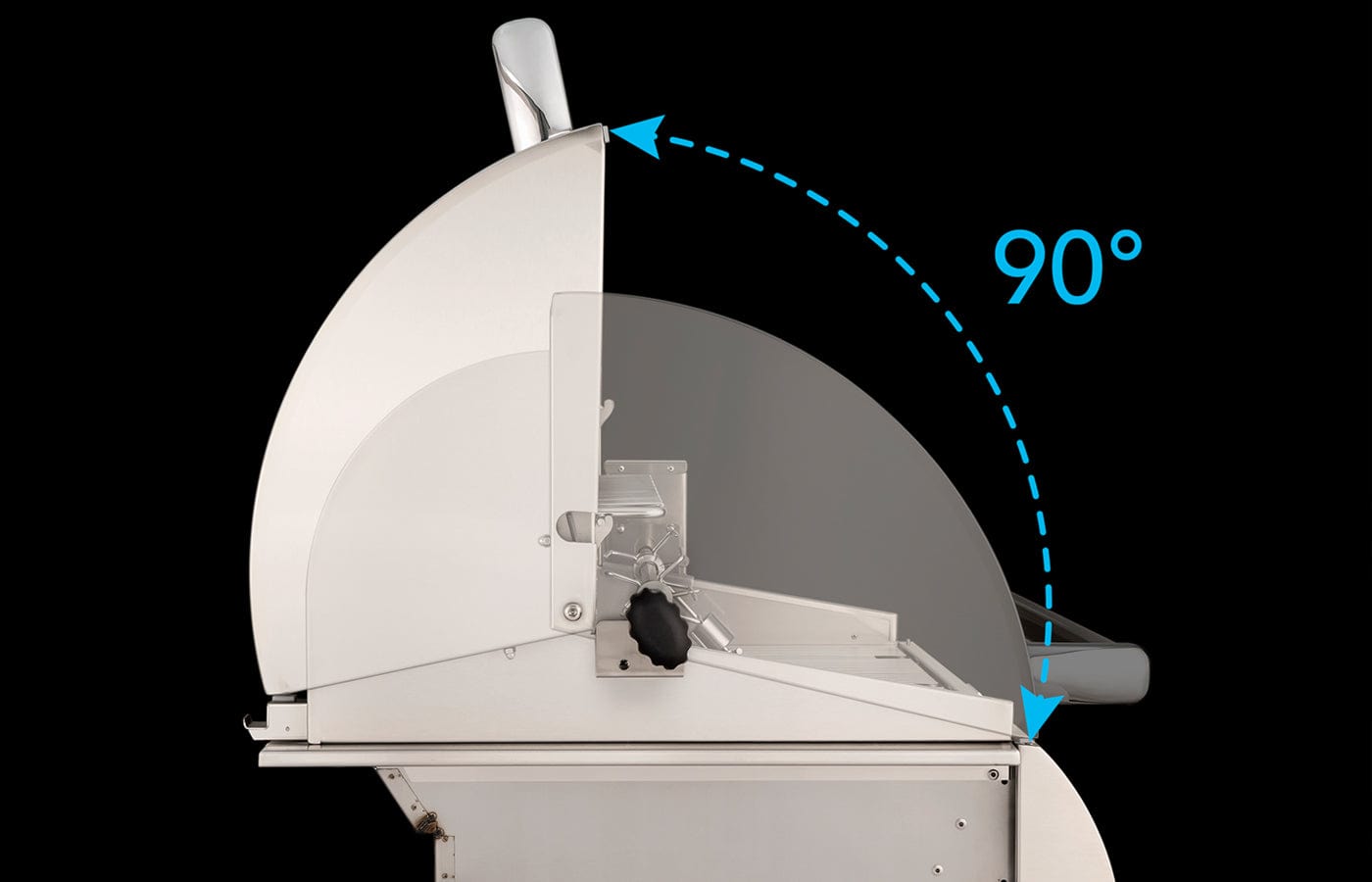

• 90 Degree Double Walled Hood - Double walled 304 stainless steel oven provides efficient heat retention for even heating. The oven opens to 90 degrees for easy access and efficient exhaust. The Teflon coated spring assist makes opening the oven smooth and accessible for all.

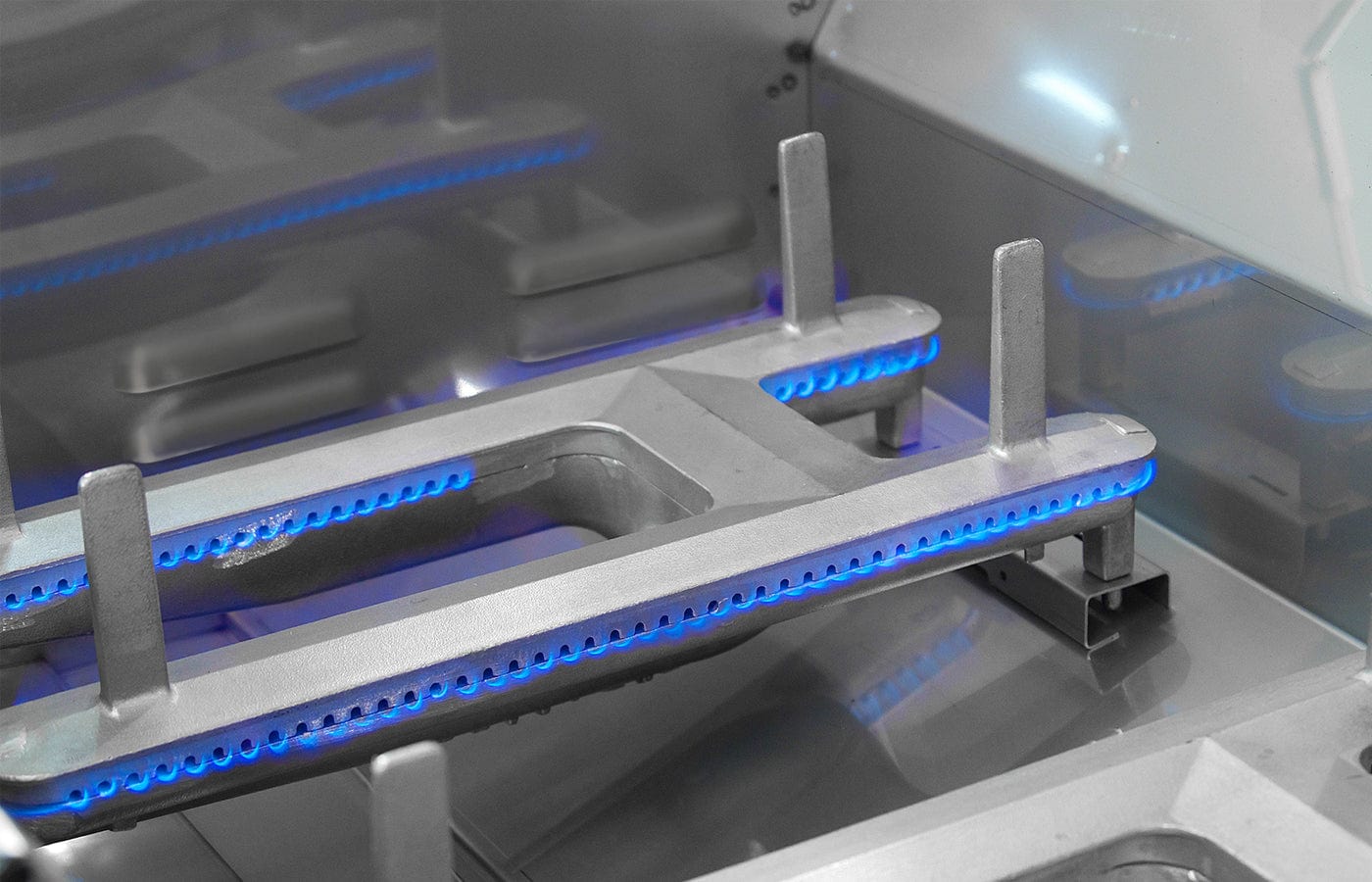

• Cast Stainless Steel Burners - Burners Made of ¼” Thick Cast 304 Stainless Steel 304 grade burners weighing up to 12 lbs, featuring a lifetime warranty. Designed with a protective lip above the ports to prevent clogging from grease. Guaranteed for life.

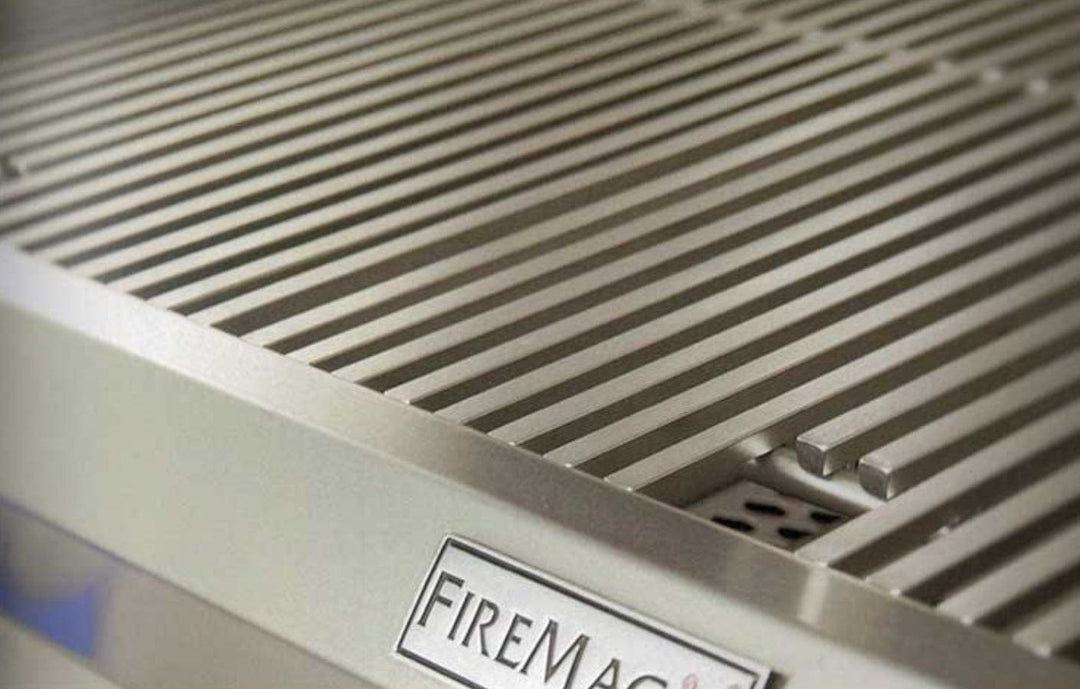

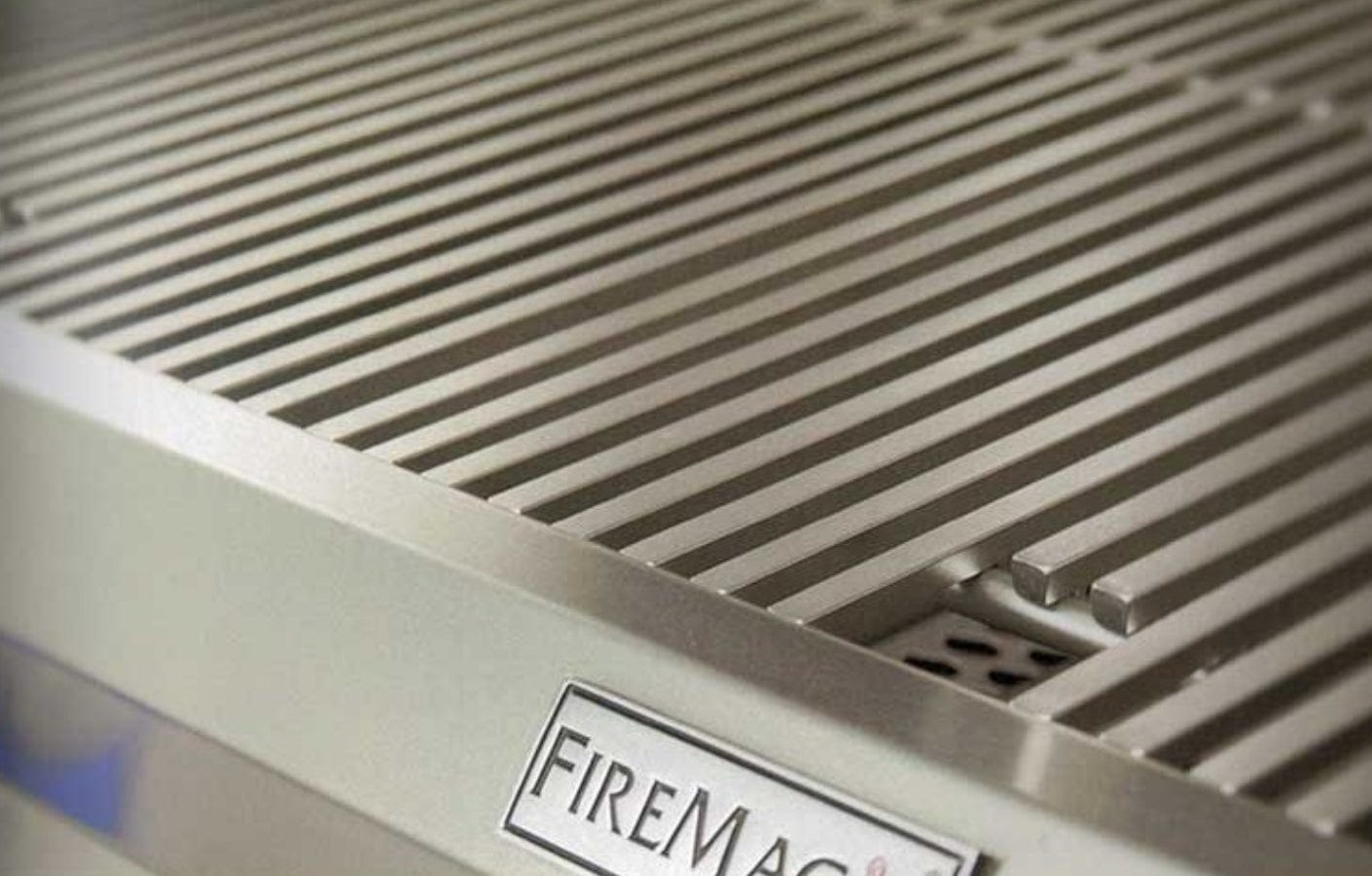

• Diamond Sear Cooking Grids - Diamond Sear Cooking Grids are superior! Diamond Sear Cooking Grids have a patented* design with bars that have a smooth flat top; each individual bar measures over .35” wide at the top covering over one half of the total cooking surface. Each bar is shaped to optimally transfer the heat from the burners to the cooking surface so food cooks faster and more evenly!

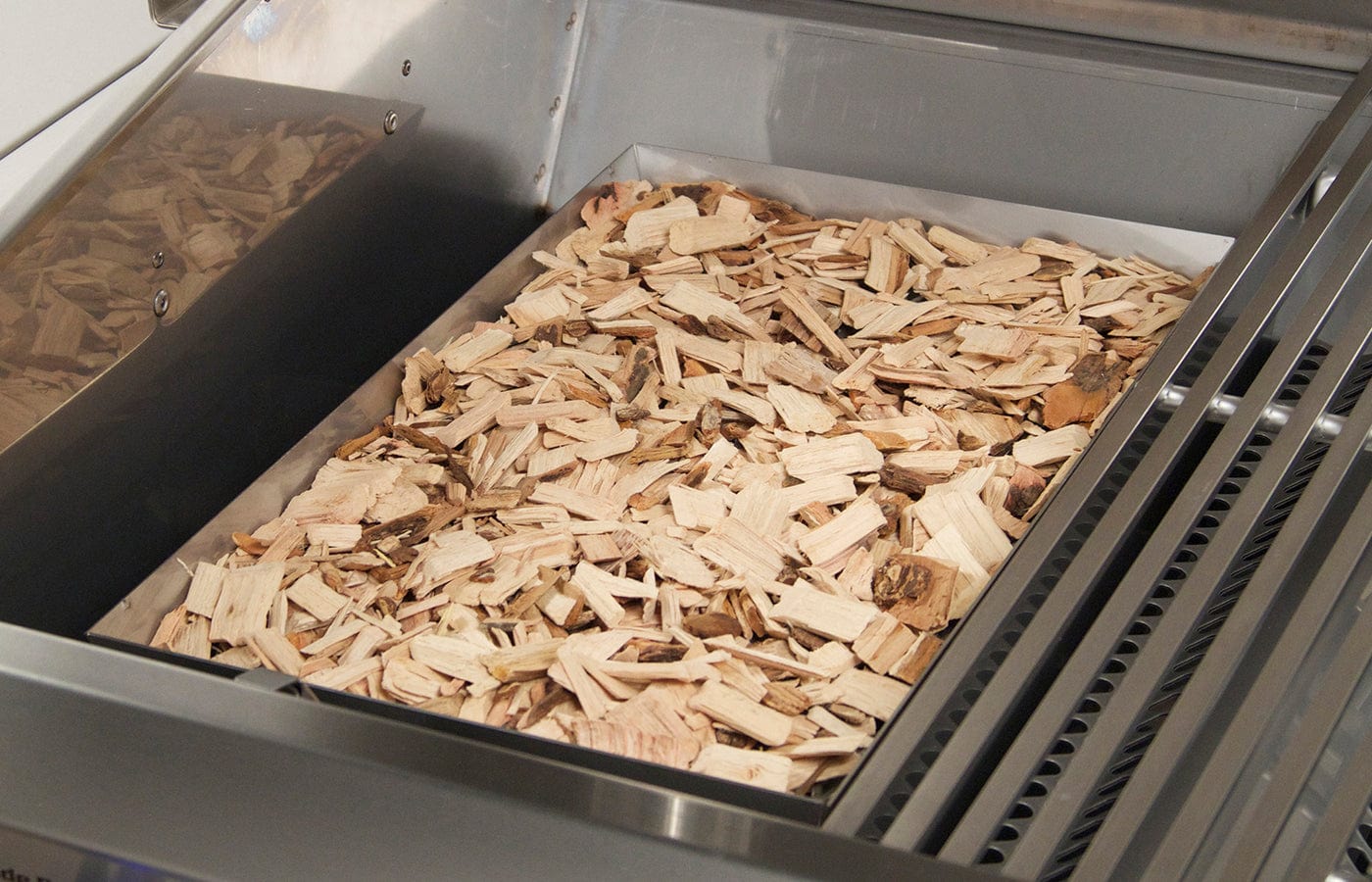

• Charcoal Smoker Basket - Enhance the flavor of the food you grill by adding charcoal or wood chips. The Charcoal/Smoker Basket grills with charcoal, or smokes with soaked wood chips. Stainless steel basket sits on top of the burner easily igniting the charcoal or wood chips.

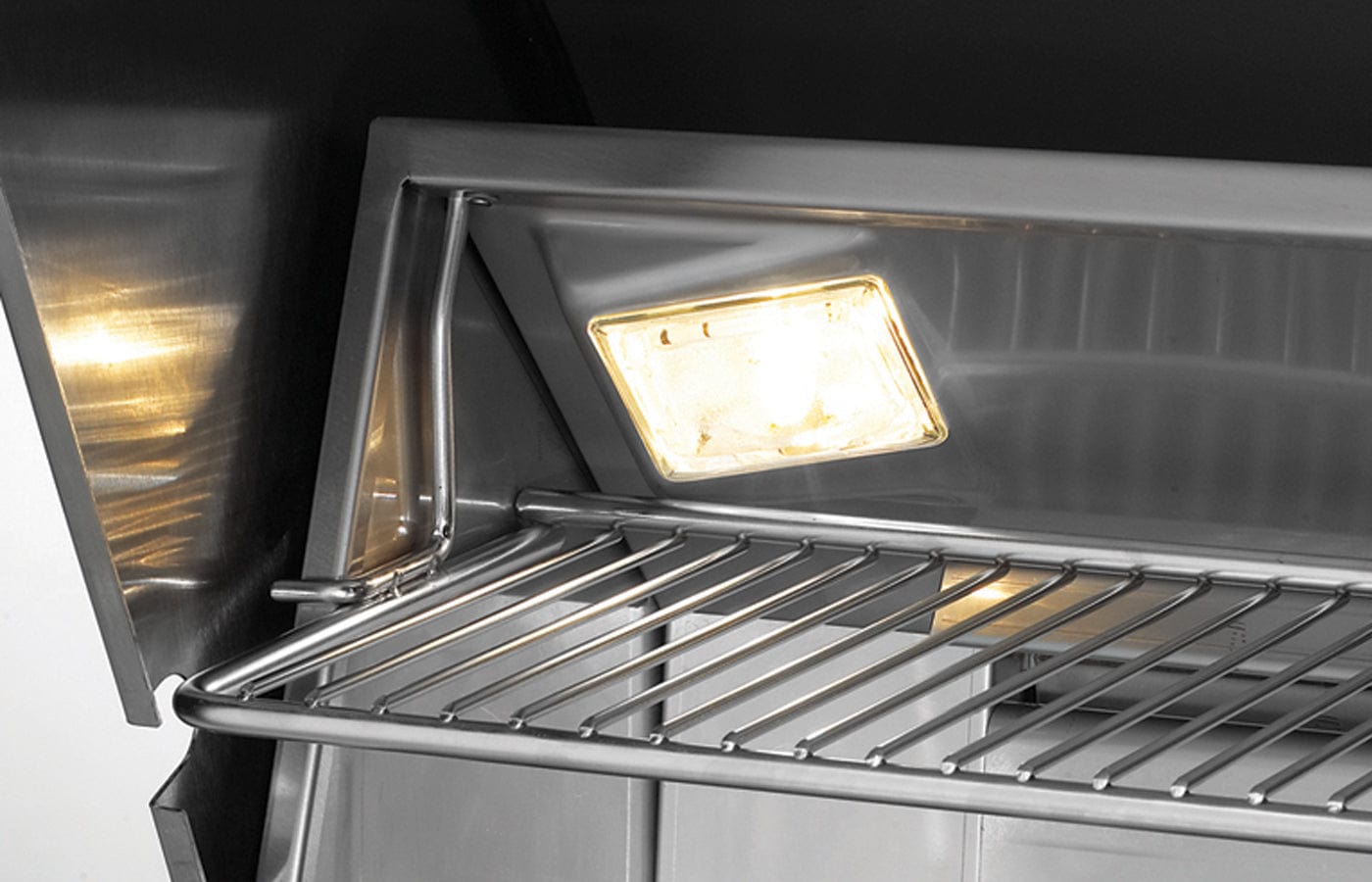

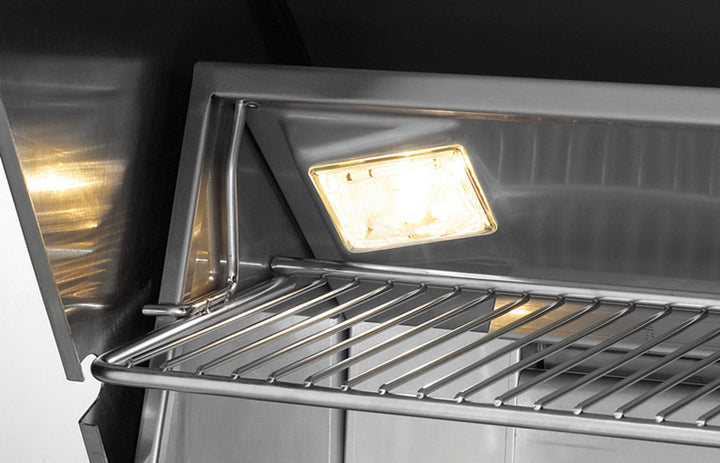

• Angled Halogen Internal Lights - The Echelon Diamond E660 and E790 grills have 2 internal halogen lamps. The E1060 grill has 3 lamps.

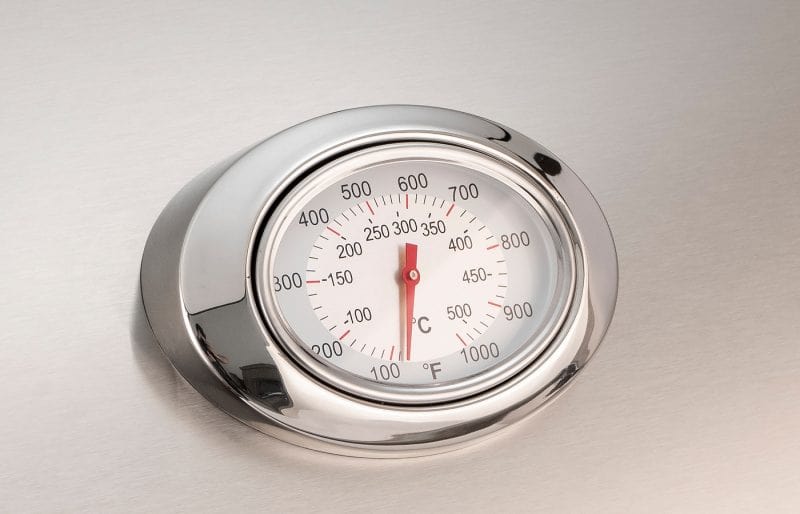

• Analog Thermometer - Analog Thermometer with polished stainless steel bezel is embedded in the hood. It is large and attractive with a forward angle for easy viewing.

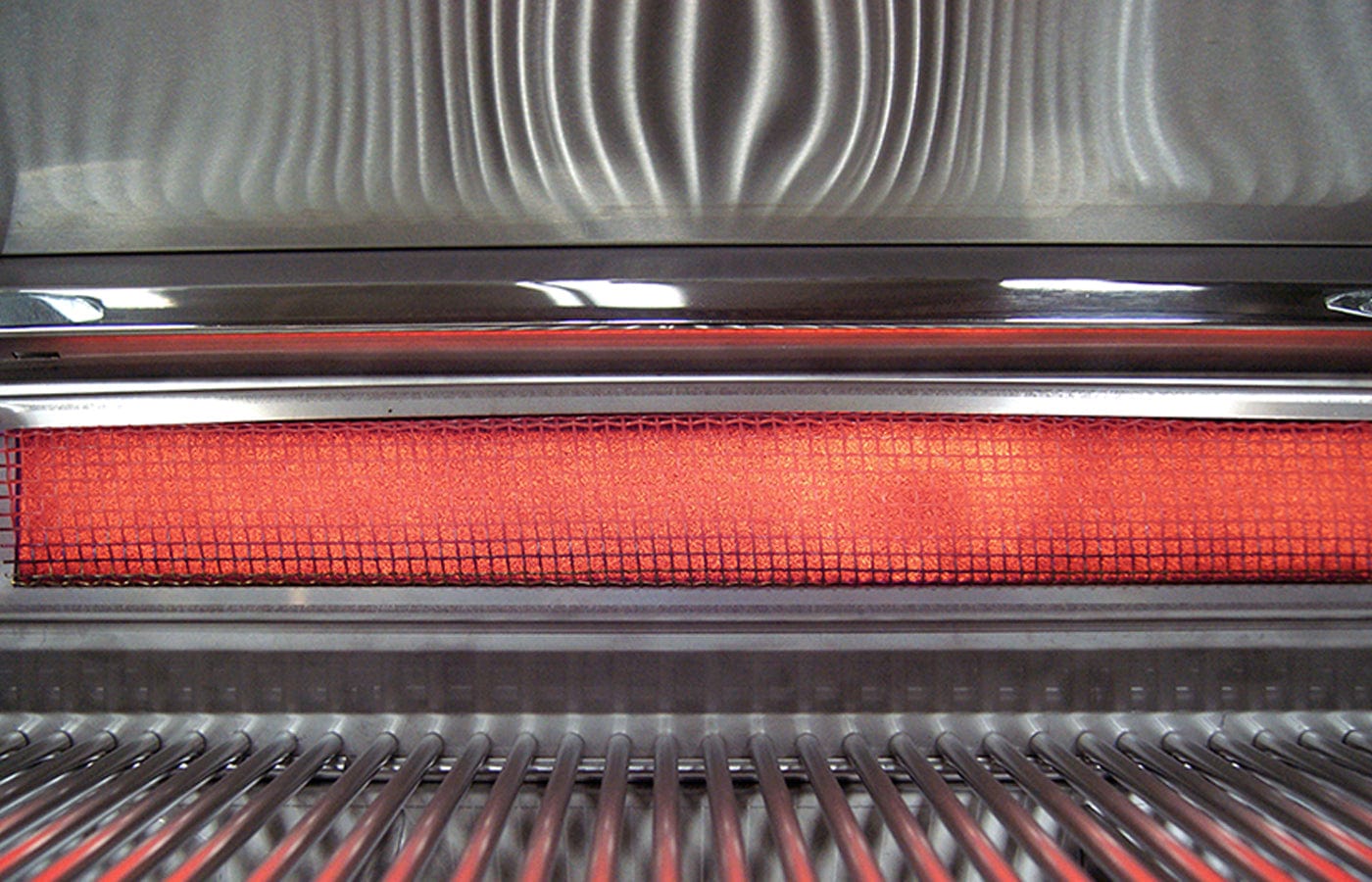

• Recessed Infrared Backburner - The Fire Magic Infrared Backburner is a stainless steel mesh encased efficient ceramic system which provides much more BTU heat for quicker more efficient rotisserie grilling. It includes a Stainless Steel Cover to protect the back burner when not in use.

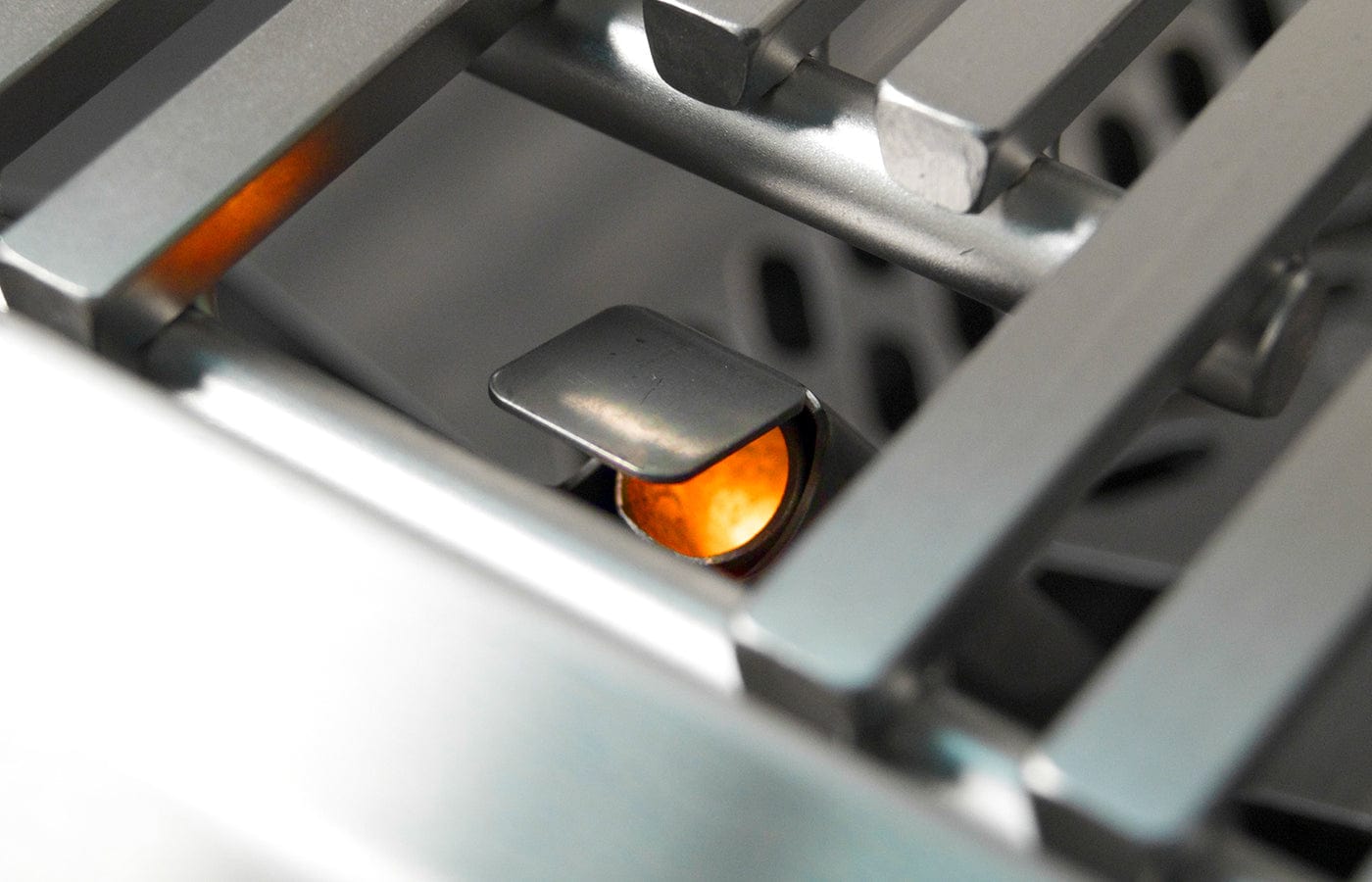

• Hot Surface Ignition System - Hot Surface Ignition System is the most advanced and reliable lighting system available. Simply push in the control knob to activate the hot surface, turn up the gas, and light your grill. 110V electricity needed.

Manuals:

• Fire Magic Product Catalog
• Fire Magic Echelon Diamond Series Isntallation and Owner's Manual
• Fire Magic Echelon Diamond Series Quick Start Guide
• Fire Magic Product Specification Guide

 Need assistance? Talk to an Expert at +1-800-923-4556 or email: support@flameauthority.com to get the best-suited Grill for your needs.

Specifications:

• Product Dimensions (H x W x D): 52" x 92.95" x 30.5"
• Cooking Surface (W x D): 48″ x 22″
• Cooking Area: 1056 sq. in.
• Warming Rack (W x D): 48″ x 8″
• Warming Rack Area: 384 sq. in.
• Main Burner BTUs: 112,000
• Backburner BTUs: 22,000
• Hot Surface Ignition: 120 VAC/12
• Weight: 660 lbs
• No. of Quantum Backburner(s): 2
• No. of Internal Halogen Lamps: 3
• Rotisserie Kit: Included in ALL models

Side Cookers:

Echelon Diamond Power Burner

• MODEL #: 19-5B2N(P)-0 (W/ PORCELAIN CAST IRON GRID, SHOWN)
• MODEL #: 19-5B1N(P)-0 (W/ STAINLESS STEEL GRID)

Grilling Accessories:

Infrared Burner 22″

• MODEL#: 3056 ALL ECHELON MODELS, A790 AND A660

• 25,000 BTUs
• 13 lbs shipping weight
• Utilizes space of one burner

Pizza Stone Kit

• MODEL #: 3514

• 16¼” x 16¼” stainless steel frame
• 14” x 14” x 5/8” cordierite baking stone
• 12” x 19” wooden pizza peel

 Cast Iron Griddle

• MODEL # 3512A (FITS SINGLE SIDE BURNERS)
• MODEL # 3512A (FITS 18″DEEP FIRE MAGIC GRILLS)
• MODEL # 3513A (FITS 22″DEEP FIRE MAGIC GRILLS AND DBL. SIDE BURNERS)

Griddle available for the Fire Magic double side burner as well as the Echelon and Aurora grills. Perfect for breakfast, grilled or vegetables or fajitas.

Stainless Steel Griddle

• MODEL # 3515A (FITS A540 AND A430 FIRE MAGIC GRILLS)
• MODEL # 3516A (FITS E660, E790, A790 AND E1060 FIRE MAGIC GRILLS)
• MODEL # 3518 (FITS E660, E790, A790 AND E1060 FIRE MAGIC GRILLS)

Bamboo Cutting Board

• MODEL #: 3582-1

Charcoal/Smoker Basket

• MODEL#3564-1 (18″ DEEP AURORA GRILLS)
• MODEL #3564-2 (FITS ALL ECHELON GRILLS AND 22″ DEEP AURORA GRILLS)

Foil Drip Tray Liners

• Model #: 3558-12

Features

• Disposable Construction - Foil material allows a sturdy product that is easily disposed for painless cleaning
• Fire Magic Accessory - Designed specifically for your Fire Magic grill
• Case of 12 Four Packs - Echelon

Wood Grill Scraper

• MODEL #: 3502-W

• Dimensions: 17 1/2" L x 4 1/8" W

Grilling Tray

• MODEL# 3567

• Dimensions: 13 1/2" wide x 14 3/4" deep

Warming Rack Extender

• Model #: 3682A

Features

• Durable Construction - Heavy duty 304 stainless steel ensures a long lasting product
• Additional Cooking Space - Provides up to 100in² cooking space for your grill

Four-Piece Tool Set

• MODEL #: 3575C

Packed in a handsome zippered nylon logo case, our 4-piece tool set includes stainless steel tongs, meat fork, silicone-tipped basting brush, and a slotted flat spatula with serrated edges.

Turkey Fryer Kit

• MODEL #: 3570

You’ll be amazed at how tender a deep-fried turkey can be. Kit includes pot, an inner basket with a sturdy handle, and a thermometer probe. Great as a crab or corn pot.

Wok

MODEL #: 3572

Hard-anodized stick-resistant lined interior surface measures 14” in diameter.

Smoker Box

• Model #: 3561

Features

• Stainless Steel Construction - Solid 304 stainless steel construction provides long lasting durability
• Flavor Enhancer - Designed specifically to introduce wonderful smoky flavor while grilling on a gas grill

Grill Top Thermometer

• Model #: 3573

Features

• Durable Construction - 304 stainless steel construction ensures a durable, quality product
• Large Temperature Display - Large easy to read display monitors the temperature of your grill

Grill Light Accessory

• Model #: 3574

Features

• Durable Construction - 304 stainless steel construction with 10 watt halogen light bulb for longevity
• Sealed On/Off Switch - On/Off switch is completely enclosed to protect from grease
• Easy Mounting - Mounting bracket fixes to any Aurora or AOG grill's rotisserie unit

Grid/Lid Lifter

• Model #: 3519H

Features

• Stainless Steel Construction - High quality 304 stainless steel construction for lasting durability
• Fire Magic Accessory - Designed specifically to lift your Fire Magic grill grates

Protective Cover

• Model #: 5190-20F

Features

• Durable Construction - Heavy duty PVC exterior with Polyester interior for long lasting protection
• Custom Fit For - Fire Magic Echelon 1060 Grills

Rotisserie Accessories:

Super Heavy Duty Rotisserie Kit

• Model #: 3607A

• All kits include: Motor, hex spit rod, two 4-tine meat holders, and counter balance. (Bracket Kits sold separately)
• For reversible Rotisserie Bracket Kit add -L to the bracket model number (i.e. 3600-60-L).

Turkey Holder

• MODEL #: 3615E

This sturdy holder is also perfect for beef, pork and lamb roasts.

Chicken Holder

Model #: 3617E

Enjoy a golden, succulent chicken the quick and easy way!

Rotisserie Basket

• MODEL #: 3618

A versatile, stainless steel basket for skewers, burgers, ribs or fish.

Counter Balance

• Model #: 3620E

Features

• Durable Construction - Heavy duty stainless steel holders ensure a long lasting product

Fire Magic premium gas grills are an investment that lasts a lifetime. That’s because each product is designed, engineered, and built to the absolute highest quality standards for unmatched beauty and performance to be enjoyed for years and years. It’s why Fire Magic stand behind their products by offering the industry’s best warranty programs. The pride of owning a Fire Magic Grill lasts a lifetime.

WARRANTY HIGHLIGHTS

When Investing in a Grill, Consider the Assurance Provided By the Fire Magic Warranty:

• Fire Magic pays for the first year labor allowance
• Fire Magic pays for shipping warranted replacement parts
• Fire Magic pays for shipping warranted defective parts back to the factory
• Fire Magic’s qualified technical service representatives are available 10 hours a day 5 days a week to assist with questions, installation and service.

Lifetime Warranty

Cast stainless steel burners, Choice stainless steel u-shaped burners, Fire Magic Diamond Sear and rod stainless steel cooking grids and stainless steel housing are under warranty for as long as you own your grill.

Fifteen Year Warranty

Brass valves, inner liners, manifold assemblies, porcelain (including ovens and barbecue faces) and backburner assemblies (except ignition systems) are under warranty for fifteen (15) years.

Ten Year Warranty

Electric grills, including stainless steel cooking grids and electric grill stainless steel housing are under warranty for ten (10) years (except ignition systems).

Five Year Warranty

Flavor grids, infrared burners in the grill, charcoal stainless steel grills (except for the charcoal pan, charcoal grid, wood pellet screen, thermometer and ash tray which are under warranty for one year) are under warranty for five (5) years.

Three Year Warranty

Fire Magic side burners and all other Fire Magic components (except ignition systems and electrical parts) are under warranty for three (3) years.

One Year Warranty

Fire Magic ignition systems (excluding batteries), electrical components (including lights and thermometer) and grill accessories are under warranty for one (1) year.
