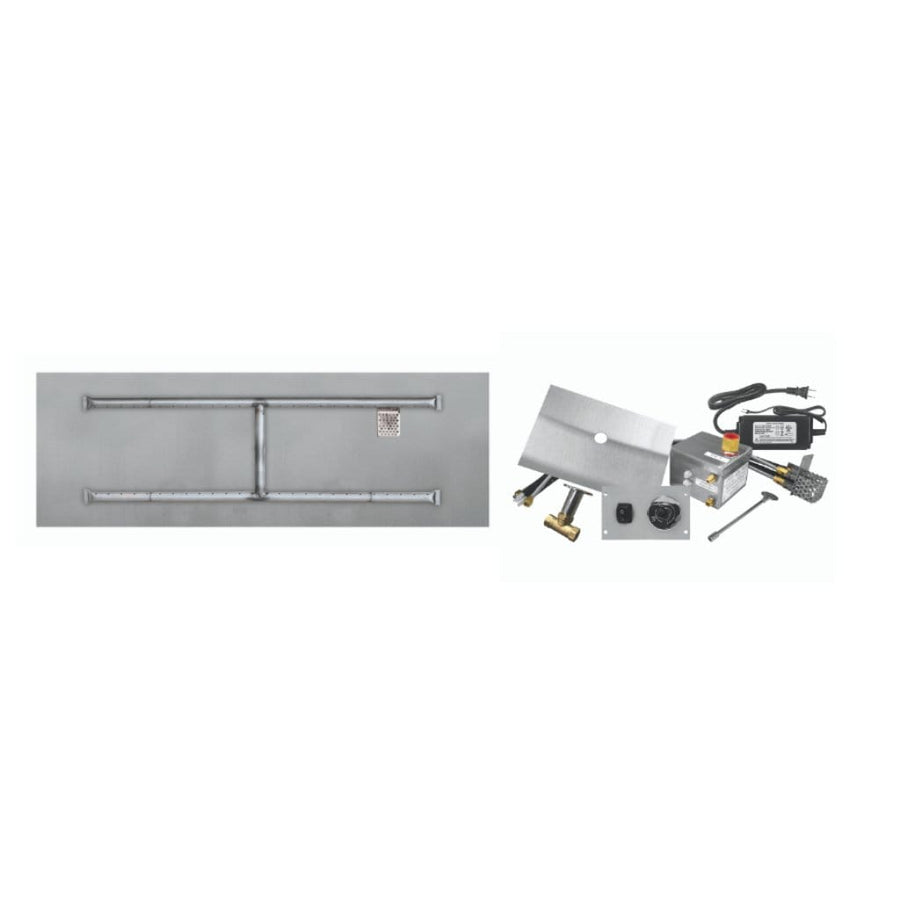

Firegear 36" Linear Stainless Steel Flat Pan H-Burner LOF-3614FHAWS Review
Do you want an efficient burner pan that completes your fire pit? Check Firegear 36" Linear Stainless Steel Flat Pan H-Burner LOF-3614FHAWS. Grab it now here at Flame Authority, your Trusted Dealer!

Firegear Outdoors is the premier provider of outdoor fire products. We specialize in burner systems, outdoor fire features & accessories for the outdoor fire industry.
Every project is different with its own set of unique challenges. That’s why versatility is paramount when designing and constructing your outdoor project. Firegear Outdoors has developed a new system with the capability to satisfy even the most demanding jobs. This new All Weather Electronic Ignition System will make designing your project easier as well as make installation a breeze.
Disclaimer: Btu listings are based on 7.0”WC for Natural Gas and 11.0”WC for Liquid Propane (LP) at the burner orifice. Flex line size and proper gas pipe sizing will also affect Btu’s. As a result your Btu’s may vary slightly from Table 2 specifications.
Features
- Available in Electronic (AWS) and Match Throw (MT) Ignition Systems models.
- Linear stainless steel flat pan
- Pro series brass "H" Burner
- AWS fully electronic ignition - 30VDC (Requires 120Vac) - Assembled (GOE-30VDC) power supply, AWS control panel with On/OFF weatherproof switch
Purchase the Firegear 36" Linear Stainless Steel Flat Pan H-Burner LOF-3614FHAWS today. Available here at Flame Authority, your Trusted Dealer!
Manuals
- Product Guide
- Installation and Operating Instructions Manual for H/T Burner
- Media Use Guide for Firegear 36" Linear Stainless Steel Flat Pan H-Burner LOF-3614FHAWS
Need assistance? Talk to an Expert at +1-800-923-4556 or email: support@flameauthority.com to get the best-suited Fire Pit Burner Kits for your needs.
Specifications
- BTU: 125,000 (36.63kW)
- Ignition System: AWS
- Burner Pan Material: Stainless Steel
- Outside Pan Dimensions: 36” x 14” (914 x 355mm)
- Burner Dimensions: 33”x10” (838 x 254mm )
- Max Opening Dimensions: 38” x 12” (889 x 330mm)
- Ground Level: 8” (203mm)
- Side Wall: 36” (914mm)
- Combustile Ceiling: 96” (2438mm)
- Combustile Floor: 18” (457mm)
- Natural Gas Orifice Size#: OAS-NG16
- Liquid Propane Orifice Size#: OAS-LP31
Gas Pressure
Min. Inlet
- Natural Gas: 3.5” WC (⅛ PSI) (0.87kPa)
- Liquid Propane: 8.0” WC (⅓ PSI) (1.99kPa)
Max. Inlet
- Natural Gas: 14.0” WC (½ PSI) (3.48kPa)
- Liquid Propane: 14.0” WC (½ PSI) (3.48kPa)
Normal Inlet
- Natural Gas: 7.0” WC (¼ PSI) (1.74 kPa)
- Liquid Propane: 11.0” WC (⅓ PSI) (2.73 kPa)
Caution: DO NOT USE REGULAR STONE OR ROCK due to susceptibility of explosion.

Glass and Media
How much Media should I use?
- Lava Rock: 30 lbs
- Glass: 70 lbs
-
Lava Stones: 30 lbs
Black Lava Rock 10 lb. Bag
Black Lava Rock 40 lb. Bag
Dark Gray Lava Stones
Black Broken Glass
Copper Broken Glass
Crystal Broken Glass
Dark Blue Broken Glass
Light Blue Broken Glass
Seabreeze Broken Glass
Black Reflective Glass
Bronze Reflective Glass
Cobalt Reflective Glass
Copper Reflective Glass
Silver Reflective Glass
- Optional Accessories
- Optional Accessories:
- 2 pcs Flexible Frame - FLEXFRAME-SS
- Allows you the flexibility to fill the gap between the fire pit structure and the pan.
- Engineered to protect against the outdoor elements including salt water environment
- Flexible and easy to adapt for round, square, and rectangular fire pits.
-
3 pcs Flexible Frame - FLEXFRAME-SS3
- Allows you the flexibility to fill the gap between the fire pit structure and the pan.
- Engineered to protect against the outdoor elements including salt water environment
- Flexible and easy to adapt for round, square, and rectangular fire pits.
-
Paver Control Panel Kit - PAVER-CP-AWS
- For use when building fire pit enclosures with SRW
block or pavers - FPB Series Thermocouple Manual Safety "AWS" Burner Systems. - Includes: Stainless Steel Paver Kit Bracket
and Extender, Lintel - 12" L X 3" W (20 gauge galvanized steel), Screws, Fittings and Tapcon concrete anchors. Valve Kit and
Face Plate purchased separately or as part of the FPB or LOF Burner Systems.
Paver Vent Kit - PAVER-VENT-4-LNTS
- Stainless Steel Paver Vent Kit with Lintel: includes (2) 3 5/8" tall x 8" wide vents with mounting plate, extension plate extends overall size up to 10" wide and two (2) Tapcon self-tapping concrete anchors and Lintel 12" Long x 3" Wide (20 Gauge Galvanized Steel). Each vent provides 18 square inches of ventilation.
Paver Vent Kit - PAVER-VENT-6-LNTS
- Stainless Steel Paver Vent Kit with Lintel: includes (2) 5 5/8" tall x 8" wide vents with mounting plate, extension plate extends overall size up to 10" wide and two (2) Tapcon self-tapping concrete anchors and Lintel 12" Long x 3" Wide (20 Gauge Galvanized Steel). Each vent provides 18 square inches of ventilation.
- For use when building fire pit enclosures with SRW
