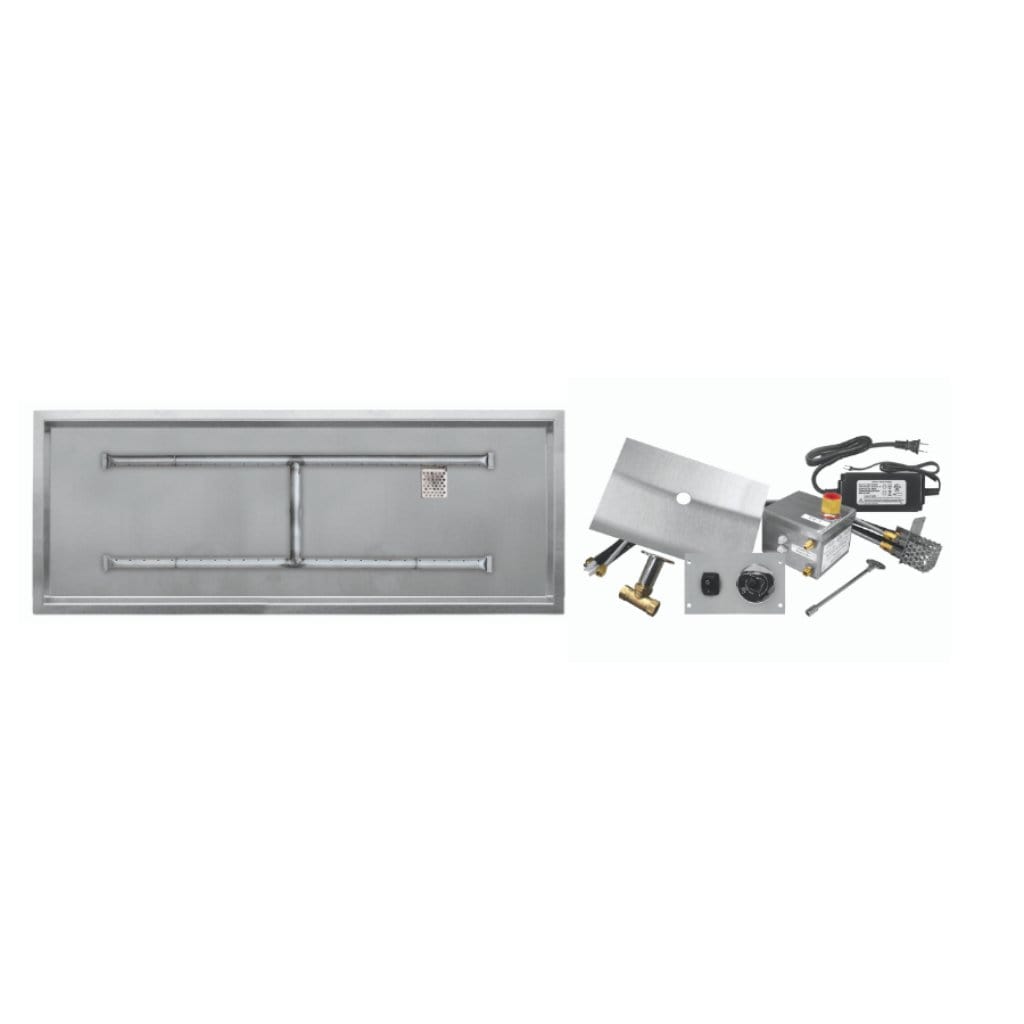

Firegear 96" Linear Stainless Steel Drop-In Pan H-Burner LOF-9616HAWS

Firegear SKU: LOF-9616HAWS-N
Fuel Type
Price
Regular price $5,099.00
Regular price $6,748.65 Sale price $5,099.00
Save 24%
/
  • Need assistance? Talk to an Expert! Call Now (800) 923-4556 Or Chat With Us!
Special Offers

✅ Free Shipping On Orders Above $1,000

✅ No Sales Tax (Except NV)

✅ Exceptional Customer Service

✅ Call (800) 923-4556 Or Chat With Us to get the lowest price!

Shipping calculated at checkout.
 More payment options

Ordered

May 02

After you place the order, we will need to 1 day to prepare the shipment

Estimated Delivery Date

May 07 - May 14

Estimate arrival date: May 07 - May 14

Order in the next 16 Hours 21 Minutes 30 Seconds for an estimated delivery dates between May 07 and May 14





Description

Firegear 96" Linear Stainless Steel Drop-In Pan H-Burner LOF-9616HAWS Review

Do you want a burner pan that can complete your fire pit? Take a look at this Firegear 96" Linear Stainless Steel Drop-In Pan H-Burner LOF-9616HAWS. Grab one now here at Flame Authority, your Trusted Dealer!

Firegear Authorized Dealer - Flame Authority

Firegear Outdoors is the premier provider of outdoor fire products. We specialize in burner systems, outdoor fire features & accessories for the outdoor fire industry.

Every project is different, with its own set of unique challenges. That’s why versatility is paramount when designing and constructing your outdoor project. Firegear Outdoors has developed a new system with the capability to satisfy even the most demanding jobs. This new All Weather Electronic Ignition System will make designing your project easier as well as make installation a breeze.

Disclaimer: Btu listings are based on 7.0”WC for Natural Gas and 11.0”WC for Liquid Propane (LP) at the burner orifice. Flex line size and proper gas pipe
sizing will also affect Btu’s. As a result your Btu’s may vary slightly from Table 2 specifications.

Features

  • Available in Electronic (AWS) and Match Throw (MT) Ignition Systems models.
  • Linear stainless steel drop-in pan

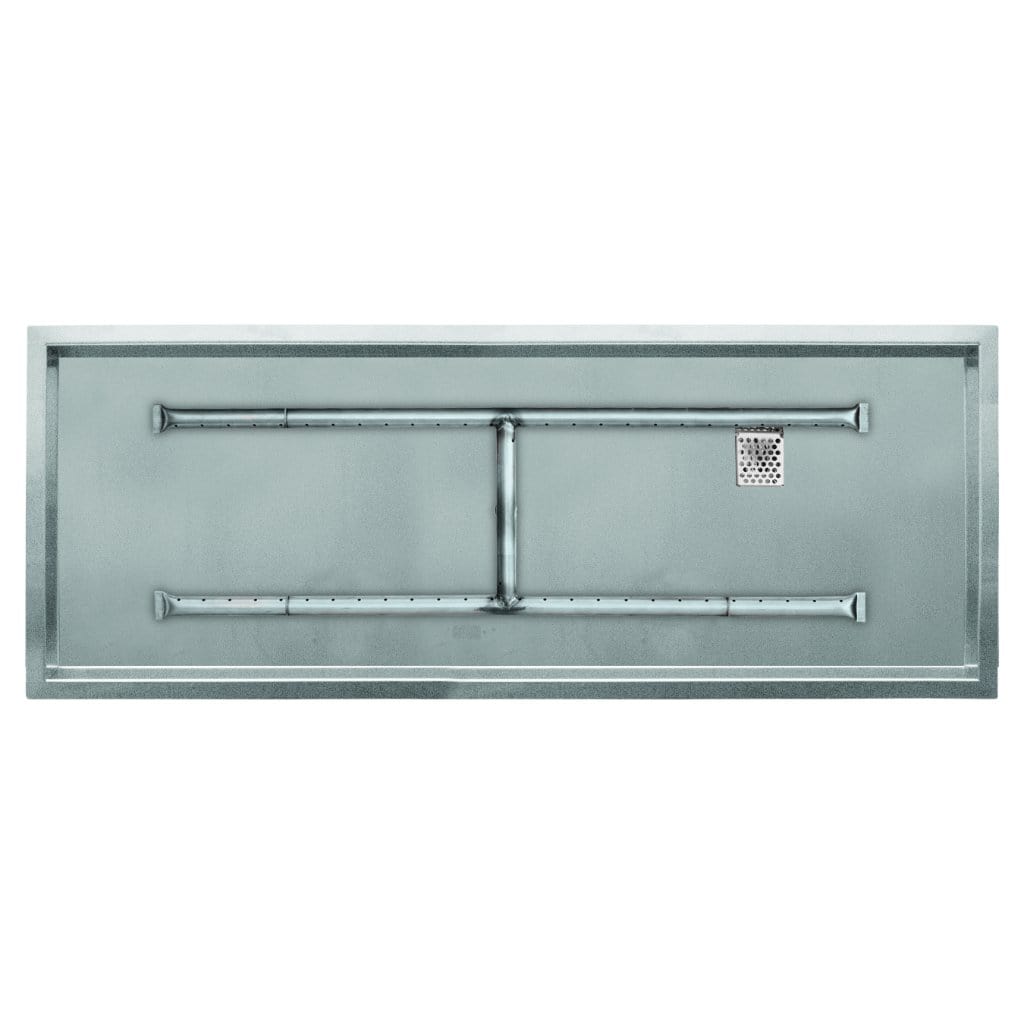

  • Pro series brass "H" Burner

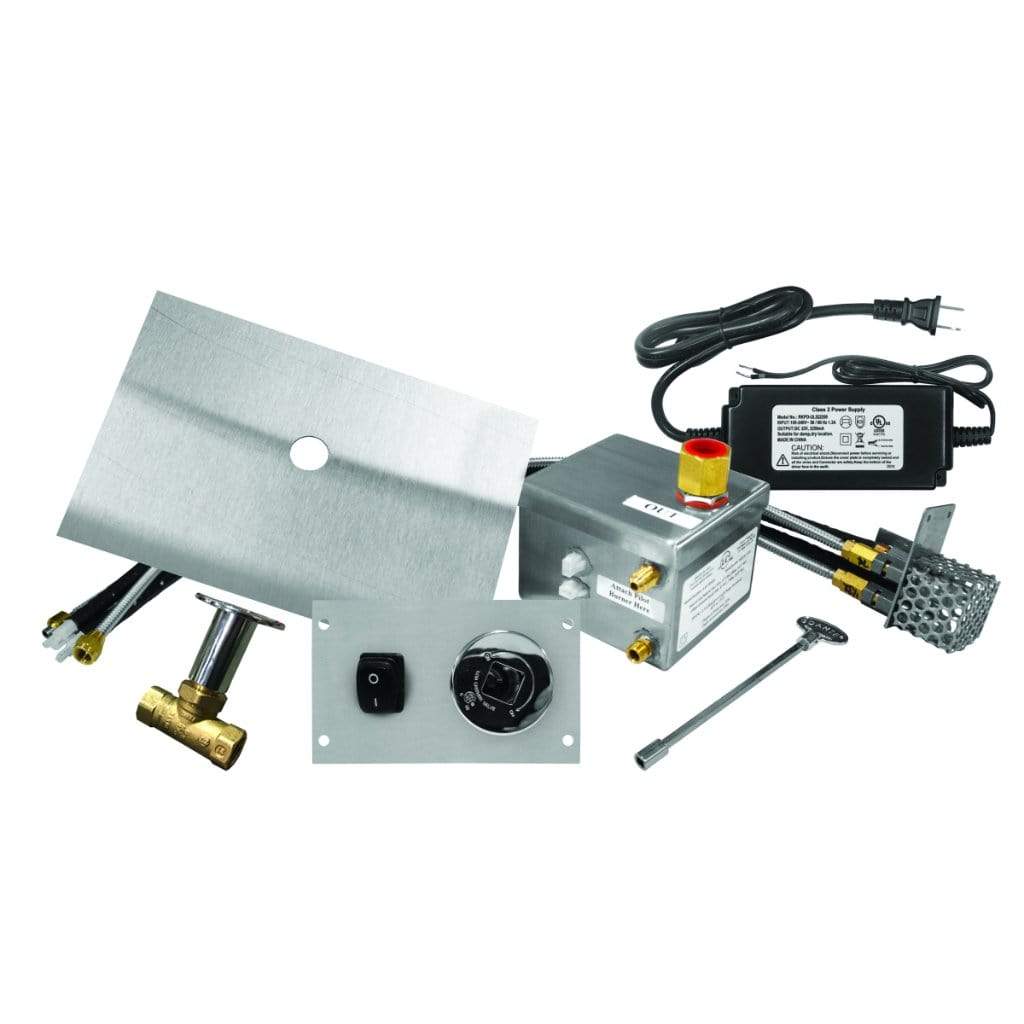

  • AWS fully electronic ignition - 30VDC (Requires 120Vac) - Assembled (GOE-30VDC) power supply, AWS control panel with On/OFF weatherproof switch

Purchase the Firegear 96" Linear Stainless Steel Drop-In Pan H-Burner LOF-9616HAWS today. Available here at Flame Authority, your Trusted Dealer!

Manuals

Need assistance? Talk to an Expert at +1-800-923-4556 or email: support@flameauthority.com to get the best-suited Fire Pit Burner Kits for your needs.

Specifications

  • BTU: 250,000 (73.26kW)
  • Ignition System: AWS
  • Burner Pan Material: Stainless Steel
  • Inside Pan Dimension: 96” x 16” (2438 x 406mm)
  • Outside Pan Dimension: 98½” x 18½” (2501 x 469mm)
  • Burner Length: 93” x 10” (2362 x 254mm)
  • Cutout Dimension: 97” x 17” (2463 x 330mm)
  • Ground Level: 8” (203mm)
  • Side Wall: 8” (203mm)
  • Combustile Ceiling: 96” (3048mm)
  • Combustile Floor: 18” (457mm)
  • Orifice Size# for Natural Gas: OAS-NG25/64”
  • Orifice Size# for Liquid Propane: OAS-LP12

Gas Pressure

Min. Inlet

  • Natural Gas: 3.5” WC (⅛ PSI) (0.87kPa)
  • Liquid Propane: 8.0” WC (⅓ PSI) (1.99kPa)

Max. Inlet

  • Natural Gas: 14.0” WC (½ PSI) (3.48kPa)
  • Liquid Propane: 14.0” WC (½ PSI) (3.48kPa)

Normal Inlet

  • Natural Gas: 7.0” WC (¼ PSI) (1.74 kPa)
  • Liquid Propane: 11.0” WC (⅓ PSI) (2.73 kPa)

Caution: DO NOT USE REGULAR STONE OR ROCK due to susceptibility of explosion.

Firegear Linear Flat Pan Pro Series 36 inch Brass H-Burner LOF-3610PS306TPSI

Glass and Media

How much Media should I use?

  • Glass: 200 lbs
  • Lava Rock: 80 lbs
  • Lava Stones: 80 lbs



    Black Lava Rock 10 lb. Bag

    Black Lava Rock 10 lb. Bag

    Black Lava Rock 40 lb. Bag

    Dark Gray Lava Stones

    Dark Gray Lava Stones

    Black Broken Glass

    Black Broken Glass

    Copper Broken Glass

    Copper Broken Glass

    Crystal Broken Glass

    Crystal Broken Glass

    Dark Blue Broken Glass

    Dark Blue Broken Glass

    Light Blue Broken Glass

    Light Blue Broken Glass

    Seabreeze Broken Glass

    Seabreeze Broken Glass

    Black Reflective Glass

    Black Reflective Glass

    Bronze Reflective Glass

    Bronze Reflective Glass

    Cobalt Reflective Glass

    Cobalt Reflective Glass

    Copper Reflective Glass

    Copper Reflective Glass

    Silver Reflective Glass

    Silver Reflective Glass


Optional Accessories

2 pcs Flexible Frame - FLEXFRAME-SS

  • Allows you the flexibility to fill the gap between the fire pit structure and the pan.
  • Engineered to protect against the outdoor elements including salt water environment
  • Flexible and easy to adapt for round, square, and rectangular fire pits.
Flexible Frame - FLEXFRAME-PRO3

3 pcs Flexible Frame - FLEXFRAME-SS3

  • Allows you the flexibility to fill the gap between the fire pit structure and the pan.
  • Engineered to protect against the outdoor elements including salt water environment
  • Flexible and easy to adapt for round, square, and rectangular fire pits.

Paver Control Panel Kit - PAVER-CP-AWS

  • For use when building fire pit enclosures with SRW
    block or pavers - FPB Series Thermocouple Manual Safety "AWS" Burner Systems.
  • Includes: Stainless Steel Paver Kit Bracket
    and Extender, Lintel - 12" L X 3" W (20 gauge galvanized steel), Screws, Fittings and Tapcon concrete anchors. Valve Kit and
    Face Plate purchased separately or as part of the FPB or LOF Burner Systems.
Paver Control Panel Kit PAVER-CP-MT Firegear 20" Stainless Steel TPSI Drop-In Natural Gas Fire Pit Insert FPB-20SBS16TPSI-N with Battery Powered Spark Igniter

Paver Vent Kit - PAVER-VENT-4-LNTS

  • Stainless Steel Paver Vent Kit with Lintel: includes (2) 3 5/8" tall x 8" wide vents with mounting plate, extension plate extends overall size up to 10" wide and two (2) Tapcon self-tapping concrete anchors and Lintel 12" Long x 3" Wide (20 Gauge Galvanized Steel). Each vent provides 18 square inches of ventilation.
Paver Vent Kit - PAVER-VENT-4-LNTS

Paver Vent Kit - PAVER-VENT-6-LNTS

  • Stainless Steel Paver Vent Kit with Lintel: includes (2) 5 5/8" tall x 8" wide vents with mounting plate, extension plate extends overall size up to 10" wide and two (2) Tapcon self-tapping concrete anchors and Lintel 12" Long x 3" Wide (20 Gauge Galvanized Steel). Each vent provides 18 square inches of ventilation.

Paver Vent Kit - PAVER-VENT-6-LNTS
