Want a Smarter, Safer Fire Pit Setup? Discover the HPC Fire 18 Inch Square Flat Pan Gas Fire Kit
Looking for a durable 18 inch square flat pan gas fire kit with smart flame control and auto shutoff?

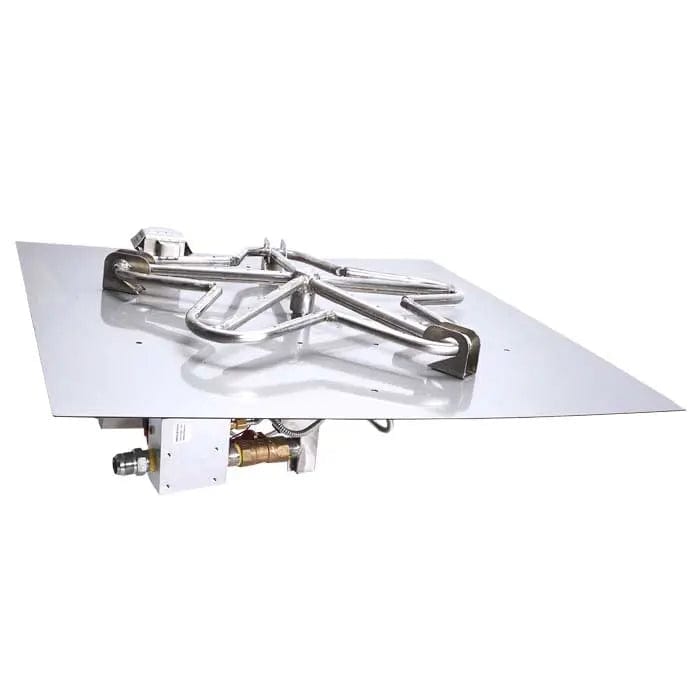

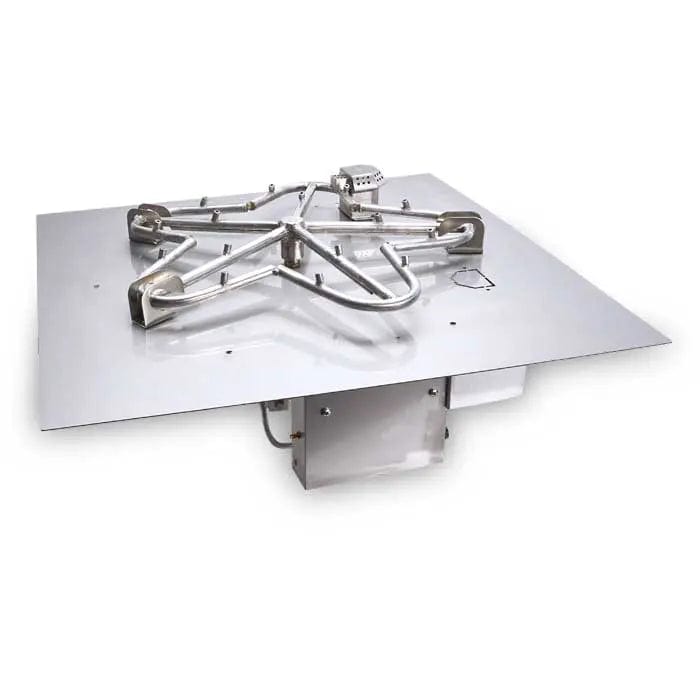

The HPC Fire 18FSSEI-SQ Square Flat Pan Gas Fire Kit is a fully assembled CSA-certified fire pit insert designed for advanced performance and ease of use. Built for commercial-grade reliability, it features electronic ignition, flame-sensing auto shutoff, and Bluetooth or wall switch operation. Choose Natural Gas or Liquid Propane for seamless integration with your outdoor fire feature.
Note Required Items: Lava Rock / Rolled Lava Stones ( 2 bags), Fire Glass ( 40 lbs)
Why Choose HPC Fire?
HPC Fire delivers high-performance outdoor fire features backed by innovation, safety certifications, and lifetime burner warranties.
How It Works
Start-Up: This is done by the use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks and then starts the flow of pilot gas. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms the pilot flame is present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing the Start sequence.
On/Off Models: Includes the convenience and safety features- optional remote control available.
Bluetooth High / Low Flame Control Models: This option includes a smart remote and App via smart device control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from the fire pit to advise the user of fire pit status (flashing LED).
Shut Down: To turn OFF the fire pit simply use a wall switch, remote control, or whole house system.
Key Features
- Fully Assembled- ready to install. Control components are protected within the valve box.
- Start via wall switch or remote control; Auto re-light if the flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter
- On/Off models: Use with an optional wall switch, Remote Control, or your whole house system
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff
Manuals for HPC Fire 18 Square Flat Pan Gas Fire Kit 18FSSEI-SQ
HPC Fire 18 Square Flat Pan Gas Fire Kit 18FSSEI-SQ Specifications
- Model:
- 18FSSEI-SQ
- TOR-18FSSEI-SQ
-
Dimensions: L-18" x W-18"
-
Max BTU: 65,000
-
Nozzle BTU: 65,000
-
Burner Type: 12” Penta Standard / Torpedo
-
Gas Type: Natural Gas / Liquid Propane
-
Power Options: 120VAC / 24VAC
-
Ignition Style: Electronic Ignition On-Off
-
Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
-
Warranty: Lifetime warranty on burners
