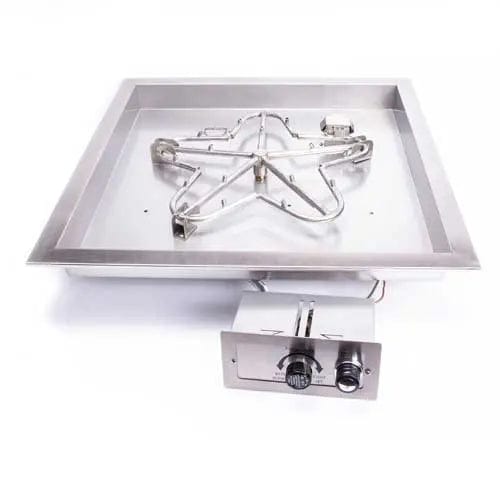

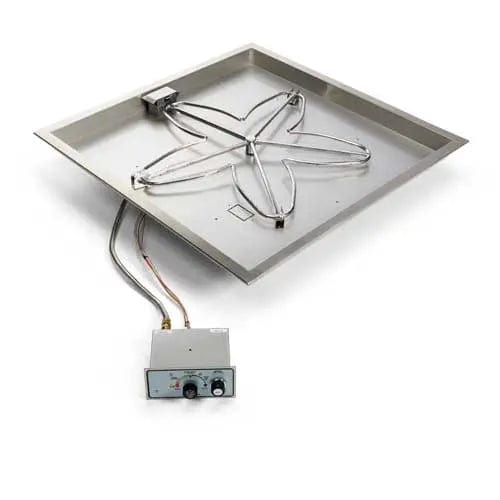

36" Square Bowl HPC Fire Pit Insert FPPK36-SQBL-FLEX Product Details
This is our mid-range fire pit insert utilizing safety pilot flame control- simply push the ignition button and valve control knob to startā¦ flame adjustment is done with the knob. This battery-operated system is a good solution for flame sensing necessity without AC power requirements.Ā
How It Works
Start-Up: This is done by simultaneously pressing the valve control knob to start the flow of pilot gas and pressing the ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn the valve control knob counterclockwise to light the main burner.
Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow.
Shut Down: To turn OFF the fire pit simply turn the valve control knob clockwise- slightly depress the knob to reach the OFF position.
Purchase the HPC Fire Square Flat Fire Pit Insert FPPK36-SQBL-FLEX here in Flame Authority!
Features
Features:
- Available in 18", 24", 30" and 36" Model
- Fully Assembled and ready to install. Control components are protected within the valve box.
- Flex Line configuration provides versatile and simple installation.
- Start ignition with push button and valve control knob.
- Flame sensing- the system will turn off gas if the flame is lost.
- Flame height is adjustable using a valve control knob.
- Battery Operated System- is the perfect solution for installs with no power.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Made of #304, 18 gauge Stainless Steel
- The spun design adds rigidity
- Welded gas fitting for strength
- Weep holes for drainage
- Outdoor Fire Logs and Rocks
Manual
Manual:
Need assistance? Talk to an Expert atĀ +1-800-923-4556 or email: support@flameauthority.comĀ to get the best-suited Fire Pit Burner Kits for your needs.
Specifications
Specifications:
- Model:
- FPPK36-SQBL-FLEX
- TOR-FPPK36-SQBL-FLEX
- Dimensions: L-36" x W-36" x D-2.5"
- Max BTU: 140,000
- Nozzle BTU: 175,000
- Burner Type: 30" Penta Standard / Torpedo
- Gas Type: Natural Gas / Liquid Propane
- Ignition Style: Push Button Flame Sensing
- Required Items: Lava Rock / Rolled Lava Stone (6 bags), River Rock (4 boxes), Fire Glass (150 lb), Flex-Form Install Collar (2 boxes)
- Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
- Warranty: Lifetime warranty on burners
Outdoor Fire Logs and Rocks
Arizona Weathered Oak
Aspen Birch
Rolled Lava Stone
- 6 Bags Required for this unit
Western Driftwood
Ā Lava Rock
- 6 Bags Required for this unit
Black Ceramic River Rock
- 4 Boxes required for this unit
Ā Ā
Fire Glass
- 150 lbs Required for this unit
Cobalt Blue
Pacific Blue
Pacific Blue Reflective
Black
Clear
Starfire
Gray Reflective
Copper
Bronze
Ā
Optional Accessories
- 60" Square Black Vinyl CoverĀ FPC-60SQ
- 60" x 60" Square, Black Vinyl, Fire Pit Cover. Pull string at the bottom, Fits 48x48 - 60x60 enclosures.
- 43" Square Wind GuardĀ WG43-SQ
- Square, 43"x 43", 6" Height
- Features:Ā - Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.
- 44" SS Free Form Install Collar - 2per BoxĀ IC44SS-FF
- The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
- 2 Boxes required for this unit
Ā
- 9 X 4" Flat Vent for Outdoor Fire Pits
- Stainless Steel 9"" wide x 4"" high vent.
-
14 X 4.5" Louvered Vent for Outdoor Fire Pits
- Stainless Steel Vent Panel, 14"" Wide x 4 1/2"" High
