Commercial-Grade Stainless Steel Burner Kit for Large Custom Outdoor Fire Pits
The HPC Fire 60" SST Torpedo H-Burner Kit is a high-output 300,000 BTU stainless steel burner system designed for large custom outdoor gas fire pits and linear fire features. Built from durable 304 stainless steel, this 60" x 10" torpedo-style H-burner delivers broad flame distribution for luxury residential patios, commercial outdoor entertainment areas, and large-scale custom fire pit installations.
This burner kit includes the core plumbing and control components needed for custom fire pit construction, including fittings, manual shut-off valve, polished brass key, flange, and installation hardware. The raised center hub design improves flame consistency across the burner while supporting even gas flow throughout larger installations.
This burner is intended for outdoor use only and should be installed by a qualified gas professional familiar with fire pit ventilation and gas supply sizing requirements.
Why Choose HPC Fire Kit?
HPC Fire kits deliver top-tier stainless steel components, simple installation, and long-lasting outdoor fire pit performance.
Best For
- Large custom outdoor fire pits
- Linear fire feature installations
- Luxury backyard entertainment areas
- Commercial outdoor patio projects
- Contractors and landscape installers
- High-flame-output fire pit builds
- Custom stone or concrete fire pit enclosures
Manuals for HPC Fire 66” x 16” Match-Lit SST Torpedo H-Burner Fire Pit Insert
Not Ideal For
- Small decorative fire bowls
- Indoor installations
- Enclosed spaces without ventilation
- Portable fire pit applications
- Low-pressure or undersized gas systems
- DIY installations without gas experience
Key Features
-
300,000 BTU High-Output Burner: Designed for large fire pit installations requiring strong flame presence and significant heat output.
-
304 Stainless Steel Construction: Corrosion-resistant stainless steel improves long-term durability in outdoor environments and humid climates.
-
Torpedo-Style H-Burner Design: The elongated H-burner layout helps create broad, even flame coverage across rectangular and linear fire pit openings.
-
Raised Center Hub: The raised center hub promotes balanced gas distribution and more consistent flame performance across the burner system.
-
Complete Burner Kit: Includes burner, fittings, plumbing components, manual valve, polished brass key, flange, and installation manual.
-
1/2" Gas Inlet & Tubing: Built with 1/2" tubing and a 1/2" bottom center gas inlet for professional gas line integration.
Product Specifications
| Specification |
Details |
| Product Type |
Outdoor Fire Pit Burner Kit |
| Burner Style |
Torpedo H-Burner |
| Burner Dimensions |
60" x 10" |
| Maximum BTU Output |
300,000 BTU |
| Material |
304 Stainless Steel |
| Burner Shape |
Linear / H-Style |
| Tubing Size |
1/2" |
| Gas Inlet |
1/2" Bottom Center Inlet |
| Valve Type |
Manual 1/4 Turn Valve |
| Key Material |
Polished Brass |
| Intended Use |
Outdoor Fire Pit Installations |
| Installation Type |
Custom Built-In Fire Features |
| Included Components |
Burner, Plumbing, Fittings, Valve, Brass Key, Flange, Manual |
Installation Requirements
This burner is designed for custom outdoor fire pit construction and should be installed according to local gas and fire codes.
Proper installation requires:
- Adequate fire pit ventilation
- Proper gas line sizing
- Outdoor-rated construction materials
- Non-combustible fire pit enclosure materials
- Correct burner media depth
- Professional leak testing before operation
Undersized gas lines will reduce flame height and create inconsistent burner performance.
Ventilation & Safety Information
Do not install this burner inside enclosed structures or unventilated fire pit enclosures. Gas accumulation creates a serious ignition hazard.
Fire pit enclosures must include proper ventilation openings that comply with local code requirements and manufacturer installation standards.
Only use this burner in outdoor environments designed for gas fire feature installations.
Fuel & Compatibility Guidance
This burner is intended for custom gas fire pit systems and must be connected to a properly sized gas supply.
Before installation, verify:
- fuel type compatibility
- gas pressure requirements
- burner pan sizing
- ignition compatibility
- ventilation requirements
- fire media compatibility
Improper burner sizing or excessive fire media coverage can reduce flame performance.

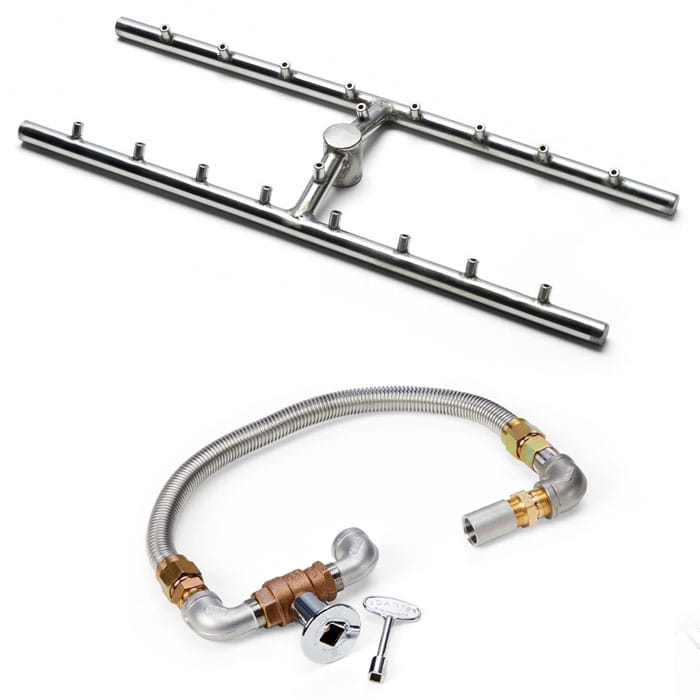

Included In The Kit
- 60" x 10" 304 Stainless Steel Torpedo H-Burner
- Plumbing Components
- Gas Fittings
- Installation Manual
- Manual 1/4 Turn Shut-Off Valve
- Polished Brass Key
- Decorative Flange
Recommended Applications
This burner is commonly used in:
- custom concrete fire pits
- luxury outdoor kitchens
- commercial hospitality patios
- backyard entertainment spaces
- resort-style outdoor environments
- modern landscape fire features
