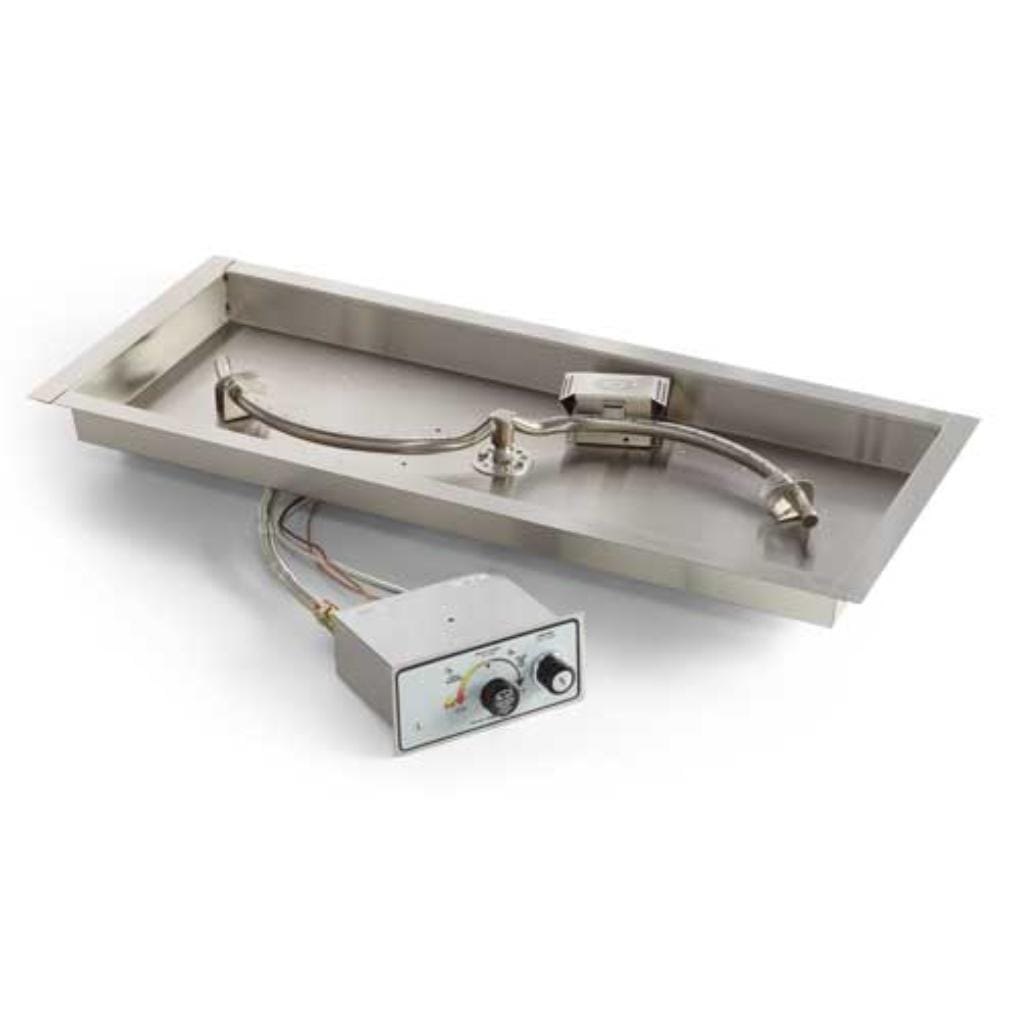

HPC Fire Rectangle S-Burner Bowl Pan Fire Pit Insert FPPK54x16-S-FLEX

This is our mid-range fire pit insert utilizing safety pilot flame control- simply push the ignition button and valve control knob to start… flame adjustment is done with the knob. This battery-operated system is a good solution for flame sensing necessity without AC power requirements.

How It Works

Start-Up: This is done by simultaneously pressing the valve control knob to start the flow of pilot gas and pressing the ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn the valve control knob counterclockwise to light the main burner.

Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow.

Shut Down: To turn OFF the fire pit simply turn the valve control knob clockwise- slightly depress the knob to reach the OFF position.

Purchase the HPC Fire Rectangle S-Burner Bowl Pan Fire Pit Insert FPPK54x16-S-FLEX here in Flame Authority!

Features

• Available in 36"x14", 42"x14", and 54"x16" Model.
• Fully Assembled and ready to install. Control components are protected within the valve box.
• Flex Line configuration provides versatile and simple installation.
• Start ignition with push button and valve control knob.
• Flame sensing- the system will turn off gas if the flame is lost.
• Flame height is adjustable using a valve control knob.
• Battery Operated System- is the perfect solution for installs with no power.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Made of #304, 18 gauge Stainless Steel
• The spun design adds rigidity
• Welded gas fitting for strength
• Weep holes for drainage

Outdoor Fire Logs and Rocks

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

• 2 Bags Required for this unit

Western Driftwood

 Lava Rock

• 2 Bags Required for this unit

Black Ceramic River Rock

• 3 Boxes required for this unit

Fire Glass

• 70 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Manuals

• Installation Manual

Specifications

• Model: FPPK54X16-S-FLEX
• Dimensions: L-54" x W-16" x D-2.5"
• Max BTU: 140,000
• Flex Line: 36"
• Burner: 48" x 10" S-Fire
• Gas Type: Natural Gas / Liquid Propane
• Ignition Style: Push Button Flame Sensing
• Required Items: Lava Rock / Rolled Lava Stone (4 bags), River Rock (3 boxes), Fire Glass (100 lb), Flex-Form Install Collar (2 boxes)
• Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
• Warranty: Lifetime warranty on burners

Optional Accessories

• 78 X 40" Rectangle Black Vinyl Cover FPC-78X40
• 78" x 40" Rectangle Black Vinyl Fire Pit Cover. Pull string at the bottom, Fits 68x30 - 78x40 enclosures.

• 49 X 21" Rectangle Wind Guard WG49X21-RECT
• Square, 49"x 21", 6" Height
• Features: - Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.

• 44" SS Free Form Install Collar - 2per Box IC44SS-FF
• The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
• 2 Boxes required for this unit
