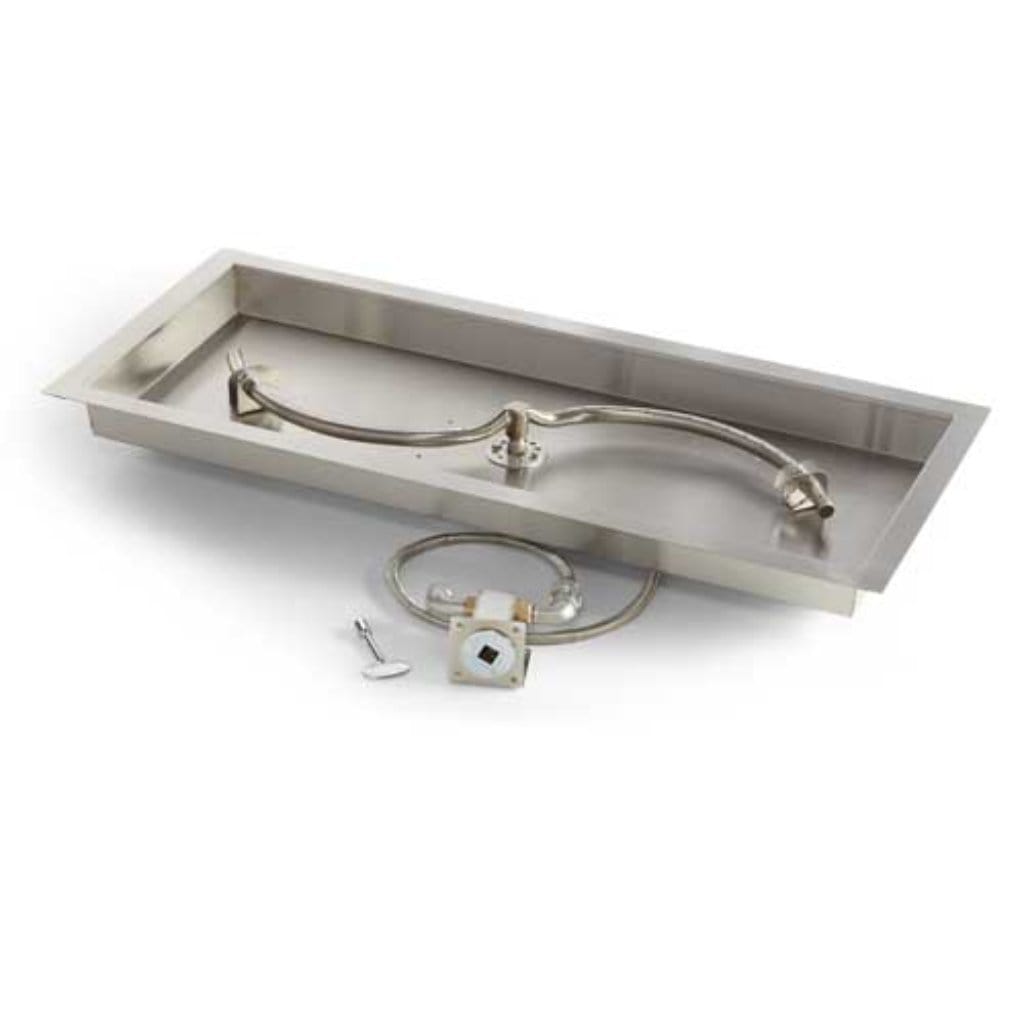

HPC Fire 36" Rectangle S-Burner Bowl Pan FP Insert MLFPK36X14-S-FLEX REVIEW
The standard burner is now limited in stock until supplies last.
Feel free to contact us today at +1-800-923-4556 or email: support@flameauthority.com for availability.
Do you want to have a Fire Pit insert that provides sufficient heat around you? Check out the HPC Fire 36" Rectangle S-Burner Bowl Pan FP Insert MLFPK36X14-S-FLEX now!
This is our mid-range fire pit insert utilizing safety pilot flame control- simply push the ignition button and valve control knob to start… flame adjustment is done with the knob. This battery-operated system is a good solution for flame sensing necessity without AC power requirements.
How It Works
Start-Up: This is done by simultaneously pressing the valve control knob to start the flow of pilot gas and pressing the ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn the valve control knob counterclockwise to light the main burner. Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow. Shut Down: To turn OFF the fire pit simply turn the valve control knob clockwise- slightly depress knob to reach OFF position.
Features
- Available in 24" x 12", 30" x 12", 36" x 12", and 36" x 14" Models
- Fully Assembled and ready to install.
- Flex Line configuration provides versatile and simple installation.
- Valve mounting bracket included- for safe mounting of control have.
- Flame height is adjustable using the key valve.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Optional Install & Controls: Paver Block Bracket, Key Extension Kit, Long Keys, and Spark Ignition Kit.
- Made of #304, 18 gauge Stainless Steel
- The spun design adds rigidity
- Welded gas fitting for strength
- Weep holes for drainage
Manuals
Specifications
-
Model: MLFPK36X14-S-FLEX
-
Dimensions: L-36" x W-14" x D - 2.5"
-
Max BTU: 65,000
-
Burner: 30" x 8" S-Burner
-
Gas Type: Natural Gas/Liquid Propane
-
Ignition Style: Push Button Flame Sensing
-
Required Items: Lava Rock / Rolled Lava Stone (2 bags), River Rock (2 boxes), Fire Glass (40 lb), Flex-Form Install Collar (2 boxes)
-
Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
-
Warranty: Lifetime warranty on burners
Optional Accessories
- 78 X 40" Rectangle Black Vinyl Cover FPC-78X40
- 78" x 40" Rectangle Black Vinyl Fire Pit Cover. Pull string at the bottom, Fits 68x30 - 78x40 enclosures.
- 42 X 21" Rectangle Wind Guard WG43X21-RECT
- Square, 43"x 21", 6" Height
-
Features: - Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.
- 44" SS Free Form Install Collar - 2per Box IC44SS-FF
- The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
- 2 Boxes required for this unit
- 9 X 4" Flat Vent for Outdoor Fire Pits
- Stainless Steel 9"" wide x 4"" high vent.
-
14 X 4.5" Louvered Vent for Outdoor Fire Pits
- Stainless Steel Vent Panel, 14"" Wide x 4 1/2"" High
Outdoor Fire Logs and Rocks
Arizona Weathered Oak
Aspen Birch
Rolled Lava Stone
- 2 Bags Required for this unit
Western Driftwood
Lava Rock
- 2 Bags Required for this unit
Black Ceramic River Rock
- 2 Boxes required for this unit
Fire Glass
- 60 lbs Required for this unit
Cobalt Blue
Pacific Blue
Pacific Blue Reflective
Black
Clear
Starfire
Gray Reflective
Copper
Bronze
Purchase the HPC Fire 36" Rectangle S-Burner Bowl Pan FP Insert MLFPK36X14-S-FLEX here in Flame Authority!
