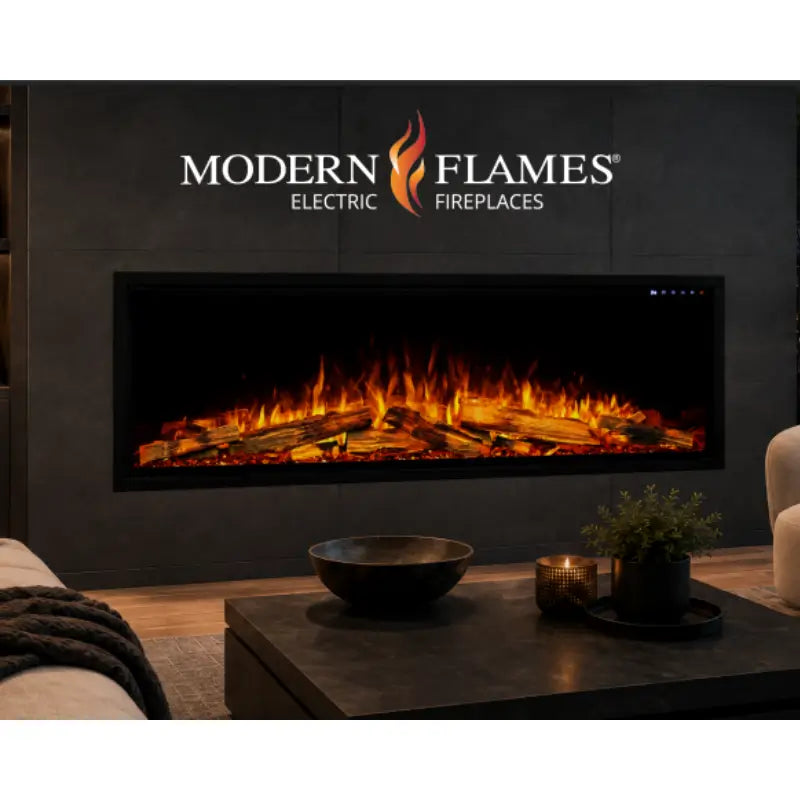

Modern Flames Redstone V2 Linear Electric Fireplace
Modern Flames Redstone V2 Linear 53" Electric Fireplace – RS53-LINEAR-V2
The Modern Flames Redstone V2 Linear 53" Electric Fireplace RS53-LINEAR-V2 combines a wide contemporary linear profile with a taller viewing opening, improved LED flame presentation, flexible installation options, connected controls, integrated audio, and dual-voltage heating capability. It measures 53-1/2" wide overall with a 49" wide viewing area and supports built-in, slide-in, or wall-mount installation.
Model
RS53-LINEAR-V2
Nominal Size
53 Inches
Overall Width
53-1/2"
Viewing Width
49"
120V Heat
5,000 BTU
240V Heat
10,000 BTU
Controls
Remote + Wi-Fi App
Installation
Built-In / Slide-In / Wall Mount
Dual-Voltage Heating:
The RS53-LINEAR-V2 provides 5,000 BTU at 120V and is 240V capable for 10,000 BTU operation. The supplied product information does not provide a square-foot heating-coverage rating, so heating performance should be evaluated from the documented BTU output rather than an assumed coverage area.
Wide Linear Design with a Taller Viewing Area
The Redstone V2 Linear expands the Redstone V2 platform into a broad horizontal fireplace format designed for contemporary wall layouts.
The RS53-LINEAR-V2 measures 53-1/2" wide × 24" high × 9-7/8" deep and provides a 49" W × 18-11/16" H viewing opening.
Modern Flames identifies the taller viewing opening and highly improved LED flame pattern as key upgrades to the Redstone V2 Linear platform.
Nominal size vs. actual size: The 53-inch model designation is not the exact overall width. Use the documented 53-1/2" overall width and the applicable framing dimensions when planning installation.
Modern Flames RS53-LINEAR-V2 at a Glance
Series
Redstone V2 Linear
Product Type
Electric Fireplace
Voltage
120V / 240V Capable
Heat Output
5,000 / 10,000 BTU
Installation
Built-In / Slide-In / Wall Mount
Controls
Upgraded Remote + Wi-Fi App
Audio
Built-In Speakers + Bluetooth Streaming
Is the Modern Flames Redstone V2 Linear 53" Right for Your Project?
Best For
- Projects needing a wide contemporary linear electric fireplace.
- Installations requiring a substantial 49-inch viewing width.
- Built-in fireplace projects.
- Slide-in fireplace installations.
- Wall-mount applications.
- Projects using standard 120V operation with 5,000 BTU output.
- Projects requiring 240V-capable operation with 10,000 BTU output.
- Buyers wanting Wi-Fi app control.
- Buyers wanting integrated Bluetooth audio and built-in speakers.
Consider Another Fireplace If
- Your project cannot accommodate the documented overall dimensions.
- Your framing cannot meet the required rough-opening dimensions.
- You need a verified square-foot heating coverage specification.
- You require a product with dimensions smaller than the Redstone V2 Linear 53".
- Your project does not support the intended electrical configuration.
Why Choose the Redstone V2 Linear 53"?
Linear Redstone V2 Design
A wide horizontal format designed for contemporary fireplace walls and entertainment spaces.
Taller Viewing Opening
The 53" model provides a 49" W × 18-11/16" H viewing area.
Improved LED Flame Pattern
The Redstone V2 Linear features a highly improved LED flame presentation.
Three Installation Options
Supports built-in, slide-in, and wall-mount configurations.
Dual-Voltage Heating
Provides 5,000 BTU at 120V and 10,000 BTU when configured for 240V-capable operation.
Connected Controls
Includes an upgraded handheld remote and Wi-Fi app control.
Integrated Audio
Built-in speakers provide sound modes and Bluetooth audio streaming.
Included Decorative Media
Lit log set, twigs, and crushed glass are included with the fireplace.
Clean-Face Built-In Trim
A clean-face built-in trim kit is included for applicable built-in installations.
120V vs. 240V Heating
The RS53-LINEAR-V2 provides two documented electrical and heating configurations.
| Electrical Configuration |
Heat Output |
| 120V Standard Operation |
5,000 BTU |
| 240V Capable Operation |
10,000 BTU |
Heating comparison: The primary documented difference is output. Standard 120V operation provides 5,000 BTU, while the 240V-capable configuration provides 10,000 BTU.
No published square-foot rating: The supplied product information does not state a heating coverage area in square feet.
Built-In, Slide-In & Wall-Mount Installation
The Redstone V2 Linear 53" supports three documented installation configurations.
Built-In
Designed for an integrated fireplace installation using the applicable framing requirements.
Slide-In
Supports a slide-in installation configuration for compatible project layouts.
Wall Mount
Can also be installed as a wall-mounted electric fireplace.
Built-in trim included: A clean-face built-in trim kit is documented as included with the RS53-LINEAR-V2.
RS53-LINEAR-V2 Overall & Viewing Dimensions
| Specification |
Dimension |
| Nominal Size |
53" |
| Overall Width |
53-1/2" |
| Overall Height |
24" |
| Overall Depth |
9-7/8" |
| Viewing Width |
49" |
| Viewing Height |
18-11/16" |
Planning note: Use the exact dimensions above rather than the nominal 53-inch model designation when checking available wall space.
Rough Opening & Framing Dimensions
For applicable built-in installation of the RS53-LINEAR-V2, the documented rough opening is:
| Framing Requirement |
Dimension |
| Rough Opening Width |
51-5/8" |
| Rough Opening Height |
22-7/8" |
| Rough Opening Depth |
9-9/16" |
Do not substitute overall dimensions for framing dimensions. The fireplace itself measures 53-1/2" W × 24" H × 9-7/8" D, while the rough opening uses different dimensions.
Improved LED Flame Presentation
Modern Flames identifies a highly improved LED flame pattern as one of the main upgrades to the Redstone V2 Linear platform.
The wider 49-inch viewing opening and taller 18-11/16-inch viewing height provide a broad surface for the linear flame presentation.
Wi-Fi App & Upgraded Remote Control
The Redstone V2 Linear includes more than one documented control method.
Upgraded Remote
A handheld upgraded remote control is included with the fireplace.
Wi-Fi App Control
The RS53-LINEAR-V2 also supports Wi-Fi app control for connected fireplace operation.
Built-In Speakers & Bluetooth Audio
The RS53-LINEAR-V2 includes integrated audio functionality in addition to its electric flame and heating features.
Built-In Speakers
Speakers are integrated into the Redstone V2 Linear fireplace.
Bluetooth Audio Streaming
Bluetooth connectivity is documented for audio streaming through the fireplace's built-in speaker system.
Bluetooth distinction: Bluetooth is documented as an audio feature. Wi-Fi is the documented connected fireplace-control feature.
Included Decorative Media
The RS53-LINEAR-V2 includes multiple media elements for the fireplace presentation.
Lit Log Set
Included illuminated log presentation.
Twigs
Included decorative twig elements.
Crushed Glass
Included crushed-glass media for an alternate or layered fireplace presentation.
What's Included?
RS53-LINEAR-V2 Fireplace
Modern Flames Redstone V2 Linear 53" electric fireplace.
Clean-Face Built-In Trim Kit
Included for the applicable built-in configuration.
Lit Log Set
Included decorative media.
Twigs
Included decorative elements.
Crushed Glass Media
Included fireplace media.
Upgraded Remote
Included handheld control.
Built-In Speakers
Integrated audio hardware.
Complete Modern Flames RS53-LINEAR-V2 Specifications
| Brand |
Modern Flames |
| Product Line |
Redstone V2 Linear |
| Model / Part Number |
RS53-LINEAR-V2 |
| Product Type |
Electric Fireplace |
| Design |
Linear |
| Nominal Size |
53" |
| Overall Width |
53-1/2" |
| Overall Height |
24" |
| Overall Depth |
9-7/8" |
| Viewing Width |
49" |
| Viewing Height |
18-11/16" |
| Flame |
Improved LED Flame Pattern |
| Standard Voltage |
120V |
| 120V Heat Output |
5,000 BTU |
| Higher-Heat Configuration |
240V Capable |
| 240V Heat Output |
10,000 BTU |
| Installation Options |
Built-In, Slide-In, Wall Mount |
| Built-In Trim |
Clean-Face Built-In Trim Kit Included |
| Controls |
Upgraded Remote Control + Wi-Fi App Control |
| Speakers |
Built-In |
| Audio Features |
Sound Modes + Bluetooth Audio Streaming |
| Included Media |
Lit Log Set, Twigs, Crushed Glass |
| Rough Opening Width |
51-5/8" |
| Rough Opening Height |
22-7/8" |
| Rough Opening Depth |
9-9/16" |
Flame Authority Expert Recommendation
Choose the Modern Flames Redstone V2 Linear 53" RS53-LINEAR-V2 when your project calls for a wide linear electric fireplace with a substantial viewing area, flexible installation, dual-voltage heating, connected controls, and integrated audio.
Its 53-1/2" overall width, 49" viewing width, 18-11/16" viewing height, 5,000 BTU 120V output, 10,000 BTU 240V-capable output, Wi-Fi app control, upgraded remote, built-in speakers, Bluetooth streaming, and included decorative media make it a feature-rich option for modern fireplace projects.
The most important planning step is verifying the installation dimensions and electrical configuration. Confirm the 53-1/2" × 24" × 9-7/8" fireplace dimensions, 51-5/8" × 22-7/8" × 9-9/16" rough opening, desired built-in/slide-in/wall-mount installation, and required 120V or 240V heat output.
Do not rely on an assumed square-foot heating capacity because the supplied product information does not provide one.
Official Manufacturer Resource
Modern Flames RS53-LINEAR-V2 FAQs
Is the Modern Flames RS53-LINEAR-V2 a 120V or 240V fireplace?
The RS53-LINEAR-V2 provides 5,000 BTU at 120V and is 240V capable for 10,000 BTU operation.
How much heat does the Redstone V2 Linear 53" produce?
It provides 5,000 BTU at 120V and 10,000 BTU when configured for 240V-capable operation.
What square footage does the RS53-LINEAR-V2 heat?
The supplied product information does not provide a square-foot heating coverage rating. Use the documented 5,000 BTU and 10,000 BTU outputs when comparing heating capability.
Can the Redstone V2 Linear 53" be built into a wall?
Yes. The RS53-LINEAR-V2 supports built-in installation and includes a clean-face built-in trim kit.
Can the RS53-LINEAR-V2 be wall mounted?
Yes. Wall mounting is one of the three documented installation options.
Does the RS53-LINEAR-V2 support slide-in installation?
Yes. Built-in, slide-in, and wall-mount installations are all documented for this model.
What are the exact dimensions of the RS53-LINEAR-V2?
The fireplace measures 53-1/2" wide × 24" high × 9-7/8" deep.
What is the viewing area?
The documented viewing opening is 49" wide × 18-11/16" high.
Is the 53" model actually 53 inches wide?
No. The nominal size is 53", while the documented overall width is 53-1/2".
What rough opening is required?
The documented rough opening is 51-5/8" wide × 22-7/8" high × 9-9/16" deep.
Can I use the overall fireplace dimensions as the framing dimensions?
No. Overall dimensions and rough-opening dimensions are different and should not be substituted for one another.
Does the Redstone V2 Linear 53" include Wi-Fi?
Yes. The fireplace includes Wi-Fi app control.
Does the RS53-LINEAR-V2 include a remote?
Yes. An upgraded handheld remote control is included.
Does the RS53-LINEAR-V2 have Bluetooth?
Yes. Bluetooth is documented for audio streaming through the fireplace's built-in speakers.
Does Bluetooth control the fireplace?
The supplied product information identifies Bluetooth as an audio-streaming feature. Wi-Fi app control is the documented connected fireplace-control feature.
Does the RS53-LINEAR-V2 include built-in speakers?
Yes. Built-in speakers and sound modes are included.
What decorative media comes with the fireplace?
The RS53-LINEAR-V2 includes a lit log set, twigs, and crushed glass media.
Does the fireplace include the clean-face built-in trim?
Yes. A clean-face built-in trim kit is documented as included.
What type of flame does the Redstone V2 Linear use?
Modern Flames identifies a highly improved LED flame pattern for the Redstone V2 Linear platform.
What should I verify before ordering the RS53-LINEAR-V2?
Confirm the 53-1/2" × 24" × 9-7/8" fireplace dimensions, the 51-5/8" × 22-7/8" × 9-9/16" rough opening for applicable built-in installation, the desired installation method, and whether 120V or 240V-capable heating is appropriate for the project.
Before You Order
Confirm Before Purchase
- You specifically need the Modern Flames RS53-LINEAR-V2.
- Your project can accommodate the 53-1/2" overall fireplace width.
- You have verified the 24" overall height and 9-7/8" depth.
- For applicable built-in installation, your framing can accommodate the 51-5/8" × 22-7/8" × 9-9/16" rough opening.
- You have selected built-in, slide-in, or wall-mount installation.
- You understand that 120V operation provides 5,000 BTU.
- You understand that 240V-capable operation provides 10,000 BTU.
- You want Wi-Fi app control and an upgraded handheld remote.
- You want built-in speakers and Bluetooth audio streaming.
- You want the included lit log set, twigs, crushed glass, and clean-face trim kit.
Do Not Assume
- That the nominal 53" designation is the exact fireplace width.
- That the overall fireplace dimensions are the framing dimensions.
- That 120V and 240V operation provide the same heat output.
- That the supplied information establishes a square-foot heating coverage rating.
- That Bluetooth is the documented fireplace-control connection.
- That only built-in installation is supported.
- That decorative media must be purchased separately.
- That the clean-face built-in trim kit is an optional extra.
Final planning check: Use the Modern Flames Redstone V2 Linear Specification Sheet to verify overall dimensions, viewing area, rough-opening requirements, electrical configuration, 120V/240V heat output, installation method, controls, audio functionality, and included media before installation.
