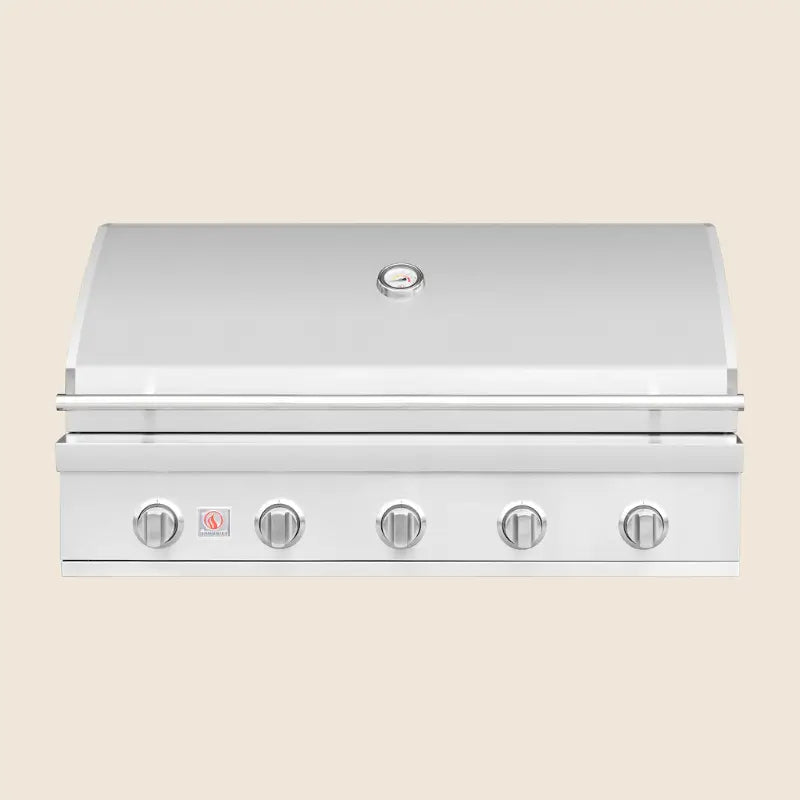

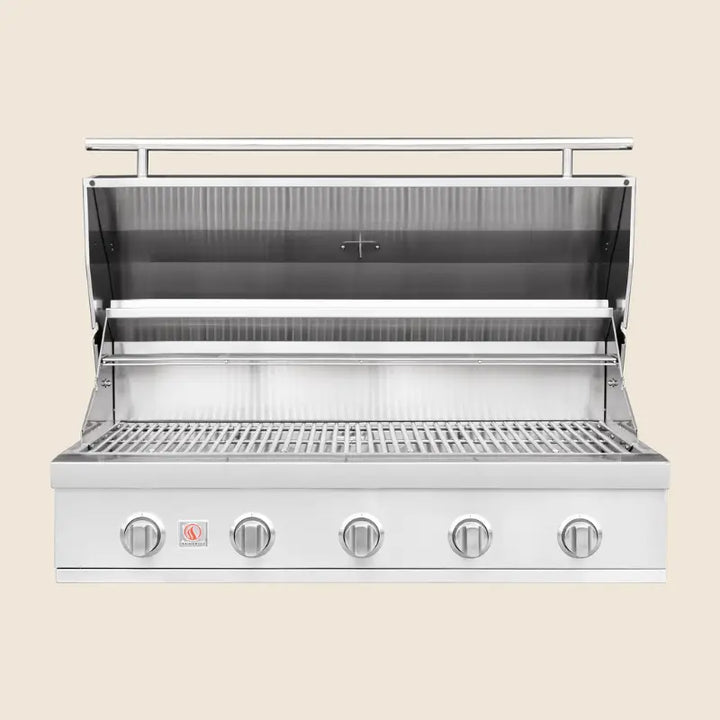

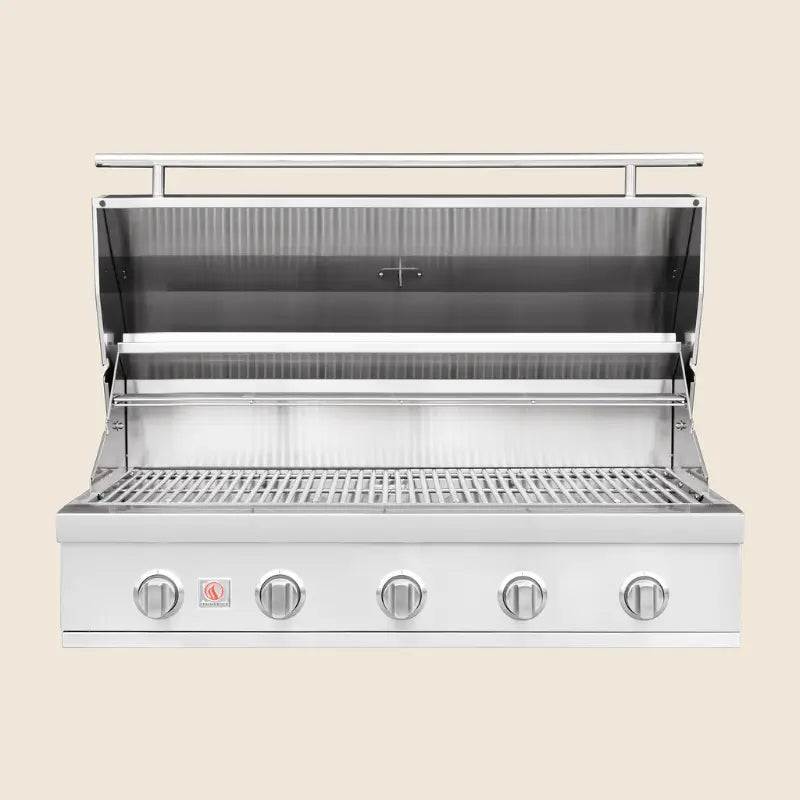

Summerset Sizzler 40-Inch Built-In Gas Grill – 60,000 BTU, SZR40 & SZR40L
The Summerset Sizzler 40-Inch Built-In Gas Grill is a five-burner outdoor kitchen grill available as the SZR40 natural gas model and the SZR40L liquid propane model. It combines commercial-grade #443 stainless steel construction, five #304 stainless steel tube burners, 60,000 BTUs of total main-burner output, 8mm cooking grates, #443 stainless steel flame tamers, anti-theft knobs, and operation without an electrical connection.
60,000 BTUs Five 12,000-BTU main burners
39 5/8-Inch Width Full-size built-in grill configuration
No Electricity Required Designed for gas-only operation
Two Fuel Options Natural gas or liquid propane
Choose the Correct Fuel Configuration
Select the model that matches the fuel supply planned for the outdoor kitchen. The natural gas and liquid propane configurations use fuel-specific valves, regulator components, and operating pressures.
SZR40
Natural Gas
Choose the SZR40 for a permanent natural gas supply installed and sized for the grill's total gas demand. The natural gas regulator must remain installed, and the supply must meet the manufacturer's pressure requirements.
SZR40L
Liquid Propane
Choose the SZR40L for liquid propane operation. The cylinder, regulator, hose, enclosure ventilation, and cylinder storage arrangement must comply with the appliance manual and applicable local requirements.
Fuel-selection rule: Do not connect the grill to a fuel type that does not match its configured valves, regulator, or rating plate. Any gas conversion must follow the manufacturer's instructions.
Product Summary
The Summerset Sizzler 40 is a 39 5/8-inch built-in gas grill for permanent outdoor kitchens. It uses five 12,000-BTU #304 stainless steel tube burners for 60,000 BTUs of total main-burner output and is offered as the SZR40 natural gas model or SZR40L liquid propane model.
This grill is best suited to buyers who want a large five-burner cooking platform, durable stainless steel components, straightforward controls, and operation without an electrical connection. It is not a portable grill and must be installed outdoors in a properly sized and ventilated enclosure.
Grilling Built Around Everyday Gatherings
Grilling is about creating moments that last. The Sizzler delivers commercial-grade performance in a sleek, dependable design that supports casual weeknight meals, weekend celebrations, and larger outdoor gatherings. Its five-burner layout provides the flexibility to cook multiple foods at different temperatures while maintaining a clean built-in appearance.
Durable stainless steel construction, thoughtful heat management, and responsive burner control help the Sizzler deliver reliable results without unnecessary complexity. The grill is designed to keep attention on the food while supporting the practical demands of a permanent outdoor kitchen.
Precision in Every Detail
Built for everyday outdoor cooking, the Sizzler 40 combines uniform heat distribution, precision airflow, and a practical five-burner layout. Whether preparing a quick dinner or cooking for a larger group, its independent burner controls allow the cooking surface to be divided into different temperature zones.
Five #304 stainless steel tube burners provide steady, responsive heat beneath #443 stainless steel flame tamers. The flame tamers help distribute burner heat and shield the burners from direct food drippings, while 8mm round cooking grates create a stable surface for routine grilling.
Timeless Design, Effortless Performance
Five-Burner Control
Five independently controlled burners make it possible to create direct and indirect heat zones across the cooking surface.
#443 Stainless Steel Body
Commercial-grade #443 stainless steel construction provides a durable exterior for regular outdoor kitchen use.
#304 Stainless Burners
Five #304 stainless steel tube burners provide a combined 60,000 BTUs of main-burner output.
No Electrical Power Required
Normal grill operation does not require a dedicated electrical connection, simplifying many outdoor kitchen plans.

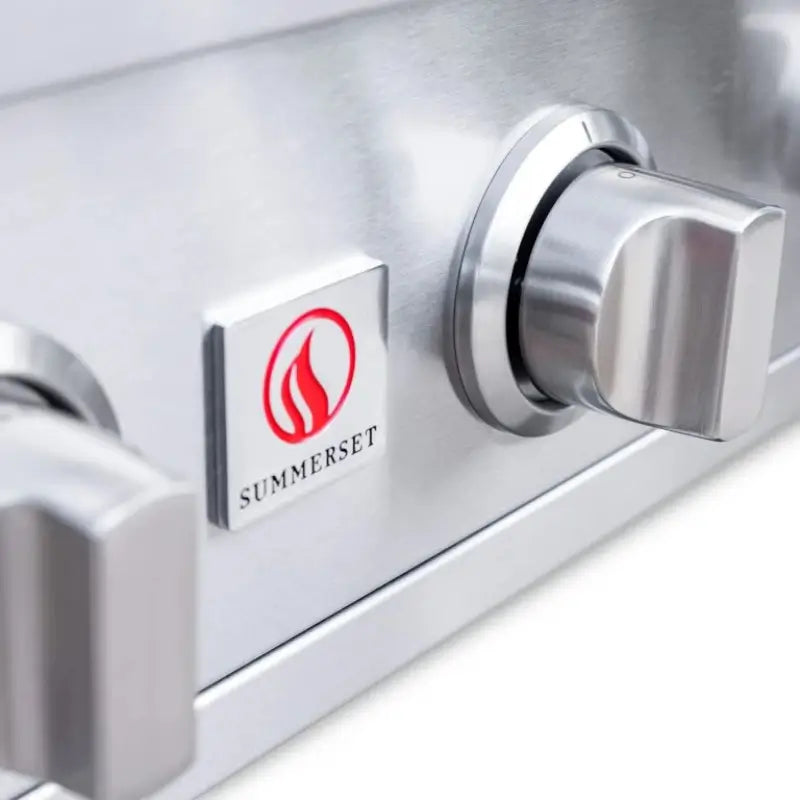

Anti-Theft Knobs
Anti-theft control knobs support multi-family and commercial installations where removable components require additional protection.
Accessory-Ready Design
The grill supports compatible optional accessories for searing, griddle cooking, rotisserie cooking, and exterior protection.
Key Product Features
- Commercial-grade #443 stainless steel construction
- Five #304 stainless steel tube burners
- 12,000 BTUs per main burner
- 60,000 BTUs of total main-burner output
- 8mm round cooking grates
- #443 stainless steel flame tamers
- No electrical power required
- Anti-theft control knobs
- Built-in outdoor kitchen configuration
- Integrated hood temperature gauge
- Warming rack and removable drip tray
- Natural gas and liquid propane configurations
Who Is the Summerset Sizzler 40 Best For?
Recommended For
- Large built-in outdoor kitchens
- Families and frequent outdoor entertainers
- Buyers who want five independently controlled burners
- Natural gas or liquid propane installations
- Projects where electrical power is not available
- Multi-family or hospitality environments requiring anti-theft knobs
Not Recommended For
- Indoor kitchens, garages, sheds, or enclosed rooms
- Portable or temporary grilling setups
- Unventilated outdoor kitchen islands
- Combustible islands without a compatible insulating liner
- Locations that cannot maintain the required clearances
- Unregulated gas connections
Overall Dimensions and Island Cutout
Verify the appliance dimensions, island opening, wall clearances, ventilation, gas routing, and countertop structure before fabrication begins. The cutout dimensions are not the same as the grill's overall exterior dimensions.
Overall Product Dimensions
Width 39 5/8 inches
Depth 25 3/4 inches
Height 21 inches
Island Cutout Dimensions
Cutout width 37 3/4 inches
Cutout depth 20 3/4 inches
Cutout height 8 inches
Planning note: Use the official manual as the controlling installation reference. Confirm final dimensions, clearances, support structure, ventilation, gas routing, and code compliance before cutting the countertop or constructing the island.
Technical Specifications
| Brand |
Summerset |
| Series |
Sizzler |
| Product type |
Built-in outdoor gas grill |
| Natural gas model |
SZR40 |
| Liquid propane model |
SZR40L |
| Main burner count |
5 |
| Output per burner |
12,000 BTUs |
| Total main-burner output |
60,000 BTUs |
| Main burner material |
#304 stainless steel |
| Grill construction |
Commercial-grade #443 stainless steel |
| Cooking grates |
Five 8mm round cooking grates |
| Flame tamers |
Five #443 stainless steel flame tamers |
| Ignition |
Piezo spark ignition with manual match-light procedure |
| Electrical power required |
No |
| Overall dimensions |
39 5/8 inches W × 25 3/4 inches D × 21 inches H |
| Island cutout |
37 3/4 inches W × 20 3/4 inches D × 8 inches H |
| Minimum ambient operating temperature |
0°F (-17.8°C) |
| Installation location |
Outdoor use only |
| Warranty |
Gold Standard warranty coverage subject to manufacturer terms, registration requirements, and exclusions |
Cooking Performance
Five Independent Heat Zones
The five-burner configuration gives the cook greater control over heat distribution. All five burners can be used during preheating, while selected burners can be reduced or turned off afterward to create direct and indirect zones.

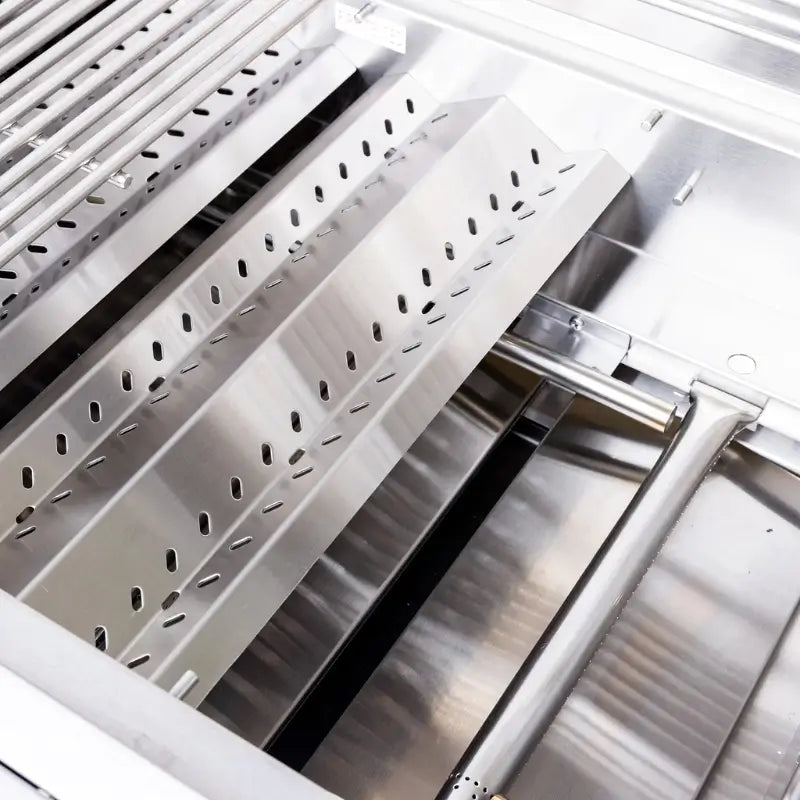

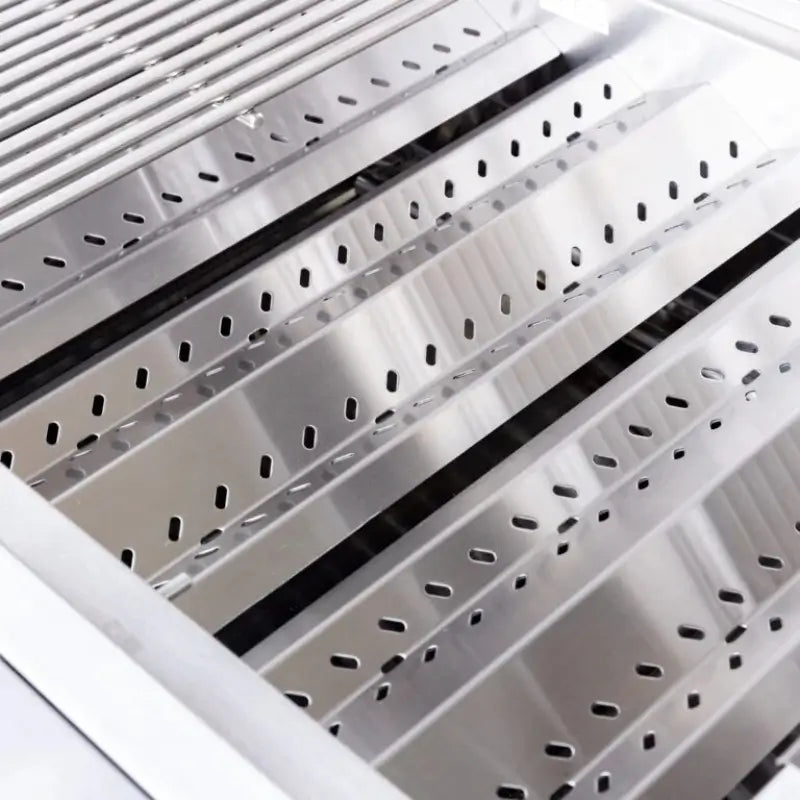

Stainless Steel Flame Tamers
Five flame tamers sit between the burners and cooking grates. They help distribute heat and reduce direct contact between the burners and food drippings.

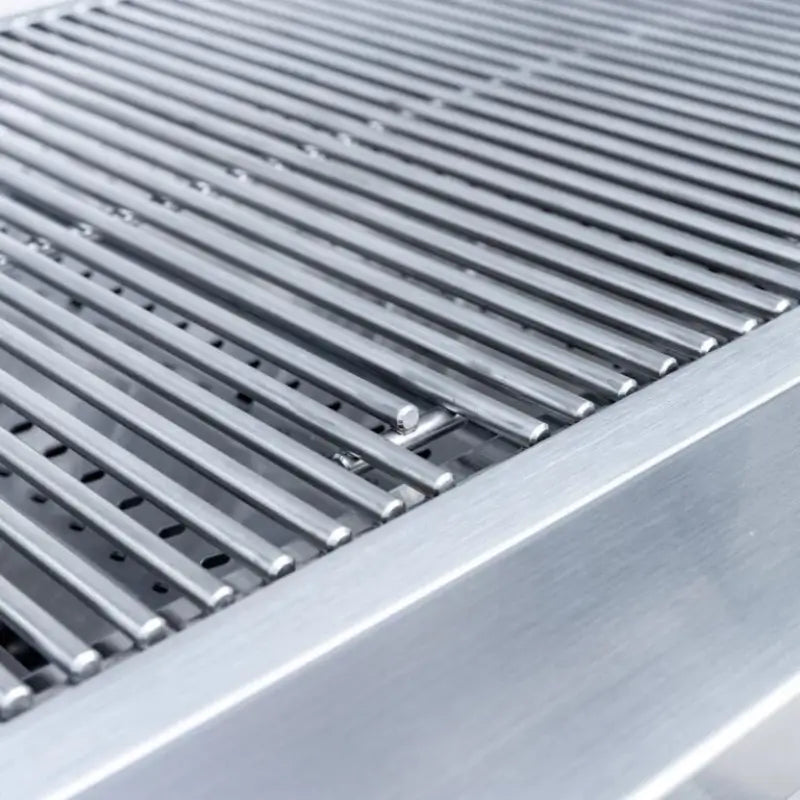

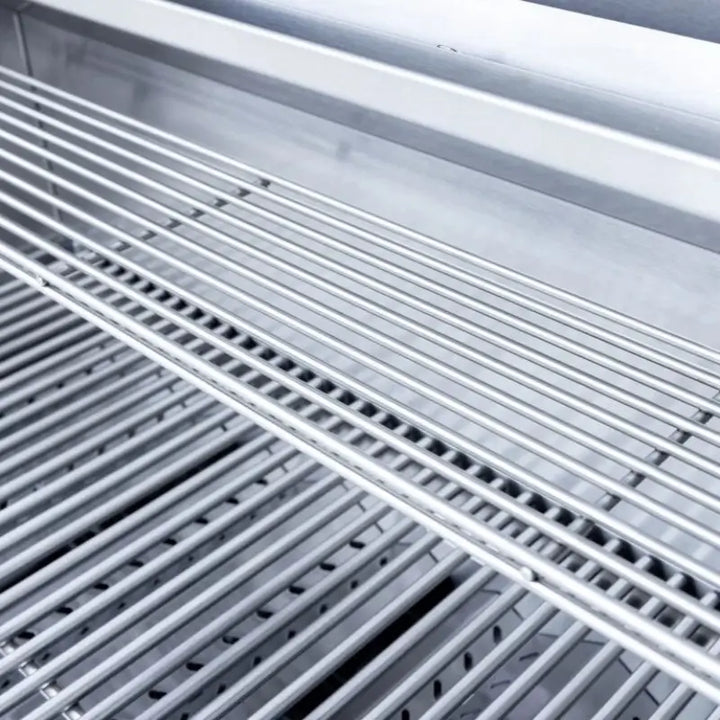

8mm Round Cooking Grates
The removable 8mm grates provide a durable cooking surface and allow access to the burners and flame tamers for cleaning or compatible accessory installation.
Preheating Guidance
Ignite the main burners, close the hood, and preheat the grill for approximately 10 to 15 minutes. Once the desired preheat temperature is reached, turn off any burners that are not needed for the selected cooking method.
Built-In Installation Requirements
The Sizzler 40 must be installed outdoors in an enclosure constructed and ventilated for a gas appliance. Installation must comply with local codes and the instructions in the official manual.
Non-Combustible Island
The standard built-in opening must be constructed from non-combustible materials. Cement board with steel studs is recommended where appropriate.
Enclosure Ventilation
The enclosure must remain open to the outside or include the required ventilation openings. Do not block vents with storage items, doors, equipment, or landscaping.
Level Installation
The grill must be level in every direction. An out-of-level installation can cause uneven heating and erratic burner combustion.
Required Wall Clearances
| Non-combustible wall |
Maintain at least 2 inches from the right side, left side, and rear. |
| Protected combustible wall |
Maintain at least 10 inches from the right side, left side, and rear. |
| Unprotected combustible wall |
Maintain at least 14 inches from the right side, left side, and rear. |
| Combustible island surround |
A compatible Summerset insulating jacket or grill liner is required. |
| Overhead construction |
Maintain at least 5 feet between the countertop and overhead construction. |
Do not install beneath unprotected combustible overhead construction. Where an exhaust hood is required, follow the official manual and local installation requirements.
Outdoor Kitchen Ventilation Requirements
The enclosure must provide replacement air and ventilation. One side may remain fully open to the outside, or permanent ventilation openings must be provided.
- Provide at least four ventilation openings when the enclosure is not fully open.
- Each opening must provide at least 10 square inches of free area.
- The four openings must provide at least 40 square inches of total free area.
- Place two openings near the top of the enclosure.
- Place two openings near floor level.
- Space the openings at least 90 degrees apart.
- Keep all openings permanently unobstructed.
- Maintain the required clearance in front of and behind each opening.
Liquid propane is heavier than air, so low-level enclosure ventilation is especially important for an LP installation. Final ventilation must follow the appliance manual and applicable local codes.
Gas Supply Requirements
Natural Gas – SZR40
- Minimum inlet pressure: 4.0 inches water column
- Maximum inlet pressure: 7.0 inches water column
- Use the supplied natural gas regulator
- Size the gas line for the total connected BTU load
- Keep the gas-supply run as short as practical
Liquid Propane – SZR40L
- Minimum inlet pressure: 10.0 inches water column
- Maximum inlet pressure: 14.0 inches water column
- Use an approved LP regulator and hose assembly
- A standard 20-pound Type 1 propane cylinder may be used
- The propane cylinder is not included
Never connect an unregulated gas line directly to the grill. Failure to install the correct regulator can create a fire or injury hazard and may void warranty coverage.
What's Included
The Sizzler manual identifies the following primary components for the SZR40 and SZR40L.
- Five main cooking grates
- Five stainless steel flame tamers
- Five main tube burners

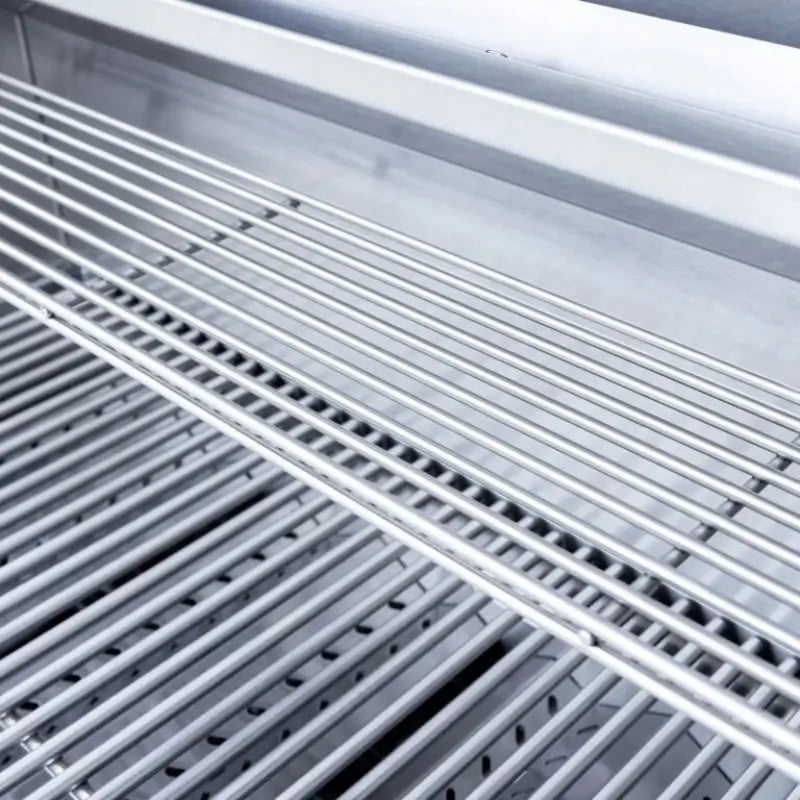

- One warming rack
- One removable drip tray
- Fuel-specific regulator components
- Orifices for the alternate gas type
- Sizzler gas grill user manual
A propane cylinder, outdoor kitchen island, gas piping, insulating liner, exhaust hood, and optional cooking accessories are not included unless separately stated by the seller.
Optional Accessories
Drop-In Infrared Sear Burner
Replaces a compatible main burner to create a focused high-temperature searing zone. Sold separately.
14-Inch × 17.5-Inch Stainless Steel Griddle Plate
Adds a flat stainless steel cooking surface for foods that are difficult to prepare on open grates. Sold separately.
Deluxe Built-In Grill Cover for 40-Inch Grills
Helps protect the grill exterior from dirt, moisture, and weather exposure when the grill is cool. Sold separately.
Rotisserie Kit for 40-Inch Sizzler Grills
Adds rotisserie-style cooking capability with a motor, spit, brackets, and forks. Sold separately.
Confirm model compatibility before purchasing any optional accessory.
Cleaning and Maintenance
After Each Use
- Allow food residue to burn off before brushing the grates clean.
- Turn every burner control to the OFF position.
- Close the main gas-supply valve.
- Allow the grill to cool and dry before installing a cover.
Exterior Stainless Steel
Clean the exterior with warm water, mild soap, and a microfiber towel or non-abrasive sponge. Wipe in the direction of the stainless steel grain, rinse thoroughly, and dry the surface.
Interior Cleaning
Periodically remove and clean the cooking grates, flame tamers, burners, and drip tray. Burner ports must remain open and free of grease, insects, nests, and other debris.
Coastal and Poolside Environments
Salt air and airborne chlorine can cause surface deposits, discoloration, or pitting. Clean the exterior frequently, allow the grill to dry, and protect it with a fitted cover when it is not in use.
Safety and Operating Requirements
- Use the grill outdoors only.
- Never use it in a garage, building, shed, boat, recreational vehicle, or enclosed area.
- Open the hood before lighting a burner.
- Do not leave the grill burning unattended.
- Keep children away during operation and until the grill has cooled.
- Keep gasoline, flammable liquids, and combustible materials away from the appliance.
- Keep an appropriate ABC fire extinguisher accessible.
- Test gas connections with a soap-and-water solution.
- Never test for gas leaks with an open flame.
- Have permanent gas piping installed by a qualified professional.
If gas is smelled, turn off the gas supply, extinguish open flames, open the hood, move away from the appliance, and contact the gas supplier or fire department when the odor continues.
Warranty Overview
Summerset lists Gold Standard warranty coverage for specified construction and gas-appliance components, subject to the complete manufacturer terms, registration requirements, maintenance obligations, exclusions, and approval.
- Registration may be required within the manufacturer’s stated period.
- Proof of purchase and photo documentation may be required.
- Warranty coverage generally applies to replacement parts rather than labor.
- Improper installation, misuse, grease fires, and insufficient maintenance can void coverage.
- Surface discoloration, oxidation, corrosion, and environmental damage may be excluded.
- Commercial-use coverage is subject to separate conditions and maintenance requirements.
Review the current manufacturer warranty before purchase. The official warranty terms control over summaries on this page.
Product Manual and Resources
Review the available manual and reference files before installation, gas connection, operation, maintenance, or accessory planning.
Resource note: The supplied manual filename contains “sizzler-32,” but the manual itself covers SZR40 and SZR40L. The supplied image filenames identify the 32-inch Sizzler model and should not be treated as confirmed 40-inch installation drawings unless separately verified.
Frequently Asked Questions
What is the difference between the SZR40 and SZR40L?
The SZR40 is configured for natural gas, while the SZR40L is configured for liquid propane. Choose the model that matches the available fuel supply and regulator setup.
How many BTUs does the Summerset Sizzler 40 produce?
The Sizzler 40 has five 12,000-BTU main burners for 60,000 BTUs of total main-burner output.
What cutout size is required for the Sizzler 40?
The specified island cutout is 37 3/4 inches wide, 20 3/4 inches deep, and 8 inches high. Verify the manual, appliance, clearances, and ventilation layout before fabricating the island.
Does the Sizzler 40 require electricity?
No electrical power is required for normal grill operation. A correctly regulated gas supply is still required.
Can the Sizzler 40 be installed in a combustible island?
Only install it in a combustible surround when a compatible Summerset insulating jacket or grill liner is used. Standard built-in installation requires a non-combustible enclosure.
Can the Sizzler 40 be used indoors?
No. The grill is designed for outdoor use only and must not be operated in a garage, building, shed, boat, recreational vehicle, or enclosed area.
Is the infrared sear burner included?
No. The drop-in infrared sear burner is an optional accessory sold separately.
Is the rotisserie kit included?
No. The compatible 40-inch Sizzler rotisserie kit is an optional accessory sold separately.
Does a propane tank come with the SZR40L?
No. A propane cylinder is not included and must meet the requirements stated in the appliance manual.
Can the grill be converted between propane and natural gas?
Conversion requires the correct orifices, valves, regulator, and any additional fuel-specific components. Follow the manufacturer instructions and use qualified service where required.
How much wall clearance does the Sizzler 40 require?
Maintain at least 2 inches from non-combustible walls, 10 inches from protected combustible walls, or 14 inches from unprotected combustible walls at the sides and rear.
Is the Sizzler 40 suitable for coastal installations?
It can be installed in coastal areas, but salt exposure requires frequent cleaning and careful protection. Environmental corrosion or surface damage may not be covered by warranty.
Build a Larger Outdoor Cooking Zone
Choose the SZR40 for natural gas or the SZR40L for liquid propane when the project calls for a full-size, five-burner built-in grill with stainless steel construction and no electrical-power requirement. Confirm fuel type, island dimensions, ventilation, clearances, and accessory compatibility before ordering.
