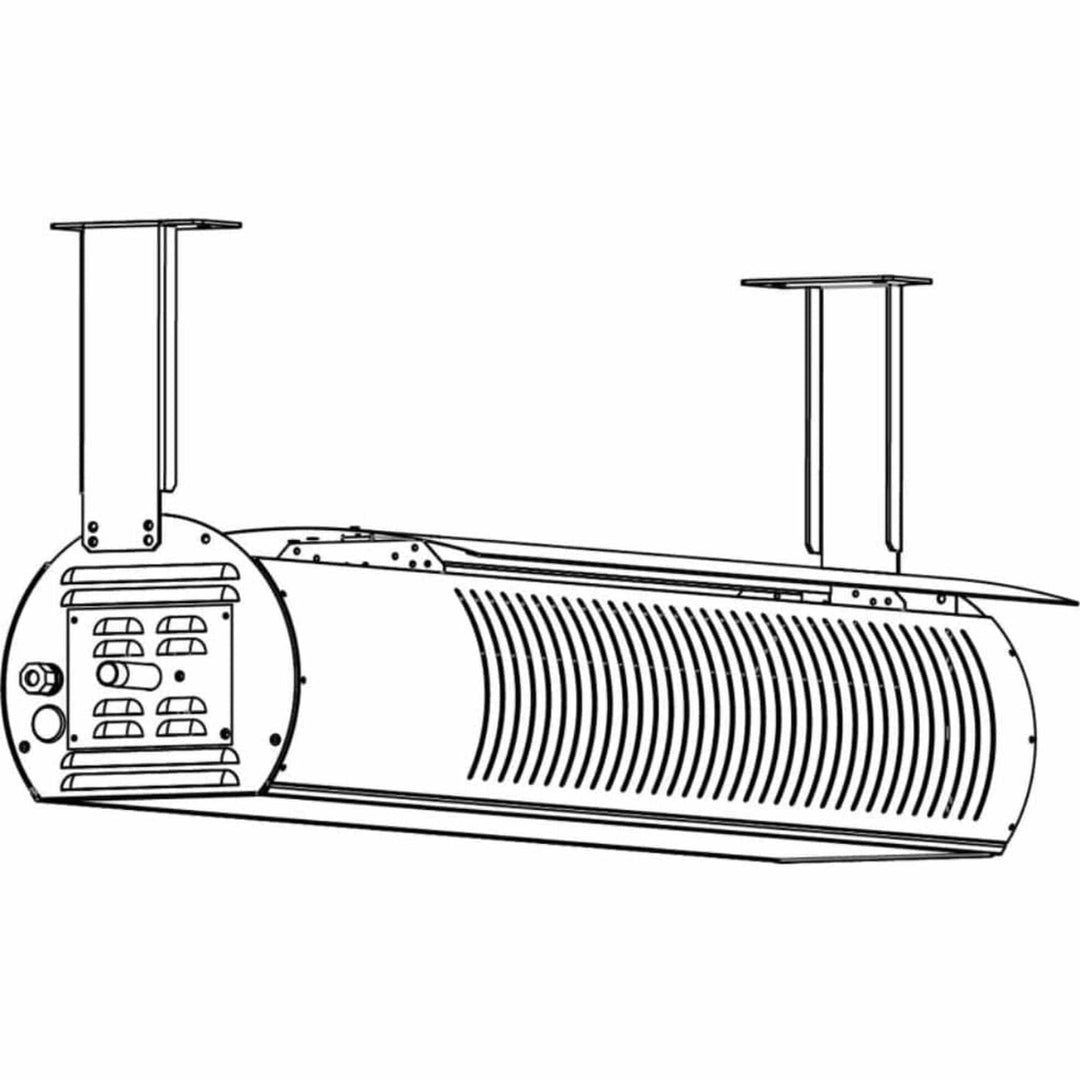

Secure Fixed Ceiling Mounting for SunStar Infrared Patio Heaters
The SunStar Ceiling Fixed Mount Bracket Kit is designed to securely install compatible SunStar infrared patio heaters at a fixed 10-inch distance below the ceiling. This mounting accessory helps achieve minimum overhead clearance requirements while creating a clean, professional installation for covered patios, outdoor dining areas, and commercial hospitality spaces.
Important: When installed below a combustible ceiling, this bracket must be used with a compatible SunStar Heat Shield Kit. The heat shield is sold separately and is required to reduce clearance requirements above the heater.
What Is the SunStar Ceiling Fixed Mount Bracket Kit?
The SunStar Ceiling Fixed Mount Bracket Kit is a fixed ceiling mounting accessory for compatible SunStar infrared patio heaters. It positions the heater 10 inches below the ceiling to support proper clearance and a finished installation appearance.
When Should You Use This Bracket?
- When installing a compatible SunStar infrared patio heater below a ceiling
- When a fixed 10-inch mounting distance is required
- When overhead clearance is limited
- For covered patios, restaurants, outdoor dining spaces, and hospitality areas
- For permanent residential or commercial outdoor heating installations
When Should You Not Use This Bracket?
- Do not use this bracket if your heater is not compatible with SunStar mounting accessories.
- Do not use this bracket if your installation requires angle adjustment.
- Do not use this bracket below a combustible ceiling without the required SunStar Heat Shield Kit.
- Do not use this bracket if your installation requires a mounting distance longer than 10 inches.
Compatibility
This ceiling fixed mount bracket kit is designed for compatible SunStar infrared patio heaters. Verify compatibility with your specific SunStar heater model before ordering.
Key Features and Benefits
• Fixed 10-Inch Ceiling Installation: The bracket provides a fixed 10-inch mounting position for installations that require minimum overhead clearance.
• Black Powder-Coated Finish: The black powder-coated finish helps resist wear while blending cleanly with outdoor patio heater installations.
• Hardware Included: Mounting hardware is included to support a straightforward installation process.
• Designed for Outdoor Heating Applications: This bracket is suitable for covered patios, restaurant seating areas, outdoor lounges, and commercial hospitality installations using compatible SunStar infrared heaters.
Technical Specifications
| Specification |
Details |
| Product Type |
Ceiling Mount Bracket Kit |
| Mounting Style |
Fixed Ceiling Mount |
| Mounting Distance |
10 Inches |
| Finish |
Black Powder Coat Painted |
| Length |
17.0 Inches |
| Width |
9.0 Inches |
| Height |
9.0 Inches |
| Weight |
5.0 lbs |
| Warranty |
1-Year Limited Warranty |
What’s Included
- SunStar Ceiling Fixed Mount Bracket Kit
- Mounting Hardware
Accessories Not Included
- SunStar Heat Shield Kit
- Infrared Patio Heater
- Additional installation accessories
Heat Shield Requirement: The heat shield is required when installing the heater below a combustible ceiling. It helps reduce clearance requirements above the heater and enables installation at the 10-inch ceiling distance.
