SunStar SPH Golf Range and Hospitality 20' Two Stage 100K BTU Heater

Fuel Type

Natural Gas

Liquid Propane

Price Save 26%

Need assistance? Talk to an Expert! Call Now (800) 923-4556 Or Chat With Us!

Special Offers

✅ Free Shipping On Orders Above $1,000

✅ No Sales Tax (Except NV)

✅ Exceptional Customer Service

✅ Call (800) 923-4556 Or Chat With Us to get the lowest price!

Quantity

Shipping calculated at checkout.

[{"id":42300472885292,"title":"Natural Gas","option1":"Natural Gas","option2":null,"option3":null,"sku":"SPH10020N7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SunStar SPH Golf Range and Hospitality 20' Two Stage 100K BTU Tube Heater - Natural Gas","public_title":"Natural Gas","options":["Natural Gas"],"price":249800,"weight":0,"compare_at_price":337568,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42300472918060,"title":"Liquid Propane","option1":"Liquid Propane","option2":null,"option3":null,"sku":"SPH10020L7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SunStar SPH Golf Range and Hospitality 20' Two Stage 100K BTU Tube Heater - Liquid Propane","public_title":"Liquid Propane","options":["Liquid Propane"],"price":249800,"weight":0,"compare_at_price":337568,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

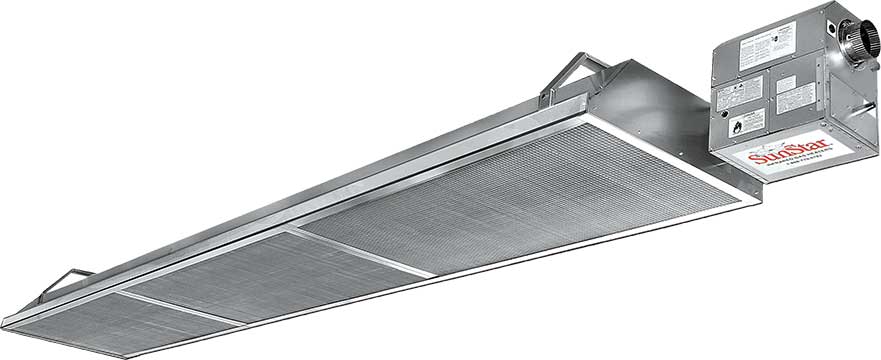

SPH Golf Range and Hospitality 20' Two Stage SunStar 100K BTU Tube Heater Product Details

Sunstar Authorized Dealer - Flame Authority

* Ready to Ship * Proudly Made in the USA * Fastest Delivery *

SPH Heaters for Golf Range and Hospitality Heating - Two Stage 20' Tube Length

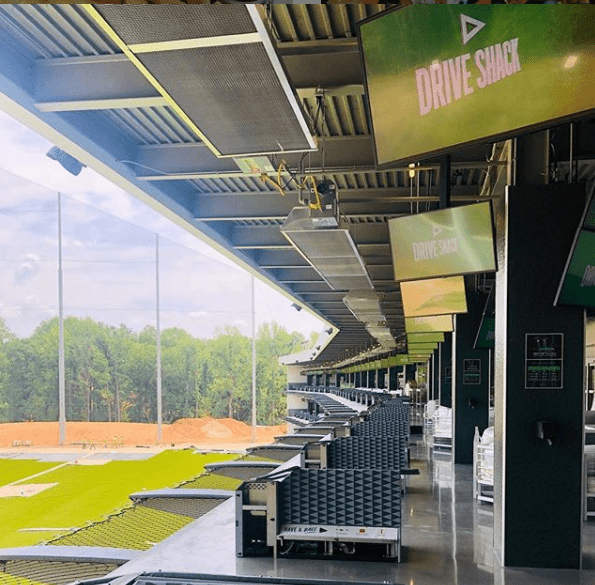

Hospitality Infrared Heaters Specifically Designed For Golf Ranges & Hospitality Applications.

Key Features:

Seven input sizes from 40,000 BTU/HR to 125,000 BTU/HR
Vented and indirect vented operation.
Emitter Tubes are all calorized steel for higher radiant efficiency and corrosion resistance.
Emitter tube terminates inside the reflector body and the products of combustion are discharged under the reflector body to increase the return tube temperature and improve overall efficiency.
No exposed exhauster motors. The blower is enclosed inside the burner box for quieter system operation and less maintenance.
Two Point Tube Suspension System with external frame brackets to minimize assembly & installation time.

Check out the SunStar SPH Golf Range and Hospitality 20' Two Stage 100K BTU Tube Heater now here at Flame Authority, your trusted dealer!

Features

Features:

Push-Through System

Emitter Tubes are all calorized steel for higher radiant efficiency and corrosion resistance.
Emitter tube terminates inside the reflector body and the products of combustion are discharged under the reflector body to increase the return tube temperature and improve overall efficiency.
No exposed exhauster motors. The blower is enclosed inside the burner box for quieter system operation and less maintenance.
Two Point Tube Suspension System with external frame brackets to minimize assembly & installation time.
Seven input sizes from 40,000 to 125,000
Vented and indirect vented operation.
CSA Design Certified
Year Limited Warranty On Emitter Tube

Manuals

Manuals:

Need assistance? Talk to an expert at +1-800-923-4556 or email support@flameauthority.com to get the best-suited heater for your needs.

Specifications

Specifications:

Model:

SPH10020

BTU/HR Input:

100,000

BTU/HR High Input:

100,000

BTU/HR Low Input:

65,000

Total Emitter Length:

20 ft.

Minimum Mounting Height:

14 ft.

Indicate model number based on Btu/hr input (e.g., 100,000 Btu/hr), total emitter length, (e.g., 100 feet) and gas type (e.g., natural gas single stage input). The unit selection for a straight tube would be SPH-100-N5, *MOUNT HEATERS AS HIGH AS POSSIBLE. Minimums are shown for indoor applications as a guideline for human comfort and uniform energy distribution.

For outdoor applications heaters can be mounted lower. Consult your Sunstar representative for the particulars of your installation requirements.

Control Suffix:

N5/ L5

Fuel Type:

Natural / Propane

Control Option Description:

Single Stage Gas Valve- Single-Stage Input

SPH Clearance to Combustibles

Model: SPH 100
Side: 28"
Ceiling*: 8"
Below: 80"
End: 15"
