SPH Golf Range and Hospitality 30' Two Stage SunStar 75K BTU Tube Heater Product Details
* Ready to Ship * Proudly Made in the USA * Fastest Delivery *

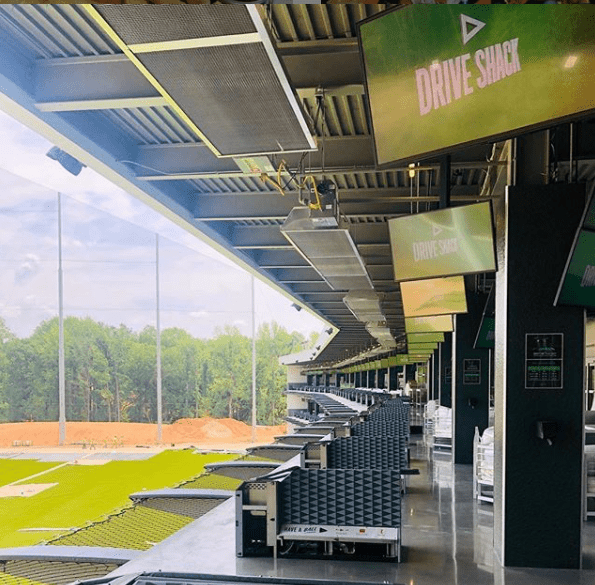

SPH Heaters for Golf Range and Hospitality Heating - Two Stage 30' Tube Length
Hospitality Infrared HeatersĀ Specifically Designed For Golf Ranges & Hospitality Applications.
Key Features:
- Seven input sizes from 40,000 BTU/HR to 125,000 BTU/HR
- Vented and indirect vented operation.
- Emitter Tubes are all calorized steel for higher radiant efficiency and corrosion resistance.
- Emitter tube terminates inside the reflector body and the products of combustion are discharged under the reflector body to increase the return tube temperature and improve overall efficiency.
- No exposed exhauster motors. The blower is enclosed inside the burner box for quieter system operation and less maintenance.
- Two Point Tube Suspension System with external frame brackets to minimize assembly & installation time.
Check out the SunStar SPH Golf Range and Hospitality 30' Two Stage 75K BTU Tube Heater now here at Flame Authority, your trusted dealer!
Features
Features:
Push-Through System
- Emitter Tubes are all calorized steel for higher radiant efficiency and corrosion resistance.
- Emitter tube terminates inside the reflector body and the products of combustion are discharged under the reflector body to increase the return tube temperature and improve overall efficiency.
- No exposed exhauster motors. The blower is enclosed inside the burner box for quieter system operation and less maintenance.
- Two Point Tube Suspension System with external frame brackets to minimize assembly & installation time.
- Seven input sizes from 40,000 to 125,000
- Vented and indirect vented operation.
- CSA Design Certified
- Year Limited Warranty On Emitter Tube
Manuals
Manuals:
- SPH Spec Sheet
- Pull Vs Push-Thru Reference Chart
- SPH Installation and Operation Instructions
- Accessories
Need assistance? Talk to an expert at +1-800-923-4556 or email support@flameauthority.com to get the best-suitedĀ heaterĀ for your needs.
Specifications
Specifications:
- Model:Ā
- SPH7530
- BTU/HR Input:
- 75,000
- BTU/HR High Input:
- 75,000
- BTU/HR Low Input:
- 50,000
- Total Emitter Length:
- 30 ft.
- Minimum Mounting Height:
- 13 ft.
Indicate model number based on Btu/hr input (e.g., 100,000 Btu/hr), total emitter length, (e.g., 100 feet) and gas type (e.g., natural gas single stage input). The unit selection for a straight tube would be SPH-100-N5, *MOUNT HEATERS AS HIGH AS POSSIBLE. Minimums are shown for indoor applications as a guideline for human comfort and uniform energy distribution.
For outdoor applications heaters can be mounted lower. Consult your Sunstar representative for the particulars of your installation requirements.
- Control Suffix:
- N5/ L5
- Fuel Type:
- Natural / Propane
- Control Option Description:
- Single Stage Gas Valve- Single-Stage Input
SPH Clearance to Combustibles
- Model: SPH 60, 75, 80
- Side:Ā 22"
- Ceiling*:Ā 8"
- Below:Ā 70"
- End:Ā 15"
