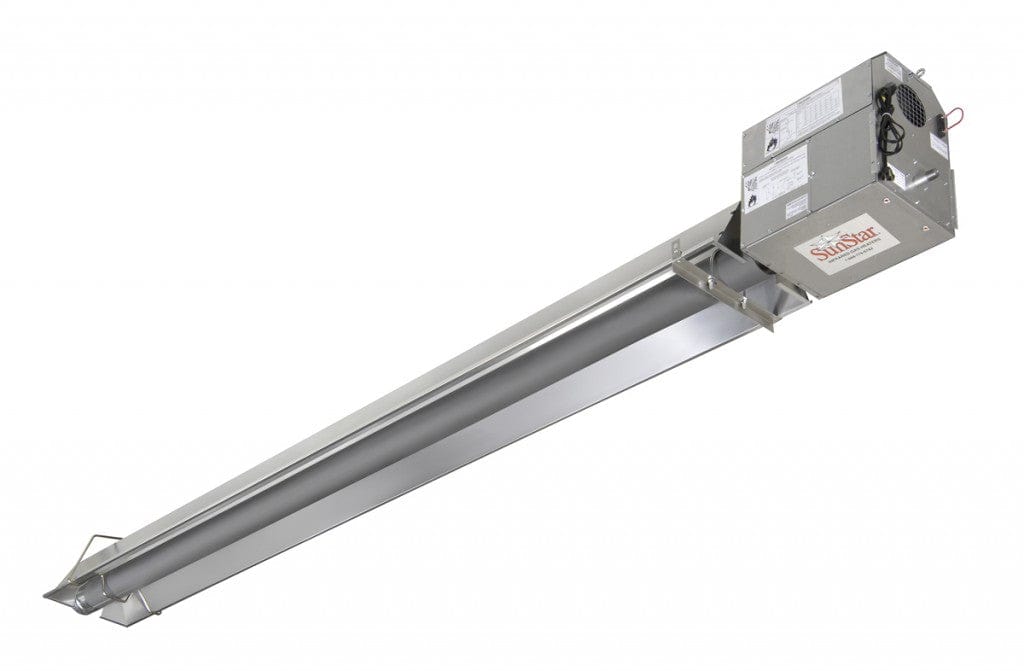

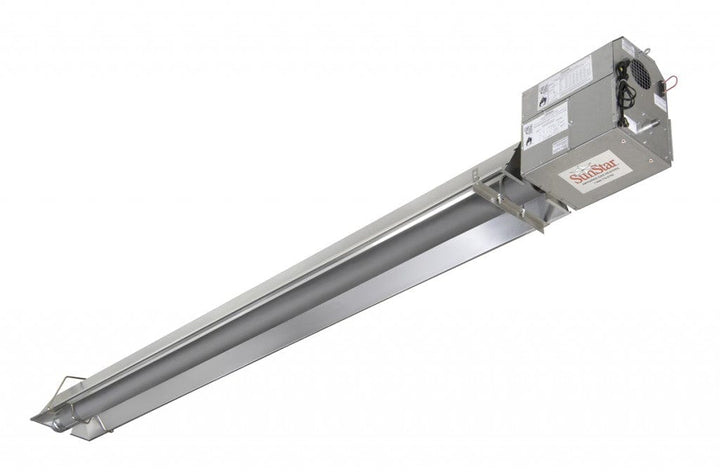

SPS Positive Pressure 70' Two Stage SunStar 200K BTU Straight Tube Heater Product Details
* Ready to Ship * Proudly Made in the USA * Fastest Delivery *
SPS Positive Pressure Straight Tube Heaters - Two Stage

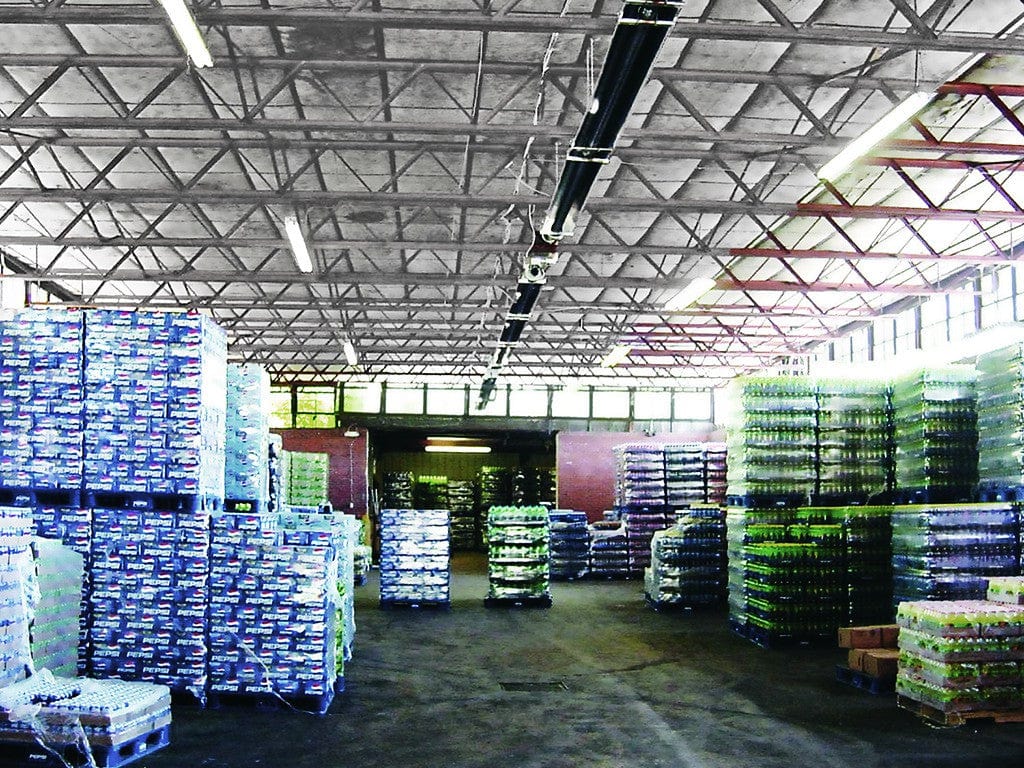

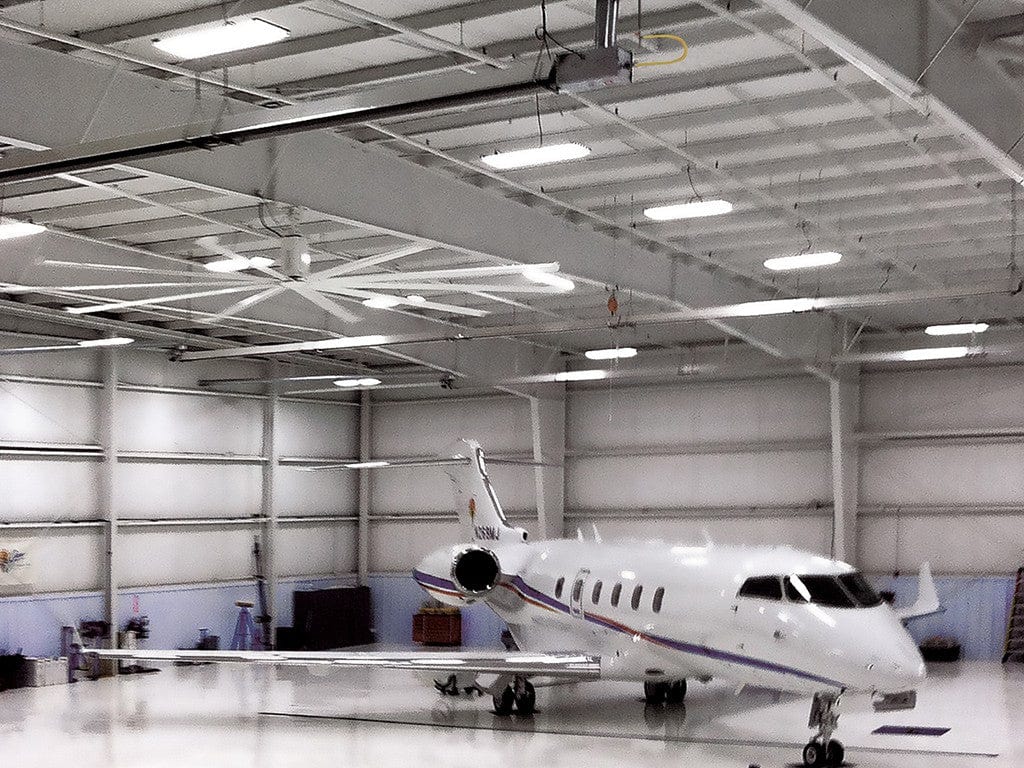

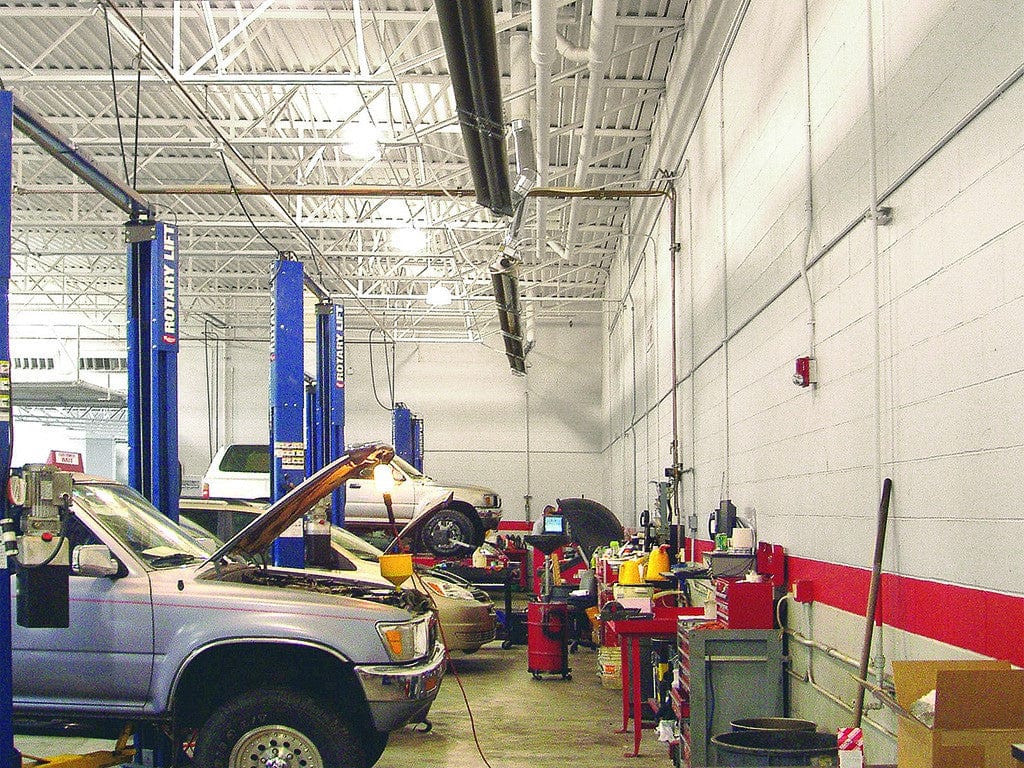

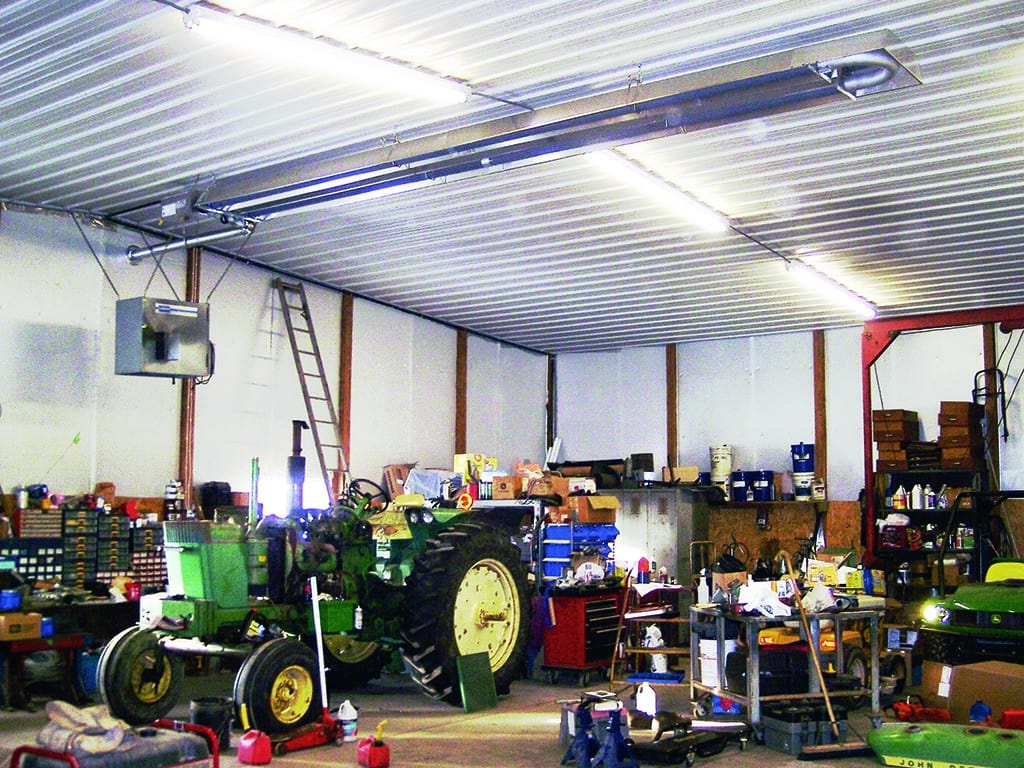

Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the SunStar SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you needā¦and all at a comfortable price.
Key Features:
- Push Through System
- 8 different Btu sizes and more than 60 different configurations to custom design your infrared heating system
- CSA design certified
- Available in natural and propane gas
- Optional elbows and corner reflectors
- Optional decorative grille
- Sidewall or through the roof venting
- Vented or indirect vented operation
- Includes 36ā³ stainless steel gas connector
Check out the SunStar SPS Positive Pressure 70' Two Stage 200K BTU Straight Tube Heater now here at Flame Authority, your trusted dealer!
Features
Features:
Push-Through System
- Products of combustion are pushed through the combustion chamber
- No draft hoods, totally enclosed combustion chamber
- Blower motor totally enclosed in the burner box. Ideal for applications where minimal noise (less than 60 dB) is desired.
- Heavy duty permanently lubricated ball bearing, totally enclosed motor for maintenance-free operation
- 30 second pre-purge before ignition and 30 second post-purge after thermostat is satisfied
- Diaphragm air switch for proof of venting before gas flow and ignition
Burner System
- Heavy duty cast iron burner
- Reliable direct spark ignition systems and 100% gas shut-off safety control
- Burner inspection sight glass
- Step-opening redundant combination gas valve for quiet ignition and added safety
- Inside or outside air for combustion
- Up to 25 ft. outside combustion air capability
- Standard outside combustion air intake
- Diagnostic Monitoring Light System
Gas Shut-Off Safety Control
- Burner inspection sight glass
- Step-opening redundant combination gas valve for quite ignition and added safety
- Inside or outside air for combustion
- Up to 25 ft. outside combustion air capability
- Standard outside combustion air intake
- Diagnostic Monitoring Light System
Reflector System
- Highly efficient aluminum reflectors
- Individual reflectors can be rotated up to 45Ā° to
direct heat where needed
- Optional end, corner, U-bend and side extension reflectors
Radiant Emitter Tube System
- 4ā O.D. heat treated aluminized steel combustion chamber (10ā length)
- Standard highly emissive radiant tubes (10ā lengths)
- Optional aluminized steel radiant tubes (Tough Guy Option)
- 5 year limited warranty on all tubes
- Suitable for horizontal or angle mounting up to 45Ā°
- Up to 25 feet sidewall vent capability
Introducing TISSā¢ Tube Integrity Safety Shut-Off System
- SunStarās patent pending innovative safety feature for positive pressure radiant tube heaters is called the āTube Integrity Safety Systemā (TISSā¢).
- In the unlikely event of a tube failure, TISSā¢ has been designed to automatically shut off the heater. The revolutionary TISSā¢ uses a simple principle to place an electrically insulated aluminum wire in tension above the reflector. Low voltage is then continuously passed along the wire in line with the gas control circuit. If heat levels increase due to heat exchanger failure, the wire melts and the safety circuit is broken, breaking the 24 volt circuit and shutting down the heater.
- You may never know it is there, but it provides peace of mind.
Manuals
Manuals:
Need assistance? Talk to an expert at +1-800-923-4556 or email support@flameauthority.com to get the best-suitedĀ heaterĀ for your needs.
Specifications
Specifications:
- Model:Ā
- Total Tube Length:
- Overall Dimensions "L" (FT):
- Input BTU/HR:
- Total Emitter Length:
- Fuel Type:
- Natural Gas
- LiquidĀ Propane
- Burner Pressure:
- Supply Pressure:
- Min.Ā 5" W.C. Max. 14" W.C.
- Min.Ā 11" W.C., Max.Ā 14" W.C.
- Voltage:
- Amps:
- Ignition Type:
SPS Dimensions Chart
SPS Minimum Mounting Heights
-
Height at Horizontal:Ā 18'
-
Height at 45Ā° Angle: 16'
NOTES:Ā Since straight tubes are always hotter at the burner end than at the exhaust end, always observe the minimum recommended mounting heights shown on the specification sheet for greatest human comfort. Use SPUĀ series instead of SPSĀ series for spot heating applications.
SPS Clearance to Combustibles
-
Model:Ā SPS 200
-
Side:Ā 42"
-
Ceiling*:Ā 6"
-
Below:Ā 93"
-
End:Ā 20"
-
(45Ā°) Front:Ā 80"
-
(45Ā°) Rear:Ā 12"
* When used indirect vented, minimum clearance for Ceiling must be: 12ā³ for SPS 40-75, and 18ā³ for SPS 100-200. If optional corner and u-bend reflectors are not used, the clearance must be 18ā³.
** Maximum clearance below reduces by 50% once you are 25ft. downstream from the burner box.
