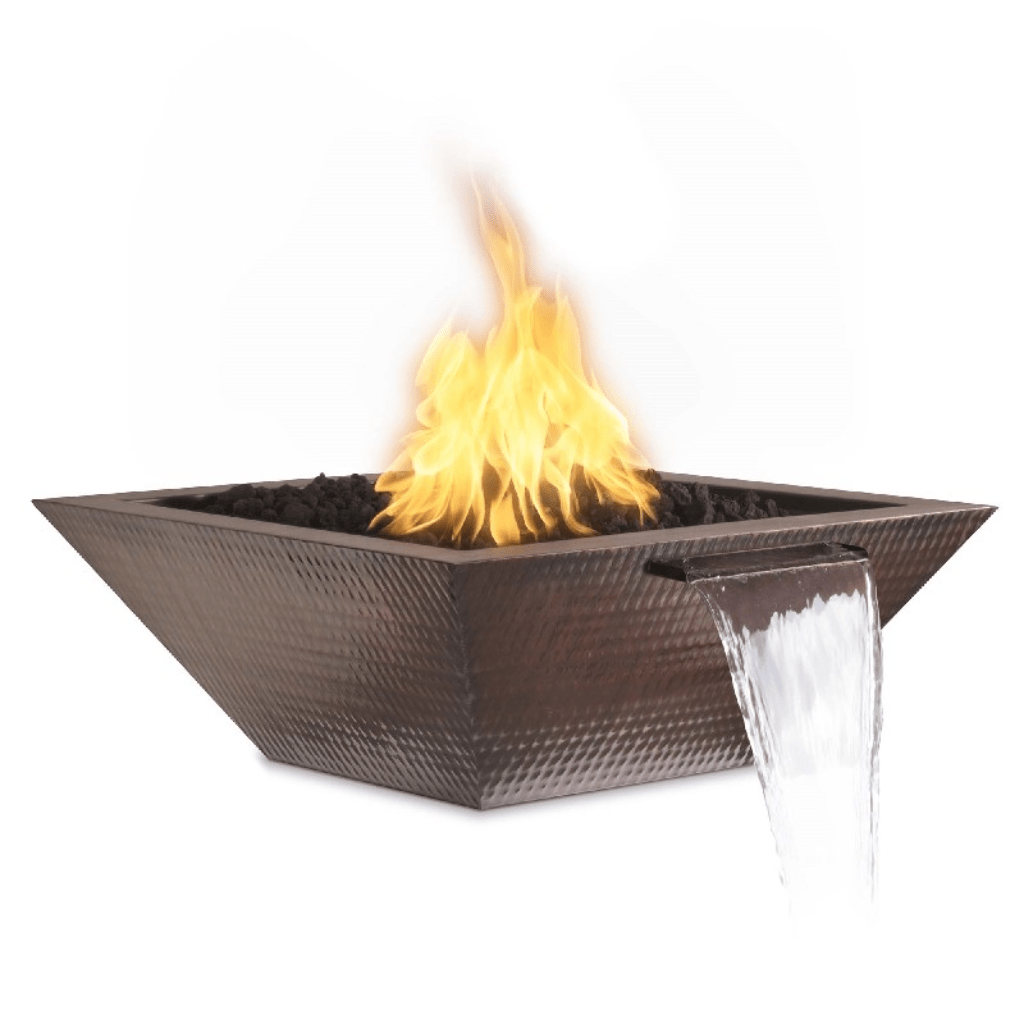

The Outdoor Plus Maya 36" Hammered Copper Square 12V Electronic Ignition Fire & Water Bowl OPT-36SCFWE12V

SMART WEATHER ELECTRONIC IGNITION SYSTEM (SWEIS)

The Smart Weather Electronic Ignition System (SWEIS) is an automated ignition system for any fire pit and fire bowl. Smart Weather Electronic Ignition System is compatible with both Natural Gas and Liquid Propane. The SWEIS is tested to withstand winds up to 55mph. If the flame is blown out, the unit will automatically reignite. The unit will shut off automatically in unsafe, severe rain & wind conditions. Proven to operate properly in mild wind, rain & snow and the small construction allows it to be installed in tight spaces. The SWEIS can also be wired by your local electrician to be controlled by a pool controller, remote control, or home automated systems to provide effortless control of the fire feature.

Includes:

• Bowl
• Burner
• Fire Pan
• Lava Rock
• Gas Orifice
• Mounting Bracket
• Whistle Free Hose
• Copper Scupper (¾" Inlet)
• Flow Water Fitting (1 ½” Inlet)
• CSA Certified 12V Electronic Ignition System
• Also Available in LC Certified Match Lit Kit Ignition

Features:

• Size: 36-inch
• Shape: Square
• Type: Fire & Water Bowl
• Made in the USA
• Material: Copper
• Individually Handmade
• Durable & Long Lasting
• Produces 65,000 BTUs of flames
• Suggested Fire Glass: 90 lbs
• Finish: Hammered Patina Finish
• Optional Key Valve sold separately
• Fuel Type: Natural Gas or Liquid Propane
• Exterior Features Weather-Resistant Coating
• Includes all the Lava Rock each model holds
• Comes with Stainless Steel Fire Pan, Burner
• 1-year warranty against manufacturing defects
• Match Lit Kit or 12V Electronic Ignition System
• Fire Pan Features Drainage Holes For Water Runoff
• Ideal for both residential and commercial projects
• The new burner design prevents water buildup in gas lines
• Hammered copper construction to ensure a long-lasting product
• Water flows gently from the center of the bowl outward
• Comes with an easy-flow water fitting that accommodates a 1 ½" water line
• Burner holes are individually drilled, not punched, providing better flame performance
• Burning media/fire glass smaller than 1/2 Inch is not recommended for liquid propane applications

Warning: Use only a breathable cover material with this fire feature. Do NOT use a plastic/non-breathable cover, this may result in the cover sticking to the fire feature.

Manuals:

• Product Catalog for The Outdoor Plus Maya 36" Hammered Copper Square 12V Electronic Ignition Fire & Water Bowl OPT-36SCFWE12V
• Product Specification for The Outdoor Plus Maya 36" Hammered Copper Square 12V Electronic Ignition Fire & Water Bowl OPT-36SCFWE12V
• 12V Electronic Installation Manual for The Outdoor Plus Maya 36" Hammered Copper Square 12V Electronic Ignition Fire & Water Bowl OPT-36SCFWE12V
• Mounting Brackets manual for The Outdoor Plus Maya 36" Hammered Copper Square 12V Electronic Ignition Fire & Water Bowl OPT-36SCFWE12V

Need assistance? Talk to an Expert at +1-800-923-4556 or email: support@flameauthority.com to get the best-suited Fire Pit & Water Bowl for your needs.

Specifications:

• Brand: The Outdoor Plus
• Model: OPT-36SCFWE12V
• Ignition Type: 12V Electronic
• Size: 36"
• Height: 12"
• Base: 18"
• Burner: 10”
• Scupper: 10"
• Fuel Type: Natural Gas or Liquid Propane
• Maximum Heat Output: 65,000 BTUs
• Gallons Per Minute: 7-10 (GPM)
• Suggested Fire Glass: 90 lbs
• Finish: Hammered Patina Finish
• Shape: Square
• Hides Propane Tank: No
• Material: Copper
• Fire Pan Material: 304 Stainless Steel
• Burner Material: 304 Stainless Steel
• Overall Dimensions: 36"W x 36"D x 12"H
• Certification: CSA Certified
• Assembly Required: Yes
• Country of Origin: USA

*Note: We do our best to ensure that our photos are as true to color as possible. Due to the many variations in monitors, the color of the products may appear different on your monitor. We can not guarantee that the color you see on your screen accurately portrays the true color of the product.

Isometric View

Top View

Front Side View

Right Side View

Component Overview

• Match Lit

• 12V Electronic

Optional Accessories:

• Bowl Cover (OPT-BCVR-3636)

• Make sure your fire bowl is protected from the elements by acquiring a durable and long-lasting canvas cover. The premium-quality canvas construction provides superior durability and longevity in the elements and is tougher and more resistant than the regular canvas fire bowl cover.
• Made up of extra-durable canvas and elastic band edge to secure your unit tightly. These canvas covers are sure to keep the components of your perfect fire bowl in great shape. Every cover is tightened with a drawstring and secured with a toggle spring clasp.
• Size: 36" Cover
• Material: Canvas
• Extra-durable and Long-Lasting
• Proudly manufactured in the U.S.A
• Available for both round & square bowls
• Pull-Cord - Easily tighten your fire pit cover
• Tougher and more resistant than traditional canvas covers

Optional Fire Glass Media (Recommended 90 lbs)

Fire Glass Media

The Outdoor Plus selection of burning media is perfect for any fire pit, fire bowl, or fireplace. Gold Reflective Fire Glass, provides a premium fire media alternative for your perfect fire pit or fireplace. All Fire Glasses come in 25lb bags and are sure to enhance your outdoor living space by adding a decorative aesthetic to your fire feature while providing a heat-resistant bed of media. All options are suitable for any type of fire. We suggest covering the burner a maximum of 1 inch.

• Type: Fire Glass

• Decorative Accessory
• Proudly made in the USA

• Hassle-free installation
• Comes in 25-pound bags

• Suitable for any type of fire feature
• Reflective works with your flame to provide a bright shimmering effect
• Heat-resistant fire media durable fire glass that is made to withstand high temperatures

Reflective Fire Glass:

• Size: 1/4-inch
• Color: Black, Copper, Gold, Cobalt

Standard Fire Glass:

• Size: 1/2"-3/4"
• Color: Black, Amber, Turquoise, and Blue

Pebble Fire Glass:

• Size: 3/4-inches
• Color: Black, Root Beer, Turquoise, and Clear

Note: using media that is not fire-rated can be hazardous. Using media that is not sufficiently porous may retain moisture. This moisture can expand with the head and pieces can pop and be hazardous. Fire media is not intended for units used for cooking or grilling.

• Reflective Black Glass (OPT-144BL)

• Reflective Copper Glass (OPT-138C)

• Reflective Gold Glass (OPT-144GL)

• Reflective Cobalt Glass (OPT-144CB)

•  Standard Black Glass (OPT-701)

• Standard Amber Glass (OPT-708)

• Standard Turquoise Glass (OPT-706)

• Standard Blue Glass (OPT-702)

• Black Pebble Glass (OPT-PBBLK)

• Root Beer Pebble Glass (OPT-PBRBR)

• Turquoise Pebble Glass (OPT-PBTRQ)

• Clear Pebble Glass (OPT-PBCLR)

Optional Ornaments

Solid Steel Logs (OPT-SL)

The Outdoor Plus 18" Solid Steel Logs Ornament is made of High-grade stainless steel for long-lasting performance. Every piece is individually handcrafted giving you a truly unique fire feature. This log set simply sits over the existing burner creating a realistic look that adds the right touch to any outdoor fire feature. Suitable for all bowls and fire pits.

• Size: 20x18-inches (H x D)
• Made in the USA

• Type: Steel Logs
• Hassle-free installation
• long-lasting performance

• Sits atop a pre-existing burner
• Fuel Type: Natural Gas, Liquid Propane
• Made of 304-grade stainless steel

• Each piece is individually hand-crafted
• Beautifully enhances any fire feature

Mild Steel Desert Sticks (OPT-DS)

The Outdoor Plus 20" Steel Desert Sticks Ornament is made of High-grade stainless steel for long-lasting performance. It will create a realistic look that adds the right touch to any outdoor fire feature.  Every piece is individually handcrafted giving you a truly unique fire feature. Suitable for all bowls and fire pits.

• Size: 24x20-inches (H x D)
• Material: Stainless Steel
• Type: Desert Sticks
• Proudly made in the USA

• Hassle-free installation
• Long-lasting performance

• Sits atop a pre-existing burner
• Made of 304-grade stainless steel

Stainless Steel Burning Bush (OPT-BB)

The Burning Bush Burner is made from 304-grade stainless steel to ensure durability and longevity. Every piece is individually handcrafted giving you a truly unique fire feature. The Burner produces 65,000 BTUs and is installed using the included 1/2" male connection. It Can be used as a standalone burner or easily replaces existing burners that are already installed in a fire pit or fire bowl.

• Size: 16 inch
• Material: Stainless Steel
• Individually handcrafted
• long-lasting performance

• Proudly manufactured in the USA

• Produces 65,000 BTUs of flames
• Replaces pre-existing burner

• Made from 304-grade stainless steel

• Comes with a 1/2-Inch Male Connector
• durable, resistant to high temperatures, and maintenance-free.
• For use with Fire Bowls and Pits

Stainless Steel Lotus Flower (OPT-LF)

The 18″ Lotus Flower Burner will add a touch of style and elegance to your fire bowl. Even when a fire is not lit, this beautiful ornament is a decorative standalone piece that can quickly become the focal point of your outdoor living space.

• Dimensions: 18″ Dia. x 9″ H
• Material: Stainless Steel

• Individually handcrafted
• long-lasting performance

• Proudly manufactured in the USA

• Produces 65,000 BTUs of flames
• Made from 304-grade stainless steel

• Comes with a 1/2-Inch Male Connector
• Burner is compatible with Natural Gas or Propane
• Durable, resistant to high temperatures, and maintenance-free

Fire Globe (OPT-FG12/OPT-FG18/OPT-FG24)

The Outdoor Plus Ornamental Fire Globe is made from 304-grade stainless steel to ensure durability and longevity. Every piece is individually handcrafted giving you a truly unique fire feature. It Can be used as a standalone burner or easily replaces existing burners that are already installed in a fire pit or fire bowl.

• Size: 12, 18, and 24 inches
• Individually handcrafted
• long-lasting performance
• Material use stainless steel
• Proudly manufactured in the USA

• Replaces any pre-existing burner
• Made from 304-grade stainless steel

• Comes with a 1/2-Inch Male Connector
• Fuel Type: Natural Gas or Liquid Propane
• Individually drilled holes create a much better flame

Optional Pedestal

Concrete Pedestal (OPT-GFRCSTAND)

The TOP Fire GFRC Pedestal is a multipurpose pedestal that can be used to elevate Fire bowls, Planter, Statutory, or any other items. It has a 16" High Access Door to securely store a standard 20 lbs. Propane tank which is very useful with Fire Bowls. Built strong with Glass Fiber Reinforced Concrete makes it is ideal for outdoor use.

The Outdoor Plus Concrete Pedestal is specifically designed as a pedestal for The Outdoor Plus Fire Bowls and has an access door to house a propane tank inside. It comes in 18 colors to match or mix. Because of its handmade nature, slight variations in color and texture may occur.

• Type: Pedestal
• Clean Design
• Made in the USA
• Bowl Not Included
• Access Door available
• Access Door: 14" x 16"
• Dimensions: 21" H x 16" L x 16" W
• Durability for Harsh Weather
• Pedestal with Propane tank storage
• Material: Glass Fiber Reinforced Concrete
• Finish Types: Smooth Concrete, Rustic Concrete, and Metallic Concrete
• Colors: Ash, Black, Brown, Chocolate, Chestnut, Gray, Limestone, Natural Gray, Vanilla, Metallic Bronze, Metallic Copper, Metallic Pearl, Metallic Slate, Metallic Silver, Rustic Coffee, Rustic Gray, Rustic Moss Stone, Rustic White
• For use with Fire Bowls

Optional Emergency Stop Button & 1-Hour Timer

Emergency Stop Button(OPT-ESTOPTM)

Top Fires 1-Hour Gas Timer ensures that your gas fire pit turns off automatically and safely after the set time. The Emergency stop button allows the user to instantly and safely shut off the fire pit. With a timer, you'll be able to just set the time and leave your fire pit, worry-free, without wasting gas. There are two different timers with e-stop available, 1 Hour Gas Timer and 1 Hour Gas Timer with Mounting Plate, just choose one that best meets your needs.

• Outdoor Rated
• 4X Gas Entries (1/2'')
• No conversion required
• Type: Emergency Stop Button
• CSA and ANSI Approved
• Can replace Manual Shut-Off Valve
• Dimensions: 4" H x 2 7/8" W x 2 1/8" D
• 1 Hour Gas Timer with E-Stop for Gas Fire Pits
• Compatible with Propane (LP) or Natural Gas (NG) Fire Pits

Optional Key Valve Installation

Key Valve Installation(OPT-KVI)

Key Valve Installation on Bowl Add-On if you'd like the manufacturer of your new The Outdoor Plus Fire Bowl, Fire & Water Bowl, or Fire on Water Bowl to install a key Valve on the side of the bowl before shipping. Must buy together with The Outdoor Plus Fire Bowl, Fire & Water Bowl, or Fire on Water Bowl. Easily control the flow of gas in your fireplace with this high-quality gas valve, graduating gas consumption, and flame height.

• Type: Key Valve
• Weight: 1.00 lbs
• Fire Bowl and Key Valves are sold separately
• Installed Onto The Bowl: Key Valve & Gas Hoses
• For multiple bowls, order the matching quantity

• This item covers the cost of components and Valve installation
• Key Valves on bowls allow for individual flame adjustment of each feature

Note: Key Valves may be installed onto the face of the bowl. To have your bowls shipped like this for an additional fee, add OPT-KVI to your order (Includes Key Valve, Whistle Free Hose & Installation)
