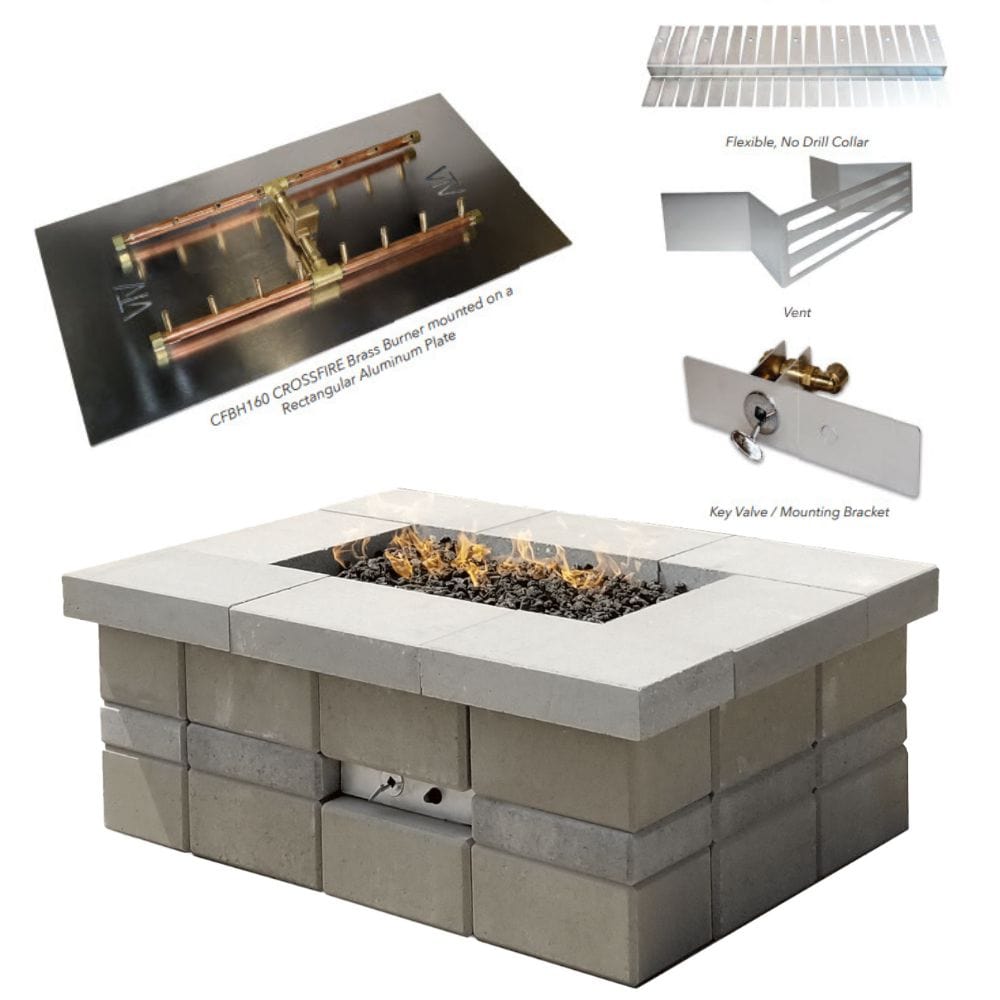

Raffinato Specialty Paver Kit Warming Trends with Crossfire H-Style Brass Burner and Rectangular Aluminum Plate Product Details
Warming Trends UPKRR Raffinato Specialty Paver Kit with Crossfire H-Style Brass Burner and Rectangular Aluminum Plate is the latest Specialized Gas Insert Kit tailored to fit leading paver fire pit brands now with simpler installation than ever! The Mounting Brackets and Collars are redesigned to remove the necessity for drilling during installation. Every kit comes complete with all the necessary components for crafting an outstanding fire feature, featuring the patented Crossfire™ burner, aluminum plate, no-drill collars, precisely sized vents, and a mounting bracket that replaces a block while ensuring support for the blocks above. Additionally, each kit includes a Flex Line/Key Valve Kit for added convenience.
Enjoy its unique regulation system while using either propane or natural gas. The Crossfire™ burner offers a corrosion-resistant product backed by a full lifetime warranty!
Easily build your dream firepit system with this universal paver kit to accommodate your needs. Get ready to unveil an outdoor paradise and take your dream backyard fire space to the next level.
Notes:
- The kit does not include stone/enclosure and vents unless where noted. (Warming Trends recommends 18 sq. inches of ventilation on opposing sides of the fire feature.)

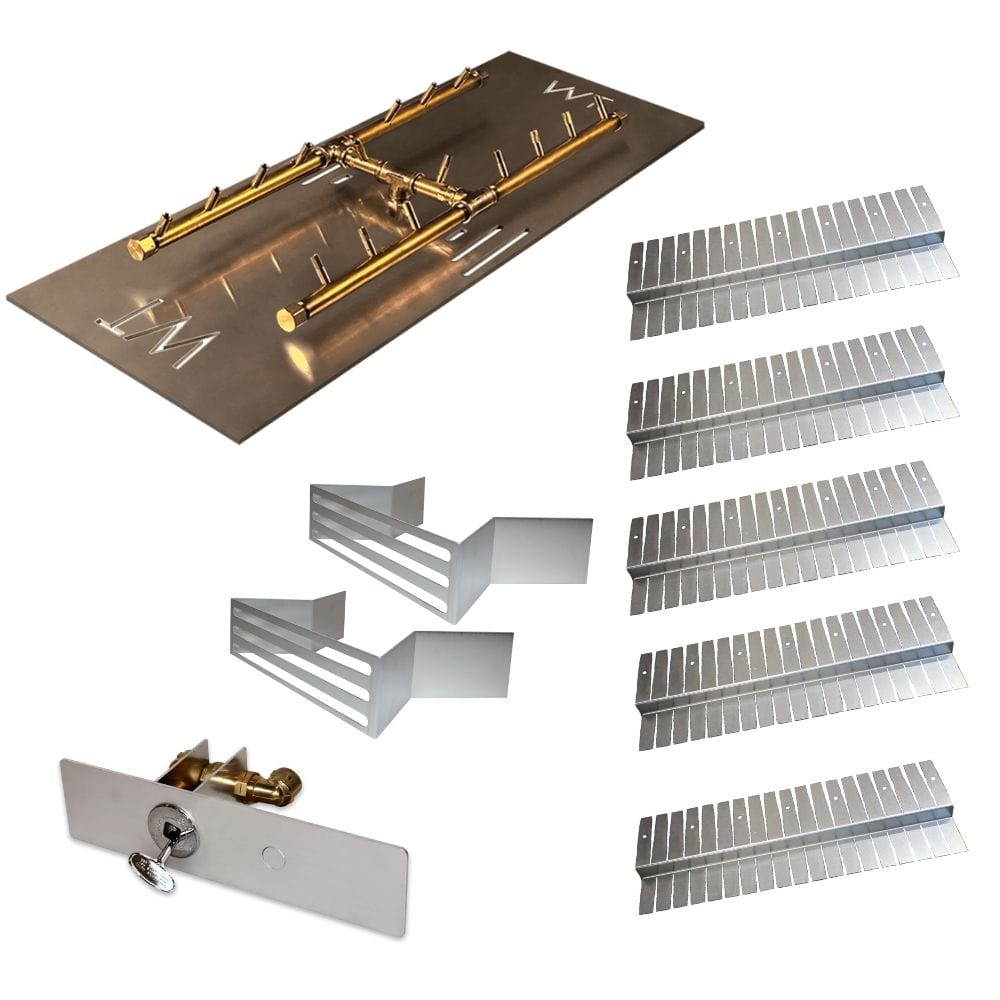

What's Included:

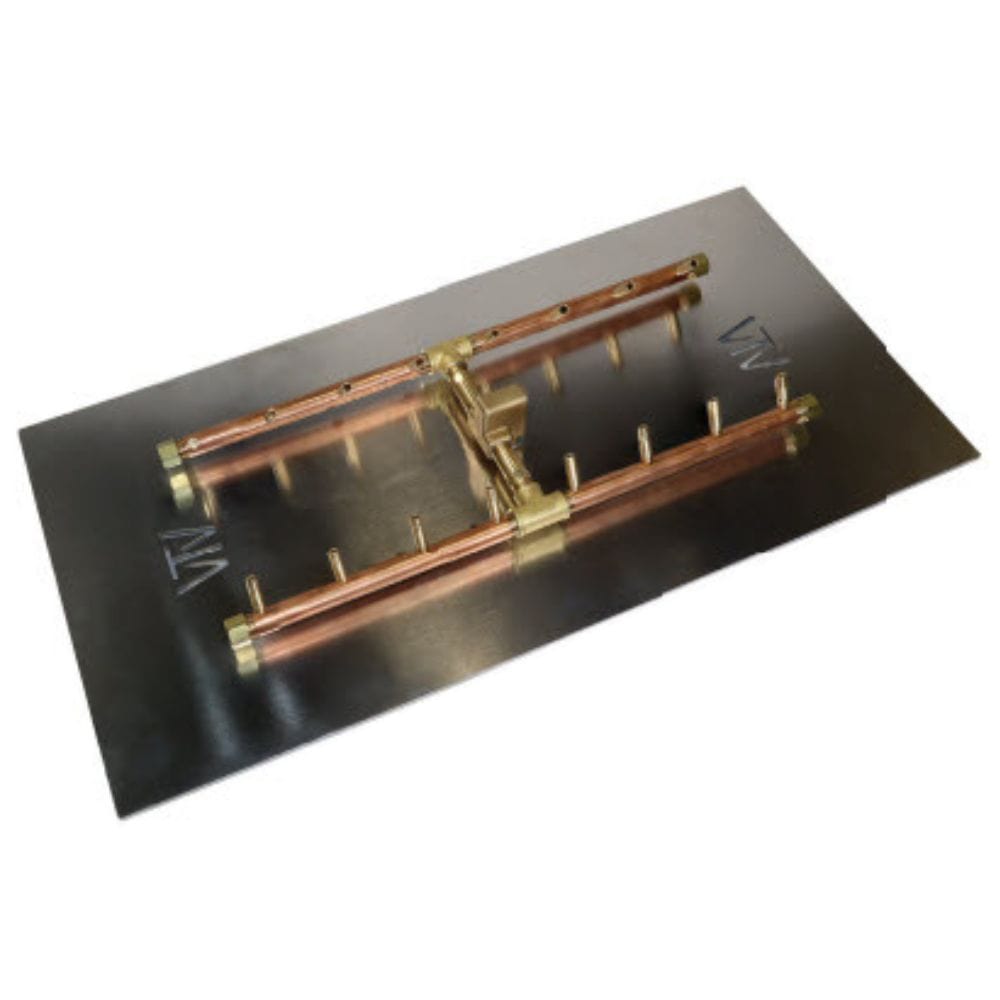

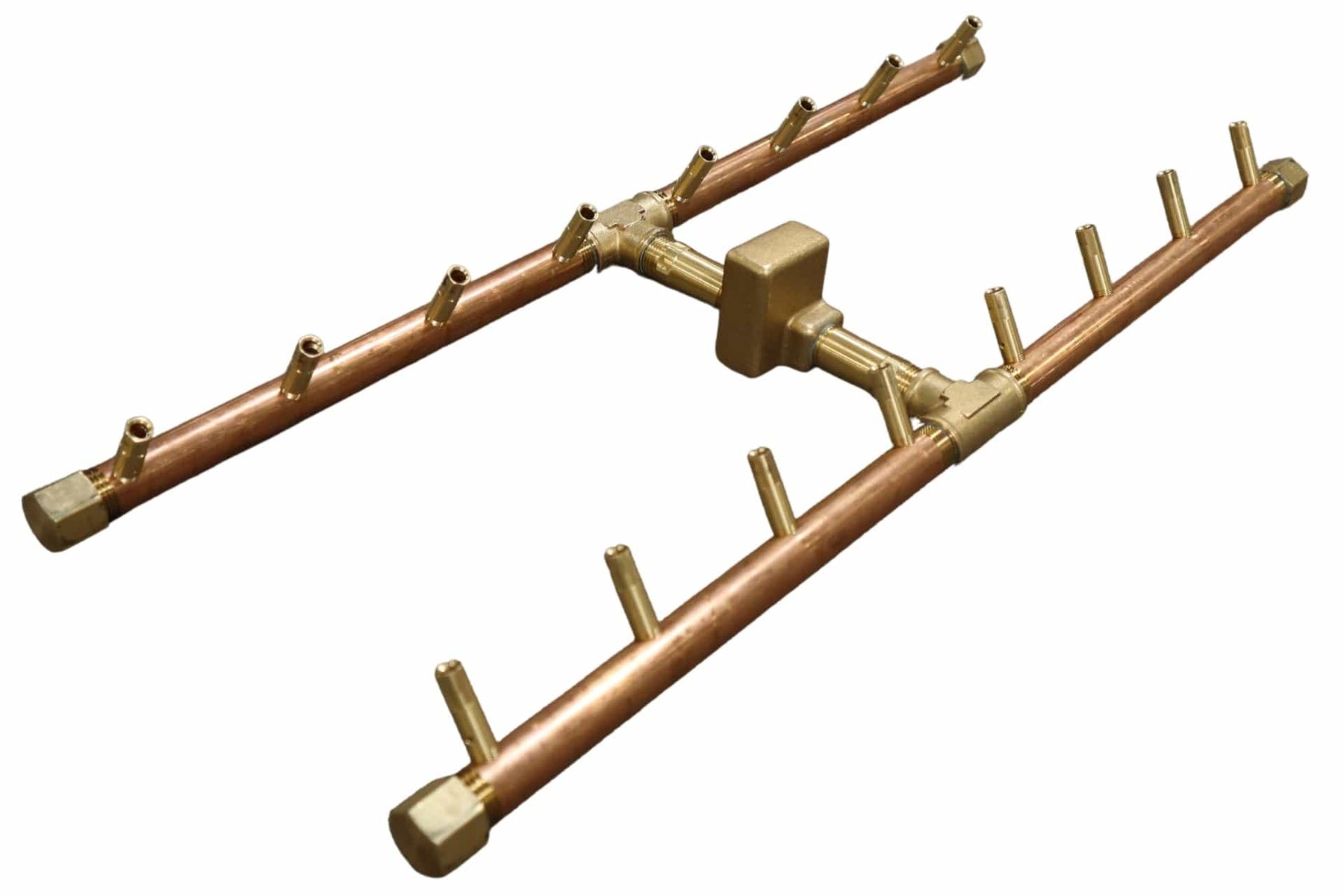

- CFBH160 H-Style Brass Burner with WATERSTOP
- 32” x 17 ¾ " Rectangular Aluminum Plate
- Flex Line ⁄ Key Valve Kit

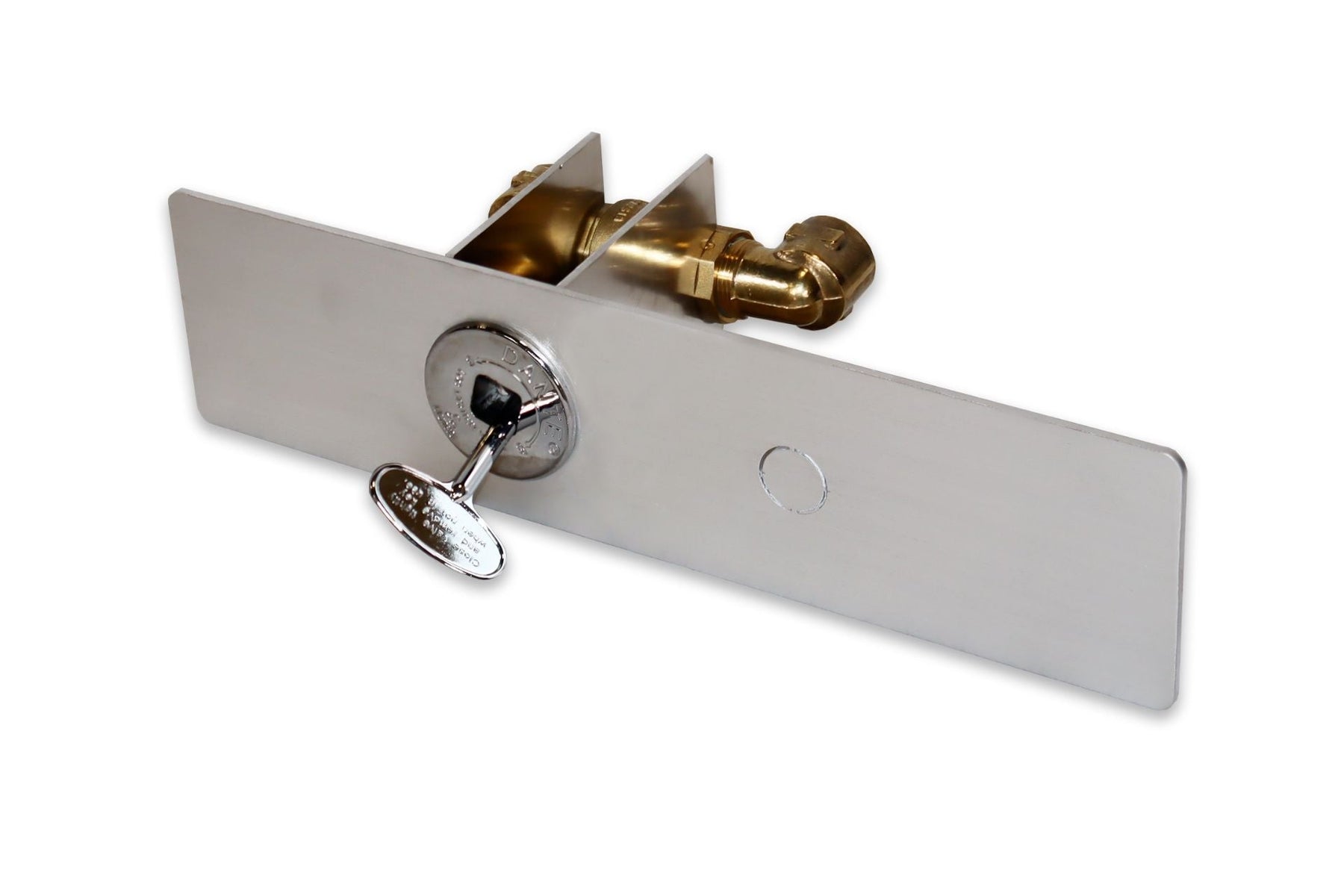

- 14" x 3 ½ " Mounting Bracket

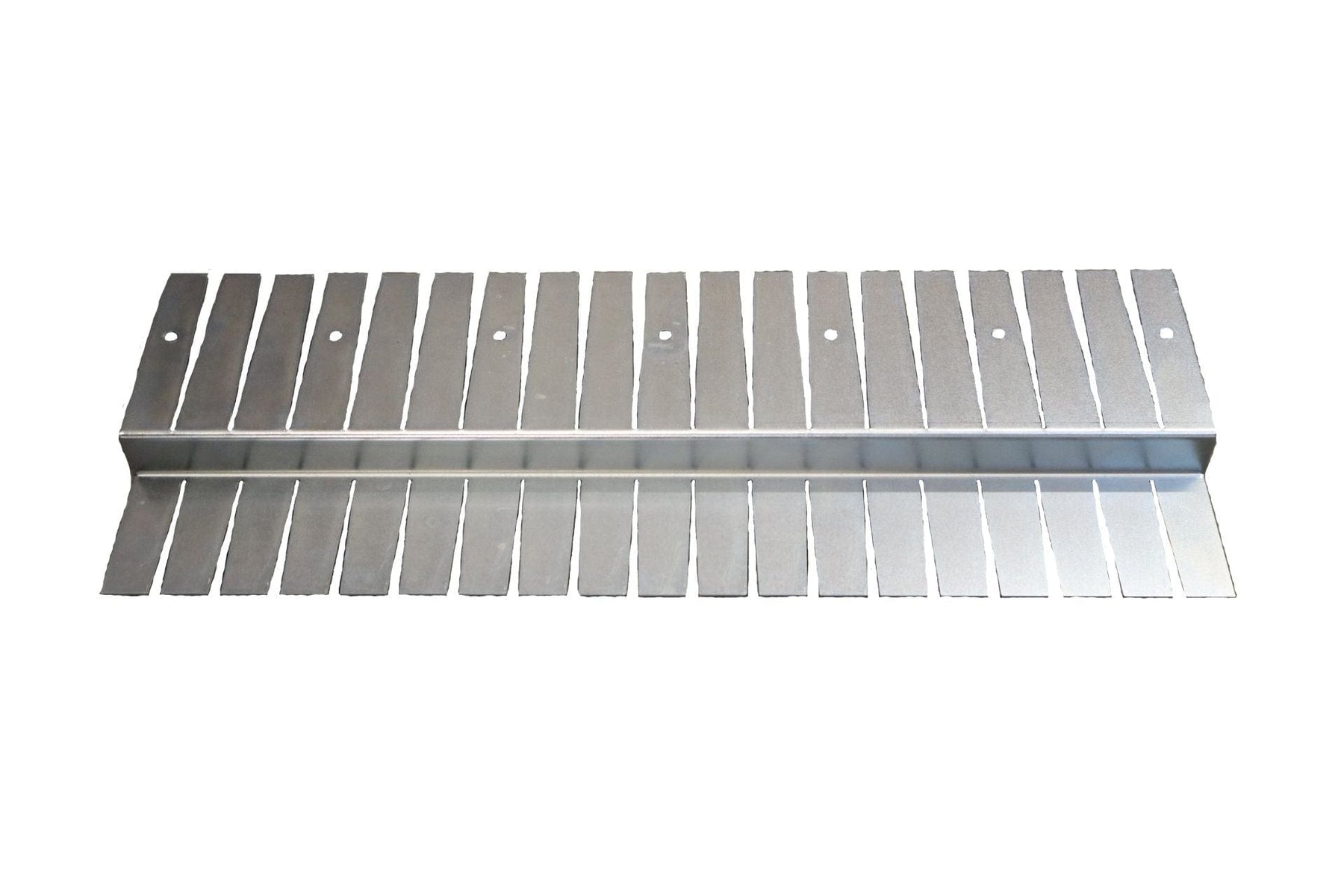

- (5) Flexible, No Drill Collars

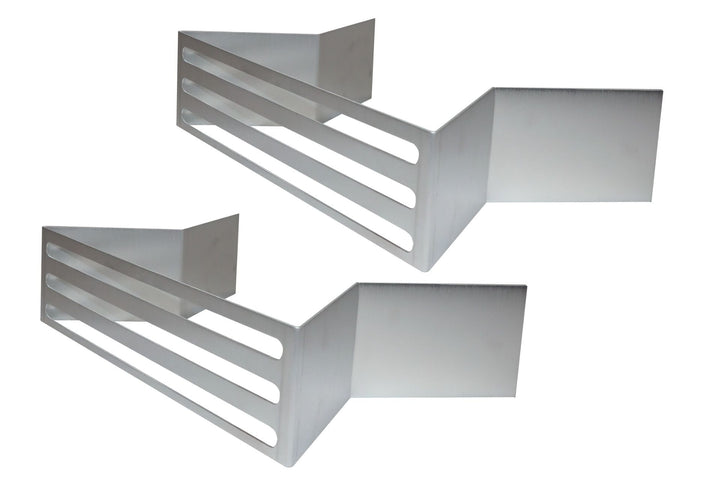

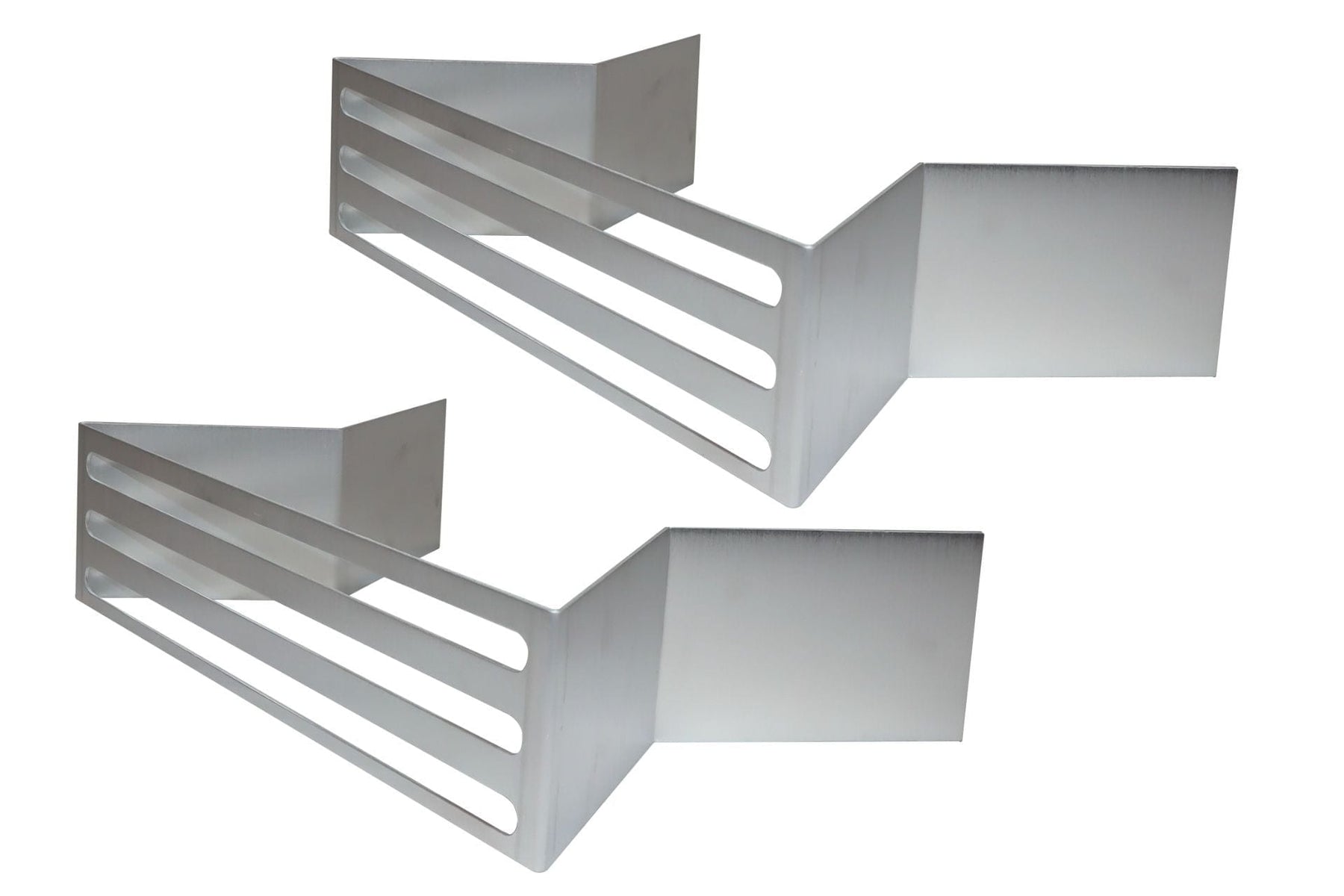

- (2) 14" x 3 ½ " Vents
Order the Warming Trends Raffinato Specialty Paver Kit with Crossfire H-Style Brass Burner and Rectangular Aluminum Plate today at Flame Authority, your trusted dealer!
Features
Features:
- Made of Brass - Guaranteed corrosion-resistant product to ensure low-cost maintenance and lifetime quality. No rust!
- Crossfire™ Burner Design - Innovative burner design with fuel regulation creates taller, brighter, fuller, and more natural flames.
- Match Light Kit - Includes flex line, 1/4-turn ball valve, decorative flange key, and a plate.
- Natural Gas or Propane - Accommodates natural gas and propane
- Fuel Efficiency - For propane or natural gas, we offer a fuel-efficient burner that only consumes half the fuel of conventional burners.
- Flexible, No Drill Collars inserted between blocks.
- The redesigned Mounting Bracket eliminates the need to drill through the block to mount the Key Valve.
- Key Valve Mounting Bracket and Vents are sized perfectly to replace a block and designed to support the block above.
- Full Lifetime Warranty - The ‘No rust’ feature is backed by Warming Trends' Full Lifetime Warranty.
Manuals
Manuals:
- Owner's Manual
- Product Catalog
- 6 Steps to Fire
- H-Style Burner Specs
- FLKV34 Instructions
- Waterstop Feature
- Warming Trends Universal Gas Insert Kits Brochure
- Warming Trends Catalog
Specifications
Specifications:
- Manufacturer: Warming Trends
- SKU Number: UPKRRNG / UPKRRLP
- Fuel Type: Natural Gas or Propane
- Burner Material: Brass
- Burner Style: CFBH160 CROSSFIRE® Brass Burner with WATERSTOP™
- Plate Size and Shape: 32" x 17.75" Rectangular Aluminum Plate
- Burner BTU: 160,000
- Collar: Flexible, No Drill Collars (5)
- Vents: 14" x 3.5" (2)
- Mounting Bracket: 14" x 3.5"
- Flex Line Kit: Yes
- Twice The Flame: Yes
- Fuel-Efficient: Yes
- Lifetime Warranty: Yes
