Extra-Wide Built-In Water Vapor Fireplace

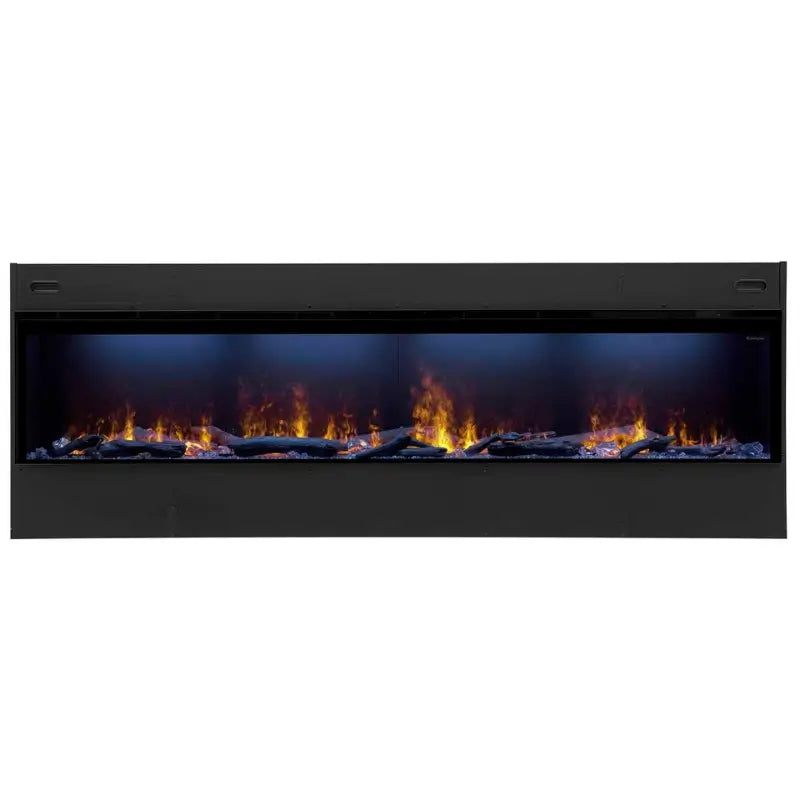

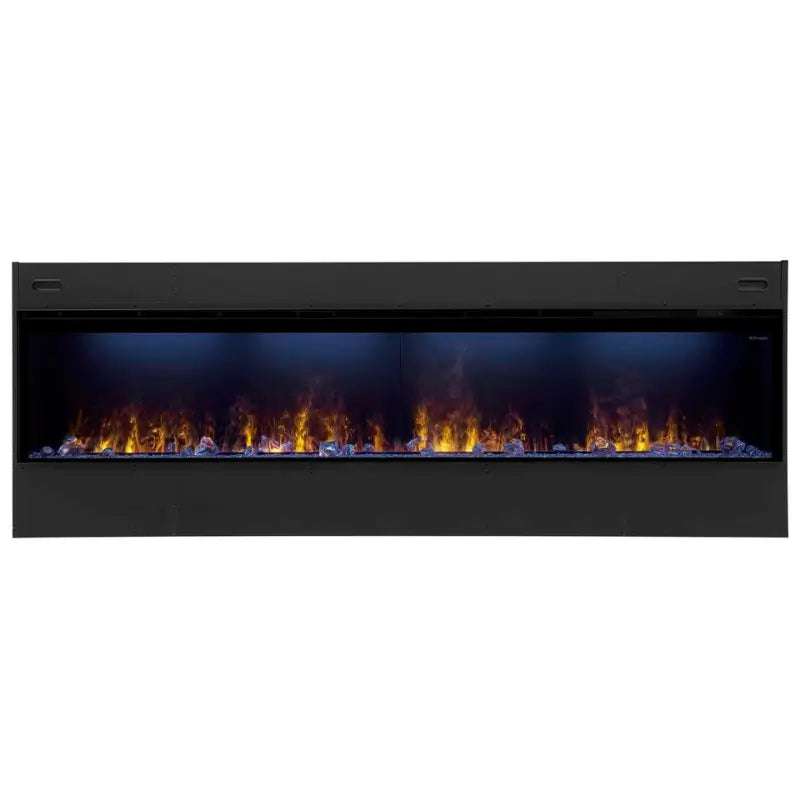

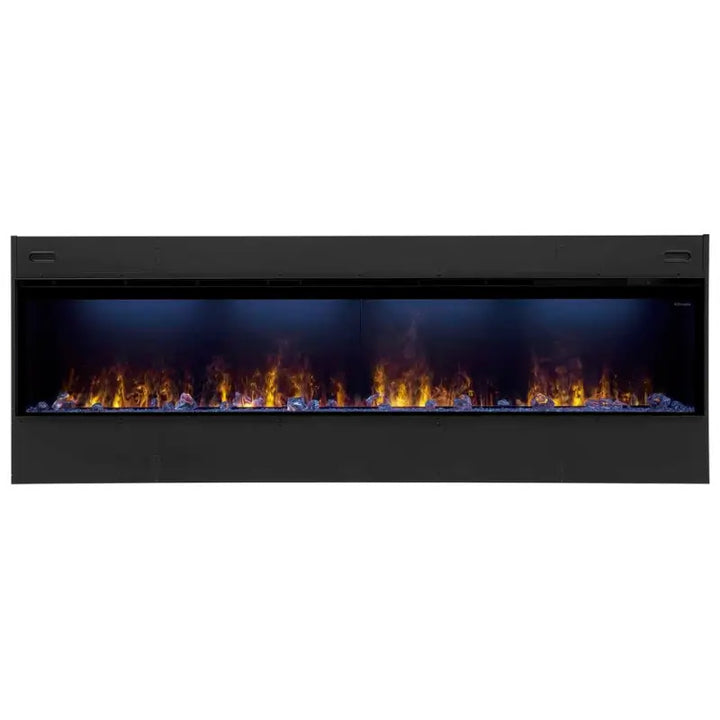

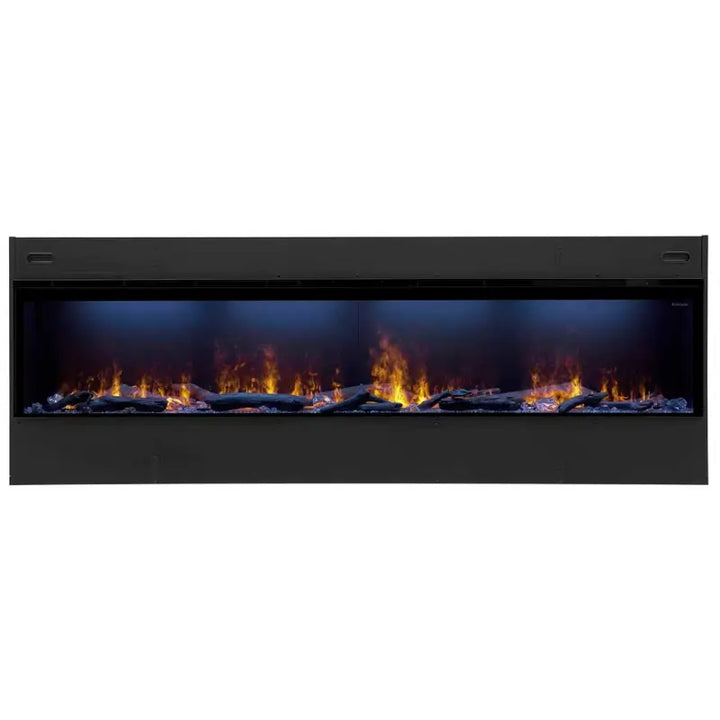

Dimplex Optimyst 86-Inch Built-In Linear Electric Fireplace – OLF86-AM
An extra-wide three-dimensional water-vapor fireplace with LED flame effects, 240V supplemental heat, smart controls, and a slim zero-clearance firebox for large feature walls.
Model OLF86-AM 86-Inch Linear Design Up to 8,189 BTU 240V Required for Heat 160 sq. in. Air Inlet
Best for: Large media walls, luxury living rooms, hospitality interiors, commercial spaces, and custom architectural installations.
Quick Product Facts
Flame TechnologyOptimyst Water Vapor + LED
Maximum Heat8,189 BTU at 240V
Fresh-Air InletMinimum 160 sq. in.
Minimum Framing Width88 in.
Quick Decision Summary
Best For
- Large feature walls and wide media-wall installations
- Homeowners who want a realistic flame effect without combustion
- Modern living rooms, lounges, lobbies, and hospitality spaces
- Projects that cannot accommodate gas venting or a chimney
- Year-round flame ambience with independently controlled heat
- Designers, builders, and contractors planning a built-in fireplace wall
May Not Be Ideal For
- Outdoor installations
- Projects without space for the required 88-inch framed opening
- Installations that cannot provide the required 160-square-inch fresh-air inlet
- Buyers seeking a real wood, gas, or combustion-based flame
- Applications requiring heat while limited to a 120-volt connection
- Locations where regular water-system cleaning cannot be performed
What Is the Dimplex Optimyst OLF86-AM?
The OLF86-AM is an 86-inch built-in electric fireplace that uses illuminated water mist to create a dimensional flame and smoke effect. It operates without a chimney or gas line, supports continuous or refillable water delivery, and requires 240V power when supplemental heat is needed.
Why Choose the Dimplex Optimyst OLF86-AM?
Dimensional Water Vapor Flame Effect
Patented Optimyst technology uses illuminated water vapor to create the appearance of flames and smoke rising through the media bed. Because the effect is not produced by combustion, there is no real flame, ash, soot, or smoke exhaust.
Extra-Wide 86-Inch Linear Presentation

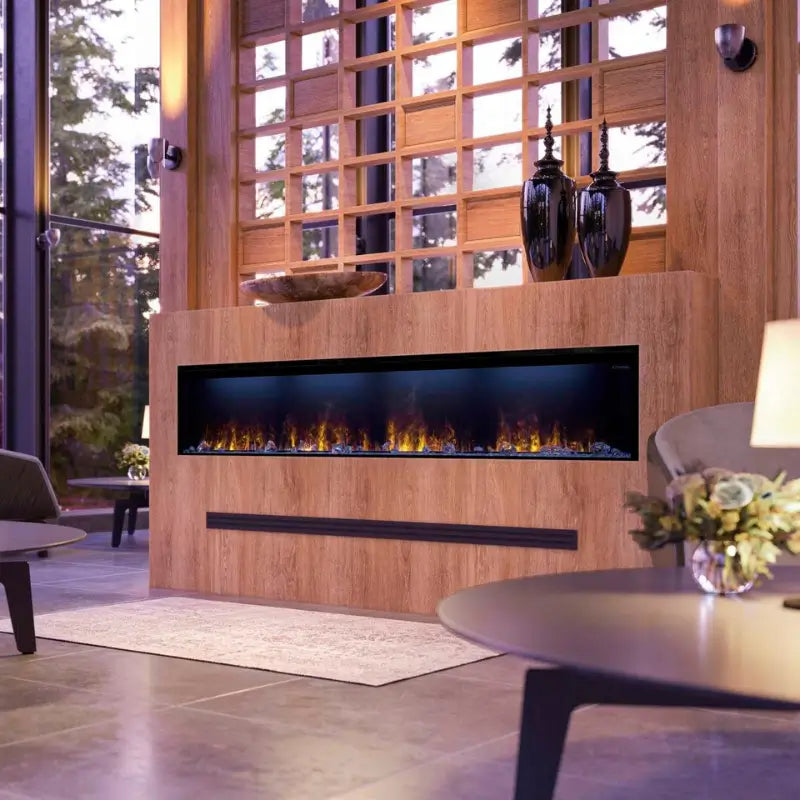

The OLF86-AM provides a dramatic focal point for large-scale fireplace walls. Its viewing area measures approximately 84 1/4 inches wide by 14 3/8 inches high, giving the flame display a long, uninterrupted architectural appearance.
Slim Built-In Firebox
With a product depth of approximately 11 7/8 inches and a minimum framing depth of 12 inches, the firebox can be integrated into many custom walls without the deep chase commonly required by vented fireplaces.
Vent-Free Electric Operation
The fireplace does not require a chimney, gas vent, or combustion-air system. A fresh-air inlet is still mandatory for proper operation of the water vapor flame modules and must allow airflow to reach the underside of the firebox.
Flame-Only or Flame-and-Heat Operation
The Optimyst effect can be enjoyed independently of the supplemental heater. This allows the fireplace to provide visual ambience throughout the year, including during warmer weather when room heating is not needed.
Multiple Control Options
Operate the fireplace using the included multifunction Bluetooth remote control, the hidden touch controls, or the Dimplex Flame Connect mobile app. Available adjustments include flame intensity, lighting themes, top-light brightness, temperature, timer, heat mode, and sound volume.
Continuous Water Supply Compatibility
The unit is designed for connection to a cold-water source using standard 1/4-inch outside-diameter tubing. This provides continuous water delivery to the vapor system. The optional CDFIPLUMB-KIT is available for installations using 1/4-inch copper piping.
Customizable Media and Flame Appearance
Driftwood, small acrylic crystals, large crystals, and extra-large crystals are included. Breakable and slotted flame baffles allow the installer or owner to alter spacing in the mist output and create a more personalized flame arrangement.
Optimyst Flame and Lighting Experience
The OLF86-AM uses four water vapor flame modules positioned across the firebox. Fine mist rises through illuminated openings in the media bed, where LED lighting creates the appearance of three-dimensional flames and smoke.

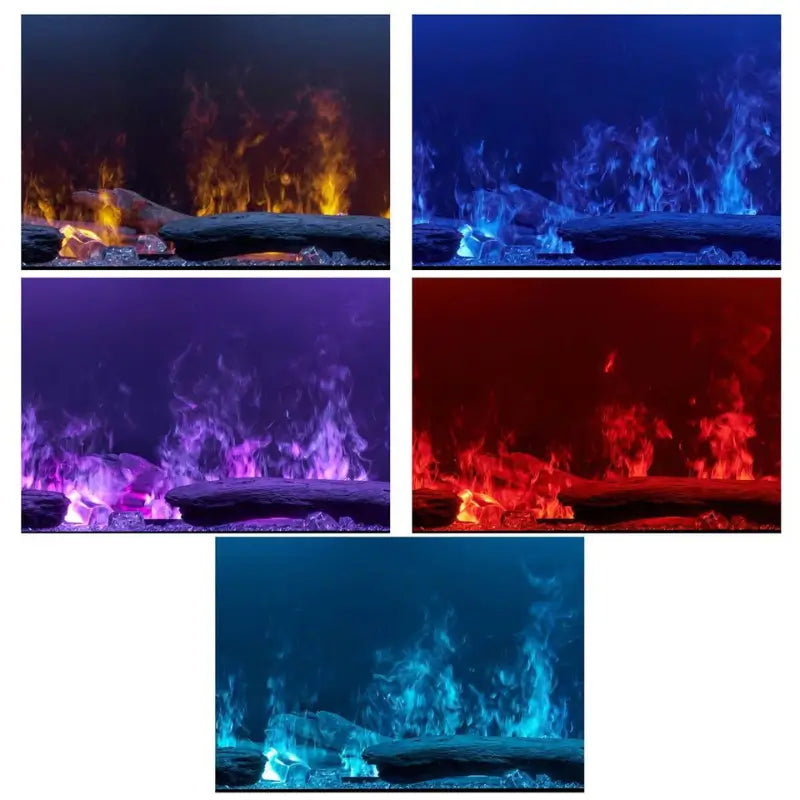

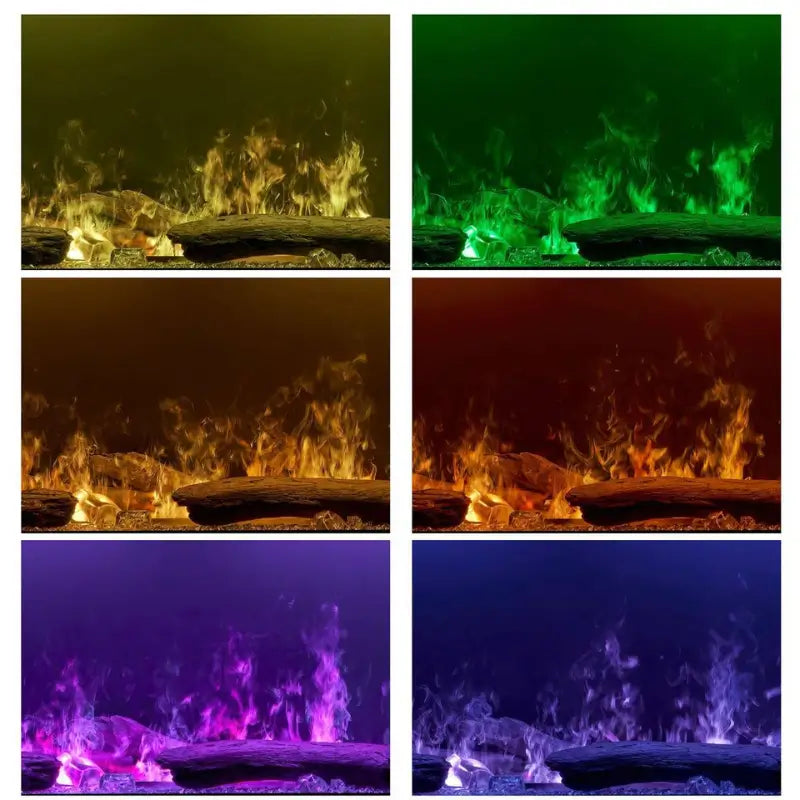

Flame intensity can be adjusted to low, medium, or high. The fireplace also provides multiple ambient and flame themes:
- Natural Flame
- Blue
- Violet
- Red
- Aquamarine
- Prism Mode
- Kaleidoscope Mode
- Custom Theme through the Flame Connect app
Top-light brightness can be adjusted through five brightness levels or set to a pulsating effect. A crackling sound effect is also included and can be adjusted from off through volume level six.
The flame system requires a brief warm-up sequence after startup. Dimplex recommends allowing approximately 15 minutes of operation before making final flame-intensity adjustments.
The OLF86-AM includes a front-vented, fan-forced ceramic heater with Comfort$aver™ technology. The system automatically adjusts fan speed and heater output based on the selected thermostat setting.
Important: The OLF86-AM does not produce heat when connected to 120 volts. At 120 volts, the flame effect, controls, and fans remain operational, but a 240-volt connection is required to activate the supplemental heater.
Electrical and Heating Configuration
| 120-Volt Configuration |
1,020 watts; no heat output on the OLF86-AM |
| 240-Volt Configuration |
2,400 watts with supplemental heat |
| Maximum Listed Heat Output |
Approximately 8,189 BTU per hour at 240 volts |
| Heater Type |
Front-vented, fan-forced ceramic heater |
| Temperature Range |
59°F to 86°F / 15°C to 30°C |
| Frost Protection |
Maintains approximately 45°F / 7°C |
Available Heat Modes
-
Normal: Adjusts heat output to reach and maintain the selected temperature.
-
Eco: Operates at reduced power to limit energy use.
-
Heat Boost: Runs at maximum output for 5, 10, or 15 minutes before returning to normal mode.
-
Frost Protection: Maintains the room at approximately 45°F.
-
Fan: Circulates room air without producing heat.
The heat function can also be temporarily disabled through the hidden controls. For installations that require permanent flame-only operation, the heater and fan can be disabled at the main control board according to the manufacturer’s instructions.
Controls and Smart Features
- Included multifunction Bluetooth remote control
- Hidden touch-control panel
- Dimplex Flame Connect mobile-app compatibility
- Adjustable flame intensity
- Multiple flame and ambient-light themes
- Adjustable top-light brightness
- Adjustable crackling-sound volume
- Thermostatic temperature control
- Normal, Eco, Boost, Frost Protection, and Fan modes
- 30-minute to 8-hour shutoff timer
- Extractor-fan boost to help clear excess internal fogging
- Automatic over-temperature protection
- Water-level and overflow monitoring
- Self-diagnostic error codes
A Wi-Fi connection must be available at the installation location to use the Flame Connect mobile app. The supplied remote will not operate while the app is open on a paired mobile device.
Installation Requirements
The OLF86-AM is intended for permanent built-in installation. Installation must follow the manufacturer’s instructions and all applicable electrical, plumbing, and building-code requirements. Two people are recommended for positioning the firebox, and two people are required to install the front glass.
Framing Requirements
OLF86-AM Framing and Opening Dimensions
| Minimum Framing Width |
88 inches / 223.5 cm |
| Framing Height |
31 3/4 inches / 80.6 cm |
| Minimum Framing Depth |
12 inches / 30.5 cm |
| Drywall Opening Width |
86 3/16 inches / 219.0 cm |
| Drywall Opening Height |
17 1/2 inches / 44.5 cm |
The fireplace is not load-bearing. Framing and finishing materials must not place pressure on the top of the firebox. The unit must be installed level, secured with the supplied mounting brackets, and positioned flush with the framing.
Required Fresh-Air Inlet
A minimum unobstructed fresh-air inlet area of 160 square inches / 1,032 cm² is required. The airflow path must reach the underside of the fireplace.
The inlet may be incorporated as a recessed opening, front register, or side registers. When side registers are used, an opening on each side is recommended for best results. If a decorative grille covers the inlet, the overall opening must be enlarged to compensate for the grille’s blocked area.
Installation warning: Operating the fireplace without the required fresh-air inlet can cause poor flame performance and damage to the unit.
Electrical Installation
- Supports 120-volt, 3-wire hardwired installation
- Supports 240-volt, 4-wire hardwired installation
- A dedicated, properly fused 15-amp circuit is recommended
- A 240-volt connection is required for heater output on the OLF86-AM
- The optional OLFPLUG power-cord kit is suitable only for 120-volt installations
- An extension cord must not be used
Electrical work must comply with applicable local and national electrical codes. A certified electrician should install any new circuit or outlet required for the fireplace.
Water-Supply Installation
The fireplace is designed for connection to a cold-water line using standard 1/4-inch outside-diameter tubing. The main water connection is located near the lower left rear of the firebox, so framing should allow access for the water line and a serviceable shutoff location.
Normal tap water may be used. A water softener is recommended in hard-water areas, and more frequent cleaning may be required. Unfiltered water from a well or another unmonitored source is not recommended.
When permanent plumbing is not possible, compatible refillable Optimyst water containers may be used. One container is required for each of the four flame modules, and each refill provides up to approximately six hours of flame operation. Manual containers are not recommended for frequently used installations because the glass and media tray must be removed for refilling.
Recommended Mounting Height
For the best flame-viewing angle, Dimplex recommends mounting the bottom of the fireplace between 5 and 50 inches above the floor.

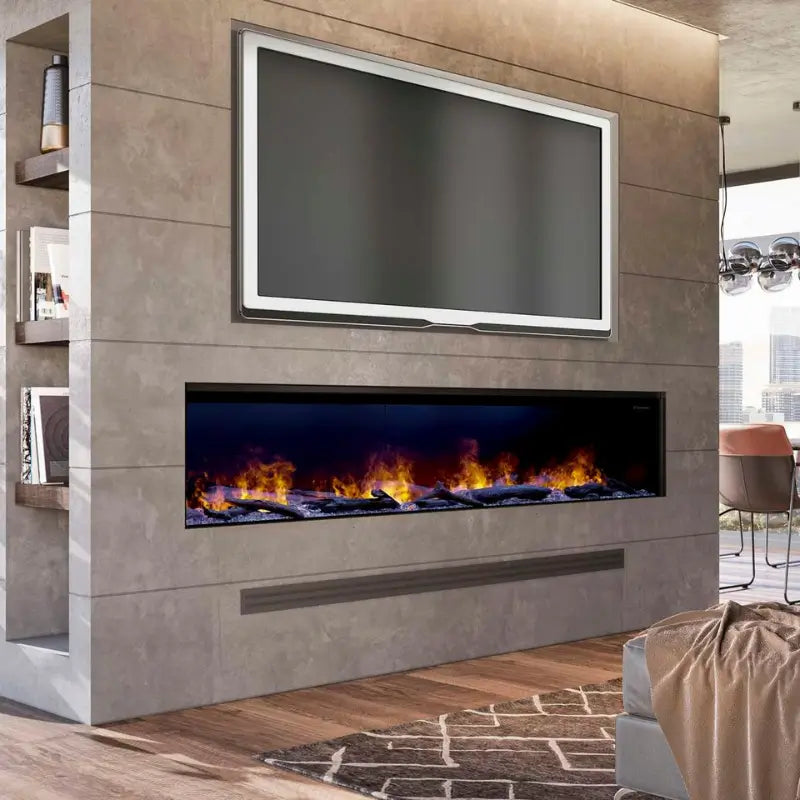

Installation Below a Television, Mantel, or Artwork
For temperature-sensitive objects installed above the fireplace, follow the clearance and placement requirements supplied by the television, mantel, artwork, or equipment manufacturer. The fireplace manufacturer does not provide one universal clearance for every overhanging product.
Bathroom Installation
Bathroom installations require GFCI protection. The fireplace is not watertight and must be positioned so water cannot enter the unit. It must not be installed where it could fall into a bathtub or other water container.
What Is Included?
OLF86-AM Package Contents
| Included Component |
Quantity |
| OLF86-AM firebox |
1 |
| Tempered front glass |
1 |
| Bags of small acrylic crystals |
4 |
| Bags of large acrylic crystals |
2 |
| Bag of extra-large acrylic crystals |
1 |
| Driftwood pieces |
15 |
| Spare transducers |
4 |
| Glass-handling suction cups |
2 |
| Multifunction remote control with batteries |
1 |
| Installation and user guide |
1 |
| Breakable flame baffles |
8 |
| Slotted flame baffles |
12 |
| Bubble level |
1 |
| 1 1/2-inch wood screws |
4 |
Package contents may be changed by the manufacturer without notice. Retain the supplied suction cups and spare transducers in a secure location because they may be needed for maintenance or future service.
Complete Product Specifications
Dimplex Optimyst OLF86-AM Specifications
| Brand |
Dimplex |
| Product Series |
Optimyst Linear |
| Model Number |
OLF86-AM |
| Order Number |
X-136809 |
| Product Number |
136809 |
| Regulatory Model Number |
6911540300 |
| Product Type |
Built-in linear water vapor electric fireplace |
| Installation Location |
Indoor |
| Installation Type |
Built-in / zero-clearance |
| Viewing Style |
Single-sided linear |
| Fuel / Power Source |
Electricity and water |
| Venting |
No chimney or combustion vent required |
| Flame Technology |
Patented Optimyst water vapor and LED technology |
| Number of Flame Modules |
4 |
| Flame Intensity |
Low, medium, and high |
| Ambient and Flame Themes |
8 settings, including custom app-controlled mode |
| Top-Light Brightness |
5 brightness levels plus pulsating effect |
| Sound Effect |
Adjustable crackling sound, off through level 6 |

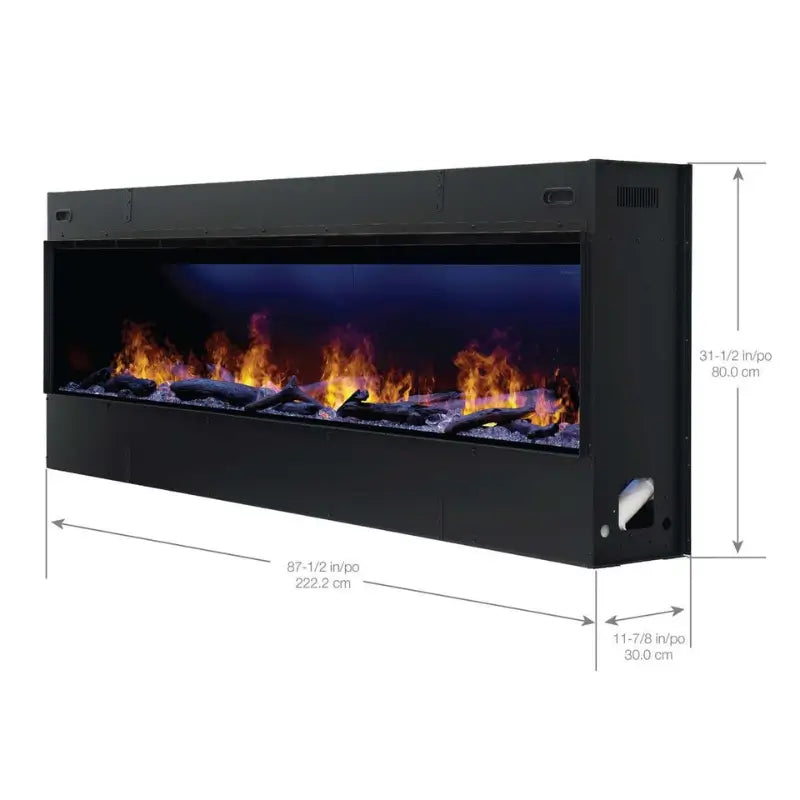

| Product Width |
87 1/2 inches / 222.2 cm |
| Product Height |
31 1/2 inches / 80.0 cm |
| Product Depth |
11 7/8 inches / 30.0 cm |
| Viewing Area |
84 1/4 inches wide × 14 3/8 inches high / 213.8 × 36.3 cm |
| Minimum Framing Width |
88 inches / 223.5 cm |
| Framing Height |
31 3/4 inches / 80.6 cm |
| Minimum Framing Depth |
12 inches / 30.5 cm |
| Drywall Opening |
86 3/16 inches wide × 17 1/2 inches high |
| Required Fresh-Air Inlet |
160 square inches / 1,032 cm² |
| Voltage |
120 or 240 volts |
| 120-Volt Power |
1,020 watts; no heater output on OLF86-AM |
| 240-Volt Power |
2,400 watts |
| Amperage |
8.5 amps at 120 volts; 10 amps at 240 volts |
| Maximum Heat Output |
Approximately 8,189 BTU per hour at 240 volts |
| Heater Type |
Fan-forced ceramic heater |
| Heat Vent Location |
Front |
| Temperature Setting Range |
59°F to 86°F / 15°C to 30°C |
| Heat Modes |
Normal, Eco, Heat Boost, Frost Protection, and Fan |
| Flame-Only Operation |
Yes |
| Timer |
30 minutes to 8 hours in 30-minute increments |
| Control Options |
Remote control, hidden touch controls, and Flame Connect app |
| Remote Battery Type |
Two 3-volt CR2032 batteries |
| Display Type |
LED |
| Front Glass |
Tempered glass |
| Water Connection |
Standard 1/4-inch outside-diameter cold-water tubing |
| Manual Water Option |
Compatible refillable water containers sold separately |
| Water Monitoring |
Water-level and overflow sensors |
| Automatic Shutoff / Protection |
Yes |
| Listed Sound Level |
55 dB |
| Certification |
cULus listed, file E71416 |
| Warranty |
2-year limited warranty |
Care and Maintenance
Regular cleaning is required to maintain proper mist production and reliable operation. Dimplex requires the top covers, sumps, water containers when used, and transducers to be cleaned with soap and water at least once per month. Hard-water conditions may require more frequent cleaning.
- Disconnect electrical power and allow the heater to cool before cleaning.
- Use a damp cloth on painted surfaces and glass.
- Do not use abrasive glass cleaners.
- Remove and gently rinse air filters with water when needed.
- Allow filters to dry before reinstalling them.
- Do not place plastic fireplace components in a dishwasher.
- Inspect the heater for dust accumulation at least annually.
Reduced mist production may indicate that the transducers require cleaning or replacement. Replacement transducers are included with the fireplace for future service.
Is the Dimplex Optimyst 86-Inch Fireplace Right for Your Project?
Choose the OLF86-AM when your project needs an extra-wide built-in fireplace with a dimensional flame effect but cannot accommodate a gas line, chimney, or combustion vent. It is especially well suited to large media walls, luxury living rooms, hotel lobbies, restaurants, offices, and custom architectural interiors.
Before ordering, confirm that the wall can accommodate the 88-inch minimum framed width, 31 3/4-inch framing height, and 12-inch minimum depth. The design must also include a 160-square-inch fresh-air inlet with an unobstructed path beneath the unit.
Select a 240-volt installation when supplemental heating is required. A 120-volt connection supports the visual flame experience but does not provide heat on this specific 86-inch model.
A continuous water connection is the better choice for frequent operation. Refillable containers remain an option where plumbing is unavailable, but four containers are needed and the glass and media tray must be removed during each refill.
Optimyst Water Vapor Fireplace vs. Standard Electric Fireplace
General Technology Comparison
| Feature |
Dimplex Optimyst OLF86-AM |
Typical Screen-Based Electric Fireplace |
| Flame Presentation |
Illuminated water vapor rises through the media bed |
Flame image is commonly displayed behind the media |
| Visual Depth |
Three-dimensional mist-based effect |
Usually flatter or layered visual effect |
| Water Required |
Yes |
Usually no |
| Combustion Vent Required |
No |
No |
| Flame Without Heat |
Yes |
Usually yes |
| Routine Flame-System Cleaning |
Water components and transducers require regular cleaning |
Usually limited to glass and air-intake cleaning |
| Best Fit |
Buyers prioritizing a dimensional, realistic flame experience |
Buyers prioritizing simple operation without a water system |
Frequently Asked Questions
Does the Dimplex Optimyst OLF86-AM use real fire?
No. The flame and smoke appearance is created with water vapor and LED lighting, so there is no combustion, burning fuel, ash, or real smoke.
Does the OLF86-AM produce heat on a 120-volt connection?
No. On this 86-inch model, a 120-volt connection powers the flame system, controls, and fans, but it does not produce heat. Connect the fireplace to 240 volts when supplemental heating is required.
How much heat does the Dimplex Optimyst 86-inch fireplace produce?
At 240 volts, the fireplace is rated at 2,400 watts and approximately 8,189 BTU per hour. It is intended for supplemental room heating rather than whole-home heating.
Does the OLF86-AM require venting?
It does not require a chimney, flue, or combustion vent. It does require a minimum 160-square-inch fresh-air inlet that allows airflow to reach the underside of the firebox.
What happens if the required fresh-air inlet is omitted?
The flame effect may perform poorly, and the fireplace may be damaged. The required air inlet must be incorporated into the finished wall and must remain unobstructed.
Does the Optimyst OLF86-AM need a water line?
A permanent water line is recommended for frequent use but is not the only option. The fireplace can also use compatible refillable water containers sold separately.
How long will refillable water containers operate the fireplace?
One refill provides up to approximately six hours of flame operation. The OLF86-AM has four flame modules, so four compatible containers are required.
Can normal tap water be used?
Yes. Normal tap water may be used, but a water softener is recommended in hard-water areas. Unfiltered water from a well or another unmonitored source is not recommended.
Can the fireplace operate without heat?
Yes. The Optimyst flame effect can run independently from the supplemental heater, allowing year-round use. The heat can be temporarily disabled through the controls or permanently disconnected according to the manual.
Can the OLF86-AM be installed under a television?
It may be installed in a media-wall application, but the television manufacturer’s clearance and temperature requirements must be followed. There is no single clearance that applies to every television or mounting configuration.
What are the framing dimensions for the OLF86-AM?
The framed opening requires a minimum width of 88 inches, a height of 31 3/4 inches, and a minimum depth of 12 inches. The fireplace is not load-bearing.
Can the flame colors and brightness be adjusted?
Yes. The unit provides multiple flame and ambient-light themes, three flame-intensity settings, five top-light brightness levels, and a pulsating-light option.
How is the Dimplex Optimyst OLF86-AM controlled?
It can be operated with the included Bluetooth remote, hidden touch controls, or the Dimplex Flame Connect mobile app. Wi-Fi must be available at the installation location for app use.
How often does the water vapor system need cleaning?
Dimplex requires the top covers, sumps, water containers when used, and transducers to be cleaned at least monthly. Hard-water conditions or frequent operation may require more frequent maintenance.
Is professional installation recommended?
Yes. The project involves structural framing, a mandatory air inlet, electrical work, and potentially a permanent plumbing connection. Electrical and plumbing work must follow applicable codes and should be completed by qualified professionals.
Can the OLF86-AM be installed outdoors?
No. This fireplace is designed for indoor installation and must not be used outdoors or exposed to water.
What warranty is included?
The OLF86-AM is listed with a 2-year limited manufacturer warranty. Warranty coverage is subject to the terms, exclusions, purchase location, and service requirements stated in the manufacturer documentation.
Plan Your Optimyst Fireplace Installation with Confidence
Before purchasing, verify your available wall dimensions, electrical voltage, required fresh-air opening, and preferred water-supply method. Proper planning is especially important for the OLF86-AM because 240-volt power is required for heat and a 160-square-inch air inlet must be built into the finished installation.
Contact a fireplace specialist when you need help reviewing the model specifications, planning the framed opening, or determining whether the 86-inch Optimyst is the right size for your feature wall.
Important Product and Installation Notice
Specifications and manufacturer requirements may change. Confirm the current Dimplex documentation before framing, wiring, plumbing, installing, operating, or servicing the fireplace.
Electrical and plumbing work must comply with applicable requirements and should be completed by appropriately qualified professionals.
