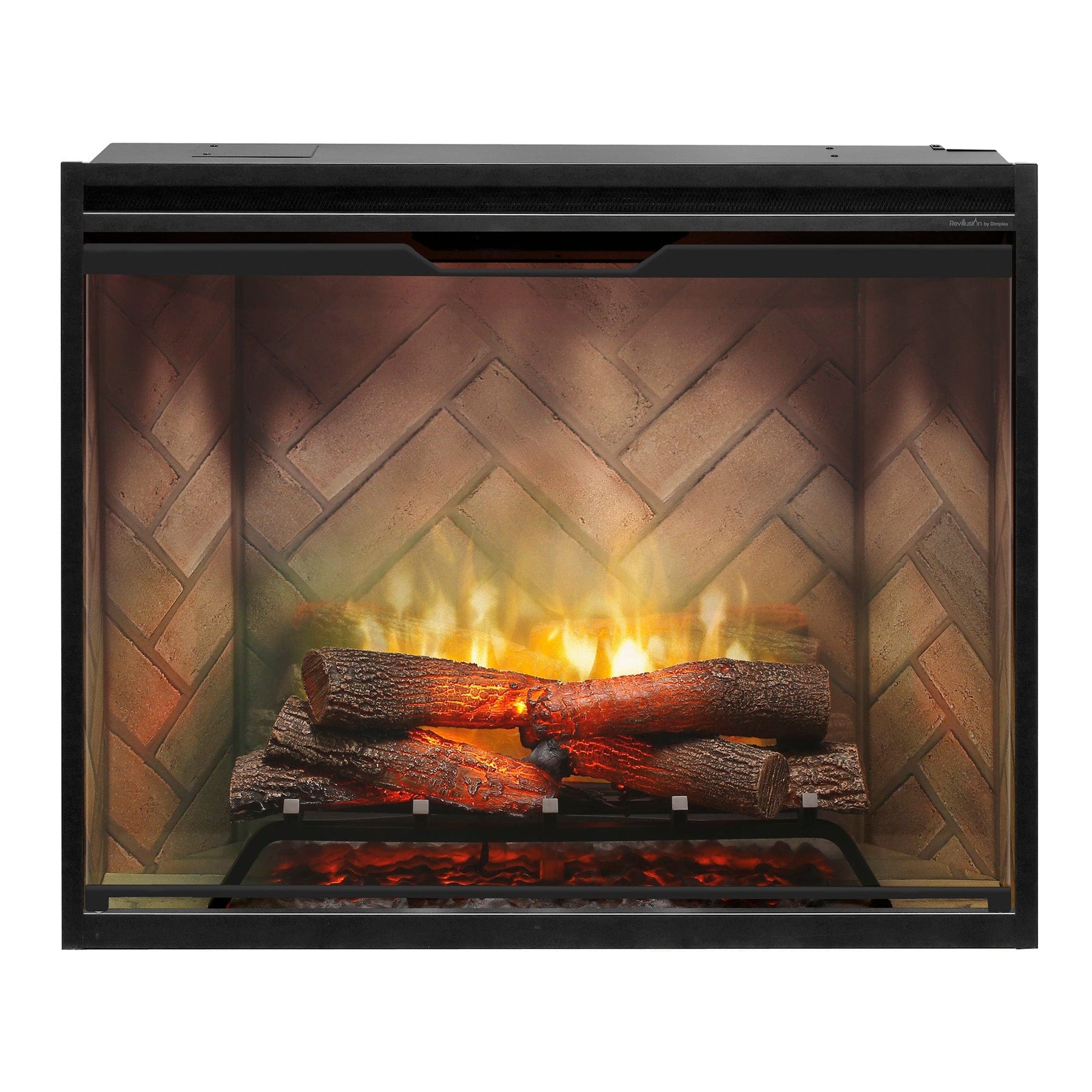

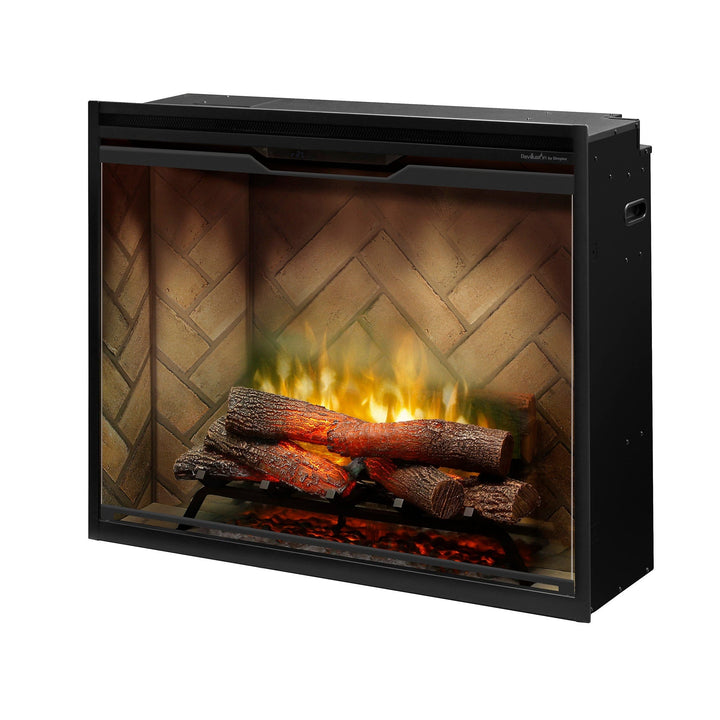

Dimplex Revillusion 36-inch Herringbone Built-In Electric Firebox RBF36P-FG Product Details

Dimplex Authorized Dealer | Flame Authority - Trusted Dealer

What are the key advantages of the Dimplex Revillusion 36-inch Herringbone Built-In Electric Firebox, particularly in terms of its unique herringbone design, realistic flame effects, and energy-efficient heating?

The Dimplex Revillusion 36-inch Herringbone Built-In Electric Firebox offers several key advantages that make it a standout choice for modern interiors. Its unique herringbone design adds a stylish touch, enhancing the overall aesthetic of any room. The realistic flame effects, powered by Revillusion technology, create a lifelike fire experience, featuring glowing embers and flames that dance realistically, providing both ambiance and warmth. Additionally, this firebox is energy-efficient, allowing for adjustable heat settings that can effectively warm larger spaces without the need for traditional fuel sources, making it an eco-friendly option for heating. Overall, it combines visual appeal, efficiency, and convenience in one package.

Dimplex Revillusion Herringbone Built-In Electric Firebox Key Features

Includes tempered front glass, plug kit, and mood-maker remote control

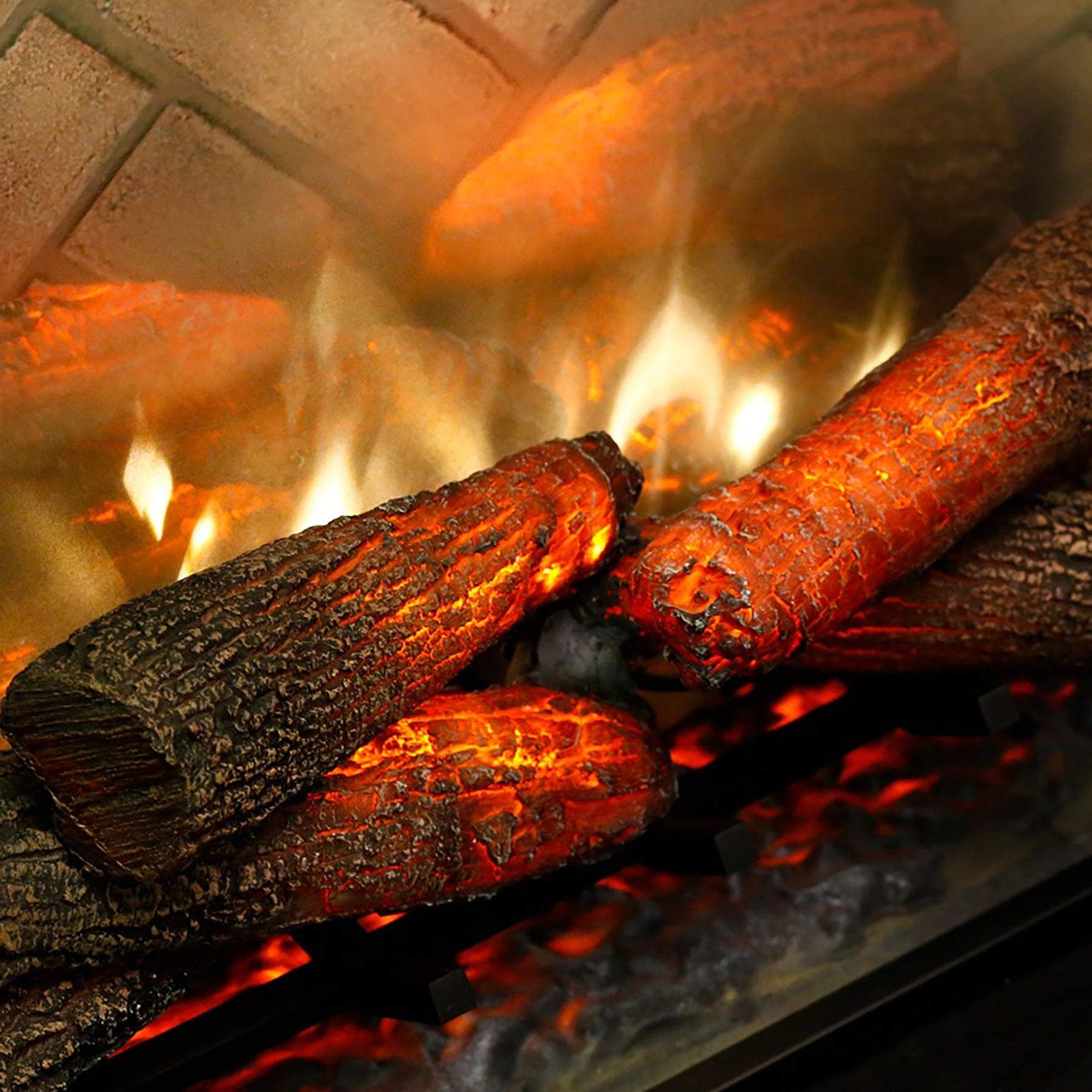

Features Realogs handcrafted and molded from real wood logs, which contain an inner lit LED light that adds a glowing, pulsating effect as if the logs are burning
Ability to dim the flames which simultaneously lowers flame height
Enjoy a full view of the fireplace interior with the ability to see clearly through the flames—no obtrusion

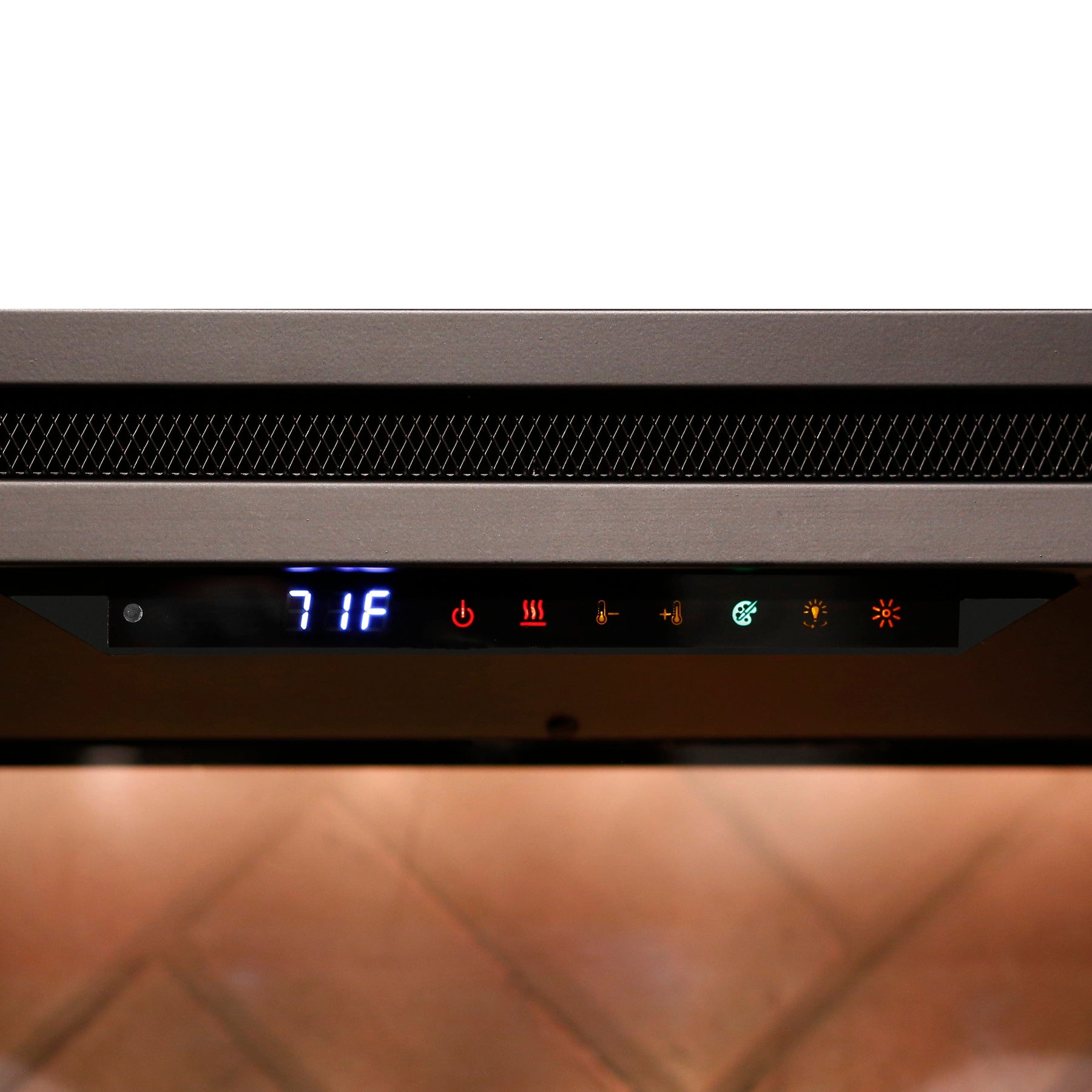

Adjust brightness of interior lighting from high to low to suit the room, including midnight mode which turns off lighting to reduce TV glare
Also available with weathered concrete interior (RBF30WC, RBF36WC, RBF42WC, RBF36PWC, RBF24DLXWC)
Fireplace heater can be permanently disabled by removing the electronic jumper on the main control board
No venting, gas lines, or piping required; simply frame, wire and finish for quick and easy installation
Revillusion Flame Technology produces ultrarealistic flames that mimic natural fire
Powerful fan-forced heater provides on-demand heat up to 1,000 square feet
Flame base colors include red and orange
Includes a translucent acrylic panel that reflects the flames to make them appear from within the logs
Includes mood lighting on the side, back, and top of the firebox interior. Colors include white, yellow, and red
The ambient light sensor automatically adjusts the firebox light to suit the room day or night
Enjoy the ambiance of a fire during the warmer months by deactivating the heater via the controls
As the flames do not emit heat, the front glass remains cool to touch, ensuring safety for children and pets
Hardwire to 120V/240V power supply or use the included 120V plug-in cord kit

Manuals for Dimplex Revillusion 36-inch Herringbone Built-In Electric Firebox

Specifications for Dimplex Revillusion 36-inch Herringbone Built-In Electric Firebox RBF36P-FG

Brand: Dimplex MODEL NAME/SERIES:Revillusion
Model #: RBF36P-FG
Product Height (in): 30.27
Product Depth/Length (in): 12.07
Wattage: 1300/1975/2575
AMPs: 10.8/9.5/10.7
Adjustable Brightness: Yes
Power Connections: Plug In/Hard Wired - en-US: Plug In/Hard Wired
Product Width (in): 37.17
Product Weight (lb): 101.86
Voltage: 120/208/240
Adjustable Flame: Yes
PROP 65-Y/N: Yes

Warranty

1-Year Limited Warranty

Covers fireplace parts for one year from date of purchase
Mantels and trims for one year, no in-home service

2-Year Limited Warranty

BLF series

Covers fireplace parts and labor for two years from date of purchase
In-home service for parts and labor for two years from date of purchase
Mantels and trims for one year, no in-home service

25" and 26"

Covers fireplace parts for two years from date of purchase
In-home service for parts and labor for the first year from date of purchase
Mantels and trims for one year, no in-home service

5-Year Limited Warranty

Covers fireplace parts for five years from date of purchase
In-home service for parts and labor for the first year from date of purchase
Mantels and trims for one year, no in-home service

10-Year Limited Warranty

Covers fireplace parts for ten years from date of purchase
In-home service for parts and labor for the first year from date of purchase
Mantels and trims for one year, no in-home service

Dimplex Electric Stoves: 90-DAY LIMITED WARRANTY

Exchange only, no in-home service
