Osburn Everest II Wood Fireplace w/4 Lengths of 6"x 36" Chimney OB04016K Review
Looking for a wood fireplace to provide the finest level of warmth throughout the winter? You can choose the Osburn Everest II Wood Fireplace with 4 Lengths of 6"x 36" Chimney OB04016K.
Attractive, efficient, and particularly ecological, the all-new Everest II is the ultimate addition to revive any living space. The classicism of its faceplate offers straight lines that suit any decor to enhance your family reunions, moments of relaxation or romantic evenings, in addition to being your best ally during the cold winter weather.
Made with care in Quebec, this easy-to-use non-catalytic wood fireplace has retractable cast iron double doors that you can enhance with a firescreen door to fully experience the crackle of the wood fire. A black or brushed nickel overlay is available for your convenience.
Because beyond the fire, your well-being is at the heart of our goal!

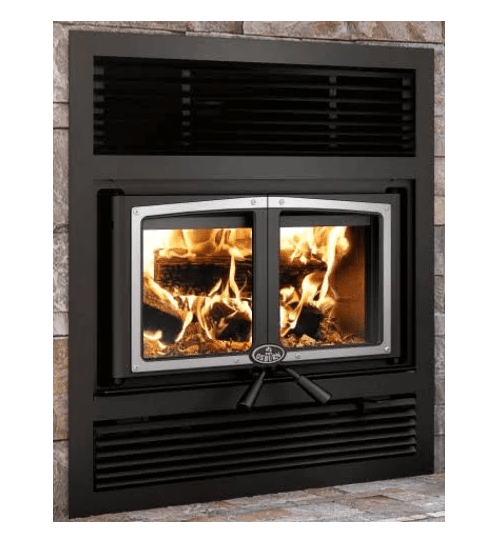

NOTE: Shown with required door overlay (not included). The door overlay must be purchased to complete this unit.
Required Acccessories:
- Black or brushed nickel door overlay
- Traditional style faceplate
Also available without a chimney, please look at the Osburn Everest II Wood Fireplace OB04016
Avail one of the best wood fireplace Osburn Everest II Wood Fireplace w/4 Lengths of 6"x 36" Chimney OB04016K Today and you will feel comfort and relaxation during the cold moments at your home!
Features
Features:
-
Fuel type: Dry cordwood (16" recommended)
-
Recommended heating area-ft²: 750 - 2,500
-
Overall firebox volume-ft³: 3.0
-
EPA loading volume-ft³: 2.61
-
Maximum burn time: 9 h
-
Maximum heat output-dry cordwood: 85,000 BTU/h (24.9 kW)
-
Overall heat output rate : 18,057 BTU/h (5.19 kW) to 49,654 BTU/h (14.52 kW)
-
Average overall efficiency (dry cordwood) : 65.7% (HHV) 70.8% (LHV)
-
Optimum overall efficiency: 72%
-
Optimum heat transfer efficiency: 68%
-
Average particulate emissions rate: 0.99 g/h
-
Average CO: 50.1 g/h
Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time, and maximum heat output.
Recommended heating area and maximum burn time may vary subject to location in the home, chimney draft, heat loss factors, climate, fuel type, and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
As measured per CSA B415.1-10 stack loss method.
- Higher Heating Value of the fuel.
- Lower Heating Value of the fuel.
Performances are based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
Optimum overall efficiency at a specific burn rate (LHV).
The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
This appliance is officially tested and certified by an independent agency.
Carbon monoxide.
Manuals
Manuals:
Is this a right-sized unit for your Wood Fireplace? Talk to an Expert at +1-800-923-4556 or email: support@flameauthority.com to ensure that this Wood Fireplace is best suited for your needs.
Specifications
Specifications:
-
Combustion technology: Non-catalytic
-
High-efficiency certified appliance: Yes, EPA 2020 approved
-
Maximum log length: 18"
-
Log positioning: Loading over the width
-
Chimney diameter: 6"
-
Flue outlet diameter: 6"
-
Type of chimney: Liner - ULC-S635, CAN/ULC-S640, UL1777
-
Minimum chimney height (feet): 15'
-
Baffle type: C-Cast or equivalent
-
Approved for a mobile home installation: No
-
Shipping Weight: 525lb (238 kg)
-
Door type: Double, glass with cast iron frame
-
Glass type: Ceramic glass
-
Glass surface – dimensions (Width X Height): 18 3/4" X 11 3/8"
-
Glass air-wash system: Yes
-
Premium Quality Blower Included (CFM): 176
-
Overall dimension: (Height) 49 1/8" (Width) 41 3/4" (Depth) 28 5/8"
-
Door opening – dimension: (Height) 10 1/4" (Width) 20 3/4"
-
Firebox – dimension: (Height) 16 3/8" (Width) 18 7/8" (Depth) 16 1/4"
-
Moulded Refractory Bricks: Yes
-
Stainless-steel secondary-air system improving gas combustion: Yes
-
USA standard (emissions): EPA
-
Canadian Standard (emissions): CSA B415.1-10
-
USA standard (safety): UL 127
-
Canadian standard (safety): ULC S610
-
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
-
Warranty: Limited lifetime
Minimum Clearances to Combustibles
Minimum Clearances to Combustibles:
(Data expressed in inches. 1 inch = 25.4 mm)
Canada
- Clearance - top (measured from the platform on which the appliance is installed) - 84"
- Clearance - Combustible side mantle to unit - 9"
- Clearance - Combustible top mantle to unit - 27"
- Clearance - Combustible side wall to unit - 19"
- Clearance - from the top of the unit to the shelf - 27"
United States
- Clearance - top (measured from the platform on which the appliance is installed) - 84"
- Clearance - Combustible side mantle to unit - 9"
- Clearance - Combustible top mantle to unit - 27"
- Clearance - Combustible side wall to unit - 16"
- Clearance - from the top of the insert to the shelf - 27"
The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogs, flyers, magazines, and/or websites).
Note: Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Options and Accessories
Options and Accessories:
4" X 5' Fresh Air Intake Kit - AC01239
- Allows outside combustion air to feed the appliance
4'' Fresh Air Intake register with Airtight Damper - AC01347
- Allows outside combustion air to feed the appliance; airtight damper prevents air drafts when not in use; fully adjustable wall control included.
4'' X 10' Insulated Flex Pipe for Fresh Air Intake Kit - AC02091
- Color black, made of two plies black polyester with fiberglass insulation
Firescreen Door - AC01379
- Protects from sparks while still providing easy access
Forced Air Kit - VA4460
- Helps with fireplace combustion
Traditional Gravity Kit - AC01375
